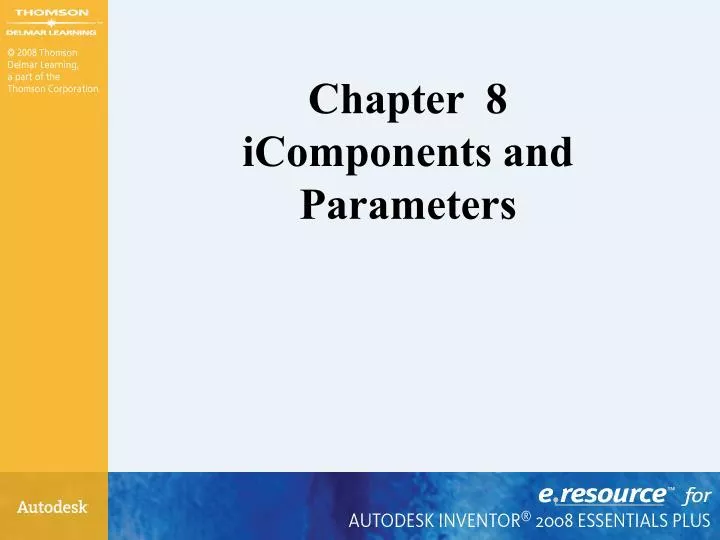

  1. Chapter 8iComponents and Parameters

  2. Chapter 8 - Objectives • After completing this chapter, you will be able to perform the following: • Create iMates • Change the display of dimensions • Create relationships between dimensions • Create parameters • Create and place iParts • Create and place iAssemblies • Create and place iFeatures

  3. iMates • Apply assembly constraints • Matching iMate • Create in part file • Constraints: Mate, Flush, Tangent, Insert or Motion

  4. iMates • Browser entry • Glyph on part • Rename

  5. iMates • Insert Component • Use iMate • Match List • Search order

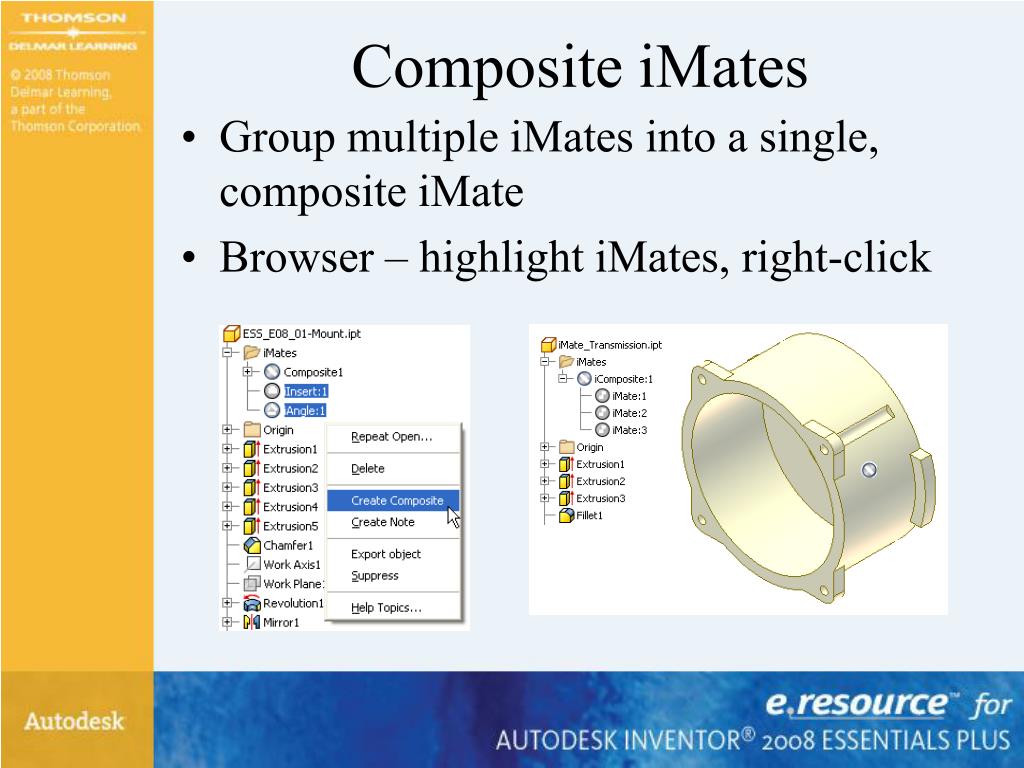

  6. Composite iMates • Group multiple iMates into a single, composite iMate • Browser – highlight iMates, right-click

  7. iMates alt+Drag & Visibility • Alt+drag – displays iMates • iMate visibility • Browser • Graphics window

  8. Exercise 8-1 • Creating and Using iMates

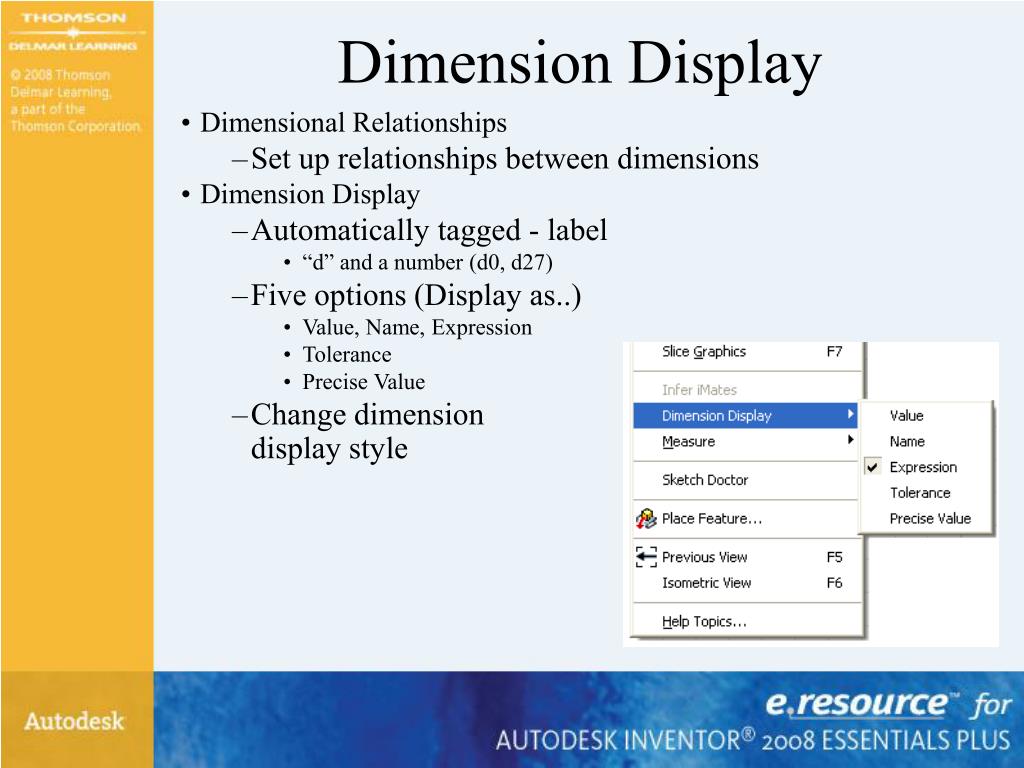

  9. Dimension Display • Dimensional Relationships • Set up relationships between dimensions • Dimension Display • Automatically tagged - label • “d” and a number (d0, d27) • Five options (Display as..) • Value, Name, Expression • Tolerance • Precise Value • Change dimension display style

  10. Dimension Relationships • Dimension Relationships • Setting relationship between creating and existing dimensions • Edit Dimension dialog box • Dimensions label (d#) • Prefix fx = value based on parameter or other dimension

  11. Dimension Equations • Dimension Equations • Can be used whenever a value is required • Example.. • (d9/4)*2, or 50 mm + 19 mm • prefixes, precedence, operators, functions, syntax, and units • Help system • Invalid expression • Red

  12. Parameters • Parameters • User-defined name assigned a numeric value, either explicitly or through equations • Multiple parameters • depth = length – width • Anywhere a value is required • Three types • model parameters • user parameters • linked parameters

  13. Parameters • Parameters • Parameters dialog box • Model Parameters • automatically • Reference Parameters • driven dimension • User Parameters • manually defined • Column names • Parameter Name • Units • Equation • Nominal Value • Tol • Model Value • Export Parameters Column • Comment

  14. Parameters • To use parameters • Any time a number is required • Type • List Parameters option in most dialog boxes

  15. Linked Parameters • Linked Parameters • Multiple values & same parameters • Spreadsheet • Microsoft Excel

  16. Linked Parameters • Linked Parameters • Spreadsheet Embedded • no link – no updates • Spreadsheet Linked • will update • more than one can be linked • Guidelines • Edit

  17. Exercise 8-2 • Relationships and Parameters

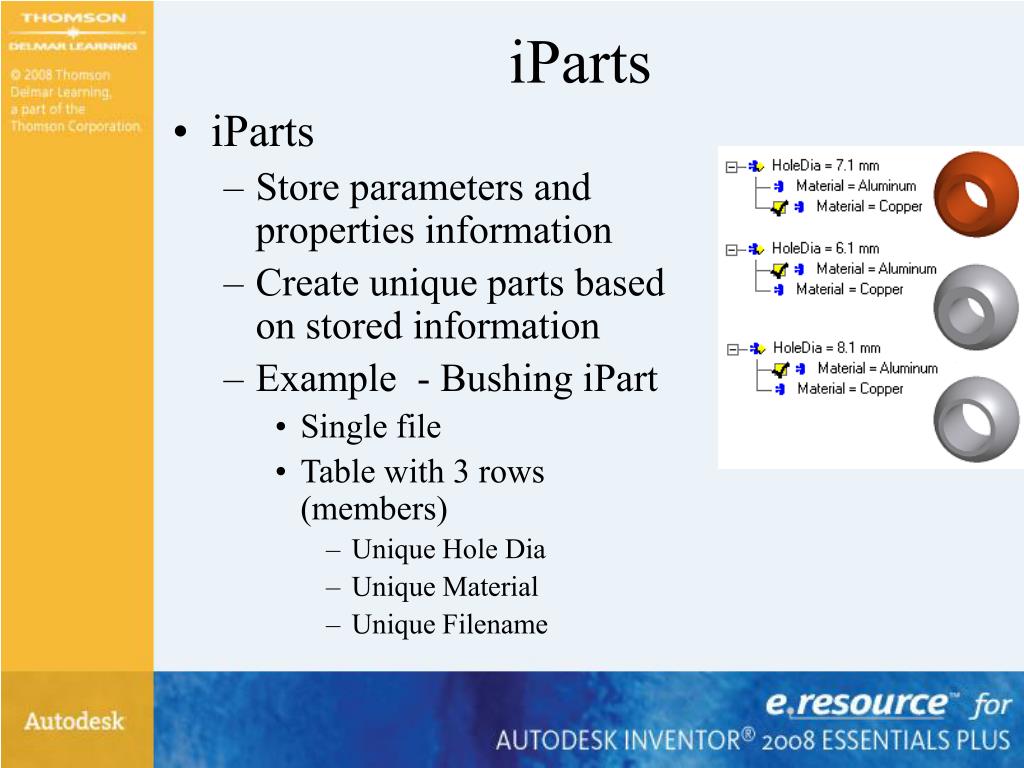

  18. iParts • iParts • Store parameters and properties information • Create unique parts based on stored information • Example - Bushing iPart • Single file • Table with 3 rows (members) • Unique Hole Dia • Unique Material • Unique Filename

  19. iParts • Creation Stage • Design the part • Establish all possible versions in a table • Each row of the table is a member • Multiple members = iPart Factory • Placement Stage • Select a member from the iPart Factory • Insert the member into an assembly

  20. Types of iParts • Standard iPart (Factories) • Values cannot be modified • Features cannot be added • Custom iPart (Factories) • Unique value for at least one variable • Features can be added

  21. iParts • Creating iParts • Tools > Create iPart • iPart Author Dialog • Add parameters • Define Keys • Primary • Secondary (Up to 9)

  22. iParts • iPart Author Dialog • Working with Members • Adding Members > Insert Row • Removing Members > Delete Row • Modifying Members and Setting Default

  23. Creating iParts • iPart Author Dialog • Custom iParts • Custom Parameter Column • Custom Parameter Cell • Specify a value for the parameter upon iPart placement

  24. Default iPart and Options • Set default row • Options • Part Number • Member Name

  25. Creating iParts • iPart Author Dialog • Click OK • The part is converted to an iPart Factory • Table saved as an embedded Microsoft Excel spreadsheet • Table icon is displayed in the Browser

  26. Editing iParts • Operations • Delete table • Converts iPart back to a part • Modify parameters & properties • Add or Delete members • Edit Options • Edit Table • Edit via Spreadsheet • Spreadsheet formulas, conditional statements, etc. are shown as red cells

  27. Placing iParts • Place Component tool • Standard & Custom iPart Placement dialog box • Custom – enter value from the custom column • Folder is created with same name as the iPart Factory • Folder is checked for existing members when placed • Folder is created in same location as the factory by default

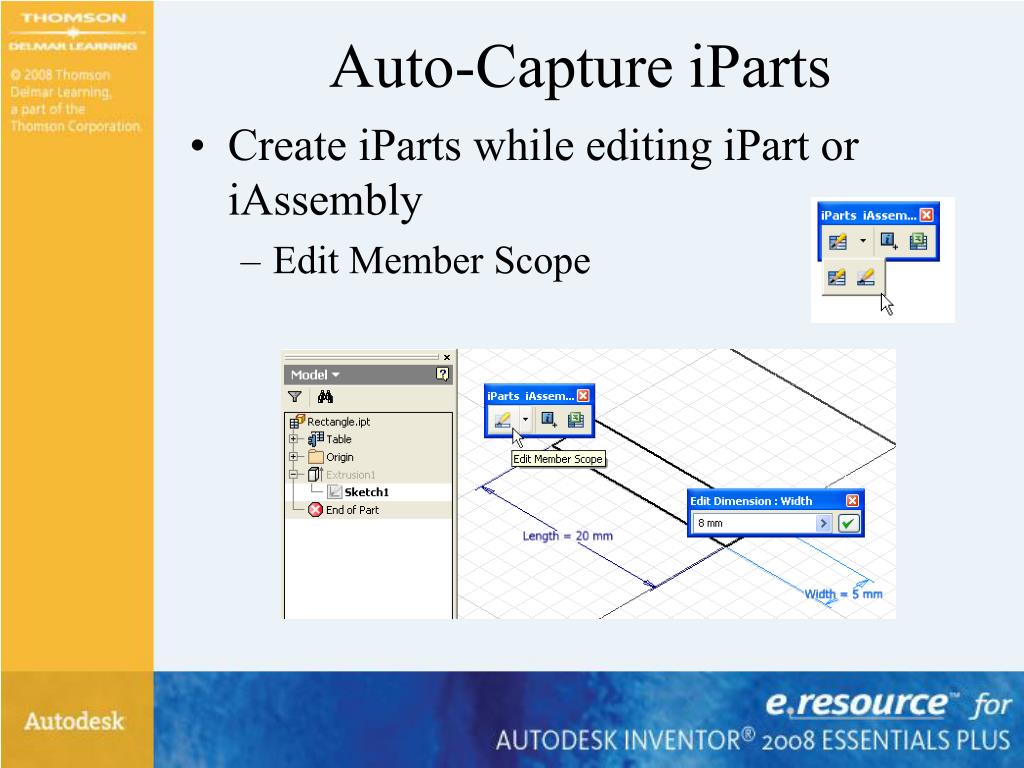

  28. Auto-Capture iParts • Create iParts while editing iPart or iAssembly • Edit Member Scope

  29. Drawing From iParts • Create drawing view • Model State tab • Select component

  30. Table From iParts • Table tool • Select a view

  31. Exercise 8-3 • Creating and Placing iParts

  32. iAssemblies • iAssemblies are used to group a set of similar designs in a table format • Assembly Configurations • Similar to iParts • Create within an assembly (iam) file

  33. Author Dialog Box • Component tab = lists the components of the assembly with configurable items • Member = configuration • Each row = one configuration

  34. Author Dialog Box • Parameters Tab – Include in the factory: • Constraints • Assembly features • Work features • iMates • Component patterns • Other parameters such as user parameters

  35. Author Dialog Box • Properties Tab – Allows the inclusion and modification of: • Summary • Project • Physical • Custom properties

  36. Author Dialog Box • Exclusion Tab – Similar to the Parameters list, shows all objects that can be excluded, including components. • Can also be set on the Components tab, but provides a more specific way to view and set the exclusion property

  37. Author Dialog Box • iMate, BOM and Other Tab • iMates • Lists each iMate with offset value, include/exclude, matching name, and sequence number available for configuration • BOM • Specify bill of material specific properties • Other • Specify a custom column that can contains a string value. Custom columns can be designated as keys or as a filename.

  38. Placing an iAssembly • Place Component tool • Place iAssembly dialog box • Folder is created with same name as the iAssembly • Folder is checked for existing members when placed • Change Component • Generate files

  39. Drawing From iAssemeblies • Create drawing view • Model State tab • Select an iAssembly Member

  40. Parts List From iAssemblies • Edit Parts List • Select members • Column Chooser

  41. Exercise 8-4 • Working with iAssemblies

  42. iFeatures • Capture design intent • Name • Size • Position • Include Placement Help • Represented with Custom Icons • Stored as separate files (.IDE)

  43. iFeatures • Tools > Extract iFeature • Create iFeature dialog box • Selected Features • Size Parameters • Range and Limit • Position Geometry

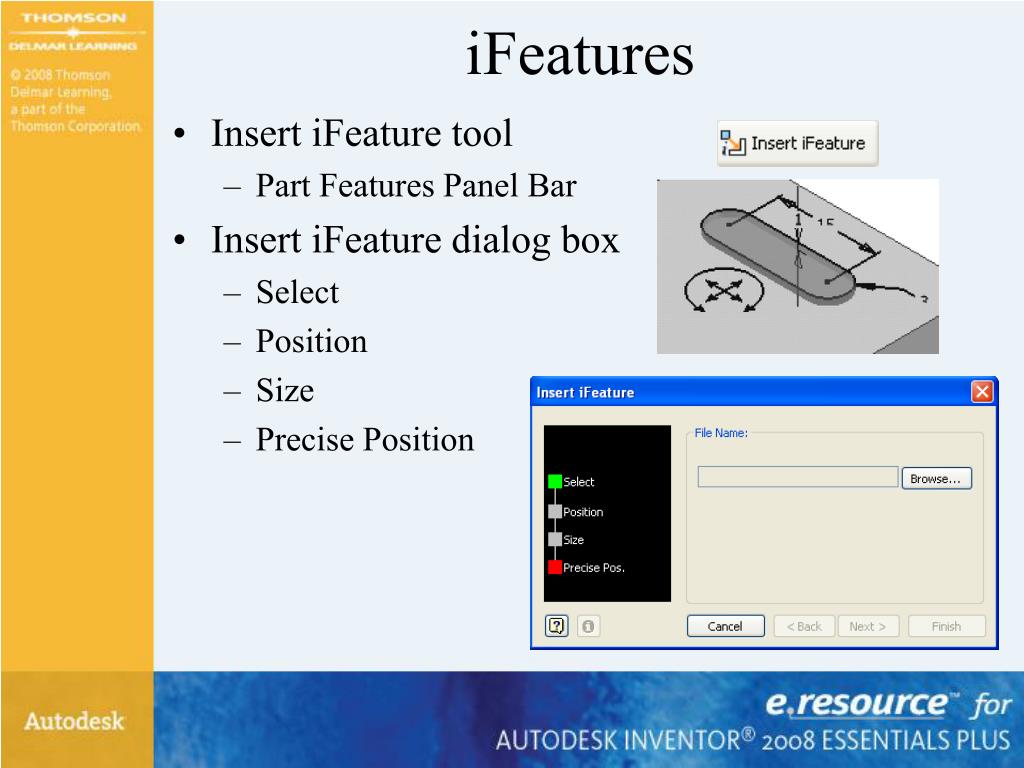

  44. iFeatures • Insert iFeature tool • Part Features Panel Bar • Insert iFeature dialog box • Select • Position • Size • Precise Position

  45. iFeatures • Editing iFeatures • Open the .ide file in Autodesk Inventor • Edit iFeature • View Catalog • iFeature Author Table • Edit iFeature • Opens the Create iFeature dialog box • Cannot change parameters • Can modify size parameters and position geometry • Name • Value • Limit • Prompt

  46. iFeatures • Table-Driven iFeatures • Open the .ide file in Autodesk Inventor • iFeature Author Table • iFeatures behave similar to iParts • Main difference: No File Name, Display Style or Material column designations

  47. iFeatures • Table-Driven iFeatures • Inserting • Same as inserting typical iFeatures • Key parameters are a drop-down list • Custom parameters are specified in the dialog box

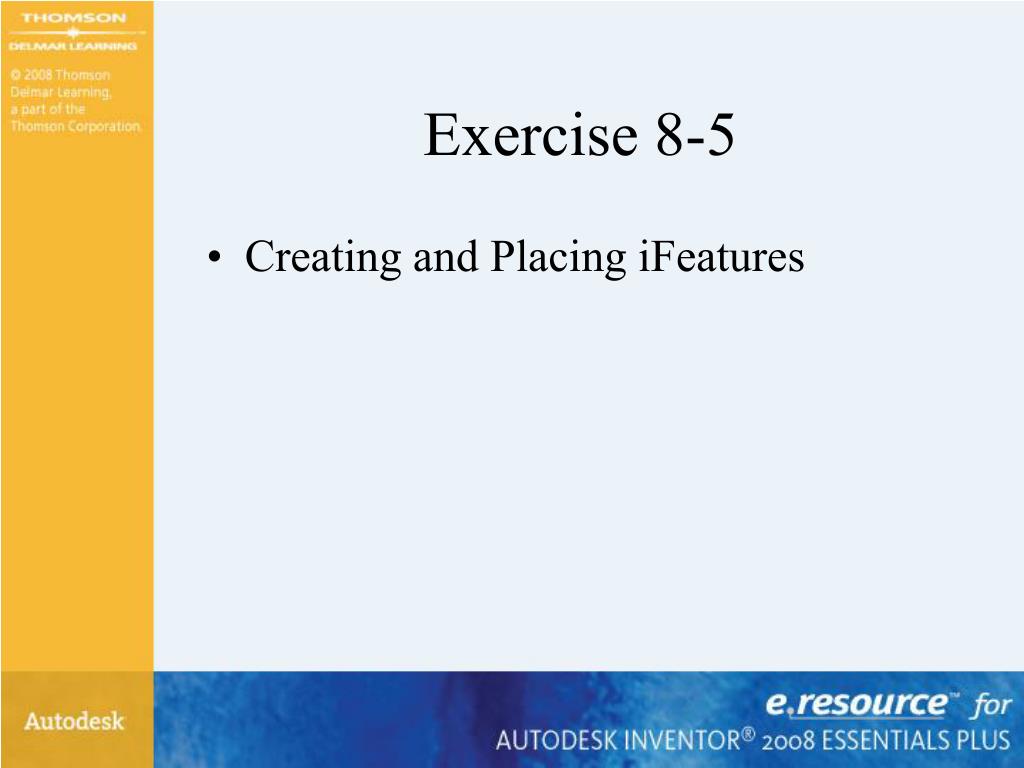

  48. Exercise 8-5 • Creating and Placing iFeatures

  49. Applying Your Skills • Skill Exercise 9-1
