R. Q. P. S. Delays in Latches. A latch is a pair of cross-coupled inverters They can be NAND or NOR gates as shown Consider their behavior (each step is one gate delay in time) From R and S to P and Q stable condition is reached in three gate delays. R. S. Q. P. D. D. Q. Q. D. P.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about '' - zaza


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
Delays in latches l.jpg

R

Q

P

S

Delays in Latches

  • A latch is a pair of cross-coupled inverters

    • They can be NAND or NOR gates as shown

    • Consider their behavior (each step is one gate delay in time)

    • From R and S to P and Q stable condition is reached in three gate delays

R

S

Q

P


Delays in gated latch and flip flops l.jpg

D

D

Q

Q

D

P

P

G

G

C

R

R

R

Q

Q

Q

D

Q

D

P

P

P

D

D

D

S

S

S

G

P

G

G

G

C

Delays in Gated-Latch and Flip-Flops

  • G acts as a control signal in a gated latch

    • G = 0 means no writing, G = 1 allows writing

  • In an edge-triggered flip-flop, data is written in flip-flop upon arrival of a clock edge

  • This is achieved by connecting two gated latches as shown

  • Actual implementation may be slightly different, concept is same


Timing issues in d flip flops l.jpg

R

R

Q

Q

D

P

P

D

D

S

S

G

G

C

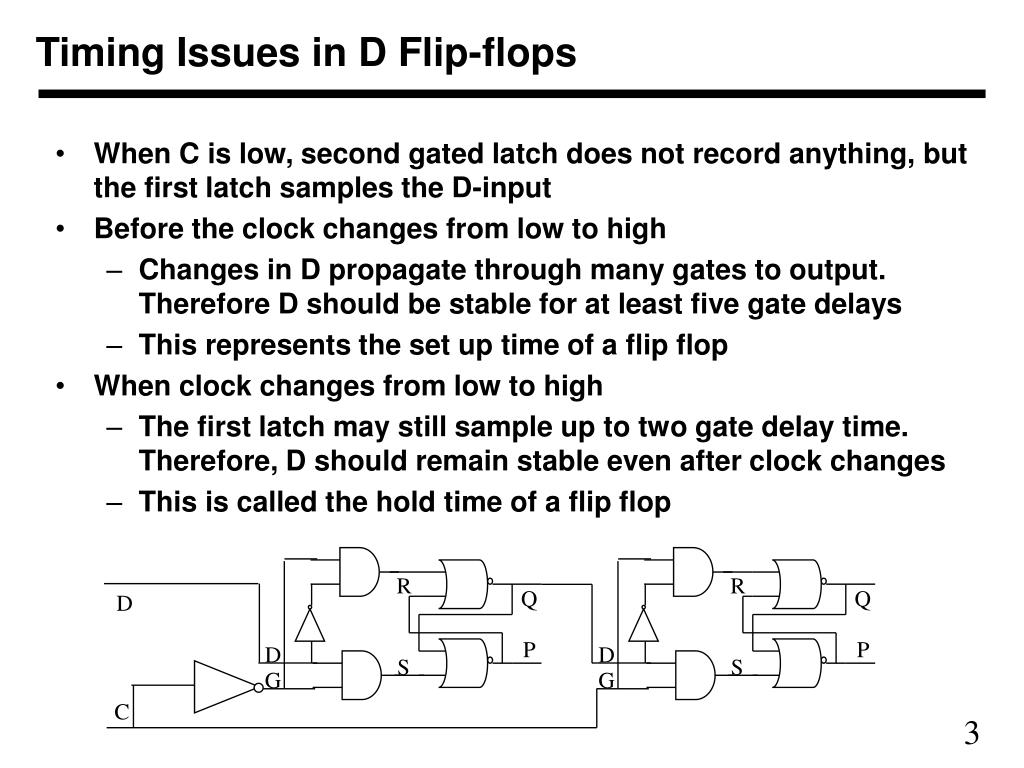

Timing Issues in D Flip-flops
