Presentation Transcript
where do objects come from

Where do objects come from?

A brief history of object-oriented thought

dynabook to personal computer

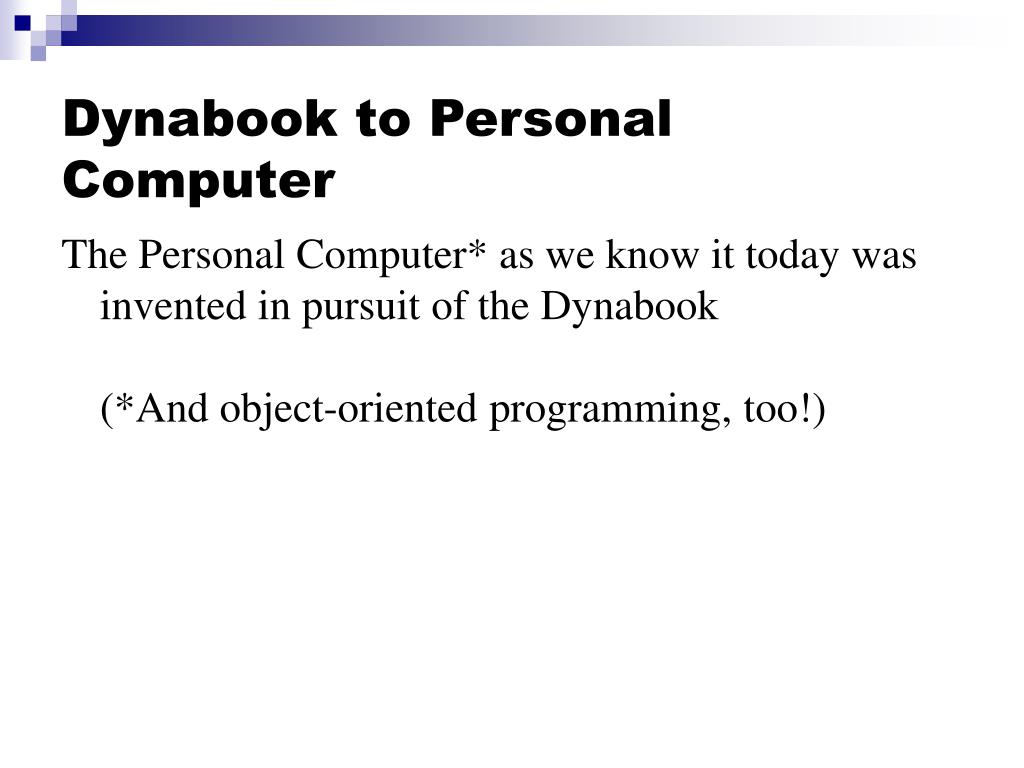

Dynabook to Personal Computer

The Personal Computer* as we know it today was invented in pursuit of the Dynabook(*And object-oriented programming, too!)

start of the story late 60 s and early 70 s
Start of the Story: Late 60's and Early 70's
  • Windows are made of glass, mice are undesirable rodents
  • Good programming = Structured programming
    • Verb-oriented
structured programming

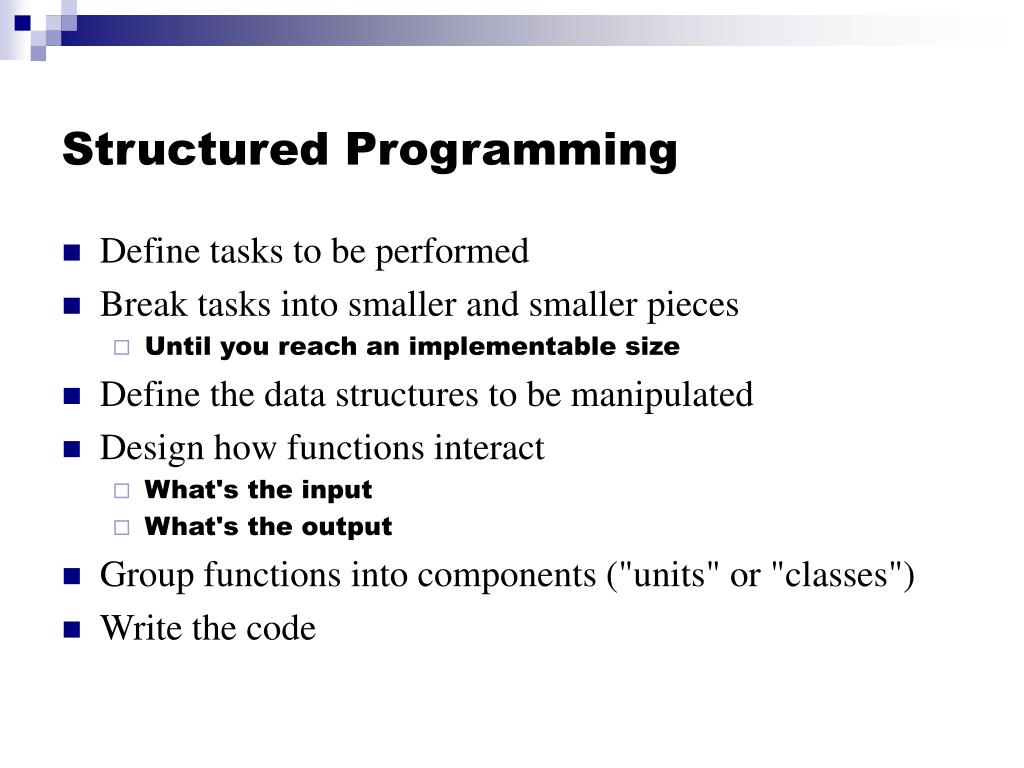

Structured Programming
  • Define tasks to be performed
  • Break tasks into smaller and smaller pieces
    • Until you reach an implementable size
  • Define the data structures to be manipulated
  • Design how functions interact
    • What's the input
    • What's the output
  • Group functions into components ("units" or "classes")
  • Write the code
object oriented programming
Object-oriented programming
  • First goal: Model the objects of the world
    • Noun-oriented
    • Focus on the domain of the program
  • Phases
    • Object-oriented analysis: Understand the domain
      • Define an object-based model of it
    • Object-oriented design: Define an implementation
      • Design the solution
    • Object-oriented programming: Build it
how d we get from there to here
How’d we get from there to here?
  • How did we move from structured to object-oriented?
    • Key ideas
      • Master-drawings in Sketchpad
      • Simulation “objects” in Simula
    • Alan Kay and a desire to make software better
      • More robust, more maintainable, more scalable
birth of objects 1 of 2
Birth of Objects, 1 of 2
  • Ivan Sutherland's Sketchpad, 1963
sketchpad
Sketchpad
  • First object-oriented drawing program
  • Master and instance drawings
    • Draw a house
    • Make two instances
    • Add a chimney to the master
    • Poof! The instances grow a chimney
  • Other interesting features
    • 1/3 Mile Square Canvas
    • Invention of “rubber band” lines
    • Simple animations
birth of objects 2 of 2
Birth of Objects, 2 of 2
  • Simula
    • Simulation programming language from Norway, 1966
    • Define an activity which can be instantiated as processes
    • Each process has it own data and behavior
      • In real world, objects don't mess with each others' internals directly
    • (Simulated) Multi-processing
      • No Universal Scheduler in the Real World
alan kay
Alan Kay
  • U. Utah PhD student in 1966
    • Read Sketchpad, Ported Simula
  • Saw “objects” as the future of computer science
  • His dissertation: Flex, an object-oriented personal computer
    • A personal computer was a radical idea then
kay s insights
Kay’s Insights
  • “Computer” as collection of Networked Computers
  • All software is simulating the real world
  • Biology as model for objects
    • Bacterium has 120M of info, 1/500th of a Cell, and we have 1013 of these in us
    • What man-made things can scale like that?
      • Stick a million dog houses together to get the Empire State Building?
      • Internet does, but how can we make that the norm?
birth of objects
Birth of Objects
  • Objects as models of real world entities
  • Objects as Cells
    • Independent, indivisible, interacting -- in standard ways
  • Scales well
    • Complexity: Distributed responsibility
    • Robustness: Independent
    • Supporting growth: Same mechanism everywhere
    • Reuse: Provide services, just like in real world
features of objects
Features of Objects
  • Encapsulation: Can't mess with the innards
  • Aggregation: Objects can be created over-and-over and combined within other objects
  • Inheritance: Objects can get structure (data) and behavior (methods) from another
    • Alan points out that Inheritance is not the most important idea in objects.
    • Empirically, more systems rely on aggregation than inheritance.
a personal computer for children of all ages
"A Personal Computer for Children of All Ages"
  • Flex, an object-oriented personal computer
slide15
Flex
  • Enabled by Moore's Law
    • Imagining personal computing in 1969
  • Logo, Sketchpad, and Simula
    • Learning representations and knowledge through programming them
    • Keyboard and drawing tablet
  • Computer as meta-medium
    • The first medium to encompass other media
alan kay s dynabook 1972
Alan Kay’s Dynabook (1972)
  • Alan Kay sees the Computer as Man’s first metamedium
    • A medium that can represent any other media: Animation, graphics, sound, photography, etc.
    • Programming is yet another medium
  • The Dynabook is a (yet mythical) computer for creative metamedia exploration and reading
    • Handheld, wireless network connection
    • Writing (typing), drawing and painting, sound recording, music composition and synthesis
    • One goal: End-user programming.
    • But WHY?
a dynabook is for learning
A Dynabook is for Learning
  • The Dynabook offers a new way to learn new kinds of things…and perhaps old things in better ways
      • Dynamic systems (like evolution)
      • Especially decentralized ones (Resnick, 1992)
    • Knowledge representation (Papert, 1980)
    • Programming (Kay & Goldberg, 1977)
  • But need a system for creative expression
    • In a time when “windows” were made of glass, and “mice” were undesirable rodents
smalltalk 72
For the Dynabook, WIMP was invented:

overlapping Windows

Icons

Menus

mouse Pointer

Smalltalk-72
how smalltalk was implemented

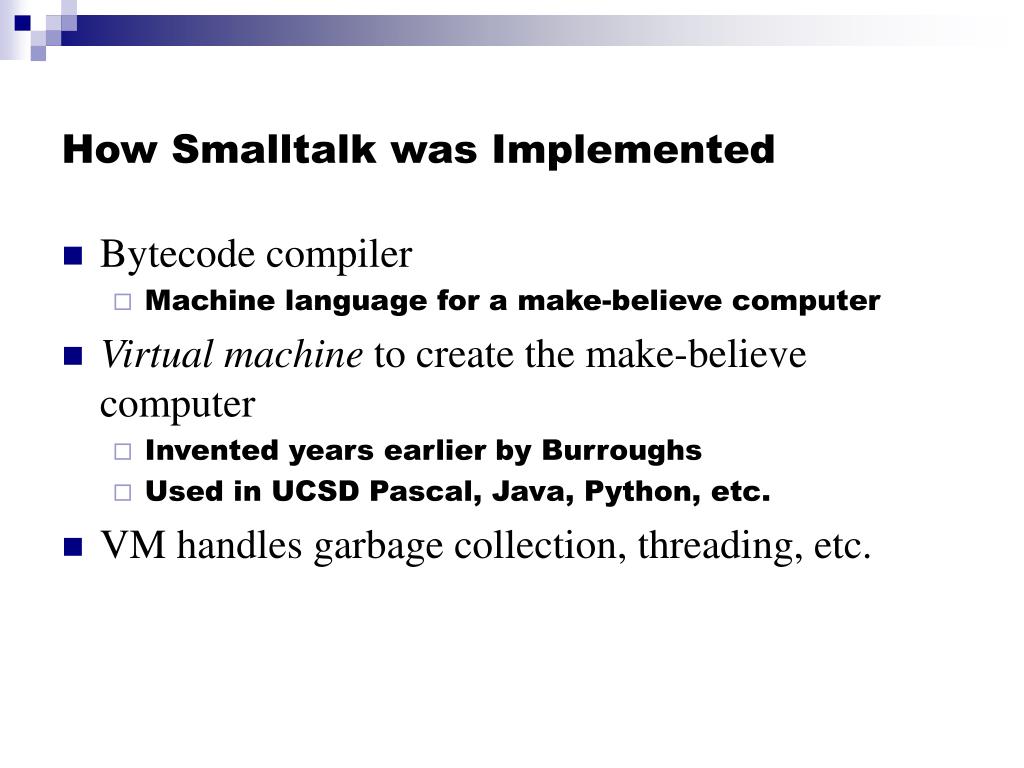

How Smalltalk was Implemented
  • Bytecode compiler
    • Machine language for a make-believe computer
  • Virtual machine to create the make-believe computer
    • Invented years earlier by Burroughs
    • Used in UCSD Pascal, Java, Python, etc.
  • VM handles garbage collection, threading, etc.
four files needed for this implementation
Four files needed for this implementation:
  • VM (Very small: Typically less than 1M)
  • Image file (in bytecode)
    • Almost all of Smalltalk is written in Smalltalk
  • Sources file (all sources always came along)
  • Changes file (added sources by user)
    • When you’re debugging how windows and addition works, you will crash the system
1981 xerox releases smalltalk 80
1981: Xerox releases Smalltalk-80
  • Smalltalk announced in August 1981 Byte magazine
  • To prove portability, sends tapes to IBM, Sun, Apple, H-P, Tektronix
    • Smalltalk research starts up at all these places
    • Some Tektronix oscilloscopes have Smalltalk inside of them
  • Spins off ParcPlace to market Smalltalk
    • Adele Goldberg goes to run the new company
    • Smalltalk-80 -> ObjectWorks -> VisualWorks
    • ParcPlace -> ObjectShare + Neometron and then Cincom
  • Other Smalltalks: Digitalk's Smalltalk/V and Quasar's SmalltalkAgents
back to the future birth of squeak

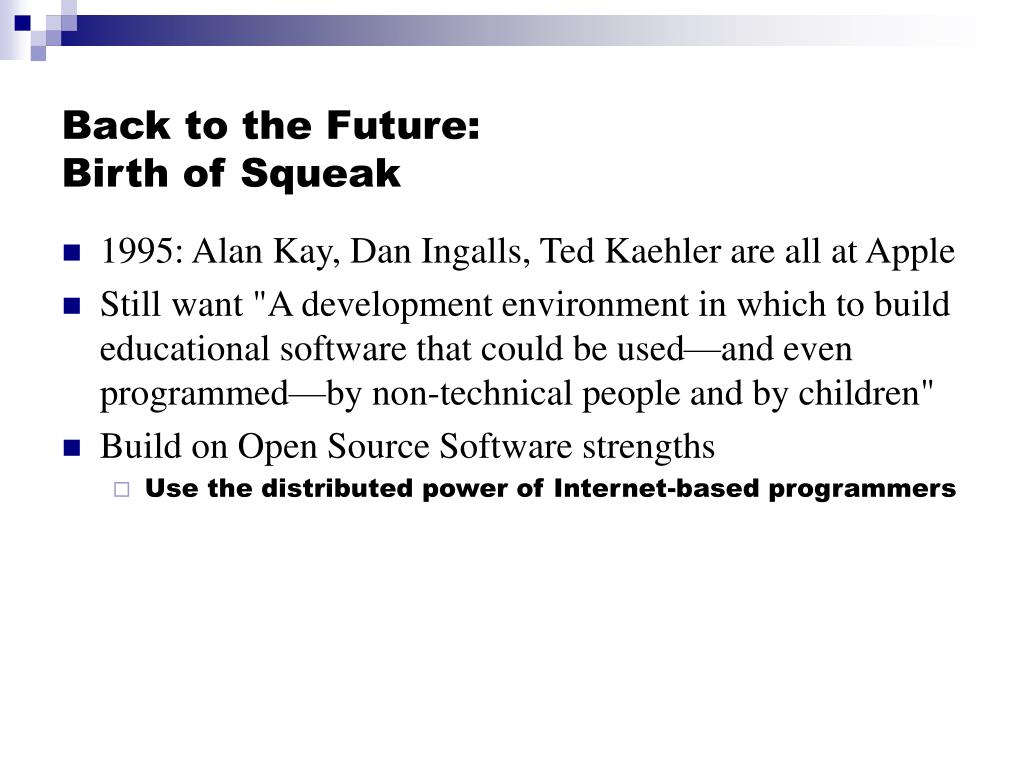

Back to the Future: Birth of Squeak
  • 1995: Alan Kay, Dan Ingalls, Ted Kaehler are all at Apple
  • Still want "A development environment in which to build educational software that could be used—and even programmed—by non-technical people and by children"
  • Build on Open Source Software strengths
    • Use the distributed power of Internet-based programmers
squeak team
Squeak Team
  • Include John Maloney, Scott Wallace, and Kim Rose
    • Maloney from Self: O-O at nearly C speeds
    • Wallace: End-user programming, programming frameworks
    • Rose: Education practice and study
  • Wanted a new Smalltalk, but didn't have to build from scratch
  • Apple had the original Smalltalk-80 still!
build everything in smalltalk
"Build everything in Smalltalk"
      • "We determined that implementation in C would be key to portability but none of us wanted to write in C."
  • Make the Apple Smalltalk portable again
  • Write a new VM all in Smalltalk
  • Write a Smalltalk-to-C translator
  • Spit out the new VM on the new Smalltalk
  • Whole process: 16 weeks
squeak
Squeak
  • Even from the beginning, powerful implementation
    • 16 voice music synthesis, all in Smalltalk
  • Released to the net, and ported to Windows and UNIX within five weeks
    • Apple license allows commercial apps, but system fixes must be posted
  • Squeak Team moves to Disney for several years.
    • In the end, it's about media.
  • Squeak today (over 30 platforms)
    • Media: 3-D graphics, MIDI, Flash, MPEG, sound recording
    • Network: Web, POP/SMTP, zip compression/decompress
    • Beyond Smalltalk-80: Exceptions, namespaces
six basic rules of smalltalk

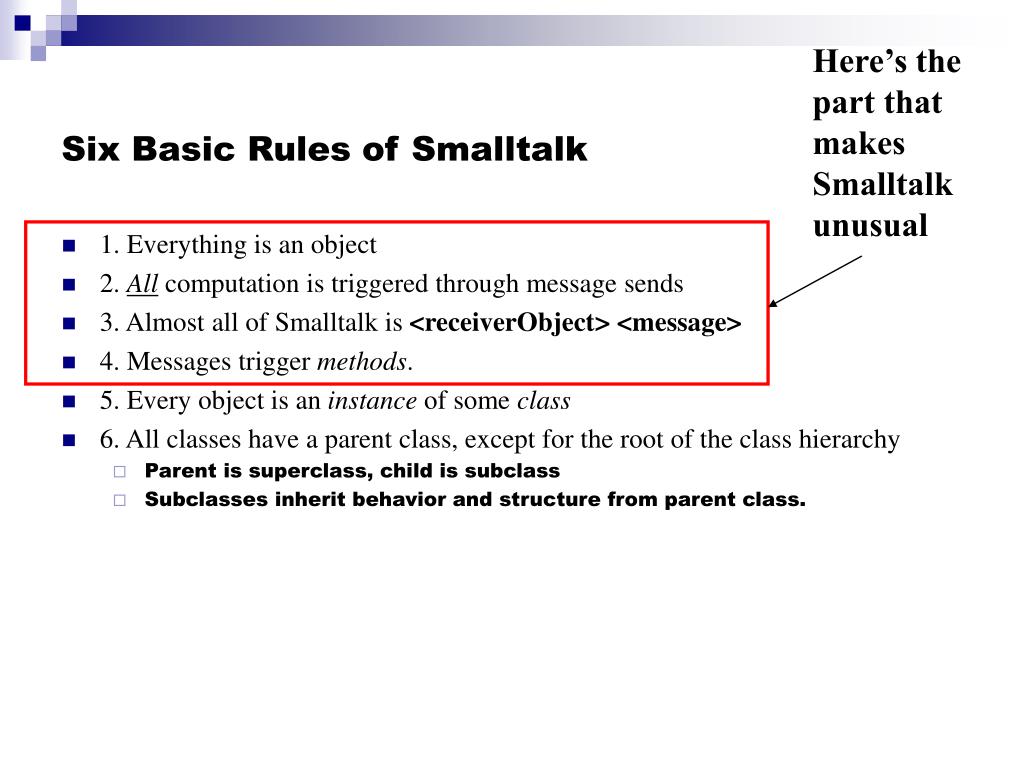

Here’s the part that makes Smalltalk unusualSix Basic Rules of Smalltalk
  • 1. Everything is an object
  • 2. All computation is triggered through message sends
  • 3. Almost all of Smalltalk is
  • 4. Messages trigger methods.
  • 5. Every object is an instance of some class
  • 6. All classes have a parent class, except for the root of the class hierarchy
    • Parent is superclass, child is subclass
    • Subclasses inherit behavior and structure from parent class.
sample code
Sample Code

| anArray anIndex aValue | "Declare three local variables"

aValue := 2. "Set aValue to 2"

anArray := Array new: 10. "anArray is an Array 10 elems"

1 to: 10 do: "Store 2*index at each array elem"

[:index |

anArray at: index

put: (aValue * index)].

anIndex := 1. "Walk the array again, printing out the values"

[anIndex <= anArray size] whileTrue:

[Transcript show:

'Value at: ',(anIndex printString),

' is ', (anArray at: anIndex) printString ; cr.

anIndex := anIndex + 1.]

sample code output
Sample code output

Value at: 1 is 2

Value at: 2 is 4

Value at: 3 is 6

Value at: 4 is 8

Value at: 5 is 10

Value at: 6 is 12

Value at: 7 is 14

Value at: 8 is 16

Value at: 9 is 18

Value at: 10 is 20

reviewing the rules
Reviewing the Rules
  • 1. Everything is an object
    • aValue := 2
      • Set the value of variable aValue to point to a SmallInteger object whose value is 2.
      • aValue := 'fred'. Could follow immediately and would be perfectly fine
      • All variables can point to any object.
  • 2. All computation is triggered through message sends
    • Even things like 1 to: 10 do: is just a message send
reviewing the rules32
Reviewing the Rules

There are no pre-defined control structures in Smalltalk!

  • 3.
    • 1 to: 10 do: [] is a message
      • 1 is the reciever
      • to:do: is the message
        • (Colons indicate an argument will follow)
      • 10 and the block [] are the arguments
    • 2 + 3 is a message
      • 2 is the receiver
      • + is the message
      • 3 is an argument
reviewing the rules33
Reviewing the Rules
  • 4. Messages trigger methods
    • to:do: whileTrue: and + are all messages that have corresponding methods
    • There can be more than one method implementing the same message
      • Which method gets executed is based on the class of the receiver, and the decision is made at runtime
      • This is late-binding
      • More than one kind of object can respond to the same message in its own way
        • 3 + 5 and 3.1 + 5.2 are very different methods
      • This is polymorphism
      • Polymorphism lets you program in terms of goals not code
    • Methods in class Object are accessible by every object by inheritance, like printString.
smalltalk isn t the only language like this

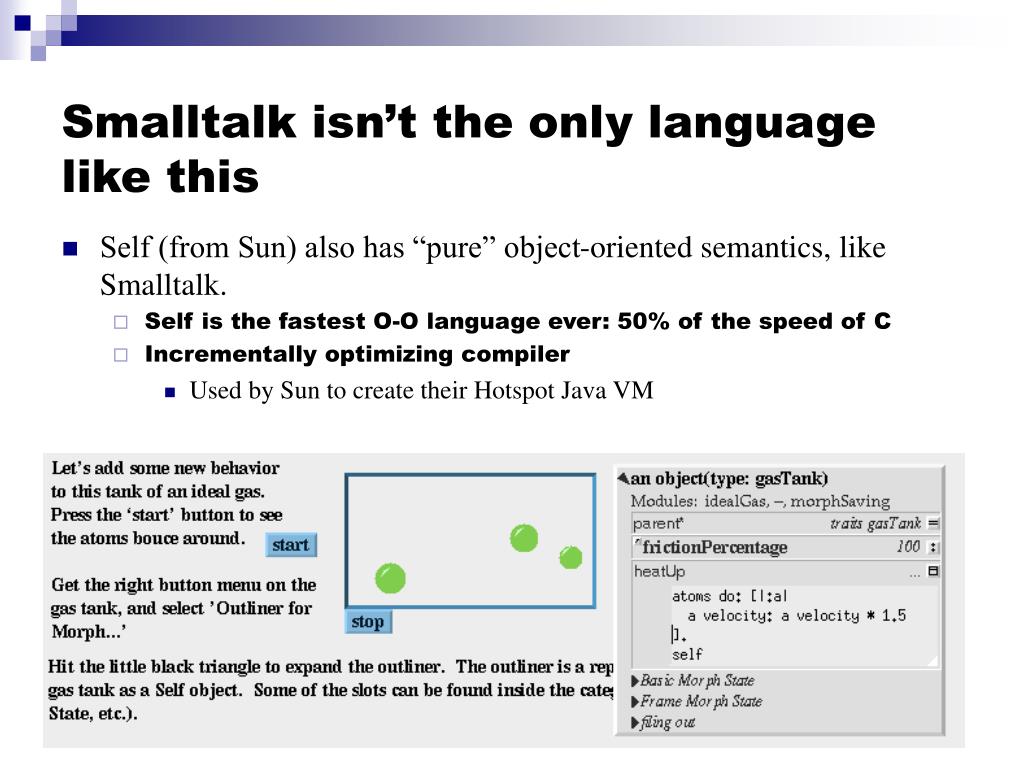

Smalltalk isn’t the only language like this
  • Self (from Sun) also has “pure” object-oriented semantics, like Smalltalk.
    • Self is the fastest O-O language ever: 50% of the speed of C
    • Incrementally optimizing compiler
      • Used by Sun to create their Hotspot Java VM

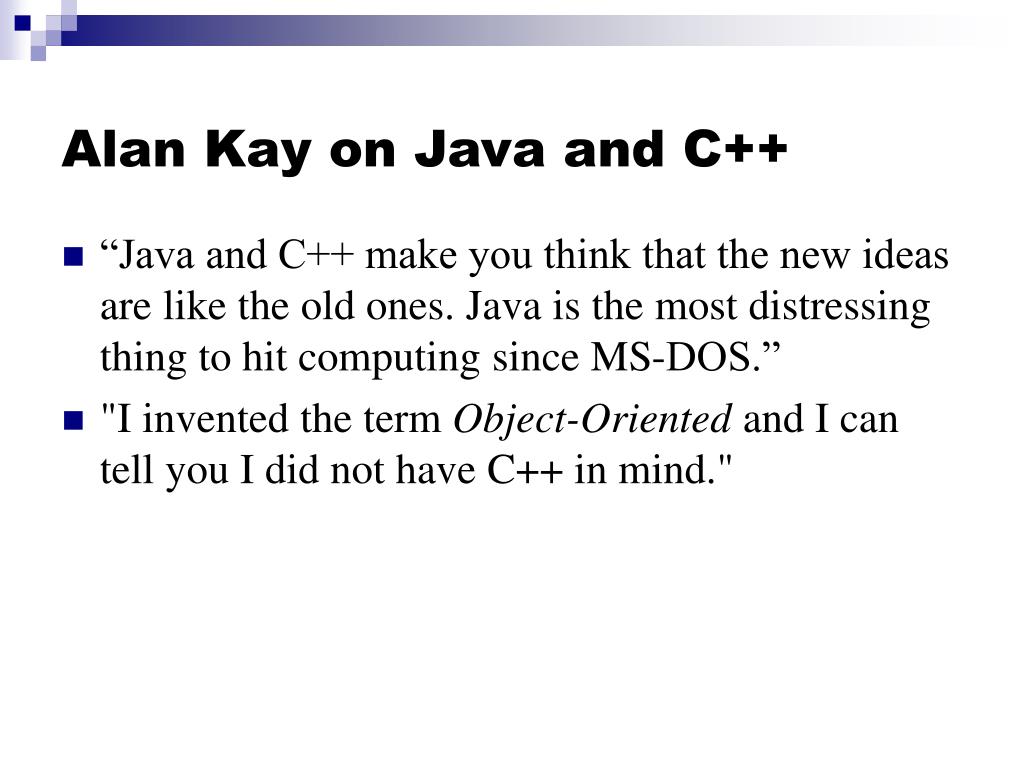

alan kay on java and c
Alan Kay on Java and C++
  • “Java and C++ make you think that the new ideas are like the old ones. Java is the most distressing thing to hit computing since MS-DOS.”
  • "I invented the term Object-Oriented and I can tell you I did not have C++ in mind."
java and c keep the objects but lose the messages
Java and C++ keep the objects,but lose the messages.
  • Object.method() is a method invocation, but not a message send.
  • The earliest Smalltalk’s were even allowed to change the message->method binding
    • Smalltalk-72 literally passed the entire sentence after the receiver object to the receiver object.
    • The receiver object could parse the message any way it wanted!
    • Problems:
      • Different syntax for different objects -> hard to read.
      • Hard to make fast: Method lookup was slow.
  • Java/C++ go far the other direction: No late-binding of message to method
the key to objects are messages
The key to objects are messages

Just a gentle reminder that I took some pains at the last OOPSLA to try to remind everyone that Smalltalk is not only NOT its syntax or the class library, it is not even about classes. I'm sorry that I long ago coined the term "objects" for this topic because it gets many people to focus on the lesser idea.

The big idea is "messaging" -- that is what the kernel of Smalltalk/Squeak is all about (and it's something that was never quite completed in our Xerox PARC phase). The Japanese have a small word -- ma -- for "that which is in between" -- perhaps the nearest English equivalent is "interstitial". The key in making great and growable systems is much more to design how its modules communicate rather than what their internal properties and behaviors should be. Think of the internet -- to live, it (a) has to allow many different kinds of ideas and realizations that are beyond any single standard and (b) to allow varying degrees of safe interoperability between these ideas.

If you focus on just messaging -- and realize that a good metasystem can late bind the various 2nd level architectures used in objects -- then much of the language-, UI-, and OS based discussions on this thread are really quite moot. At PARC we changed Smalltalk constantly, treating it always as a work in progress -- when ST hit the larger world, it was pretty much taken as "something just to be learned", as though it were Pascal or Algol. Smalltalk-80 never really was mutated into the next better versions of OOP. Given the current low state of programming in general, I think this is a real mistake.

ad
