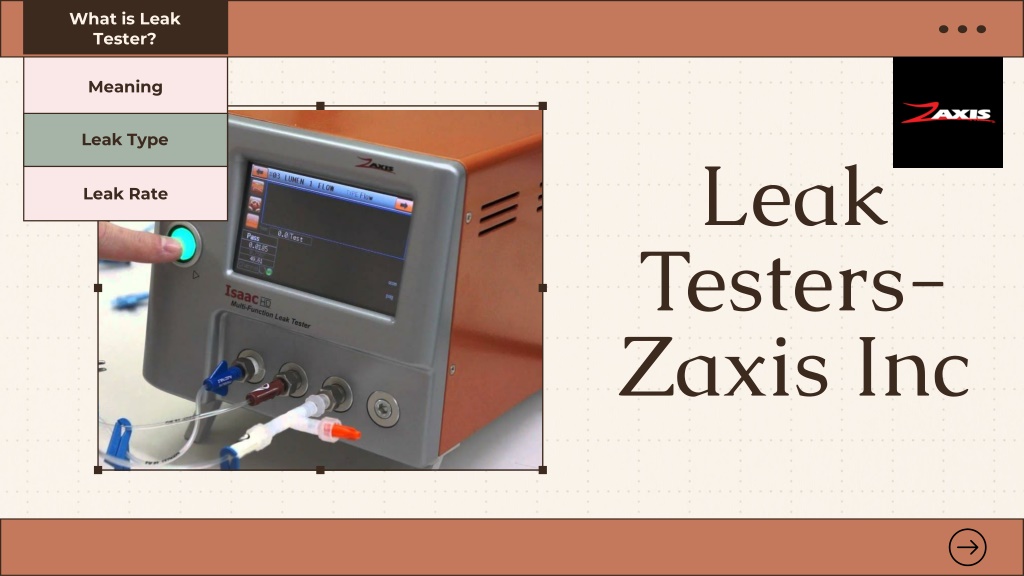

  1. What is Leak Tester? Leak Testers-Zaxis Inc Meaning Leak Type Leak Rate

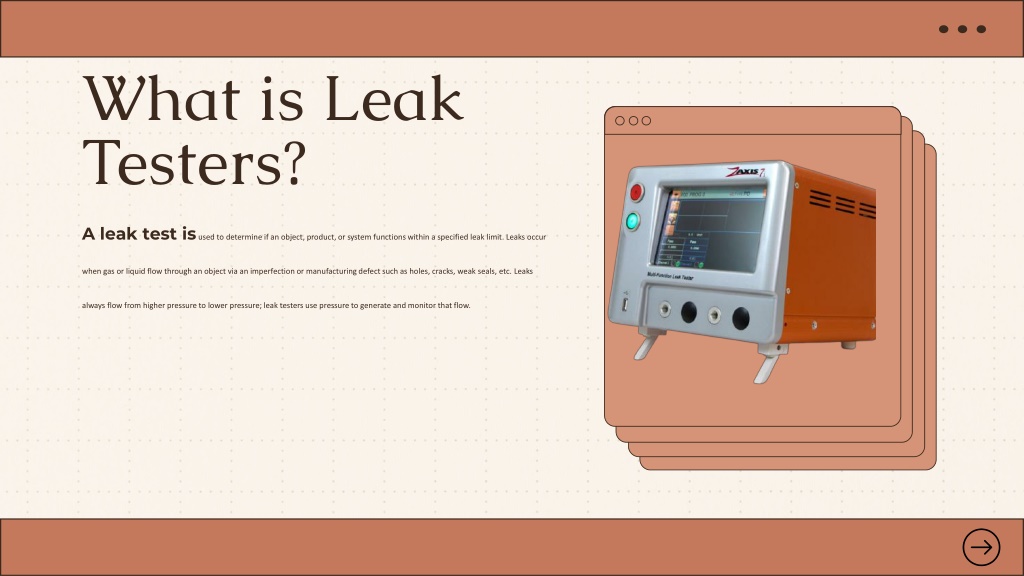

  2. What is Leak Testers? A leak test is used to determine if an object, product, or system functions within a specified leak limit. Leaks occur when gas or liquid flow through an object via an imperfection or manufacturing defect such as holes, cracks, weak seals, etc. Leaks always flow from higher pressure to lower pressure; leak testers use pressure to generate and monitor that flow.

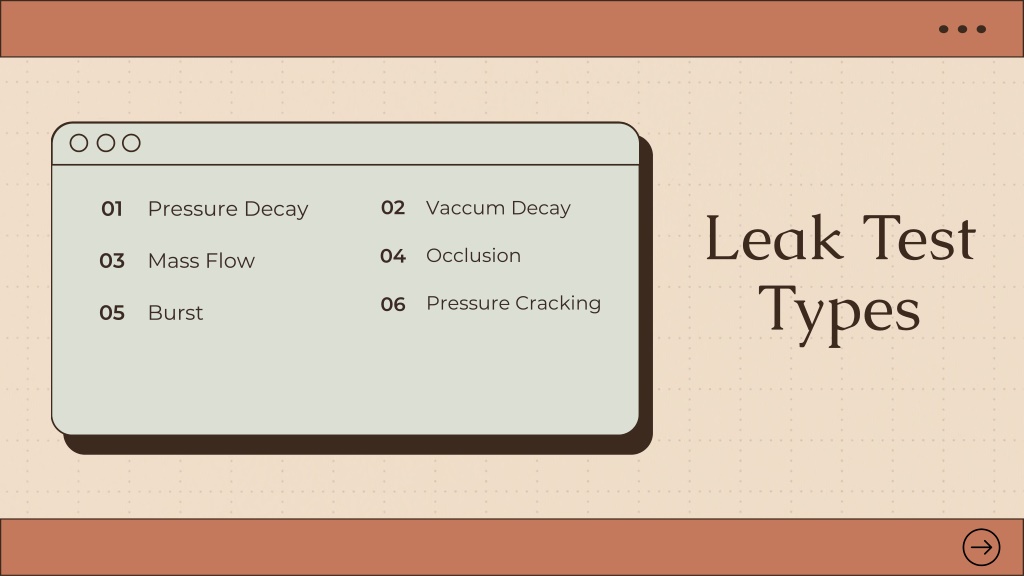

  3. 01 03 05 Pressure Decay Mass Flow Burst 02 04 06 Vaccum Decay Occlusion Pressure Cracking Leak Test Types

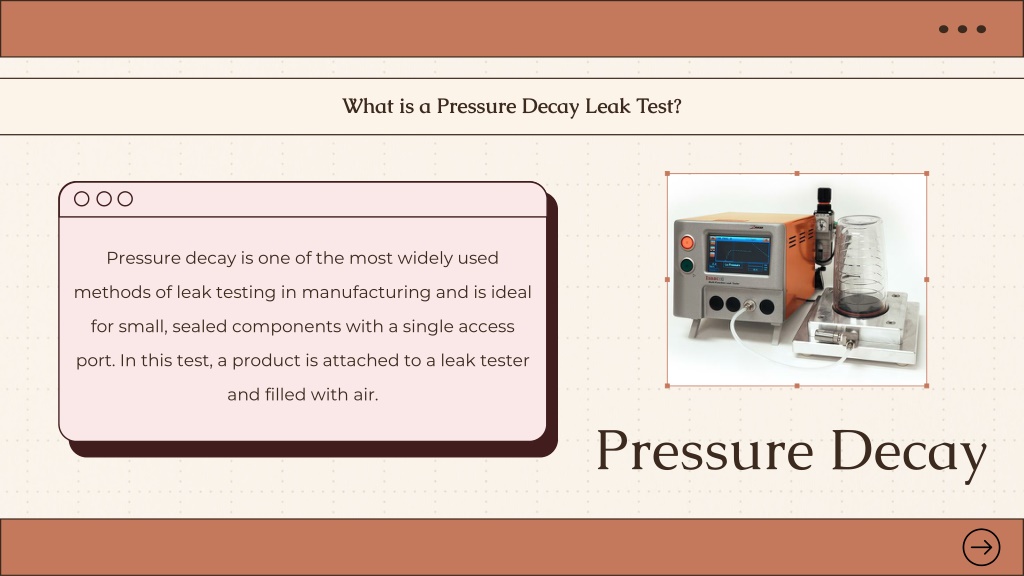

  4. What is a Pressure Decay Leak Test? Pressure decay is one of the most widely used methods of leak testing in manufacturing and is ideal for small, sealed components with a single access port. In this test, a product is attached to a leak tester and filled with air. Pressure Decay

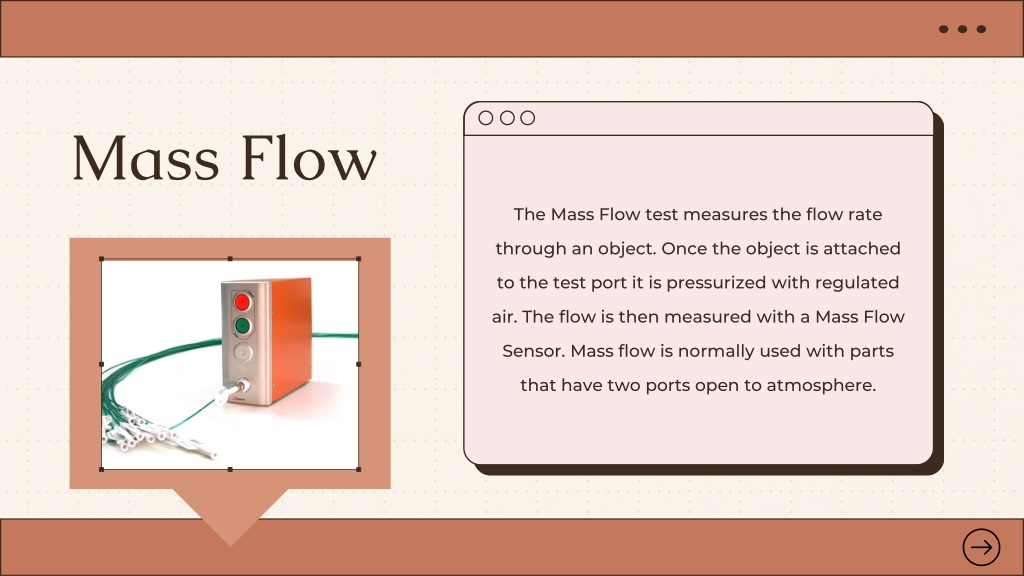

  5. Mass Flow The Mass Flow test measures the flow rate through an object. Once the object is attached to the test port it is pressurized with regulated air. The flow is then measured with a Mass Flow Sensor. Mass flow is normally used with parts that have two ports open to atmosphere.

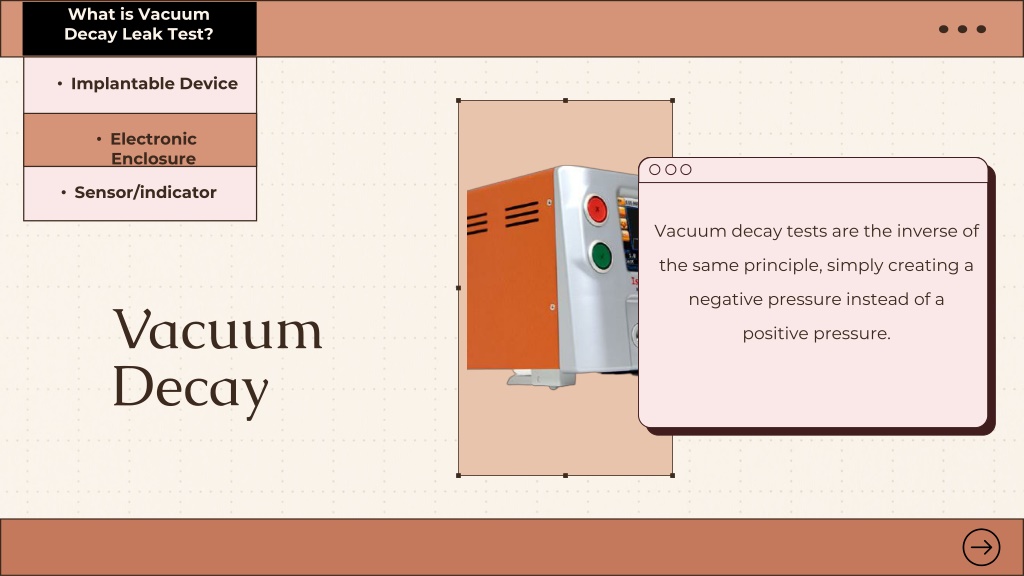

  6. What is Vacuum Decay Leak Test? • Implantable Device • Electronic Enclosure • Sensor/indicator Vacuum decay tests are the inverse of the same principle, simply creating a negative pressure instead of a positive pressure. Vacuum Decay

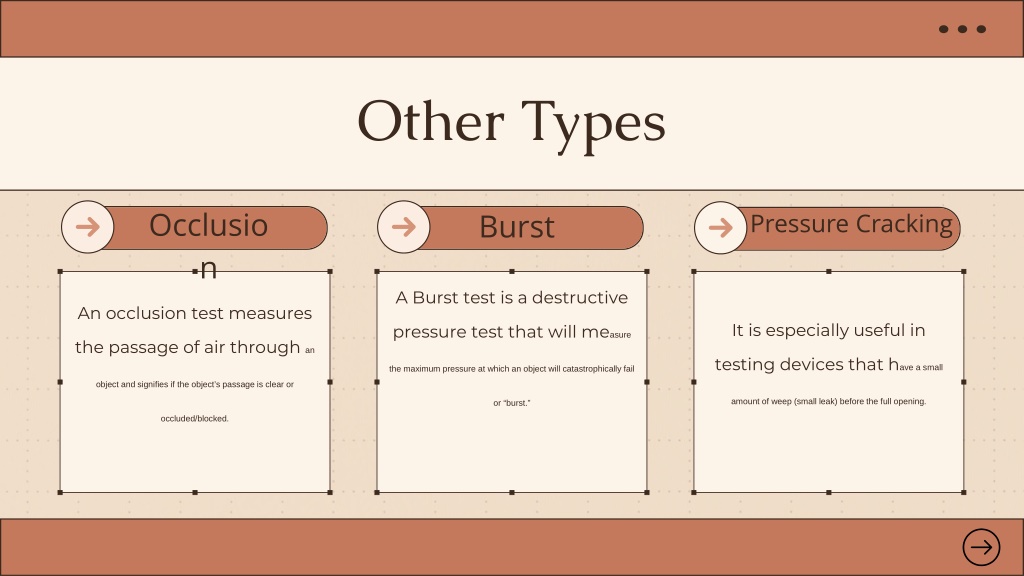

  7. Other Types Occlusion Burst Pressure Cracking A Burst test is a destructive pressure test that will measure the maximum pressure at which an object will catastrophically fail or “burst.” An occlusion test measures the passage of air through an object and signifies if the object’s passage is clear or occluded/blocked. It is especially useful in testing devices that have a small amount of weep (small leak) before the full opening.

  8. Get in touch Salt Lake City, UT 84119 (801) 264-1000 sales@zaxisinc.com https://www.zaxisinc.com/ @zaxis.inc Thank You
