  1. Jaroslav Šnajberk, Přemek Brada ComputerofComputerSciencesandEngineering FacultyofAppliedSciences University ofWest Bohemia in Pilsen ENT: A Generic Meta-Model forthedescriptionofComponent-basedApplications

  2. Agenda Introduction Basicsofthe ENT meta-model How to describecomponent model with ENT How to describeapplicationwith ENT

  3. Component-basedworld • Dozensofcomponentmodels • Differentapproaches to components • Generaldescriptiondoesn’t describealltheaspects • Inicializationisneeded (eg UML profiles) • Differentroles in componentdevelopmentlifecyclehavedifferentneeds

  4. The ENT meta-model Describes component model to provide meta information for description of application Description of component model is made to reflex all important information Uses classification system Enablesfutureautomatiziationoffiltering / analyzing / highlighting

  5. ENT classification Nature = {syntax, semantics, extra-functional} Kind = {operational, data} Role = {provided, required, neutral} Granularity = {item, structure, compound} Construct = {constant, instance, type} Presence = {mandatory, permanent, optional} Arity = {single, multiple} Lifecycle = {development, assembly, deployment, setup, runtime}

  6. Descriptionofcomponent model • Analyst • Has to understand CM • Evaluatesneeds • OSGi • Iscomposedfrombundles • Bundleshaveversionsanddefinitions in manifest • Communicationthroughservices

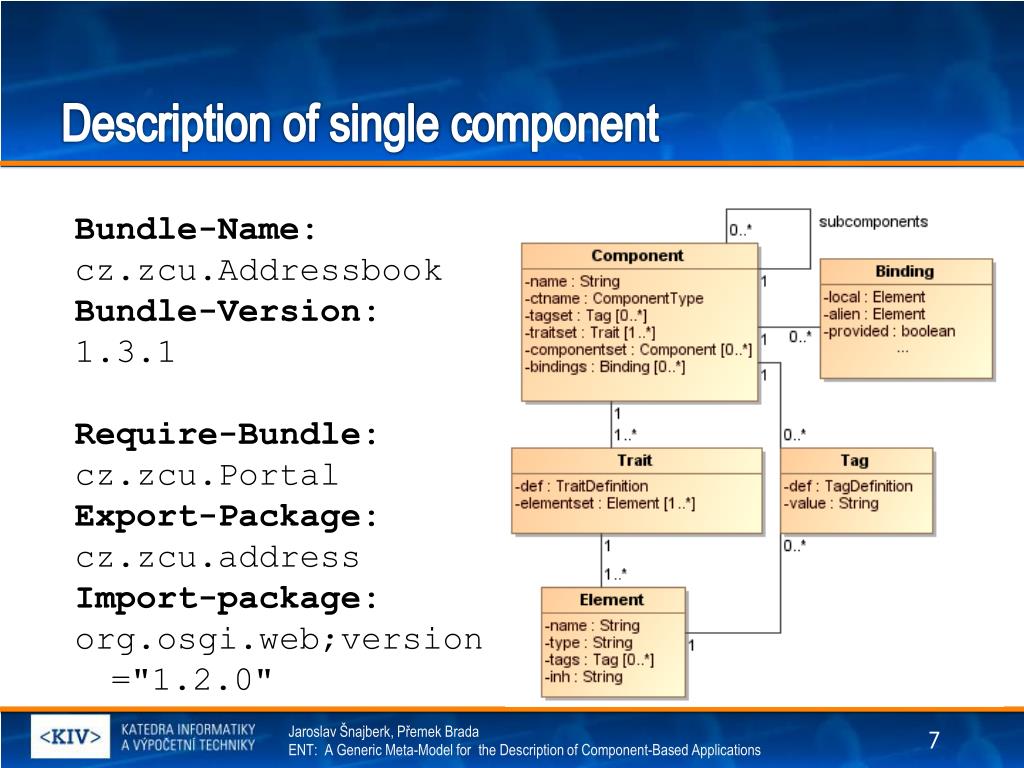

  7. Descriptionof single component Bundle-Name: cz.zcu.Addressbook Bundle-Version: 1.3.1 Require-Bundle: cz.zcu.Portal Export-Package: cz.zcu.address Import-package: org.osgi.web;version="1.2.0"

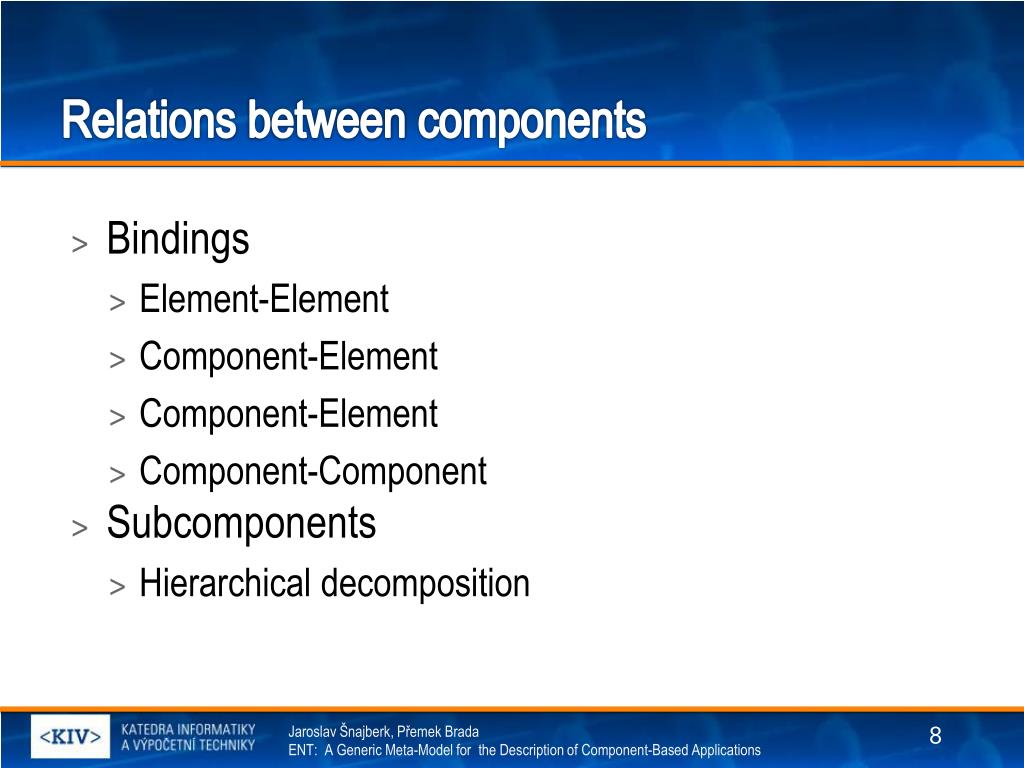

  8. Relations betweencomponents • Bindings • Element-Element • Component-Element • Component-Element • Component-Component • Subcomponents • Hierarchicaldecomposition

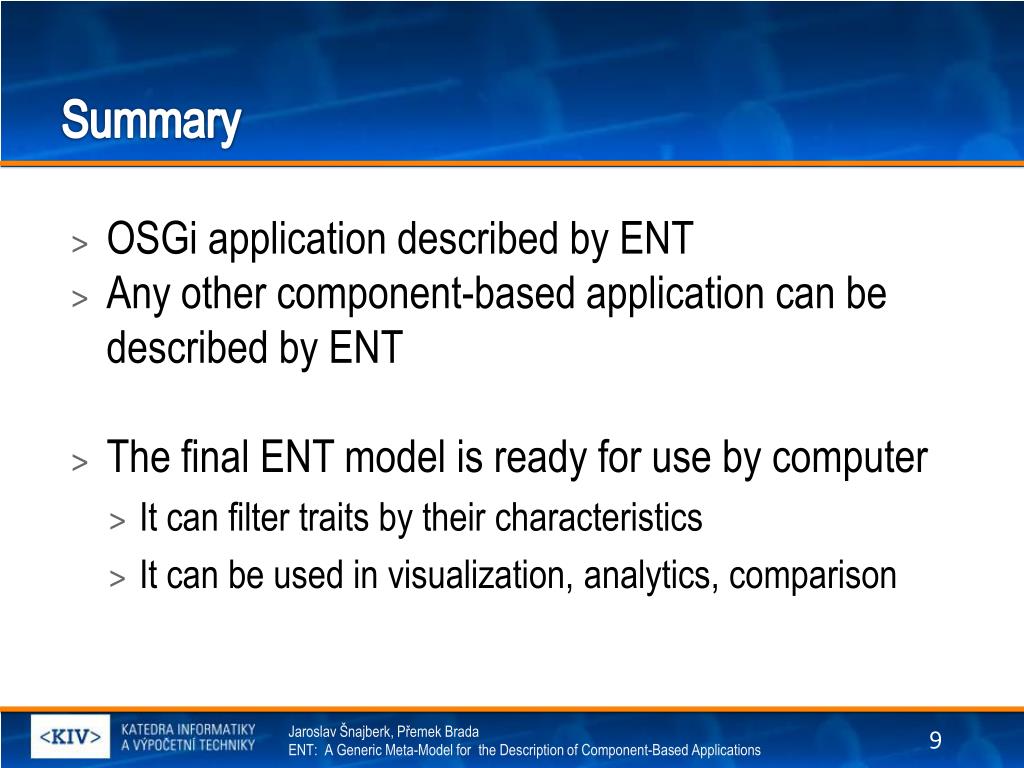

  9. Summary • OSGiapplicationdescribed by ENT • Anyothercomponent-basedapplicationcanbedescribed by ENT • Thefinal ENT model isreadyfor use by computer • Itcanfiltertraits by theircharacteristics • Itcanbeused in visualization, analytics, comparison

  10. Futurework • Componentapplicationvisualizer • ENT works as a data layer • Advancedvisualization style • Differentrepresentationofcomponent, relations and layout • Interactionwith user • Highlightingandfilteringbased on usersneeds • Unlimitednumberofothervisualizationstyles • Experimental

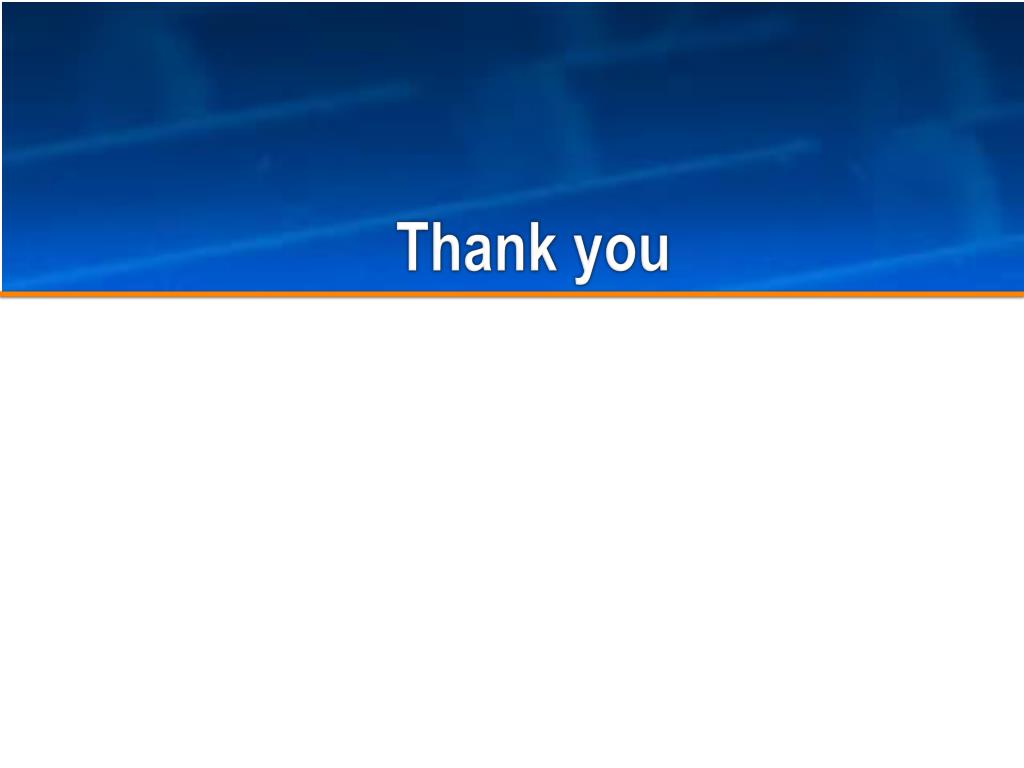

  11. Thankyou
