Continuous Flow Reactor: CSTR vs PFR Volume Comparison for A → B Reaction

Determine the volumes of Continuous Stirred Tank Reactor (CSTR) and Plug Flow Reactor (PFR) needed to achieve 90% A conversion in an isothermal reaction with given parameters.

zariel
Download Presentation

Continuous Flow Reactor: CSTR vs PFR Volume Comparison for A → B Reaction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

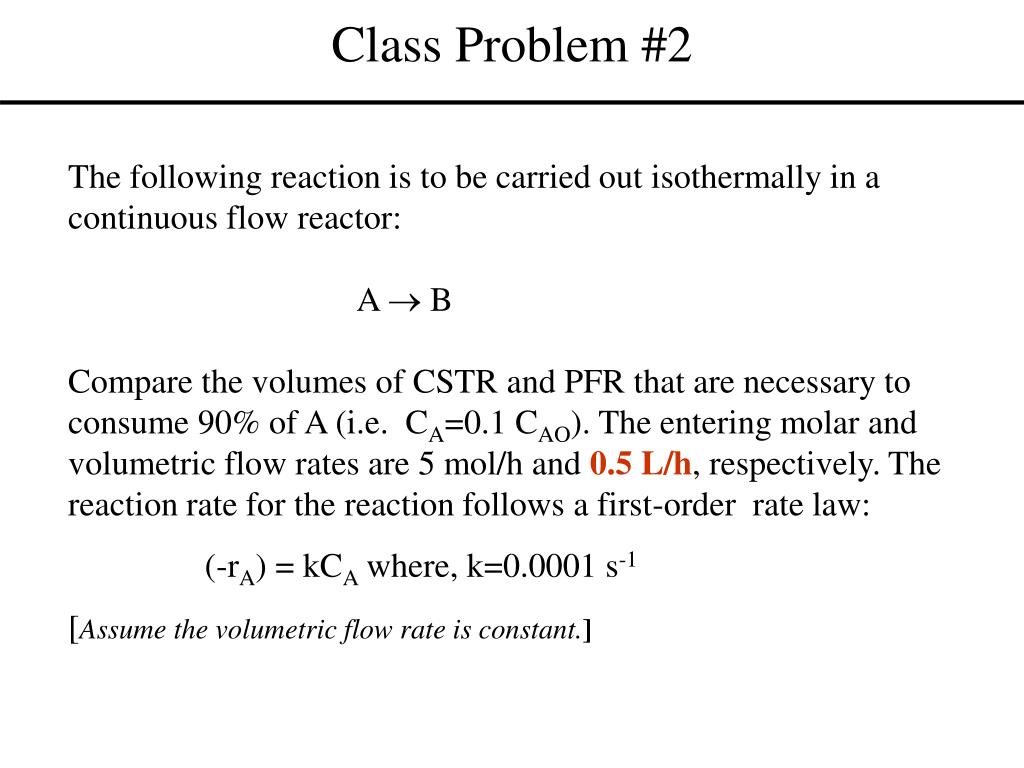

  1. Class Problem #2 The following reaction is to be carried out isothermally in a continuous flow reactor: A  B Compare the volumes of CSTR and PFR that are necessary to consume 90% of A (i.e. CA=0.1 CAO). The entering molar and volumetric flow rates are 5 mol/h and 0.5 L/h, respectively. The reaction rate for the reaction follows a first-order rate law: (-rA) = kCA where, k=0.0001 s-1 [Assume the volumetric flow rate is constant.]
