  1. بسم الله الرحمن الرحيم

  2. Glucose Metabolism: Glycolysis By Amr S. Moustafa, M.D.; Ph.D. Assistant Prof. & Consultant, Medical Biochemistry Dept. College of Medicine, KSU amrsm@hotmail.com

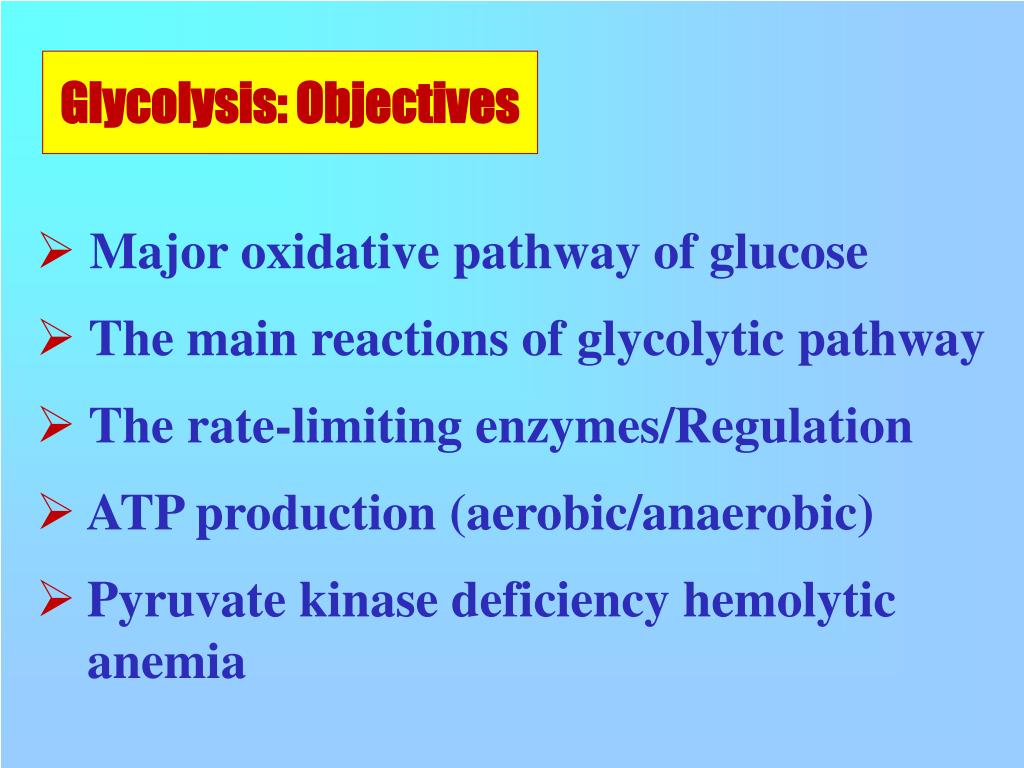

  3. Glycolysis: Objectives • Major oxidative pathway of glucose • The main reactions of glycolytic pathway • The rate-limiting enzymes/Regulation • ATP production (aerobic/anaerobic) • Pyruvatekinase deficiency hemolytic anemia

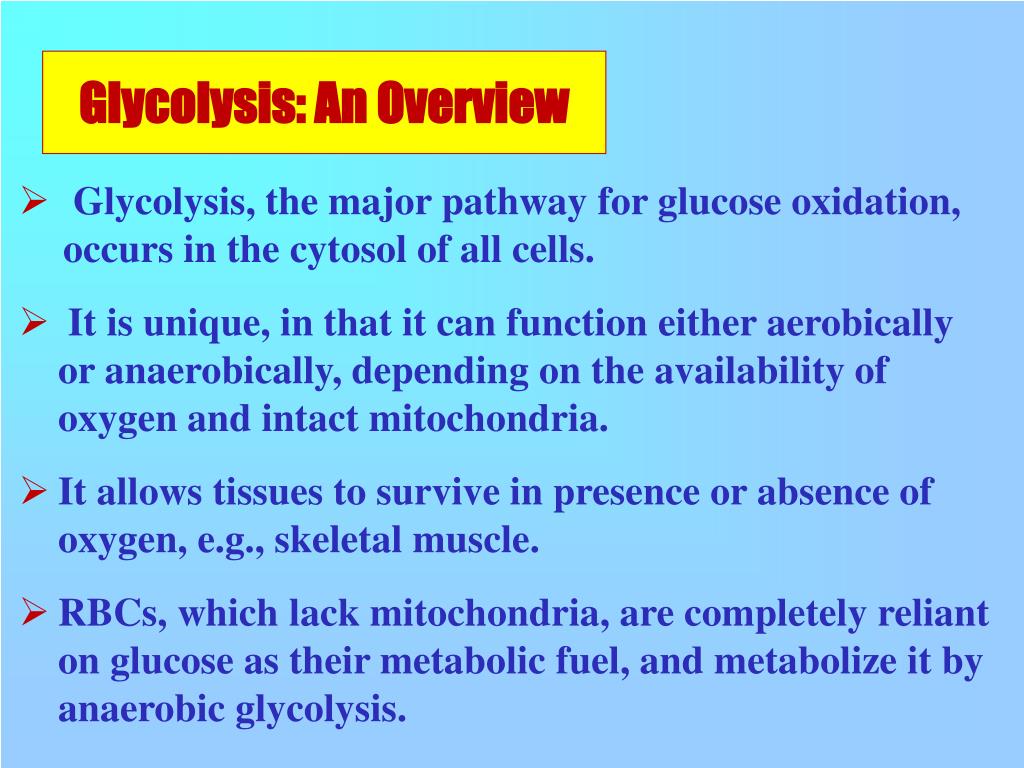

  4. Glycolysis: An Overview • Glycolysis, the major pathway for glucose oxidation, occurs in the cytosol of all cells. • It is unique, in that it can function either aerobically or anaerobically, depending on the availability of oxygen and intact mitochondria. • It allows tissues to survive in presence or absence of oxygen, e.g., skeletal muscle. • RBCs, which lack mitochondria, are completely reliant on glucose as their metabolic fuel, and metabolize it by anaerobic glycolysis.

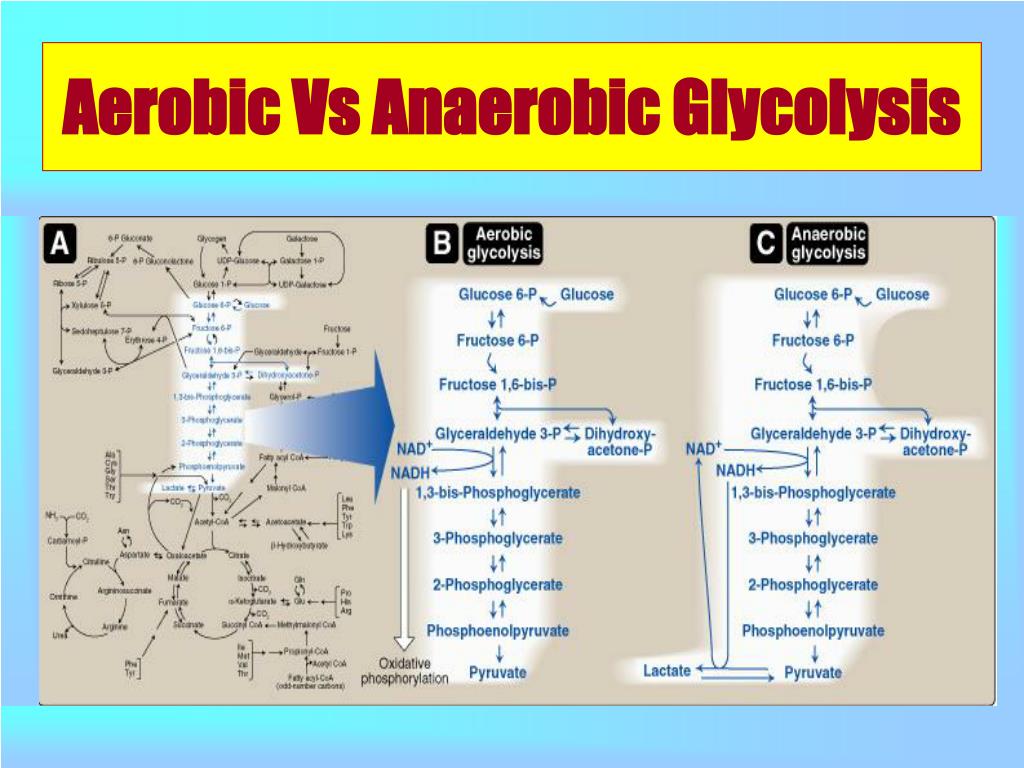

  5. Aerobic Vs Anaerobic Glycolysis

  6. Aerobic Glycolysis-1 Hexokinase: Most tissues Glucokinase: Hepatocytes Hexokinase Glucokinase

  7. PFK-1 : Regulation

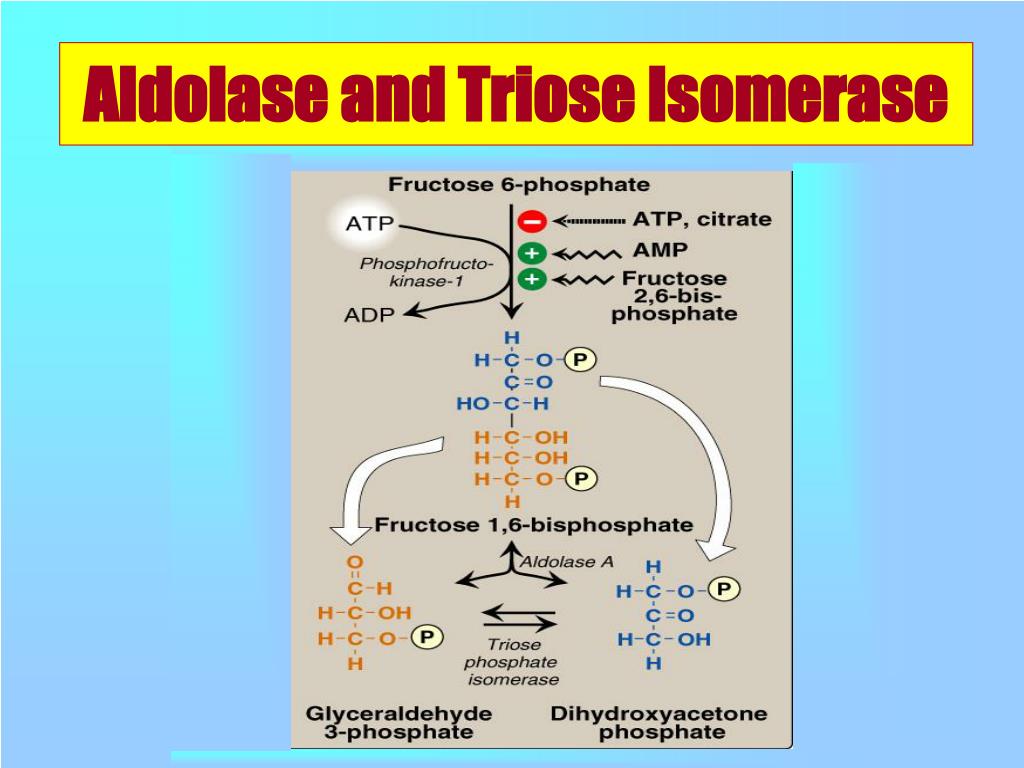

  8. Aldolase and Triose Isomerase

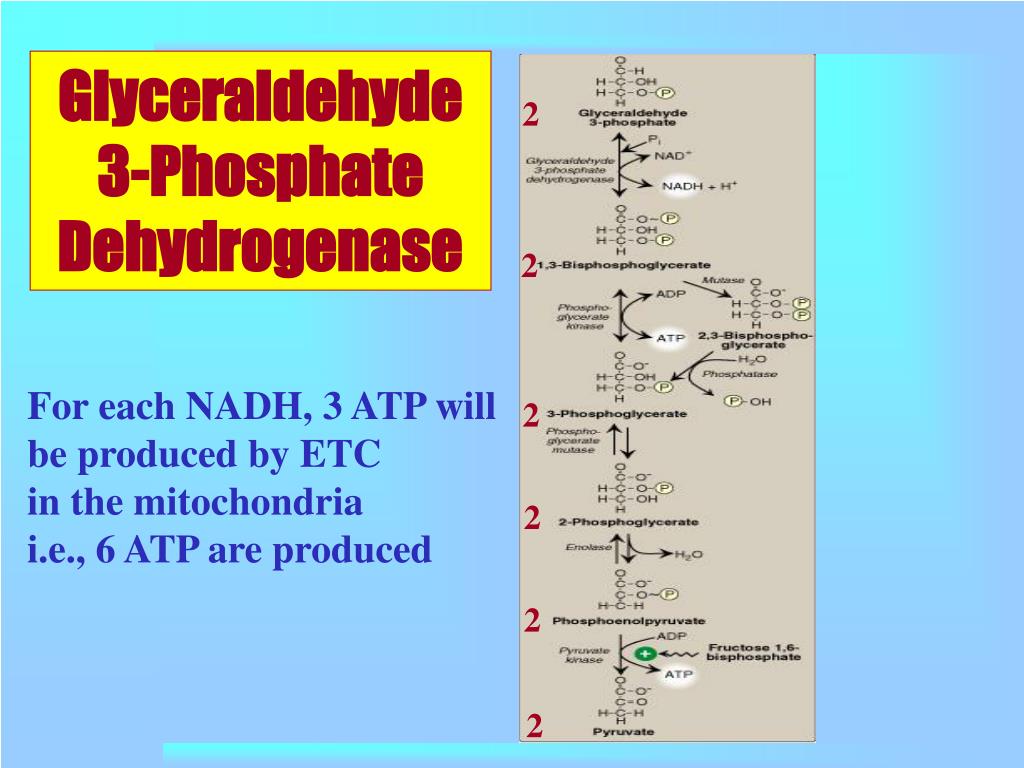

  9. Glyceraldehyde3-Phosphate Dehydrogenase 2 2 For each NADH, 3 ATP will be produced by ETC in the mitochondria i.e., 6 ATP are produced 2 2 2 2

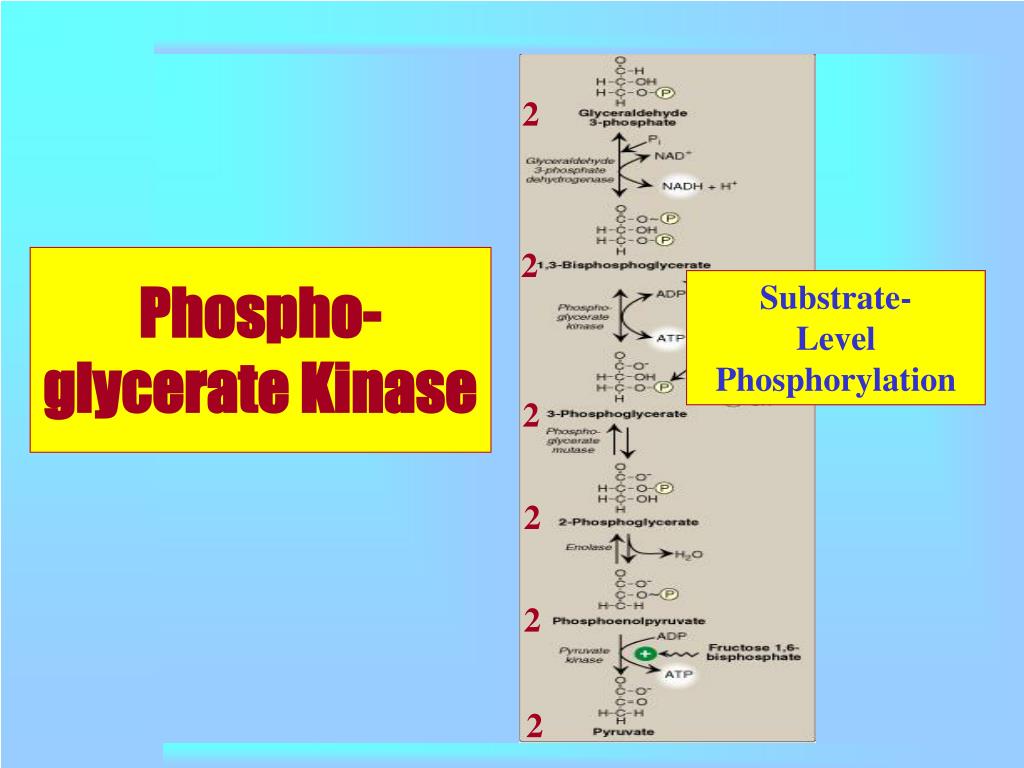

  10. Phospho-glycerate Kinase 2 2 Substrate- Level Phosphorylation 2 2 2 2

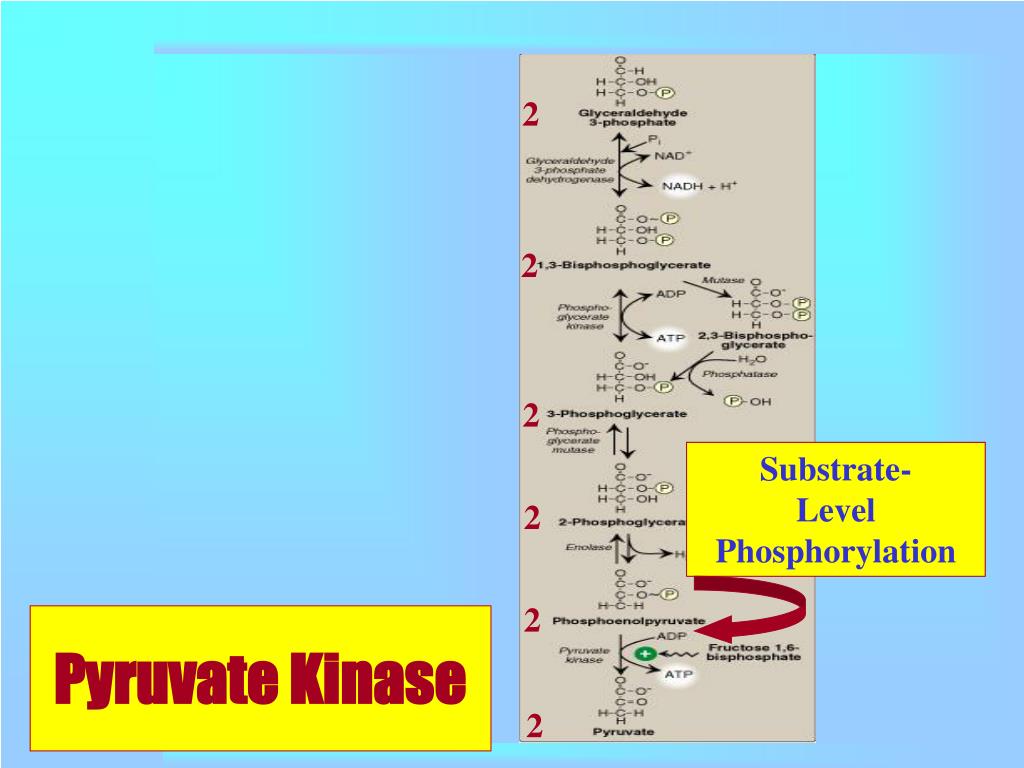

  11. Pyruvate Kinase 2 2 2 Substrate- Level Phosphorylation 2 2 2

  12. Substrate-level phosphorylation Vs. Oxidative phosphorylation • Phosphorylation is the metabolic reaction of introducing a phosphate group into an organic molecule. • Oxidative phosphorylation: The formation of high-energy phosphate bonds by phosphorylation of ADP to ATP coupled to the transfer of electrons from reduced coenzymes to molecular oxygen via the electron transport chain (ETC); it occurs in the mitochondria. • Substrate-level phosphorylation: The formation of high-energy phosphate bonds by phosphorylation of ADP to ATP (or GDP to GTP) coupled to cleavage of a high-energy metabolic intermediate (substrate). It may occur in cytosol or mitochondria

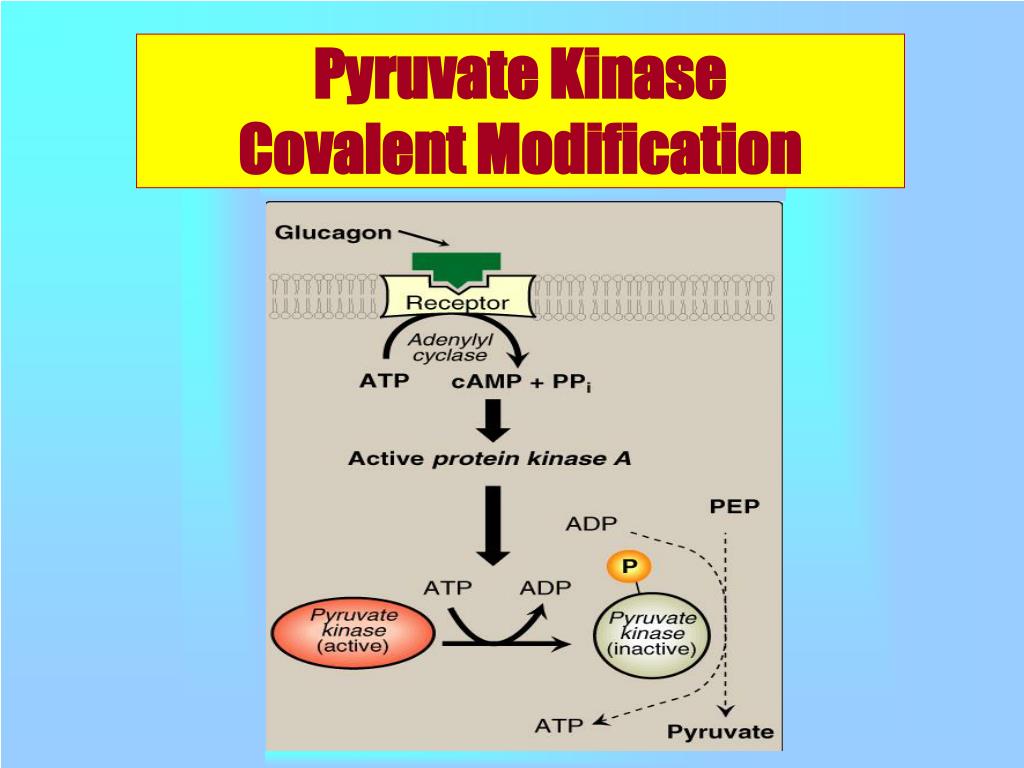

  13. Pyruvate KinaseCovalent Modification

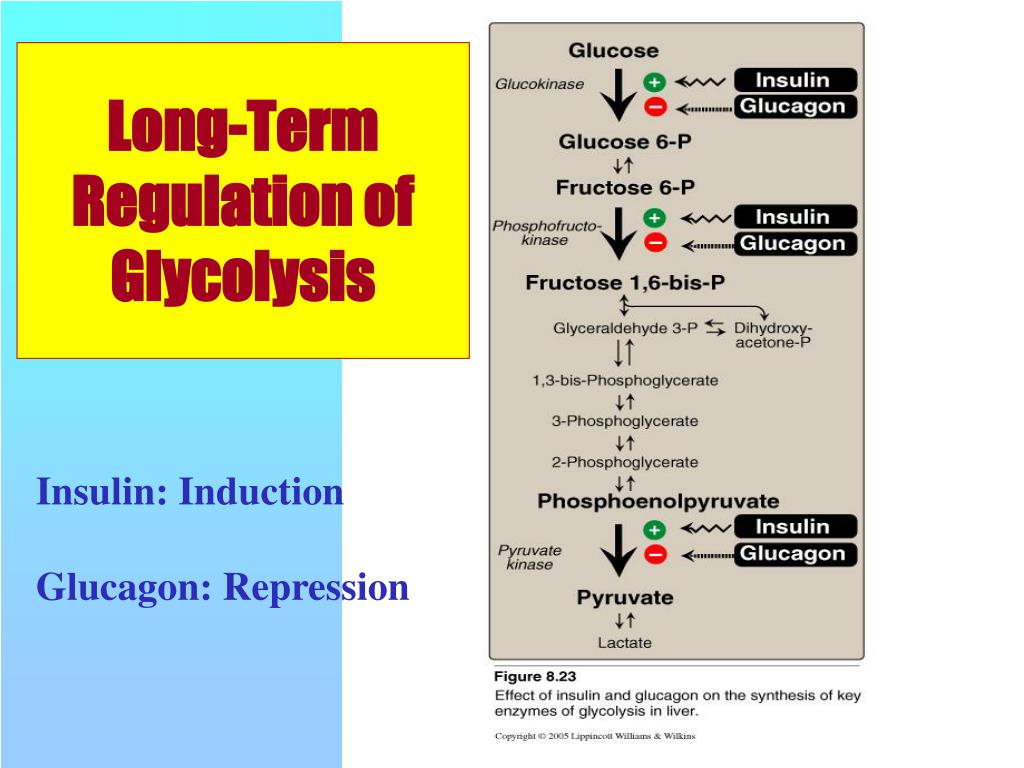

  14. Long-Term Regulation of Glycolysis Insulin: Induction Glucagon: Repression

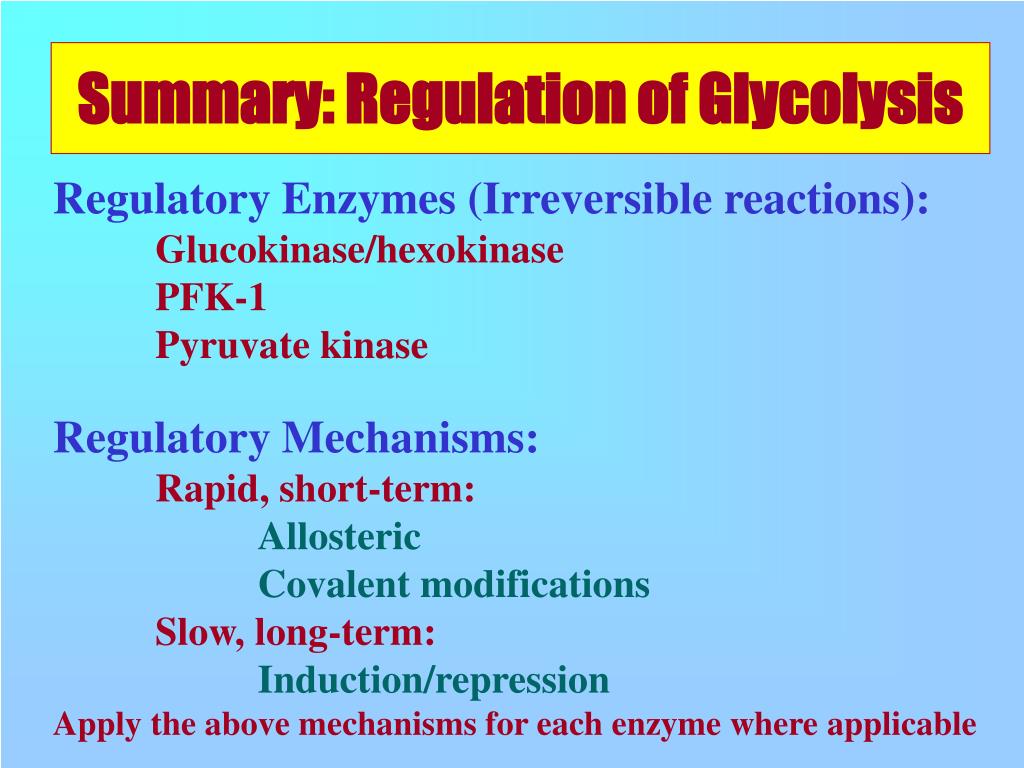

  15. Summary: Regulation of Glycolysis Regulatory Enzymes (Irreversible reactions): Glucokinase/hexokinase PFK-1 Pyruvate kinase Regulatory Mechanisms: Rapid, short-term: Allosteric Covalent modifications Slow, long-term: Induction/repression Apply the above mechanisms for each enzyme where applicable

  16. Pyruvate Kinase DeficiencyHemolytic Anemia PK Mutation Altered Enz. kinetics Decreased Enz. stability Altered response to activator

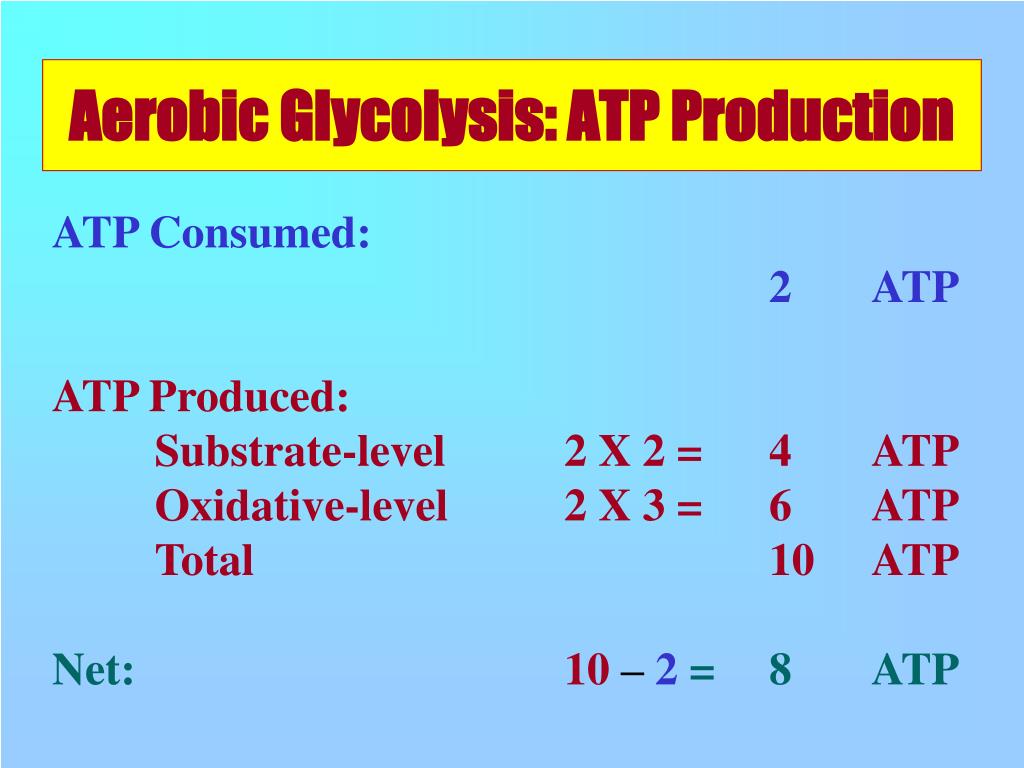

  17. Aerobic Glycolysis: ATP Production ATP Consumed: 2 ATP ATP Produced: Substrate-level 2 X 2 = 4 ATP Oxidative-level 2 X 3 = 6 ATP Total 10 ATP Net:10 – 2=8 ATP

  18. Aerobic Glycolysis: Total Vs Net ATP Production

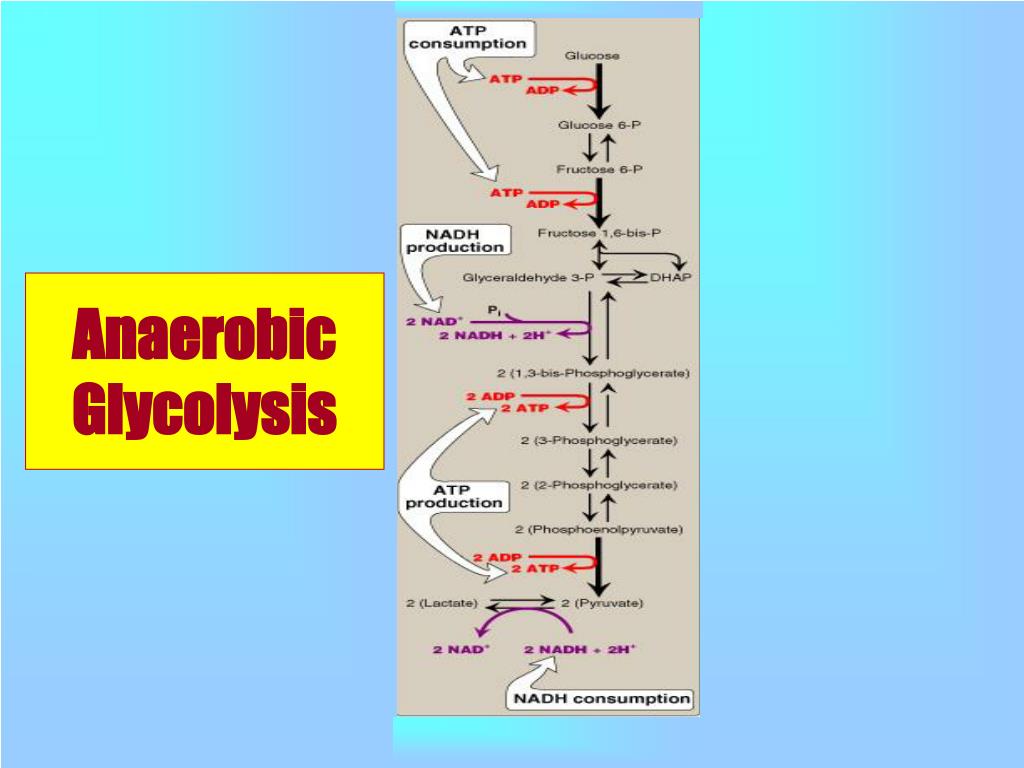

  19. Anaerobic Glycolysis

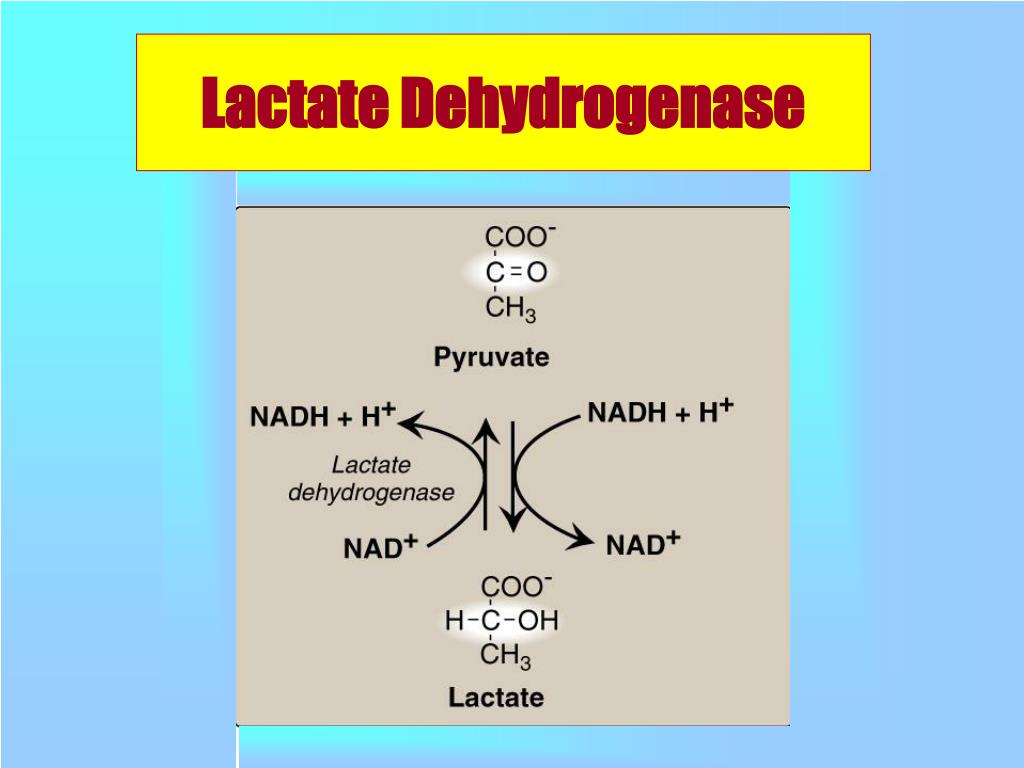

  20. Lactate Dehydrogenase

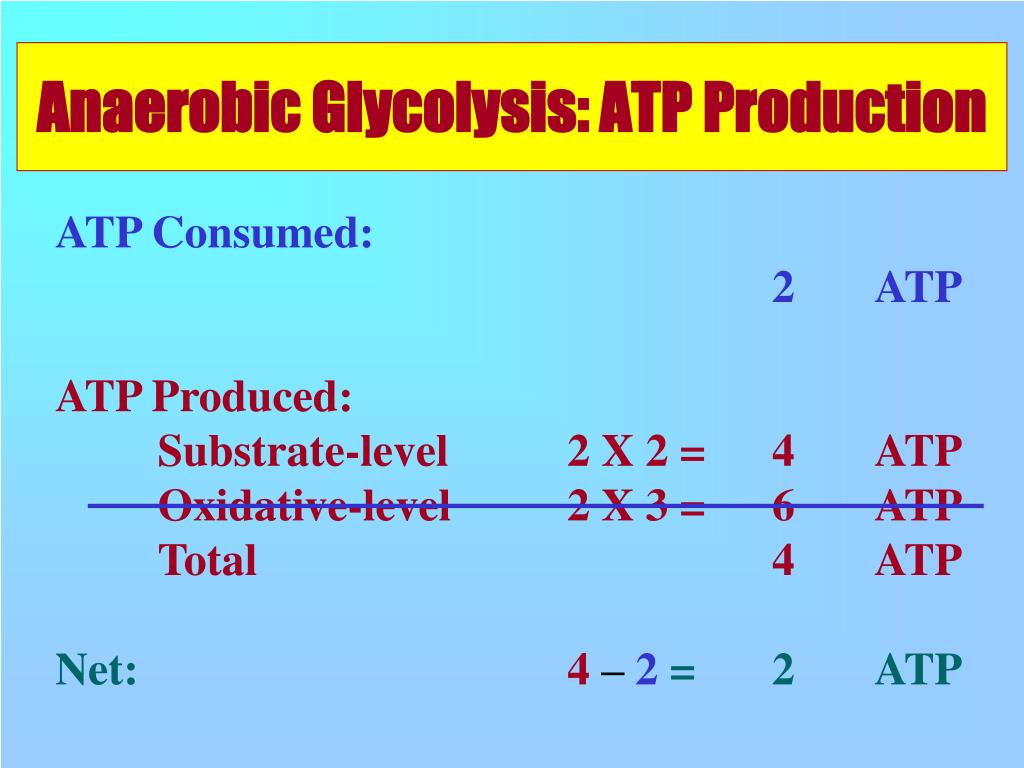

  21. Anaerobic Glycolysis: ATP Production ATP Consumed: 2 ATP ATP Produced: Substrate-level 2 X 2 = 4 ATP Oxidative-level 2 X 3 = 6 ATP Total 4 ATP Net:4 – 2=2 ATP

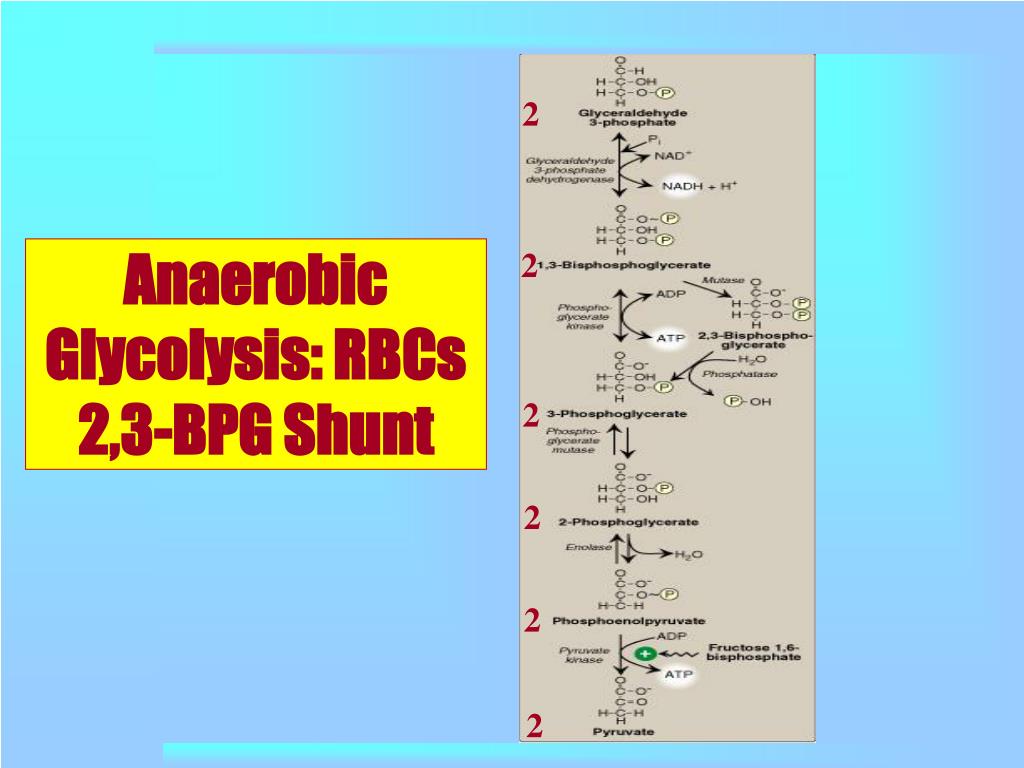

  22. Anaerobic Glycolysis: RBCs2,3-BPG Shunt 2 2 2 2 2 2

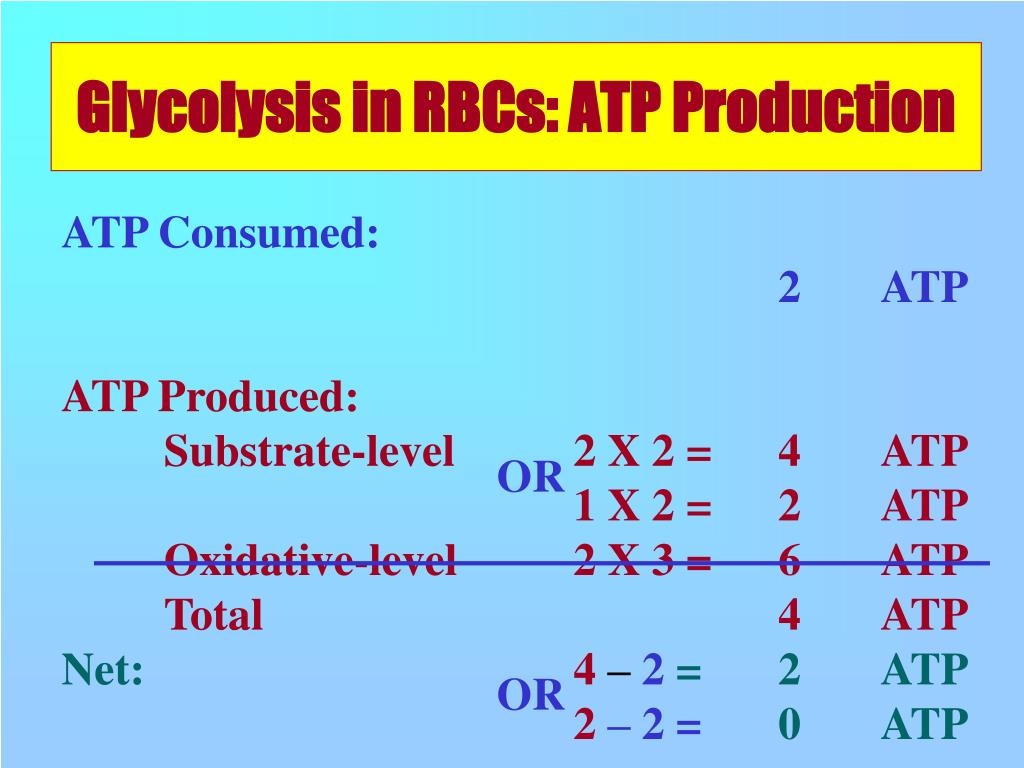

  23. Glycolysis in RBCs: ATP Production ATP Consumed: 2 ATP ATP Produced: Substrate-level 2 X 2 = 4 ATP 1 X 2 = 2 ATP Oxidative-level 2 X 3 = 6 ATP Total 4 ATP Net:4 – 2=2 ATP 2 – 2 = 0 ATP OR OR

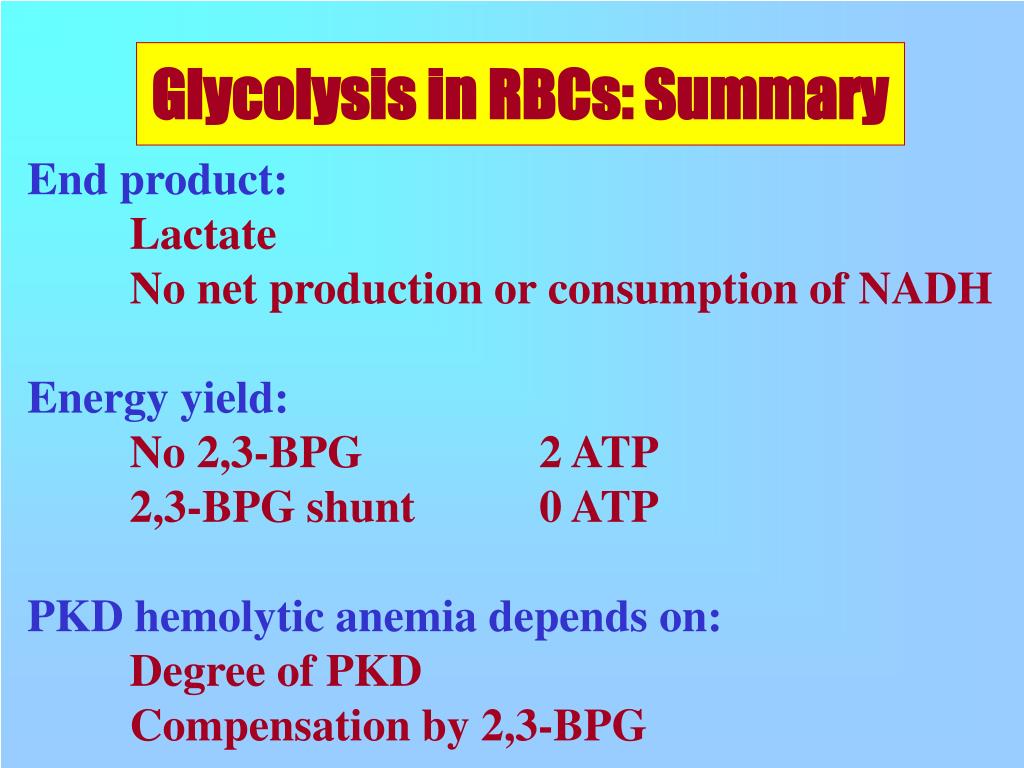

  24. Glycolysis in RBCs: Summary End product: Lactate No net production or consumption of NADH Energy yield: No 2,3-BPG 2 ATP 2,3-BPG shunt 0 ATP PKD hemolytic anemia depends on: Degree of PKD Compensation by 2,3-BPG

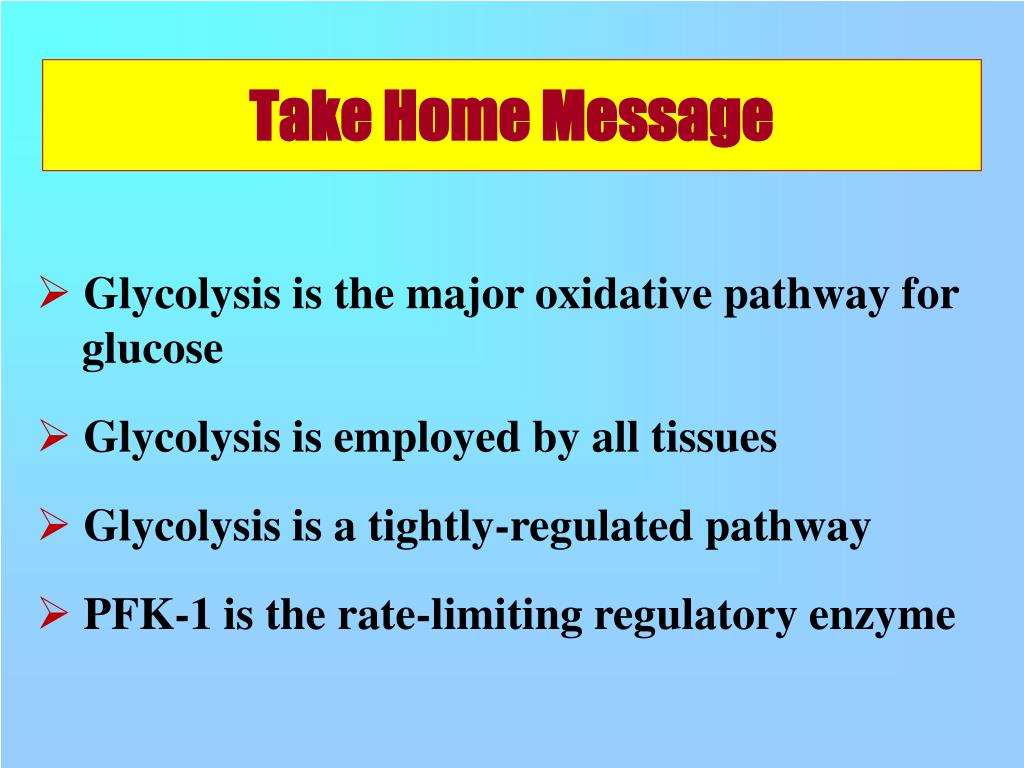

  25. Take Home Message • Glycolysis is the major oxidative pathway for • glucose • Glycolysis is employed by all tissues • Glycolysis is a tightly-regulated pathway • PFK-1 is the rate-limiting regulatory enzyme

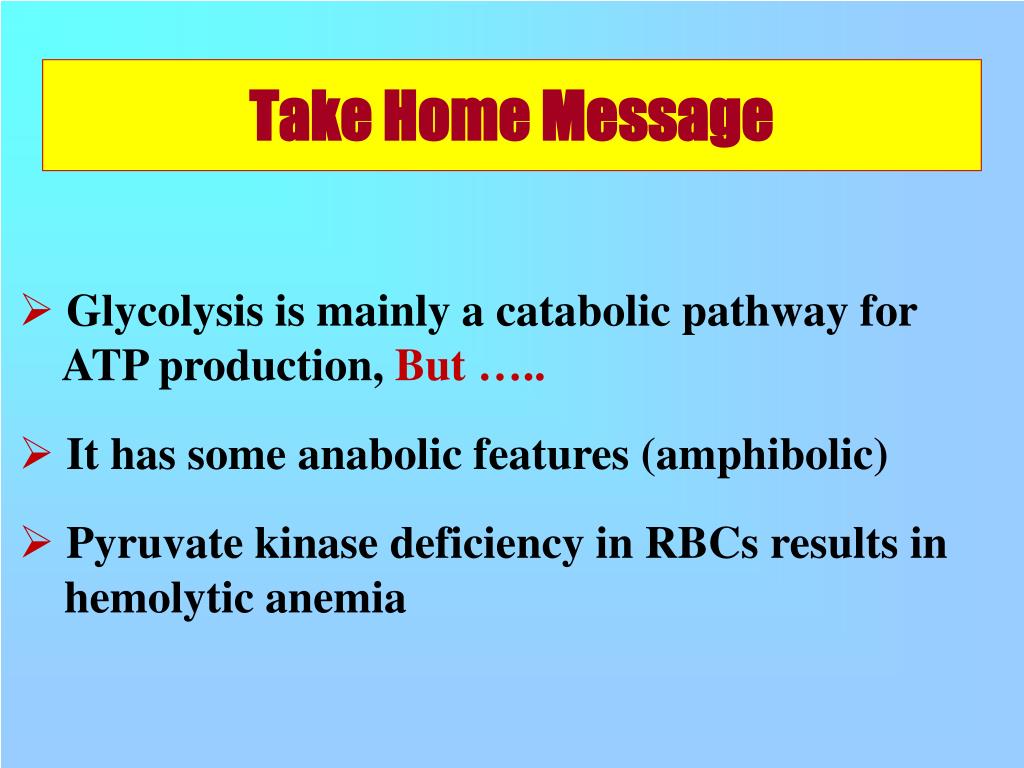

  26. Take Home Message • Glycolysis is mainly a catabolic pathway for • ATP production, But ….. • It has some anabolic features (amphibolic) • Pyruvate kinase deficiency in RBCs results in • hemolytic anemia

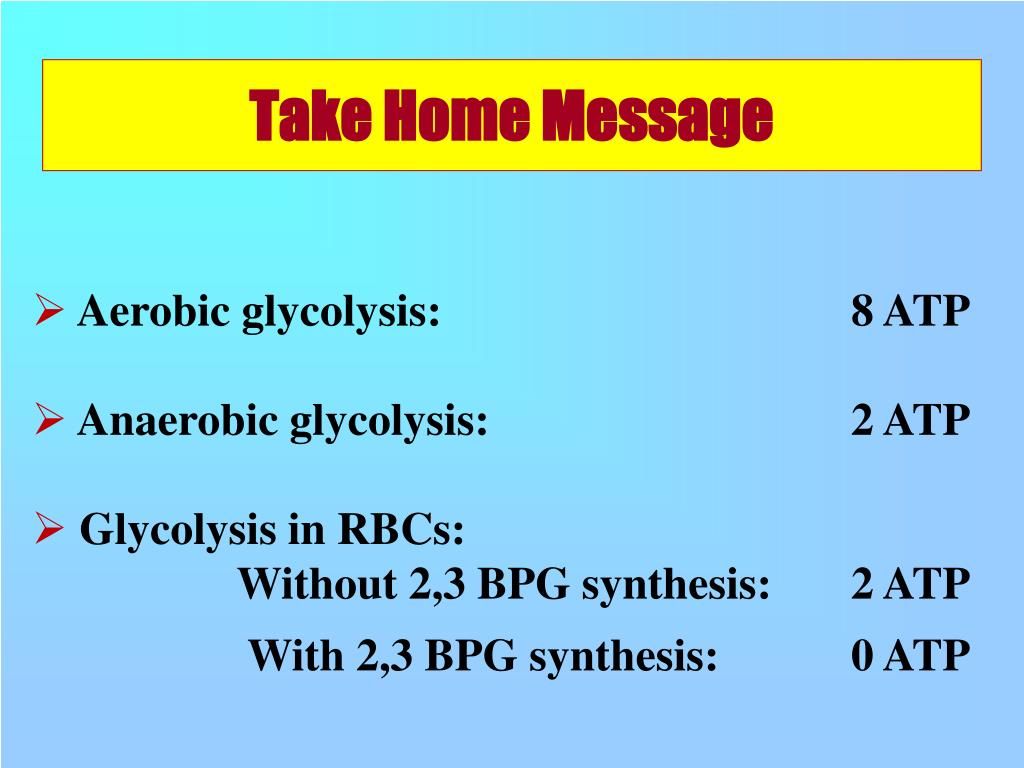

  27. Take Home Message • Aerobic glycolysis: 8 ATP • Anaerobic glycolysis: 2 ATP • Glycolysis in RBCs: • Without 2,3 BPG synthesis: 2 ATP • With 2,3 BPG synthesis: 0 ATP
