Hope Gospel Mission Resident Services Tracking System Data Flow Diagrams

1. Hope Gospel MissionResident Services Tracking SystemData Flow Diagrams IS 460 Notes By Paul Chen, Matt LeClair & Tom Hilton

2. Resident Services Tracking System 0 Hope Gospel MissionResident Services Tracking SystemData Flow Diagrams Context Diagram Report Request Applicant Information Applicant Staff Admission Approval or Rejection Report Map

3. Generate Reports Perform Intake Procedure 1 3 Maintain Resident Information 2 Staff D1 Resident Data Hope Gospel MissionResident Services Tracking SystemData Flow Diagrams Level 0 Report Request Applicant Information Applicant Name & ID Applicant Data Item Prompt Admission Approval or Rejection Data Items Data Query Prior Application Data Report ApprovedApplication Data VerifiedApprovedApplication Other Resident Data Request for Resident Information Maintenance BACK

4. 1.3 Receive Admission Application 1.1 Review Admission Application 1.2 Verify Admission Application D1 Resident Data Hope Gospel MissionResident Services Tracking SystemData Flow Diagrams Level 1 Process 1, Perform Intake Procedure Applicant Information Applicant Admission Application Applicant Name and ID VerifiedAdmissionApplication Prior Application Data Application Data Application Request Application Approval or Rejection Approved Application BACK

5. 2.5 2.1 Add New Resident 2.2 Edit Existing Resident 2.3 Delete Existing Resident 2.4 Cancel Operation Determine Operation D1 Resident Data Hope Gospel MissionResident Services Tracking SystemData Flow Diagrams Level 1 Process 2, Maintain Resident Information Approved Application to Add Verified Approved Application Verified Changed Resident Data Approved Application Approved Application to Edit Request for Resident Information Maintenance ID of Resident to Delete Verified ID of Resident to Delete Determination to Cancel Operation BACK

6. Issue Report Specify Report 3.1 3.3 Construct Data Query 3.2 Staff D1 Resident Data Hope Gospel MissionResident Services Tracking SystemData Flow Diagrams Level 1 Process 3, Generate Reports Report Request Data Item Prompt Report Specification Report Data Items Data Data Query BACK

7. Check for Prior Application 1.1.1 Enter or Edit Applicant Data 1.1.2 D2 Applicant Data Hope Gospel MissionResident Services Tracking SystemData Flow Diagrams Level 2 Process 1.1, Receive Admission Application Applicant Admission Application Application Information New Applicant Data Applicant Name and ID Prior Applicant Data BACK

8. Display Admission Application 1.3.1 Approve or Reject Application 1.3.2 D2 Applicant Data Hope Gospel MissionResident Services Tracking SystemData Flow Diagrams Level 2 Process 1.3, Review Application Application Request FormattedAdmissionApplication Approved Application Application Data Application Approval or Rejection Applicant BACK

9. 1.1.1 Check for Prior Application Pseudocode Select * From APPLICANT_DATA ALIAS D2 For D2.NAME = NAME And D2.PK = ID BACK

10. 1.1.2 Enter or Edit Applicant Data Pseudocode REM repeat for all applicant data: IF D2.fieldname <> varname WHERE D2.PK = ID THEN UPDATE APPLICANT_DATA ALIAS D2 SET D2.fieldname = varname WHERE D2.PK = ID ENDIF BACK

11. 1.2 Verify Admission Application Pseudocode Run Form Admission_Application_Verification On D2.Applicant_Data Allow Update on all fields On Send Commit to D2.Applicant_Data BACK

12. 1.3.1 Display Admission Application Pseudocode On Applicant_Data ALIAS D2 Run Report D2.Application_Display ReadOnly On Send Return to calling module BACK

13. 1.3.2 Approve or Reject Application Pseudocode IF Accepted THEN UPDATE Applicant_Data ALIAS D2 SET Admitted = “Admitted “ + Today() WHERE D2.PK = ID Run Print_Admission_Voucher ELSE UPDATE Applicant_Data ALIAS D2 SET Admitted = “Rejected ” + Today() WHERE D2.PK = ID ENDIF BACK

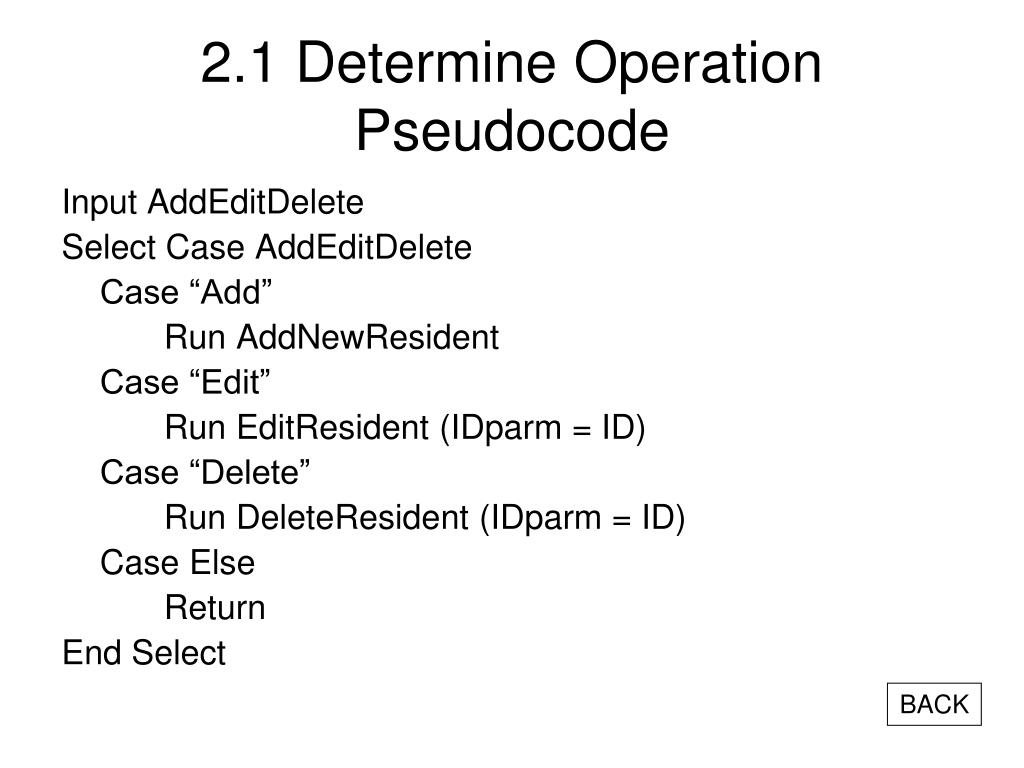

14. 2.1 Determine Operation Pseudocode Input AddEditDelete Select Case AddEditDelete Case “Add” Run AddNewResident Case “Edit” Run EditResident (IDparm = ID) Case “Delete” Run DeleteResident (IDparm = ID) Case Else Return End Select BACK

15. 2.2 Add New ResidentPseudocode INSERT INTO D1_Resident_Data VALUES (Lname, Fname, etc.) BACK

16. 2.3 Edit Existing ResidentPseudocode UPDATE Resident_Data ALIAS D1 SET D1.Lname = VarLname, D1.Fname = VarFname, etc. WHERE D1.PK = IDparm BACK

17. 2.4 Delete Existing Resident Pseudocode DELETE FROM Resident_Data ALIAS D1 WHERE D1.PK = IDparm BACK

18. 2.5 Cancel OperationPseudocode Just drop through the Case statement in 2.1 and return. BACK

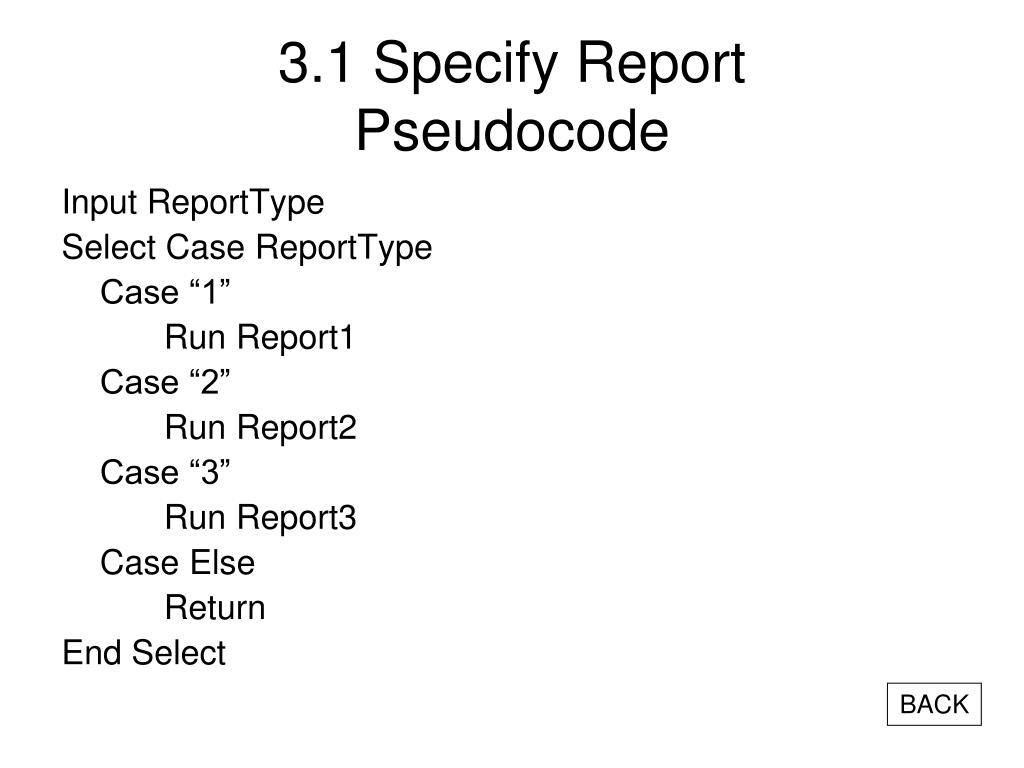

19. 3.1 Specify ReportPseudocode Input ReportType Select Case ReportType Case “1” Run Report1 Case “2” Run Report2 Case “3” Run Report3 Case Else Return End Select BACK

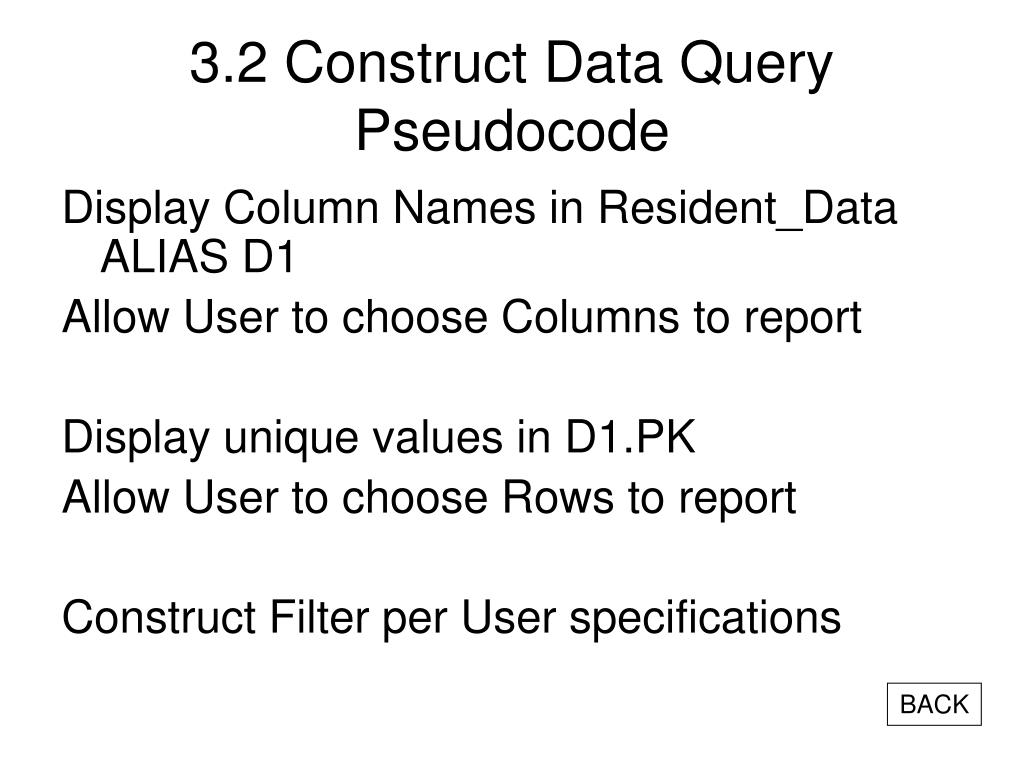

20. 3.2 Construct Data Query Pseudocode Display Column Names in Resident_Data ALIAS D1 Allow User to choose Columns to report Display unique values in D1.PK Allow User to choose Rows to report Construct Filter per User specifications BACK

21. 3.3 Issue ReportPseudocode Using Filter from 3.2 SELECT Filtered.Columns FROM Resident_Data ALIAS D1 WHERE ID = Filtered.Rows(1) OR ID = Filtered.Rows(2) OR etc. BACK

22. D1 ER Diagram EMPLOYER 1:1 INTAKE MANAGER 0:M VISIT-EMPLOYER EMERGENCY CONTACT HOMELESS REASON 1:1 M:0 1:1 1:1 1:1 0:M M:0 M:0 VISIT-PHASE VISIT VISIT-HOMELESSREASON M:1 1:1 0:M 1:1 0:M 1:1 0:M M:1 1:1 0:M 1:0 1:1 VISIT-CLINIC CHAPLAIN PHASE M:0 RESIDENT 1:1 0:M 1:1 1:1 1:1 0:M 1:1 EDUCATION LEVEL MEDICAL RECORD CLINIC 1:M M:0 CRIMINAL RECORD RESIDENT PROGRESS To L0 To L1 To P2 To P3

23. Levels of Diagrams BACK
