modern performance sql server

Modern Performance - SQL Server

Joe Chang

www.qdpma.com

Jchang6 @ yahoo

about joe
About Joe
  • SQL Server consultant since 1999
  • Query Optimizer execution plan cost formulas (2002)
  • True cost structure of SQL plan operations (2003?)
  • Database with distribution statistics only, no data 2004
  • Decoding statblob/stats_stream
    • writing your own statistics
  • Disk IO cost structure
  • Tools for system monitoring, execution plan analysis

See ExecStats http://www.qdpma.com/ExecStats/SQLExecStats.html

Download: http://www.qdpma.com/ExecStatsZip.html

Blog: http://sqlblog.com/blogs/joe_chang/default.aspx

overview
Overview
  • Why performance is still important today?
    • Brute force?
      • Yes, but …
  • Special Topics
  • Automating data collections
  • SQL Server Engine
    • What developers/DBA need to know?
cpu memory 2001 versus 2012
CPU & Memory 2001 versus 2012

P

P

L2

QPI

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

FSB

PCI-E

PCI-E

MCH

QPI

QPI

QPI

QPI

PCI-E

PCI-E

PCI-E

PCI-E

P

P

C3

C3

C3

C3

LLC

LLC

LLC

LLC

C4

C4

C4

C4

QPI

QPI

C2

C2

C2

C2

C5

C5

C5

C5

2001 – 4 sockets, 4 cores

Pentium III Xeon, 900MHz

4-8GB memory?

Xeon MP 2002-4

C1

C1

C1

C1

C6

C6

C6

C6

C0

C0

C0

C0

C7

C7

C7

C7

MI

MI

MI

MI

MI

MI

MI

MI

QPI

DMI 2

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

2012 – 4 sockets, 8 cores each

4 x 8 = 32 cores total

  • Westmere-EX 1TB (64x16GB)

Sandy Bridge E5: 768GB (48 x 16GB),

  • 15 cores in Xeon E7 v2
  • 3TB (96 x 32GB)

Each core today is more than 10x over PIII

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

_____ 2013 __ 2014

16GB $191 __ $180

32GB $794 __ $650

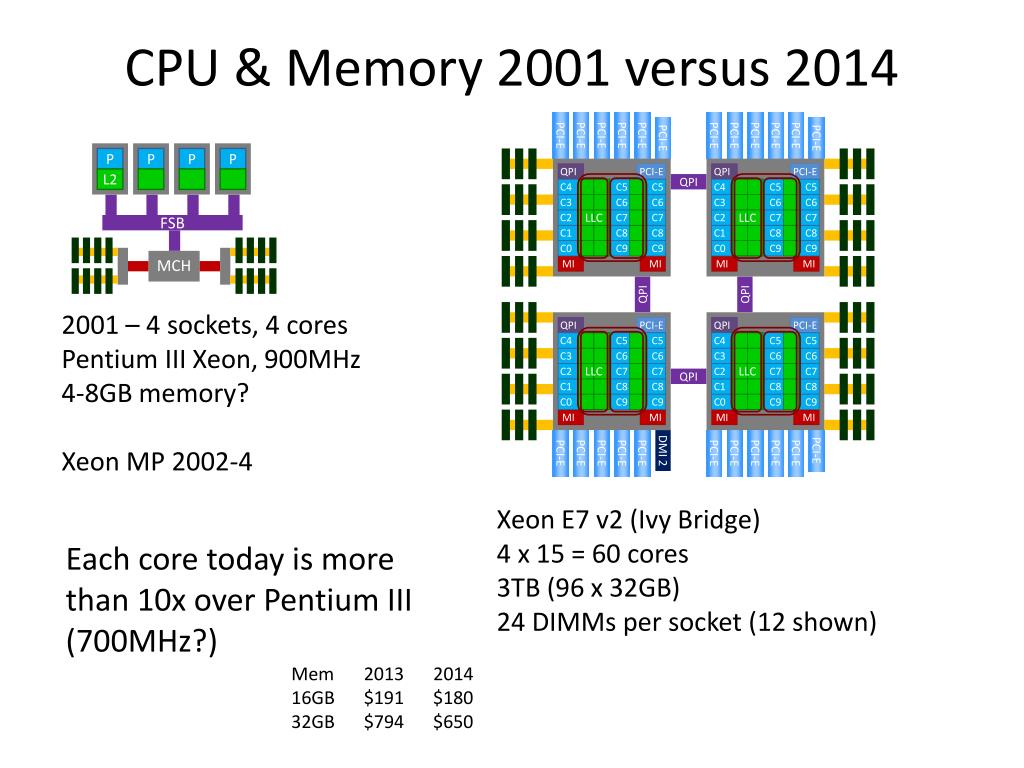

cpu memory 2001 versus 2014
CPU & Memory 2001 versus 2014

P

P

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

L2

FSB

QPI

MCH

P

P

2001 – 4 sockets, 4 cores

Pentium III Xeon, 900MHz

4-8GB memory?

Xeon MP 2002-4

QPI

QPI

QPI

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

DMI 2

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

PCI-E

Xeon E7 v2 (Ivy Bridge)

4 x 15 = 60 cores

3TB (96 x 32GB)

24 DIMMs per socket (12 shown)

QPI

QPI

QPI

QPI

PCI-E

PCI-E

PCI-E

PCI-E

C4

C4

C4

C4

LLC

LLC

LLC

LLC

C5

C5

C5

C5

C5

C5

C5

C5

Each core today is more than 10x over Pentium III (700MHz?)

C3

C3

C3

C3

C6

C6

C6

C6

C6

C6

C6

C6

C2

C2

C2

C2

C7

C7

C7

C7

C7

C7

C7

C7

C1

C1

C1

C1

C8

C8

C8

C8

C8

C8

C8

C8

C0

C0

C0

C0

C9

C9

C9

C9

C9

C9

C9

C9

MI

MI

MI

MI

MI

MI

MI

MI

Mem___2013 __ 2014

16GB __ $191 __ $180

32GB __$794 __ $650

intel e5 e7 v2 ivy bridge
Intel E5 & E7 v2 (Ivy-Bridge)

E3 v3

GFX

MC

x4

x4

x4

x4

DMI

PCH

storage 2001 versus 2012 13
Storage 2001 versus 2012/13

QPI

192 GB

192 GB

MCH

SSD

SSD

SSD

SSD

QPI

PCI

PCI

PCI

PCI

PCIe x4

PCIe x8

PCIe x8

PCIe x8

PCIe x8

PCIe x8

HDD

HDD

HDD

HDD

RAID

RAID

RAID

RAID

10GbE

IB

RAID

RAID

RAID

RAID

HDD

HDD

HDD

HDD

HDD

HDD

HDD

HDD

2001

100 x 10K HDD

125 IOPS each = 12.5K IOPS

IO Bandwidth limited: 1.3GB/s

(1/3 memory bandwidth)

2013

64 SSDs, >10K+ IOPS each, 1M IOPS possible

IO Bandwidth 10GB/s easy

SAN vendors – questionable BW

http://www.qdpma.com/Storage/Storage2013.html

http://www.qdpma.com/ppt/Storage_2013.pptx

slide8
SAN

Node 1

Node 2

Node

1

Node

2

768 GB

768 GB

768 GB

768 GB

8 Gbps

FC

or

10Gbps

FCOE

x8

x8

x8

x8

x8

x8

SSD

SSD

Switch

Switch

8 Gb

FC

Switch

Switch

SP A

SP B

24 GB

24 GB

SP A

SP B

x4 SAS

2GB/s

24 GB

24 GB

x4 SAS 2GB/s

Main Volume

Data 5

Data 16

Data 12

Data 15

Data 6

Data 7

Data 13

Data 9

Data 8

Data 11

Data 3

Data 4

Log 4

Log 3

Log 1

Log 2

Data 14

Data 1

Data 2

Data 10

Log volume

Hot Spares

SSD

10K

7.2K

SSD 1

SSD 2

SSD 3

SSD 4

http://sqlblog.com/blogs/joe_chang/archive/2013/05/10/enterprise-storage-systems-emc-vmax.aspx http://sqlblog.com/blogs/joe_chang/archive/2013/02/25/emc-vnx2-and-vnx-future.aspx

performance past present future
Performance Past, Present, Future
  • When will servers be so powerful that …
    • Been saying this for a long time
  • Today – 10 to 100X overkill
    • 32-cores in 2012, 60-cores in 2014
    • Enough memory that IO is only sporadic
    • Unlimited IOPS with SSD
  • What can go wrong?

Today’s topic

factors to consider
Factors to Consider

SQL

Tables

Indexes

Statistics

Query Optimizer

Compile Parameters

Storage Engine

DOP

memory

Hardware

special topics
Special Topics
  • Data type mismatch
  • Multiple Optional Search Arguments (SARG)
    • Function on SARG
  • Parameter Sniffing versus Variables
  • Statistics related (big topic)
  • first OR, then AND/OR combinations
  • Complex Query with sub-expressions
  • Parallel Execution

Not in order of priority

http://blogs.msdn.com/b/sqlcat/archive/2013/09/09/when-to-break-down-complex-queries.aspx

1a data type mismatch
1a. Data type mismatch

DECLARE@namenvarchar(25) = N'Customer#000002760'

SELECT * FROM CUSTOMER WHERE C_NAME = @name

Table column is varchar

Parameter/variable is nvarchar

SELECT* FROM CUSTOMER WHERE C_NAME = CONVERT(varchar, @name)

.NET auto-parameter discovery?

Unable to use index seek

1b type mismatch row estimate
1b. Type Mismatch – Row Estimate

SELECT* FROM CUSTOMER WHERE C_NAME LIKE'Customer#00000276%'

SELECT* FROM CUSTOMER WHERE C_NAME LIKEN’Customer#00000276%'

Row estimate error could have severe consequences in a complex query

select top row estimate error
SELECT TOP + Row Estimate Error

SELECT TOP 1000[Document].[ArtifactID]FROM[Document](NOLOCK)WHERE[Document].[AccessControlListID_D]IN(1,1000064,1000269)AND EXISTS (SELECT[DocumentBatch].[BatchArtifactID]FROM[DocumentBatch](NOLOCK)INNER JOIN[Batch](NOLOCK)ON[Batch].ArtifactID=[DocumentBatch].[BatchArtifactID]WHERE

[DocumentBatch].[DocumentArtifactID]=[Document].[ArtifactID]AND[Batch].[Name]LIKEN'%Value%')ORDER BY[Document].[ArtifactID]

Data type mismatch – results in estimate rows high

Top clause – easy to find first 1000 rows

In fact, there are few rows that match SARG

Wrong plan for evaluating large number of rows

http://www.qdpma.com/CBO/Relativity.html

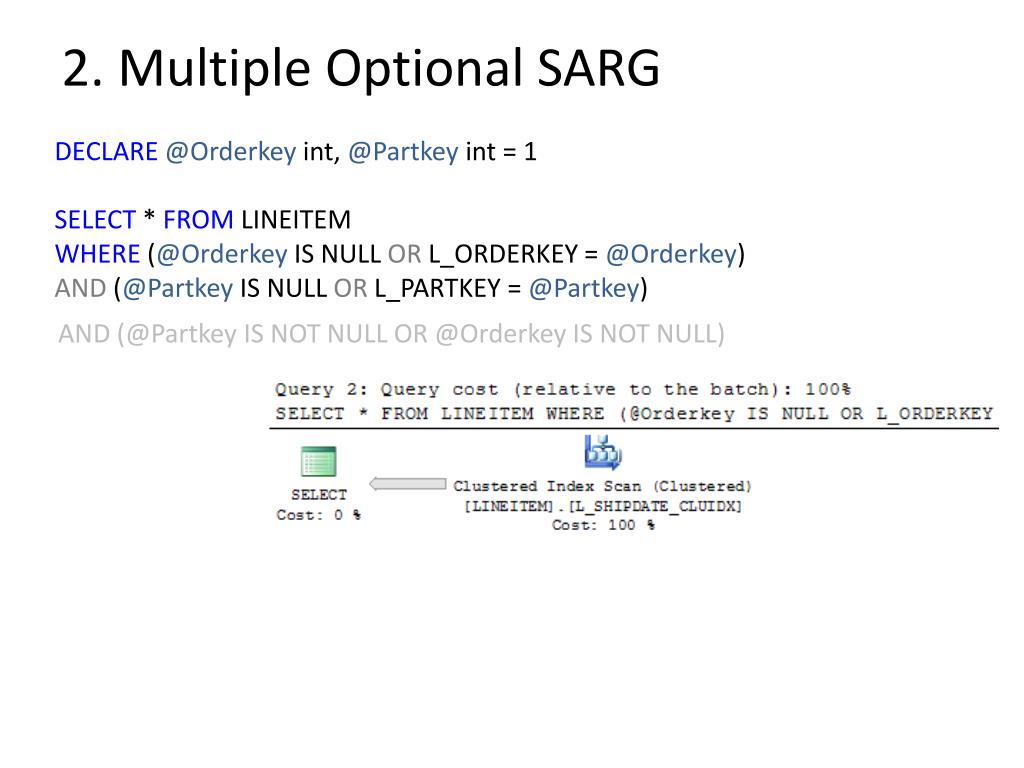

2 multiple optional sarg
2. Multiple Optional SARG

DECLARE@Orderkeyint, @Partkeyint = 1

SELECT* FROMLINEITEM

WHERE (@Orderkey IS NULL OR L_ORDERKEY = @Orderkey)

AND (@PartkeyIS NULL OR L_PARTKEY = @Partkey)

AND (@Partkey IS NOT NULL OR @Orderkey IS NOT NULL)

if block
IF block

DECLARE@Orderkeyint, @Partkeyint = 1

IF (@OrderkeyISNOTNULL)

SELECT* FROMLINEITEM

WHERE (L_ORDERKEY = @Orderkey)

AND(@PartkeyIS NULL OR L_PARTKEY = @Partkey)

ELSE IF (@PartkeyISNOTNULL)

SELECT * FROM LINEITEM

WHERE(L_PARTKEY = @Partkey)

These are actually the stored procedure parameters

Need to consider impact of Parameter Sniffing,

Consider the OPTIMIZER FOR hint

dynamically built parameterized sql
Dynamically Built Parameterized SQL

DECLARE@Orderkeyint,@Partkeyint=1

,@SQLnvarchar(500),@Paramnvarchar(100)

SELECT@SQL=

N‘/* Comment */

SELECT * FROM LINEITEM WHERE 1=1‘

,@Param=N'@Orderkey int, @Partkey int'

IF (@OrderkeyISNOTNULL)

SELECT@SQL=@SQL+N' AND L_ORDERKEY = @Orderkey'

IF (@PartkeyISNOTNULL)

SELECT@SQL=@SQL+N' AND L_PARTKEY = @Partkey'

PRINT@SQL

execsp_executesql@SQL,@Param,@Orderkey,@Partkey

IF block is easier for few options

Dynamically built parameterized SQL better for many options

Consider /*comment*/ to help identify source of SQL

2b function on column sarg
2b. Function on column SARG

SELECTCOUNT(*), SUM(L_EXTENDEDPRICE) FROM LINEITEM

WHEREYEAR(L_SHIPDATE) = 1995 ANDMONTH(L_SHIPDATE) = 1

SELECTCOUNT(*), SUM(L_EXTENDEDPRICE) FROM LINEITEM

WHEREL_SHIPDATE BETWEEN'1995-01-01'AND'1995-01-31'

DECLARE@Startdate date, @Daysint = 1

SELECTCOUNT(*), SUM(L_EXTENDEDPRICE) FROMLINEITEM

WHEREL_SHIPDATE BETWEEN@Startdate ANDDATEADD(dd,1,@Startdate)

estimated versus actual plan rows
Estimated versus Actual Plan - rows

Estimated Plan – 1 row???

Actual Plan – actual rows 77,356

3 parameter sniffing
3 Parameter Sniffing

-- first call, procedure compiles with these parameters

execp_Report @startdate = '2011-01-01', @enddate = '2011-12-31'

-- subsequent calls, procedure executes with original plan

execp_Report @startdate = '2012-01-01', @enddate = '2012-01-07'

Assuming date data type

Need different execution plans for narrow and wide range

Options:

1) WITH RECOMPILE

2) main procedure calls 1 of 2 identical sub-procedures

One sub-procedure is only called for narrow range

Other called for wide range

Skewed data distributions also important

Example: Large & small customers

4 statistics
4 Statistics
  • Auto-recompute points
  • Sampling strategy
    • How much to sample - theory?
    • Random pages versus random rows
    • Histogram Equal and Range Rows
    • Out of bounds, value does not exist
    • etc.

Statistics Used by the Query Optimizer in SQL Server 2008

Writer: Eric N. Hanson and YavorAngelov

Contributor: LuborKollar

http://msdn.microsoft.com/en-us/library/dd535534.aspx

statistics structure
Statistics Structure
  • Stored (mostly) in binary field

Scalar values

Density Vector – limit 30, half in NC, half Cluster key

Histogram

Up to 200 steps

Consider not blindly using IDENTITY on critical tables

Example: Large customers get low ID values

Small customers get high ID values

http://sqlblog.com/blogs/joe_chang/archive/2012/05/05/decoding-stats-stream.aspx

statistics auto re compute
Statistics Auto/Re-Compute
  • Automatically generated on query compile
  • Recompute at 6 rows, 500, every 20%?

Has this changed?

statistics sampling
Statistics Sampling
  • Sampling theory
    • True random sample
    • Sample error - square root N
      • Relative error 1/ N
  • SQL Server sampling
    • Random pages
      • But always first and last page???
    • All rows in selected pages

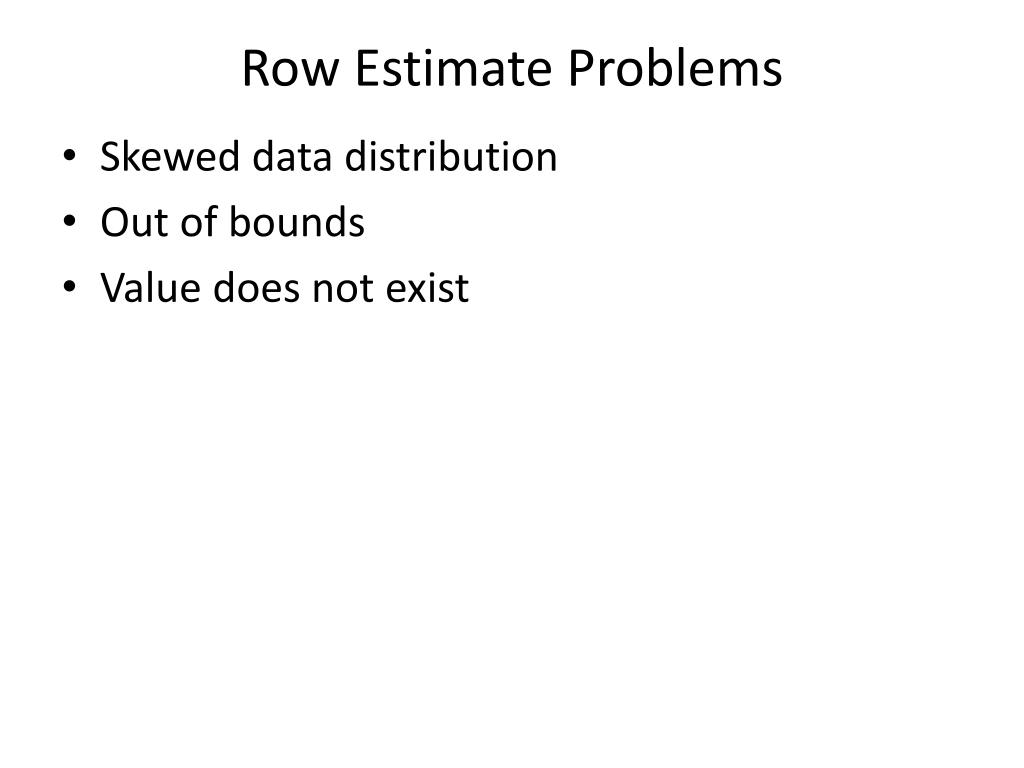

row estimate problems
Row Estimate Problems
  • Skewed data distribution
  • Out of bounds
  • Value does not exist
loop join table scan on inner source
Loop Join - Table Scan on Inner Source

Estimated out from first 2 tabes (at right) is zero or 1 rows. Most efficient join to third table (without index on join column) is a loop join with scan. If row count is 2 or more, then a fullscan is performed for each row from outer source

Default statistics rules may lead to serious ETL issues

Consider custom strategy

compile parameter not exists
Compile Parameter Not Exists

Main procedure has cursor around view_Servers

First server in view_Servers is ’CAESIUM’

Cursor executes sub-procedure for each Server

sql:

SELECTMAX(ID) FROMTReplWS

WHERE Hostname = @ServerName

But CAESIUM does not exist in TReplWS!

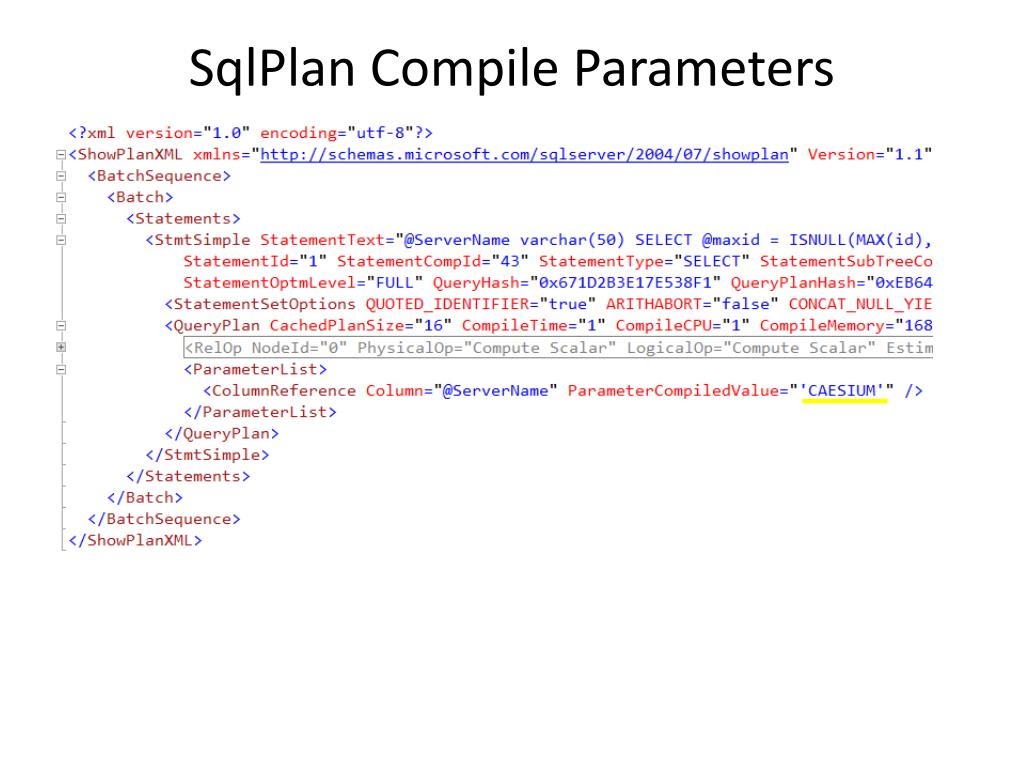

sqlplan compile parameters1
SqlPlan Compile Parameters

<?xmlversion="1.0"encoding="utf-8"?>

<ShowPlanXMLxmlns="http://schemas.microsoft.com/sqlserver/2004/07/showplan"Version="1.1"Build="10.50.2500.0">

<BatchSequence>

<Batch>

<Statements>

<StmtSimpleStatementText="@ServerNamevarchar(50) SELECT @maxid = ISNULL(MAX(id),0)

FROM TReplWS WHERE Hostname = @ServerName"

StatementId="1"StatementCompId="43"StatementType="SELECT"StatementSubTreeCost="0.0032843"StatementEstRows="1"

StatementOptmLevel="FULL"QueryHash="0x671D2B3E17E538F1"QueryPlanHash="0xEB64FB22C47E1CF2"

StatementOptmEarlyAbortReason="GoodEnoughPlanFound">

<StatementSetOptionsQUOTED_IDENTIFIER="true"ARITHABORT="false"CONCAT_NULL_YIELDS_NULL="true"ANSI_NULLS="true"

ANSI_PADDING="true"ANSI_WARNINGS="true"NUMERIC_ROUNDABORT="false" />

<QueryPlanCachedPlanSize="16"CompileTime="1"CompileCPU="1"CompileMemory="168">

<RelOpNodeId="0"PhysicalOp="Compute Scalar"LogicalOp="Compute Scalar"

EstimateRows="1"EstimateIO="0"EstimateCPU="1e-007“

AvgRowSize="15"EstimatedTotalSubtreeCost="0.0032843"Parallel="0"EstimateRebinds="0"EstimateRewinds="0">

</RelOp>

<ParameterList>

<ColumnReferenceColumn="@ServerName"ParameterCompiledValue="'CAESIUM'" />

</ParameterList>

</QueryPlan>

</StmtSimple>

</Statements>

</Batch>

</BatchSequence>

</ShowPlanXML>

Compile parameter values at bottom of sqlplan file

more plan details
More Plan Details

Query with joining 6 tables

Each table has too many indexes

Row estimate is high – plan cost is high

Query optimizer tries really really hard to find better plan

Actual rows is moderate, any plan works

5a single table or
5a Single Table OR

-- Single table

SELECT*FROMLINEITEM

WHEREL_ORDERKEY= 1

ORL_PARTKEY=184826

5a join 2 tables or in sarg
5a Join 2 Tables, OR in SARG

-- subsequent calls, procedure executes with original plan

SELECTO_ORDERDATE,O_ORDERKEY,L_SHIPDATE,L_QUANTITY

FROMLINEITEM

INNERJOINORDERSONO_ORDERKEY=L_ORDERKEY

WHEREL_PARTKEY=184826 ORO_CUSTKEY= 137099

5a union all instead of or
5a UNION (ALL) instead of OR

SELECTO_ORDERDATE,O_ORDERKEY,L_SHIPDATE,L_QUANTITY,O_CUSTKEY,L_PARTKEY

FROMLINEITEMINNERJOINORDERSONO_ORDERKEY=L_ORDERKEY WHEREL_PARTKEY= 184826

UNION (ALL)

SELECTO_ORDERDATE,O_ORDERKEY,L_SHIPDATE,L_QUANTITY,O_CUSTKEY,L_PARTKEY

FROMLINEITEMINNERJOINORDERSONO_ORDERKEY=L_ORDERKEY

WHEREO_CUSTKEY= 137099 -- AND (L_PARTKEY<> 184826 OR L_PARTKEY IS NULL) --

Caution: select list should have keys to ensure correct rows

UNION removes duplicates (with Sort operation)

UNION ALL does not

-- Hugo Kornelis trick --

5b and or combinations
5b AND/OR Combinations

SELECT xx FROM A WHERE col1 IN (expr1) AND col2 NOT IN (expr2)

SELECT xx FROM A WHERE (expr1) AND (expr2 OR expr3)

  • Hash Join is good method to process many rows
    • Requirement is equality join condition
  • In complex SQL with AND/OR or IN NOT IN combinations
    • Query optimizer may not be to determine that equality join condition exists
    • Execution plan will use loop join,
    • and attempt to force hash join will be rejected
  • Re-write using UNION in place of OR
  • And LEFT JOIN in place of NOT IN

More on AND/OR combinations: http://www.qdpma.com/CBO/Relativity3.html

complex query with sub expression
Complex Query with Sub-expression
  • Query complexity – really high compile cost
  • Repeating sub-expressions (including CTE)
    • Must be evaluated multiple times
  • Main Problem - Row estimate error propagation
  • Solution/Strategy – Get a good execution plan
    • Temp table when estimate is high, actual is low.

When Estimate is low, and actual rows is high, need to balance temp table insert overhead versus plan benefit. Would a join hint work?

More on AND/OR combinations: http://www.qdpma.com/CBO/Relativity4.html

http://blogs.msdn.com/b/sqlcat/archive/2013/09/09/when-to-break-down-complex-queries.aspx

temp table and table variable
Temp Table and Table Variable
  • Forget what other people have said
    • Most is cr@p
  • Temp Tables – subject to statistics auto/re-compile
  • Table variable – no statistics, assumes 1 row
  • Question: In each specific case: does the statistics and recompile help or not?
    • Yes: temp table
    • No: table variable

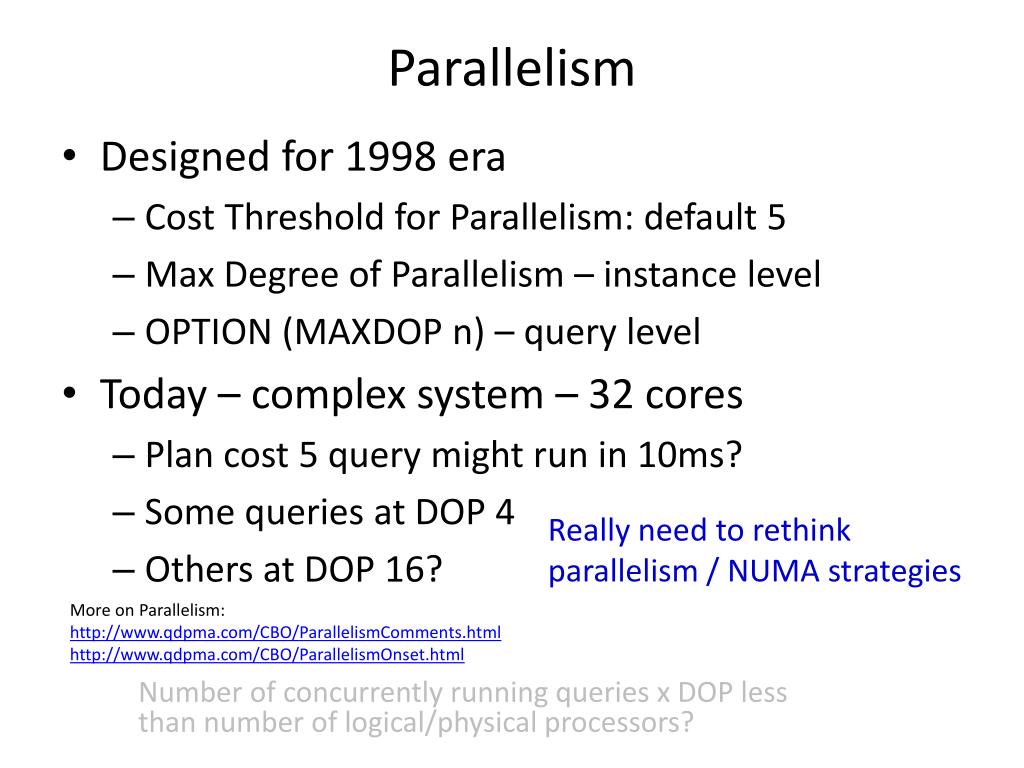

parallelism
Parallelism
  • Designed for 1998 era
    • Cost Threshold for Parallelism: default 5
    • Max Degree of Parallelism – instance level
    • OPTION (MAXDOP n) – query level
  • Today – complex system – 32 cores
    • Plan cost 5 query might run in 10ms?
    • Some queries at DOP 4
    • Others at DOP 16?

Really need to rethink parallelism / NUMA strategies

More on Parallelism:

http://www.qdpma.com/CBO/ParallelismComments.html

http://www.qdpma.com/CBO/ParallelismOnset.html

Number of concurrently running queries x DOP less than number of logical/physical processors?

full text search
Full-Text Search

Loop Join with FT as inner

Source Full Text search

Potentially executed

many times

varchar max stored in lob pages
varchar(max) stored in lob pages
  • Disk IO to lob pages is synchronous?
    • Must access row to get 16 byte link?
    • Feature request: index pointer to lob

SQL PASS 2013

Understanding Data Files at the Byte Level

Mark Rasmussen

summary
Summary
  • Hardware today is really powerful
    • Storage may not be – SAN vendor disconnect
  • Standard performance practice
    • Top resource consumers, index usage
  • But also Look for serious blunders

http://www.qdpma.com/CBO/SQLServerCostBasedOptimizer.html

http://www.qdpma.com/CBO/Relativity.html

http://blogs.msdn.com/b/sqlcat/archive/2013/09/09/when-to-break-down-complex-queries.aspx

special topics1
Special Topics
  • Data type mismatch
  • Multiple Optional Search Arguments (SARG)
    • Function on SARG
  • Parameter Sniffing versus Variables
  • Statistics related (big topic)
  • AND/OR
  • Complex Query with sub-expressions
  • Parallel Execution

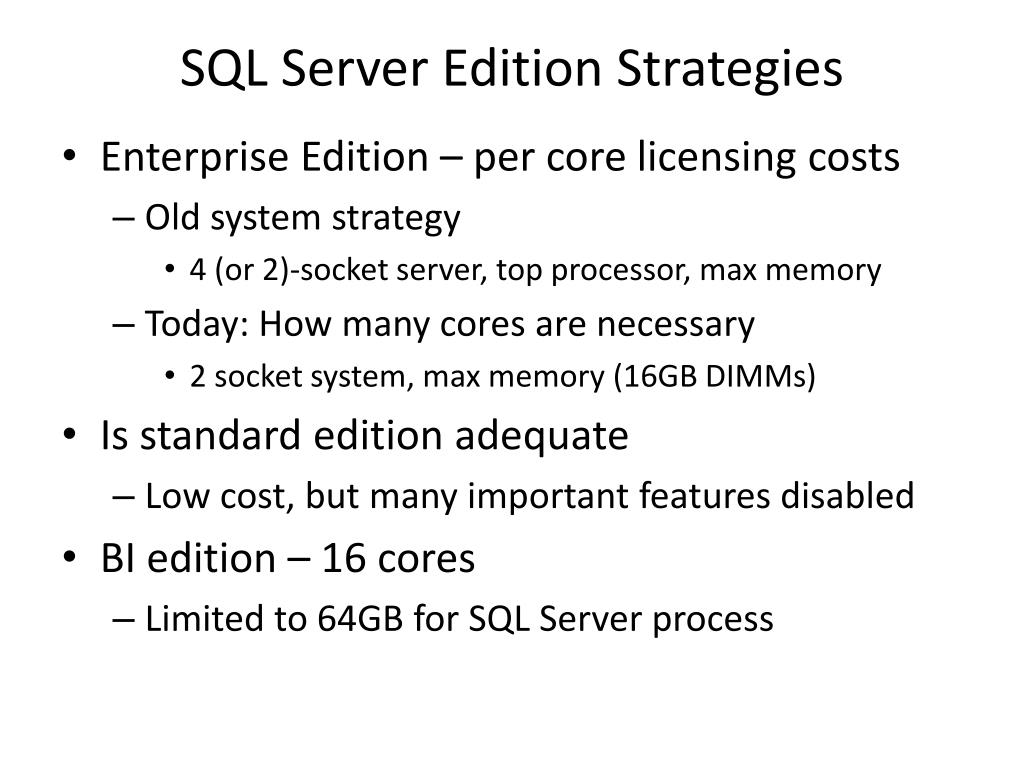

sql server edition strategies
SQL Server Edition Strategies
  • Enterprise Edition – per core licensing costs
    • Old system strategy
      • 4 (or 2)-socket server, top processor, max memory
    • Today: How many cores are necessary
      • 2 socket system, max memory (16GB DIMMs)
  • Is standard edition adequate
    • Low cost, but many important features disabled
  • BI edition – 16 cores
    • Limited to 64GB for SQL Server process

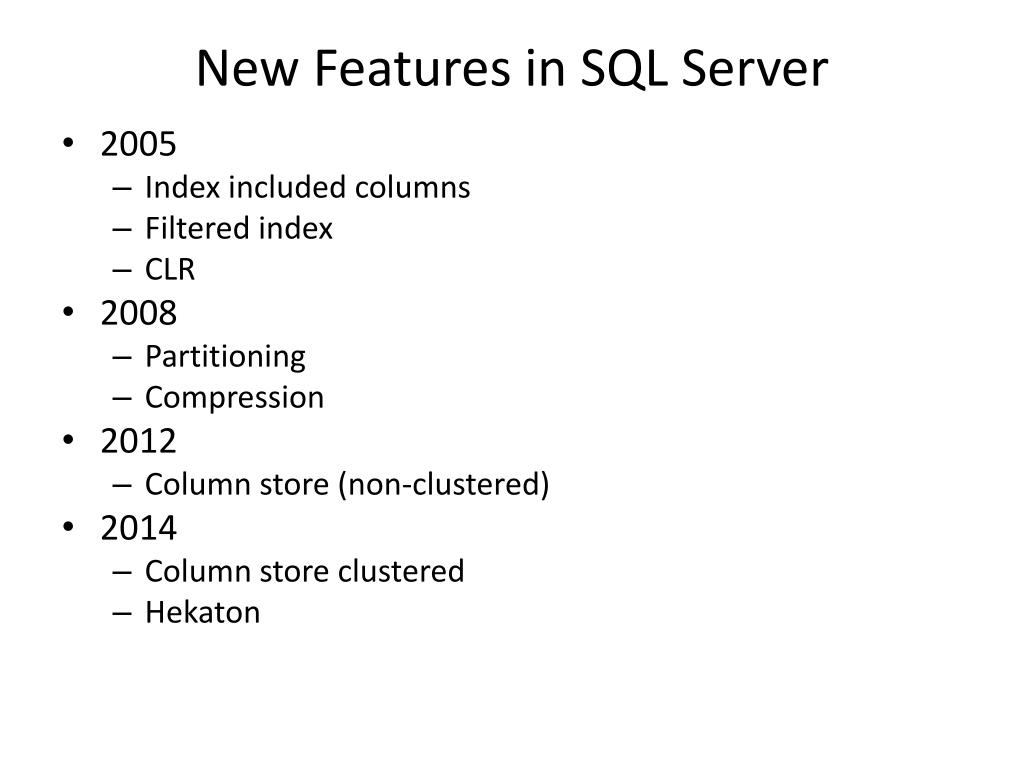

new features in sql server
New Features in SQL Server
  • 2005
    • Index included columns
    • Filtered index
    • CLR
  • 2008
    • Partitioning
    • Compression
  • 2012
    • Column store (non-clustered)
  • 2014
    • Column store clustered
    • Hekaton
