  1. Part II Ch 5. Knowledge Discovery in Databases Ch 6. The Data Warehouse Ch 7. Formal Evaluation Technique Tools for Knowledge Discovery

  2. Knowledge Discovery in Databases Chapter 5

  3. 5.1 A KDD Process Model • 1. Goal identification • 2. Creating an initial target data set • Data preprocessing • Data transformation • Data mining • Interpretation and evaluation • Taking action

  4. Figure 5.1 A seven-step KDD process model

  5. Figure 5.2 Applyiing the scientific method to data mining

  6. Step 1: Goal Identification Define the Problem. Choose a Data Mining Tool. Estimate Project Cost. Estimate Project Completion Time. Address Legal Issues. Develop a Maintenance Plan.

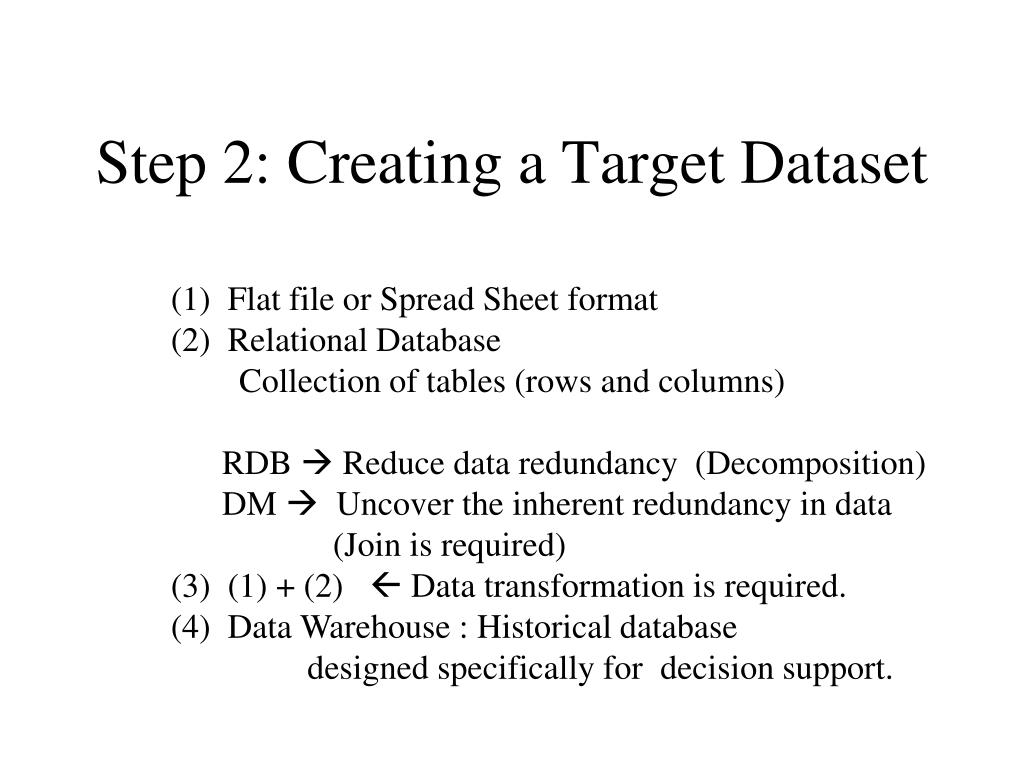

  7. Step 2: Creating a Target Dataset (1) Flat file or Spread Sheet format (2) Relational Database Collection of tables (rows and columns) RDB  Reduce data redundancy (Decomposition) DM  Uncover the inherent redundancy in data (Join is required) (3) (1) + (2)  Data transformation is required. (4) Data Warehouse : Historical database designed specifically for decision support.

  8. Figure 5.3 The Acme credit card database

  9. Noisy Data Step 3: Data Preprocessing Missing Data Locate Duplicate Records. Locate Incorrect Attribute Values. Outliers • Discard records with missing values. • Replace missing real-valued items with the class mean. • Replace missing values with values found within highly • similar instances.

  10. Step 4: Data Transformation Data Normalization (2) Data Type Conversion (3) Attribute and Instance Selection

  11. (1) Data Normalization Decimal Scaling Min-Max Normalization Normalization using Z-scores Logarithmic Normalization (2) Data Conversion Categorical  Numeric equivalent

  12. (3) Attribute and Instance Selection a. Eliminating Attributes 1. Highly correlated 2. High domain predictability 3. Low attribute significance score

  13. Creating Attributes • - Combining attributes e.g. P/E ratio • - Differences between the attributes • - Percent increase or decrease • Instance Selection • - Use Instance Typicality • Supervised : Use Highly and moderately typical • training instance • Unsupervised : Eliminate most atypical instance •  well defined cluster

  14. Step 5: Data Mining Choose training and test data. Designate a set of input attributes. If learning is supervised, choose one or more output attributes. Select learning parameter values. Invoke the data mining tool.

  15. Step 6: Interpretation and Evaluation Statistical analysis. Heuristic analysis. Experimental analysis. Human analysis.

  16. Step 7: Taking Action Create a report. Relocate retail items. Mail promotional information. Detect fraud. Fund new research.

  17. 5.9 The Crisp-DM Process Model(Cross Industry Standard Process for Data Mining) Business understanding Data understanding Data preparation Modeling Evaluation Deployment

  18. 5.10 Experimenting with ESX A Four-Step Model for Knowledge Discovery • Identify the goal. • Prepare the data. • Apply data mining. • Interpret and evaluate the results.

  19. Experiment 1: Attribute Evaluation Use unsupervised clustering to see how well the set of input attributes are able to define the classes - Domain Summary: eight, eleven/ nine, ten, twelve - Class Summary: /nine, ten Class 1 : Accept 84% Class 2 : Reject 90% Repeat DM process to create a best data model *Applying the Four-Step Process Model to the Credit Screening Dataset*

  20. Experiment 2: Parameter Evaluation *Applying the Four-Step Process Model to the Satellite Image Dataset*

  21. Figure 5.4 Satellite image data
