晶片電阻規格種類

晶片電阻規格種類. 0402 1/16W 1.0*0.5mm 0603 1/10W 1.6*0.8mm 0805 1/8W 2.0*1.2mm 1206 1/4W 3.2*1.6mm 2010 1/2W 5.0*2.5mm 2512 1W 6.4*3.2mm. 晶片電阻主要原料流程. AL2O3(POWER) SUBSTRATE RESISTOR MLCC SUBSTRATE 規格 60*49.5mm

zan
Download Presentation

晶片電阻規格種類

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

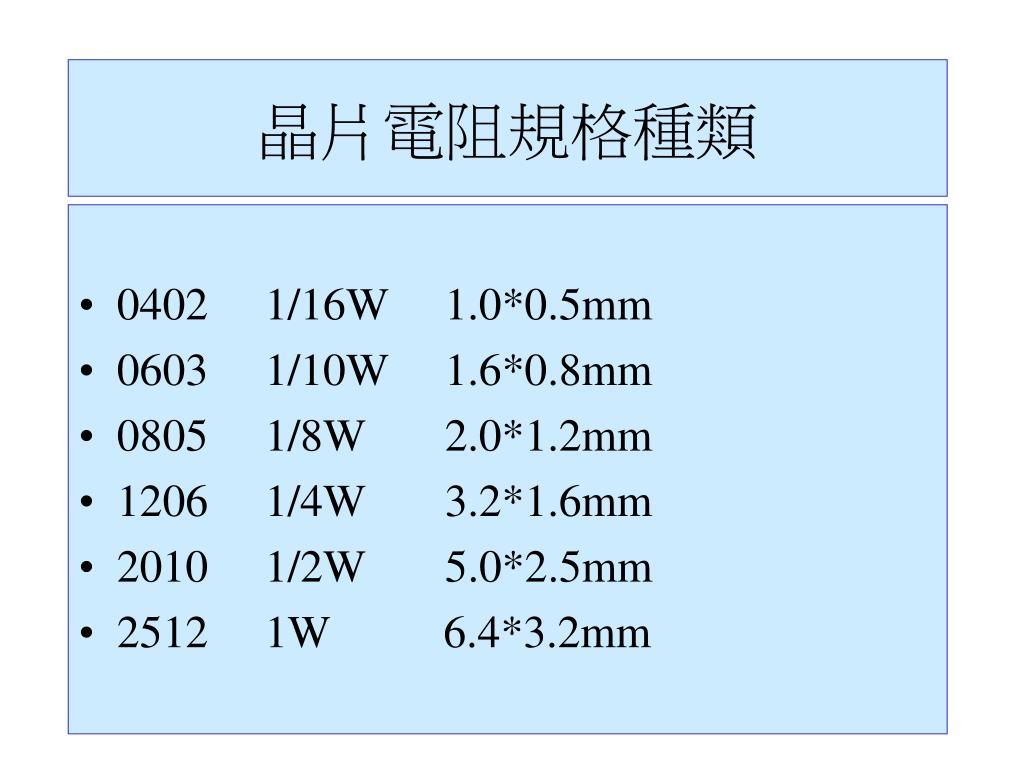

  1. 晶片電阻規格種類 • 0402 1/16W 1.0*0.5mm • 0603 1/10W 1.6*0.8mm • 0805 1/8W 2.0*1.2mm • 1206 1/4W 3.2*1.6mm • 2010 1/2W 5.0*2.5mm • 2512 1W 6.4*3.2mm

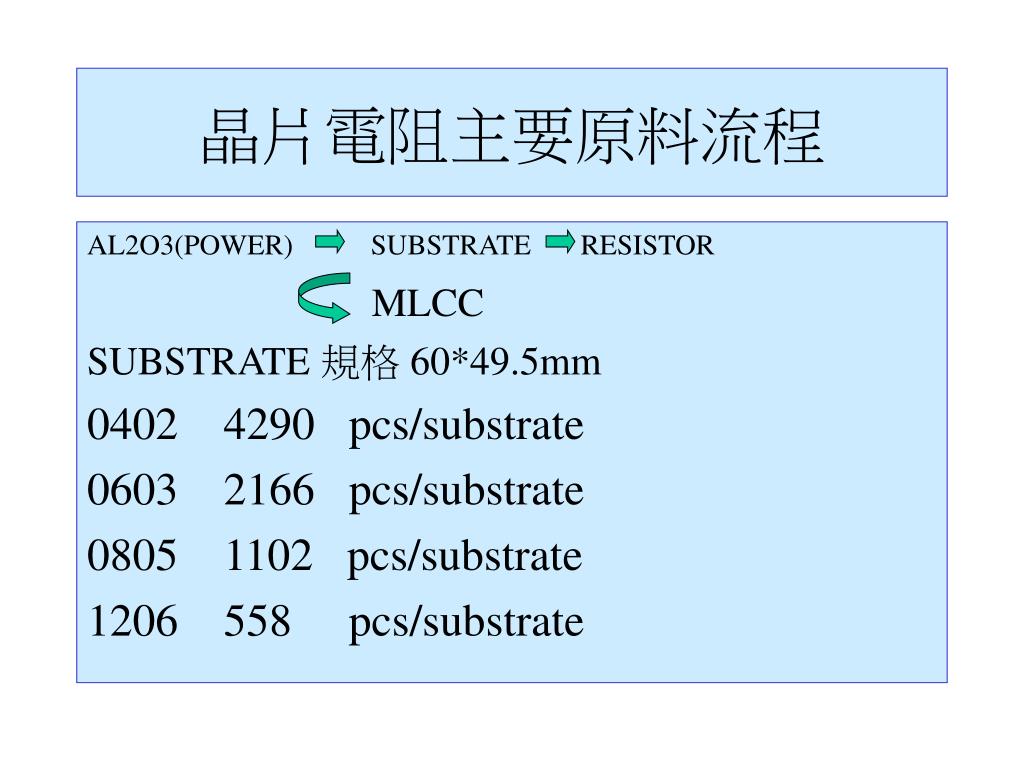

  2. 晶片電阻主要原料流程 AL2O3(POWER) SUBSTRATE RESISTOR MLCC SUBSTRATE 規格 60*49.5mm 0402 4290 pcs/substrate 0603 2166 pcs/substrate 0805 1102 pcs/substrate 1206 558 pcs/substrate

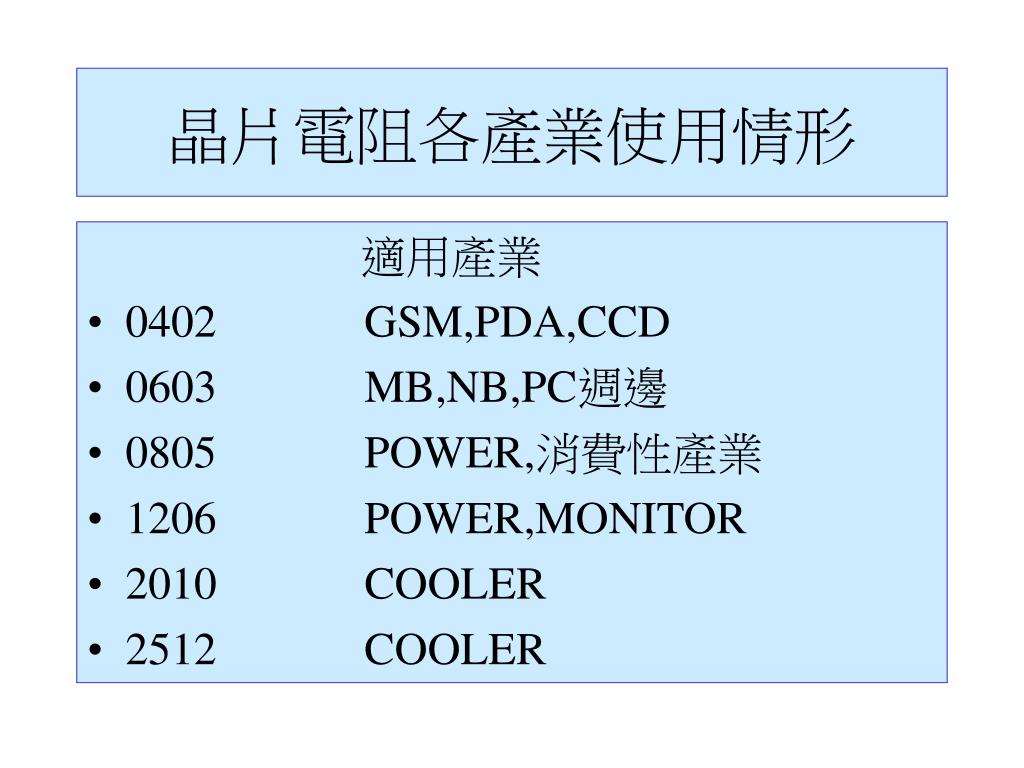

  3. 晶片電阻各產業使用情形 適用產業 • 0402 GSM,PDA,CCD • 0603 MB,NB,PC週邊 • 0805 POWER,消費性產業 • 1206 POWER,MONITOR • 2010 COOLER • 2512 COOLER

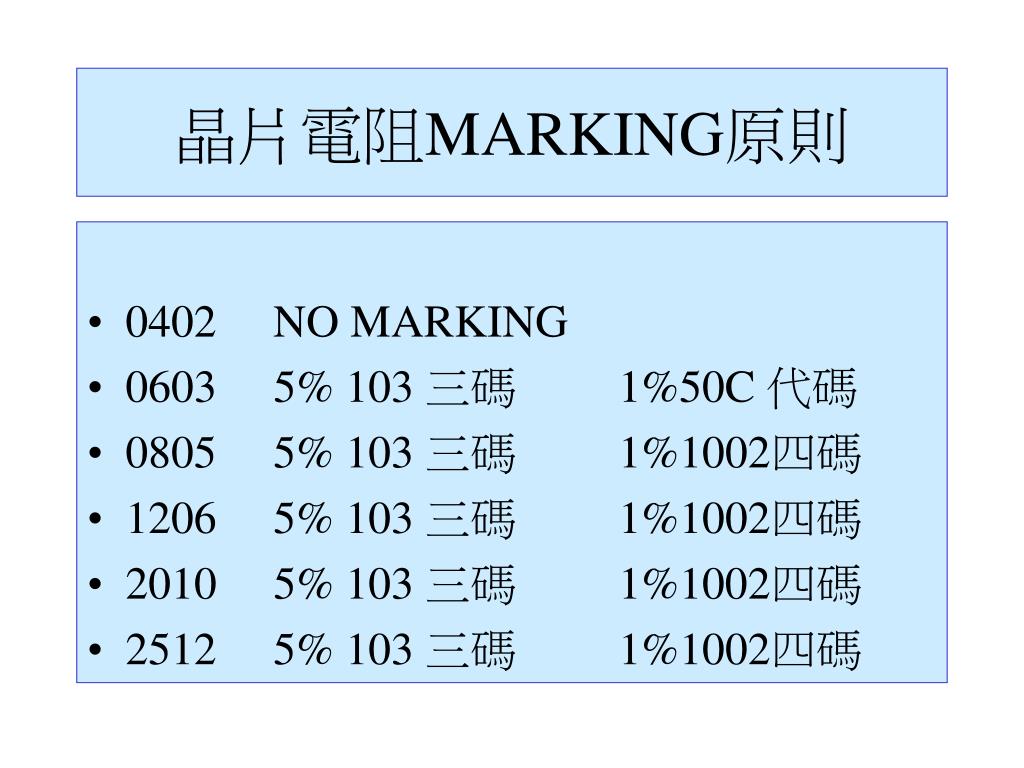

  4. 晶片電阻MARKING原則 • 0402 NO MARKING • 0603 5% 103 三碼 1%50C 代碼 • 0805 5% 103 三碼 1%1002四碼 • 1206 5% 103 三碼 1%1002四碼 • 2010 5% 103 三碼 1%1002四碼 • 2512 5% 103 三碼 1%1002四碼
