  1. 6.2 What Are Special Parallelograms? Pg. 9 Properties of Rhombi, Rectangles, and Squares

  2. 6.2 – What Are Special Parallelograms?___ Properties of Rhombi, Rectangles, and Squares In the previous lesson, you learned that parallelograms have both pairs of opposite sides parallel. You also discovered many different properties of parallelograms. Today you are going to continue your investigation with parallelograms with even more special properties.

  3. 6.8–PARALLELOGRAMS WITH RIGHT ANGLES a. Rectangles are special parallelograms. Since they are parallelograms, what do you already know about rectangles?

  4. opposite parallel Both _____________ sides are___________ Both _____________ sides are ________________ opposite congruent

  5. opposite Both _____________ angles are ________________ congruent consecutive Both _____________ angles are ________________ supplementary

  6. The diagonals ________________ each other bisect

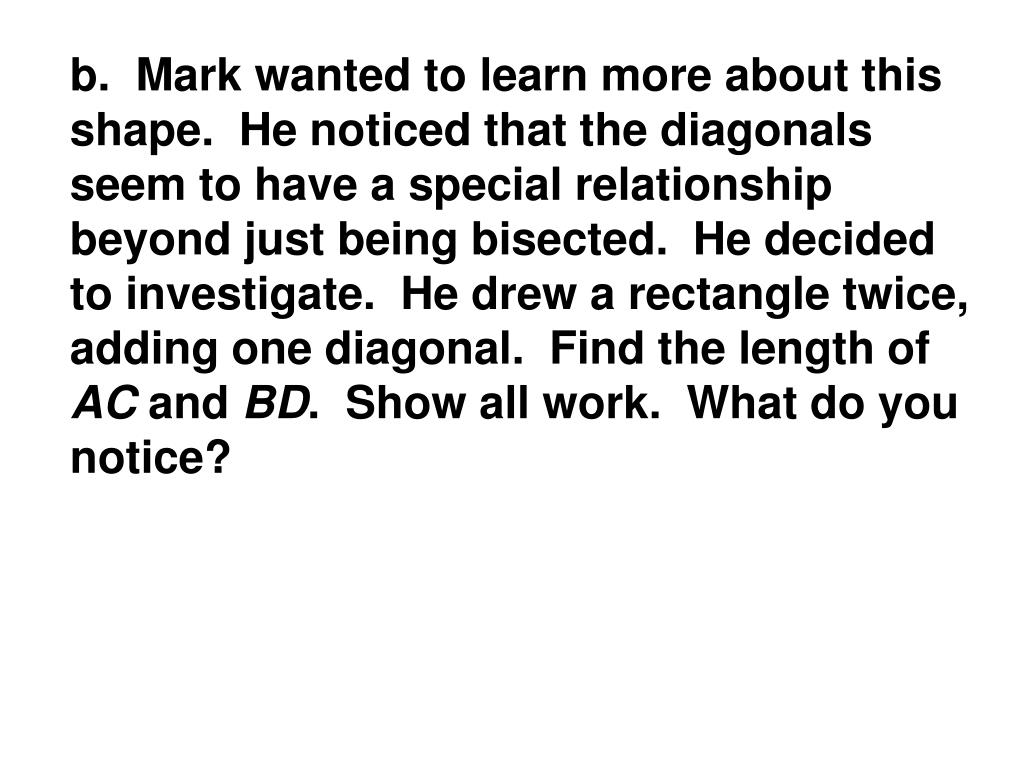

  7. b. Mark wanted to learn more about this shape. He noticed that the diagonals seem to have a special relationship beyond just being bisected. He decided to investigate. He drew a rectangle twice, adding one diagonal. Find the length of AC and BD. Show all work. What do you notice?

  8. 82 + 152 = x2 289 = x2 17 = x

  9. 82 + 152 = x2 289 = x2 17 = x Diagonals are congruent

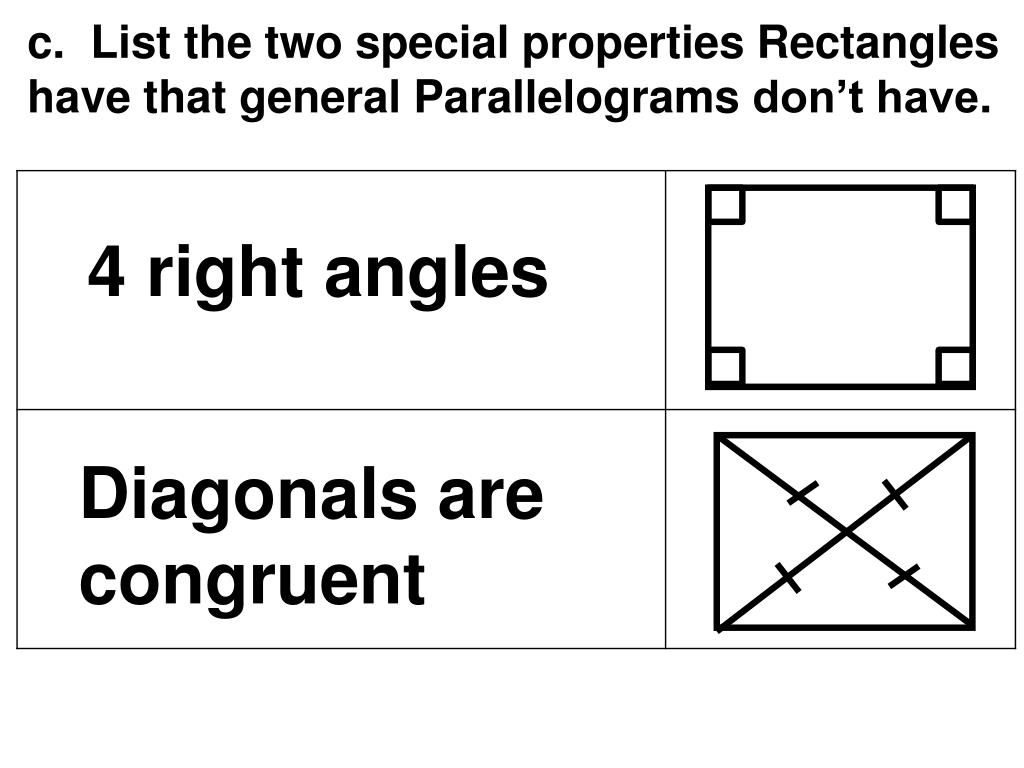

  10. c. List the two special properties Rectangles have that general Parallelograms don’t have. 4 right angles Diagonals are congruent

  11. 6.9–PARALLELOGRAMS WITH EQUAL SIDES a. A rhombus is another type of special parallelogram. Since they are parallelograms, what do you already know about rhombuses?

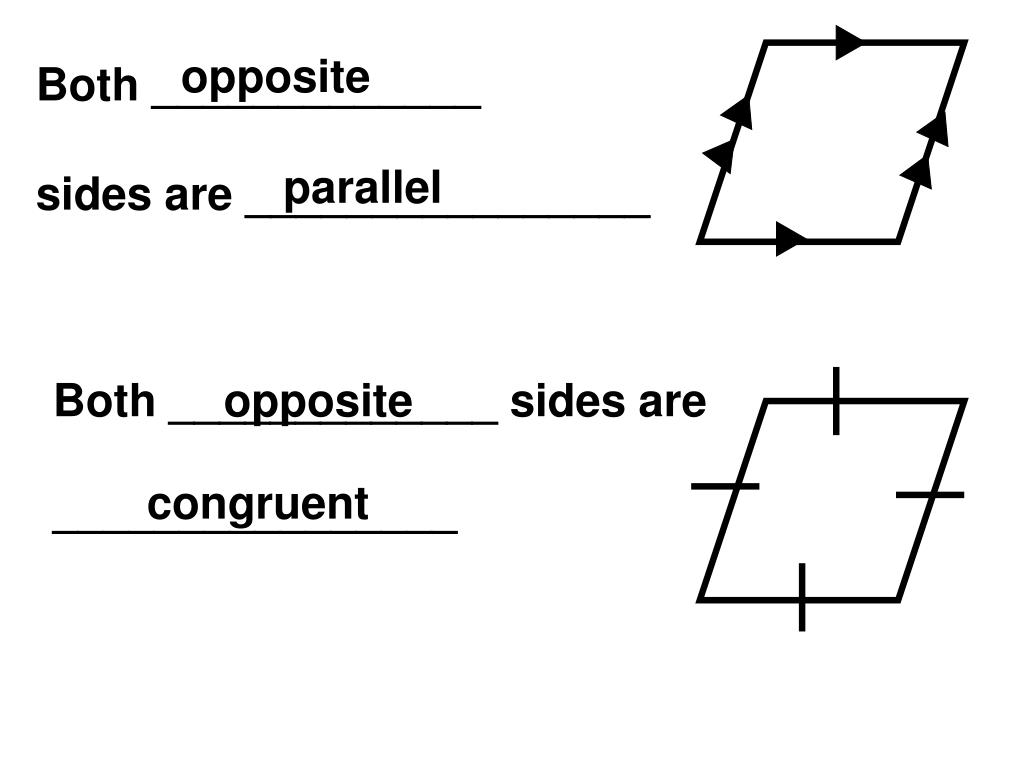

  12. opposite Both _____________ sides are ________________ parallel Both _____________ sides are ________________ opposite congruent

  13. opposite Both _____________ angles are ________________ congruent consecutive Both _____________ angles are ________________ y x supplementary y x

  14. The diagonals ________________ each other bisect

  15. c. Audrey wanted to learn more about her shape. She noticed that the diagonals seem to have a special relationship as well. She measured the sides of the rhombus and all were 5 units long. Then she measured AC = 6 units and BD = 8 units. Mark these lengths on the picture below. Is there a way to tell if ∆AEB is a right triangle? Explain.

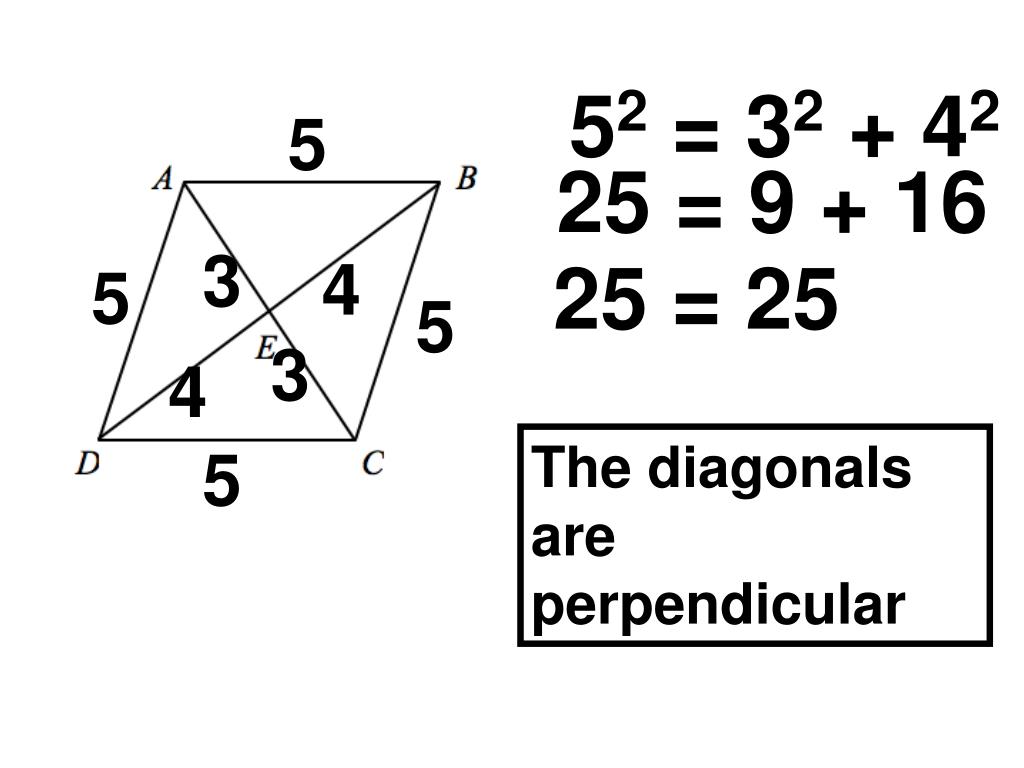

  16. 52 = 32+ 42 5 25 = 9 + 16 3 4 25 = 25 5 5 3 4 The diagonals are perpendicular 5

  17. d. Audrey noticed something else with the angle in the rhombus. Using the given lines symmetry, mark any angles congruent. What do you notice?

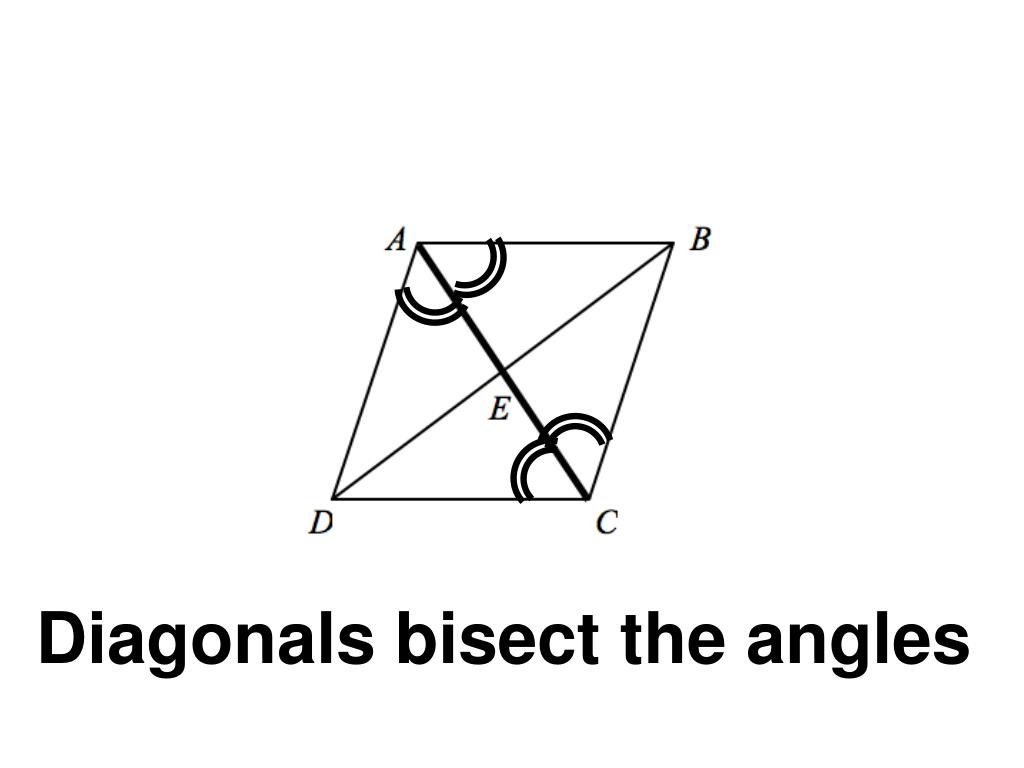

  18. Diagonals bisect the angles

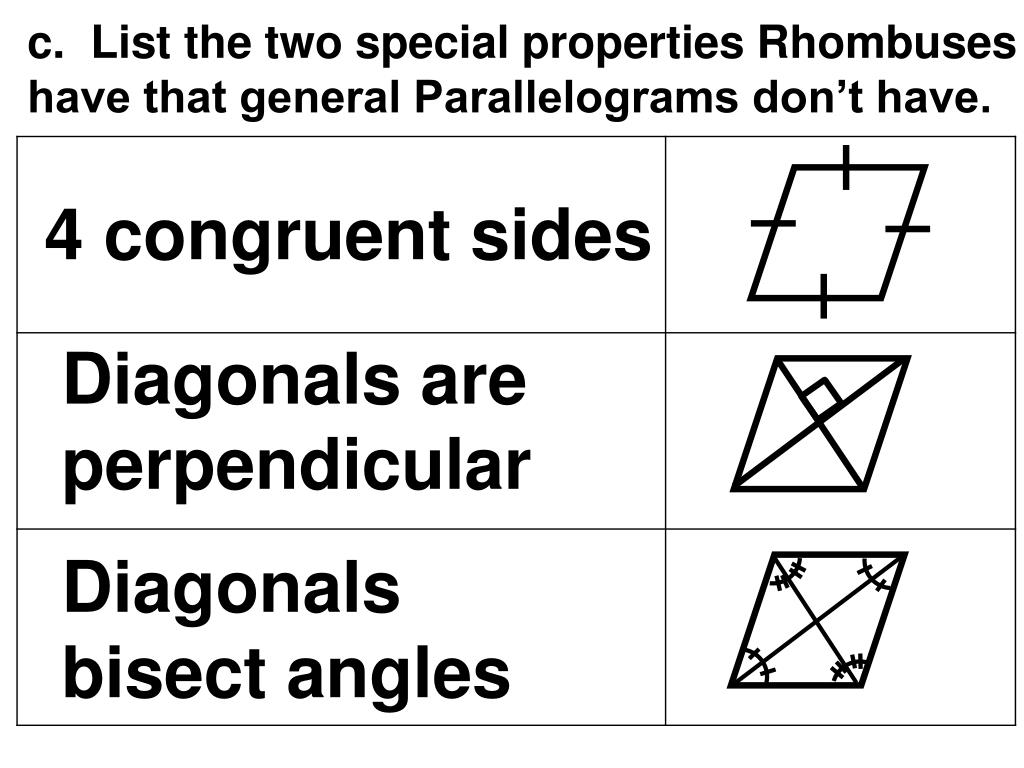

  19. c. List the two special properties Rhombuses have that general Parallelograms don’t have. 4 congruent sides Diagonals are perpendicular Diagonals bisect angles

  20. 6.10 – PARALLELOGRAMS WITH EQUAL SIDES AND RIGHT ANGLES Ms. Matthews has a favorite quadrilateral. It is a rhombus combined with a rectangle. a. What is the name of Ms. Matthews' shape? Draw a picture to support your answer. square

  21. b. This shape has more properties than any other quadrilateral. Why do you think this is? It is a parallelogram, a rectangle, and a rhombus

  22. 6.11 – SPECIAL PARALLELOGRAMS Name the type of parallelogram. Explain how you know using only the markings.

  23. parallelogram rectangle

  24. rhombus rhombus

  25. rectangle rhombus

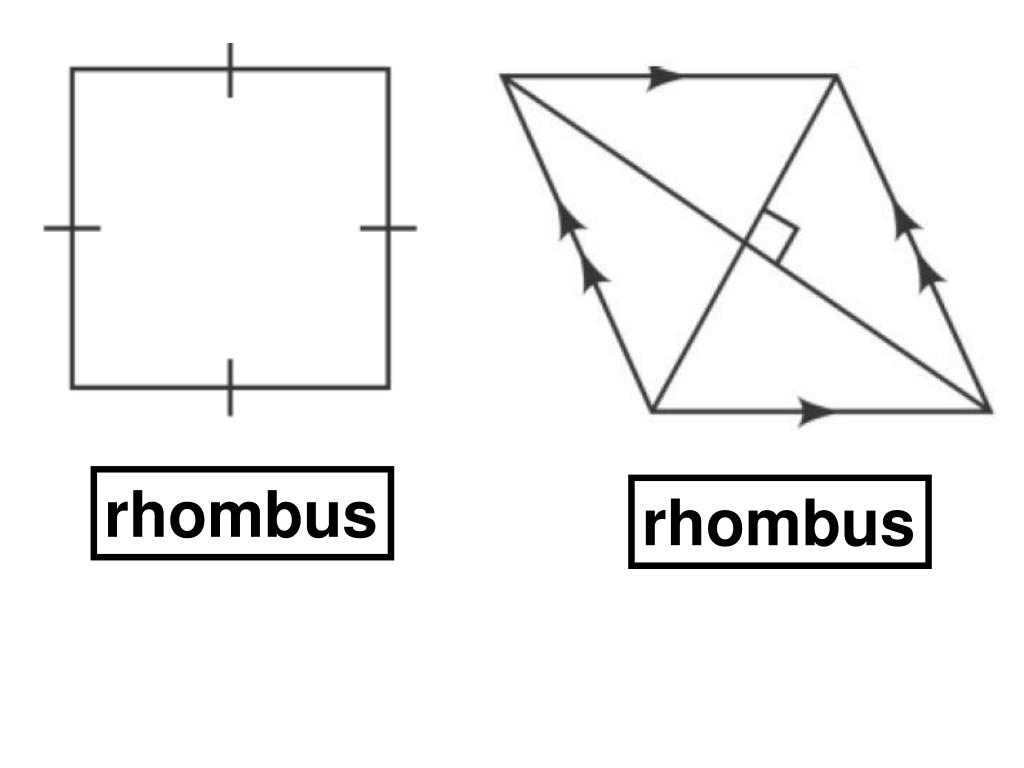

  26. square rhombus

  27. 6.12 – MISSING PARTS Find the missing information based on the type of shape and its special properties.

  28. a. The diagonals of rhombus PQRS intersect at T. Find the indicated measure. _____ _________ _________ RP = _________ SP = _________ RS = _________ 15 30° 90° 60° 90° 15 60° 30° 15 12 15 15

  29. b. The diagonals of rectangle WXYZ intersect at P. Given that XZ = 12, find the indicated measure. 40° _________   _________ _________ WP = _________ 40° 50° 80° 50° 80° 6

  30. c. The diagonals of square DEFG intersect at H. Given that EH = 5, find the indicated measure. 90° HF = 45° 45° 90° 45° 45° 5

  31. 6.13 – AREA Find the area of the rhombus by finding the area of each triangle and then adding.

  32. 275 22 A = 1100 ft2 275 275 25 275

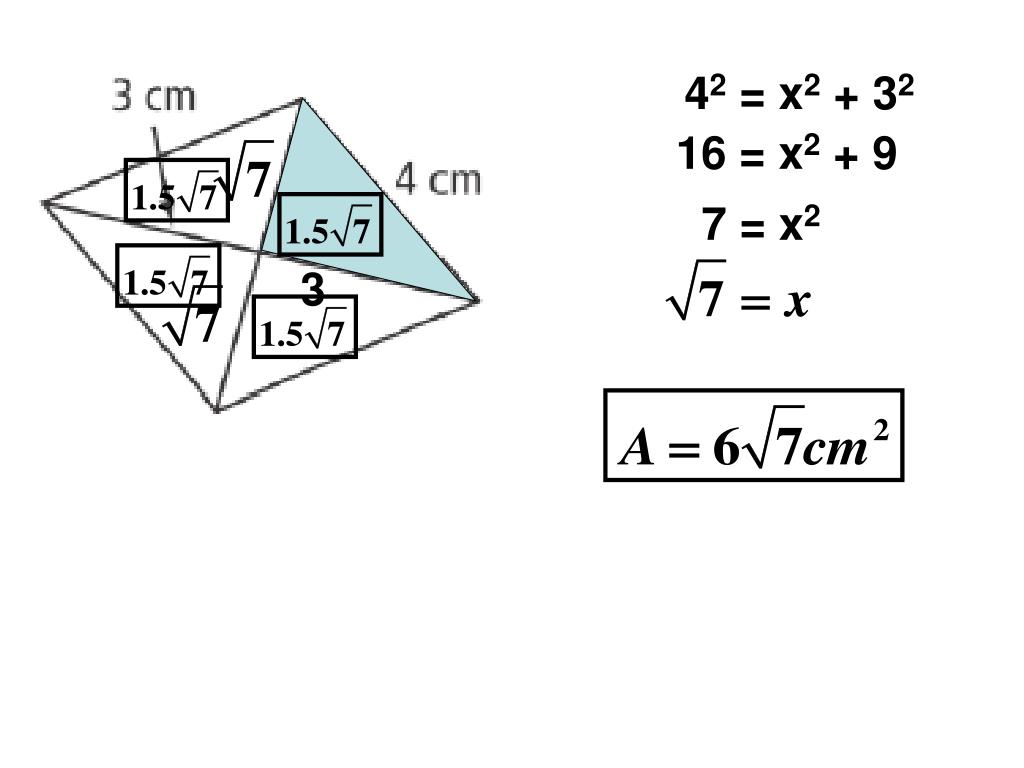

  33. 42 = x2 + 32 16 = x2 + 9 7 = x2 3

  34. 4 8 8 A = 32 m2 4 8 8 4

  35. 6 3 3

  36. Parallelogram Trapezoid Isosceles Trapezoid Rectangle Rhombus Kite Square Triangle

  37. Rectangle

  38. All the properties of a parallelogram • 4 right angles • Diagonals are congruent

  39. Rhombus

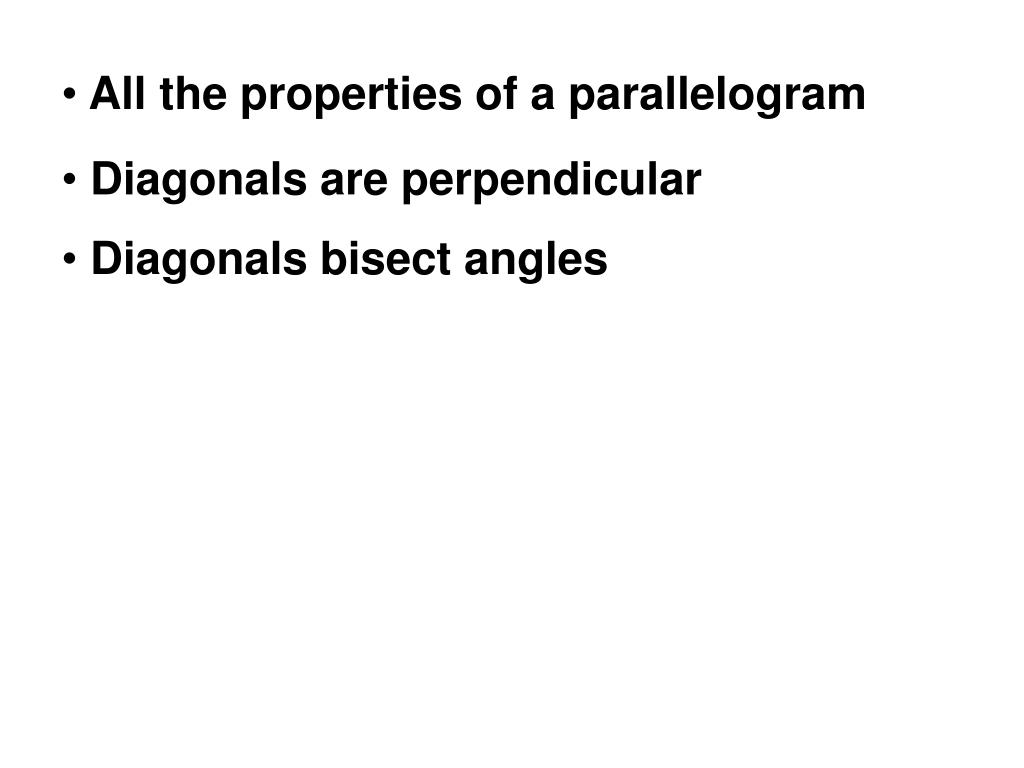

  40. All the properties of a parallelogram • Diagonals are perpendicular • Diagonals bisect angles

  41. Add area of each triangle

  42. Square

  43. All the properties listed above

  44. or
