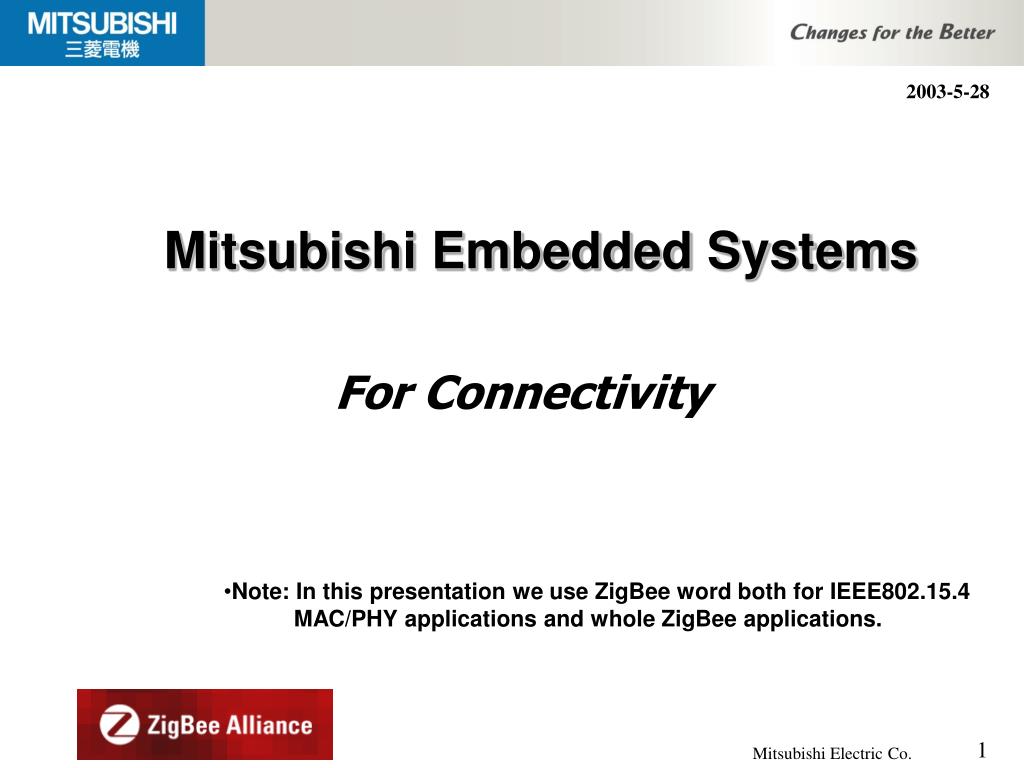

  1. 2003-5-28 Mitsubishi Embedded Systems For Connectivity • Note: In this presentation we use ZigBee word both for IEEE802.15.4 • MAC/PHY applications and whole ZigBee applications.

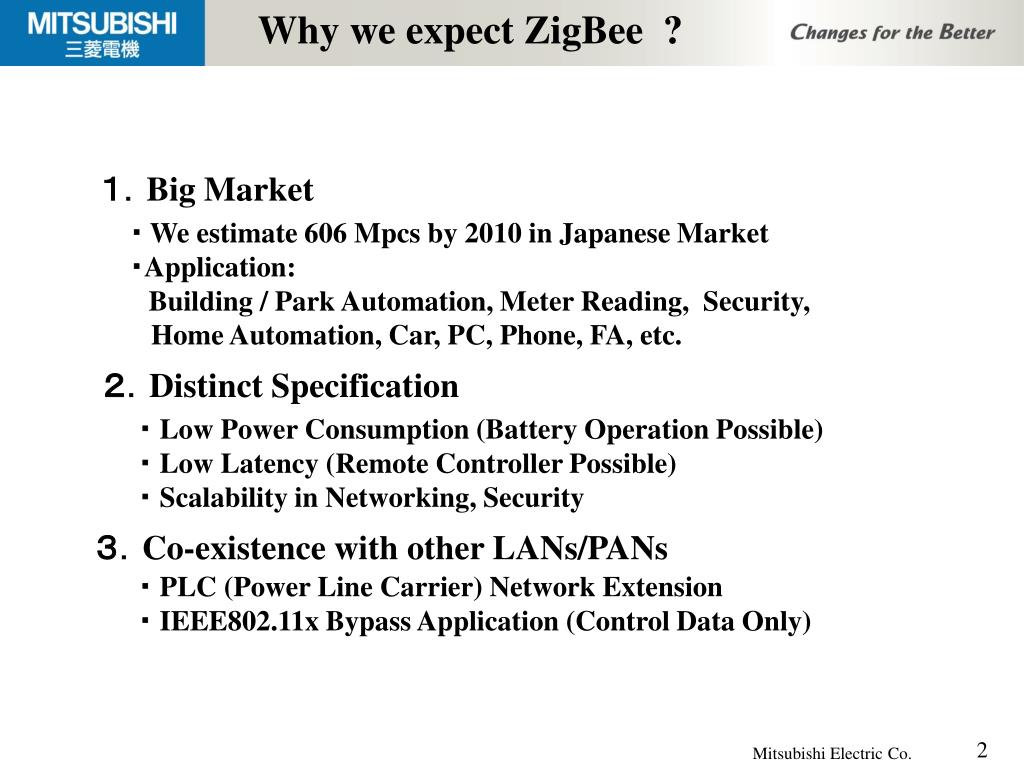

  2. Why we expect ZigBee ? 1.Big Market ・We estimate 606 Mpcsby 2010 in Japanese Market ・Application: Building / Park Automation, Meter Reading, Security, Home Automation, Car, PC, Phone, FA, etc. 2.Distinct Specification ・ Low Power Consumption (Battery Operation Possible) ・ Low Latency (Remote Controller Possible) ・ Scalability in Networking, Security 3.Co-existence with other LANs/PANs ・ PLC (Power Line Carrier) Network Extension ・ IEEE802.11x Bypass Application (Control Data Only)

  3. ZigBee Market Expansion Wireless Communication MARKET EXPANSION UWB 802.11x BlueTooth Licensed Band ZigBee Very Low Power IR Remote Controller YEAR

  4. Japanese ZigBee Market ZigBee Unit Diffusion Forecast in Japan ( Coordinators + Nodes ) Building / Park Automation Meter Reading (Electric, Gas, Water) 606 Mpcs Security (Home, Office, etc.) by 2010 Home Automation (exclude security) Others (Car, PC, Phone, FA, etc.)

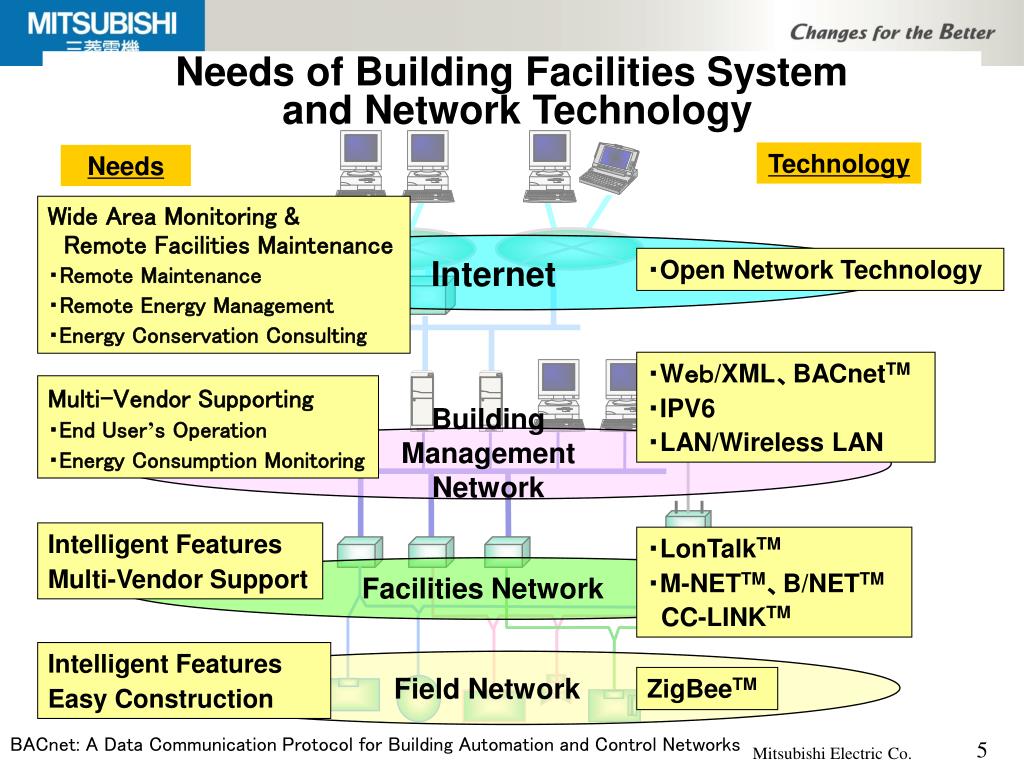

  5. Needs of Building Facilities System and Network Technology Whm Technology Needs Wide Area Monitoring & Remote Facilities Maintenance ・Remote Maintenance ・Remote Energy Management ・Energy Conservation Consulting Internet ・Open Network Technology ・Web/XML、BACnetTM ・IPV6 ・LAN/Wireless LAN Multi-Vendor Supporting ・End User’s Operation ・Energy Consumption Monitoring Building Management Network Intelligent Features Multi-Vendor Support ・LonTalkTM ・M-NETTM、B/NETTM CC-LINKTM Facilities Network Intelligent Features Easy Construction Field Network ZigBeeTM BACnet: A Data Communication Protocol for Building Automation and Control Networks

  6. Building Facilities Monitoring System ◆Provide the Most Suitable Working Environment for Working Item, Member Organization ◆Accomplish Low Energy Consumption by Careful Monitoring and Controlling in Detail Wireless Sensor Nodes Sensors (temperature, humidity, light, dust, CO2, , ,) Sensor Network ZigBee Internet Sensor Server Electric Power Monitor LAN in Building • Monitoring Contents • ★Lightening Control(auto light adjustment, schedule management) • ★Air Conditioning(temperature&humidity management, dust, CO2) • ★Electric Power Management, Energy Measurement Energy Management System

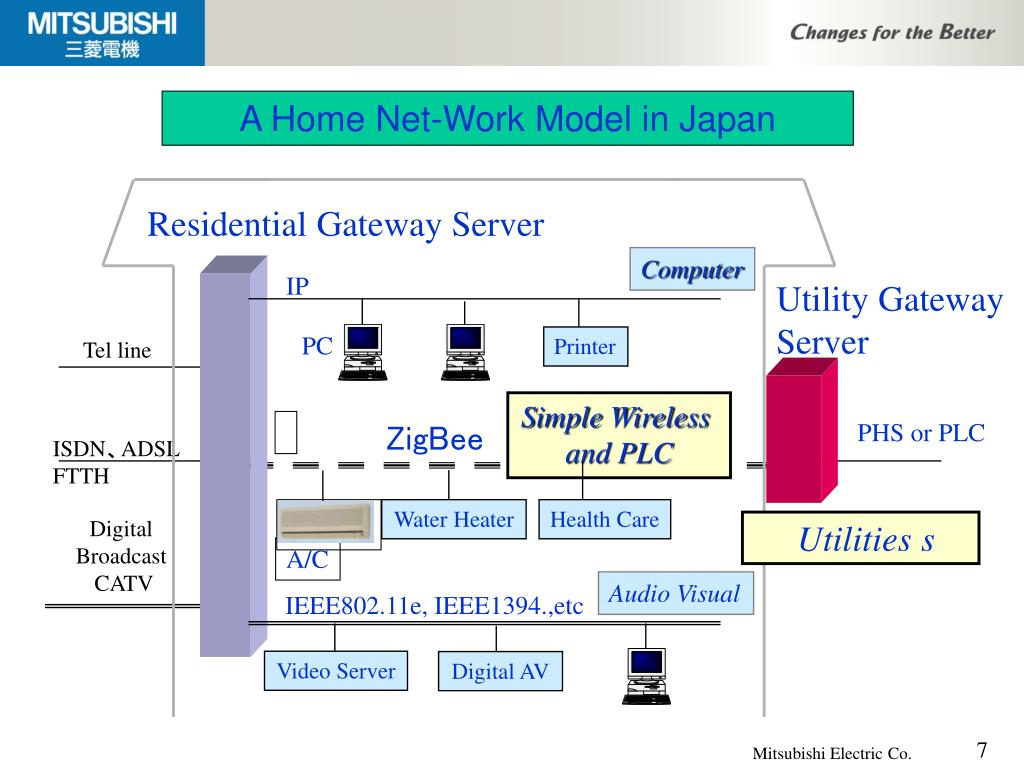

  7. Computer IP Utility Gateway Server PC Printer Simple Wireless and PLC PHS or PLC Water Heater Health Care Utilities s A/C Audio Visual IEEE802.11e, IEEE1394.,etc Video Server Digital AV A Home Net-Work Model in Japan Residential Gateway Server Tel line ZigBee ISDN、ADSL FTTH Digital Broadcast CATV

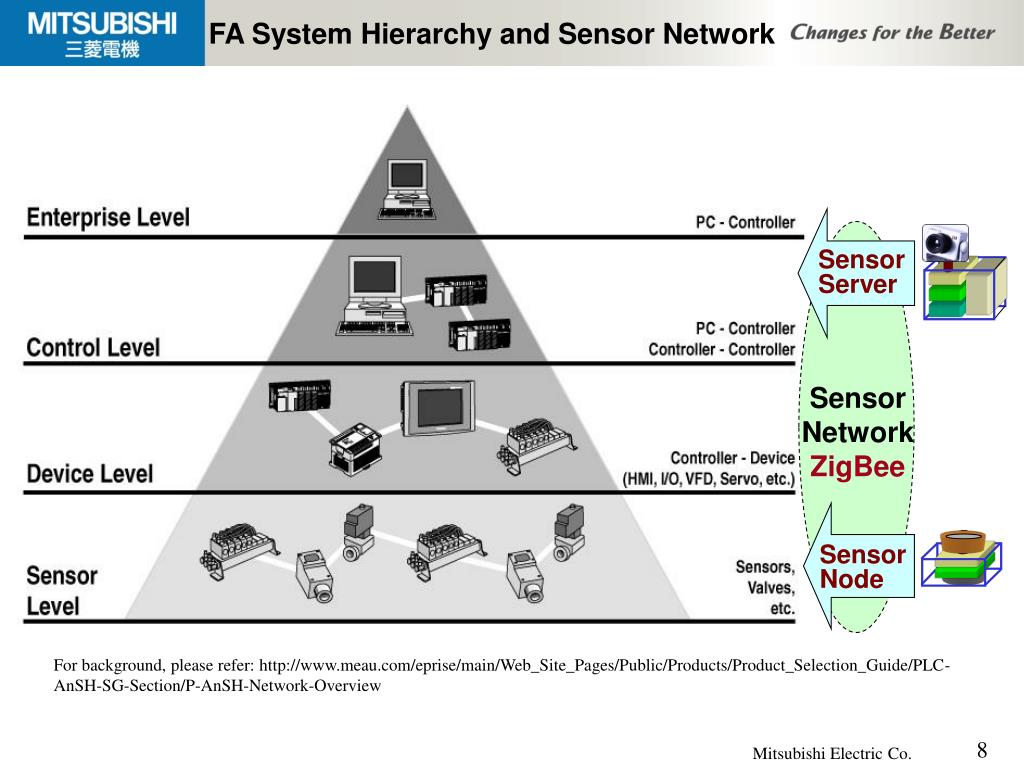

  8. FA System Hierarchy and Sensor Network Sensor Server Sensor Network ZigBee Sensor Node For background, please refer: http://www.meau.com/eprise/main/Web_Site_Pages/Public/Products/Product_Selection_Guide/PLC-AnSH-SG-Section/P-AnSH-Network-Overview

  9. Warehouse HACCP System Monitoring Center Monitoring temperature of freight on pallet in warehouse constantly Auto execution of necessary equipment control and emergency contact Internet Warehouse ZigBee Wireless Facilities Control Wireless Temperature Measurement Emergency Contact Monitoring temperature Offreight on pallet in warehouse constantly Office Temperature Sensor (Embedded in each Freight Pallet) Mitsubishi Electric Co.

  10. Mitsubishi Building/Home-Network Activities • > Two Decades of Experience of Old “ Home - Bus” System • > Serious Contribution for HomeAPI as a Promoter Member • > Continuous Effort for UPnP Promotion as a Board Member • > Power Line Carrier Chip with Microsoft & ITRAN > Joined ZigBee as a Promoter > Cooperation with Renesas Technology and Renesas Solutions

  11. Mitsubishi Electric Thank You!
