  1. Speed Cooking Technologies • Jet-Impingement • Technical Background • Companies Involved in JIM Ovens • JIM Ovens • TurboChef

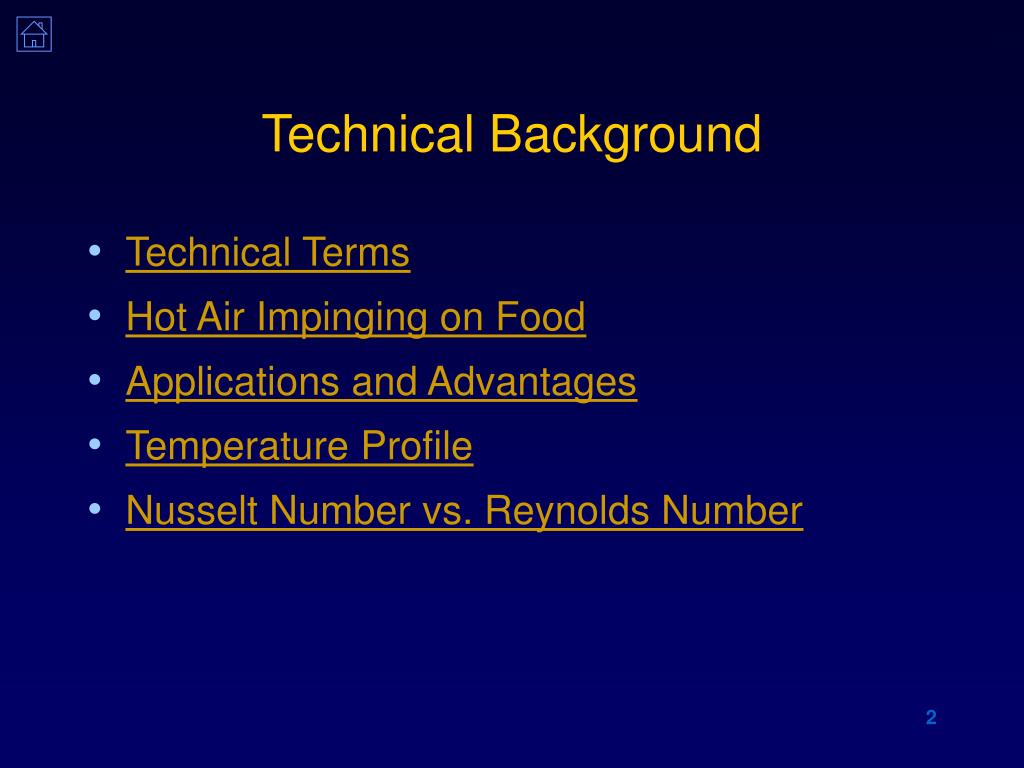

  2. Technical Background • Technical Terms • Hot Air Impinging on Food • Applications and Advantages • Temperature Profile • Nusselt Number vs. Reynolds Number

  3. Technical Terms • Jet impingement technology Technology in which jets of gas or liquid are made to impinge on a desired product for faster heat transfer or faster chemical reactions • Jet impingement oven Device used for baking and drying of food materials using jets of hot air at velocities (20-40 m/s) to impinge on the product • Jet-impingement Microwave (JIM) Oven Ovens operated in jet-impingement mode and microwave mode either individually or in combination.

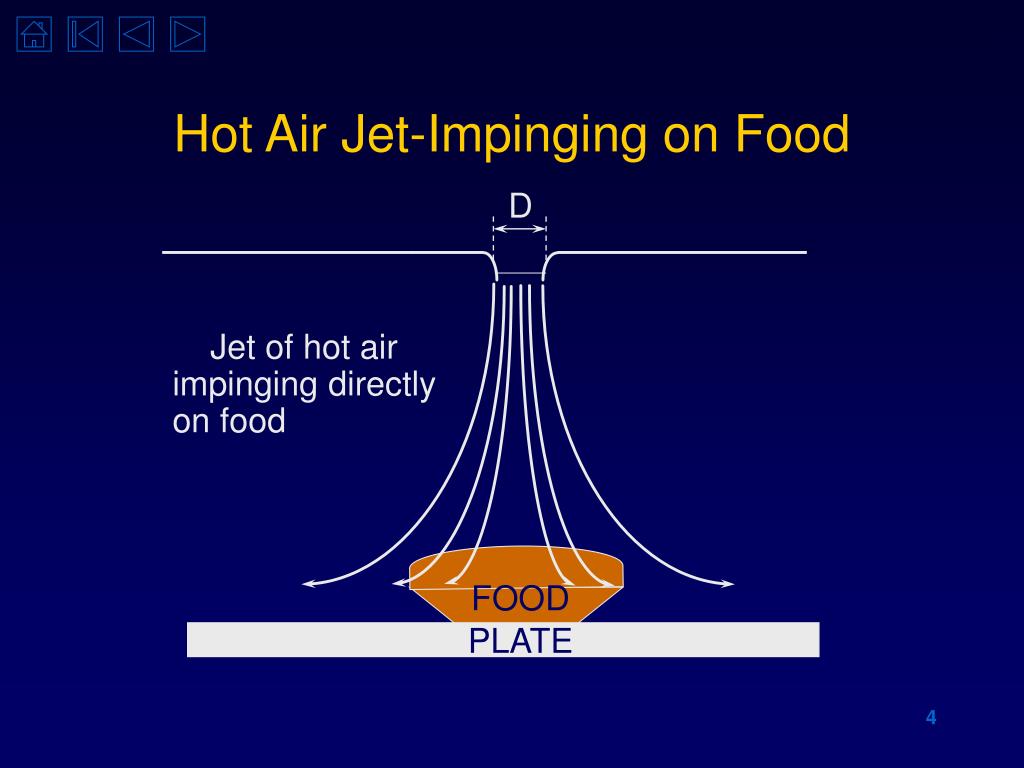

  4. D FOOD PLATE Hot Air Jet-Impinging on Food Jet of hot air impinging directly on food

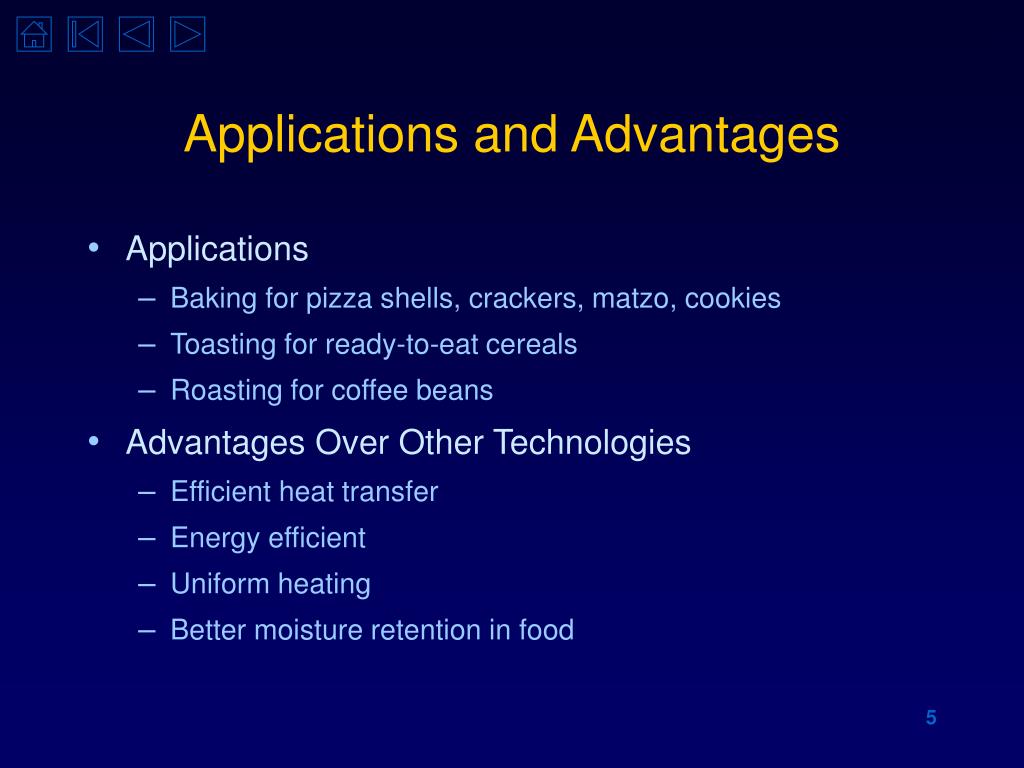

  5. Applications and Advantages • Applications • Baking for pizza shells, crackers, matzo, cookies • Toasting for ready-to-eat cereals • Roasting for coffee beans • Advantages Over Other Technologies • Efficient heat transfer • Energy efficient • Uniform heating • Better moisture retention in food

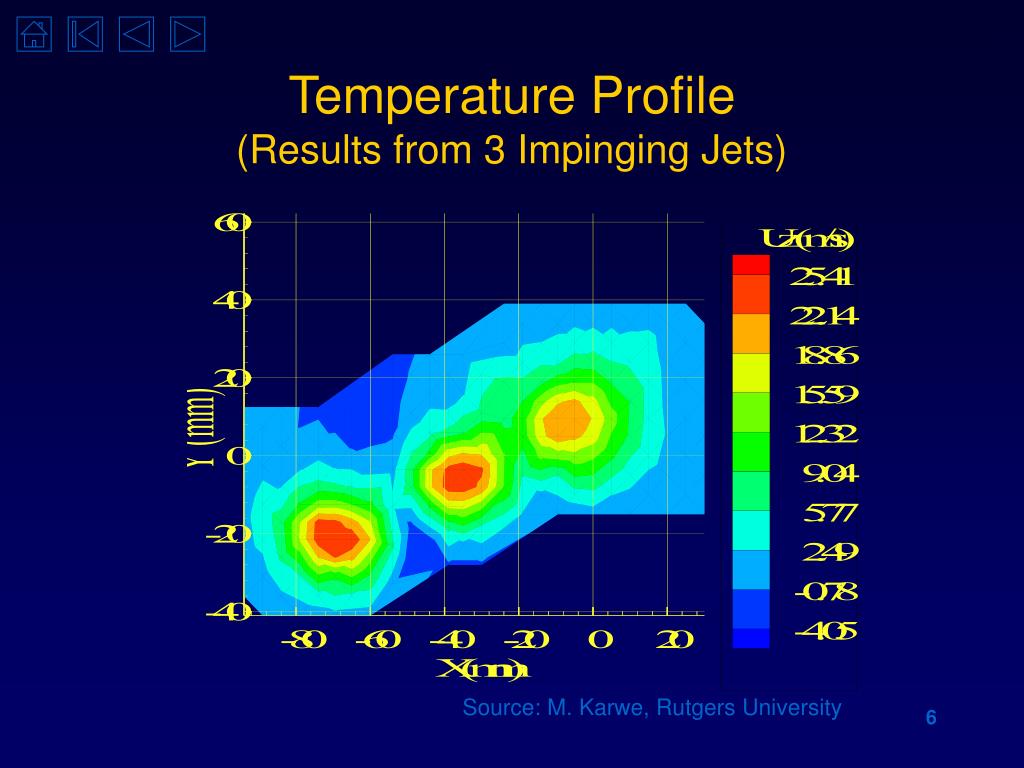

  6. Temperature Profile(Results from 3 Impinging Jets) Source: M. Karwe, Rutgers University

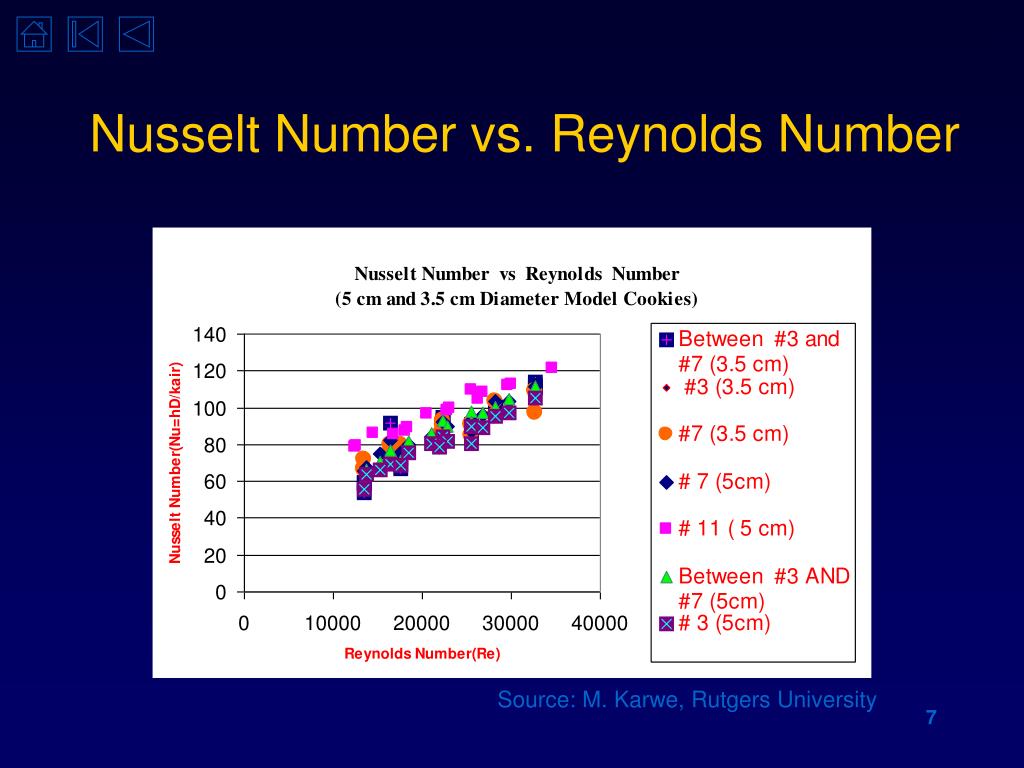

  7. Nusselt Number vs. Reynolds Number Source: M. Karwe, Rutgers University

  8. Companies Involved in JIM Ovens • Enersyst Development Center • KRh Thermal Systems • Thermador • Fujimak Incorporated

  9. JIM Ovens • Enersyst Development Center • Enersyst Prototype JIM Oven • KRh Thermal Systems • KRh JIM Ovens • Hot Choice Systems • Thermador • Thermador JIM Oven • Fujimak Incorporated • Fujimak JIM Oven

  10. Enersyst Development Center • A research and development company whose main business is to develop and license its flagship jet-impingement technology • Licensees • KRh Thermal Systems • Thermador • A&W Restaurants • Acquired by Moseley Corporation as an independently operated subsidiary in late 1999

  11. Moseley Corporation • Parent company of Enersyst Development Center • A full service provider of merchandising solutions and consulting services for leading international corporations and emerging entrepreneurs in the food and beverage industry • Located at Franklin, Massachusetts • Appears to be a small private company (limited information available in the Internet) • http://www.moseleycorp.com/

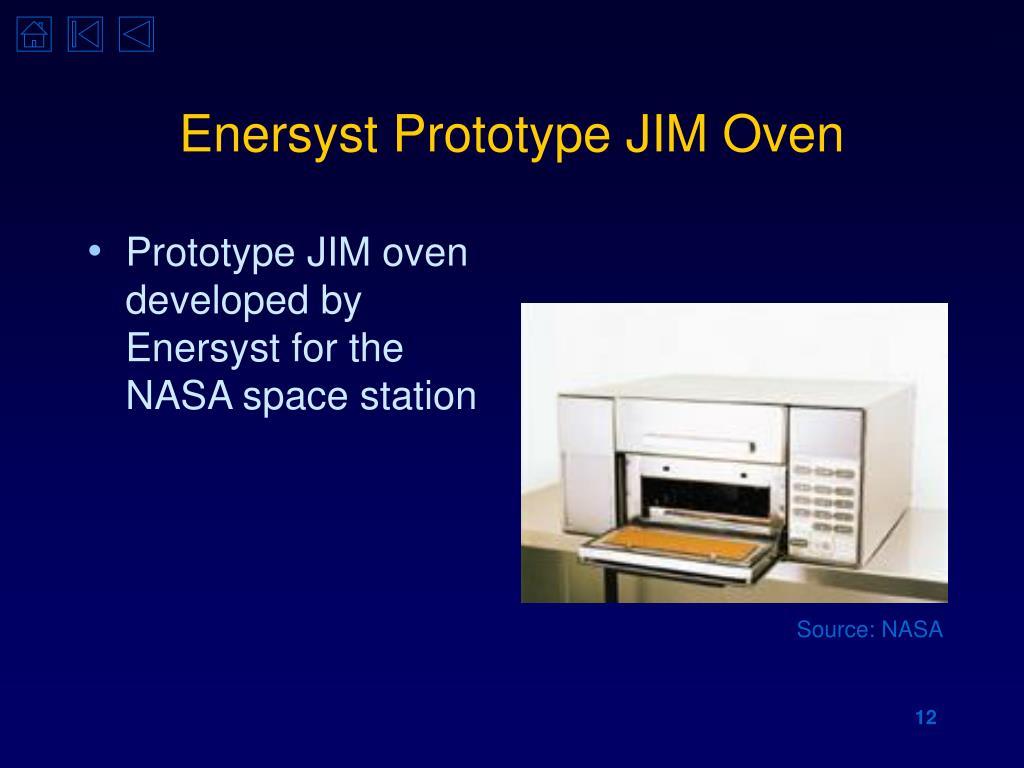

  12. Enersyst Prototype JIM Oven • Prototype JIM oven developed by Enersyst for the NASA space station Source: NASA

  13. KRh Thermal Systems • Major Products • KRh Thermal Systems JIM Ovens • Hot Choice System • Company Profile • A limited liability company managed by Kaiser Aerospace and Electronics and ThermalTech Development Inc. • Located at Irvine, California • http://www.krhthermal.com/

  14. Kaiser Aerospace and Electronics • A U.S. defense contractor • About 1200 employees and $226 million annual sales • A partner of KRh Thermal Systems • http://www.kaiseraerospace.com/

  15. ThermalTech Development Inc. • A marketing and development company for KRh Thermal Systems • Directed by a consortium of business leaders, including a number of executives from Fortune 500 companies • Appears to be a very small company with just a few employees

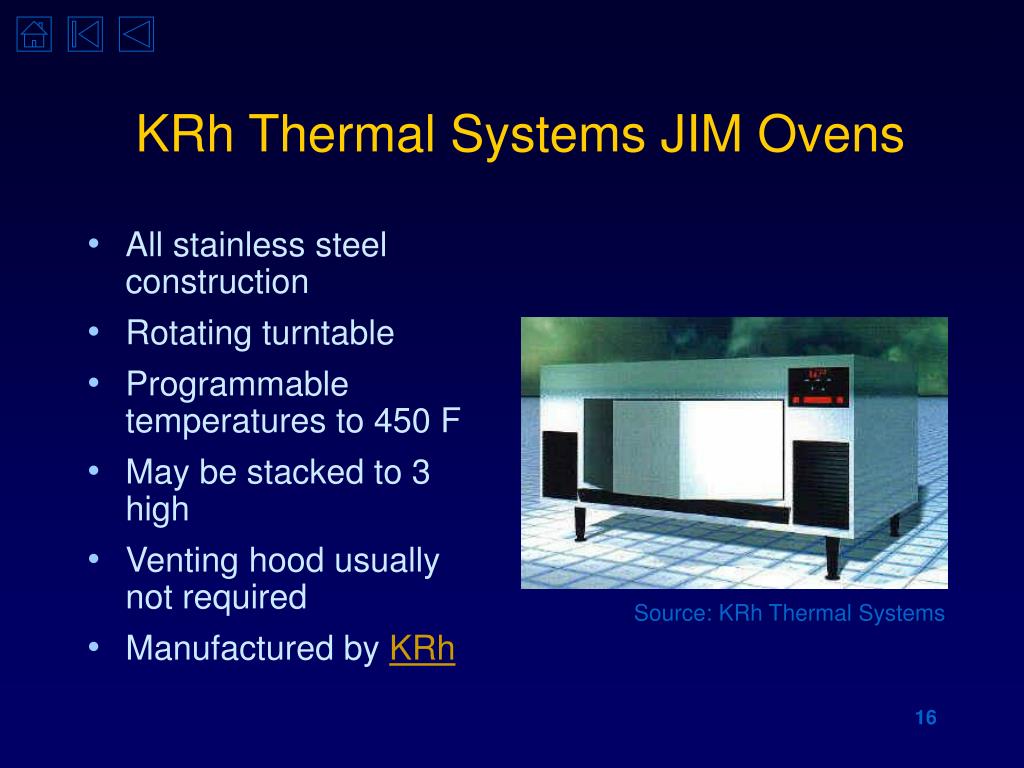

  16. KRh Thermal Systems JIM Ovens • All stainless steel construction • Rotating turntable • Programmable temperatures to 450 F • May be stacked to 3 high • Venting hood usually not required • Manufactured by KRh Source: KRh Thermal Systems

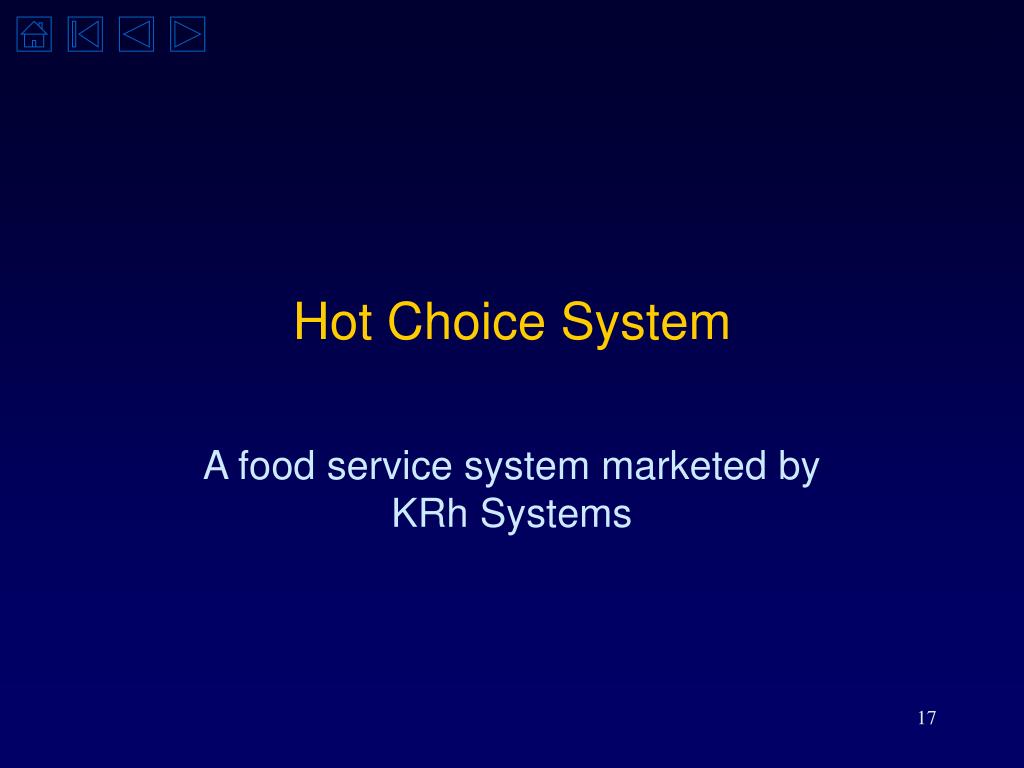

  17. Hot Choice System A food service system marketed by KRh Systems

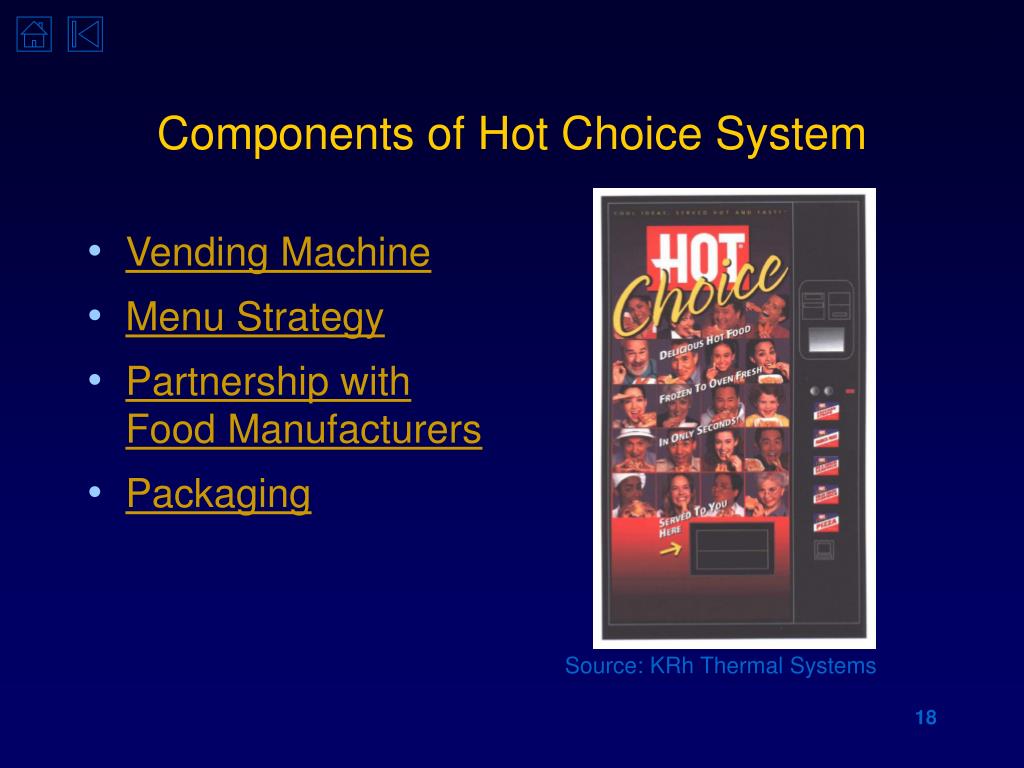

  18. Components of Hot Choice System • Vending Machine • Menu Strategy • Partnership with Food Manufacturers • Packaging Source: KRh Thermal Systems

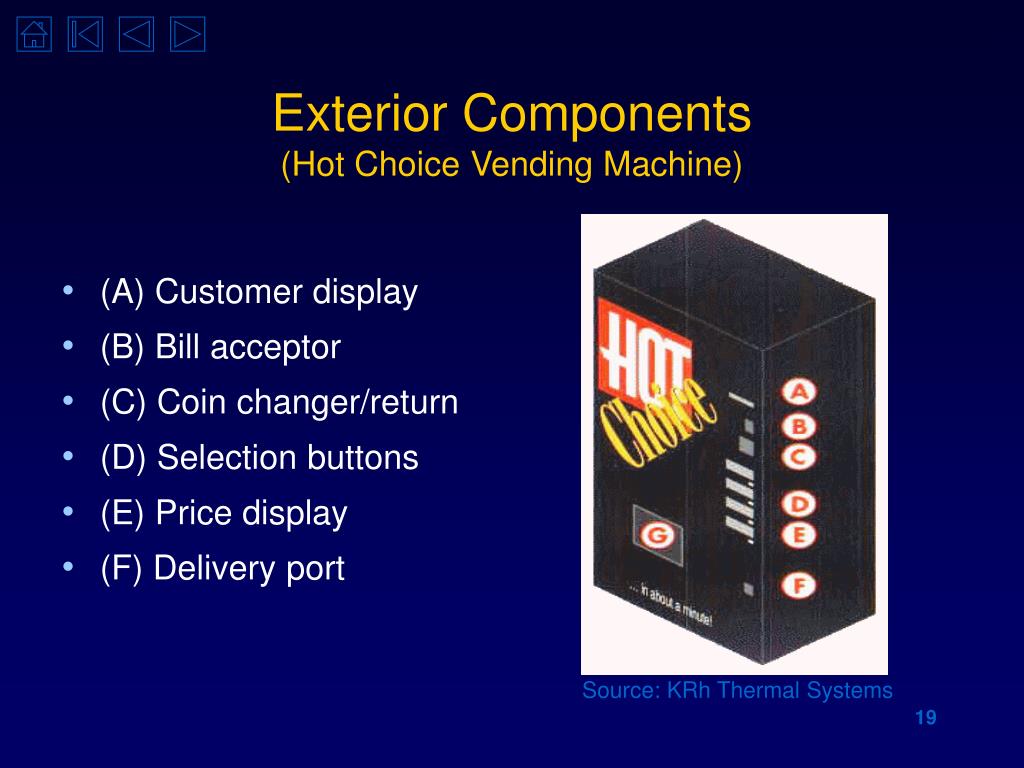

  19. Exterior Components (Hot Choice Vending Machine) • (A) Customer display • (B) Bill acceptor • (C) Coin changer/return • (D) Selection buttons • (E) Price display • (F) Delivery port Source: KRh Thermal Systems

  20. Interior Components (Hot Choice Vending Machine) • (H) Control board • (I) Inventory System • (J) Freezer deliver door • (K) Food transfer system • (L) Power supply box • (M) Condenser unit • (N) KRh oven Source: KRh Thermal Systems

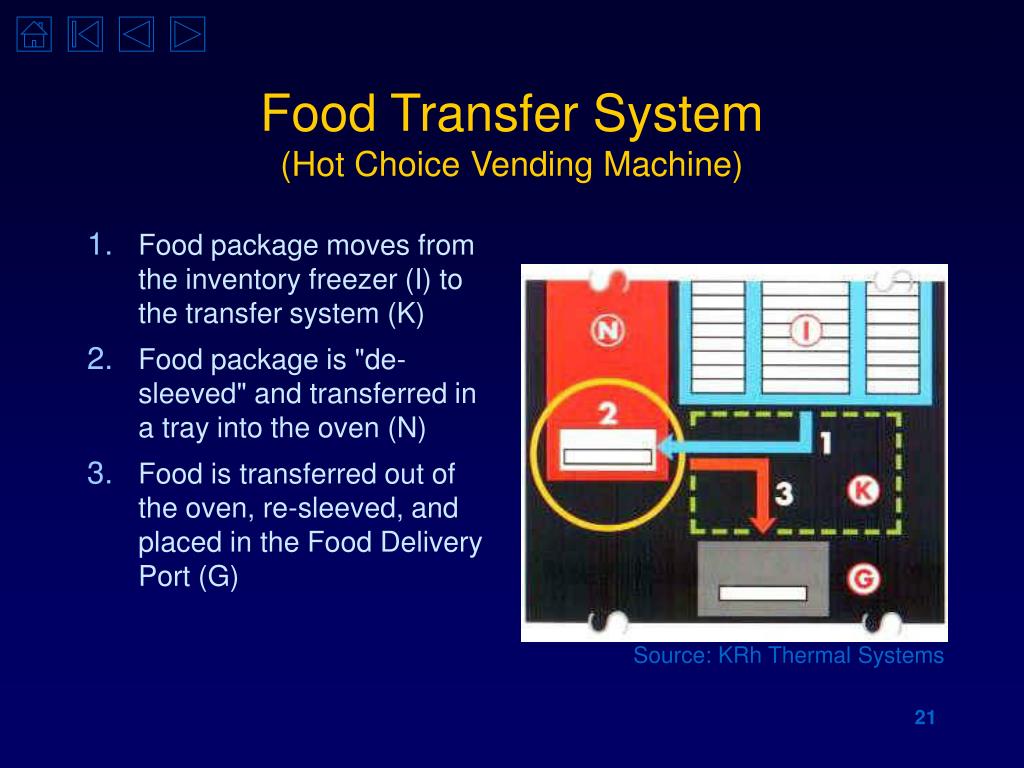

  21. Food Transfer System (Hot Choice Vending Machine) • Food package moves from the inventory freezer (I) to the transfer system (K) • Food package is "de-sleeved" and transferred in a tray into the oven (N) • Food is transferred out of the oven, re-sleeved, and placed in the Food Delivery Port (G) Source: KRh Thermal Systems

  22. KRh Oven (Hot Choice Vending Machine) • Air impingement browns and crisps the outside of the food, while the microwave heats the inside Source: KRh Thermal Systems

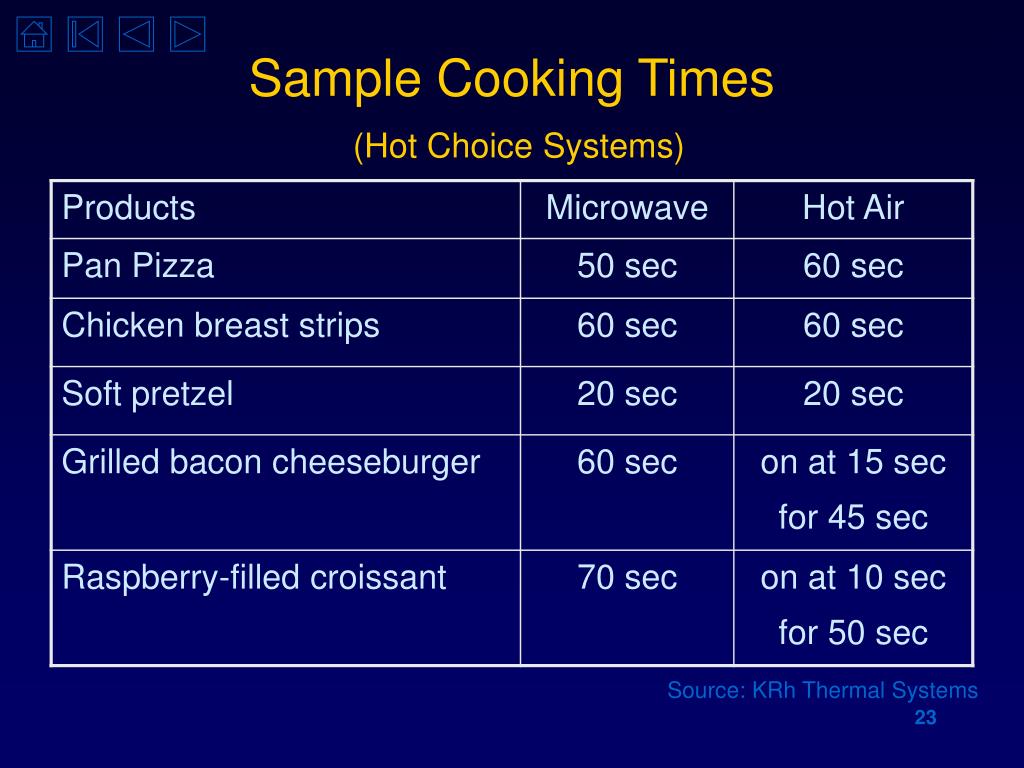

  23. Sample Cooking Times(Hot Choice Systems) Source: KRh Thermal Systems

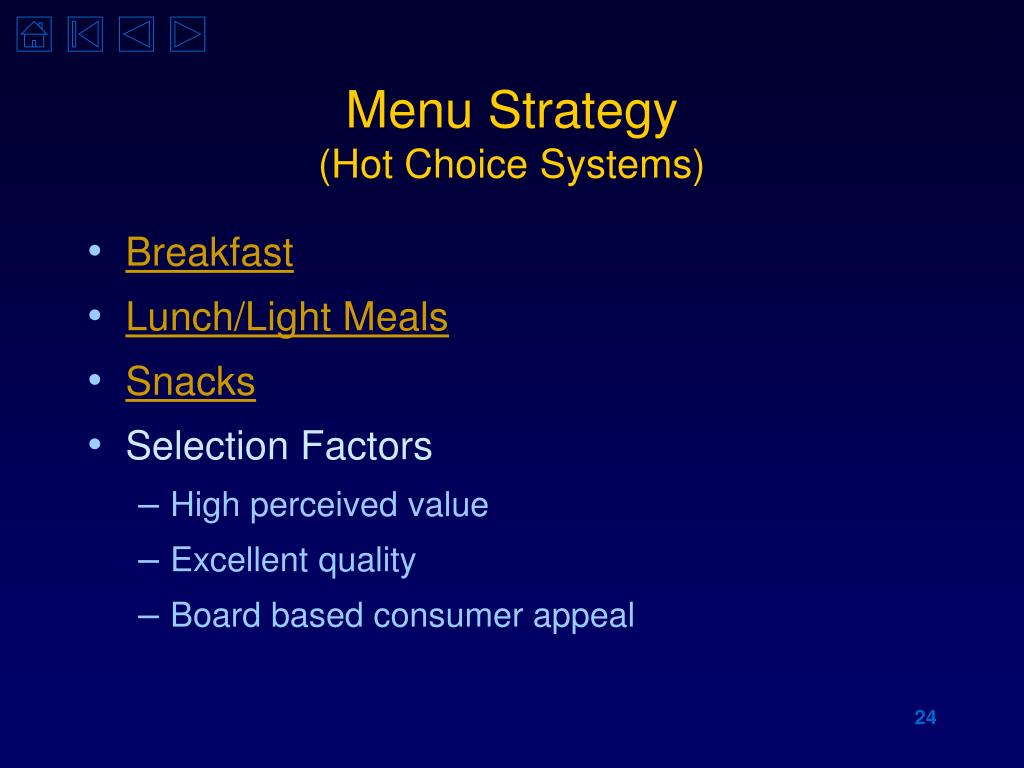

  24. Menu Strategy(Hot Choice Systems) • Breakfast • Lunch/Light Meals • Snacks • Selection Factors • High perceived value • Excellent quality • Board based consumer appeal

  25. BreakfastHot Choice Systems • Egg and sausage sandwich • Raspberry croissant • Breakfast pocket and potato stix Source: KRh Thermal Systems

  26. Lunch and Light MealsHot Choice Systems • Deluxe pan pizza • Golden chicken strip • Smoked turkey and chicken calzone • Grilled bacon cheeseburger • Grilled chicken sandwich Source: KRh Thermal Systems

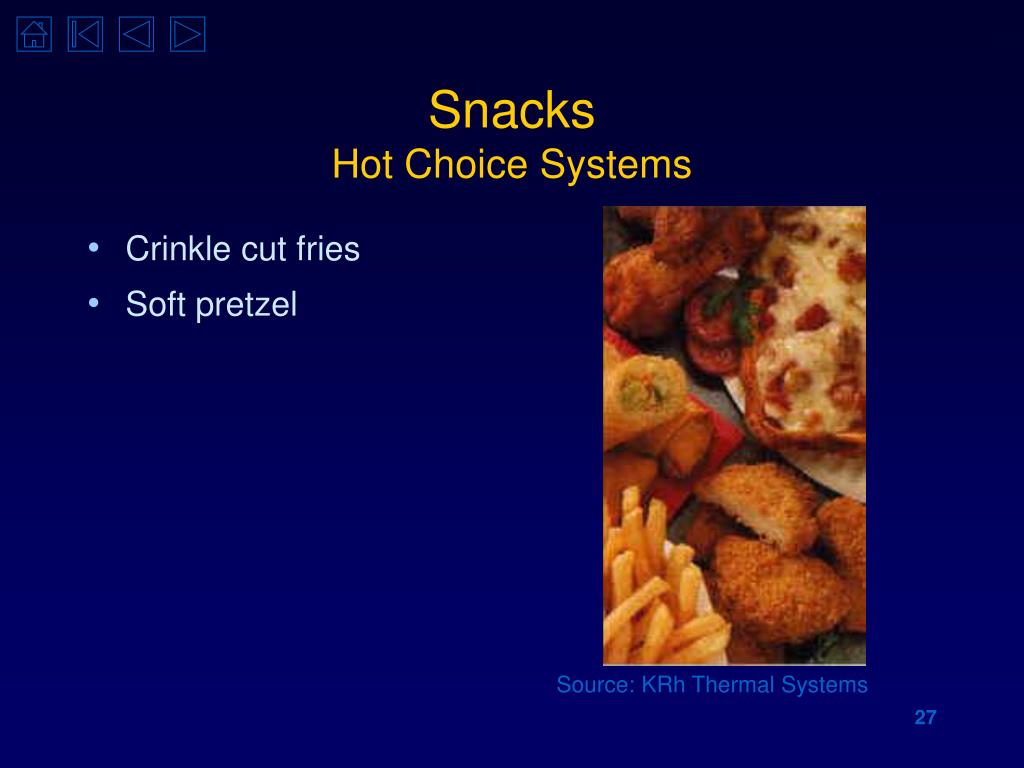

  27. SnacksHot Choice Systems • Crinkle cut fries • Soft pretzel Source: KRh Thermal Systems

  28. Packaging SystemHot Choice Systems • Package size: 6" x 4 7/8" x 1 ¼“ • Product dimensions: 4 ½" x 3 ½" x 1" • Case size: 15 ¼" x 12 ½" x 5 9/16" • Case count: 24 items • Sleeve: 24# paperboard with poly coating on the inside and outside • Shelf-life: six month

  29. Food Manufacturers of Hot Choice • J. R. Simplot Company • Michael Angelo's • Cousins' Foods • Buddy's Kitchens • Brakebush Brothers • Http://www.brakebush.com/

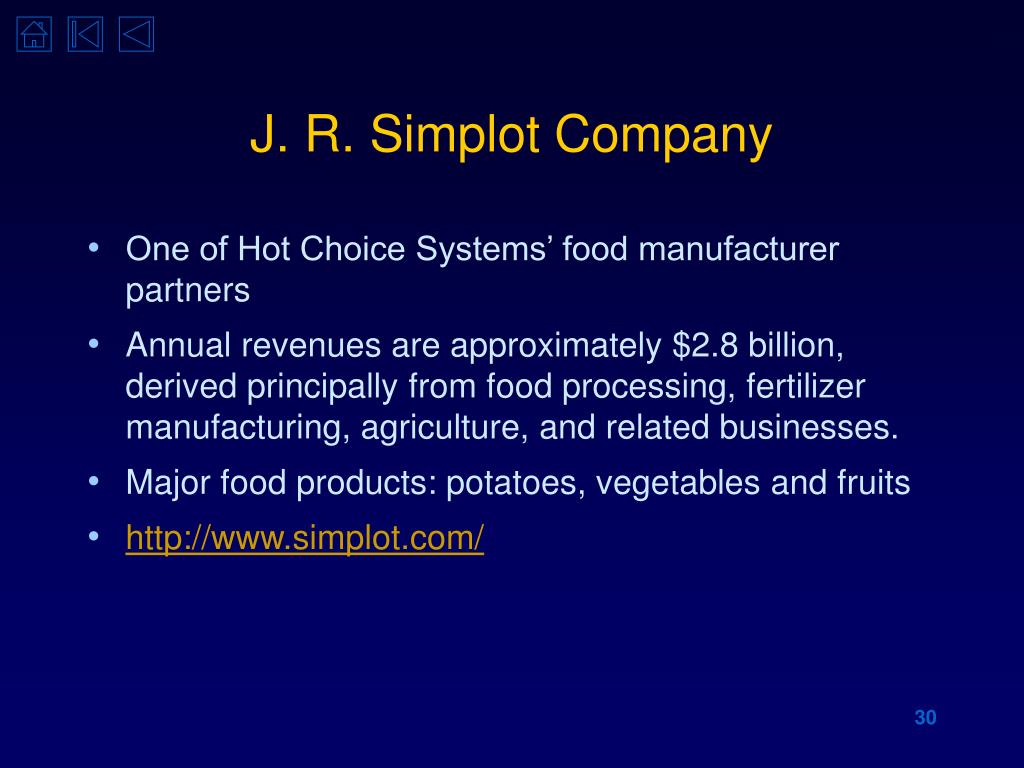

  30. J. R. Simplot Company • One of Hot Choice Systems’ food manufacturer partners • Annual revenues are approximately $2.8 billion, derived principally from food processing, fertilizer manufacturing, agriculture, and related businesses. • Major food products: potatoes, vegetables and fruits • http://www.simplot.com/

  31. Thermador • Company Profile • Thermador JIM Oven • http://www.thermador.com/home.cfm

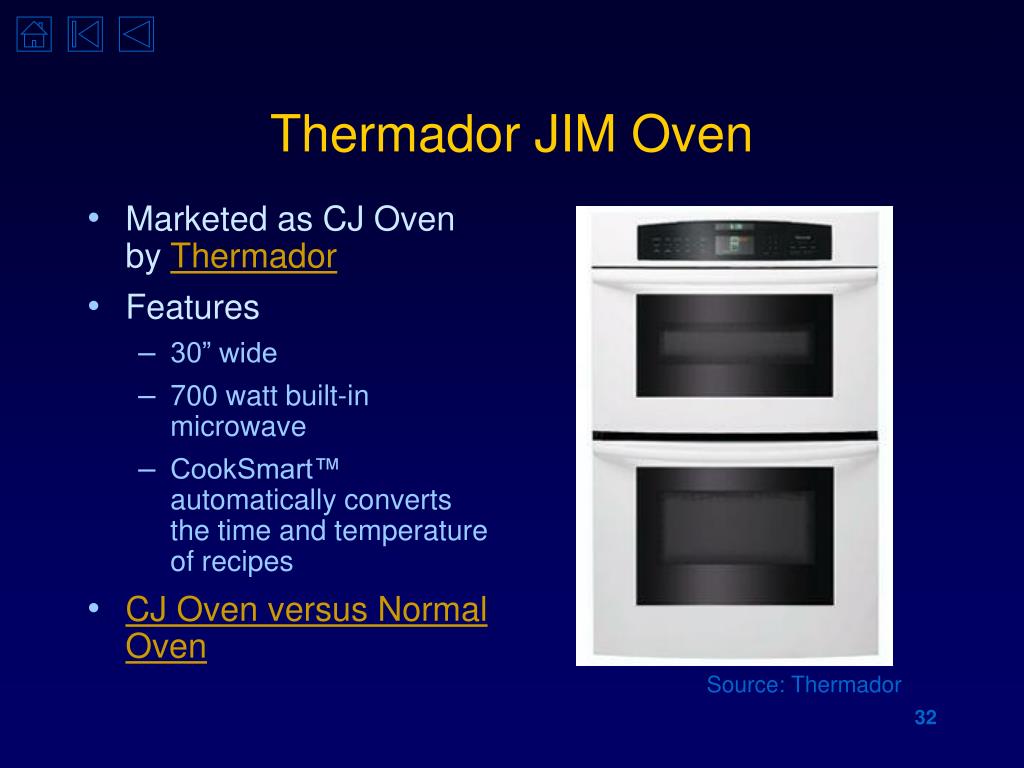

  32. Thermador JIM Oven • Marketed as CJ Oven by Thermador • Features • 30” wide • 700 watt built-in microwave • CookSmart™ automatically converts the time and temperature of recipes • CJ Oven versus Normal Oven Source: Thermador

  33. CJ Oven versus Normal Oven Source: Thermador

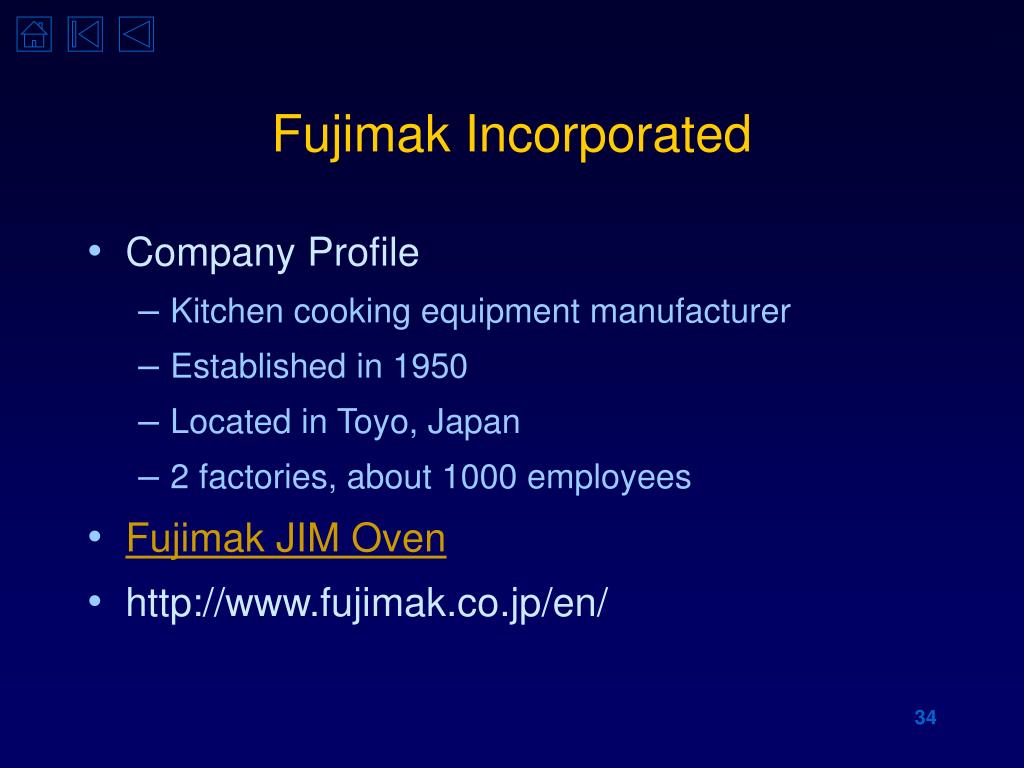

  34. Fujimak Incorporated • Company Profile • Kitchen cooking equipment manufacturer • Established in 1950 • Located in Toyo, Japan • 2 factories, about 1000 employees • Fujimak JIM Oven • http://www.fujimak.co.jp/en/

  35. Fujimak JIM Oven • Marketed as “Super Jet Heating System” by Fujimak • Width 570 mm length 625 mm height 540 mm • 6 KW power Source: Fujimak

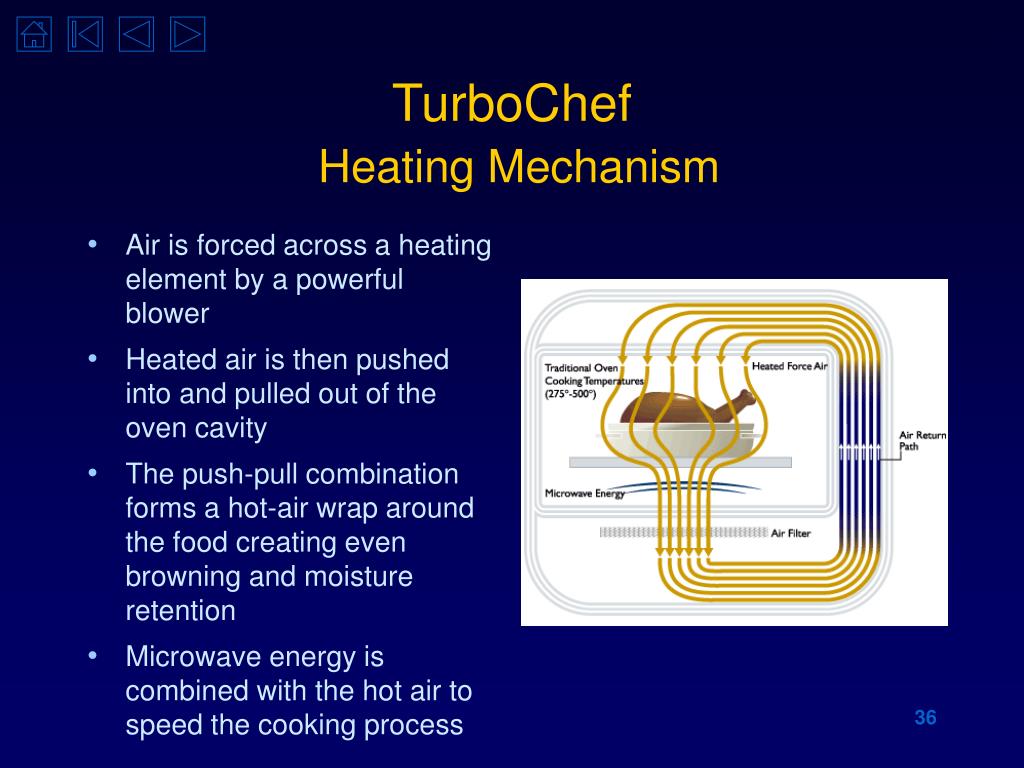

  36. TurboChefHeating Mechanism • Air is forced across a heating element by a powerful blower • Heated air is then pushed into and pulled out of the oven cavity • The push-pull combination forms a hot-air wrap around the food creating even browning and moisture retention • Microwave energy is combined with the hot air to speed the cooking process

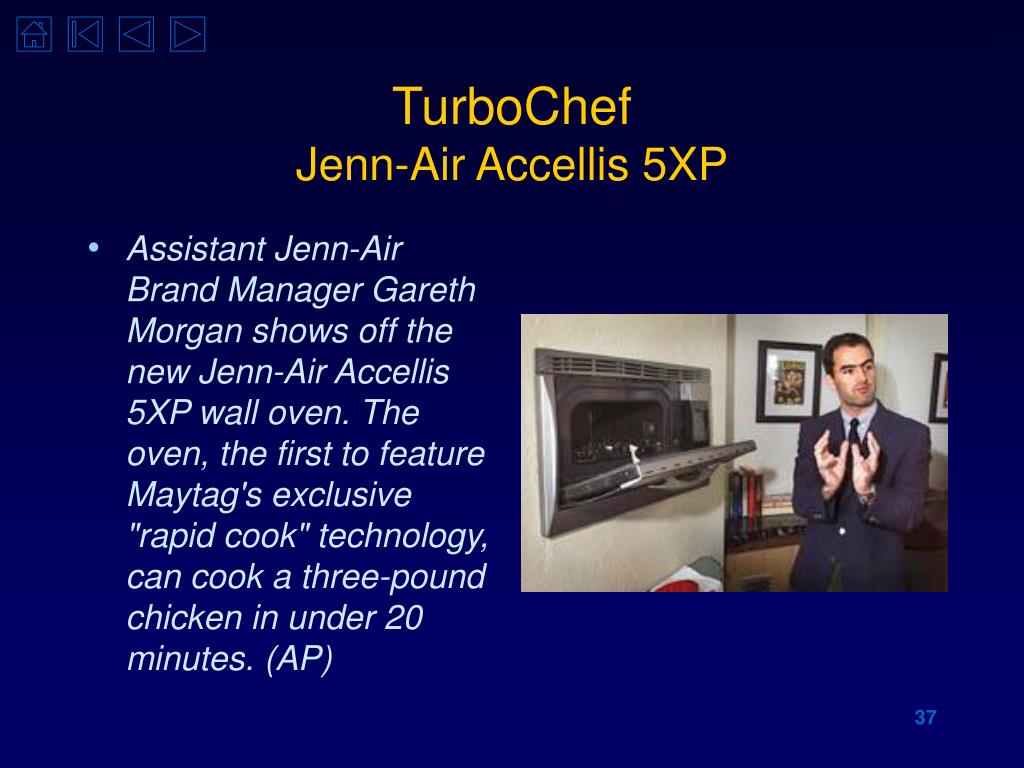

  37. TurboChefJenn-Air Accellis 5XP • Assistant Jenn-Air Brand Manager Gareth Morgan shows off the new Jenn-Air Accellis 5XP wall oven. The oven, the first to feature Maytag's exclusive "rapid cook" technology, can cook a three-pound chicken in under 20 minutes. (AP)

  38. TurboChefIntelligent Cooking Feature • Employs proprietary hardware and software technologies to "cook-to-order" a variety of foods very rapidly • Use a microprocessor to control the cooking processes to ensure consistent quality and also has the ability to communicate with users and service personnel over computer networks and the Internet

  39. TurboChefCompany Profile • Design, develop, assemble and market high-speed commercial cooking systems for foodservice industry • Strategic alliance with Maytag • Located in Dallas, Texas • 50 employees

  40. TurboChefFinancial Summary • Nasd aq symbol: TRBO • For the nine months ended 9/30/00, revenues increased 52% to $5.4 million.Net loss increased 1% to $7.4 million. Results reflect an increase in research and development revenues pursuant to the commercial license agreement with Maytag, offset by increased marketing expenses associated with the Company's new C-3 counter top
