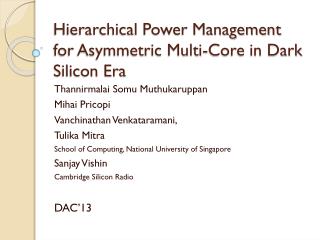

    1. Hierarchical Power Management for Asymmetric Multi-Core in Dark Silicon Era ThannirmalaiSomuMuthukaruppan MihaiPricopi VanchinathanVenkataramani, TulikaMitra School of Computing, National University of Singapore Sanjay Vishin Cambridge Silicon Radio DAC’13

    2. Motivation • Dark silicon phenomenon • A chip can have many cores but a significant fraction of them are left un-powered, or dark, at any point in time due to power and thermal limits. • Asymmetric multi-core architecture as an alternative • Cores with diverse power-performance characteristics.

    3. This paper • Introduce a hierarchical power management framework for asymmetric multi-cores. • Builds on control theory. • Coordinates multiple controllers in a synergistic manner to achieve optimal power-performance efficiency. • Respects the thermal design power budget.

    4. Scenario • System exceeds the Thermal Design Power(TDP). • => power budgets have to be reduced. • => scaling down voltage and frequency. • => the QoS degrades. • Reverse the process once the system load decreases. • Avoid oscillations!

    5. ARM big.LITTLE • TC2 • Two high performance Cortex A15 and three energy-efficient Cortex A7 • 3rd model(HMP) • Per-cluster DVFS

    6. Impact of Active Cores on Cluster Power

    7. Heart Rate • The throughput of the critical kernel of a QoS task. • Ex: number of frames per second(fps) for a video encoder. • Heartbeats in QoS benchmark • Heart rate = heartbeats per second

    8. Feedback Based Controller • Proportional-Integral-Derivative(PID)Controller • Kp, Ki, Kd: proportion, integral, derivative gain.

    9. Framework Overview

    10. Resource Share Controller • Target heart rate hrref(Qi) = [hrrefmin,hrrefmax] • Measured heart rate hr(Qi) • Slice s(Qi)

    11. Core Utilization • u(Qi), u(NQj): utilization of ofQoS and non-QoS tasks. • u(Ck) = Σu(Qi) + Σu(NQj): utilization of core k • u(Clm) = max(u(Ck)) : utilization of cluster m

    12. DVFS Controller • Target utilization uref(Clm) = max(uideal, utarget(Clm))

    13. Chip-Level Power Allocator • Hrthrottle(Qi): throttle factor of heart rate.

    14. QoS Controller • Ideal Heart Rate hrideal(Qi) = [hridealmin,hridealmax] • Target Heart Rate hrref(Qi) = [hrrefmin,hrrefmax] = hrideal(Qi) x hrthrottle(Qi)

    15. Load Balancer and Migrator • Balancer ensures that the cores within a cluster are evenly load balanced. • Migrator migrates tasks between clusters.

    16. Experimental Setting • Versatile Express Development Platform • 2 A15 + 3 A7 • Linux Completely Fair Scheduler(CFS) • Benchmarks:

    17. Asymmetric V.S. Symmetric • x264 benchmark • Phases with varying performance requirements during execution.

    18. HPM V.S. Linaro scheduler

    19. HPM V.S. Linaro scheduler

    20. Response under TDP Constraint

    21. Conclusion • The authors present a power management framework for asymmetric multi-cores that based on multiple controllers. • Exploits asymmetry among the cores through selective migration and employs DVFS to minimize power consumption while satisfying QoS constraints.
