  1. EET 4250 Ch. 4: The Processor: Datapath & Control Logic Acknowledgements: Some slides and lecture notes for this course adapted from Prof. Mary Jane Irwin @ Penn State, Morgan Kaufmann supplemental material for the course text.

  2. Datapath • First-cut data path does an instruction in one clock cycle • Each datapath element can only do one function at a time • Hence, we need separate instruction and data memories • Use multiplexers where alternate data sources are used for different instructions EET 4250: Microcomputer Architecture

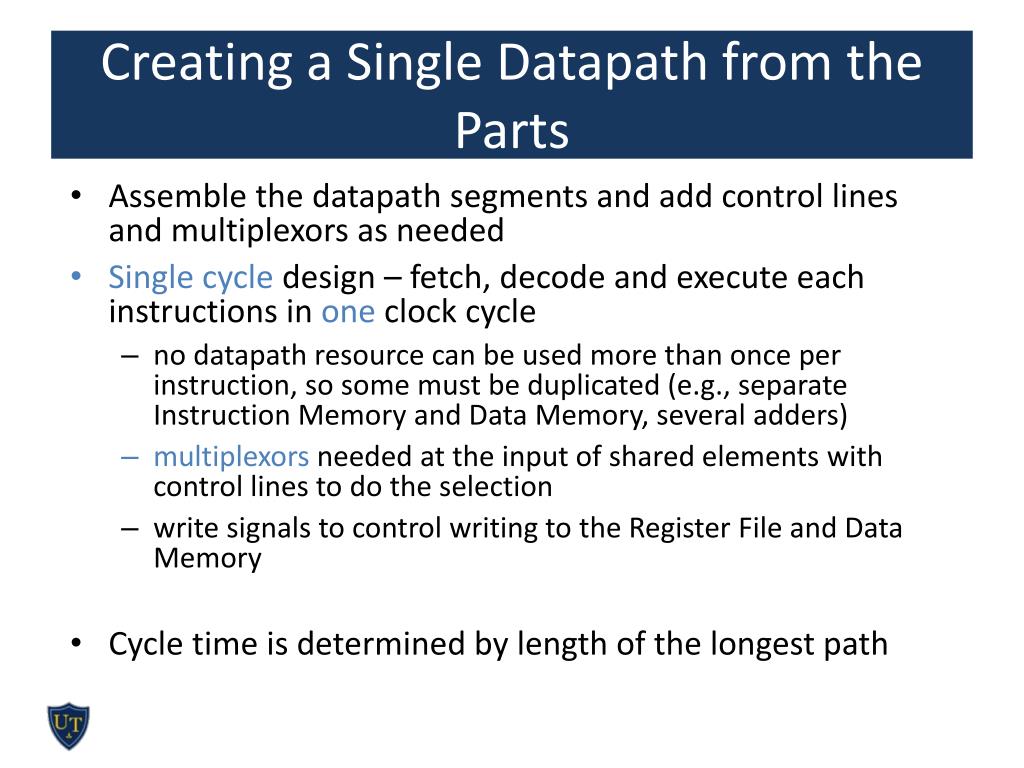

  3. Creating a Single Datapath from the Parts • Assemble the datapath segments and add control lines and multiplexors as needed • Single cycle design – fetch, decode and execute each instructions in one clock cycle • no datapath resource can be used more than once per instruction, so some must be duplicated (e.g., separate Instruction Memory and Data Memory, several adders) • multiplexors needed at the input of shared elements with control lines to do the selection • write signals to control writing to the Register File and Data Memory • Cycle time is determined by length of the longest path

  4. Add RegWrite ALUSrc ALU control MemWrite MemtoReg 4 ovf zero Read Addr 1 Instruction Memory Read Data 1 Address Register File Read Addr 2 Data Memory Read Address PC Instruction Read Data ALU Write Addr Read Data 2 Write Data Write Data MemRead Sign Extend 16 32 Fetch, R, and Memory Access Portions

  5. 31 25 0 J-type: op target address Adding the Control • Selecting the operations to perform (ALU, Register File and Memory read/write) • Controlling the flow of data (multiplexor inputs) 31 25 20 15 10 5 0 R-type: op rs rt rd shamt funct 31 25 20 15 0 • Observations • op field always in bits 31-26 • addr of registers to be read are always specified by the rs field (bits 25-21) and rt field (bits 20-16); for lw and swrs is the base register • addr. of register to be written is in one of two places – in rt (bits 20-16) for lw; in rd (bits 15-11) for R-type instructions • offset for beq, lw, and swalways in bits 15-0 I-Type: address offset op rs rt

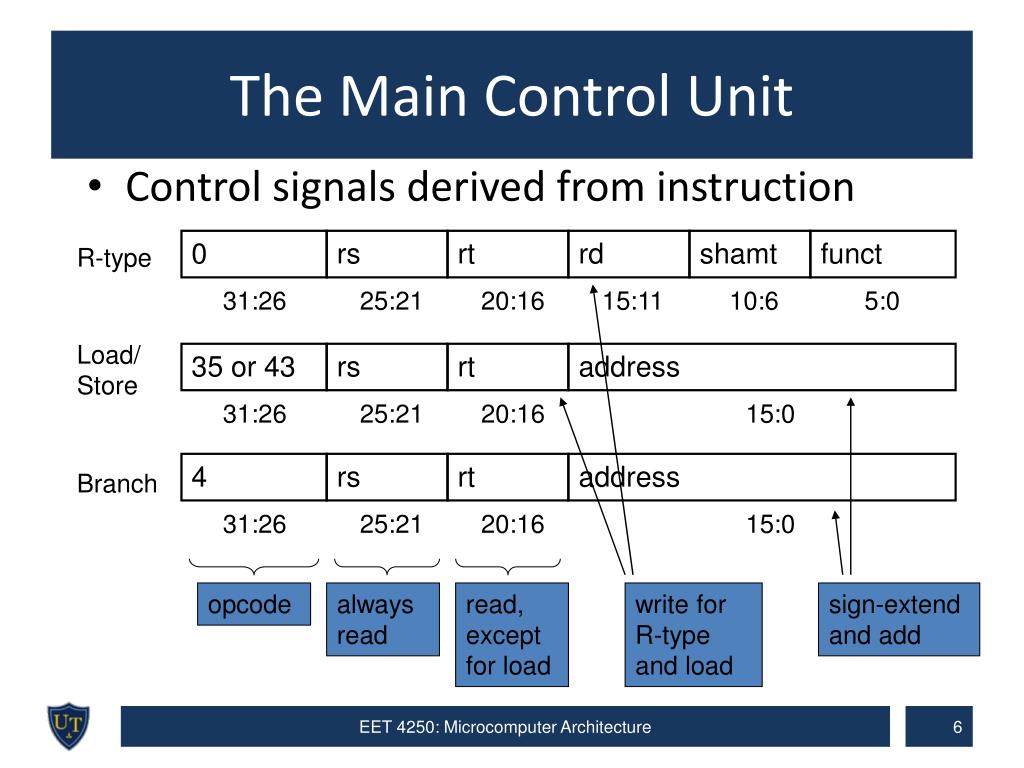

  6. 0 4 35 or 43 rs rs rs rt rt rt rd address address shamt funct 31:26 31:26 31:26 25:21 25:21 25:21 20:16 20:16 20:16 15:11 10:6 15:0 15:0 5:0 The Main Control Unit • Control signals derived from instruction R-type Load/Store Branch opcode always read read, except for load write for R-type and load sign-extend and add EET 4250: Microcomputer Architecture

  7. Single Cycle Datapath with Control Unit 0 Add Add 1 4 Shift left 2 PCSrc ALUOp Branch MemRead Instr[31-26] Control Unit MemtoReg MemWrite ALUSrc RegWrite RegDst ovf Instr[25-21] Read Addr 1 Instruction Memory Read Data 1 Address Register File Instr[20-16] zero Read Addr 2 Data Memory Read Address PC Instr[31-0] 0 Read Data 1 ALU Write Addr Read Data 2 0 1 Write Data 0 Instr[15 -11] Write Data 1 Instr[15-0] Sign Extend ALU control 16 32 Instr[5-0]

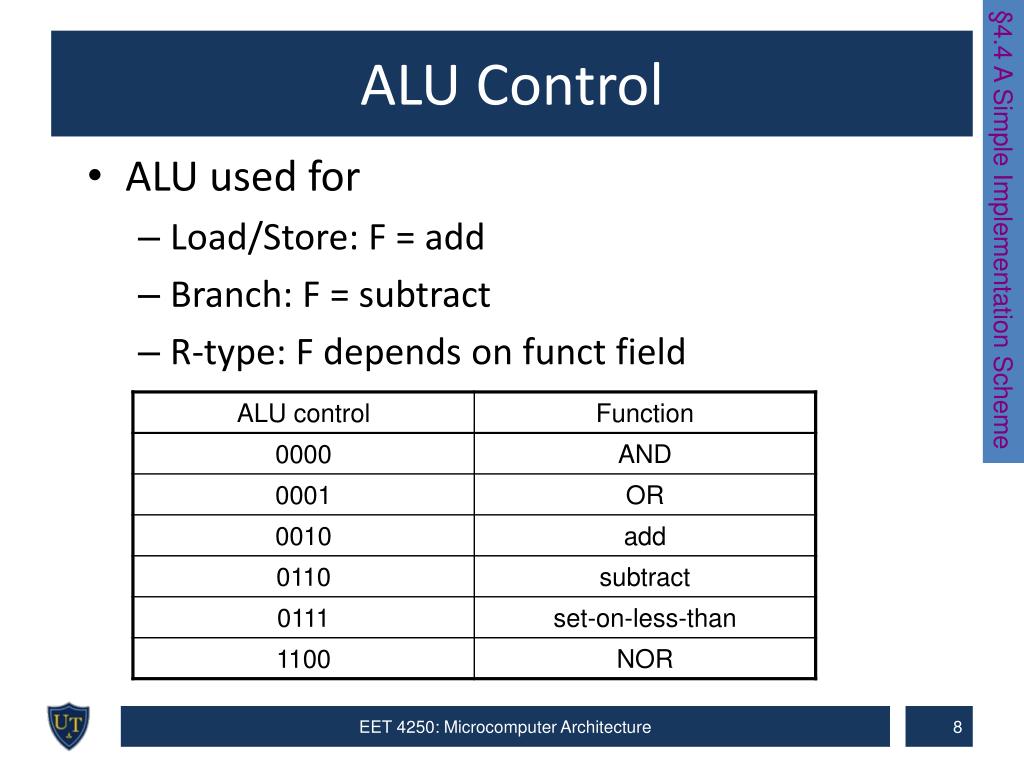

  8. ALU Control • ALU used for • Load/Store: F = add • Branch: F = subtract • R-type: F depends on funct field §4.4 A Simple Implementation Scheme EET 4250: Microcomputer Architecture

  9. ALU Control • Assume 2-bit ALUOp derived from opcode • Combinational logic derives ALU control EET 4250: Microcomputer Architecture

  10. R-Type/Load/Store Datapath EET 4250: Microcomputer Architecture

  11. Full Datapath EET 4250: Microcomputer Architecture

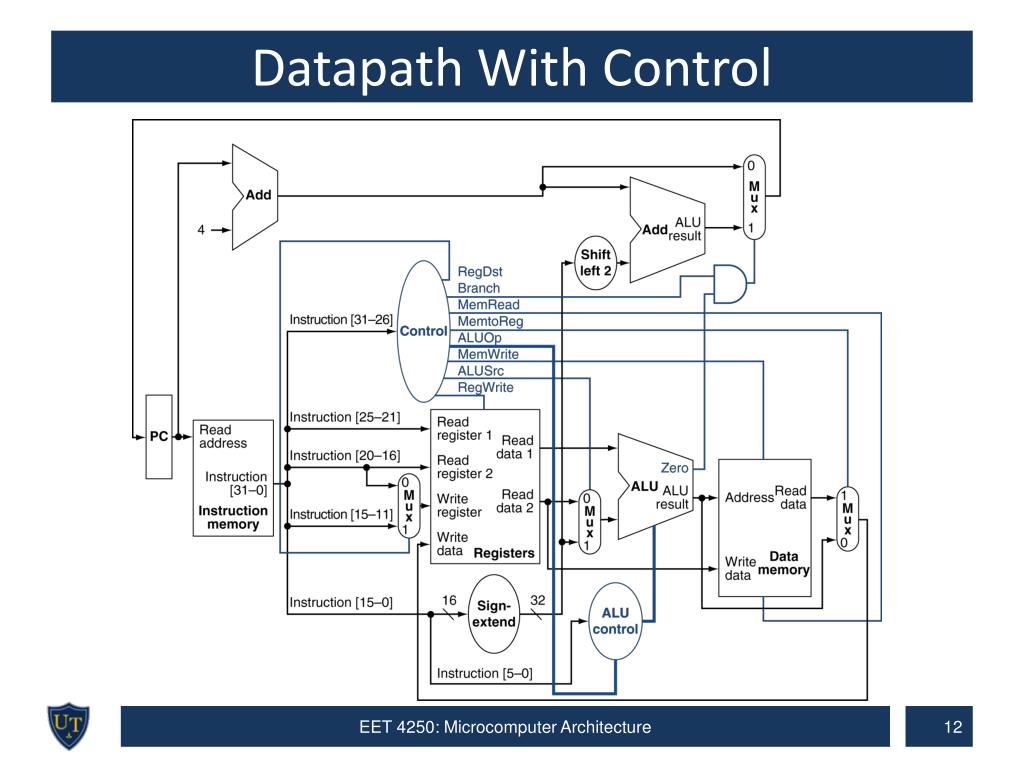

  12. Datapath With Control EET 4250: Microcomputer Architecture

  13. Add 4 Fetch PC = PC+4 Instruction Memory Exec Decode Read Address PC Instruction Fetching Instructions • Fetching instructions involves • reading the instruction from the Instruction Memory • updating the PC value to be the address of the next (sequential) instruction • PC is updated every clock cycle, so it does not need an explicit write control signal just a clock signal • Reading from the Instruction Memory is a combinational activity, so it doesn’t need an explicit read control signal

  14. Fetch PC = PC+4 Exec Decode Read Addr 1 Read Data 1 Register File Read Addr 2 Write Addr Read Data 2 Write Data Decoding Instructions • Decoding instructions involves • sending the fetched instruction’s opcode and function field bits to the control unit Control Unit Instruction • reading two values from the Register File • Register File addresses are contained in the instruction

  15. R-type Instruction Data/Control Flow 0 Add Add 1 4 Shift left 2 PCSrc ALUOp Branch MemRead Instr[31-26] Control Unit MemtoReg MemWrite ALUSrc RegWrite RegDst ovf Instr[25-21] Read Addr 1 Instruction Memory Read Data 1 Address Register File Instr[20-16] zero Read Addr 2 Data Memory Read Address PC Instr[31-0] 0 Read Data 1 ALU Write Addr Read Data 2 0 1 Write Data 0 Instr[15 -11] Write Data 1 Instr[15-0] Sign Extend ALU control 16 32 Instr[5-0]

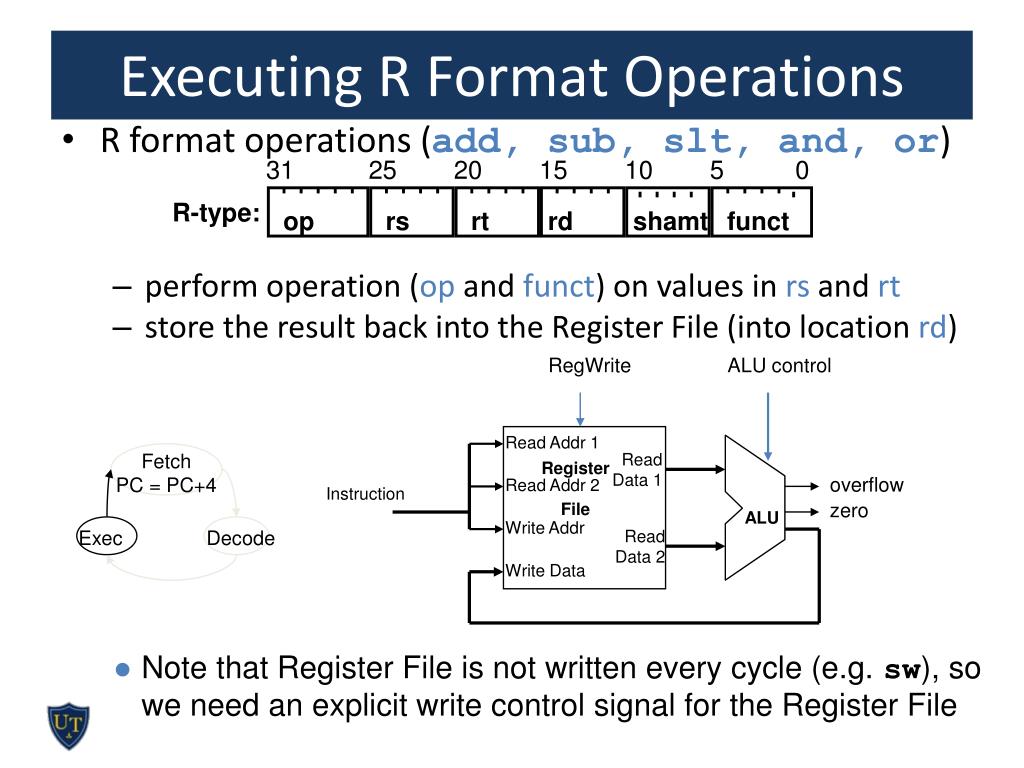

  16. 31 25 20 15 10 5 0 R-type: op rs rt rd shamt funct RegWrite ALU control Fetch PC = PC+4 Read Addr 1 Read Data 1 Register File Read Addr 2 overflow Instruction zero Exec Decode ALU Write Addr Read Data 2 Write Data Executing R Format Operations • R format operations (add, sub, slt, and, or) • perform operation (op and funct) on values in rs and rt • store the result back into the Register File (into location rd) • Note that Register File is not written every cycle (e.g. sw), so we need an explicit write control signal for the Register File

  17. Load Word Instruction Data/Control Flow 0 Add Add 1 4 Shift left 2 PCSrc ALUOp Branch MemRead Instr[31-26] Control Unit MemtoReg MemWrite ALUSrc RegWrite RegDst ovf Instr[25-21] Read Addr 1 Instruction Memory Read Data 1 Address Register File Instr[20-16] zero Read Addr 2 Data Memory Read Address PC Instr[31-0] 0 Read Data 1 ALU Write Addr Read Data 2 0 1 Write Data 0 Instr[15 -11] Write Data 1 Instr[15-0] Sign Extend ALU control 16 32 Instr[5-0]

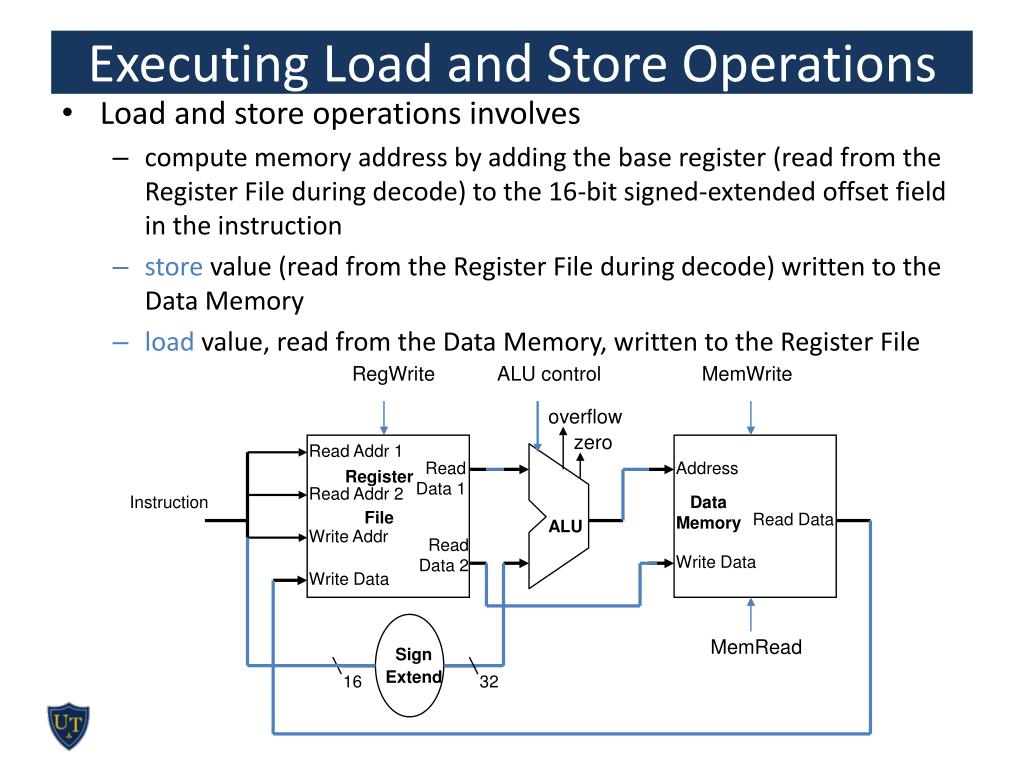

  18. RegWrite ALU control MemWrite overflow zero Read Addr 1 Read Data 1 Address Register File Read Addr 2 Instruction Data Memory Read Data ALU Write Addr Read Data 2 Write Data Write Data MemRead Sign Extend 16 32 Executing Load and Store Operations • Load and store operations involves • compute memory address by adding the base register (read from the Register File during decode) to the 16-bit signed-extended offset field in the instruction • store value (read from the Register File during decode) written to the Data Memory • load value, read from the Data Memory, written to the Register File

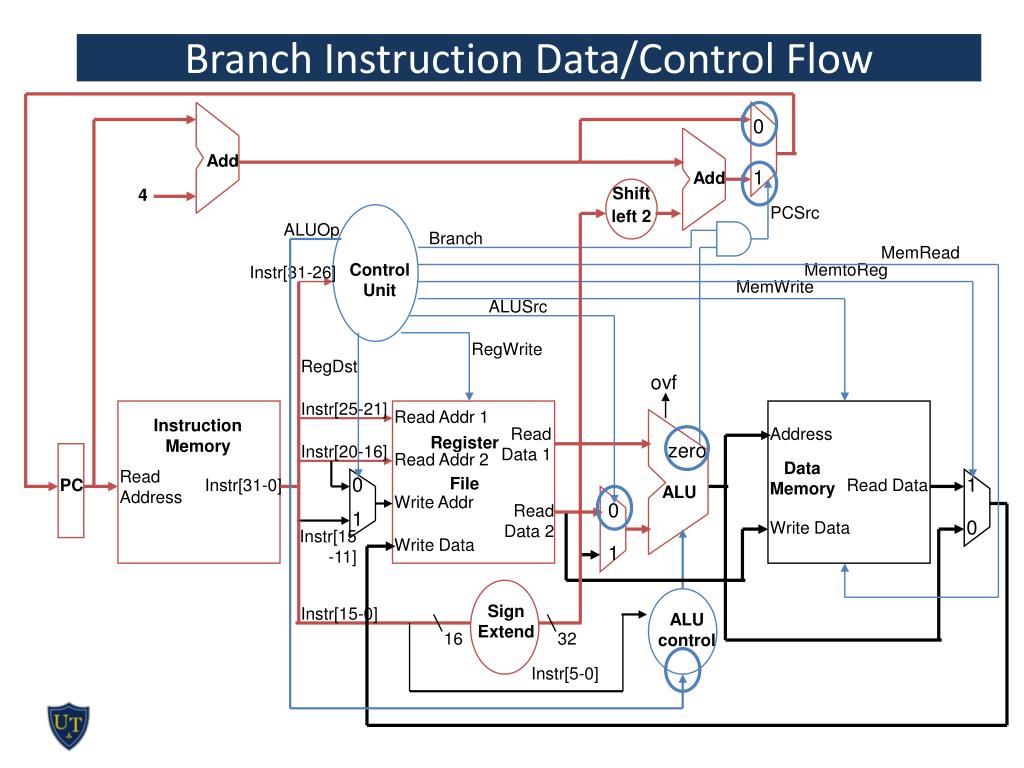

  19. Branch Instruction Data/Control Flow 0 Add Add 1 4 Shift left 2 PCSrc ALUOp Branch MemRead Instr[31-26] Control Unit MemtoReg MemWrite ALUSrc RegWrite RegDst ovf Instr[25-21] Read Addr 1 Instruction Memory Read Data 1 Address Register File Instr[20-16] zero Read Addr 2 Data Memory Read Address PC Instr[31-0] 0 Read Data 1 ALU Write Addr Read Data 2 0 1 Write Data 0 Instr[15 -11] Write Data 1 Instr[15-0] Sign Extend ALU control 16 32 Instr[5-0]

  20. Executing Branch Operations • Branch operations involves • compare the operands read from the Register File during decode for equality (zero ALU output) • compute the branch target address by adding the updated PC to the 16-bit signed-extended offset field in the instr Branch target address Add Add 4 Shift left 2 ALU control PC zero (to branch control logic) Read Addr 1 Read Data 1 Register File Read Addr 2 Instruction ALU Write Addr Read Data 2 Write Data Sign Extend 16 32

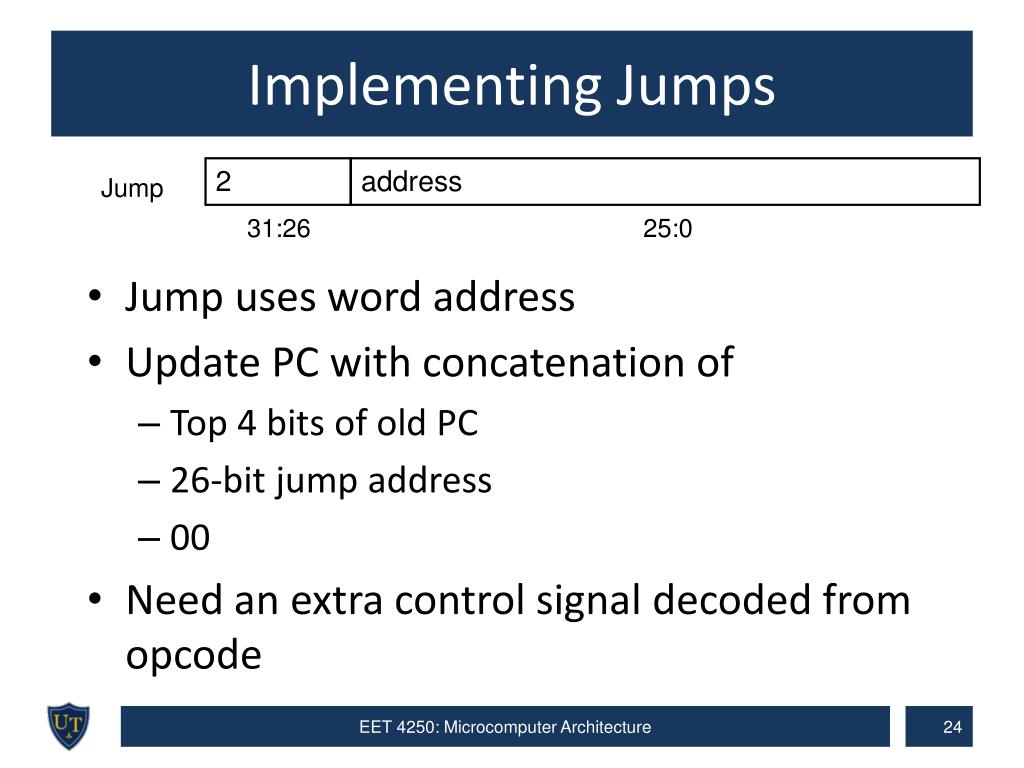

  21. 2 address 31:26 25:0 Implementing Jumps Jump • Jump uses word address • Update PC with concatenation of • Top 4 bits of old PC • 26-bit jump address • 00 • Need an extra control signal decoded from opcode EET 4250: Microcomputer Architecture

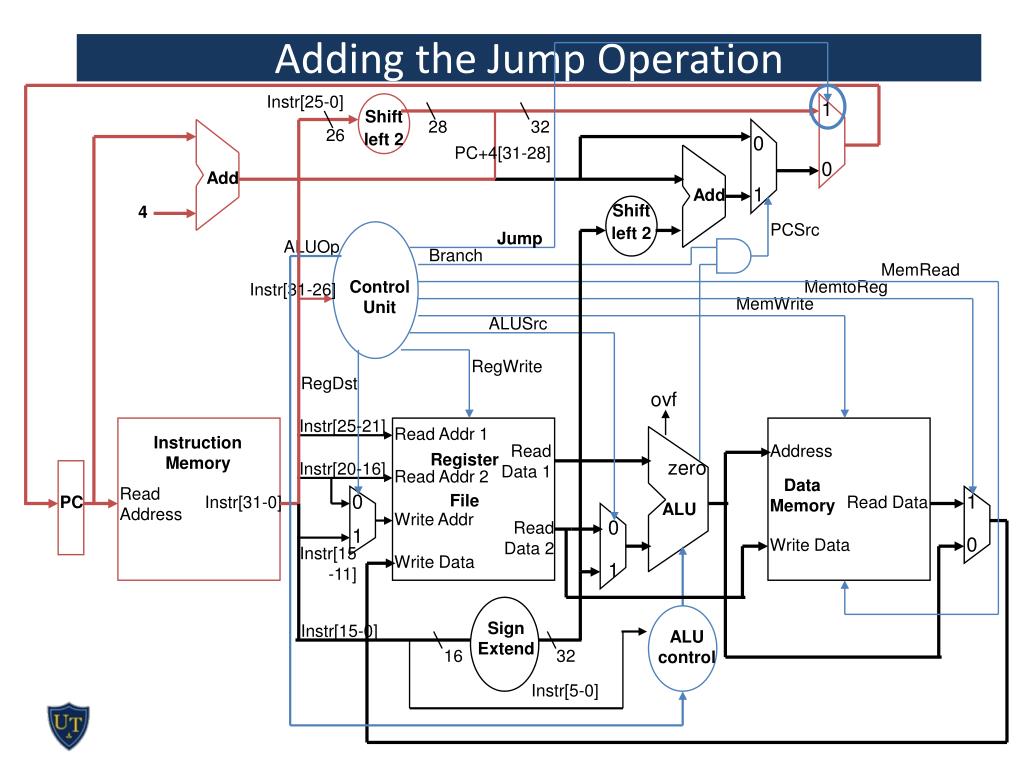

  22. Adding the Jump Operation Instr[25-0] 1 Shift left 2 28 32 26 0 PC+4[31-28] 0 Add Add 1 4 Shift left 2 PCSrc Jump ALUOp Branch MemRead Instr[31-26] Control Unit MemtoReg MemWrite ALUSrc RegWrite RegDst ovf Instr[25-21] Read Addr 1 Instruction Memory Read Data 1 Address Register File Instr[20-16] zero Read Addr 2 Data Memory Read Address PC Instr[31-0] 0 Read Data 1 ALU Write Addr Read Data 2 0 1 Write Data 0 Instr[15 -11] Write Data 1 Instr[15-0] Sign Extend ALU control 16 32 Instr[5-0]

  23. Executing Jump Operations • Jump operation involves • replace the lower 28 bits of the PC with the lower 26 bits of the fetched instruction shifted left by 2 bits Add 4 4 Jump address Instruction Memory Shift left 2 28 Read Address PC Instruction 26

  24. Datapath With Jumps Added EET 4250: Microcomputer Architecture

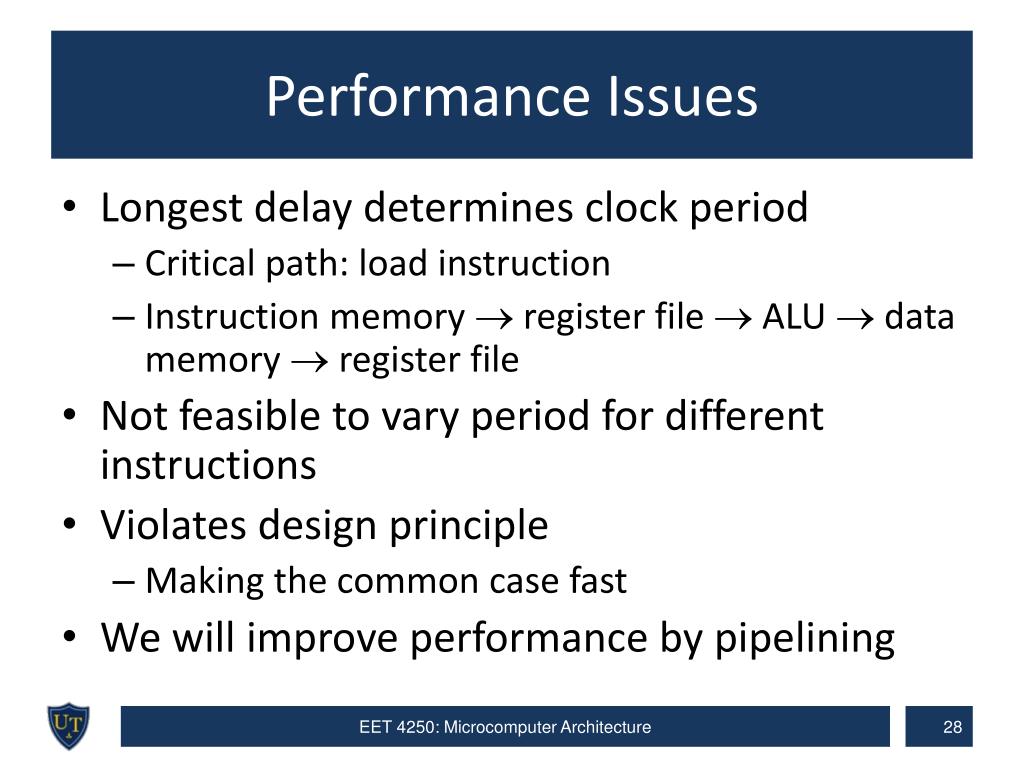

  25. Performance Issues • Longest delay determines clock period • Critical path: load instruction • Instruction memory  register file  ALU  data memory  register file • Not feasible to vary period for different instructions • Violates design principle • Making the common case fast • We will improve performance by pipelining EET 4250: Microcomputer Architecture

  26. Instruction Critical Paths • What is the clock cycle time assuming negligible delays for muxes, control unit, sign extend, PC access, shift left 2, wires, setup and hold times except: • Instruction and Data Memory (200 ps) • ALU and adders (200 ps) • Register File access (reads or writes) (100 ps)

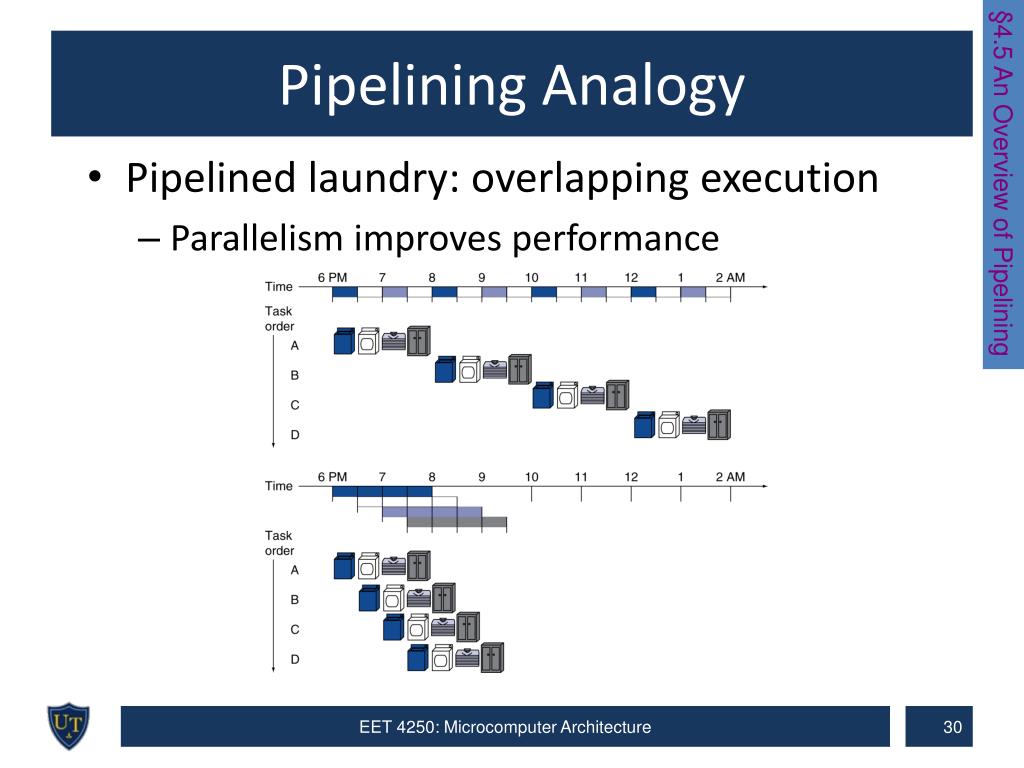

  27. Pipelining Analogy §4.5 An Overview of Pipelining • Pipelined laundry: overlapping execution • Parallelism improves performance EET 4250: Microcomputer Architecture

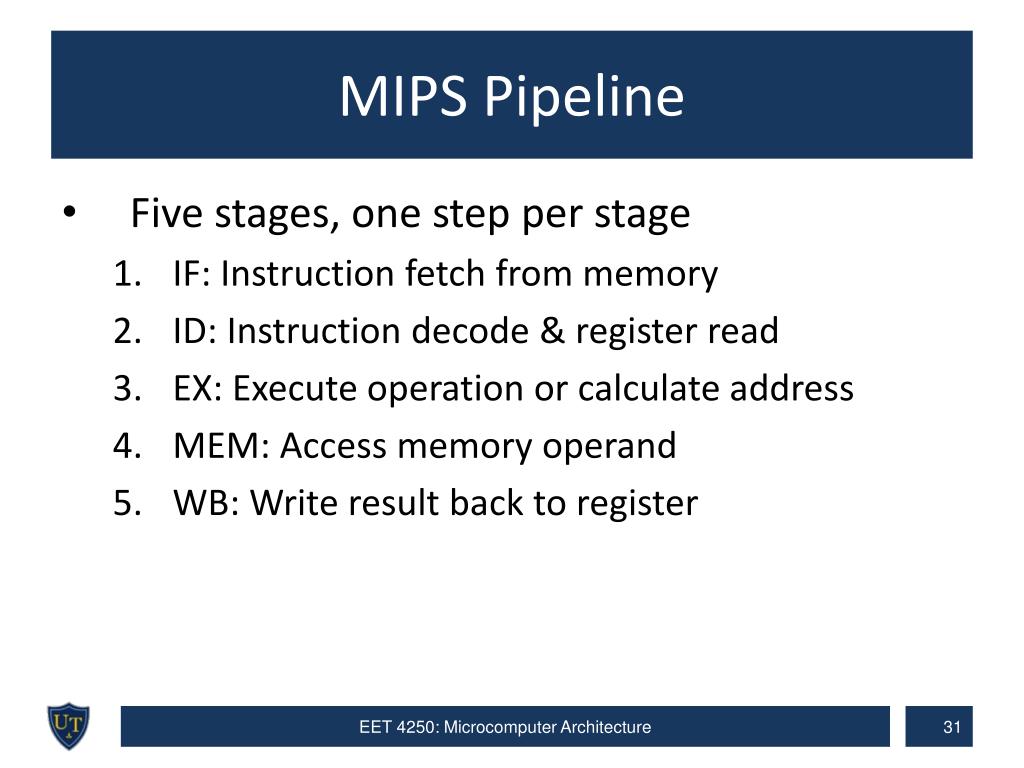

  28. MIPS Pipeline • Five stages, one step per stage • IF: Instruction fetch from memory • ID: Instruction decode & register read • EX: Execute operation or calculate address • MEM: Access memory operand • WB: Write result back to register EET 4250: Microcomputer Architecture

  29. Pipeline Performance • Assume time for stages is • 100ps for register read or write • 200ps for other stages • Compare pipelined datapath with single-cycle datapath EET 4250: Microcomputer Architecture

  30. Pipeline Performance Single-cycle (Tc= 800ps) Pipelined (Tc= 200ps) EET 4250: Microcomputer Architecture

  31. Pipeline Speedup • If all stages are balanced • i.e., all take the same time • If not balanced, speedup is less • Speedup due to increased throughput • Latency (time for each instruction) does not decrease EET 4250: Microcomputer Architecture

  32. Pipelining and ISA Design • MIPS ISA designed for pipelining • All instructions are 32-bits • Easier to fetch and decode in one cycle • c.f. x86: 1- to 17-byte instructions • Few and regular instruction formats • Can decode and read registers in one step • Load/store addressing • Can calculate address in 3rd stage, access memory in 4th stage • Alignment of memory operands • Memory access takes only one cycle EET 4250: Microcomputer Architecture

  33. Hazards • Situations that prevent starting the next instruction in the next cycle • Structure hazards • A required resource is busy • Data hazard • Need to wait for previous instruction to complete its data read/write • Control hazard • Deciding on control action depends on previous instruction EET 4250: Microcomputer Architecture

  34. Structure Hazards • Conflict for use of a resource • In MIPS pipeline with a single memory • Load/store requires data access • Instruction fetch would have to stall for that cycle • Would cause a pipeline “bubble” • Hence, pipelined datapaths require separate instruction/data memories • Or separate instruction/data caches EET 4250: Microcomputer Architecture

  35. Data Hazards • An instruction depends on completion of data access by a previous instruction • add $s0, $t0, $t1sub $t2, $s0, $t3 EET 4250: Microcomputer Architecture

  36. Forwarding (aka Bypassing) • Use result when it is computed • Don’t wait for it to be stored in a register • Requires extra connections in the datapath EET 4250: Microcomputer Architecture

  37. Load-Use Data Hazard • Can’t always avoid stalls by forwarding • If value not computed when needed • Can’t forward backward in time! EET 4250: Microcomputer Architecture

  38. Code Scheduling to Avoid Stalls • Reorder code to avoid use of load result in the next instruction • C code for A = B + E; C = B + F; lw $t1, 0($t0) lw $t2, 4($t0) add $t3, $t1, $t2 sw $t3, 12($t0) lw $t4, 8($t0) add $t5, $t1, $t4 sw $t5, 16($t0) lw $t1, 0($t0) lw $t2, 4($t0) lw $t4, 8($t0) add $t3, $t1, $t2 sw $t3, 12($t0) add $t5, $t1, $t4 sw $t5, 16($t0) stall stall 13 cycles 11 cycles EET 4250: Microcomputer Architecture

  39. Control Hazards • Branch determines flow of control • Fetching next instruction depends on branch outcome • Pipeline can’t always fetch correct instruction • Still working on ID stage of branch • In MIPS pipeline • Need to compare registers and compute target early in the pipeline • Add hardware to do it in ID stage EET 4250: Microcomputer Architecture

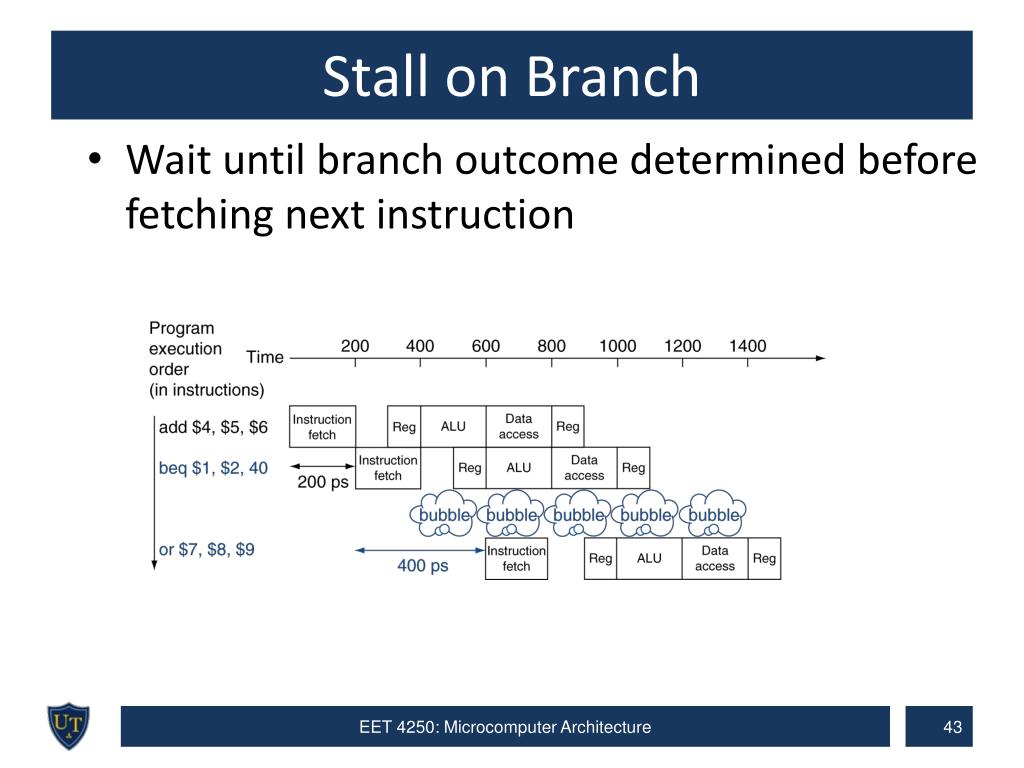

  40. Stall on Branch • Wait until branch outcome determined before fetching next instruction EET 4250: Microcomputer Architecture

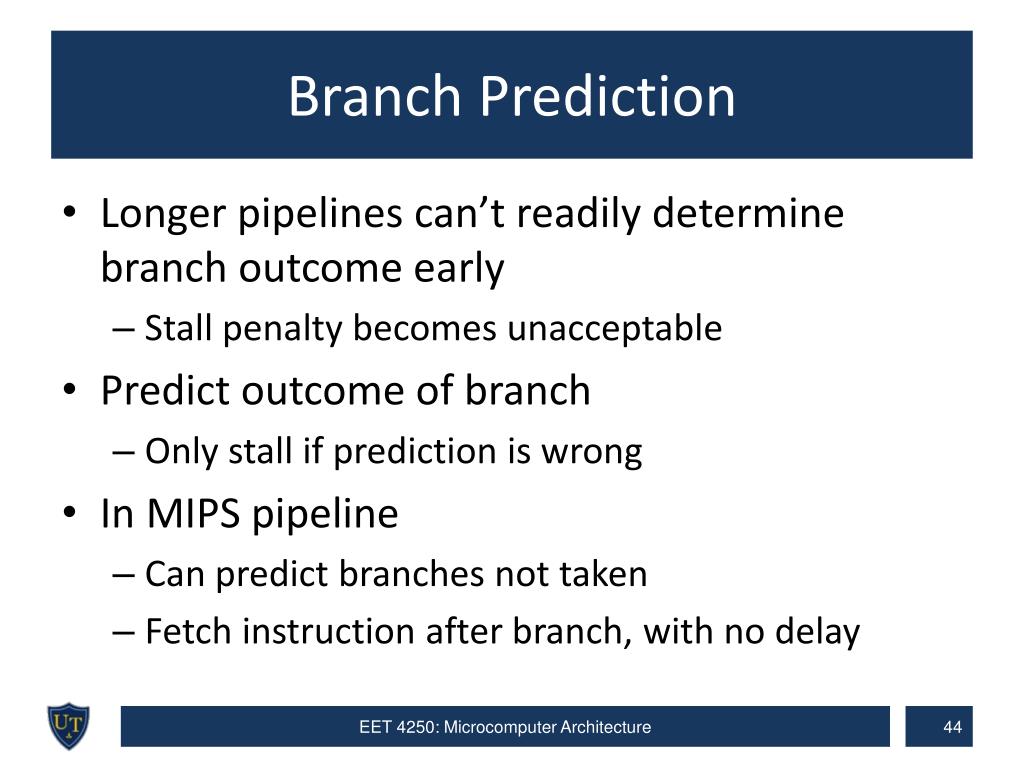

  41. Branch Prediction • Longer pipelines can’t readily determine branch outcome early • Stall penalty becomes unacceptable • Predict outcome of branch • Only stall if prediction is wrong • In MIPS pipeline • Can predict branches not taken • Fetch instruction after branch, with no delay EET 4250: Microcomputer Architecture

  42. MIPS with Predict Not Taken Prediction correct Prediction incorrect EET 4250: Microcomputer Architecture

  43. More-Realistic Branch Prediction • Static branch prediction • Based on typical branch behavior • Example: loop and if-statement branches • Predict backward branches taken • Predict forward branches not taken • Dynamic branch prediction • Hardware measures actual branch behavior • e.g., record recent history of each branch • Assume future behavior will continue the trend • When wrong, stall while re-fetching, and update history EET 4250: Microcomputer Architecture

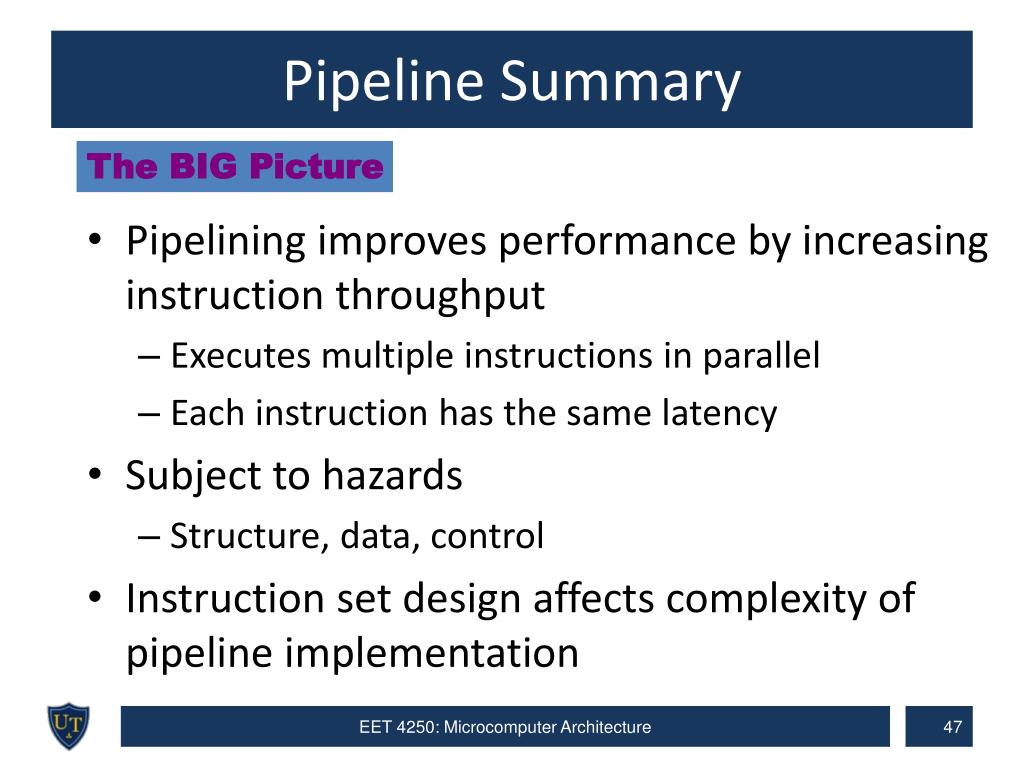

  44. Pipeline Summary The BIG Picture • Pipelining improves performance by increasing instruction throughput • Executes multiple instructions in parallel • Each instruction has the same latency • Subject to hazards • Structure, data, control • Instruction set design affects complexity of pipeline implementation EET 4250: Microcomputer Architecture

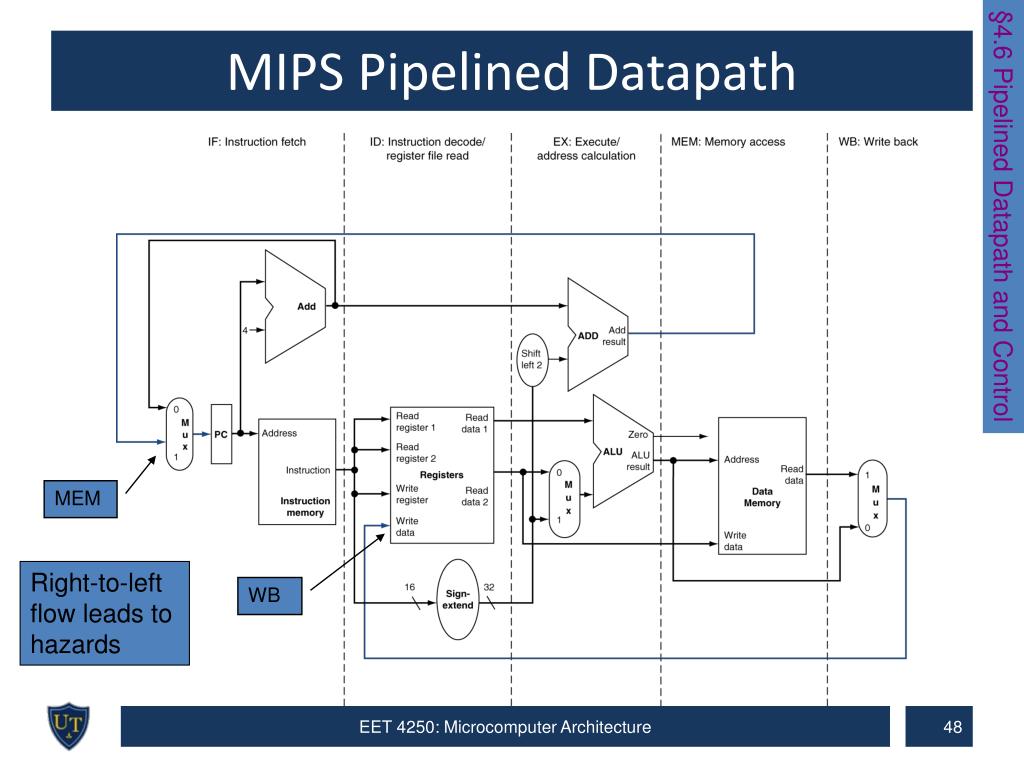

  45. MIPS Pipelined Datapath §4.6 Pipelined Datapath and Control MEM Right-to-left flow leads to hazards WB EET 4250: Microcomputer Architecture

  46. Pipeline registers • Need registers between stages • To hold information produced in previous cycle EET 4250: Microcomputer Architecture

  47. Pipeline Operation • Cycle-by-cycle flow of instructions through the pipelined datapath • “Single-clock-cycle” pipeline diagram • Shows pipeline usage in a single cycle • Highlight resources used • c.f. “multi-clock-cycle” diagram • Graph of operation over time • We’ll look at “single-clock-cycle” diagrams for load & store EET 4250: Microcomputer Architecture

  48. IF for Load, Store, … EET 4250: Microcomputer Architecture

  49. ID for Load, Store, … EET 4250: Microcomputer Architecture

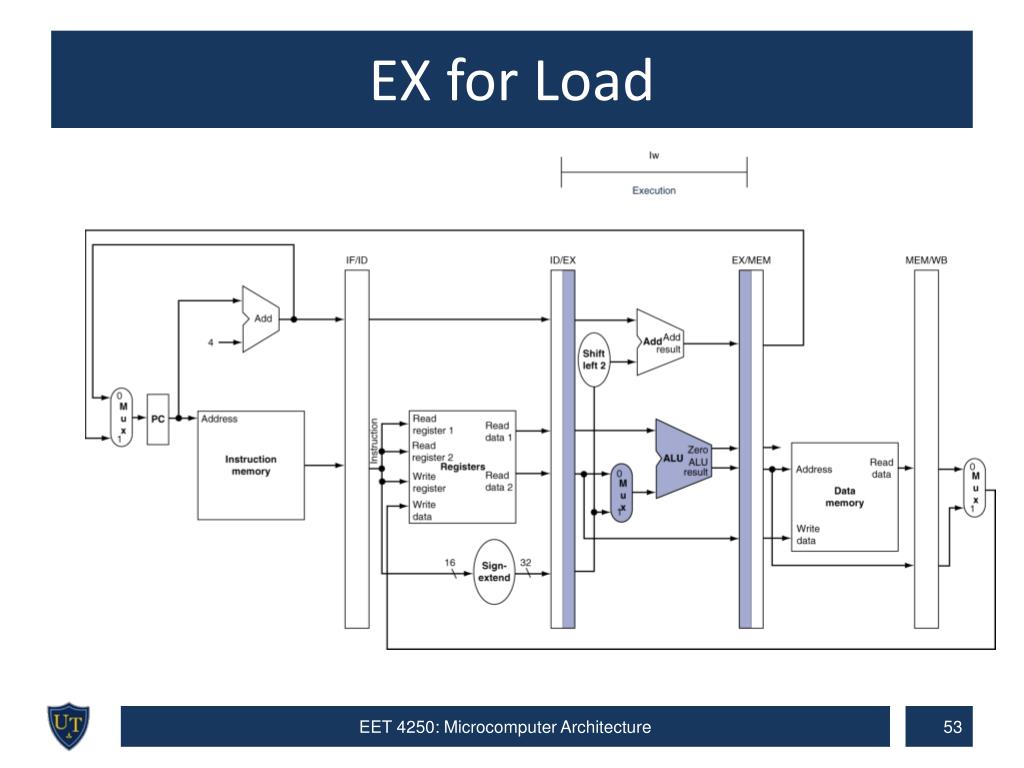

  50. EX for Load EET 4250: Microcomputer Architecture
