  1. Mesh refinement:sequential, parallel,and dynamic Benoît Hudson, CMU Joint work with Umut Acar, TTI-CGary Miller and Todd Phillips, CMU Papers available at http://www.cs.cmu.edu/~bhudson 1

  2. Mesh refinement:sequential, parallel,and dynamic Benoît Hudson, CMU Joint work with Umut Acar, TTI-CGary Miller and Todd Phillips, CMU Papers available at http://www.cs.cmu.edu/~bhudson 2

  3. 3

  4. 4

  5. Mesh Visualize Solve Finite Element Simulation Overview Partial Diff. Eqs. Model 5

  6. Our results • First optimal-time sequential mesher • Fast in implementation • First provably fast parallel mesher • First optimal-time dynamic mesher 6

  7. Outline • Precise problem description • Prior solutions • Sequential • Parallel • Dynamic • Many open problems 7

  8. Outline • Precise problem description • Prior solutions • Sequential • Parallel • Dynamic • Many open problems 8

  9. Input Points Segments Polygons 9

  10. Input Points Segments Polygons ‘P’ courtesy of Shewchuk 10

  11. Output ConformingAll features appear (subdivided) ‘P’ courtesy of Shewchuk 11

  12. Big angles are bad 12

  13. No small angle ) no big angle 13

  14. Need Steiner Points 14

  15. Small feature Small triangles Big features Big triangles No-small-angle )Medium size betweensmall, large features Sizing Size-optimality Output O(mopt) points 15

  16. Formal problem • Input: • Points 2Rd, Segments, Polygons, … • Quality bound: angle ³a • Output: • Conforms: All features appear • Quality: No angle smaller than a • Size-optimal: O(mopt) vertices 16

  17. Outline • Precise problem description • Prior solutions • Sequential • Parallel • Dynamic • Many open problems 17

  18. Outline • Precise problem description • Prior solutions • Sequential • Parallel • Dynamic • Many open problems 18

  19. Delaunay Triangulation Maximizes minimumangle 19

  20. Delaunay Triangulation Maximizes minimumangle May not be good enough 20

  21. Ruppert (1992) 21

  22. Ruppert: Identify skinny triangle 22

  23. Ruppert: Find circumcenter 23

  24. Ruppert: Snap to segment 24

  25. Ruppert: Insert, retriangulate 25

  26. Ruppert: Repeat until done 26

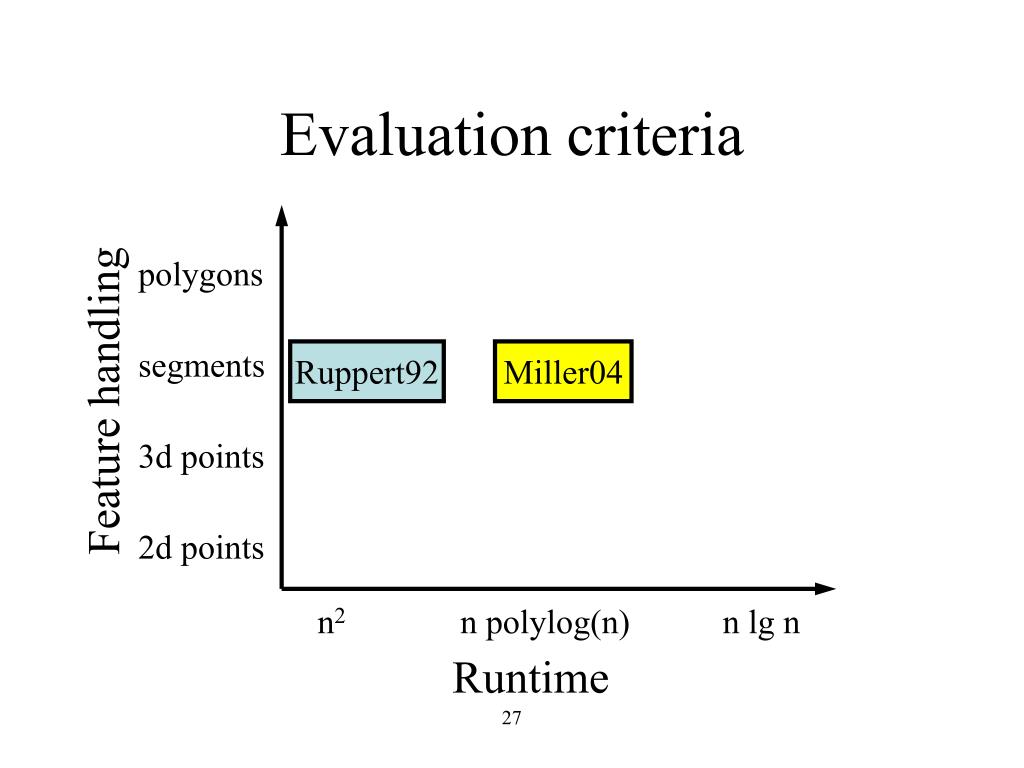

  27. Evaluation criteria polygons segments Ruppert92 Miller04 Feature handling 3d points 2d points n2 n polylog(n) n lg n Runtime 27

  28. Ruppert 3D: a bad example 28

  29. Ruppert 3D: a bad example 29

  30. Ruppert 3D: W(n2) n/2 points along line n/2 points around circle Delaunay has n2/4 tets 30

  31. 31

  32. Evaluation criteria polygons Shewchuk98 segments Mil04 Feature handling 3d points 2d points n2 n polylog(n) n lg n Runtime 32

  33. Quadtree: Bern et al (1990) 33

  34. Quadtree: Bern et al (1990) 34

  35. Quadtree: Bern et al (1990) 35

  36. Quadtree: Bern et al (1990) 36

  37. Evaluation criteria She98 polygons MV92 segments Mil04 BEG90 Feature handling 3d points 2d points n2 n polylog(n) n lg n Runtime 37

  38. Compare and contrast 86 triangles, 17° 55 triangles, 30° 38

  39. Outline • Precise problem description • Prior solutions • Sequential • Parallel • Dynamic • Many open problems 39

  40. Outline • Precise problem description • Prior solutions • Sequential • Parallel • Dynamic • Many open problems 40

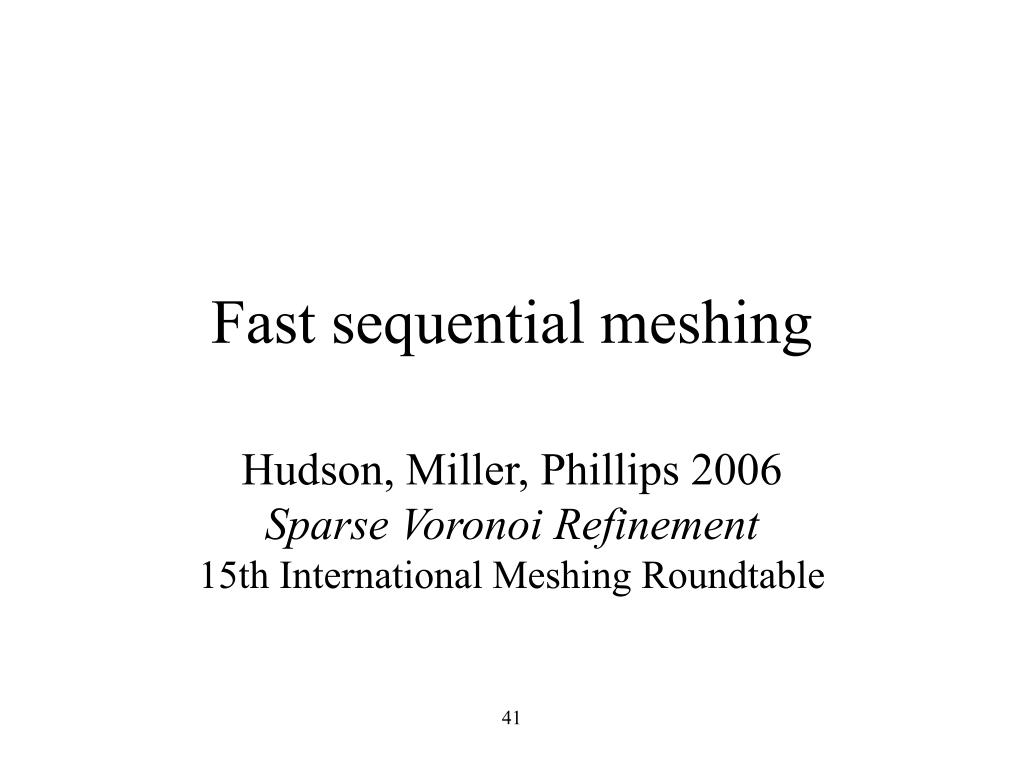

  41. Fast sequential meshing Hudson, Miller, Phillips 2006Sparse Voronoi Refinement15th International Meshing Roundtable 41

  42. The intuition Quadtree’s fast runtime: top-down. Intermediate meshes are good quality. SVR: always good quality, find features quickly Ruppert’s small size: bottom-up,good feature recovery. 42

  43. Sparse Delaunay Refinement 43

  44. Add a bounding box 44

  45. Triangulate just the box! 45

  46. Apply splitting rules If a triangle is skinny,split it. If a triangle containsinput, split it. 46

  47. Apply splitting rules If a triangle is skinny,split it. If a triangle containsinput, split it. 47

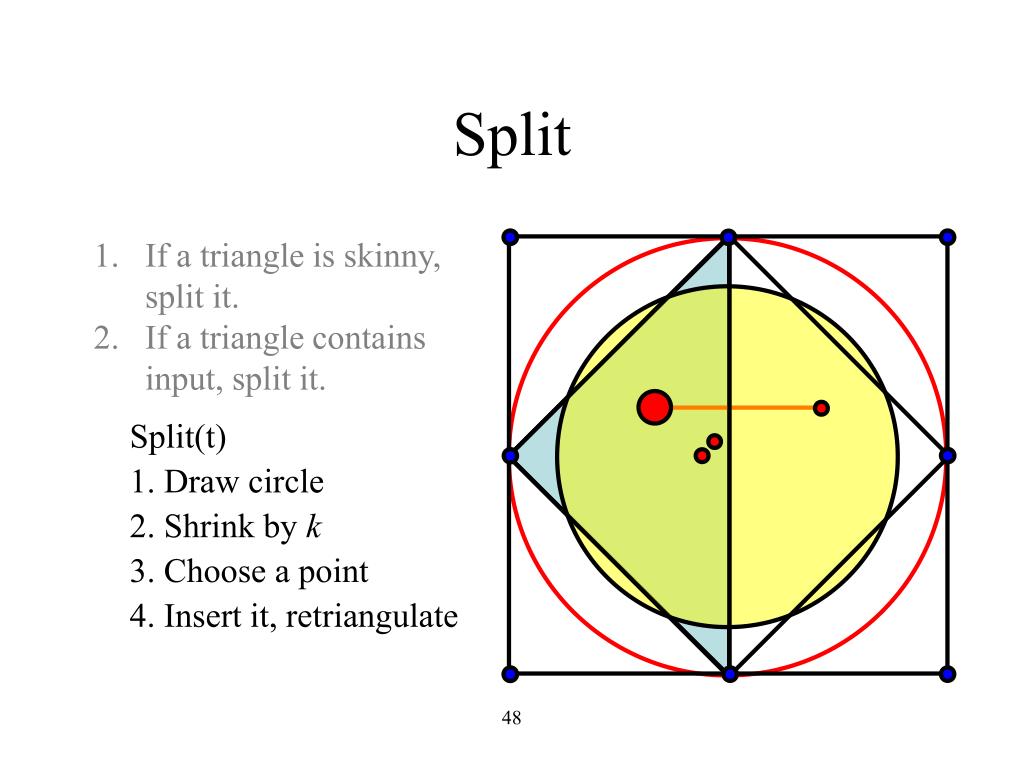

  48. Split If a triangle is skinny,split it. If a triangle containsinput, split it. Split(t) 1. Draw circle 2. Shrink by k 3. Choose a point 4. Insert it, retriangulate 48

  49. Apply splitting rules If a triangle is skinny,split it. If a triangle containsinput, split it. Split(t) 1. Draw circle 2. Shrink by k 3. Choose a point 4. Insert it, retriangulate 49

  50. Apply splitting rules If a triangle is skinny,split it. If a triangle containsinput, split it. 50
