  1. Summary of the Atom • atoms are the smallest particles that can be uniquely associated with an element • each element has unique atoms • atoms are composed of e-, p and n • atoms are electrically neutral (# of e- = # of p) • for a single element, isotopes differ only in number of n (neutrons) • atoms have characteristic masses (atomic weights) • atoms combine with one another in definite, whole number proportions to make compounds

  2. ~ 10-10 m electron nucleus Mass > 10-26 kg Mass 9 x 10-31 kg

  3. ~ 1 – 7 x 10-15 m (1 – 7 fermi)

  4. Microcosms of our solar system, atoms are dominantly empty space: The Spacious Atom electron orbits If an oxygen atom had a total radius of 100 km, the nucleus would be a ~1 m diameter sphere in the middle.

  5. In a simplistic model, electrons float around the nucleus in energy levels called shells. Electrons in Orbit electron orbits As the number of electrons increases, they start to fill shells farther out from the nucleus. In most cases, electrons are lost or gained only from the outermost shell.

  6. Atom Nucleus

  7. The Nuclear Model of the atom

  8. Subatomic Particles Particle Symbol Charge Relative Mass Electron e- 1- 0 Proton p+1+ 1 Neutron n 0 1

  9. Atomic Number 11 Na Atomic Number Symbol

  10. All atoms of an element have the same number of protons 11 Na 11 protons Sodium

  11. Number of Electrons • An atom is neutral • The net charge is zero • Number of protons = Number of electrons • Atomic number = Number of electrons in a neutral atom

  12. Mass Number Counts the number of protons and neutrons in an atom

  13. Atomic Symbols • Show the mass number and atomic number • Give the symbol of the element mass number 23 Nasodium-23 atomic number11

  14. Notation for Atoms only one isotope of carbon 12C 13C C only one isotope of carbon all isotopes of carbon

  15. Basic Definitions • “atomic number” = number of protons in the nucleus; • “atomic weight” = average mass of an atom calculated from the masses and natural abundances of all isotopes (use atomic weights to calculate the molecular weights of compounds from their constituent elements!) • “mass number” = sum of protons + neutrons in the nucleus • “isotopic mass” = mass of a single isotope

  16. More Atomic Symbols 16 31 65 O P Zn 8 15 30 8 p+ 15 p+ 30 p+ 8 n 16 n 35 n 8 e- 15e- 30 e-

  17. Isotopes • Atoms with the same number of protons, but different numbers of neutrons. • Atoms of the same element (same atomic number) with different mass numbers Isotopes of chlorine 35Cl 37Cl 1717 chlorine - 35 chlorine - 37

  18. Mass spectrometry

  19. Atomic weight measurements How was the atomic weight measured? • By mass spectrometry • This also measures % natural abundance for a given isotope

  20. Atomic weight calculation There are three naturally occuring isotopes of neon (Ne): 20Ne isotopic mass = 19.99244018 amu 21Ne isotopic mass = 20.9938467 amu 22Ne isotopic mass = 21.9913855 amu the atomic weight is reported in text as: 20.1797 amu

  21. Learning Check 1 Naturally occurring carbon consists of three isotopes, 12C, 13C, and 14C. State the number of protons, neutrons, and electrons in each of these carbon atoms. 12C 13C 14C 6 6 6 #P _______ _______ _______ #N _______ _______ _______ #E _______ _______ _______

  22. Solution 12C 13C 14C 6 6 6 #P __6____ 6___ ___6___ #N __6___ __7___ ___8___ #E __6____ 6___ ___6___

  23. Learning Check 2 An atom of zinc has a mass number of 65. A. Number of protons in the zinc atom 1) 30 2) 35 3) 65 B. Number of neutrons in the zinc atom 1) 30 2) 35 3) 65 C. What is the mass number of a zinc isotope with 37 neutrons? 1) 37 2) 65 3) 67

  24. Solution An atom of zinc has a mass number of 65. A. Number of protons in the zinc atom 1) 30 B. Number of neutrons in the zinc atom 2) 35 C. What is the mass number of a zinc isotope with 37 neutrons? 3) 67

  25. Learning Check 3 Write the atomic symbols for atoms with the following: A. 8 p+, 8 n, 8 e- ___________ B. 17p+, 20n, 17e- ___________ C. 47p+, 60 n, 47 e- ___________

  26. Solution 16O A. 8 p+, 8 n, 8 e- 8 B. 17p+, 20n, 17e- 37Cl 17 C. 47p+, 60 n, 47 e- 107Ag 47

  27. Learning Check 4 An atom has 14 protons and 20 neutrons. A. Its atomic number is 1) 14 2) 16 3) 34 B. Its mass number is 1) 14 2) 16 3) 34 C. The element is 1) Si 2) Ca 3) Se D. Another isotope of this element is 1)34X 2)34X 3)36X 16 14 14

  28. Solution An atom has 14 protons and 20 neutrons. A. It has atomic number 1) 14 B. It has a mass number of 3) 34 C. The element is 1) Si D. Another isotope of this element would be 3) 36X 14

  29. Masses of Atoms • A scale designed for atoms gives their small atomic masses in atomic mass units (amu) • An atom of 12C was assigned an exact mass of 12.00 amu • Relative masses of all other atoms was determined by comparing each to the mass of 12C • An atom twice as heavy has a mass of 24.00 amu. An atom half as heavy is 6.00 amu.

  30. Atomic Mass Na 22.99 • Gives the mass of “average” atom of each element compared to 12C • Average atom based on all the isotopes and their abundance % • Atomic mass is not a whole number

  31. Calculating Atomic Weightor Mass • Percent(%) abundance of isotopes • Mass of each isotope of that element • Weighted average = mass isotope1(%) + mass isotope2(%) + … 100 100

  32. Atomic Mass of Magnesium Isotopes Mass of Isotope Abundance 24Mg = 24.0 amu 78.70% 25Mg = 25.0 amu 10.13% 26Mg = 26.0 amu 11.17% Atomic mass (average mass) Mg = 24.3 amu Mg 24.3

  33. Atomic mass calculation How was the atomic mass calculated? • multiply each isotopic mass by the reported natural abundance for the isotope, then: • add these individual contributions for each isotope to get the average atomic mass for the element

  34. Atomic mass calculation There are three naturally occuring isotopes of neon (Ne): 20Ne mass # = 19.99244018 amu (90.51%) 21Ne mass # = 20.9938467 amu (0.27%) 22Ne mass # = 21.9913855 amu (9.22%) the atomic mass is reported in text as: 20.1797 amu 18.10 + 0.057 + 2.03 = 20.19 amu

  35. Learning Check 5 Gallium is a metallic element found in small lasers used in compact disc players. In a sample of gallium, there is 60.2% of gallium-69 (68.9 amu) atoms and 39.8% of gallium-71 (70.9 amu) atoms. What is the atomic mass of gallium?

  36. Solution Ga-69 68.9 amu x 60.2 = 41.5 amu for 69Ga 100 Ga-71 (%/100) 70.9 amu x 39.8 = 28.2 amu for 71Ga 100 Atomic mass Ga = 69.7 amu

  37. Finding An Isotopic Mass A sample of boron consists of 10B (mass 10.0 amu) and 11B (mass 11.0 amu). If the average atomic mass of B is 10.8 amu, what is the % abundance of each boron isotope?

  38. Assign X and Y values: X = % 10B Y = % 11B Determine Y in terms of X X + Y = 100 Y = 100 - X Solve for X: X (10.0) + (100 - X )(11.0) = 10.8 100 100 Multiply through by 100 10.0 X + 1100 - 11.0X = 1080

  39. Collect X terms 10.0 X - 11.0 X = 1080 - 1100 - 1.0 X = -20 X = -20 = 20 % 10B - 1.0 Y = 100 - X % 11B = 100 - 20% = 80% 11B

  40. Learning Check 6 Copper has two isotopes 63Cu (62.9 amu) and 65Cu (64.9 amu). What is the % abundance of each isotope? (Hint: Check Zumdahl or any other chemistry text for atomic mass) 1) 30% 2) 70% 3) 100%

  41. Solution 2) 70% Solution 62.9X + 6490 = 64.9X = 6350 -2.0 X = -140 X = 70%

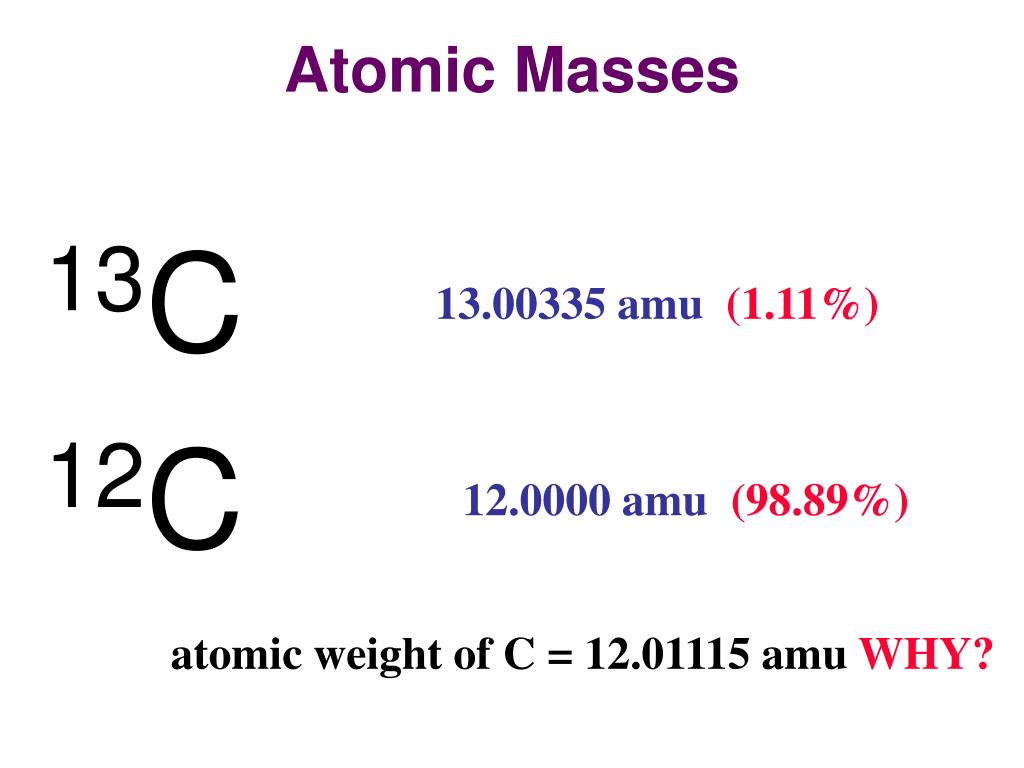

  42. Atomic Masses 13C 12C 13.00335 amu (1.11%) 12.0000 amu (98.89%) atomic weight of C = 12.01115 amu WHY?

  43. Calculating masses of atoms relative to 12C (mass of 12C atom) * 1.58320 = mass of F atom = 18.99840 reported atomic weight of F = 18.9984

  44. Left to their own devices, atoms are electrically neutral. That means that they have an equal number of protons and electrons. During the course of most natural events, protons are not gained or lost, but electrons may be. Atoms with more or fewer electrons than protons are electrically charged. They are called ions: an atom that loses electrons takes on a positive charge (cation); an atom that gains electrons takes on a negative charge (anion). Complex cations and anions can also occur: (NH4)+1, (SO4)-2 Charged Atoms: Ions

  45. An ISOTOPE is one of a set of nuclides with the same Z and consequently different A. (ie isotopes are the same chemical element but different masses). e.g. An ISOTONE is one of a set of nuclides with the same Nand consequently different A. e.g. An ISOBAR is one of a set of nuclides with the same A but different N and Z. e.g

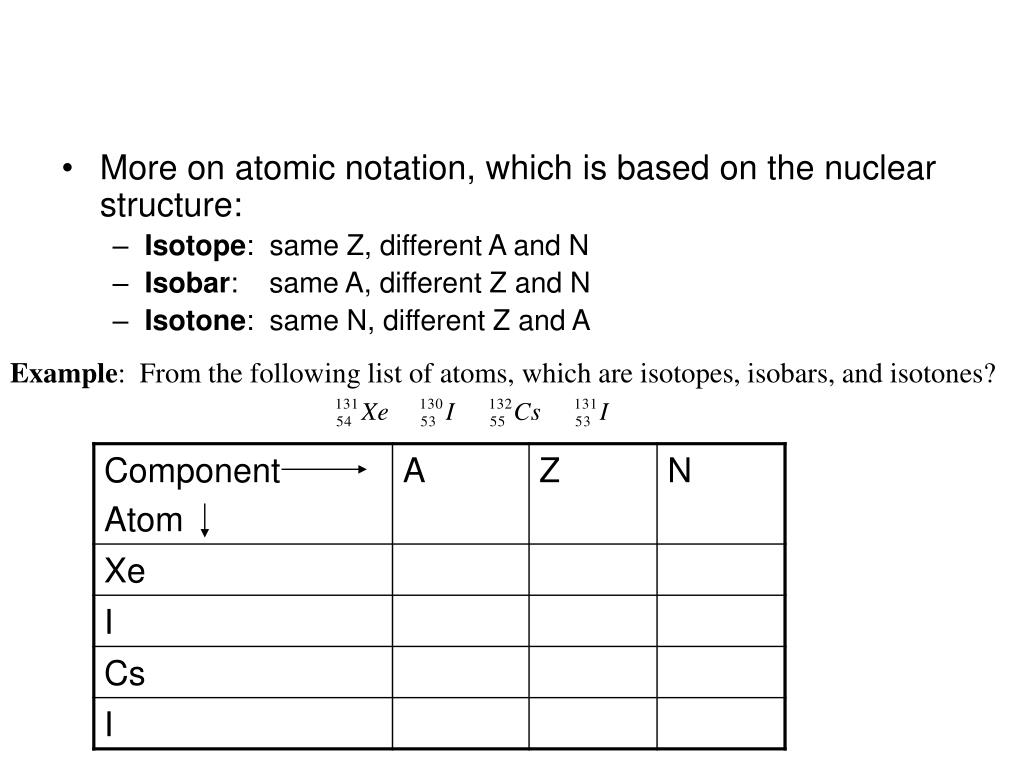

  46. More on atomic notation, which is based on the nuclear structure: • Isotope: same Z, different A and N • Isobar: same A, different Z and N • Isotone: same N, different Z and A Example: From the following list of atoms, which are isotopes, isobars, and isotones?
