J1587/J1708 Fault Codes

for

Conventional/FS65

Saf-T-Liner C2

Saf-T-Liner HDX, HD, ER

Saf-T-Liner EF

slide3

Table of Contents

Locating the LCD & Mode button Page 2

Retrieving codes Page 3

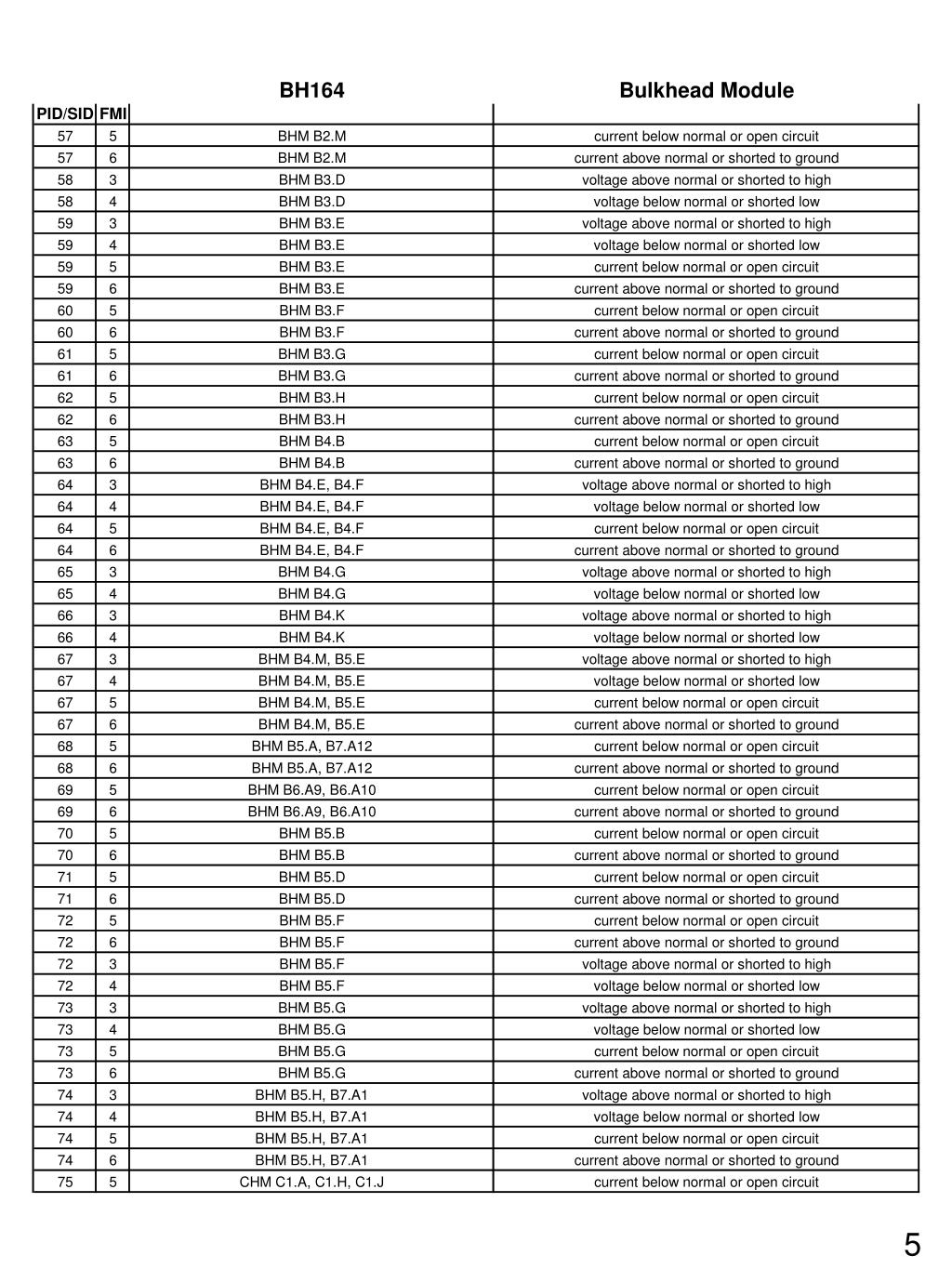

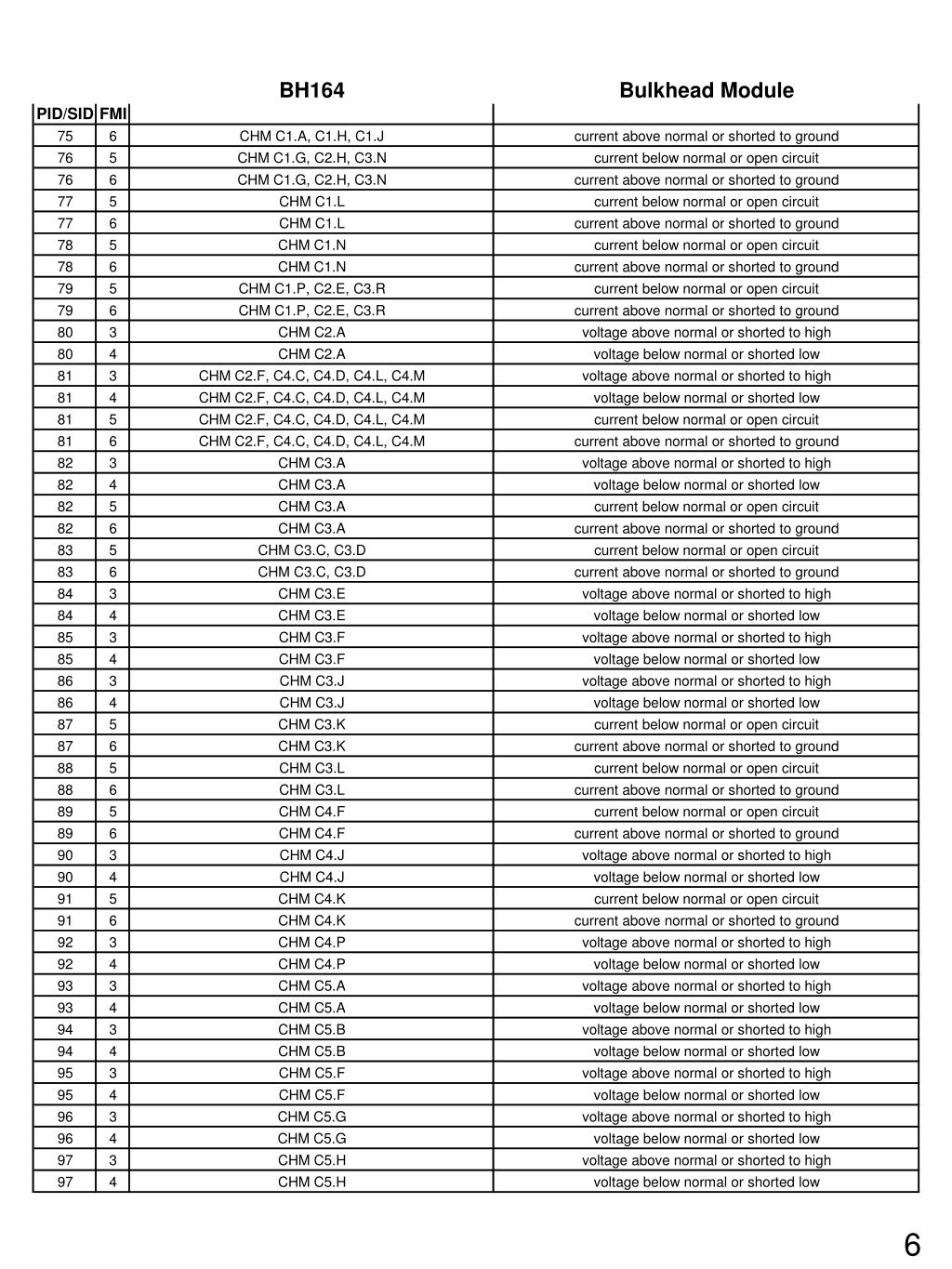

C2 fault codes Page 4-7

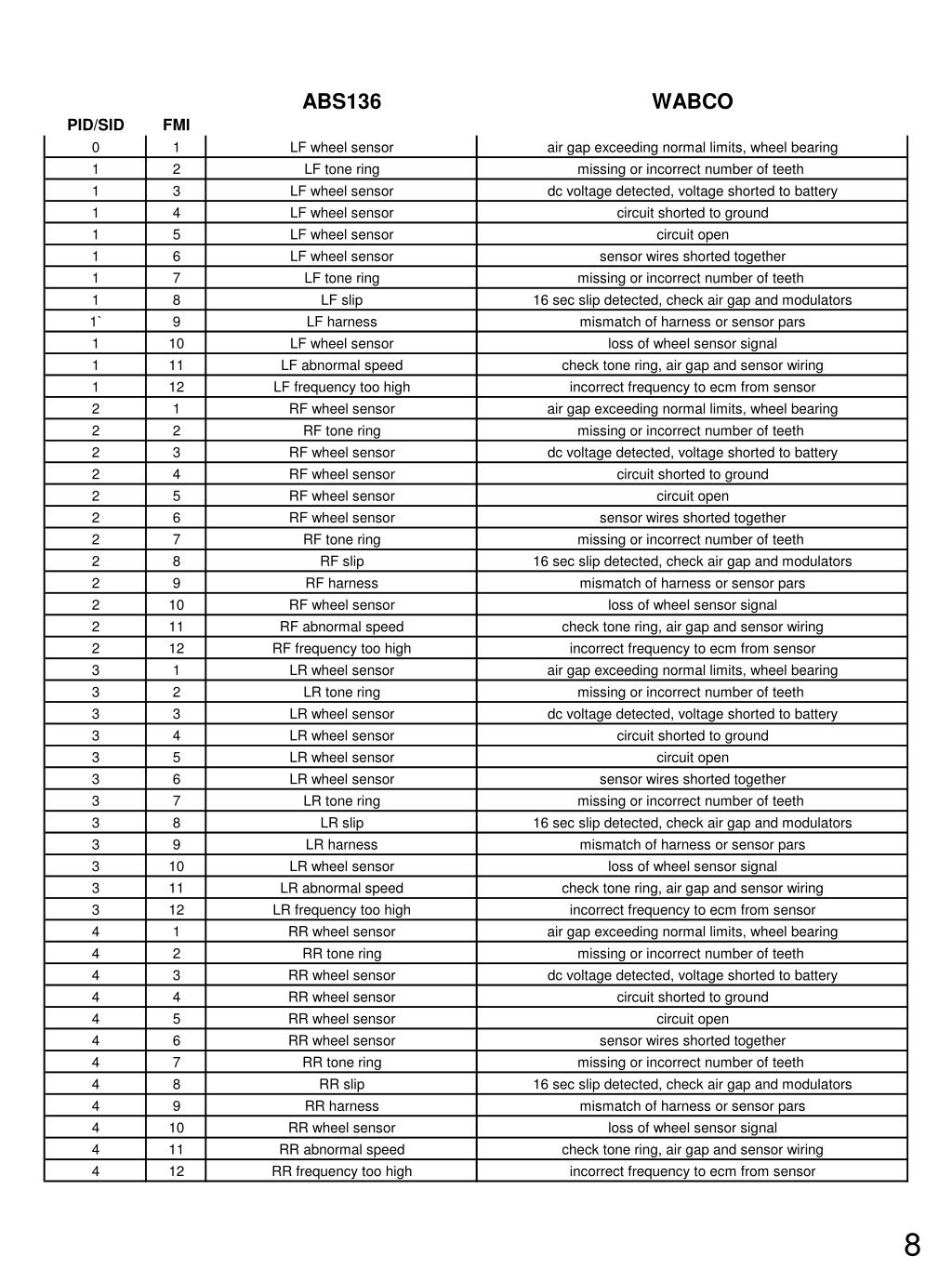

WABCO fault codes Page 8-9

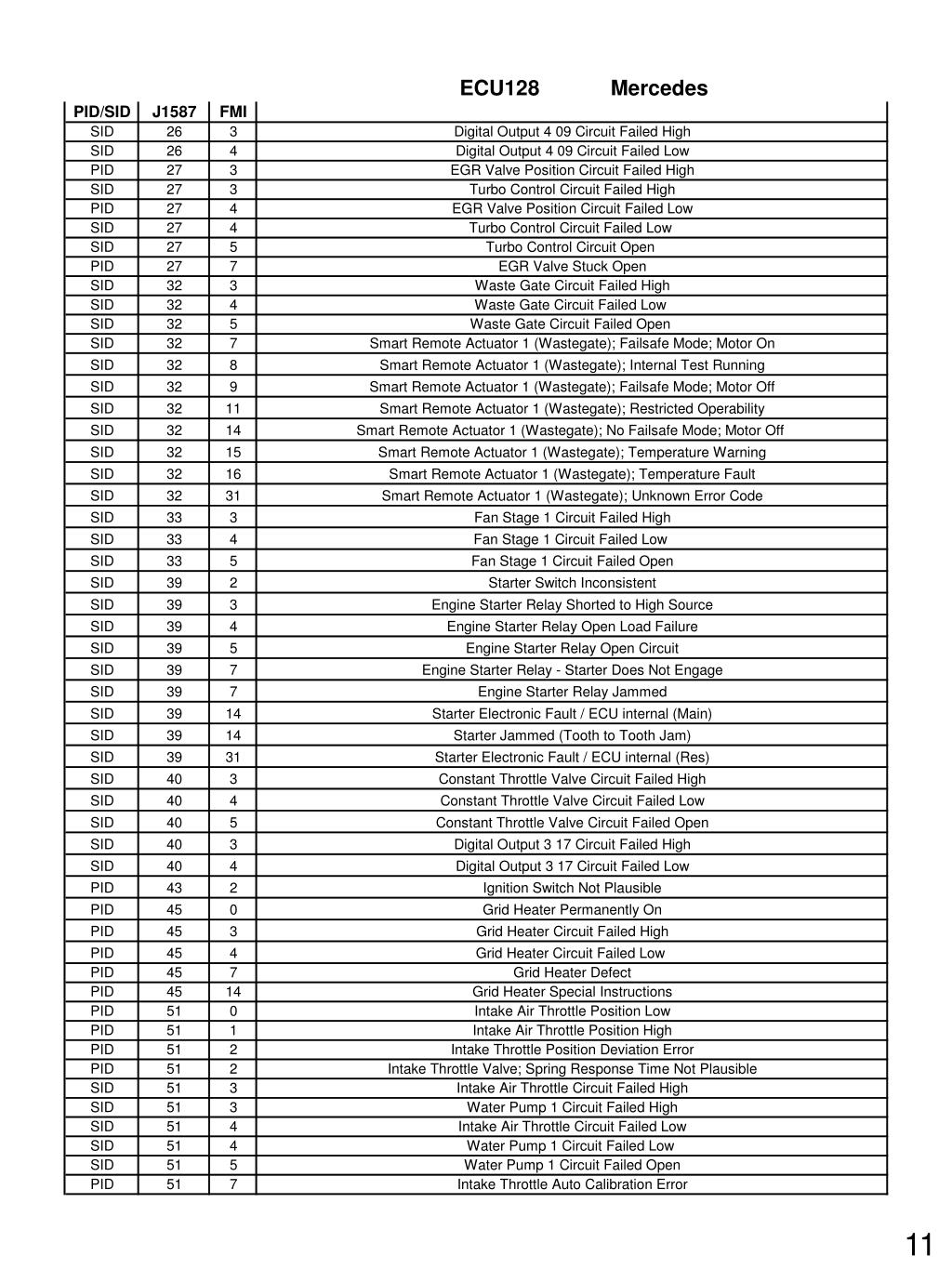

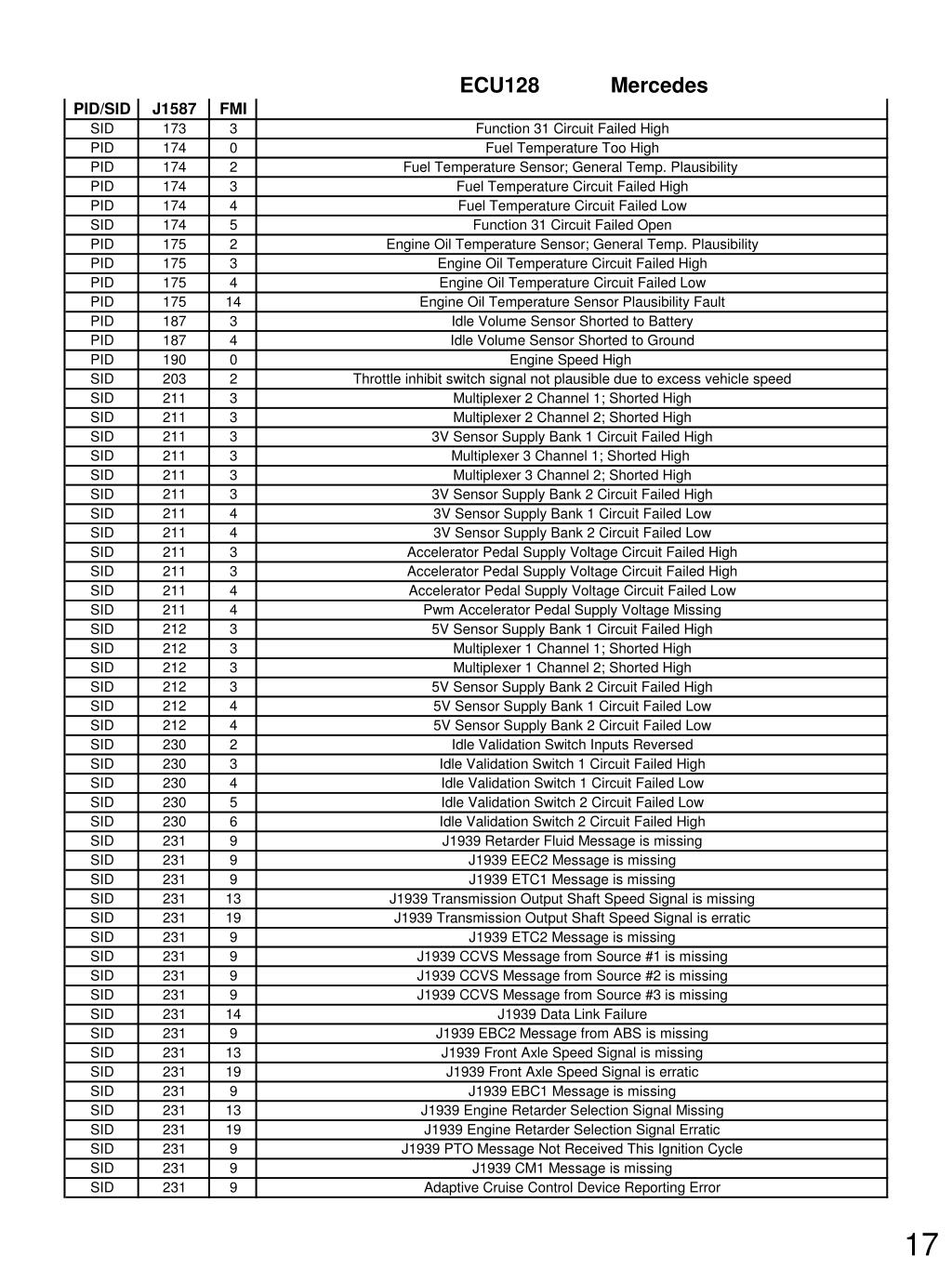

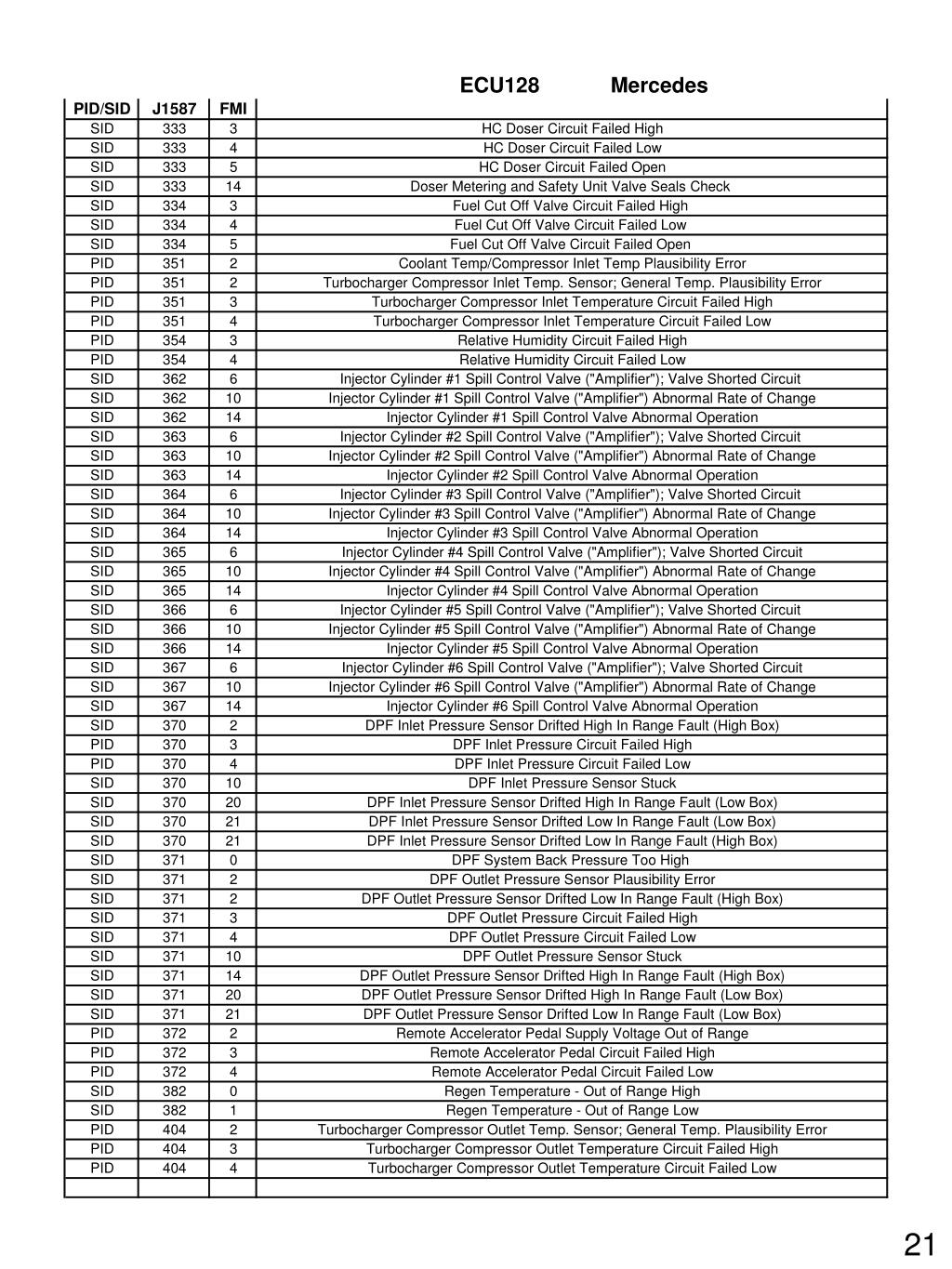

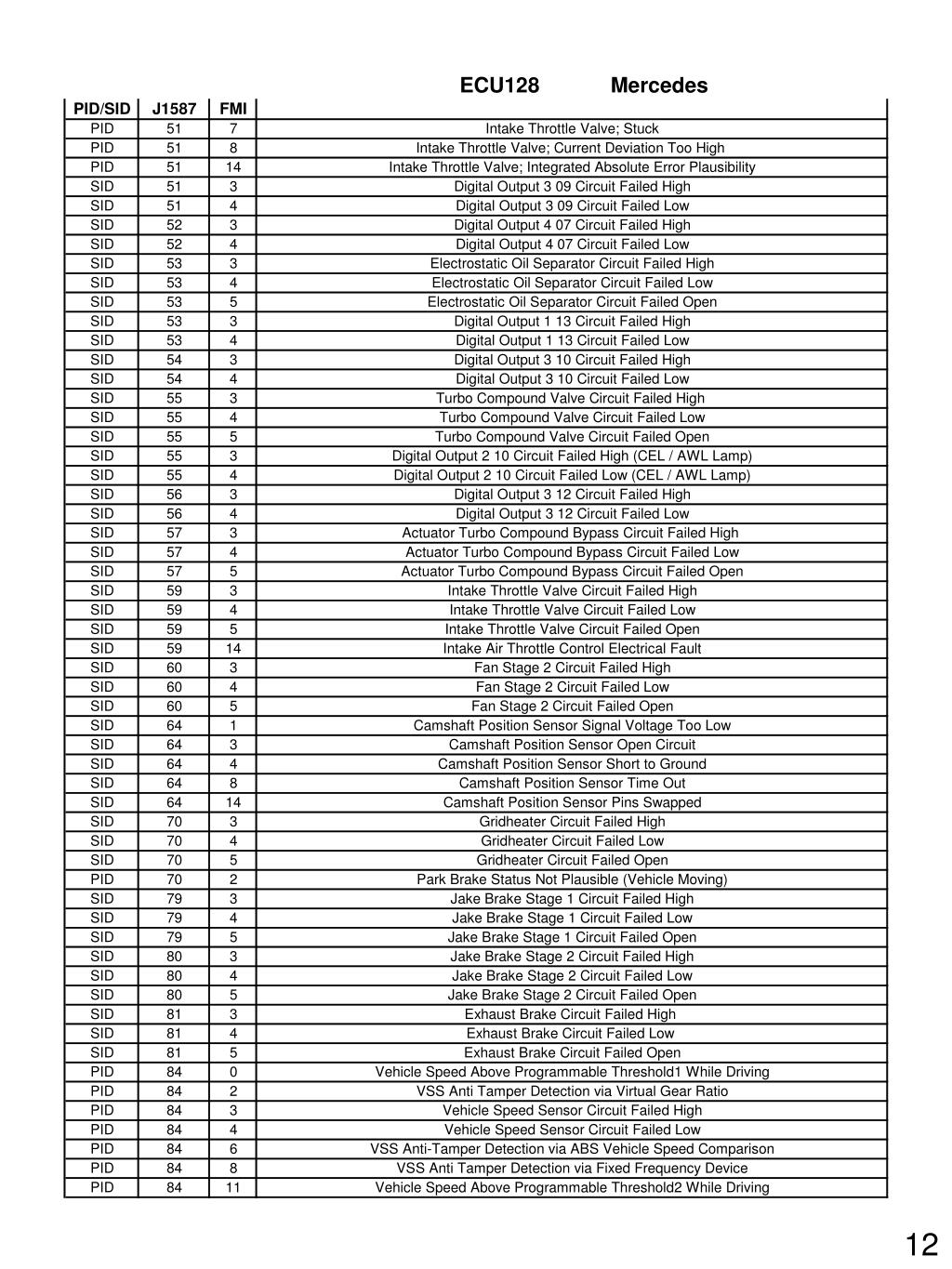

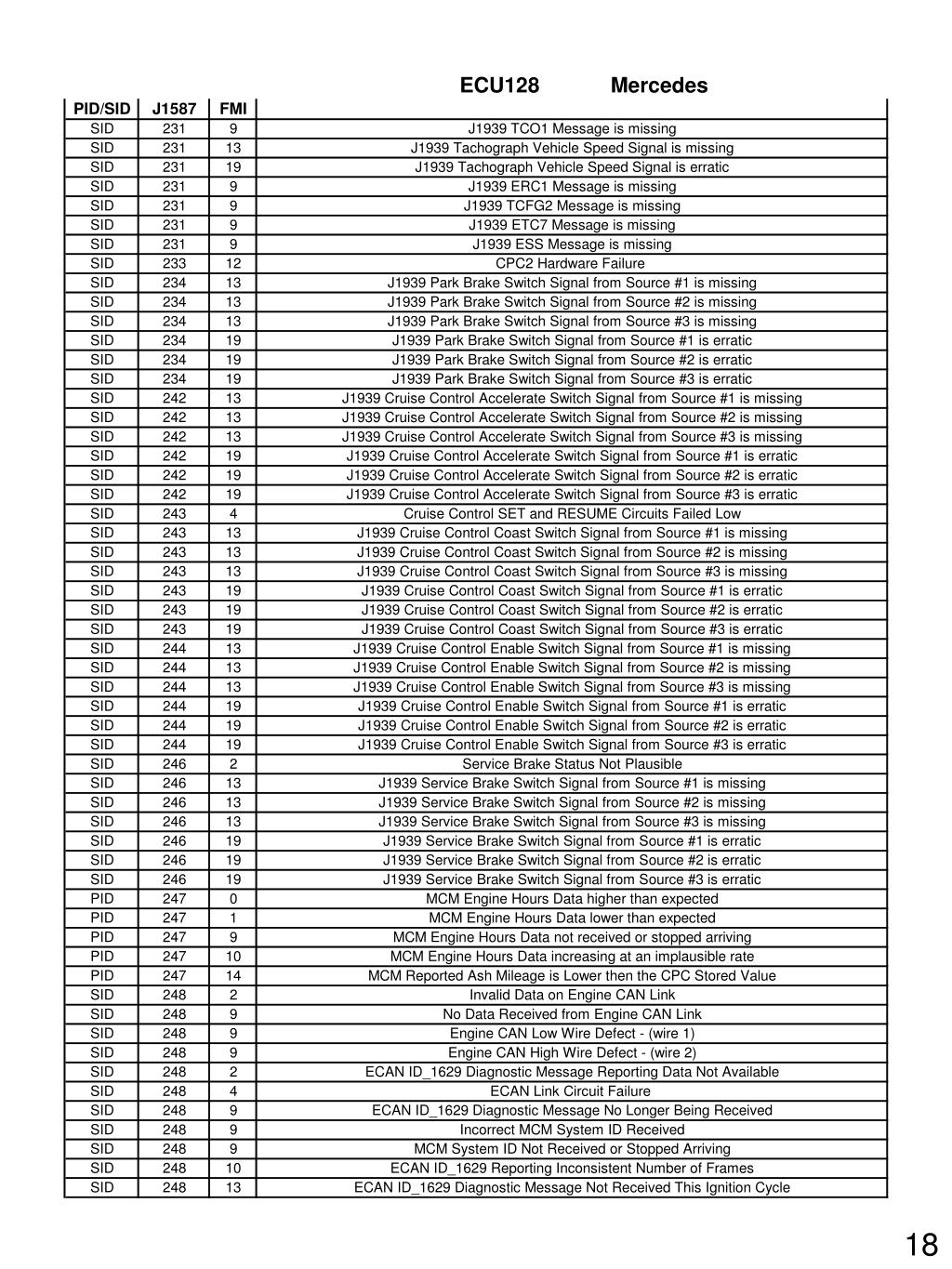

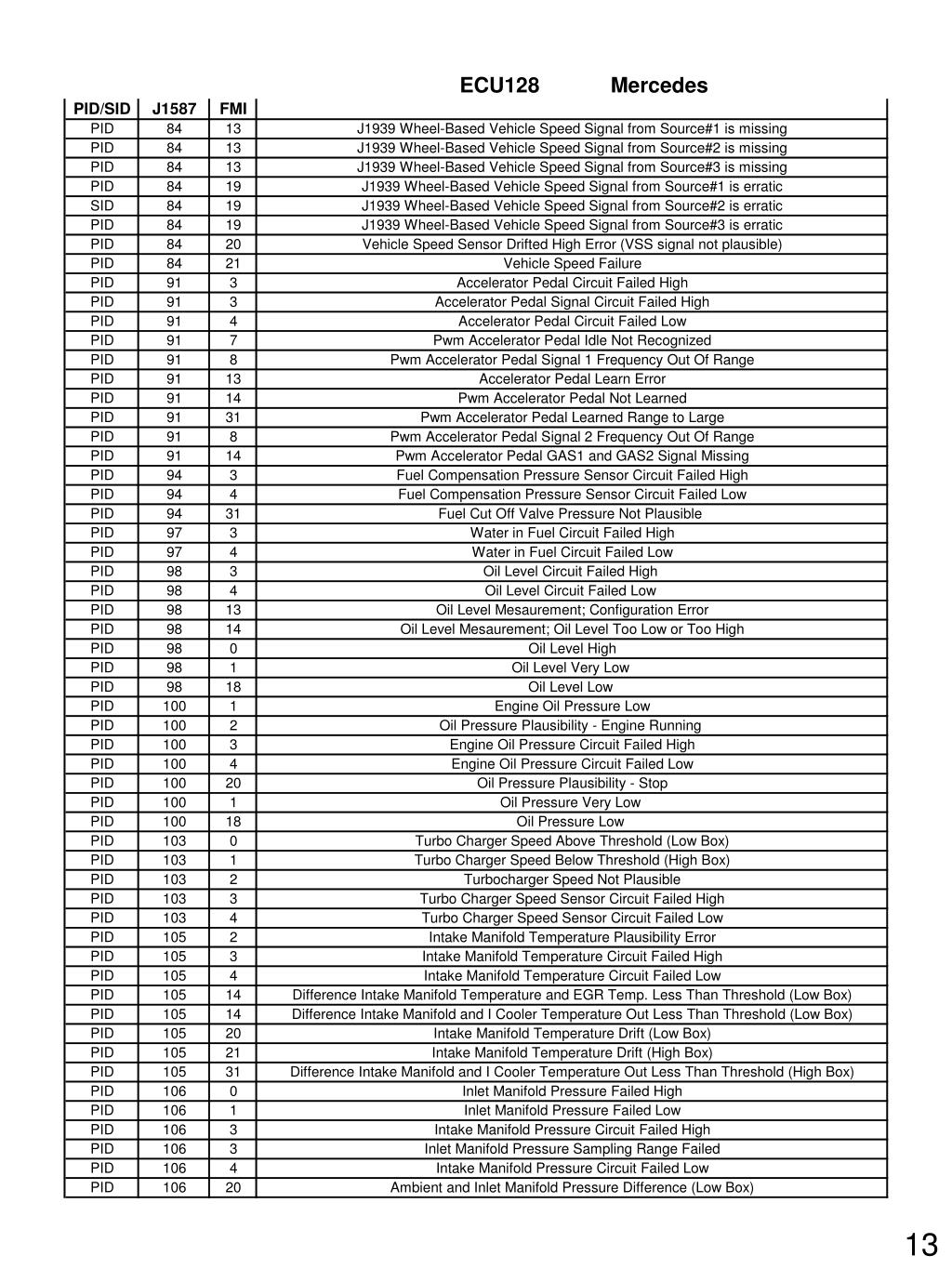

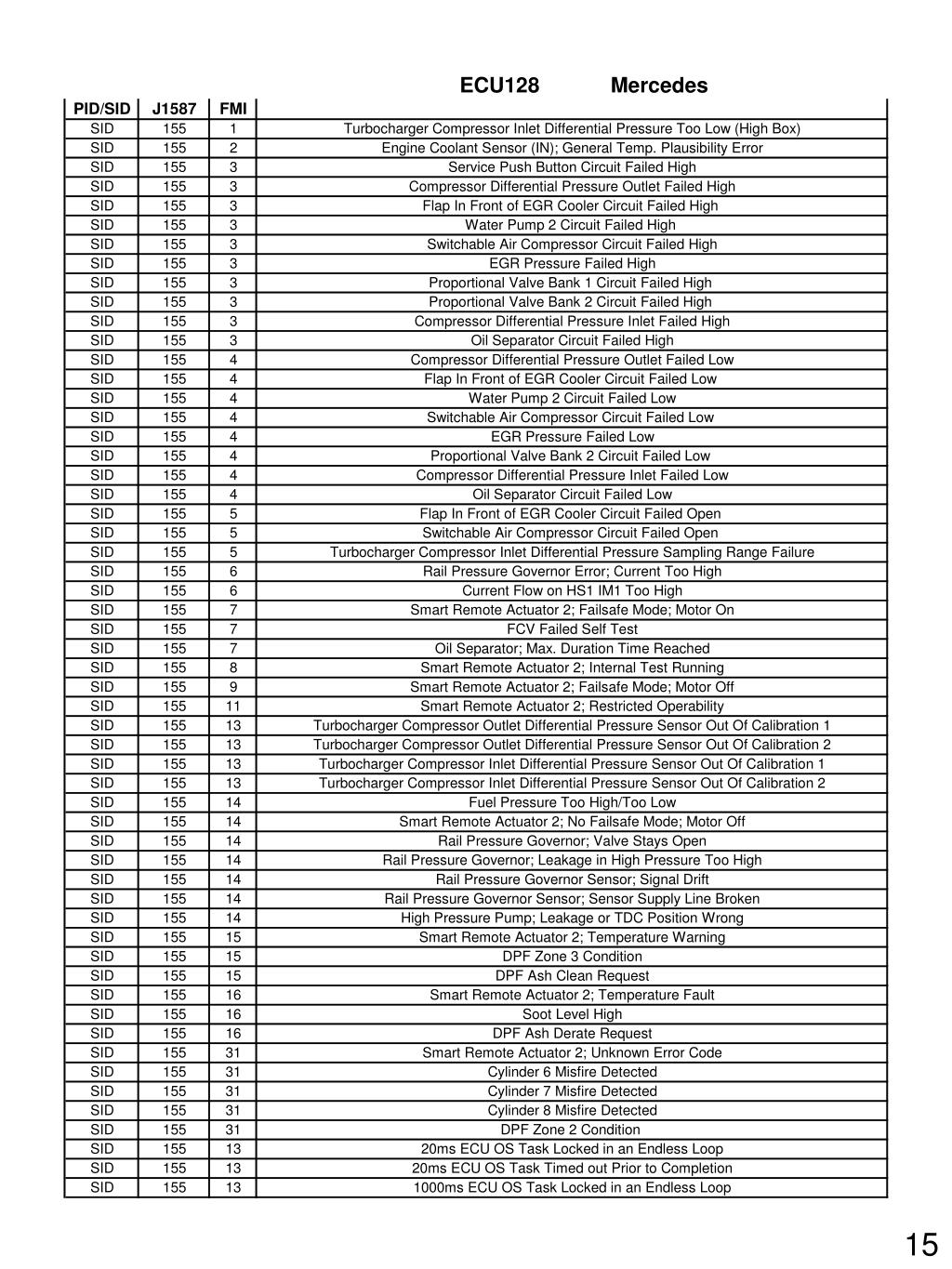

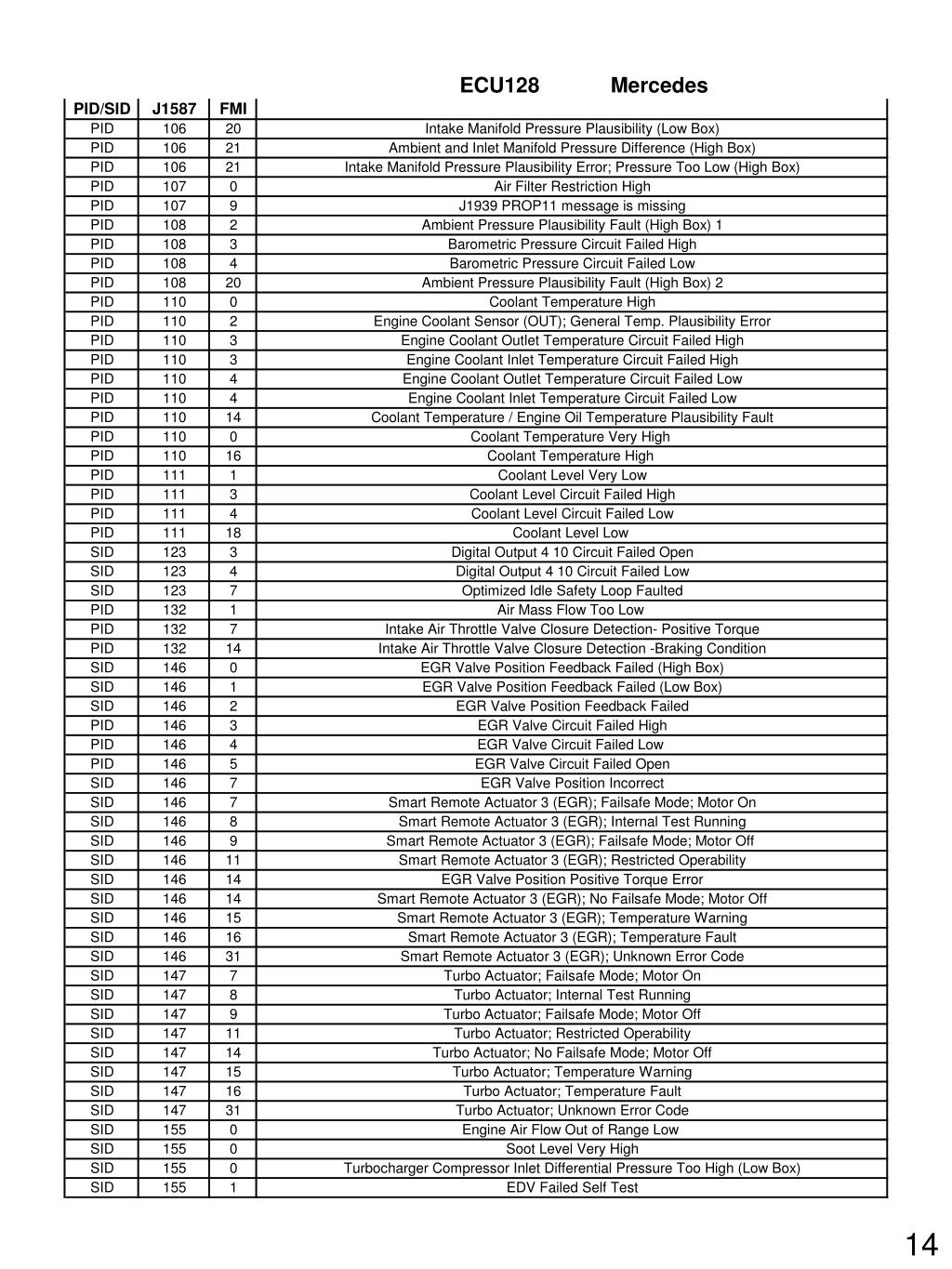

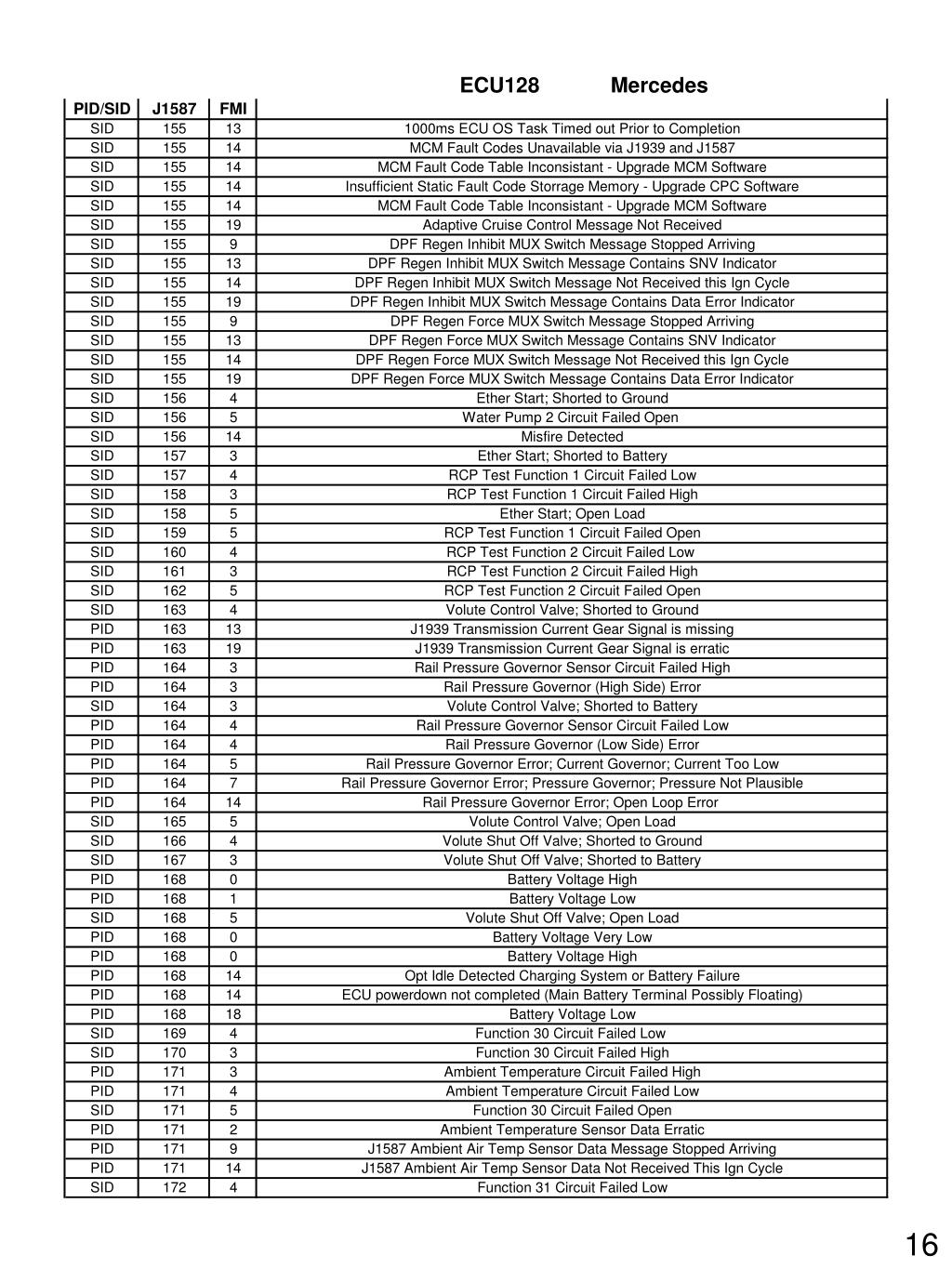

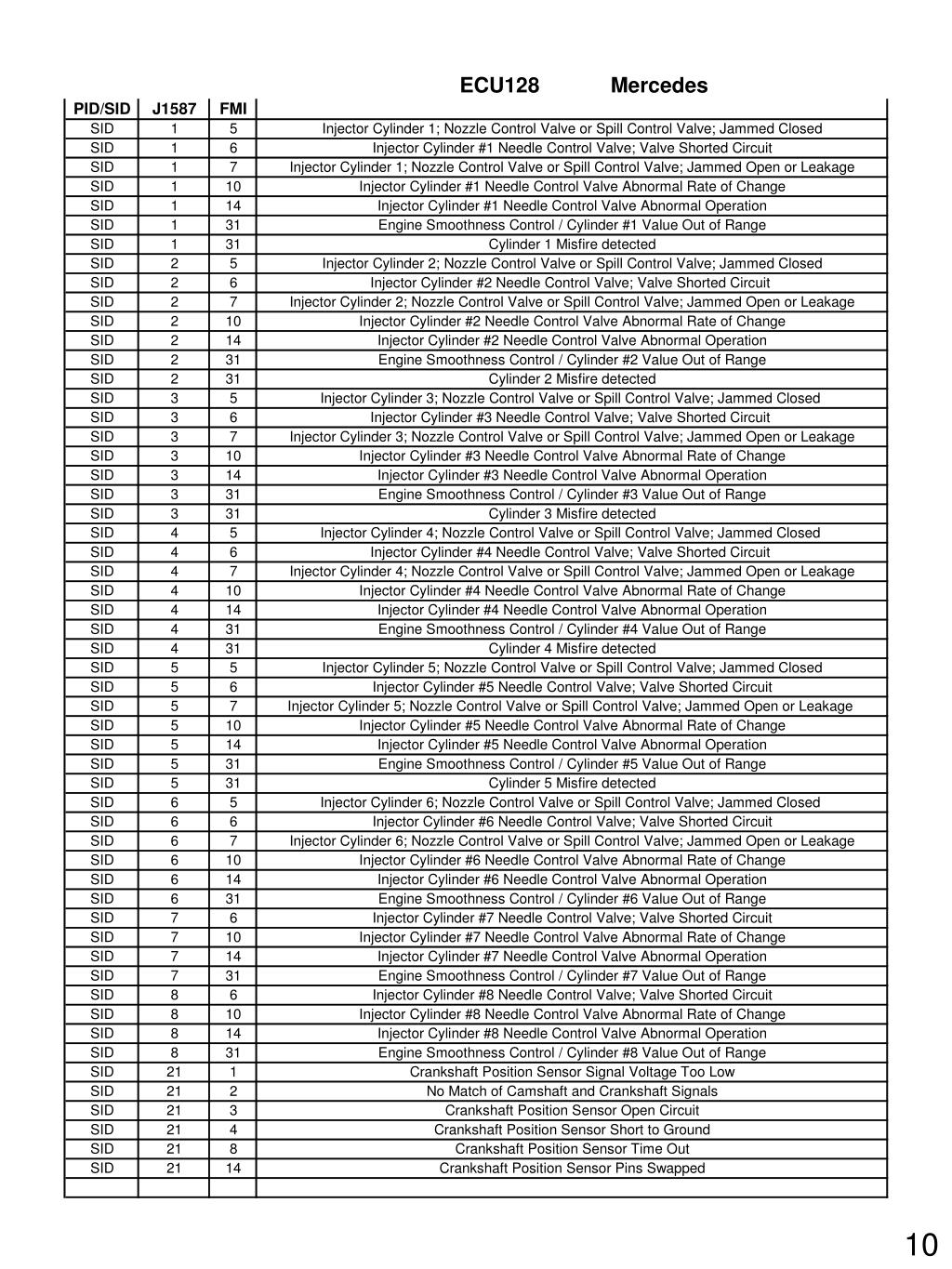

Mercedes MBE fault codes Page 10-22

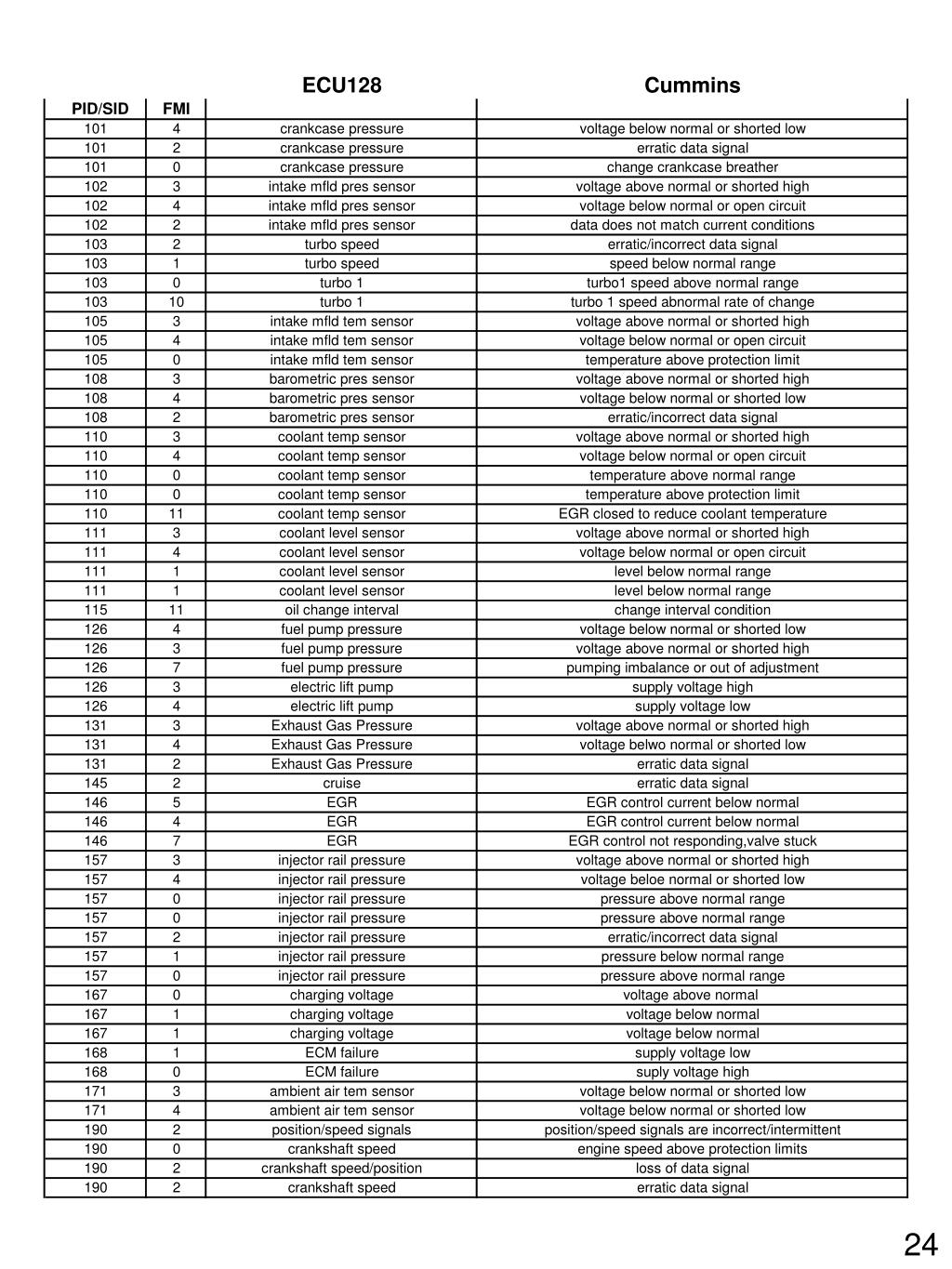

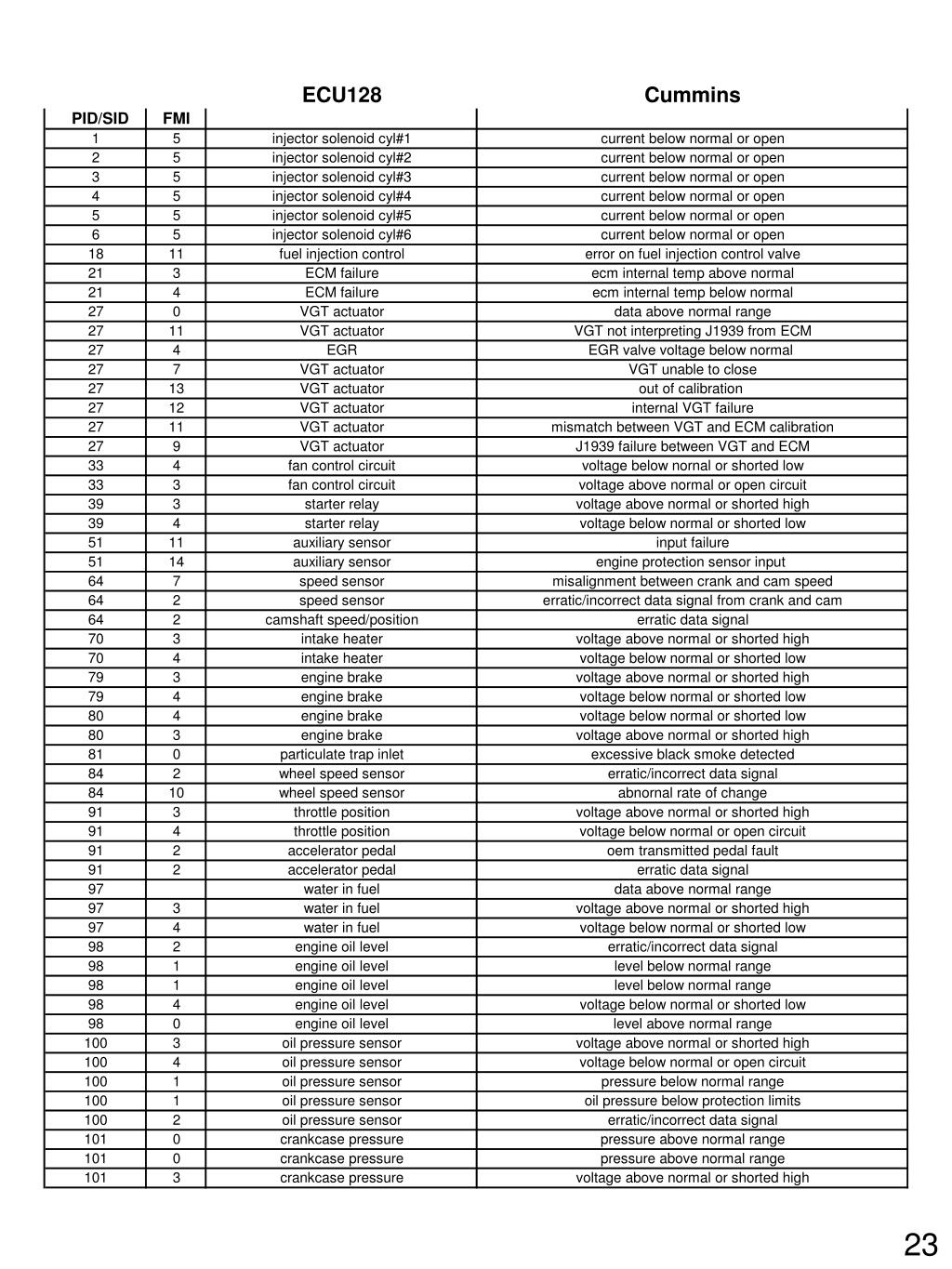

Cummins ISB, ISC fault codes Page 24-26

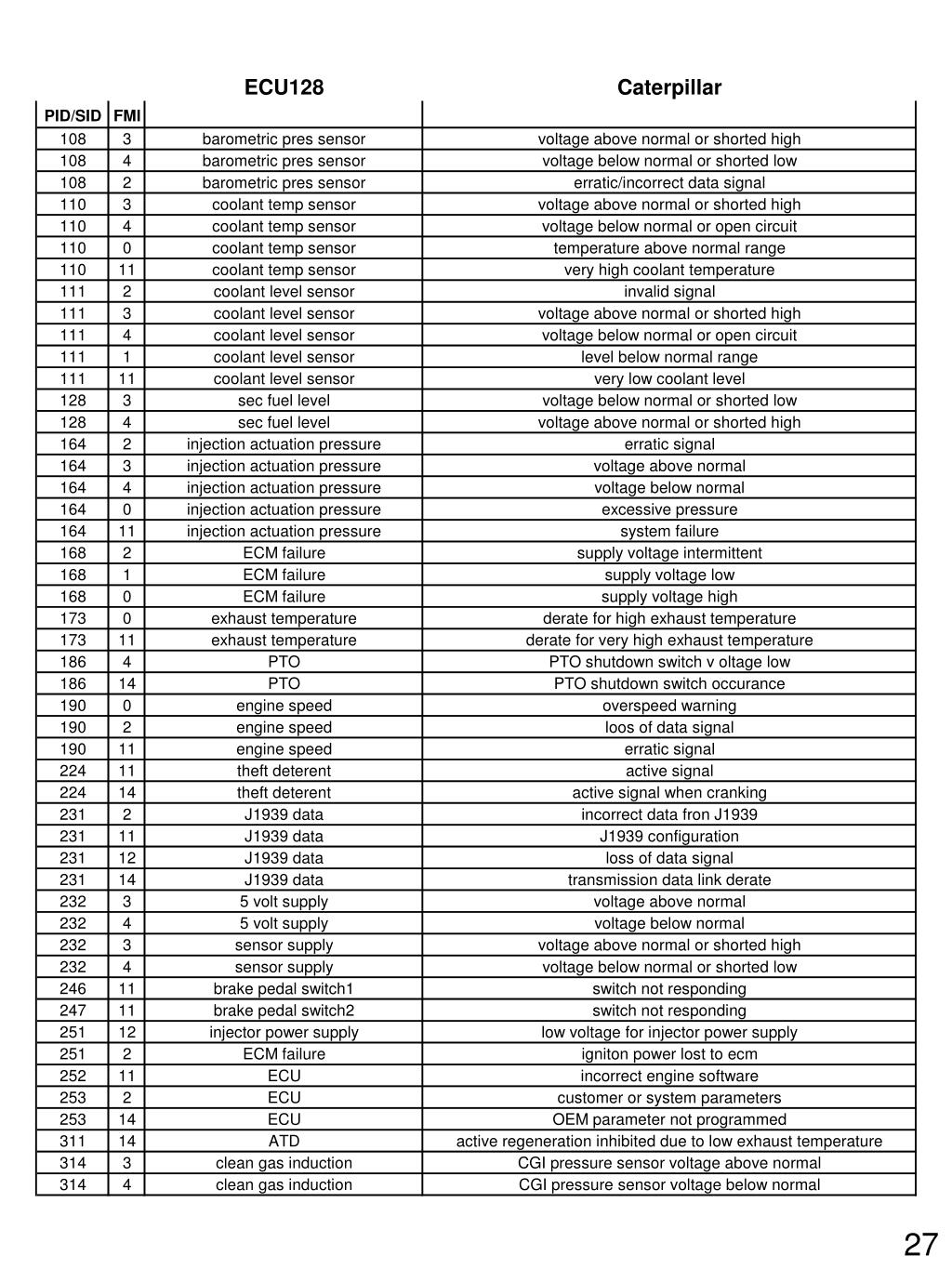

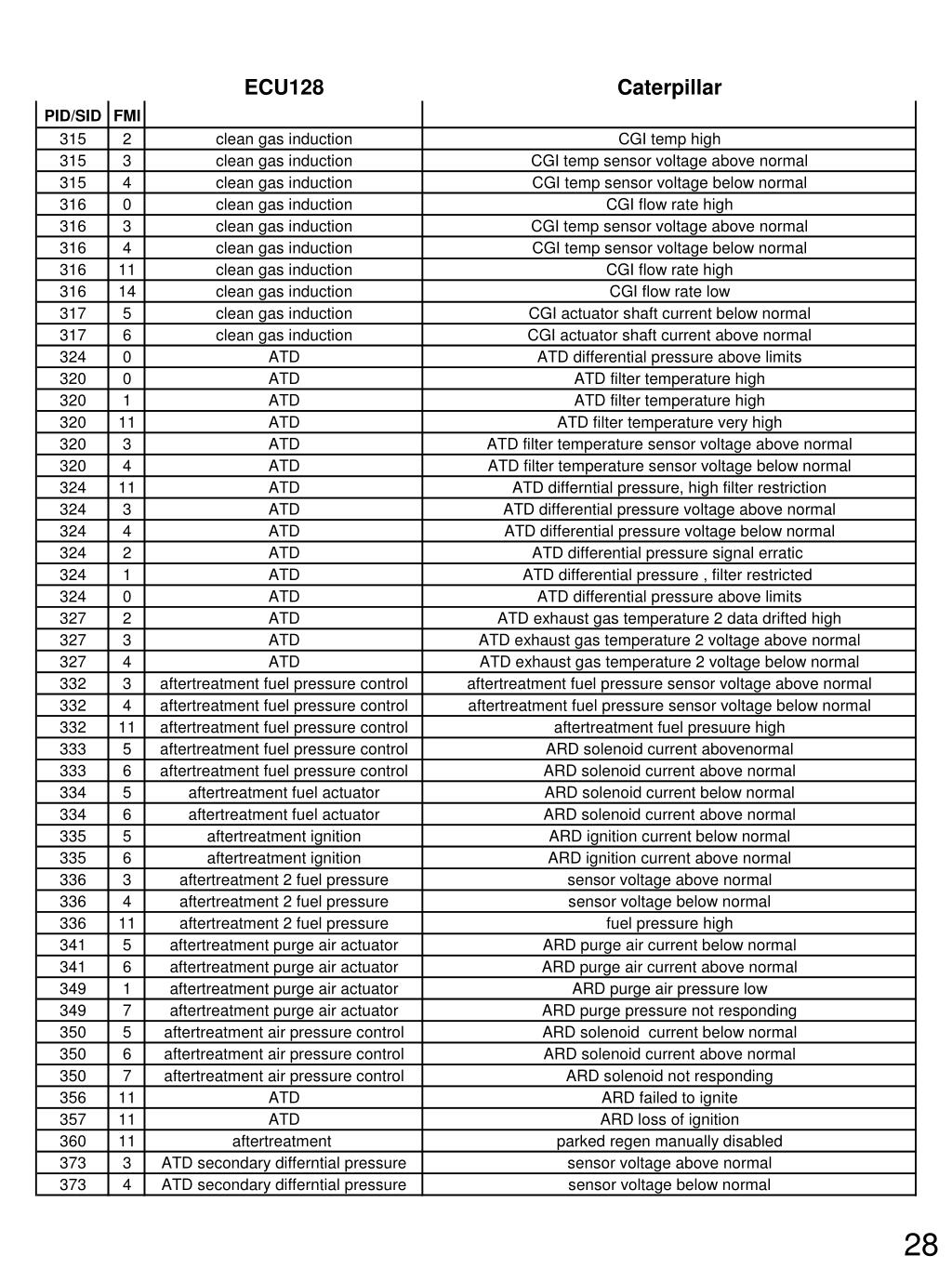

Caterpillar 3126, C7 Page 28-30

1

slide4

Your ICU dash will display the MID numbers for the

modules that have an active fault.

The complete SAE formatted fault code can be retrieved

via the dash. example: MID, PID or SID, FMI

All ICU model dashes will display J1587 formatted

fault codes; some models are connected to J1939 as well.

ICU dashes can not be used to clear historic fault codes.

Locate the LCD display in the center of the dash

and the reset/mode button to the right

2

slide5

How to retrieve active fault codes

  • (ICU3 and ICU4 dash models)
  • 1. Set parking brake
  • Ignition key to “on” position
  • Push and release mode button
  • Push and hold mode button
  • Push and release mode button
  • Push and release mode button
  • Push and release mode button
  • 8. For multiple codes repeat steps 4-7

diag

1(= total # offaults)

Fault

1

128=engine

130=transmission

136=ABS

140=ICU

164=BHM

MID

PID# or SID#

parameter identifier or subsystem identifier

Fail # =failure mode identifier

3
