Comparative measurements of internet traffic using cache triangle

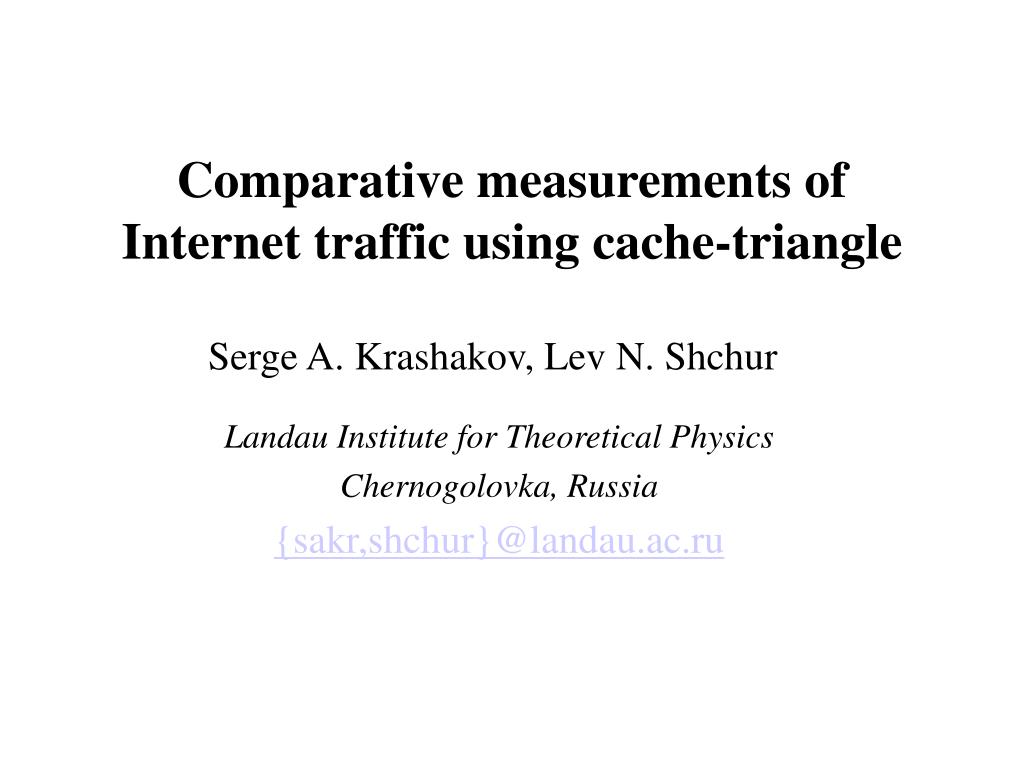

Comparative measurements of Internet traffic using cache-triangle

Serge A. Krashakov, Lev N. Shchur

Landau Institute for Theoretical Physics

Chernogolovka, Russia

{sakr,shchur}@landau.ac.ru


Comparative measurements of internet traffic using cache triangle

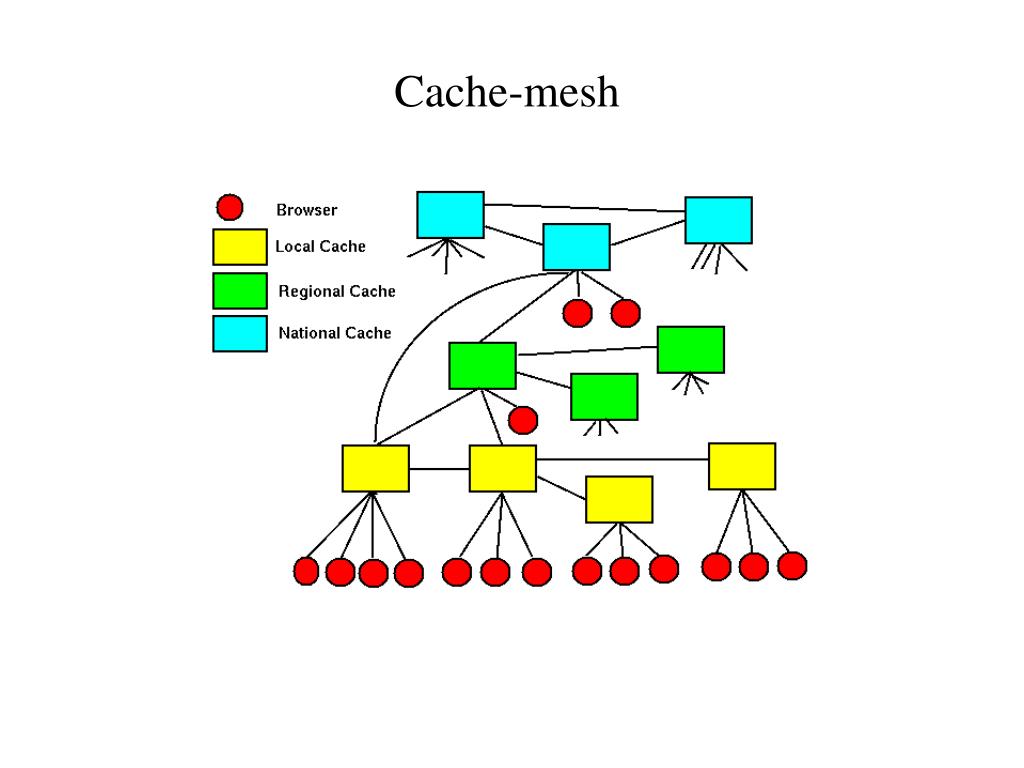

Cache-mesh cache-triangle


Comparative measurements of internet traffic using cache triangle

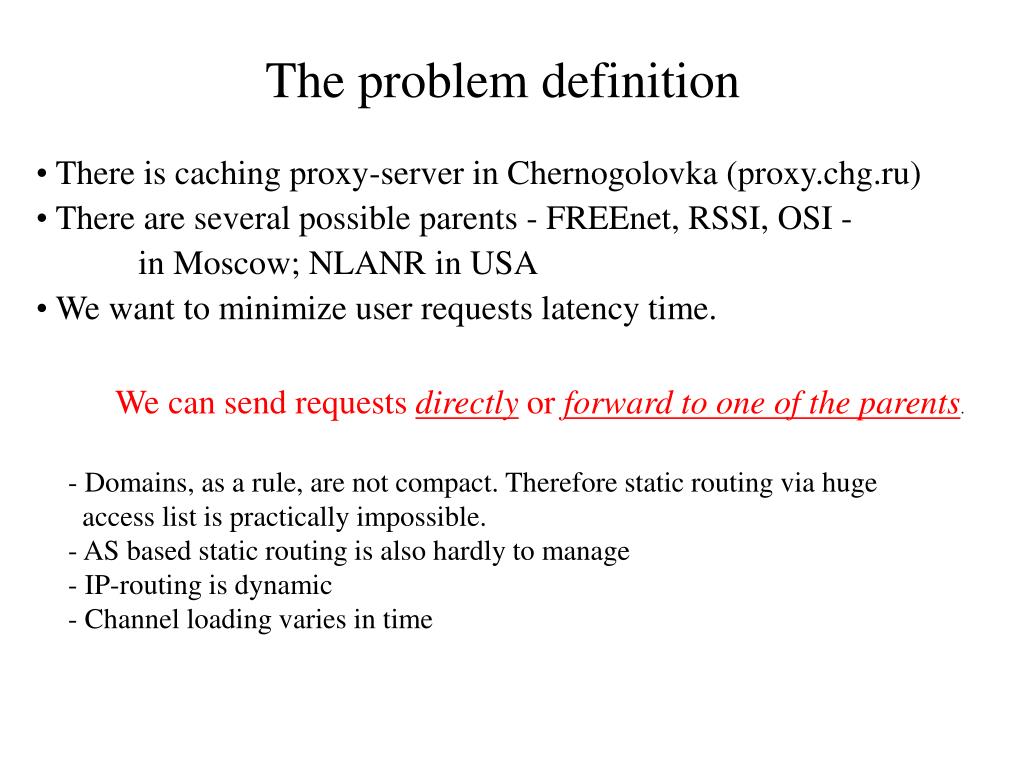

The problem definition cache-triangle

  • There is caching proxy-server in Chernogolovka (proxy.chg.ru)

  • There are several possible parents - FREEnet, RSSI, OSI - in Moscow; NLANR in USA

  • We want to minimize user requests latency time.

We can send requests directly or forward to one of the parents.

- Domains, as a rule, are not compact. Therefore static routing via huge

access list is practically impossible.

- AS based static routing is also hardly to manage

- IP-routing is dynamic

- Channel loading varies in time


Comparative measurements of internet traffic using cache triangle

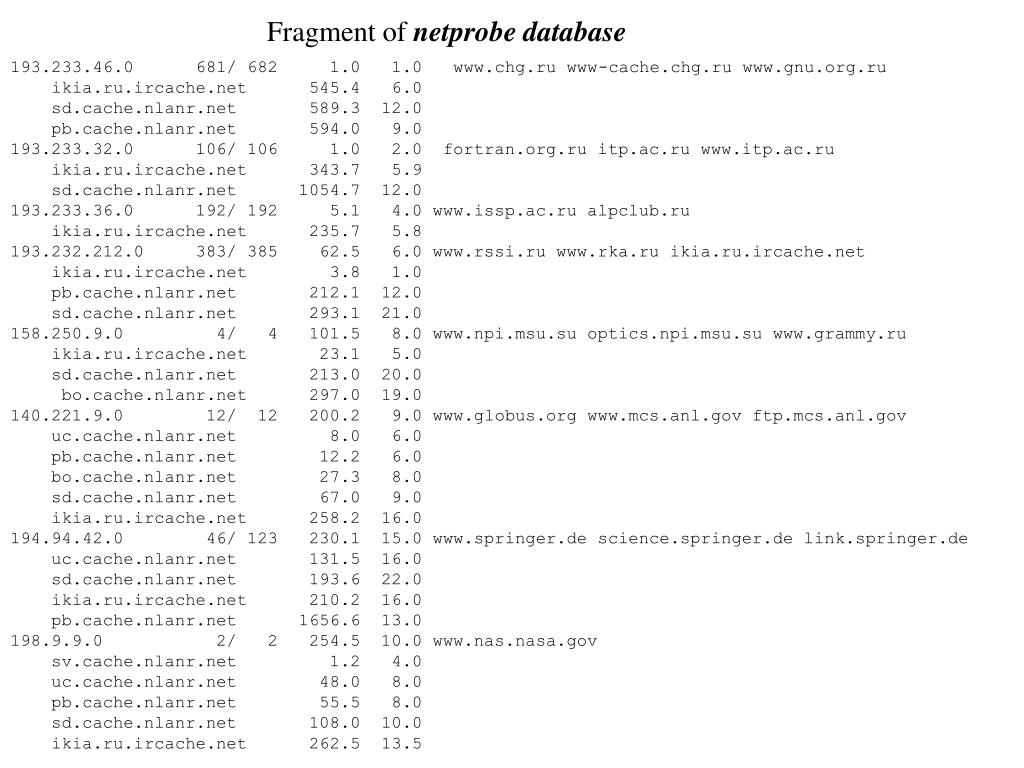

Fragment of cache-trianglenetprobe database

193.233.46.0 681/ 682 1.0 1.0 www.chg.ru www-cache.chg.ru www.gnu.org.ru ikia.ru.ircache.net 545.4 6.0 sd.cache.nlanr.net 589.3 12.0 pb.cache.nlanr.net 594.0 9.0193.233.32.0 106/ 106 1.0 2.0 fortran.org.ru itp.ac.ru www.itp.ac.ru ikia.ru.ircache.net 343.7 5.9 sd.cache.nlanr.net 1054.7 12.0193.233.36.0 192/ 192 5.1 4.0 www.issp.ac.ru alpclub.ru ikia.ru.ircache.net 235.7 5.8193.232.212.0 383/ 385 62.5 6.0 www.rssi.ru www.rka.ru ikia.ru.ircache.net ikia.ru.ircache.net 3.8 1.0 pb.cache.nlanr.net 212.1 12.0 sd.cache.nlanr.net 293.1 21.0158.250.9.0 4/ 4 101.5 8.0 www.npi.msu.su optics.npi.msu.su www.grammy.ru ikia.ru.ircache.net 23.1 5.0 sd.cache.nlanr.net 213.0 20.0 bo.cache.nlanr.net 297.0 19.0140.221.9.0 12/ 12 200.2 9.0 www.globus.org www.mcs.anl.gov ftp.mcs.anl.gov uc.cache.nlanr.net 8.0 6.0 pb.cache.nlanr.net 12.2 6.0 bo.cache.nlanr.net 27.3 8.0 sd.cache.nlanr.net 67.0 9.0 ikia.ru.ircache.net 258.2 16.0194.94.42.0 46/ 123 230.1 15.0 www.springer.de science.springer.de link.springer.de uc.cache.nlanr.net 131.5 16.0 sd.cache.nlanr.net 193.6 22.0 ikia.ru.ircache.net 210.2 16.0 pb.cache.nlanr.net 1656.6 13.0198.9.9.0 2/ 2 254.5 10.0 www.nas.nasa.gov sv.cache.nlanr.net 1.2 4.0 uc.cache.nlanr.net 48.0 8.0 pb.cache.nlanr.net 55.5 8.0 sd.cache.nlanr.net 108.0 10.0 ikia.ru.ircache.net 262.5 13.5


Comparative measurements of internet traffic using cache triangle

Support of ICMP RTT measurements, netprobe database cache-triangle

and ICP v2 (with ICP_FLAG_HIT_OBJ) was introduced

in Squid-1.1.19 (1997)

  • Using this algorithm permits:

  • automatically choosing shortest (RTT-wise) path to the source server

  • load balancing between alternative communication channels

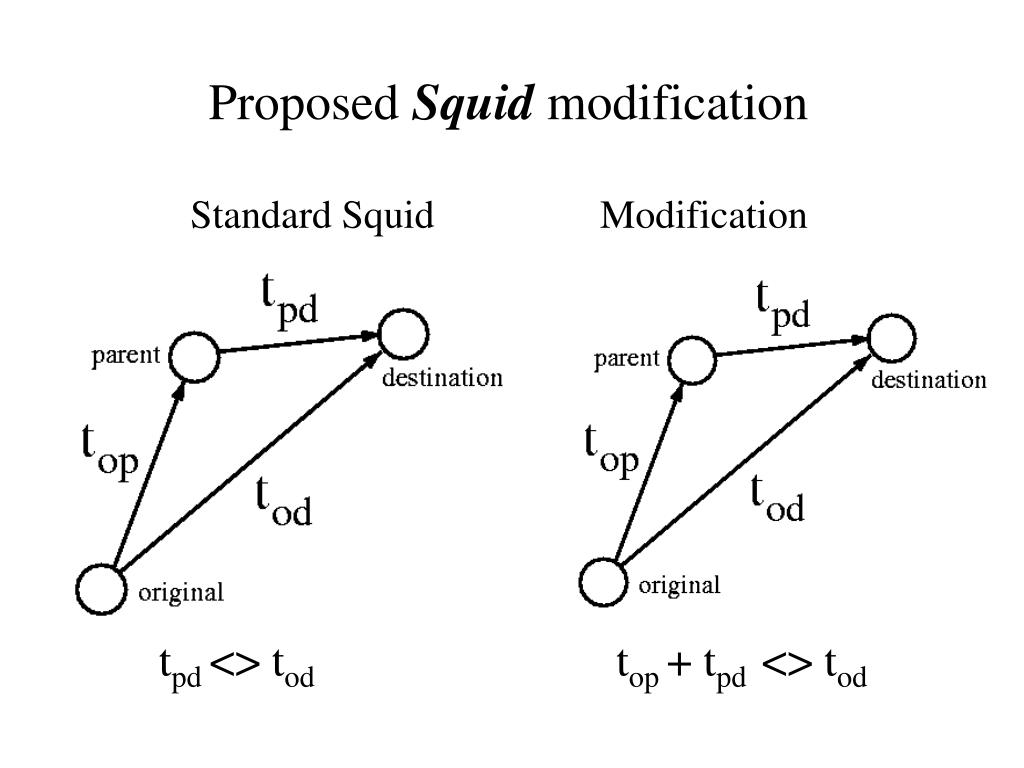

Standard squid modification

Proposed cache-triangleSquid modification

Standard Squid Modification

tpd <> tod

top + tpd <> tod


Comparative measurements of internet traffic using cache triangle

Suppose that we must choose between two or more strategies for caching

1. How can the strategies be compared to obtain the conditions

under which some are preferable (more efficient, etc)?

2. Are the measurements reproducible ?

3. If so, what is the accuracy of the measurements?

4. Or, how long should the measurements be continied to attain

the given accuracy, e.g., 5%?

  • Main difficulties:

  • natural characteristics of human activity

  • evolution of the network

  • instability of a path from one point (e.g., user) and another (e.g., server)

  • problem of resolution: Whole Internet? TLD? AS? Host? URL?


Comparative measurements of internet traffic using cache triangle

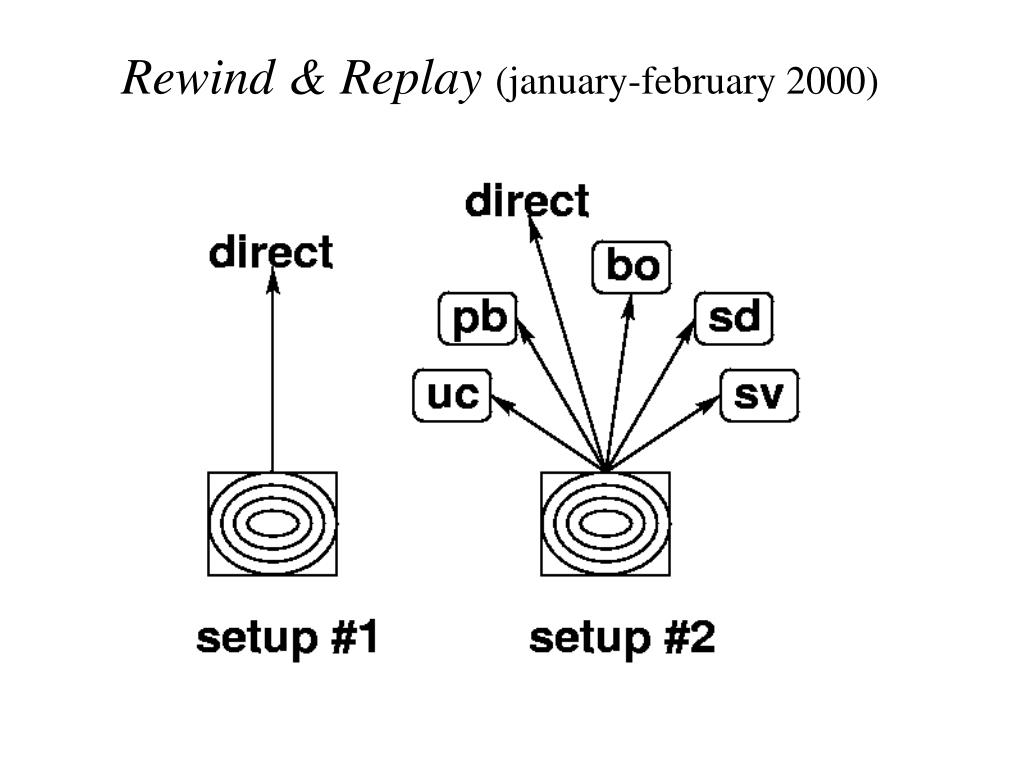

Rewind & Replay for caching(january-february 2000)


Comparative measurements of internet traffic using cache triangle

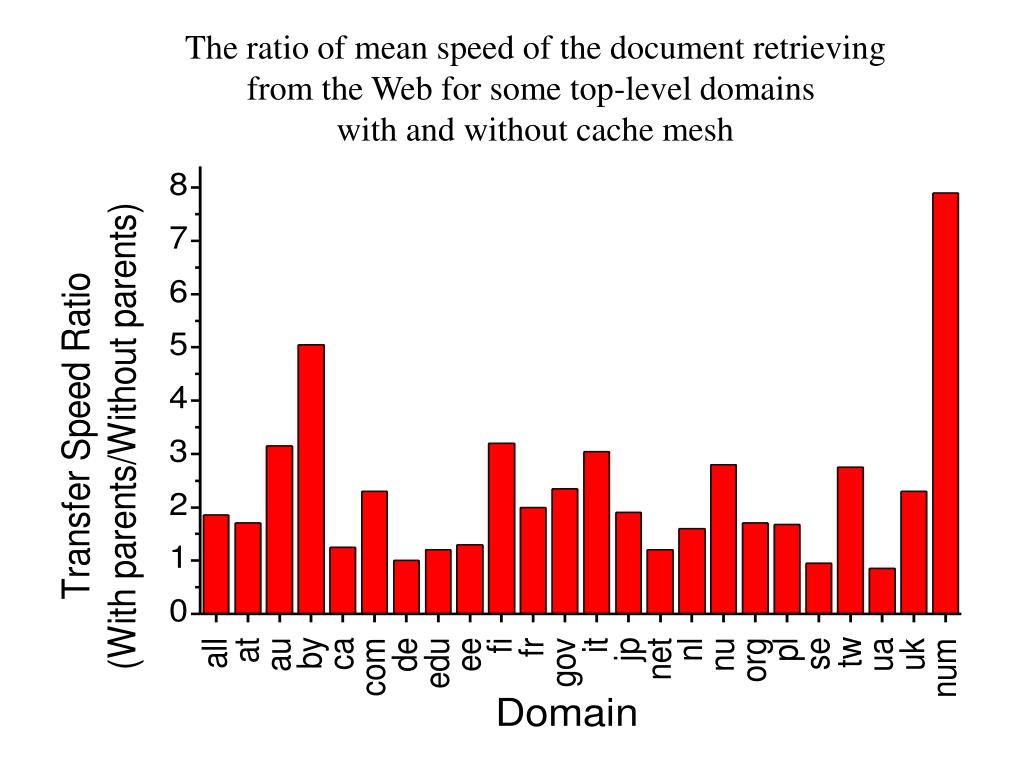

The ratio of mean speed of the document retrieving for caching

from the Web for some top-level domains

with and without cache mesh


Comparative measurements of internet traffic using cache triangle

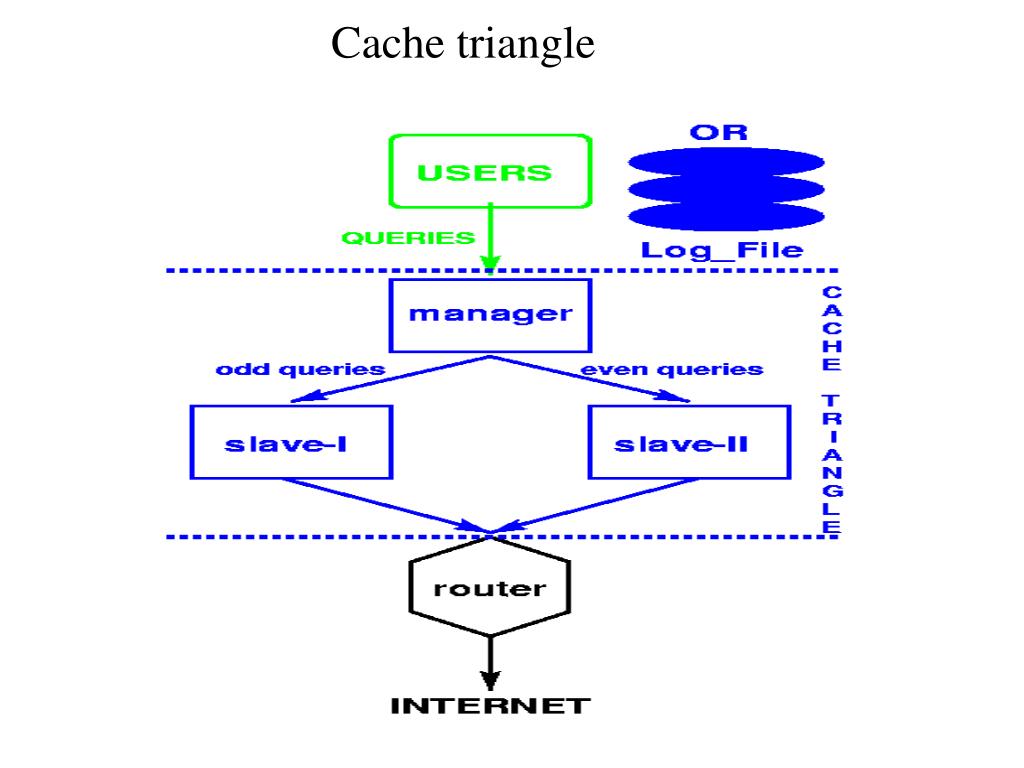

Cache triangle for caching


Comparative measurements of internet traffic using cache triangle

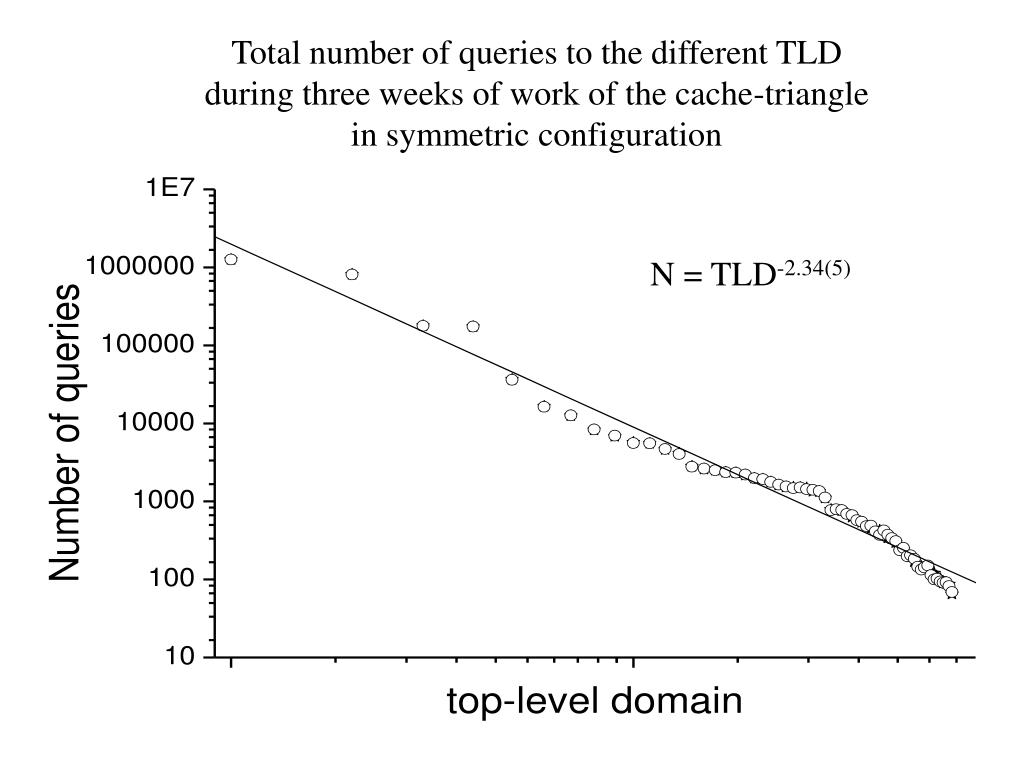

Total number of queries to the different TLD for caching

during three weeks of work of the cache-triangle

in symmetric configuration

N = TLD-2.34(5)



Comparative measurements of internet traffic using cache triangle

N = TLD Left-slave and-2.25(16)

nl

cz

ca

fi

pt

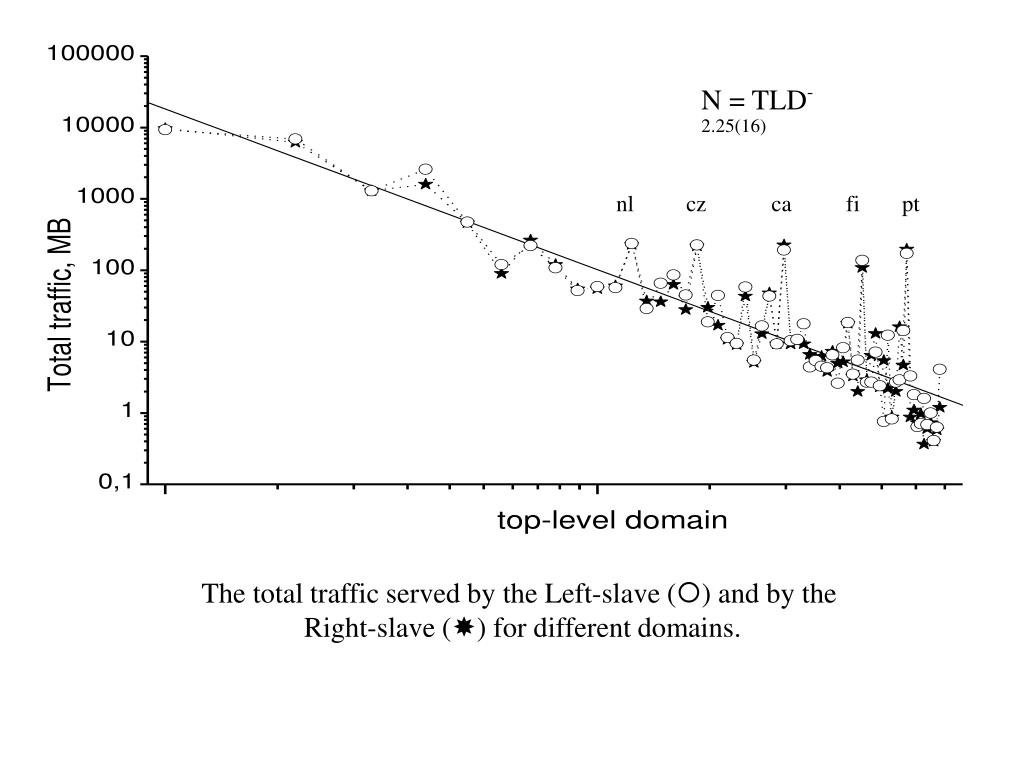

The total traffic served by the Left-slave () and by the

Right-slave () for different domains.


Comparative measurements of internet traffic using cache triangle

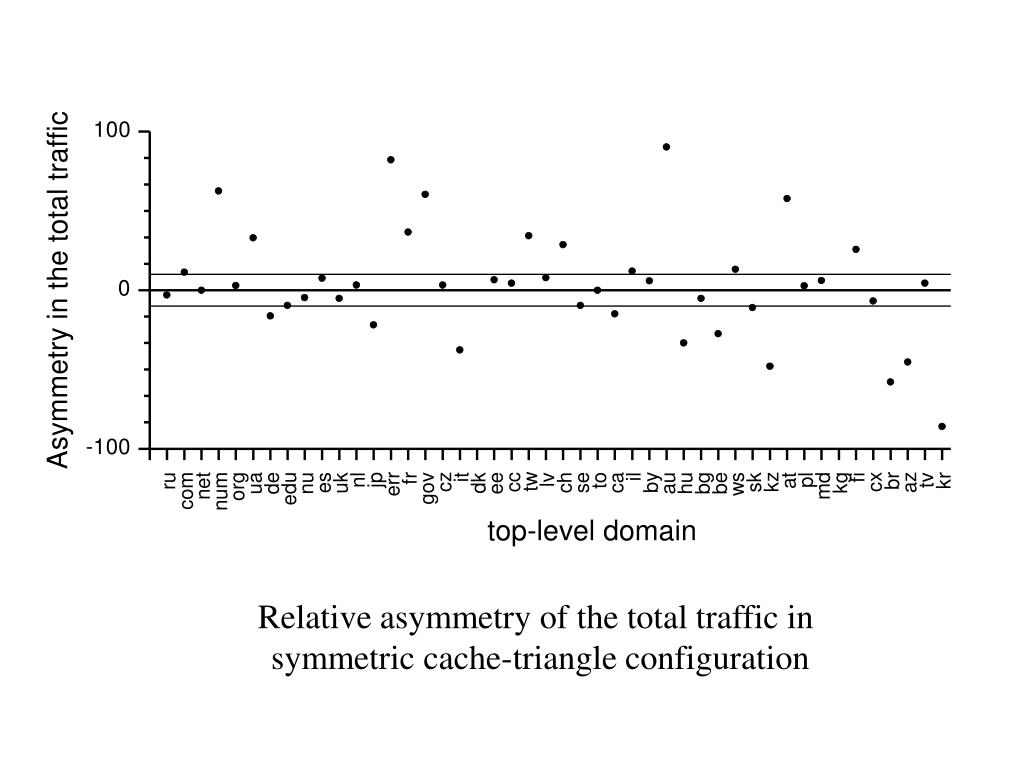

Relative asymmetry of the total traffic in Left-slave and

symmetric cache-triangle configuration



Comparative measurements of internet traffic using cache triangle

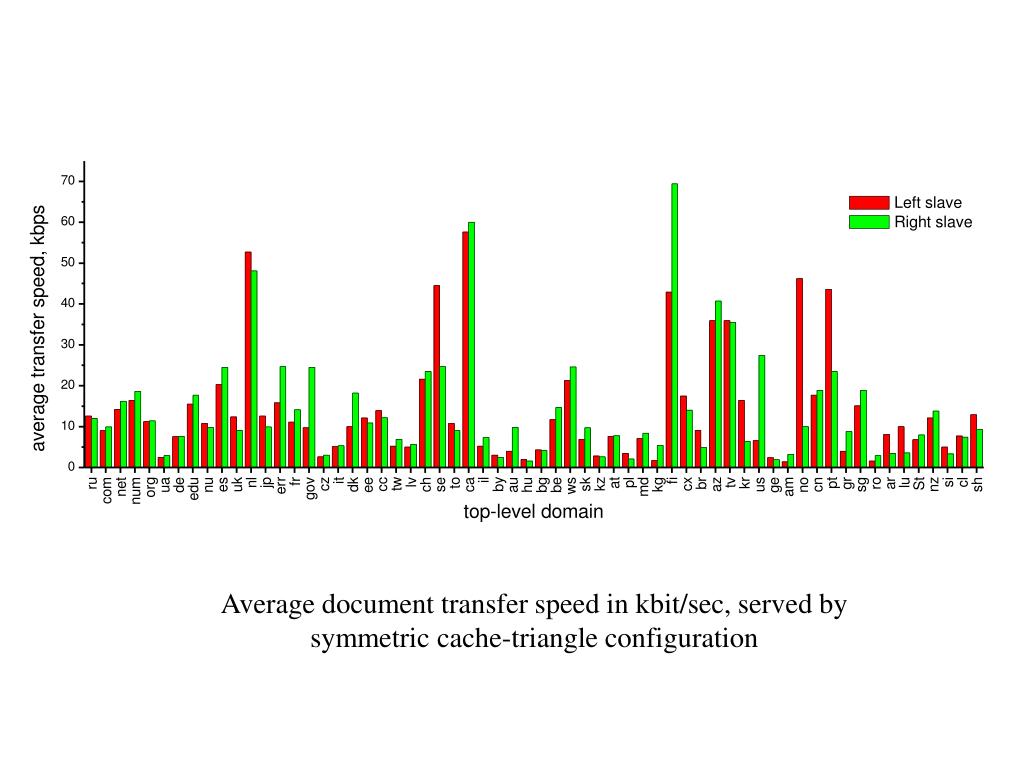

Average document transfer speed in kbit/sec, served by Left-slave and

symmetric cache-triangle configuration


Comparative measurements of internet traffic using cache triangle

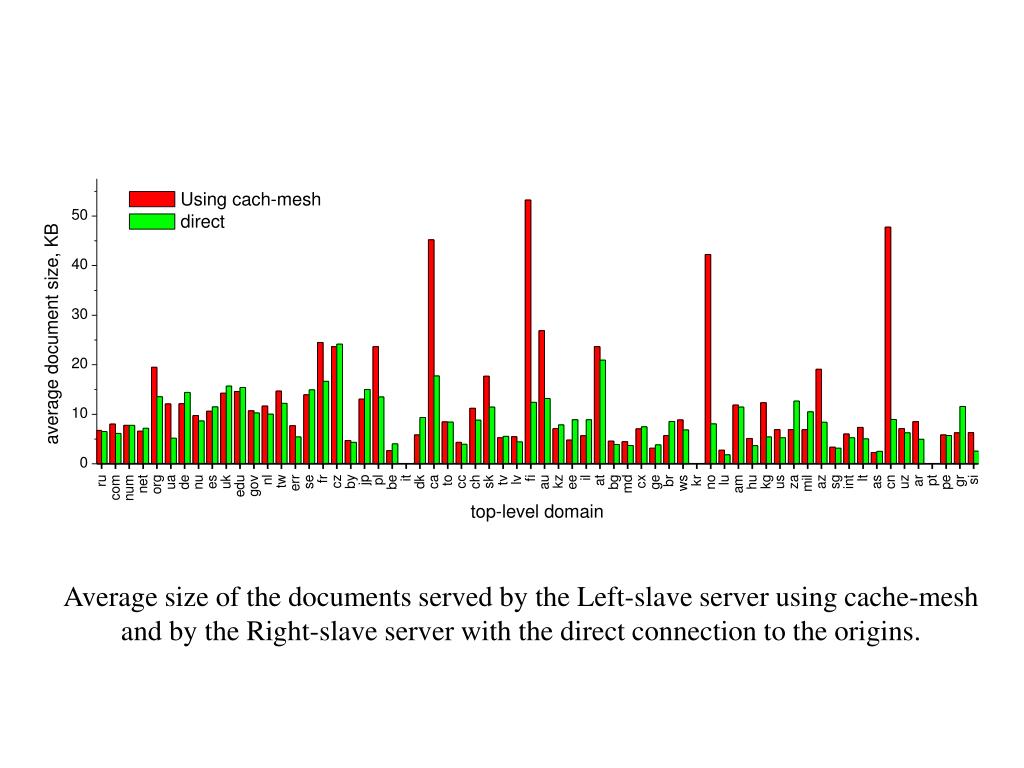

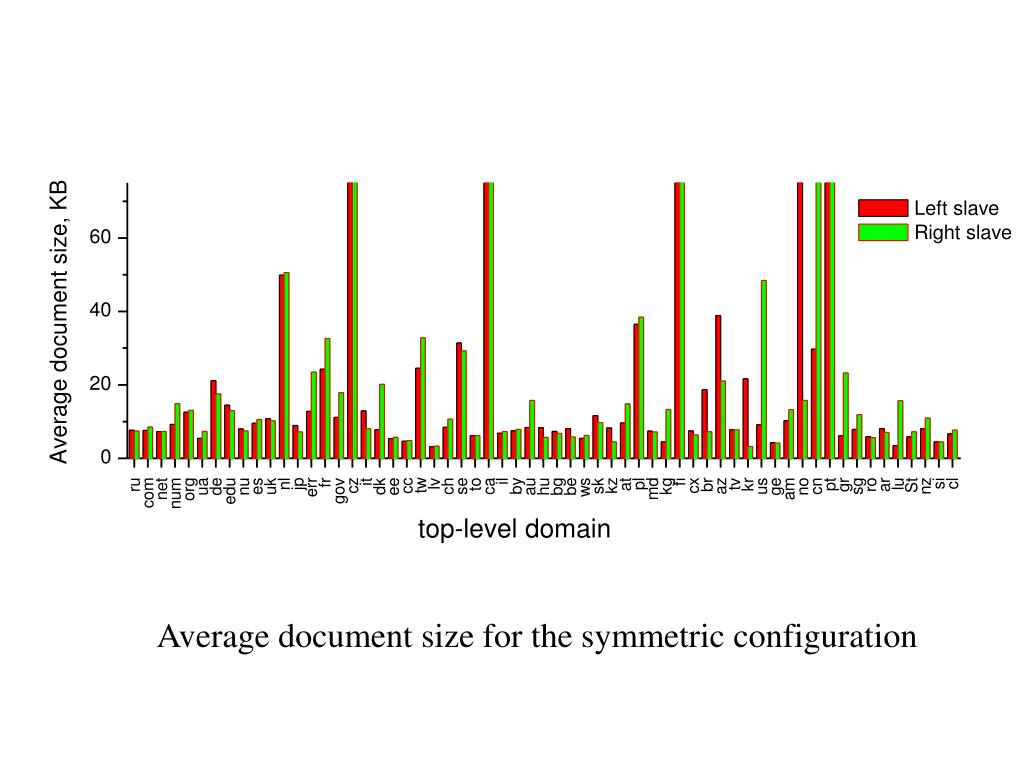

Average size of the documents served by the Left-slave server using cache-mesh

and by the Right-slave server with the direct connection to the origins.



Comparative measurements of internet traffic using cache triangle

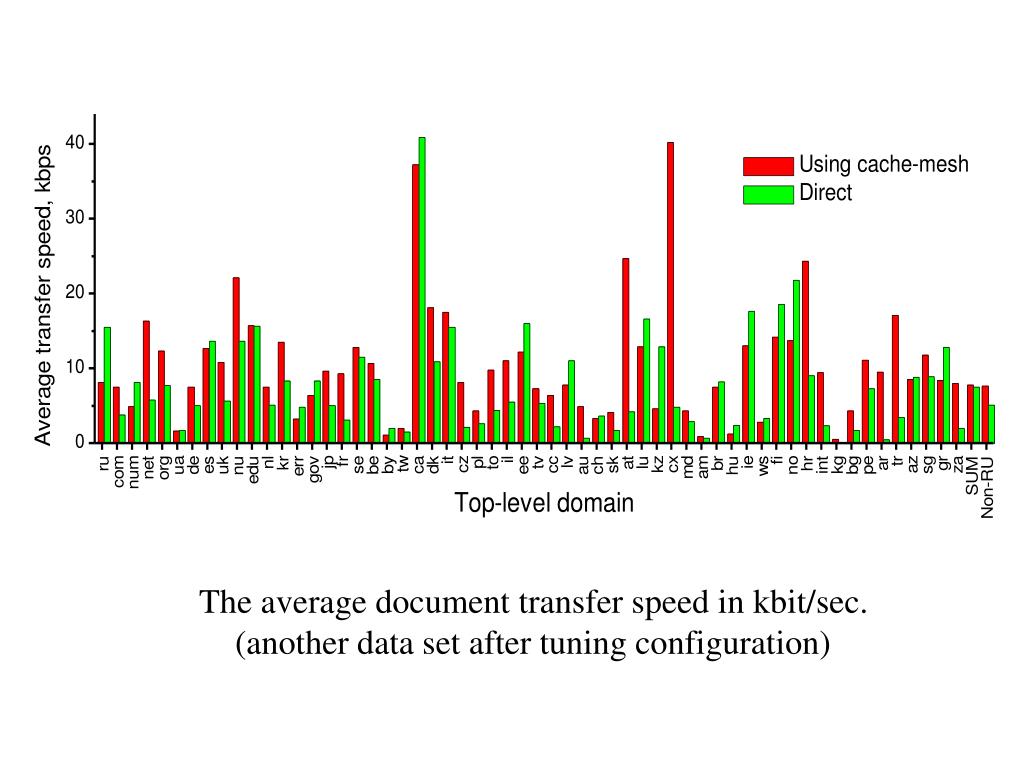

The average document transfer speed in kbit/sec. server using cache-mesh

(another data set after tuning configuration)


Comparative measurements of internet traffic using cache triangle

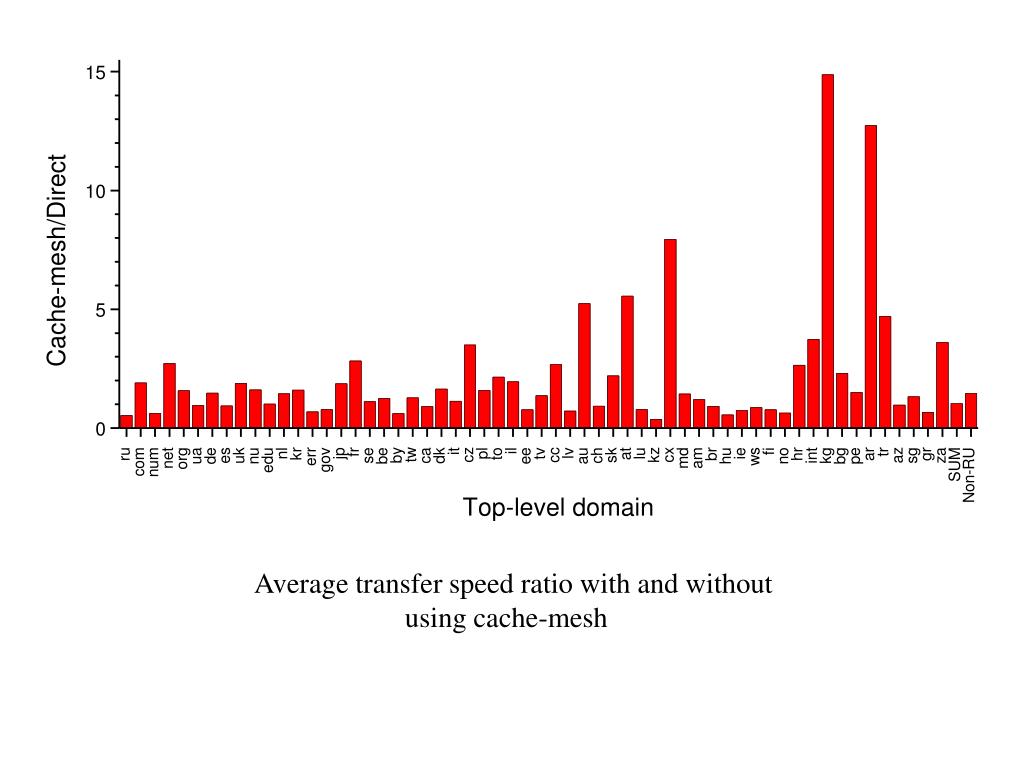

Average transfer speed ratio with and without server using cache-mesh

using cache-mesh


Comparative measurements of internet traffic using cache triangle

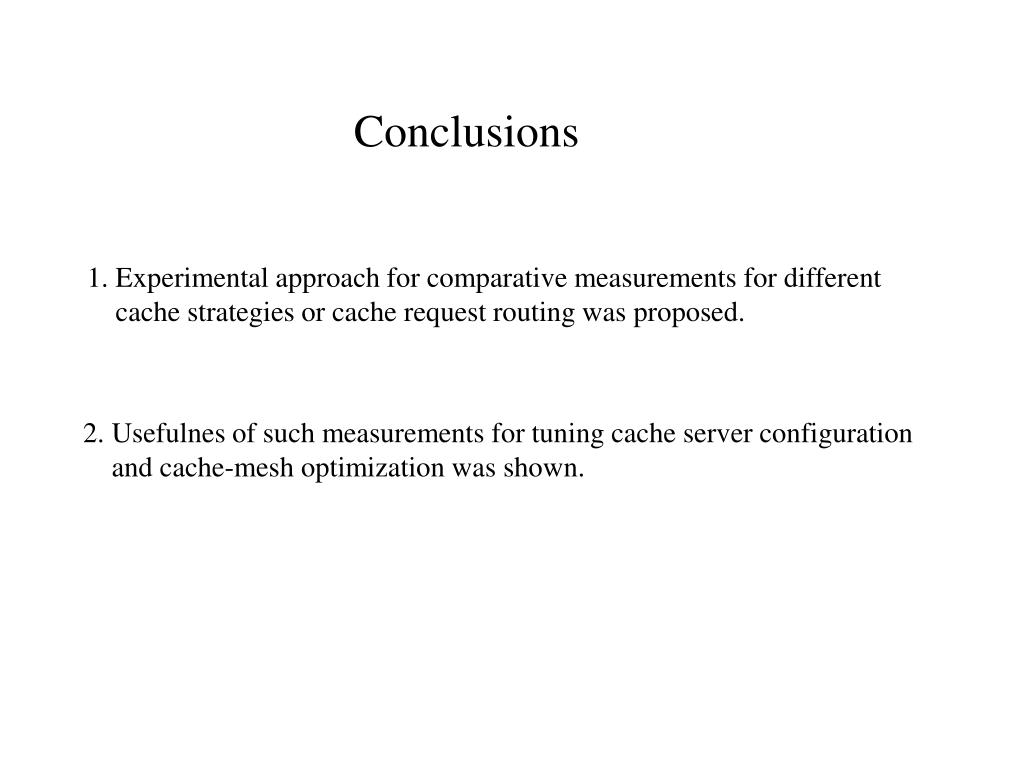

Conclusions server using cache-mesh

1. Experimental approach for comparative measurements for different

cache strategies or cache request routing was proposed.

2. Usefulnes of such measurements for tuning cache server configuration

and cache-mesh optimization was shown.
