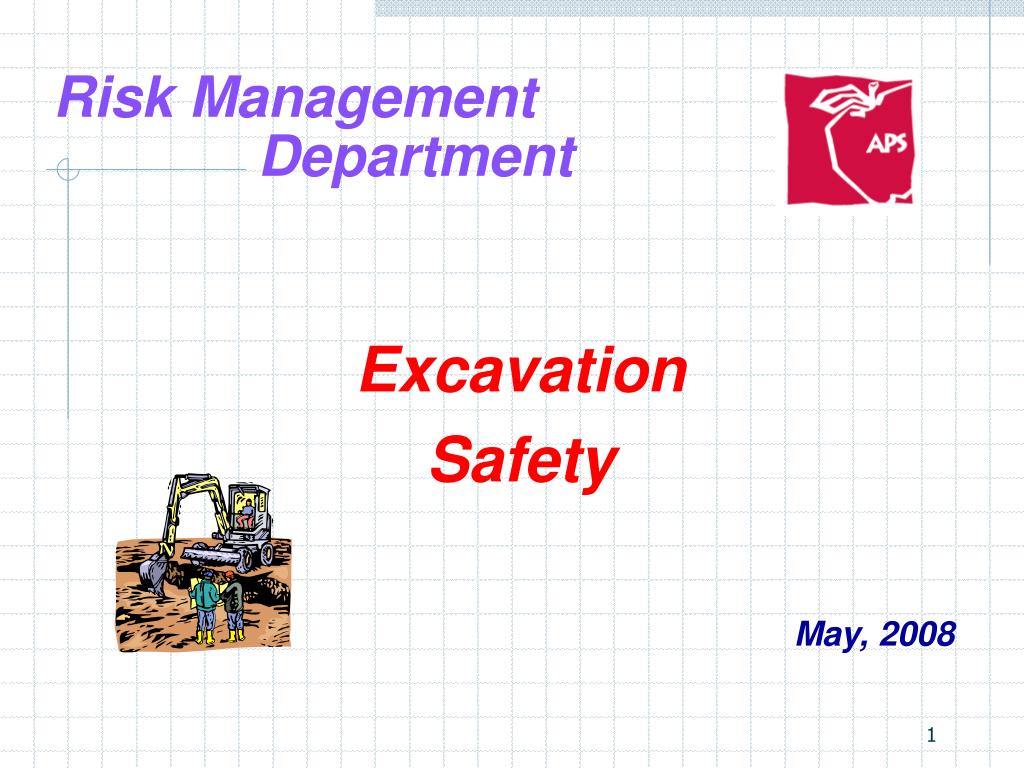

Risk Management Department

Excavation

Safety

May, 2008

excavation safety
Excavation Safety

Introduction

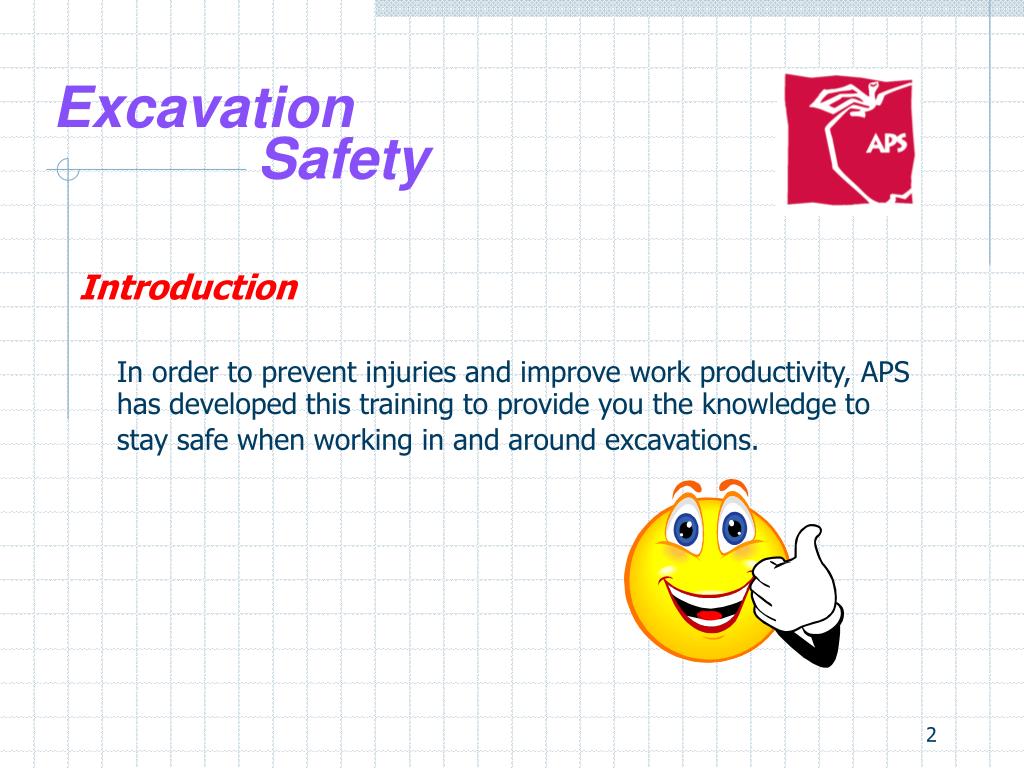

In order to prevent injuries and improve work productivity, APS has developed this training to provide you the knowledge to stay safe when working in and around excavations.

excavation safety1
Excavation Safety

Introduction

  • About 400 U.S. workers die in trench-related accidents each year
  • About 6,400 are seriously injured

For this reason it is important to understand how to stay safe in and around excavations

excavation safety2
Excavation Safety

Introduction

In this training we will cover:

  • What is a trench?
  • Soil characteristics
  • Collapse types
  • Shoring techniques
  • Safety requirements
excavation safety3
Excavation Safety

What is a Trench?

  • A narrow excavationthat is deeper than it is wide
  • No more than 15 feet wide at bottom
  • Walls will eventually fail
excavation safety4
Excavation Safety

What is a Trench?

Failure of trench walls results in cave-in:

  • Soil or rock that suddenly falls or slides into an excavation
  • Sufficient quantity to entrap, bury, injure, or immobilize
  • Soil gravitates downward, pressure pushes soil inward toward the trench
  • Bottom third of wall typically fails first
  • Soil above the collapsed lower wall follows
excavation safety5
Excavation Safety

What is a Trench?

Cave-ins are dangerous to workers:

  • Soil weighs 125 lbs. per cubic foot
  • A worker can be crushed by soil, rock, or an object
  • Suffocation—even if worker’s head is not buried, soil prevents chest expansion
  • Worker becomes immobilized by soil’s suction effect
excavation safety6
Excavation Safety

Soil Characteristics

  • Type A (most stable) — dense and heavy clay
  • Type B — silt, sandy loam, medium clay
  • Type C (least stable) — gravel, loamy sand, soft clay
excavation safety7
Excavation Safety

Soil Characteristics

Factors affecting soil strength:

  • Water
  • Vibrations
  • Erosion and Weathering
  • Excavation Depth
  • Slope Steepness
  • Degree of Soil Compaction
excavation safety8
Excavation Safety

Soil Characteristics

Signs of impending collapse:

  • Fissures or cracks on excavation face
  • Slumping of material from excavation face
  • Bulging or heaving of material at the bottom of excavation wall
  • Sinking of excavation’s edge
  • Ravelling, or small amounts of material (e.g., pebbles) trickling into excavation
excavation safety9
Excavation Safety

Collapse Types

There are four types of trench collapses:

Spoil Pile Slide

Side Wall Shear

Slough–in

Rotation

excavation safety10
Excavation Safety

Collapse Types

Spoil Pile Slide -

Collapse of material that has

been removed from the trench

back into the trench

excavation safety11
Excavation Safety

Collapse Types

Side Wall Shear -

Collapse of side wall

from the top into trench

excavation safety12
Excavation Safety

Collapse Types

Slough-in -

Collapse of side wall

from middle of wall

excavation safety13
Excavation Safety

Collapse Types

Rotation -

Collapse of bottom third

of trench wall causing

secondary wall collapse

excavation safety14
Excavation Safety

Shoring Techniques

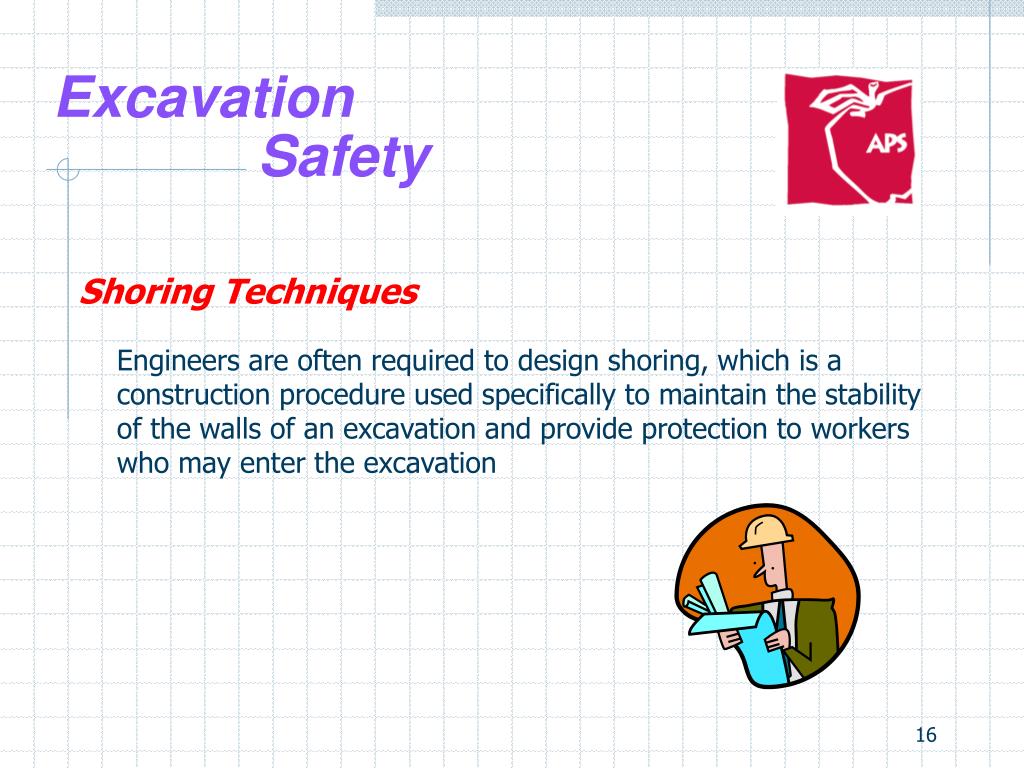

Engineers are often required to design shoring, which is a construction procedure used specifically to maintain the stability of the walls of an excavation and provide protection to workers who may enter the excavation

excavation safety15
Excavation Safety

Shoring Techniques

To mitigate the danger of cave-ins, there are 4 main techniques

to shore trench walls:

Wood Support

Screw Jacks

Hydraulic Shores

Trench Cages

excavation safety16
Excavation Safety

Shoring Techniques

Wood Support

excavation safety17
Excavation Safety

Shoring Techniques

Screw Jacks

excavation safety18
Excavation Safety

Shoring Techniques

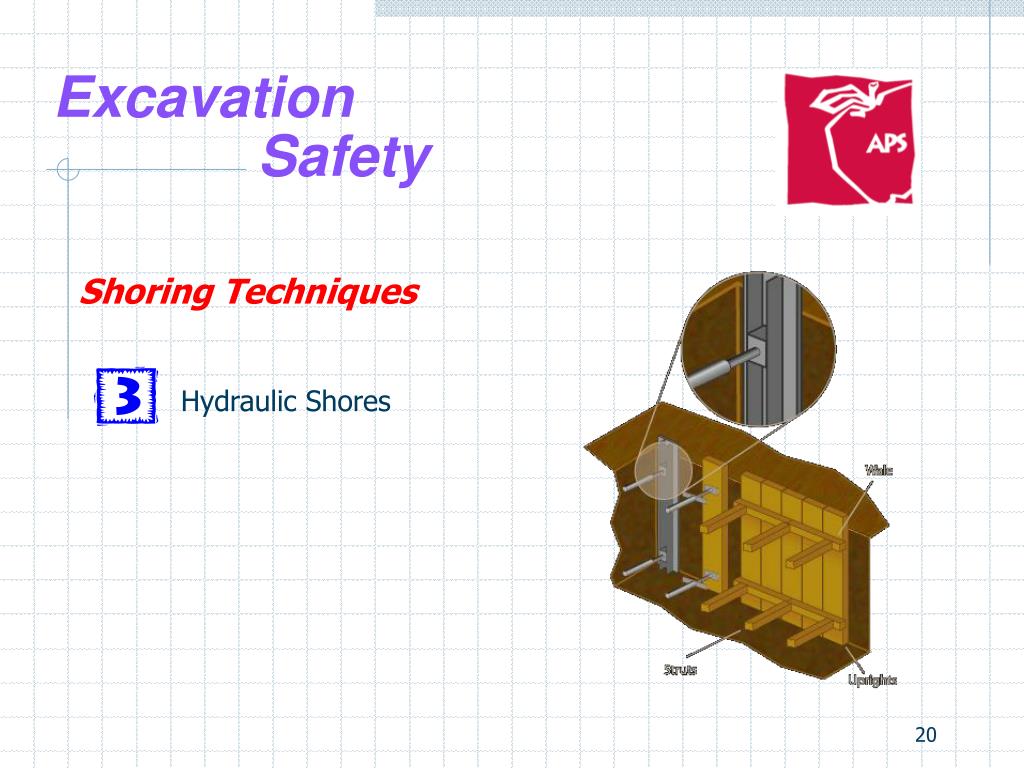

Hydraulic Shores

excavation safety19
Excavation Safety

Shoring Techniques

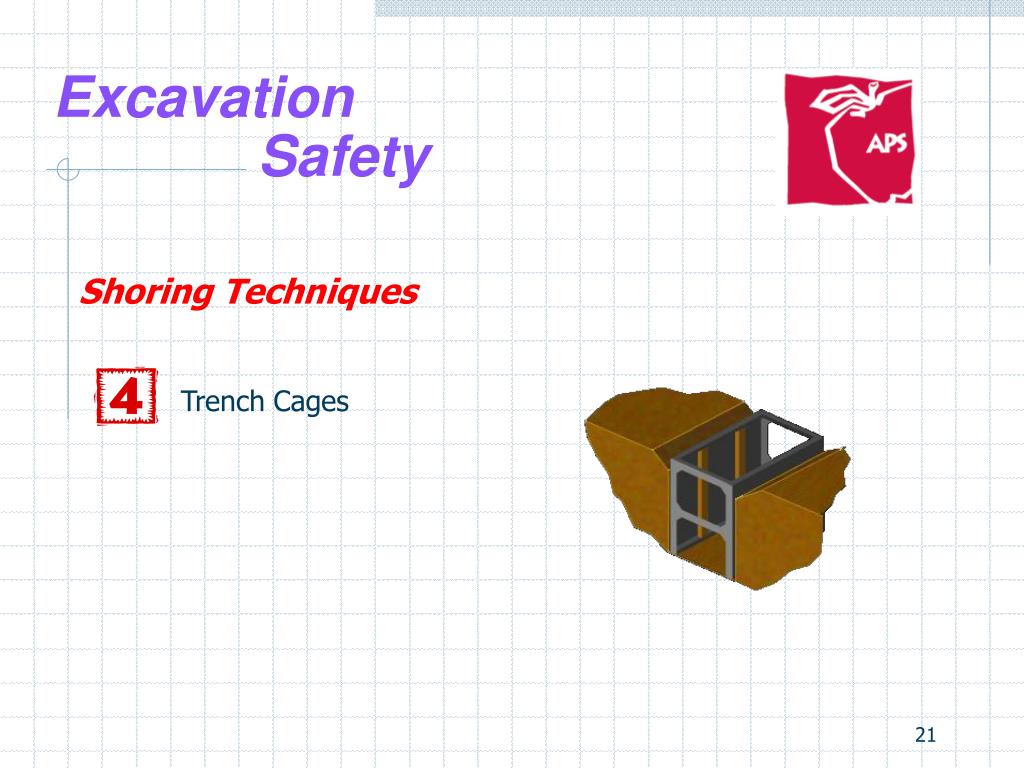

Trench Cages

excavation safety20
Excavation Safety

Safety Requirements

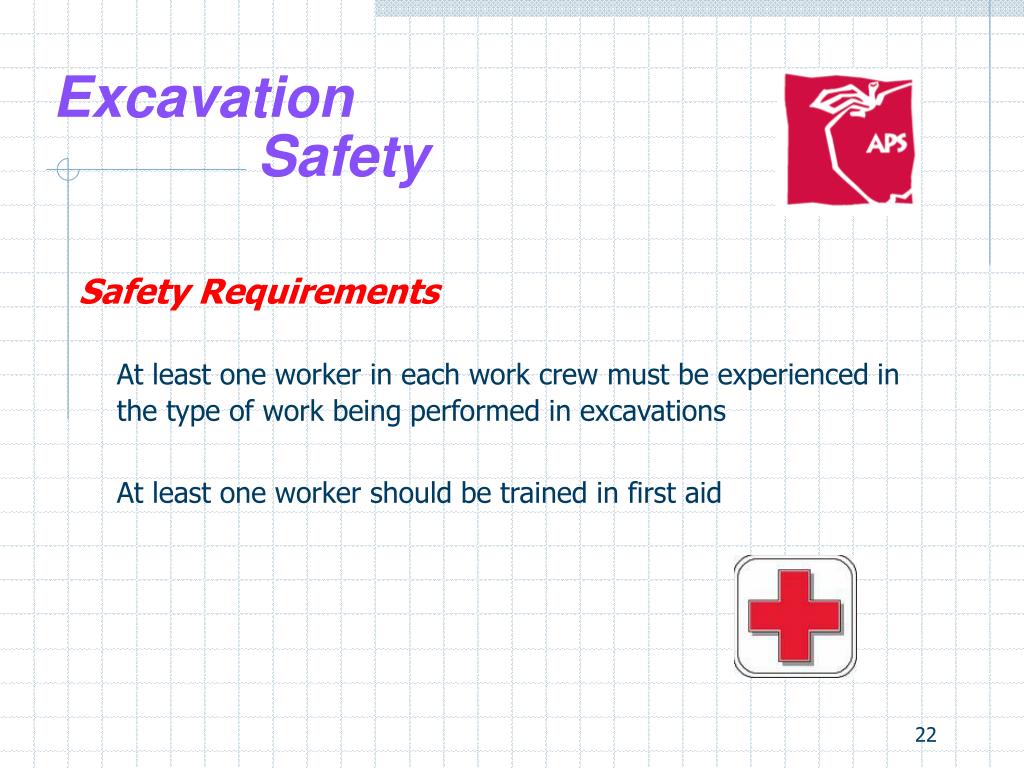

At least one worker in each work crew must be experienced in the type of work being performed in excavations

At least one worker should be trained in first aid

excavation safety21
Excavation Safety

Safety Requirements

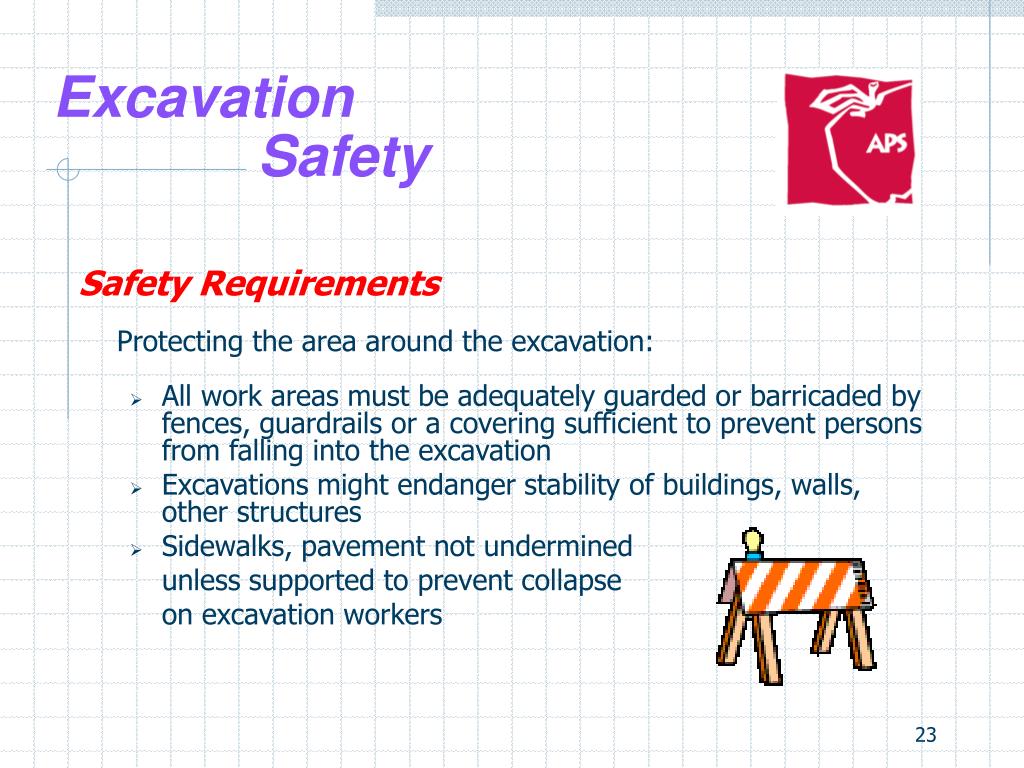

Protecting the area around the excavation:

  • All work areas must be adequately guarded or barricaded by fences, guardrails or a covering sufficient to prevent persons from falling into the excavation
  • Excavations might endanger stability of buildings, walls, other structures
  • Sidewalks, pavement not undermined

unless supported to prevent collapse

on excavation workers

excavation safety22
Excavation Safety

Safety Requirements

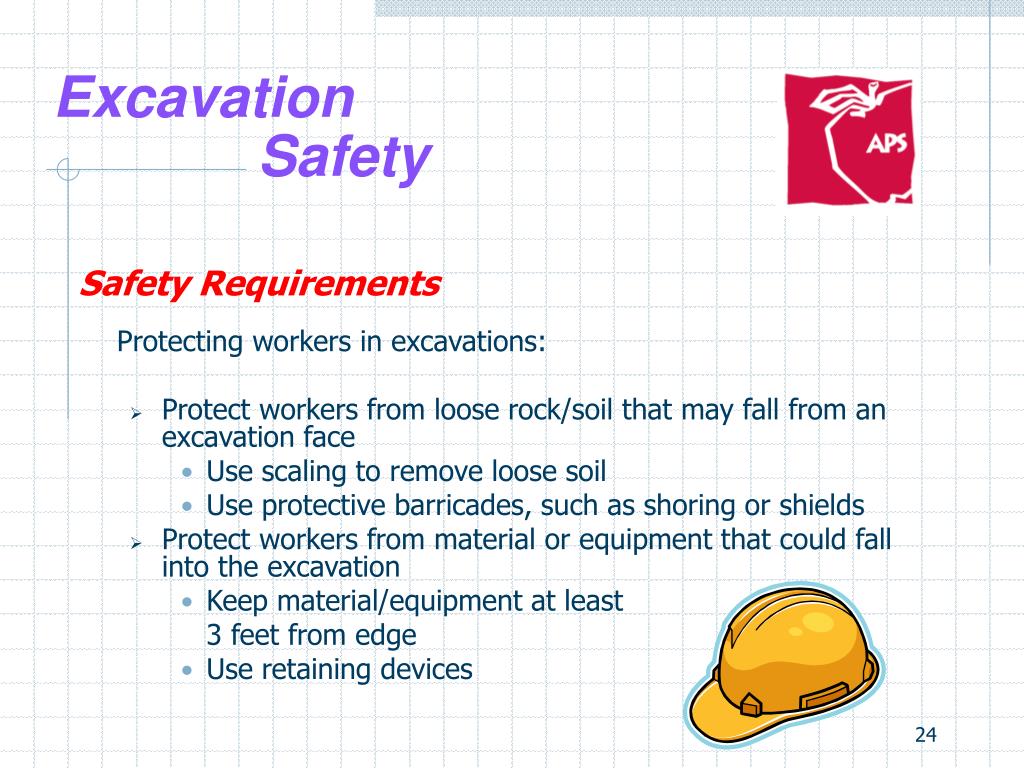

Protecting workers in excavations:

  • Protect workers from loose rock/soil that may fall from an excavation face
    • Use scaling to remove loose soil
    • Use protective barricades, such as shoring or shields
  • Protect workers from material or equipment that could fall into the excavation
    • Keep material/equipment at least

3 feet from edge

    • Use retaining devices
excavation safety23
Excavation Safety

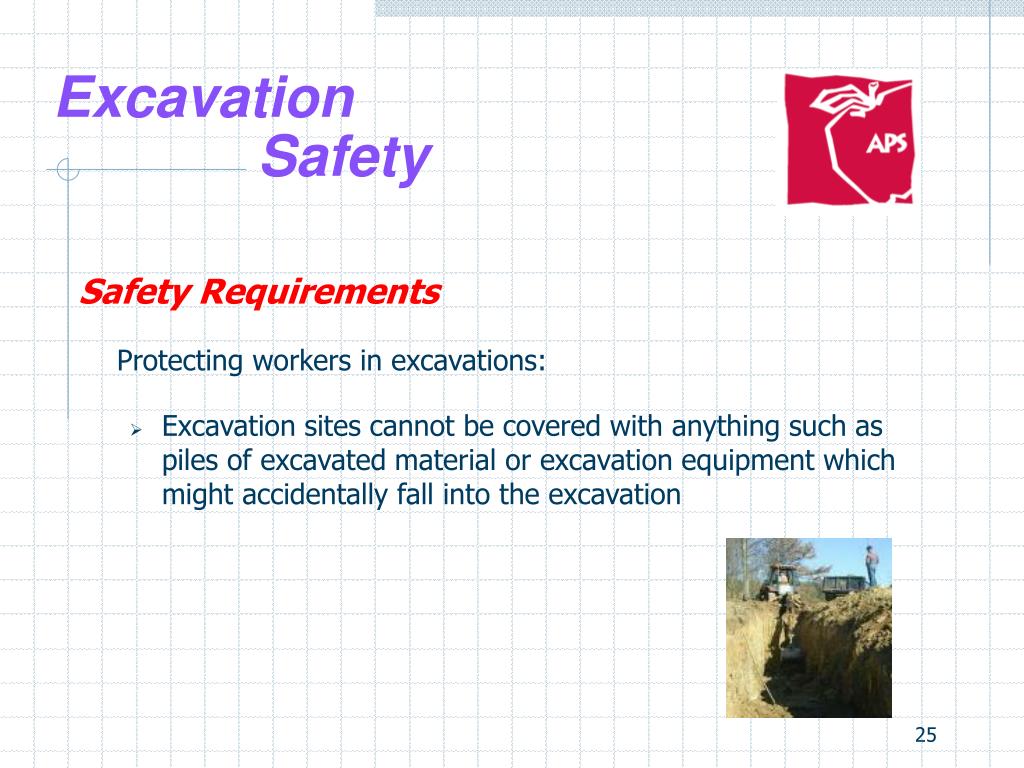

Safety Requirements

Protecting workers in excavations:

  • Excavation sites cannot be covered with anything such as piles of excavated material or excavation equipment which might accidentally fall into the excavation
excavation safety24
Excavation Safety

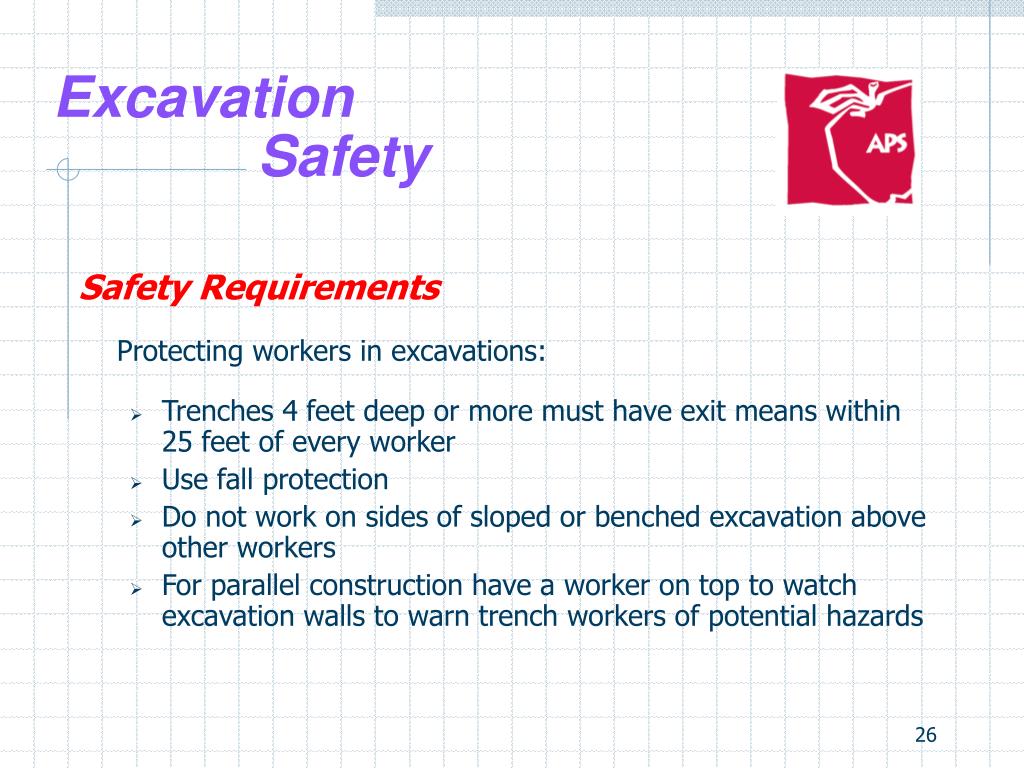

Safety Requirements

Protecting workers in excavations:

  • Trenches 4 feet deep or more must have exit means within 25 feet of every worker
  • Use fall protection
  • Do not work on sides of sloped or benched excavation above other workers
  • For parallel construction have a worker on top to watch excavation walls to warn trench workers of potential hazards
excavation safety25
Excavation Safety

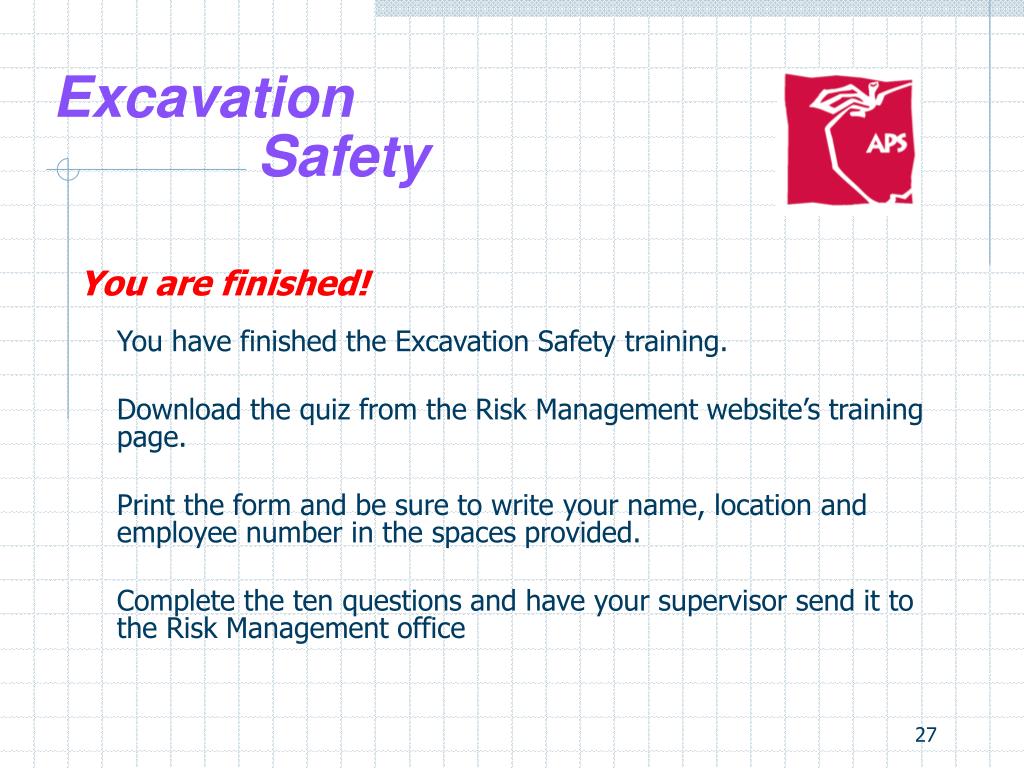

You are finished!

You have finished the Excavation Safety training.

Download the quiz from the Risk Management website’s training page.

Print the form and be sure to write your name, location and employee number in the spaces provided.

Complete the ten questions and have your supervisor send it to the Risk Management office
