RADIATION . Insolation . in tercepted sol ar radi ation. Earth intercepts 0.0000000005 of the sun’s radiation. Solar constant amount of radiation received at the top of the atmosphere (on a plane surface perpendicular to sun’s rays) = 1372 Watts/m 2

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'RADIATION' - york


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

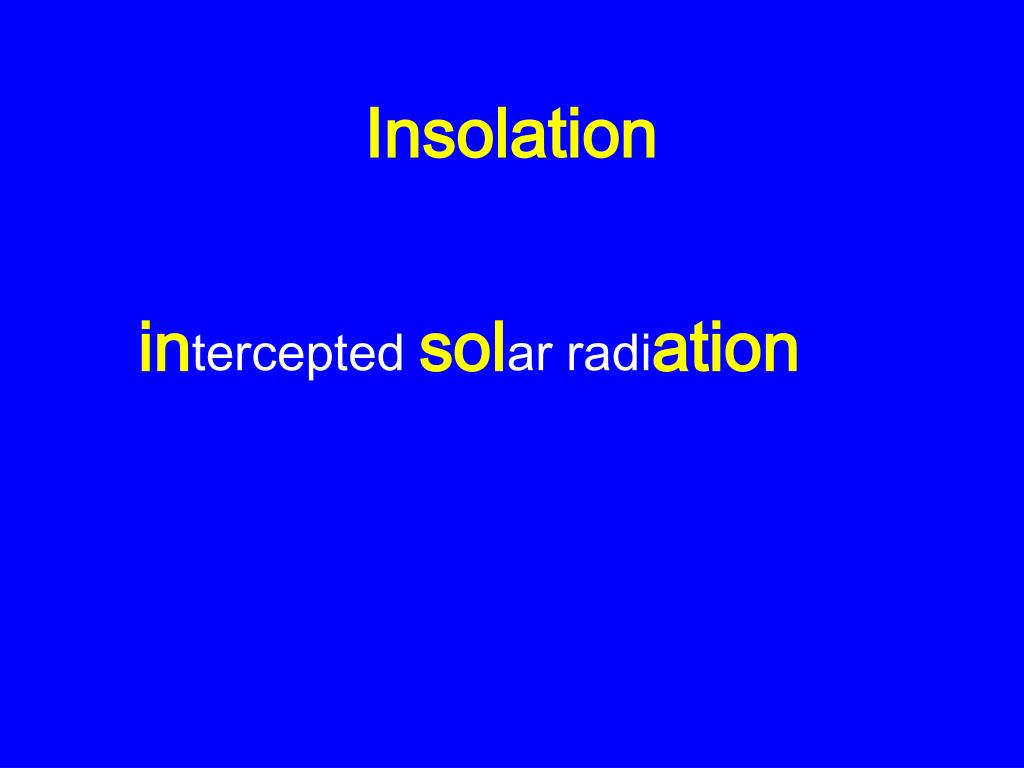

insolation
Insolation

interceptedsolarradiation

slide5

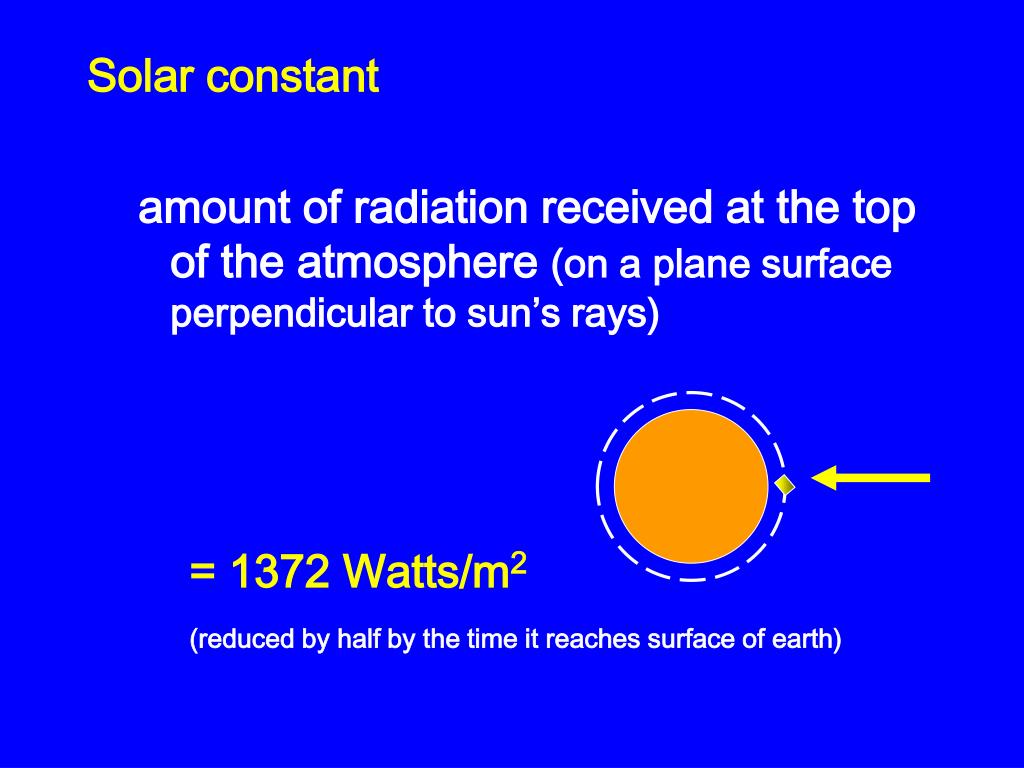

Solar constant

amount of radiation received at the top of the atmosphere (on a plane surface perpendicular to sun’s rays)

= 1372 Watts/m2

(reduced by half by the time it reaches surface of earth)

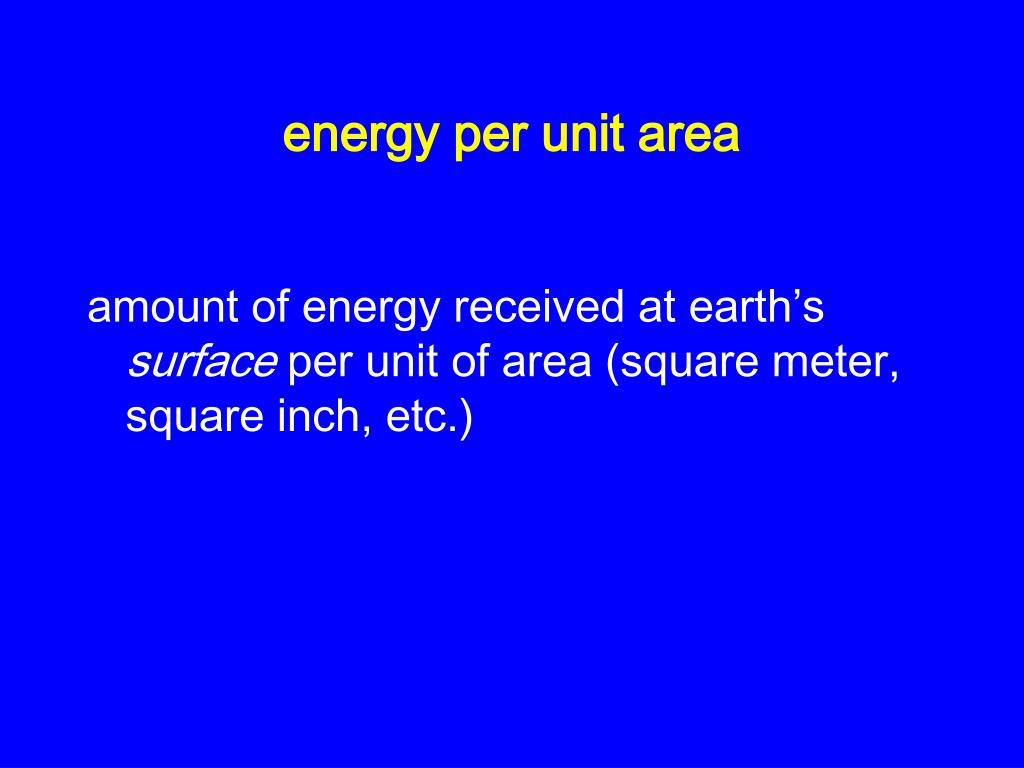

energy per unit area
energy per unit area

amount of energy received at earth’s surface per unit of area (square meter, square inch, etc.)

slide8

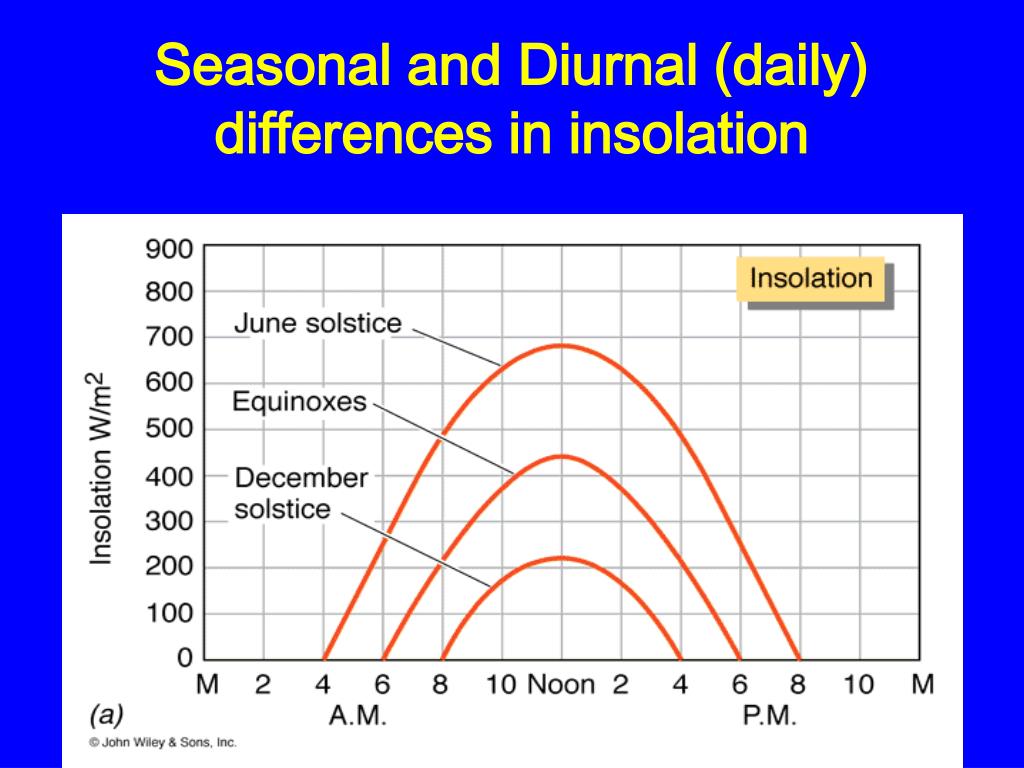

surface receives more energy per unit area (more concentrated) when the sun’s rays are vertical (direct)

less energy per unit area (less concentrated) when sun’s rays are oblique(slanted)

slide12

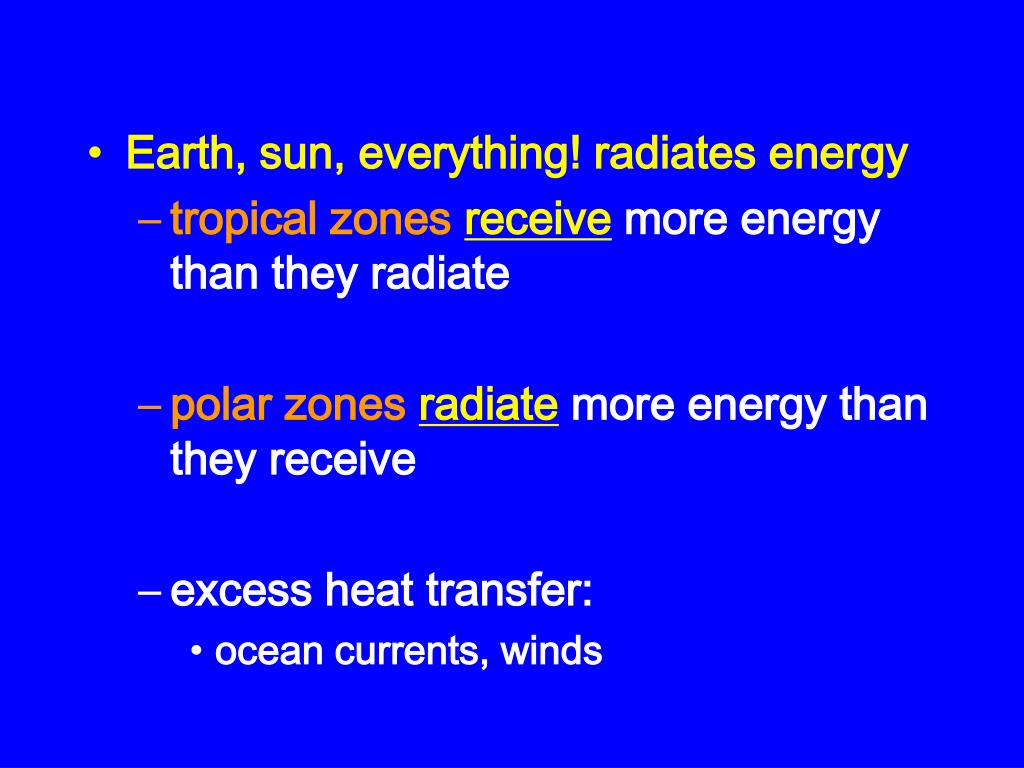

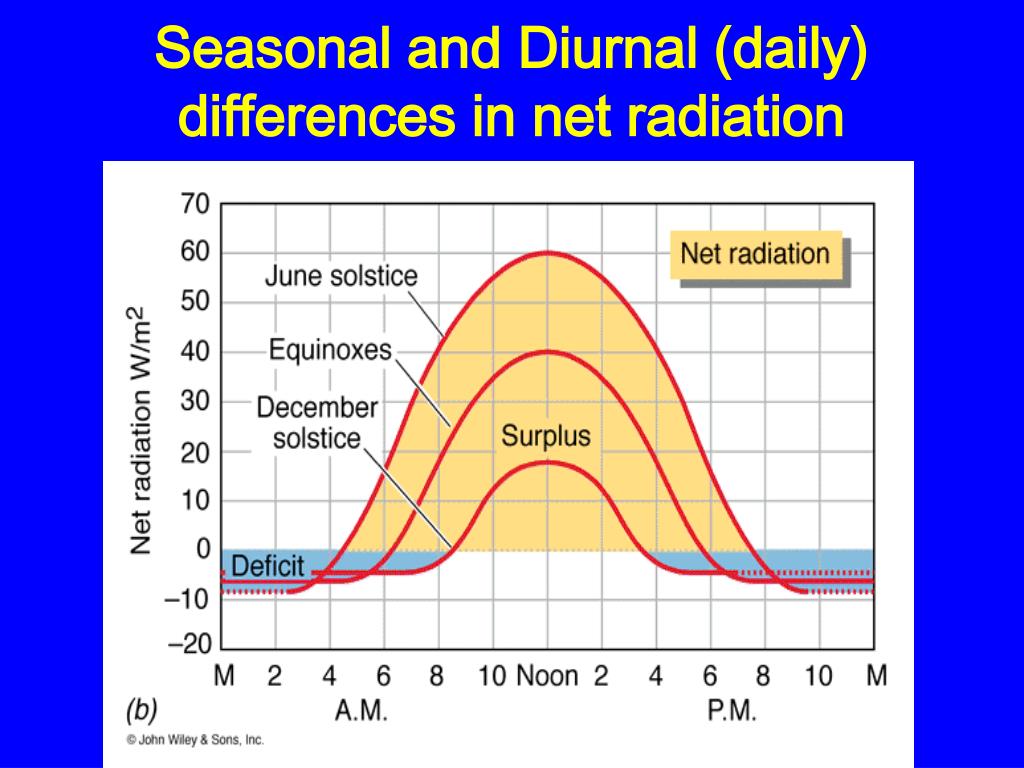

Earth, sun, everything! radiates energy

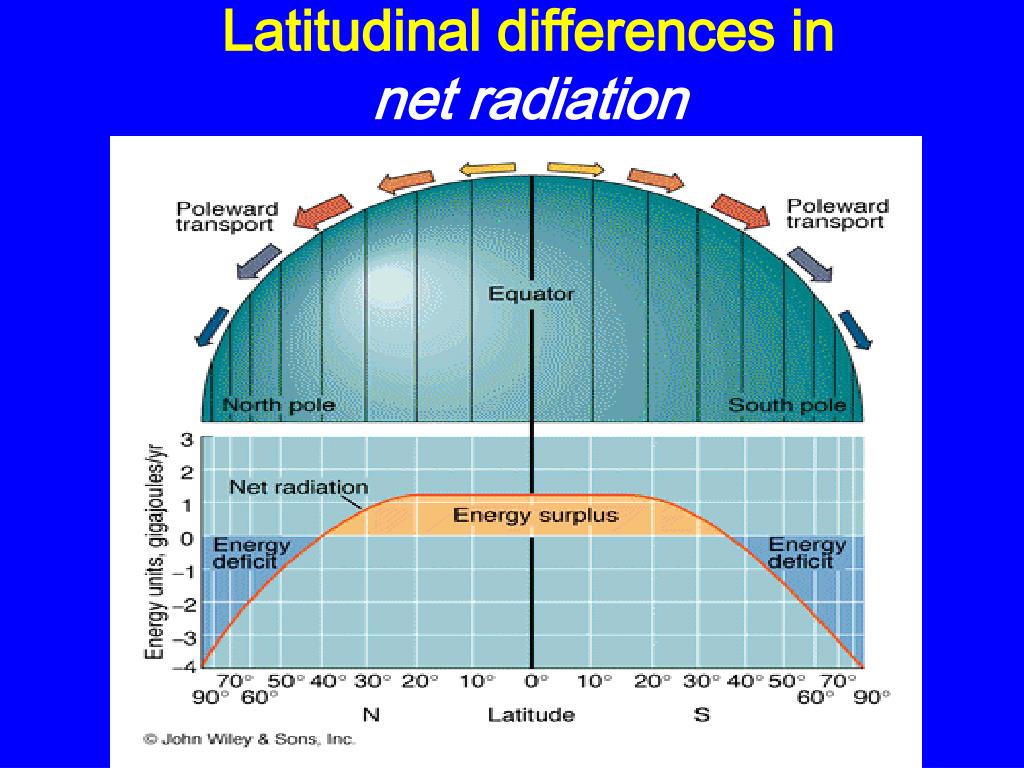

    • tropical zonesreceive more energy than they radiate
    • polar zonesradiate more energy than they receive
    • excess heat transfer:
      • ocean currents, winds
slide13

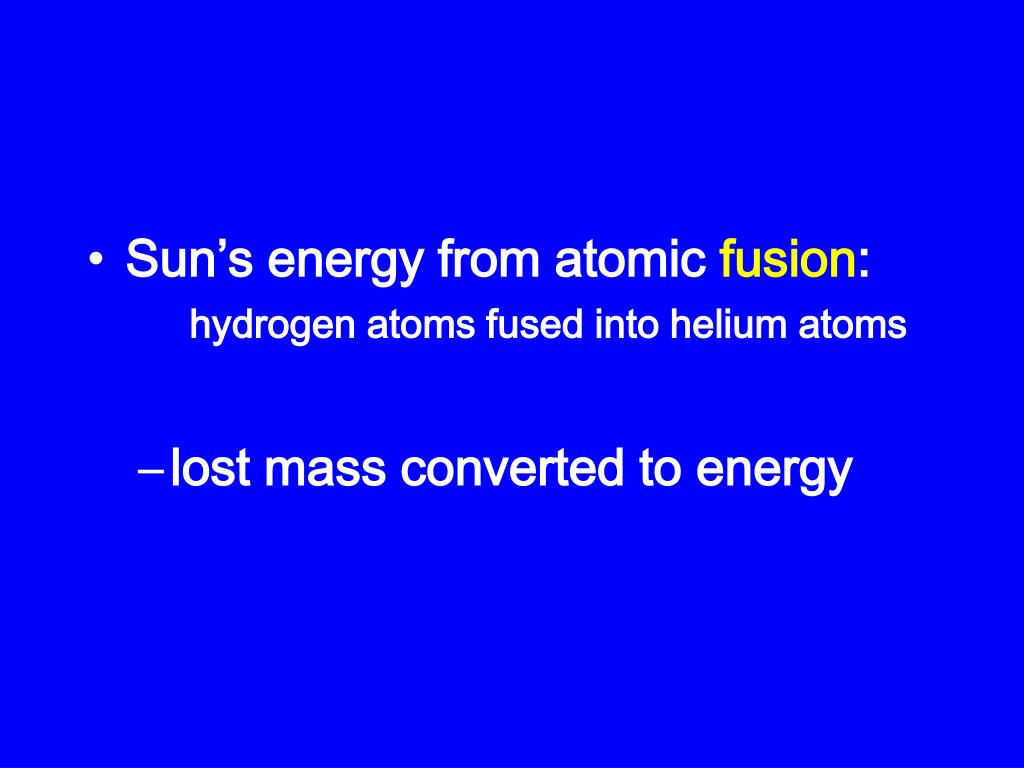

Sun’s energy from atomic fusion: hydrogen atoms fused into helium atoms
    • lost mass converted to energy
slide14

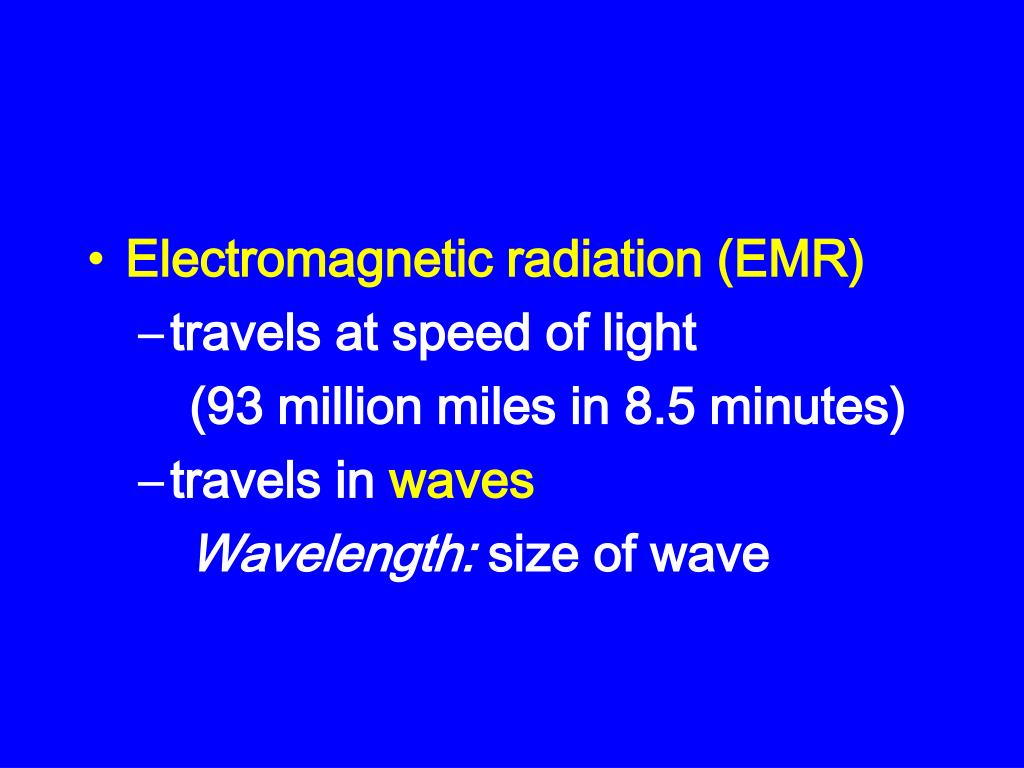

Electromagnetic radiation (EMR)
    • travels at speed of light

(93 million miles in 8.5 minutes)

    • travels in waves

Wavelength: size of wave

electromagnetic spectrum
electromagnetic spectrum
  • “ruler” to measure different types of energy
solar sun vs terrestrial earth radiation
Solar (Sun) vs. Terrestrial (Earth) Radiation:
  • sun’s SHORTWAVE :
    • gamma , X-ray, UV, visible, infrared
  • earth’s LONGWAVE :
    • infrared

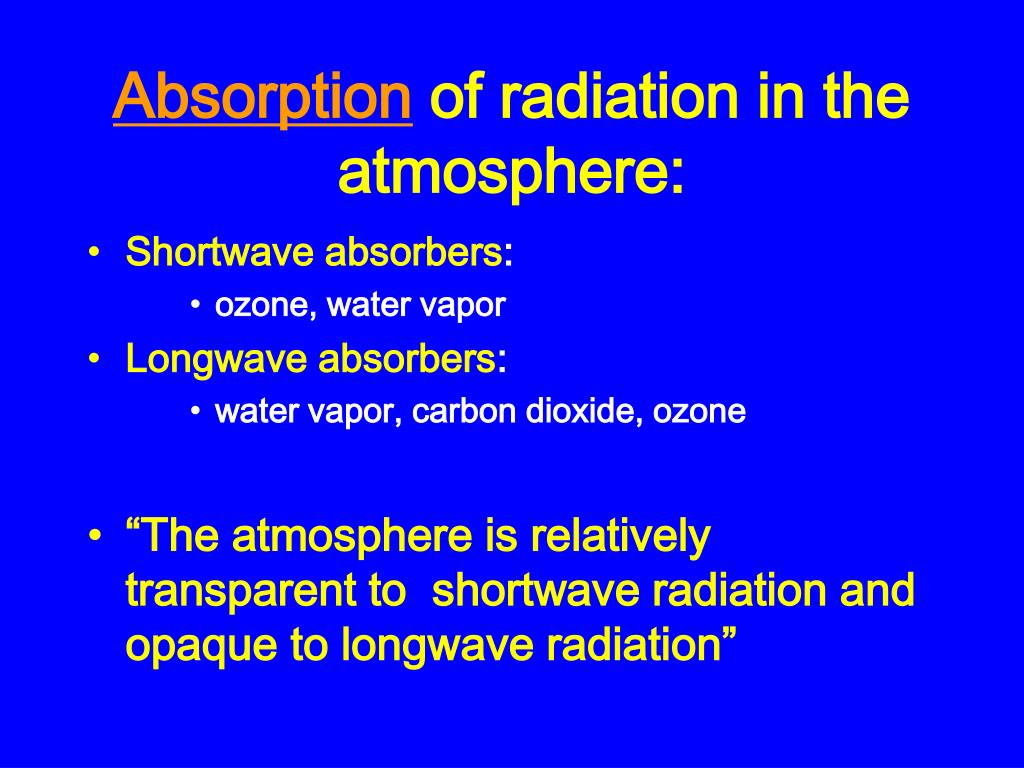

absorption of radiation in the atmosphere
Absorption of radiation in the atmosphere:
  • Shortwave absorbers:
      • ozone, water vapor
  • Longwave absorbers:
      • water vapor, carbon dioxide, ozone
  • “The atmosphere is relatively transparent to shortwave radiation and opaque to longwave radiation”
types of heat energy
Types of heat energy
  • Sensible heat
      • thermometer
  • Latent heat
      • released or stored in a phase change
slide22

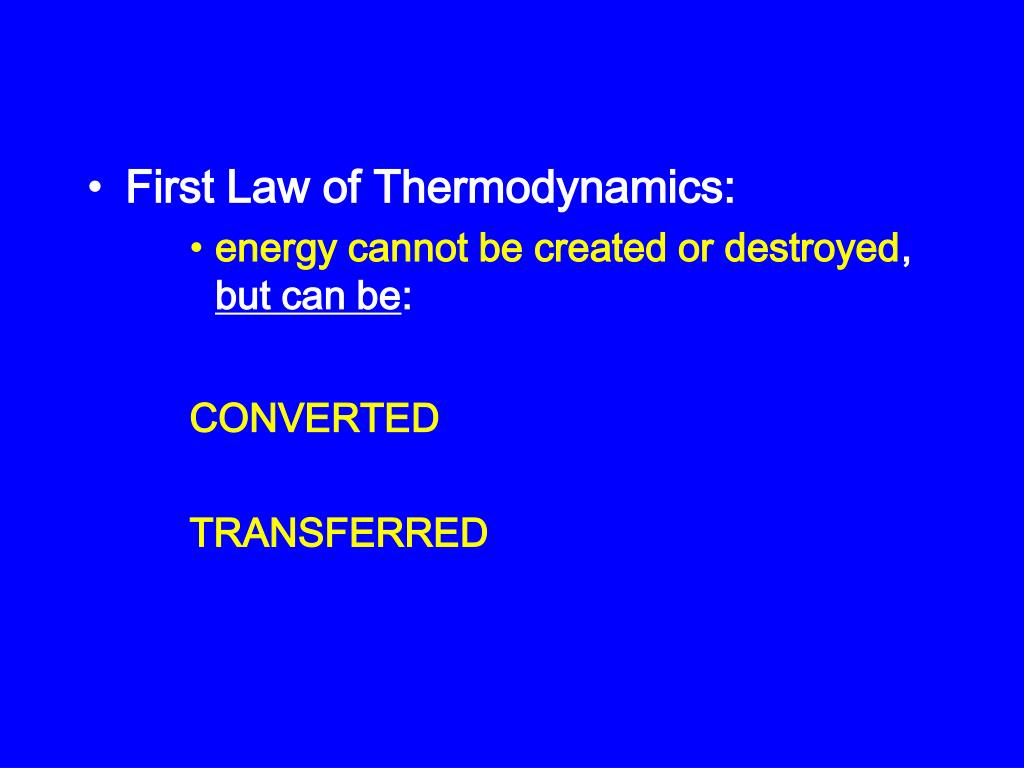

First Law of Thermodynamics:
      • energy cannot be created or destroyed, but can be:

CONVERTED

TRANSFERRED

energy transfer mechanisms
Energy Transfer Mechanisms:
  • Conduction
      • energy transmitted within a substance by collision of molecules
  • Convection
      • vertical motion of energy from one place to another through physical motion of air

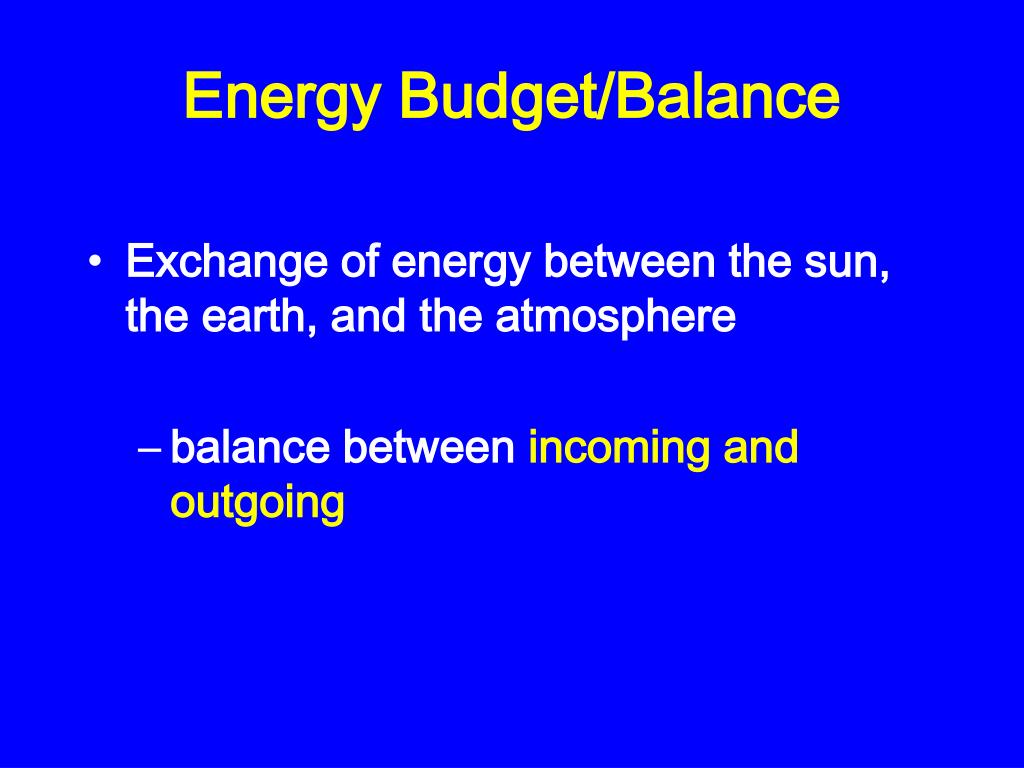

energy budget balance
Energy Budget/Balance
  • Exchange of energy between the sun, the earth, and the atmosphere
    • balance between incoming and outgoing
slide25
radiation entering the atmosphere can be:
  • absorbed
      • transformed, re-emitted
  • reflected
      • “albedo” : percentage of incoming radiation that is reflected;
      • earth/atmosphere albedo = 31 %
the balancing act
The Balancing Act

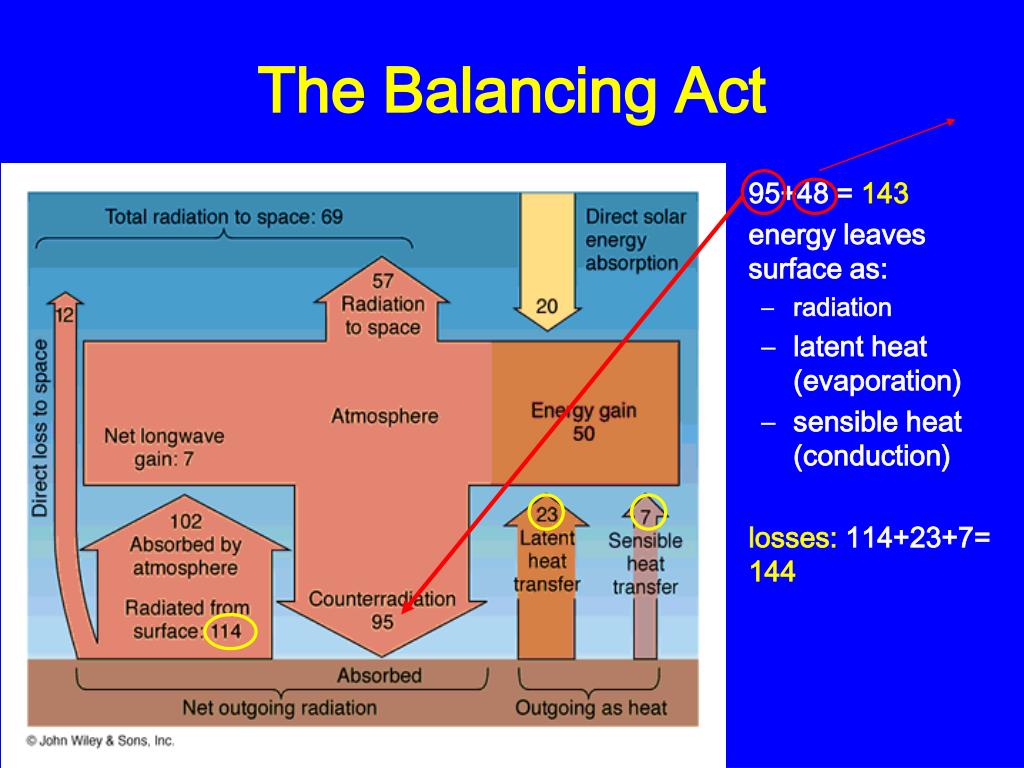

  • 95+48 = 143
  • energy leaves surface as:
    • radiation
    • latent heat (evaporation)
    • sensible heat (conduction)
  • losses: 114+23+7= 144

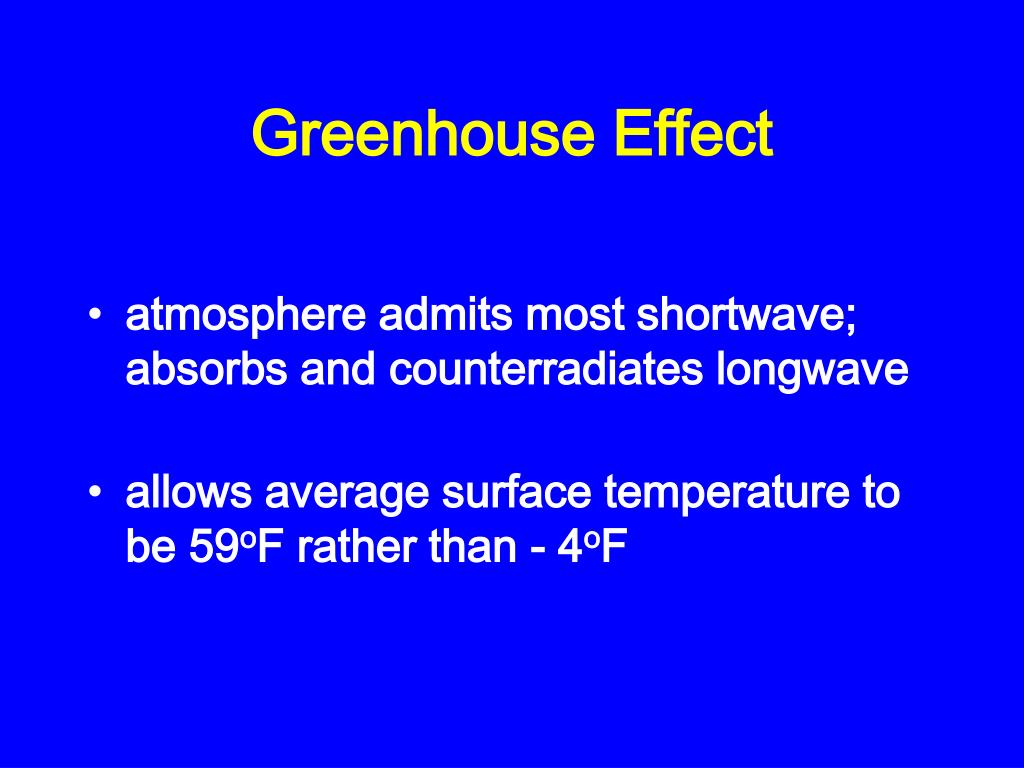

greenhouse effect
Greenhouse Effect

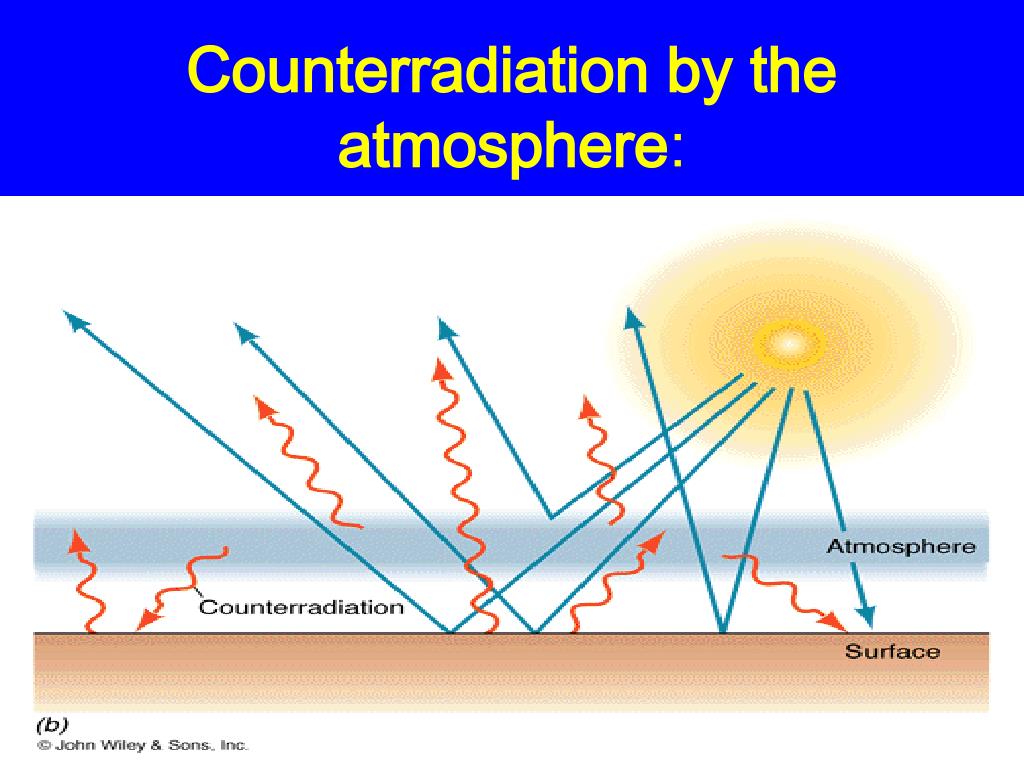

  • atmosphere admits most shortwave; absorbs and counterradiates longwave
  • allows average surface temperature to be 59oF rather than - 4oF
