GRAND ROUNDS

1. GRAND ROUNDS • Joshua Kanik, MD • NEIMEF • 12/4/13

2. Revascularization strategy in Diabetic Pts with Multivessel disease

3. Case: S.H.Admitted to Allen 11/4/12 • 57y.o. male transferred from Independence. • He had been at Independence for Pneumonia. • Treated with Levaquin & Azithromycin • After several hours of sudden onset retrosternal CP, SOB, nausea and diaphoresis, cardiac enzymes were found to be elevated.

4. PMH • Aortic stenosis, severe • Back Pain, chronic • CAD • COPD (2.5L O2) • CHF, diastolic • Diabetes Mellitus, uncontrolled • Hyperlipidemia • Hypertension • GERD • Morbid Obesity • NSTEMI (2011) • OSA

5. Social History • Married with children • Denies EtOH abuse • ex-smoker (stopped 2 years ago) • Unemployed on disability

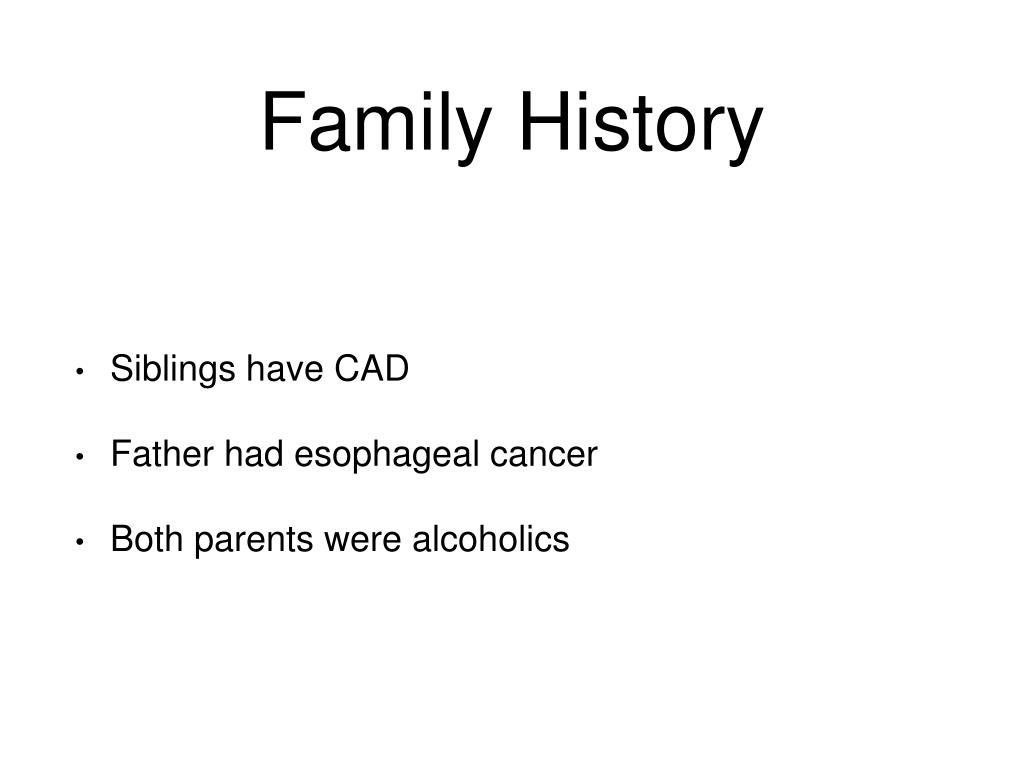

6. Family History • Siblings have CAD • Father had esophageal cancer • Both parents were alcoholics

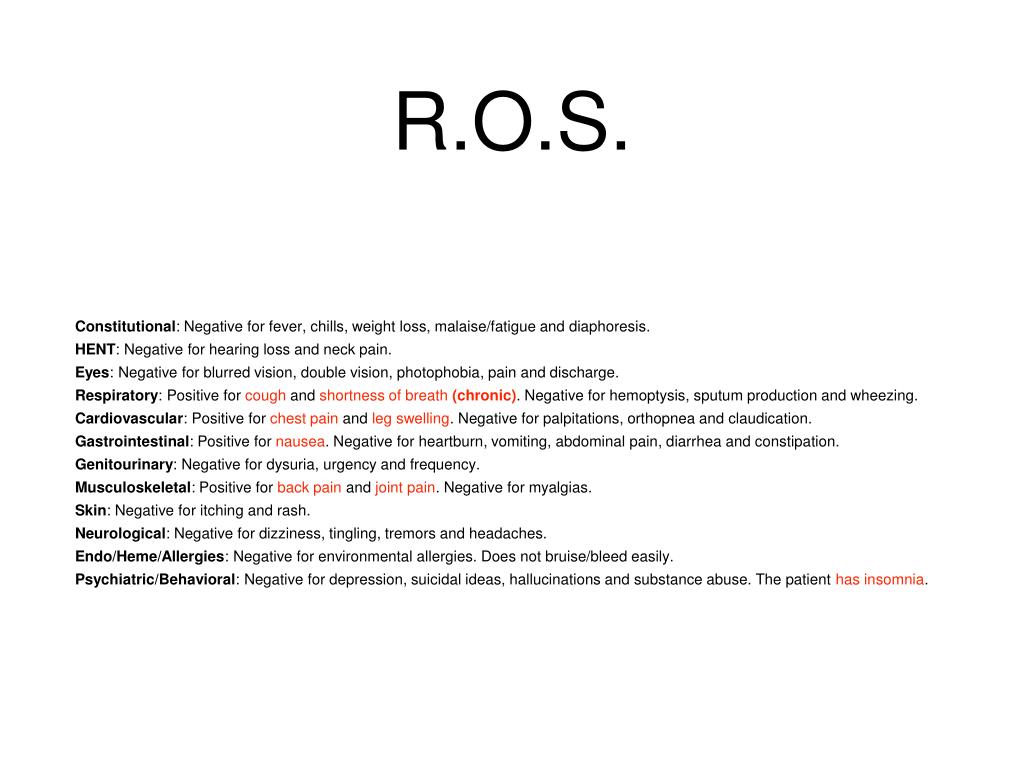

7. R.O.S. • Constitutional: Negative for fever, chills, weight loss, malaise/fatigue and diaphoresis. • HENT: Negative for hearing loss and neck pain. • Eyes: Negative for blurred vision, double vision, photophobia, pain and discharge. • Respiratory: Positive for cough and shortness of breath(chronic). Negative for hemoptysis, sputum production and wheezing. • Cardiovascular: Positive for chest pain and leg swelling. Negative for palpitations, orthopnea and claudication. • Gastrointestinal: Positive for nausea. Negative for heartburn, vomiting, abdominal pain, diarrhea and constipation. • Genitourinary: Negative for dysuria, urgency and frequency. • Musculoskeletal: Positive for back pain and joint pain. Negative for myalgias. • Skin: Negative for itching and rash. • Neurological: Negative for dizziness, tingling, tremors and headaches. • Endo/Heme/Allergies: Negative for environmental allergies. Does not bruise/bleed easily. • Psychiatric/Behavioral: Negative for depression, suicidal ideas, hallucinations and substance abuse. The patient has insomnia.

8. Physical Exam • BP 106/58 • Pulse 70 • Resp rate 20 • Temp 97.3 • SaO2 94% (2L O2)

9. Physical Exam • Constitutional: He appears well-developed and well-nourished. Morbid obesity • HENT: • Head: Normocephalic and atraumatic. Right Ear: External ear normal. Left Ear: External ear normal. • Mouth/Throat: Oropharynx is clear and moist. No oropharyngeal exudate. • Eyes: Conjunctivae and EOM are normal. Pupils are equal, round, and reactive to light. • Neck: Normal range of motion. Neck supple. No JVD present. No tracheal deviation present. No thyromegaly present. • Cardiovascular: Normal rate, regular rhythm and intact distal pulses. Exam reveals no gallop and no friction rub. • Murmur(3/6 systolic murmur) heard. • Pulmonary/Chest: Effort normal and breath sounds normal. No stridor, respiratory distress, wheezes, rales. He exhibits no tenderness. • Abdominal: Soft. Bowel sounds are normal. He exhibits no distension. There is no tenderness. There is no rebound and no guarding. Midline umbilical large reducible herniaMusculoskeletal: Normal range of motion. He exhibits edema(2+ worse on L). He exhibits no tenderness. Lymphadenopathy: He has no cervical adenopathy. Neurological: He is alert and oriented to person, place, and time. He has normal reflexes. No cranial nerve deficit. Coordination normal. • Skin: Skin is warm and dry. No rash noted. No erythema. No pallor. Psychiatric: He has a normal mood and affect. His behavior is normal. Judgment and thought content normal.

10. Lab results • WBC 15.1 • Hgb 11.0 • MCV 95 • Plt 320 Na 136 K 4.3 Cl 96 CO2 31 BUN 40 Cr 1.1 Chol 97 HDL 31 LDL 45 Trig 103

11. Lab Results • CKMB 48.8 • Trop 13.62 • Blood cx from Independence returned positive for strep Viridians.

12. Other studies • EKG: NSR, no ST changes • CXR: Elevated Right Hemidiaphragm, bibasal linear densities. • Echo: EF 50%, severe aortic stenosis, normal systolic fxn • Lexiscan: There is a large perfusion abnormality involving the distal anteroseptal and inferior wall as well as the cardiac apex that may reflect large area of myocardial scar or resting myocardial ischemia.

13. Due to blood culture from Independence, cardiac catheterization was postponed pending follow up blood culture. • Pt placed on Rocephin until blood culture returned negative.

14. Treatment • While waiting for cath pt was placed on: • Rocephin • Heparin, Plavix, ASA • Home regimen for chronic medical conditions

15. Cardiac CatheterizationPerformed 11/8/12 • Mid LAD completely occluded. Distal LAD has faint collaterals from RCA. • RCA has diffuse disease. • LCX has minimal disease. • Recommendation: Medical management.

16. Pt discharged to SNF from Allen 11/12/12

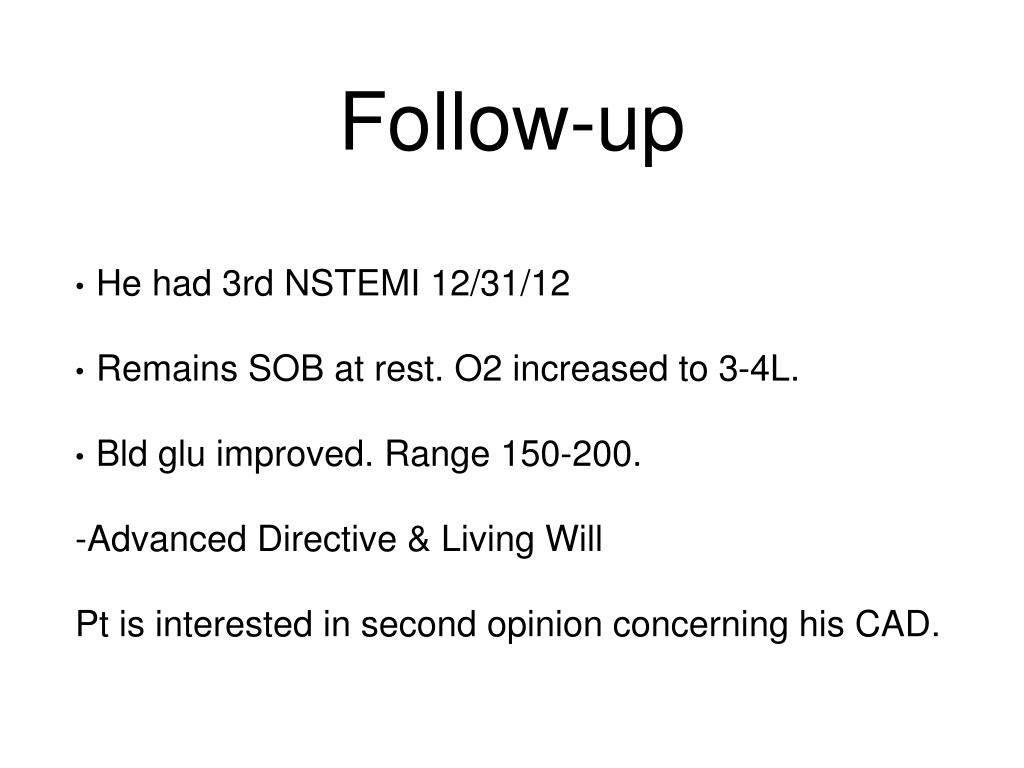

17. Follow-up • He had 3rd NSTEMI 12/31/12 • Remains SOB at rest. O2 increased to 3-4L. • Bld glu improved. Range 150-200. • -Advanced Directive & Living Will • Pt is interested in second opinion concerning his CAD.

18. CABG vs PCI • Revascularization strategies for diabetics with multi vessel disease.

19. Strategies for Multivessel Revascularization in Patients with Diabetes • The BARI (Bypass Angioplasty Revascularization Investigation) trial in the 90’s lead to the recommendation that Diabetics with multi vessel disease undergo a CABG rather than PCI. • However, clinical practice did not change.

20. Strategies for Multivessel Revascularization in Patients with Diabetes • BARI 2D • ARTS (Arterial Revascularization Therapies Study) • CARDia (Coronary Artery Revascularization in Diabetes) • SYNTAX (SYNergy between percutaneous coronary intervention with TAXus and cardiac surgery)

21. FREEDOM Trial

22. FREEDOM Trial • Farkouh ME, Dangas G, Leon MB, et al. Design of the Future REvasculariza- tion Evaluation in patients with Diabetes mellitus: Optimal management of Multi- vessel disease (FREEDOM) Trial. Am Heart J 2008;155:215-23.

23. Strategies for Multivessel Revascularization in Patients with Diabetes • FREEDOM trial Methods • Enrolled Diabetics with confirmed multi vessel CAD with stenosis of >70% • Followed 1900 pt for up to 6.75 yrs (2 yr min) • NIH Stroke Scale & Rankin scale used to screen pts during each follow up visit. • Pts randomized to either CABG or PCI group • PCI utilized DES only with dual anti platelet therapy for 12 months

24. Strategies for Multivessel Revascularization in Patients with Diabetes • Arterial revascularization was encouraged for the CABG group. • Both groups had goal of: • LDL <70 • BP <130/80 • A1c <7%

25. Strategies for Multivessel Revascularization in Patients with Diabetes • Outcomes: • Death, all cause • Nonfatal myocardial infarction • Nonfatal stroke

26. Strategies for Multivessel Revascularization in Patients with Diabetes • Population

27. Strategies for Multivessel Revascularization in Patients with Diabetes • Results: • Primary outcome occurred in 352/1900. • 205 PCI group 147 CABG group • Divergence of the curves began at yr 2 • At 30 days: 26 PCI group 42 CABG group

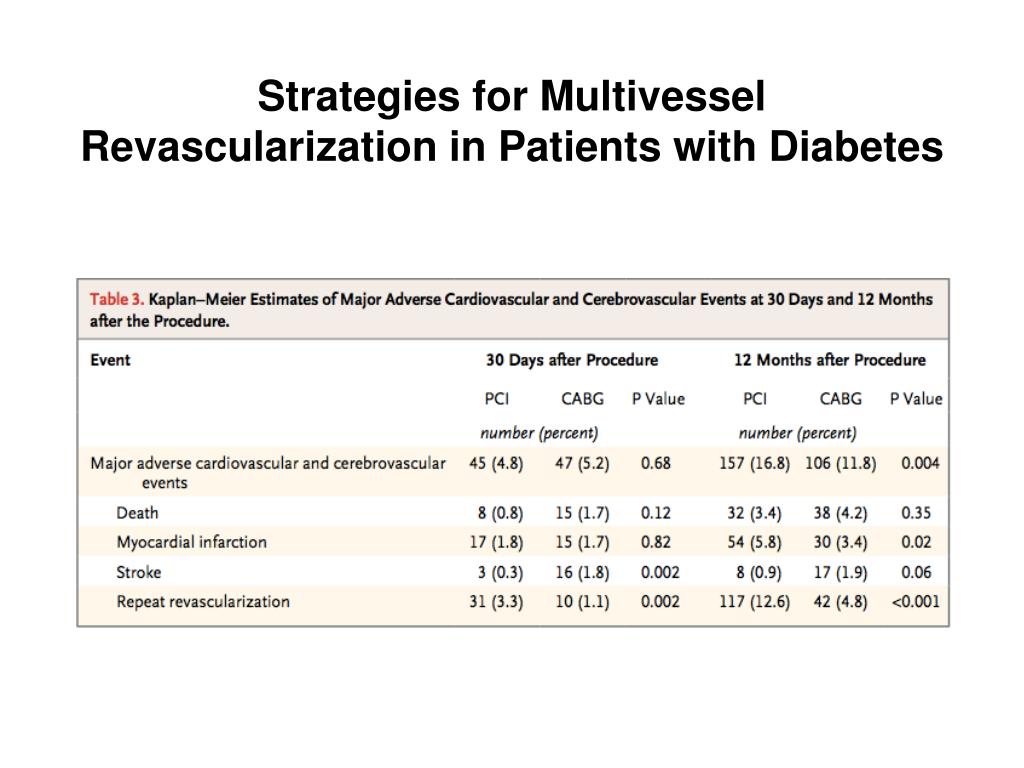

28. Strategies for Multivessel Revascularization in Patients with Diabetes

29. Strategies for Multivessel Revascularization in Patients with Diabetes

30. Strategies for Multivessel Revascularization in Patients with Diabetes

31. Pt S.H. • Pt referred to cardiology • Cardiologist questions prognosis and believes that pt will be fine after PCI. • PCI scheduled by cardiologist

32. Pt S.H. • Following day, notified that pt passed away during PCI.
