  1. CISCO

  2. Computer Networking

  3. The Internet

  4. The Internet Yesterday

  5. Basics of Computing

  6. Parts of a Computer • CPU - Central Processing Unit • Memory - ROM, RAM, etc. • Interface - Modem, Video Card, Floppy, etc. All are connected by a bus which is plug in slots.

  7. NIC • Network Interface Card • PCs use IDE or PCI • Laptops use PCMCIA (“credit card”) TCP/IP - the computers address on the network

  8. LAN Local Area Network used within or between offices WAN Wide Area Network used between buildings or within a “complex” Networks - a “conglomeration” of people or things focused on a common goal

  9. How is information stored in computers? • By using the binary number system • The only possible symbols or "bits", are 1 and 0. • The bits represent text, pictures, and sounds • A 1 bit is often represented by the presence of voltage on a copper conducting cable or light in an optical fiber

  10. Imagine measuring the voltage at one point on the cable as time goes on (for a fiber, imagine measuring the light intensity versus time). • Your measurements would allow you to create a graph of voltage versus time (for a fiber, light intensity versus time).

  11. The numbering system most frequently used is the decimal numbering system. A decimal numbering system is based on powers of 10: 100, 101, 102, 103, 104, etc. 100 = 1 101 = 10 X 1 or 10 102 = 10 X 10 or 100 103 =10 X 10 X 10, or 1000 104 = ?????????

  12. When counting in the decimal system when you reach the number 9 you must add another digit. Examples: Count 9, 10 Count 99, 100 Count 999, 1000

  13. Binary numbering system (Bit - binary digit) How does a binary number system differ from a decimal numbering system? A binary numbering system is based on powers of 2 20, 21, 22, 23, 24, etc. 20 = 1 21 = 2 X 1 or 2 22 = 2 X 2 or 4 23 =2 X 2 X 2, or 8 24 = ?????????

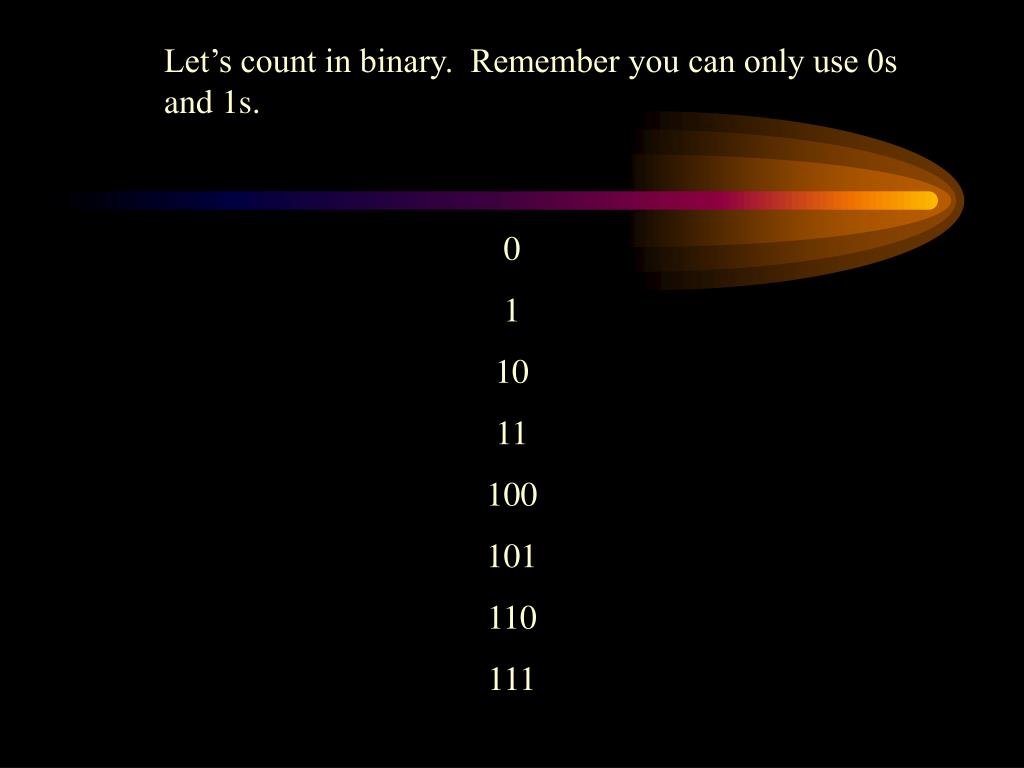

  14. Let’s count in binary. Remember you can only use 0s and 1s. 0 1 10 11 100 101 110 111

  15. Let’s take a break and complete a worksheet on converting decimal to binary and vice versa. Bonus: What would an octet of all ones equal?

  16. American Standard Computer Information Interchange

  17. Water Hiway System Radio Audio Media Coaxial Cable Category 5 Cable (Cat 5) Fiber Optic Bandwidth determines throughput (because file are transferred faster) slow or fast 14.4K or 56K Bandwidth
