  1. U.S. AIR FORCE AUXILIARY Air OperationsBranch Director Course Safety IssuesPart 1

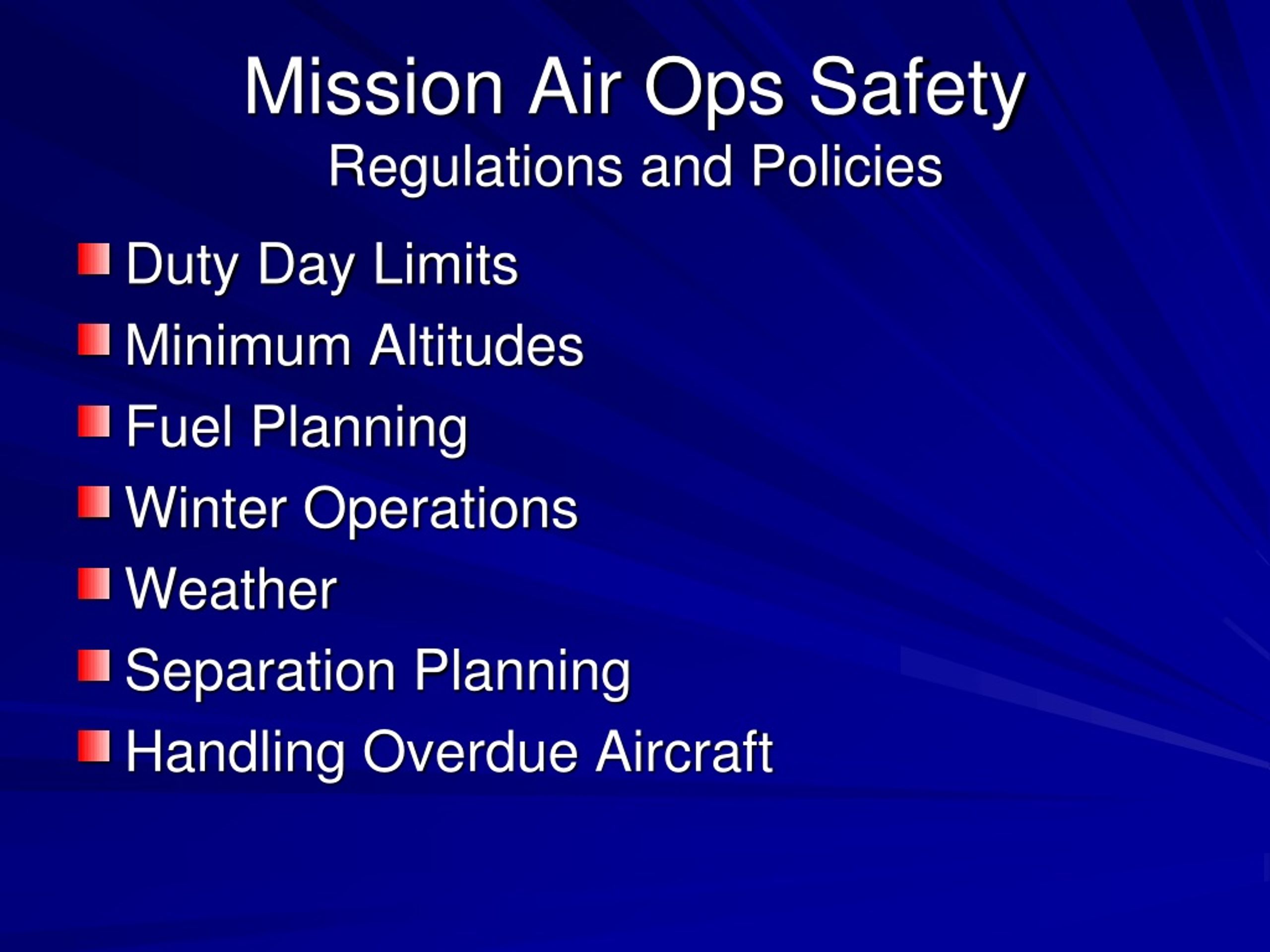

  2. Mission Air Ops Safety Regulations and Policies • Duty Day Limits • Minimum Altitudes • Fuel Planning • Winter Operations • Weather • Separation Planning • Handling Overdue Aircraft

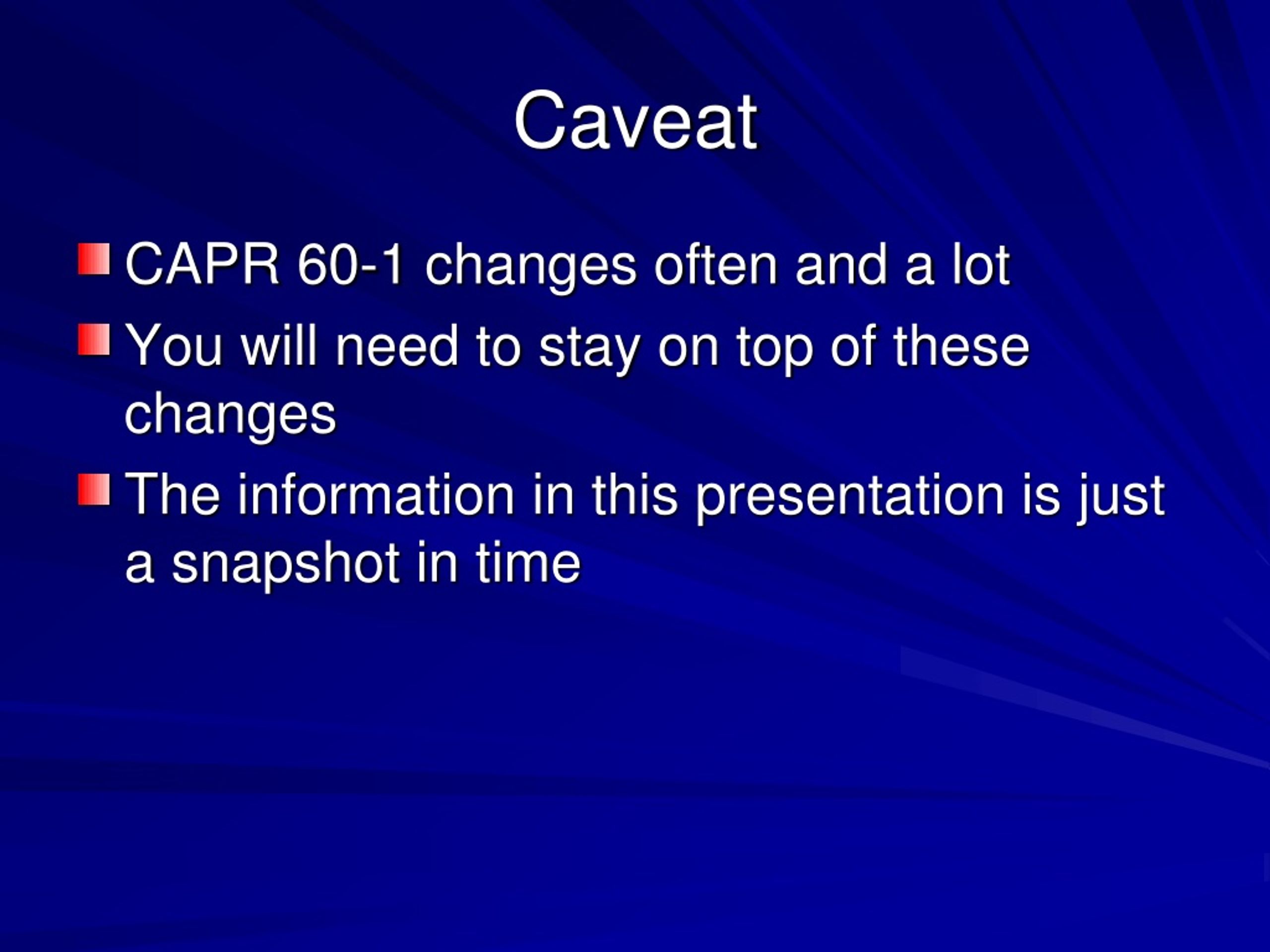

  3. Caveat • CAPR 60-1 changes often and a lot • You will need to stay on top of these changes • The information in this presentation is just a snapshot in time

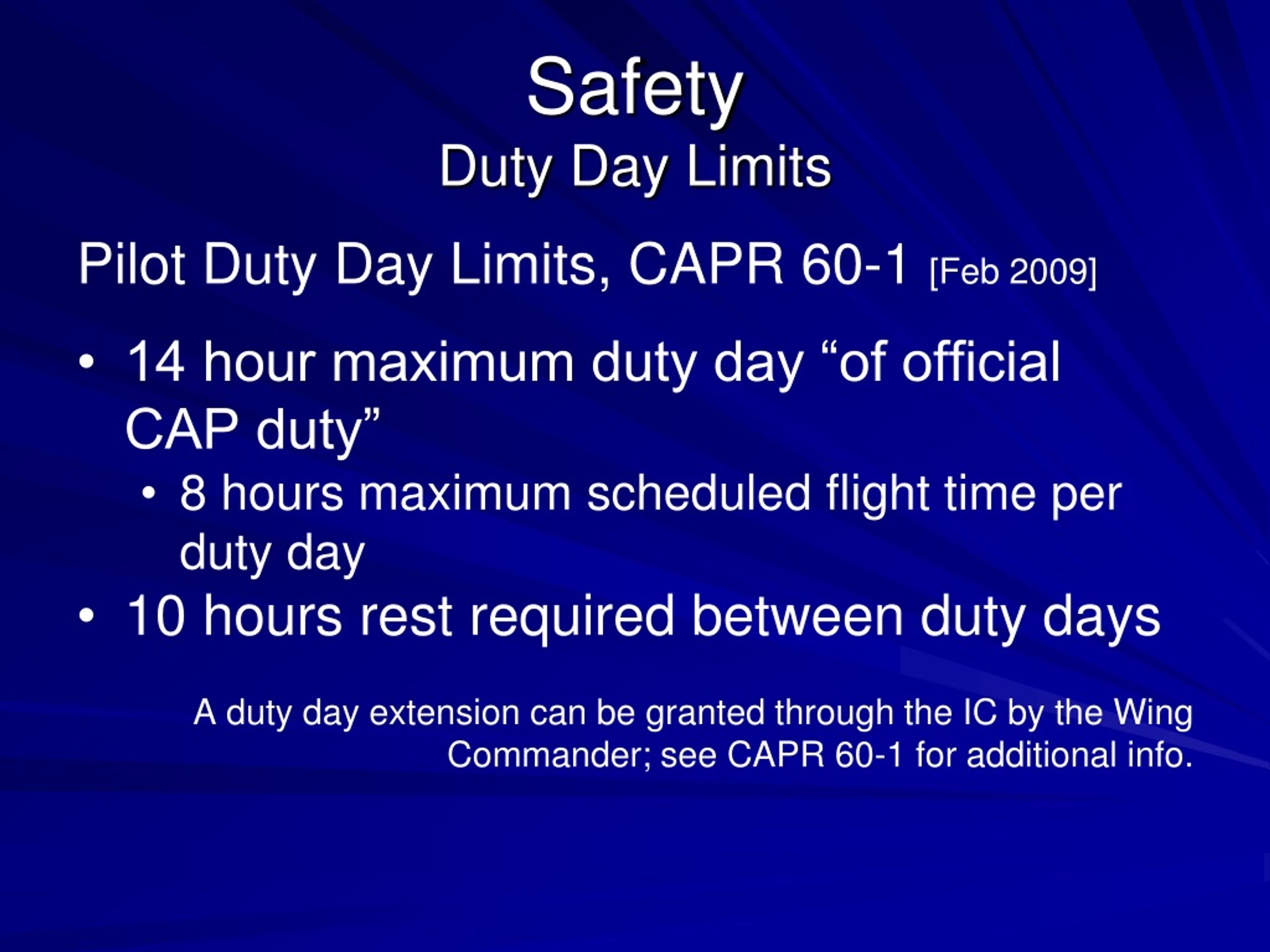

  4. SafetyDuty Day Limits Pilot Duty Day Limits, CAPR 60-1 [Feb 2009] • 14 hour maximum duty day “of official CAP duty” • 8 hours maximum scheduled flight time per duty day • 10 hours rest required between duty days A duty day extension can be granted through the IC by the Wing Commander; see CAPR 60-1 for additional info.

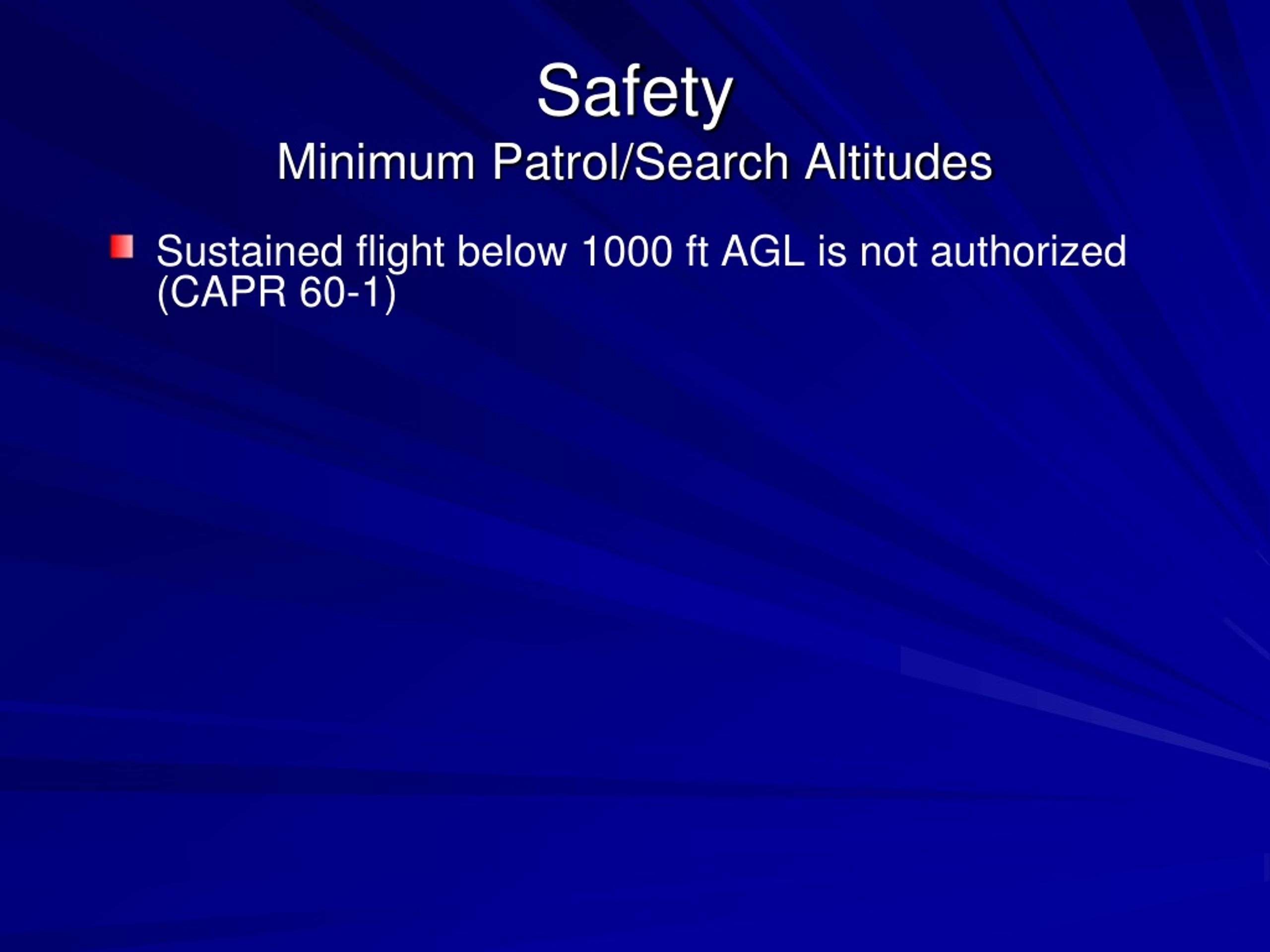

  5. SafetyMinimum Patrol/Search Altitudes • Sustained flight below 1000 ft AGL is not authorized (CAPR 60-1)

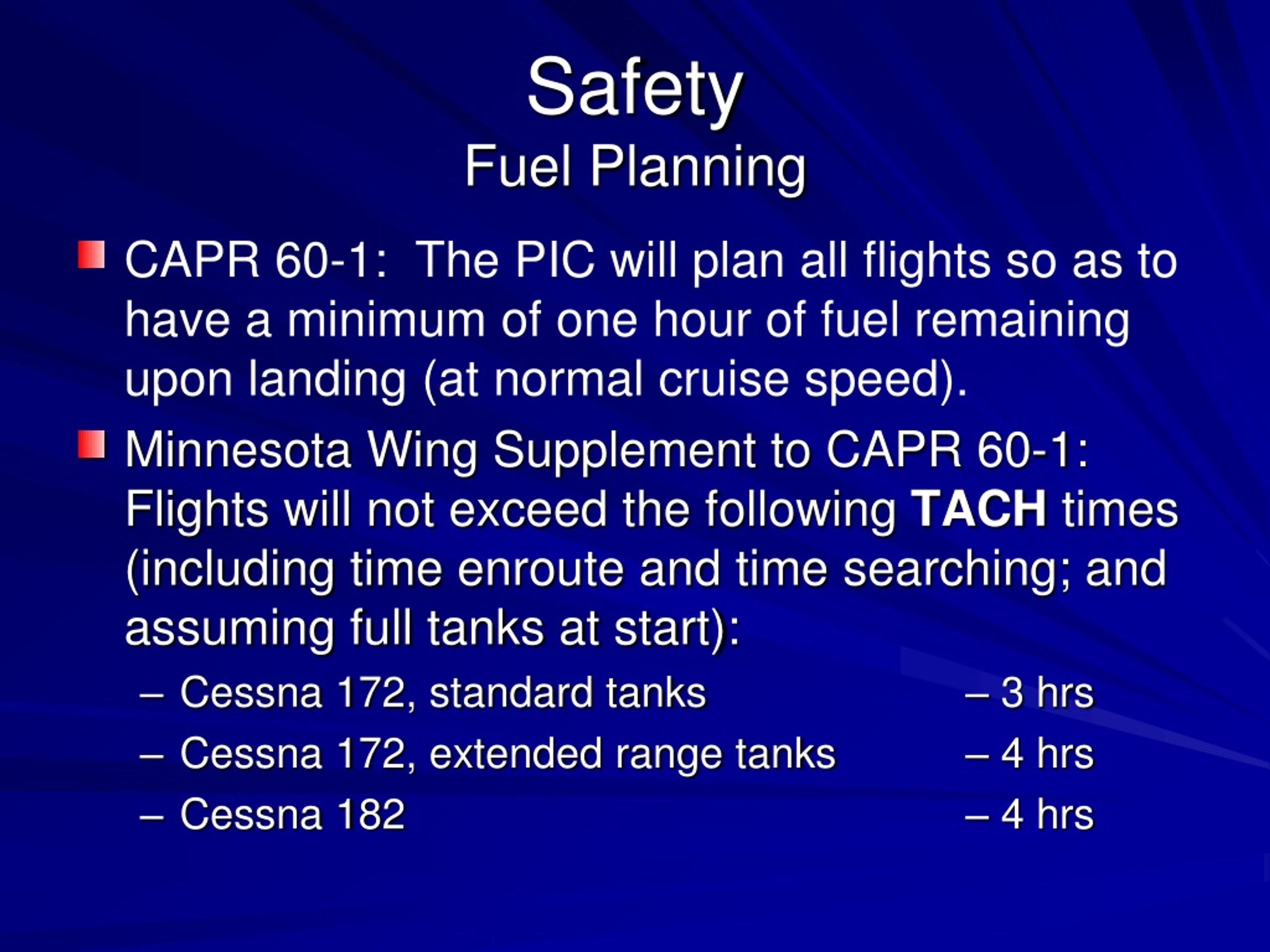

  6. SafetyFuel Planning • CAPR 60-1: The PIC will plan all flights so as to have a minimum of one hour of fuel remaining upon landing (at normal cruise speed). • Minnesota Wing Supplement to CAPR 60-1: Flights will not exceed the following TACH times (including time enroute and time searching; and assuming full tanks at start): • Cessna 172, standard tanks – 3 hrs • Cessna 172, extended range tanks – 4 hrs • Cessna 182 – 4 hrs

  7. SafetyWinter Flight Operations (MN Wing Policy) • Tanis heater to be used for parked aircraft 24x7 November 15 through April 15 (or any day the temperature is forecast to be below 40°F for more than 24 hours) • Winter kits IAW POH • Minimum power settings for pilots for temperatures below 10°F

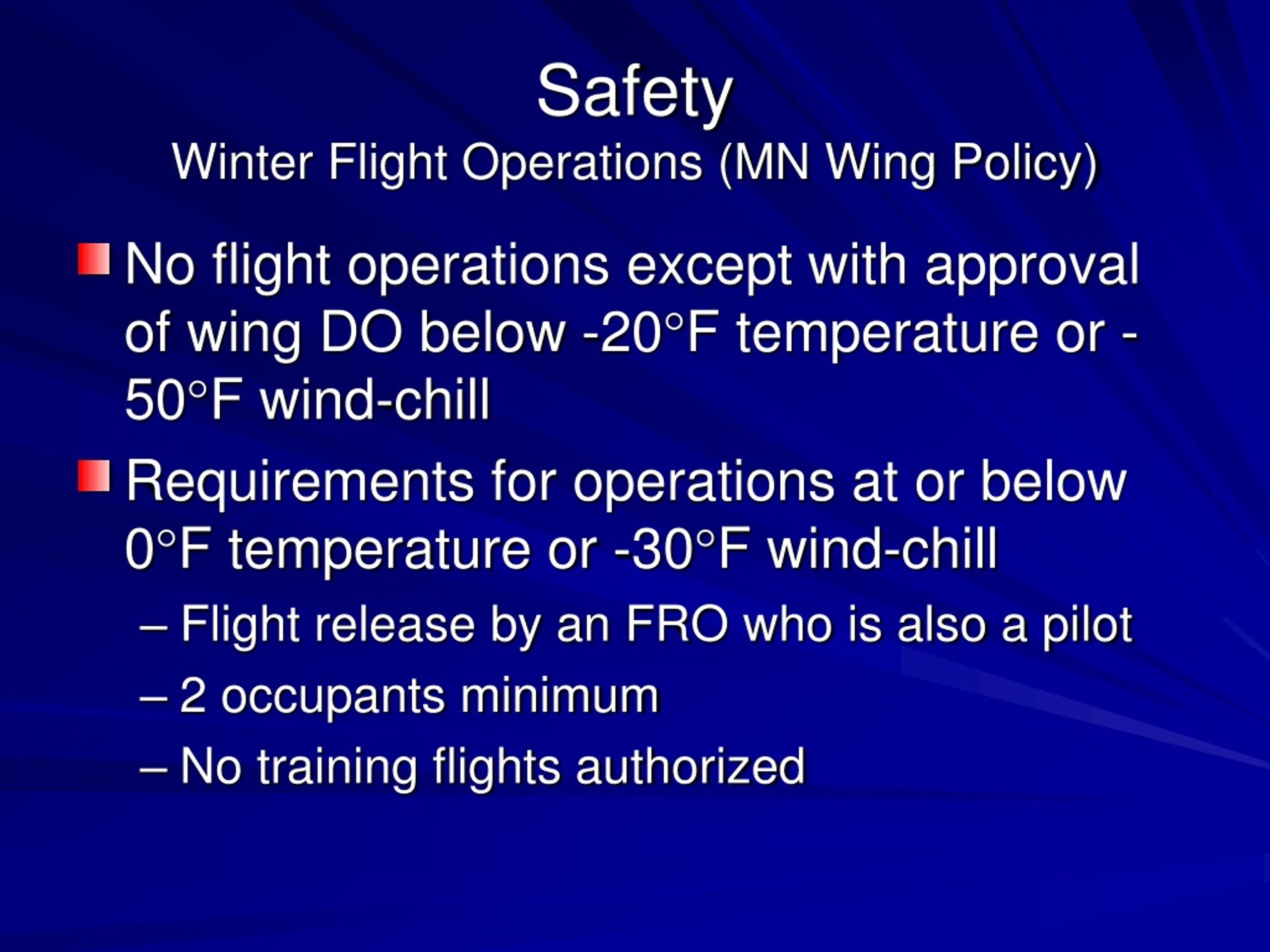

  8. SafetyWinter Flight Operations (MN Wing Policy) • No flight operations except with approval of wing DO below -20°F temperature or -50°F wind-chill • Requirements for operations at or below 0°F temperature or -30°F wind-chill • Flight release by an FRO who is also a pilot • 2 occupants minimum • No training flights authorized

  9. Safety – Air Operations Issues • Weather • Air branch director must stay informed • Don’t forget flight release responsibility • FRO should be ready to say no (safety responsibility is shared with PIC) • Weather information should be shared with planning section – they need to know too! • Remember to recheck multiple times during the day • Weather can change dramatically and surprisingly in short span of time • Even short-term forecasts can miss the mark

  10. Safety – Air Operations Issues • Separation Planning • Mission sorties must be planned to ensure aircraft are separated while executing search patterns • Quarter grid or equivalent area separation is desired • Alternatively, altitude may also be used (no less than 500 ft. separation) • Aircraft executing search patterns in close proximity to each other would be unsafe • Aircrews should be informed as to what other sorties are assigned nearby • Separation must also be managed with other agencies and emergent volunteers

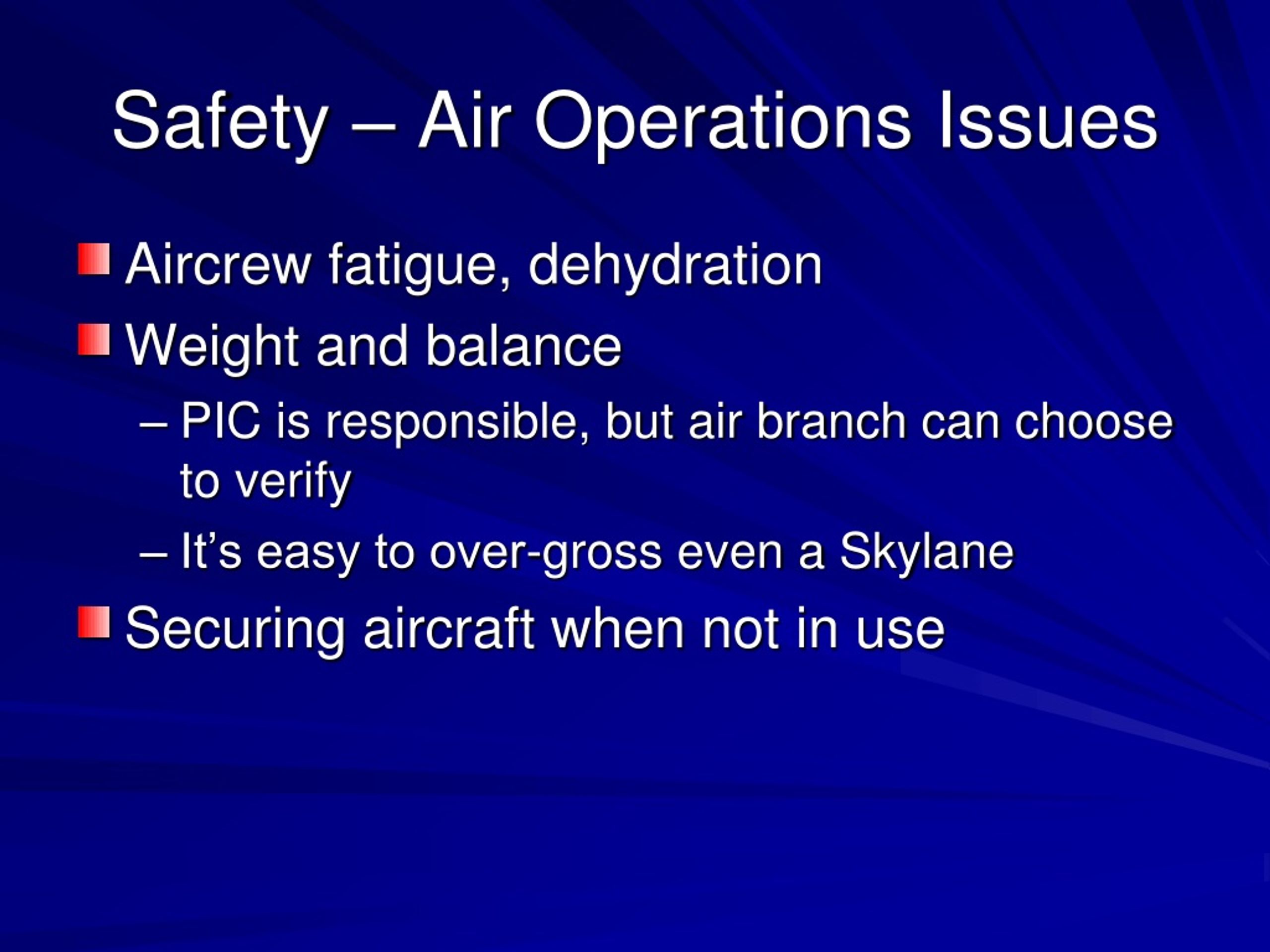

  11. Safety – Air Operations Issues • Aircrew fatigue, dehydration • Weight and balance • PIC is responsible, but air branch can choose to verify • It’s easy to over-gross even a Skylane • Securing aircraft when not in use

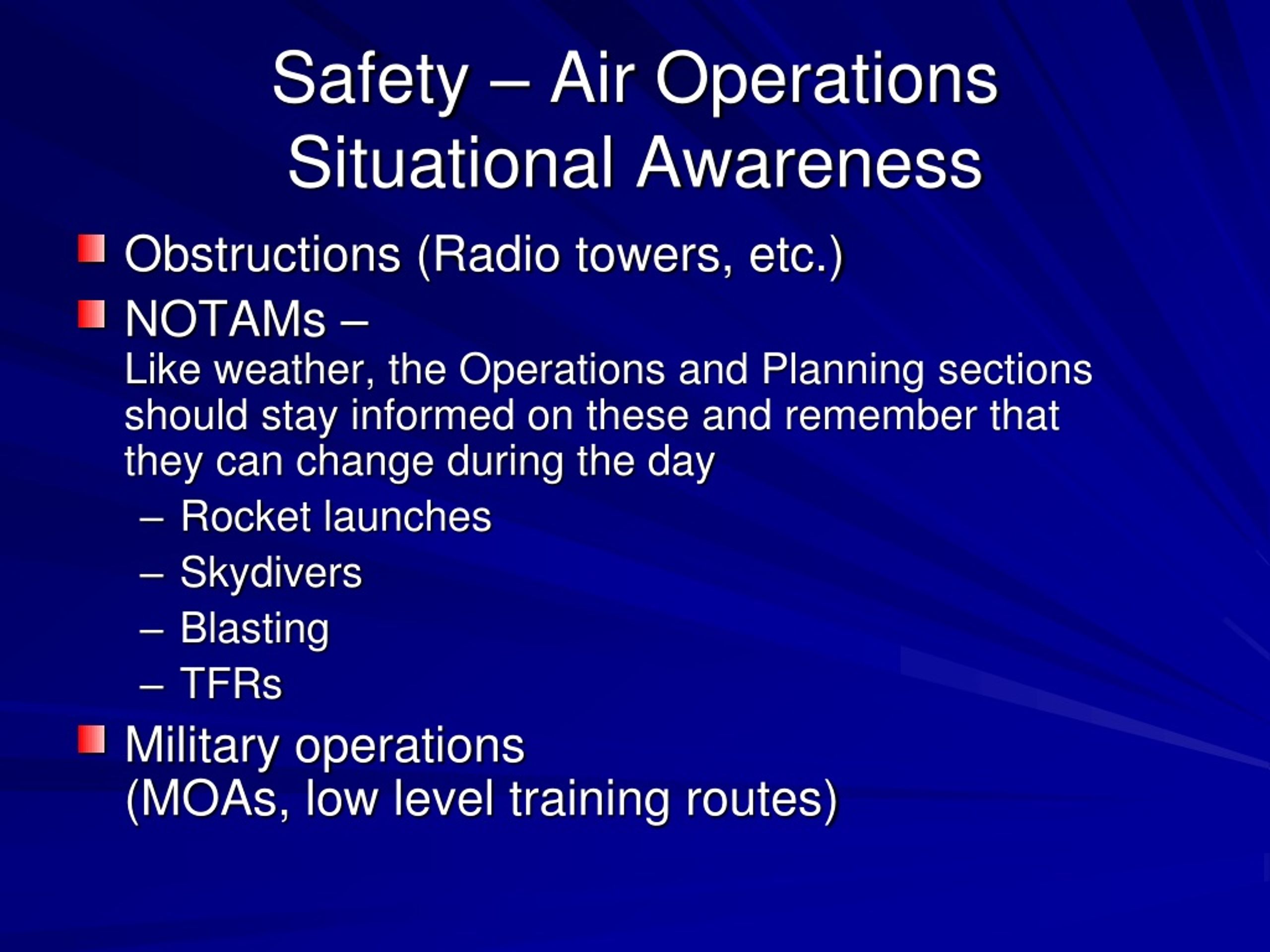

  12. Safety – Air Operations Situational Awareness • Obstructions (Radio towers, etc.) • NOTAMs – Like weather, the Operations and Planning sections should stay informed on these and remember that they can change during the day • Rocket launches • Skydivers • Blasting • TFRs • Military operations (MOAs, low level training routes)

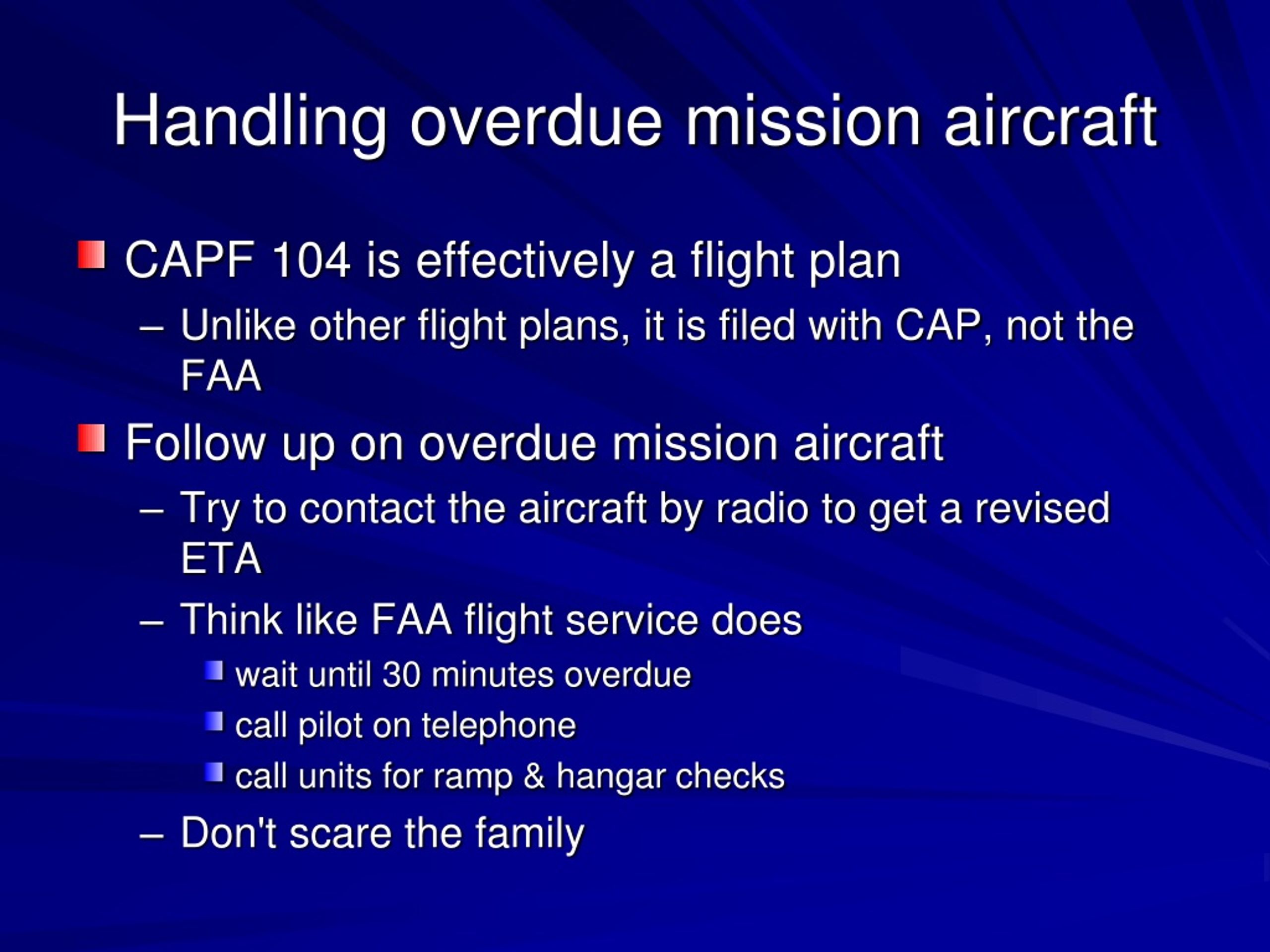

  13. Handling overdue mission aircraft • CAPF 104 is effectively a flight plan • Unlike other flight plans, it is filed with CAP, not the FAA • Follow up on overdue mission aircraft • Try to contact the aircraft by radio to get a revised ETA • Think like FAA flight service does • wait until 30 minutes overdue • call pilot on telephone • call units for ramp & hangar checks • Don't scare the family

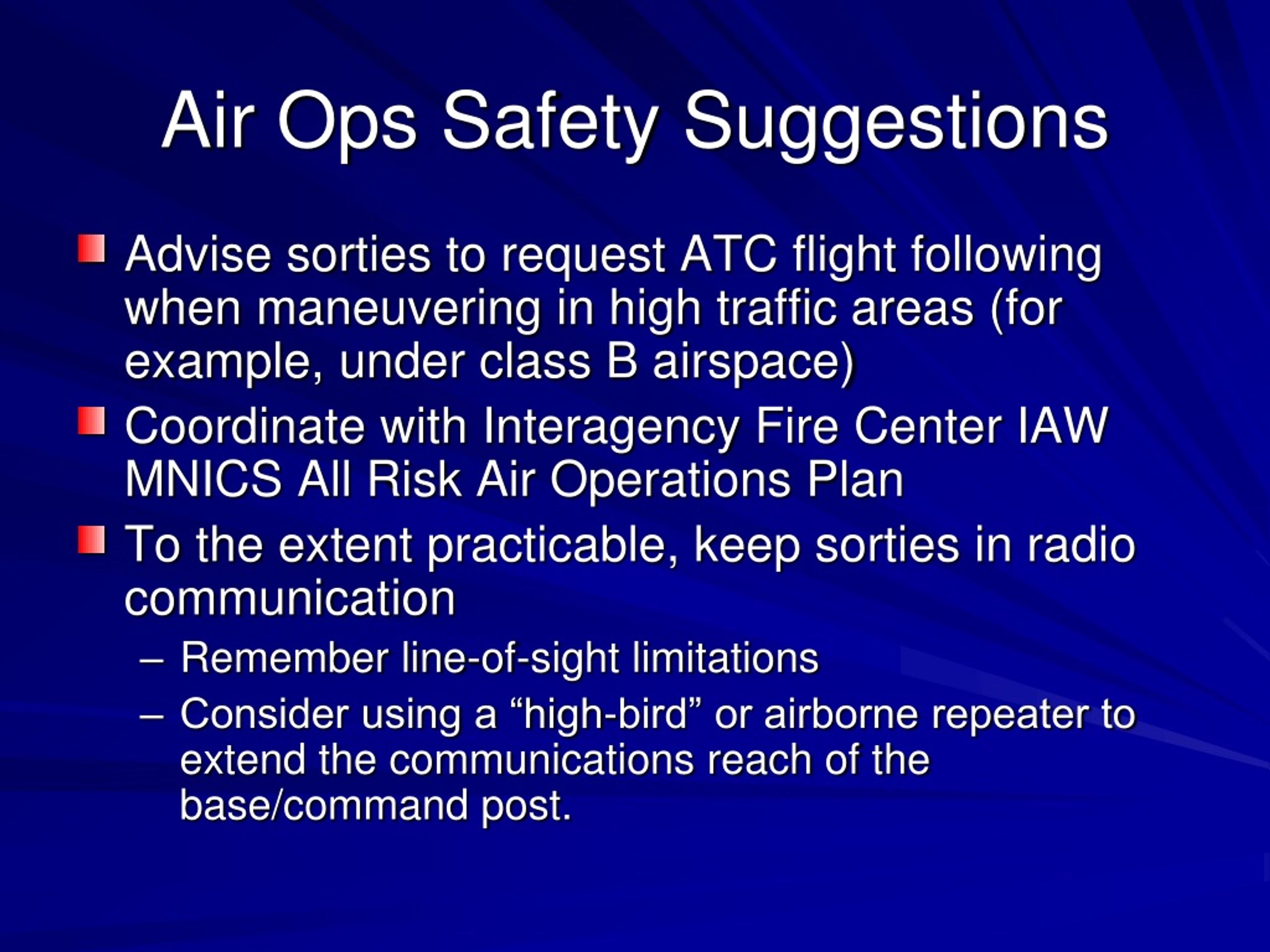

  14. Air Ops Safety Suggestions • Advise sorties to request ATC flight following when maneuvering in high traffic areas (for example, under class B airspace) • Coordinate with Interagency Fire Center IAW MNICS All Risk Air Operations Plan • To the extent practicable, keep sorties in radio communication • Remember line-of-sight limitations • Consider using a “high-bird” or airborne repeater to extend the communications reach of the base/command post.

  15. Questions?
