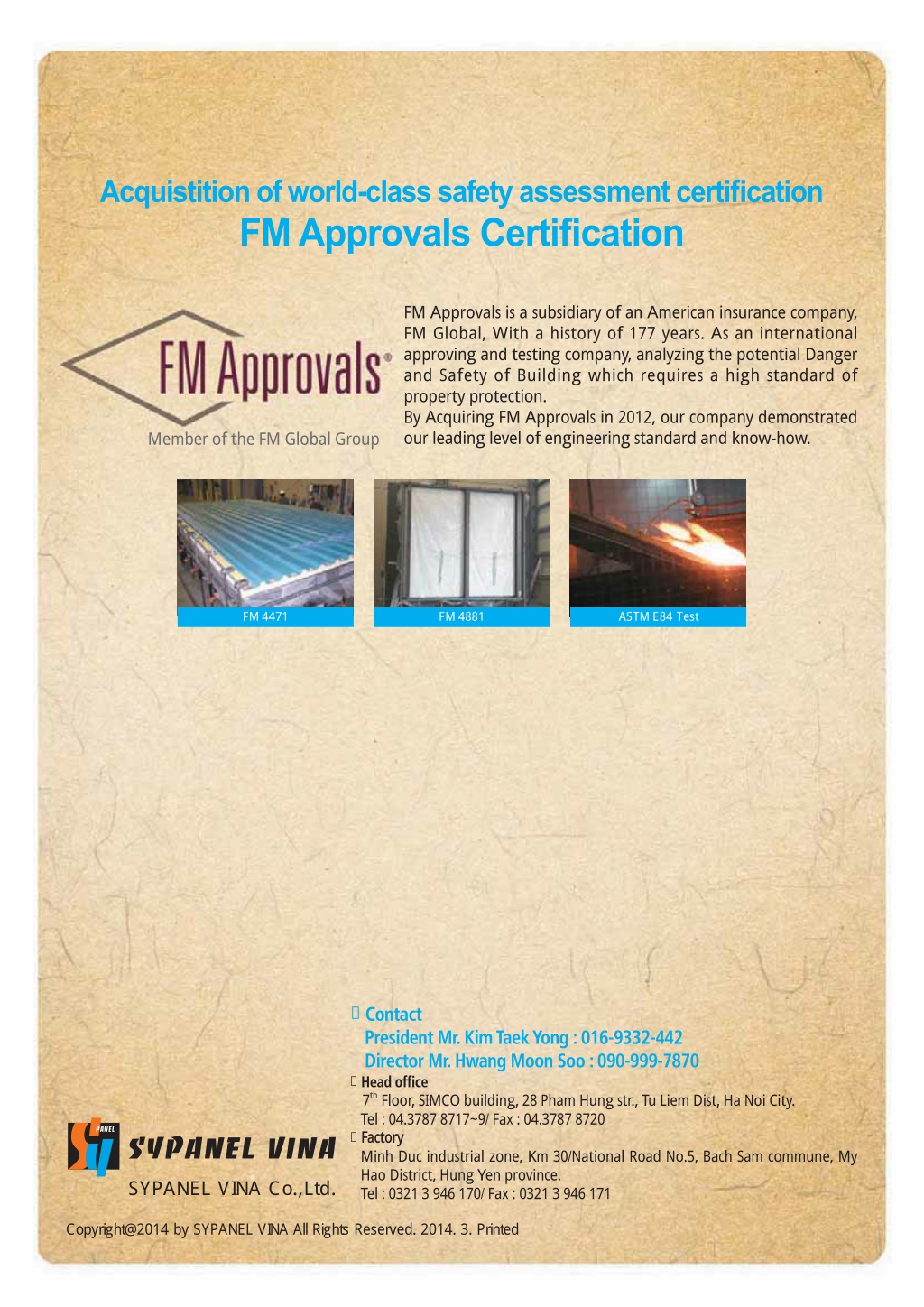

1. ?????????????????????????????????????????????????????????? ????????????????????????? FM Approvals is a subsidiary of an American insurance company, FM Global, With a history of 177 years. As an international approving and testing company, analyzing the potential Danger and Safety of Building which requires a high standard of property protection. By Acquiring FM Approvals in 2012, our company demonstrated our leading level of engineering standard and know-how. Member of the FM Global Group FM 4471 FM 4881 ASTM E84 Test ◆⃞Contact President Mr. Kim Taek Yong : 016-9332-442 Director Mr. Hwang Moon Soo : 090-999-7870 ?Head office 7th Floor, SIMCO building, 28 Pham Hung str., Tu Liem Dist, Ha Noi City. Tel : 04.3787 8717~9/ Fax : 04.3787 8720 ?Factory Minh Duc industrial zone, Km 30/National Road No.5, Bach Sam commune, My Hao District, Hung Yen province. Tel : 0321 3 946 170/ Fax : 0321 3 946 171 SYPANEL VINA Co.,Ltd. Copyright@2014 by SYPANEL VINA All Rights Reserved. 2014. 3. Printed

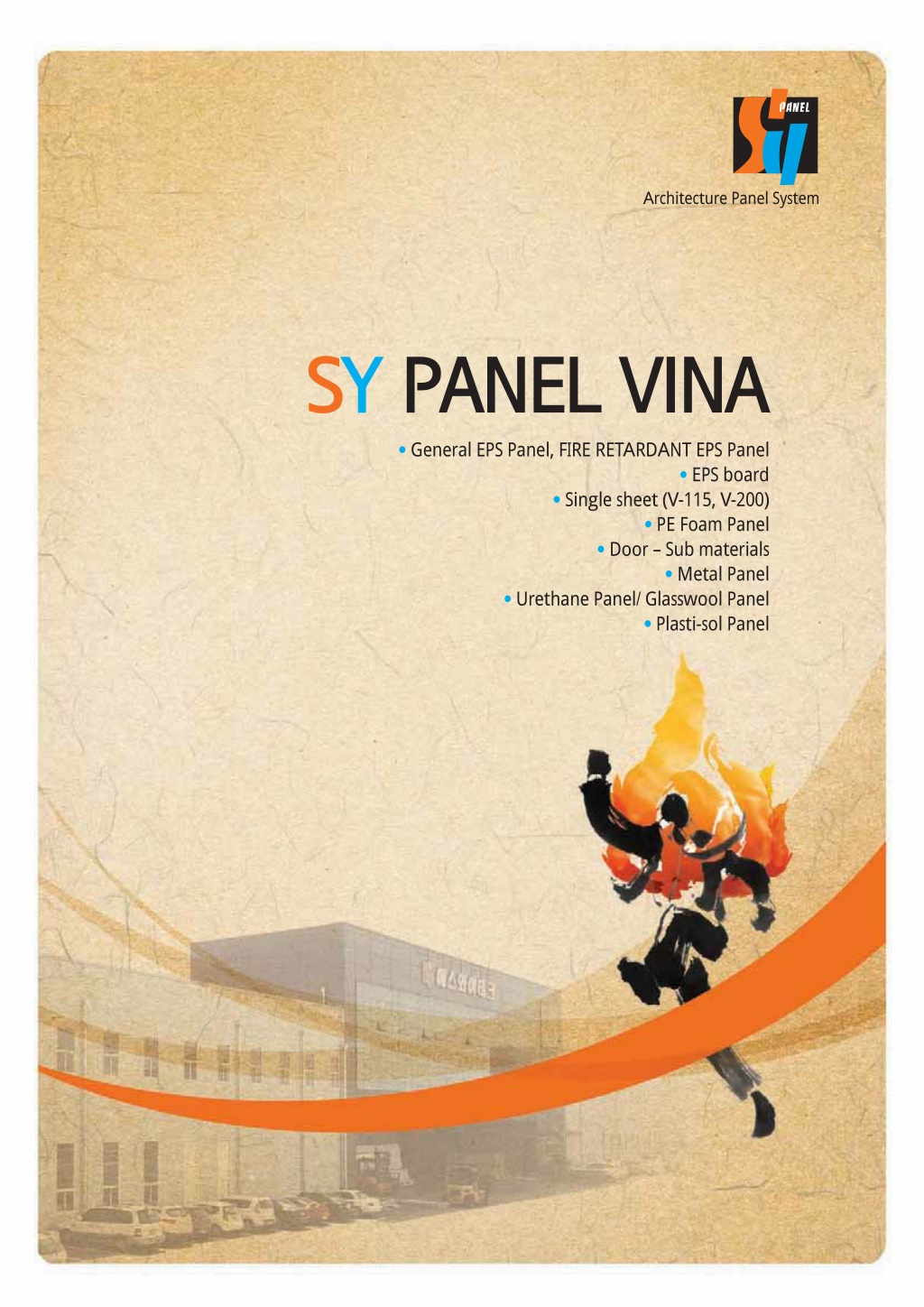

2. Architecture Panel System ?????????????? ? ??General EPS Panel, FIRE RETARDANT EPS Panel ??EPS board ??Single sheet (V-115, V-200) ??PE Foam Panel ??Door – Sub materials ??Metal Panel ??Urethane Panel/ Glasswool Panel ??Plasti-sol Panel

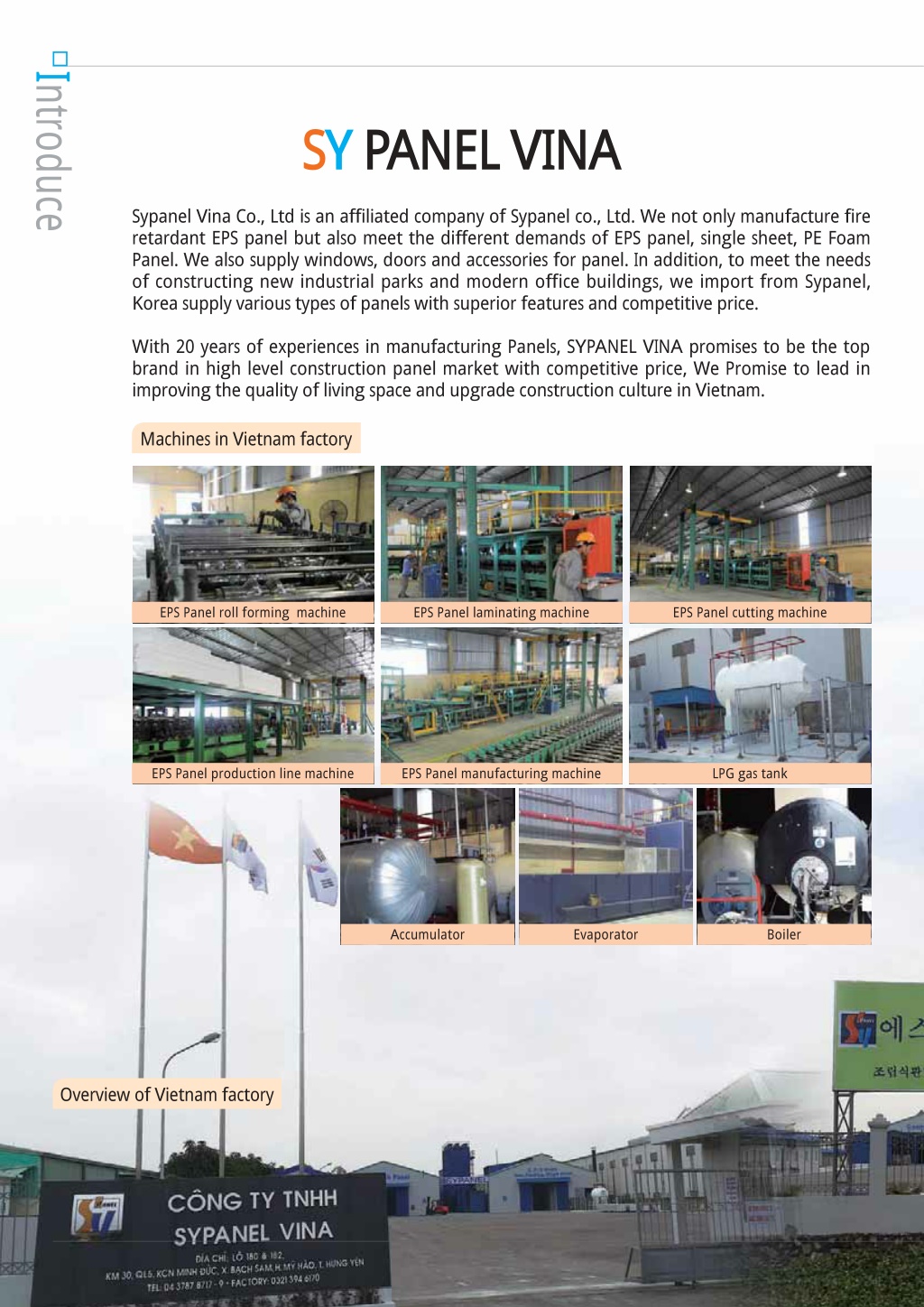

3. Introduce SY PANEL VINA Sypanel Vina Co., Ltd is an affiliated company of Sypanel co., Ltd. We not only manufacture fire retardant EPS panel but also meet the different demands of EPS panel, single sheet, PE Foam Panel. We also supply windows, doors and accessories for panel. In addition, to meet the needs of constructing new industrial parks and modern office buildings, we import from Sypanel, Korea supply various types of panels with superior features and competitive price. With 20 years of experiences in manufacturing Panels, SYPANEL VINA promises to be the top brand in high level construction panel market with competitive price, We Promise to lead in improving the quality of living space and upgrade construction culture in Vietnam. Machines in Vietnam factory EPS Panel roll forming machine EPS Panel laminating machine EPS Panel cutting machine EPS Panel production line machine EPS Panel manufacturing machine LPG gas tank Accumulator Evaporator Boiler Overview of Vietnam factory

4. Introduce SY PANEL Co. Ltd –No.1 Enterprise in the Panel manufacturing Industry in Korea for 7 consecutive years Headquarters in Suwon, Office in Seoul and 14 sales agents throughout the nation. With largest manufacturing facilities and superior product quality, SYPANEL is recognized as the leading company in panel manufacturing in Korea for 7 consecutive years. Factory in Korea y ??Dunpo Plant ? ??Urethane Panel Production Line ? ??Urethane Panel cooling system ? ??Inju Plant ?? ?The largest sales and distribution network in Korea Panel Construction in Korea Seoul Office Pyeongtaek Plant Suwon Headquarter Dunpo Plant Inju Plant Jecheon Plant ▲ V66 Daehan SeongMeong ▲ Metal Panel LG Philips LCD Chunan Plant Yeongcheon Plant Nonsan Plant Sunchang Plant * 8 Plants: Pyeongtaek, Dunpo, Inju, Chunan, Nonsan, Jecheon, Yeongcheon, Sunchang, * 7 sales Agents ▲ Metal Panel Uijeongbu Home Plus 2 |3 SYPANEL VINA

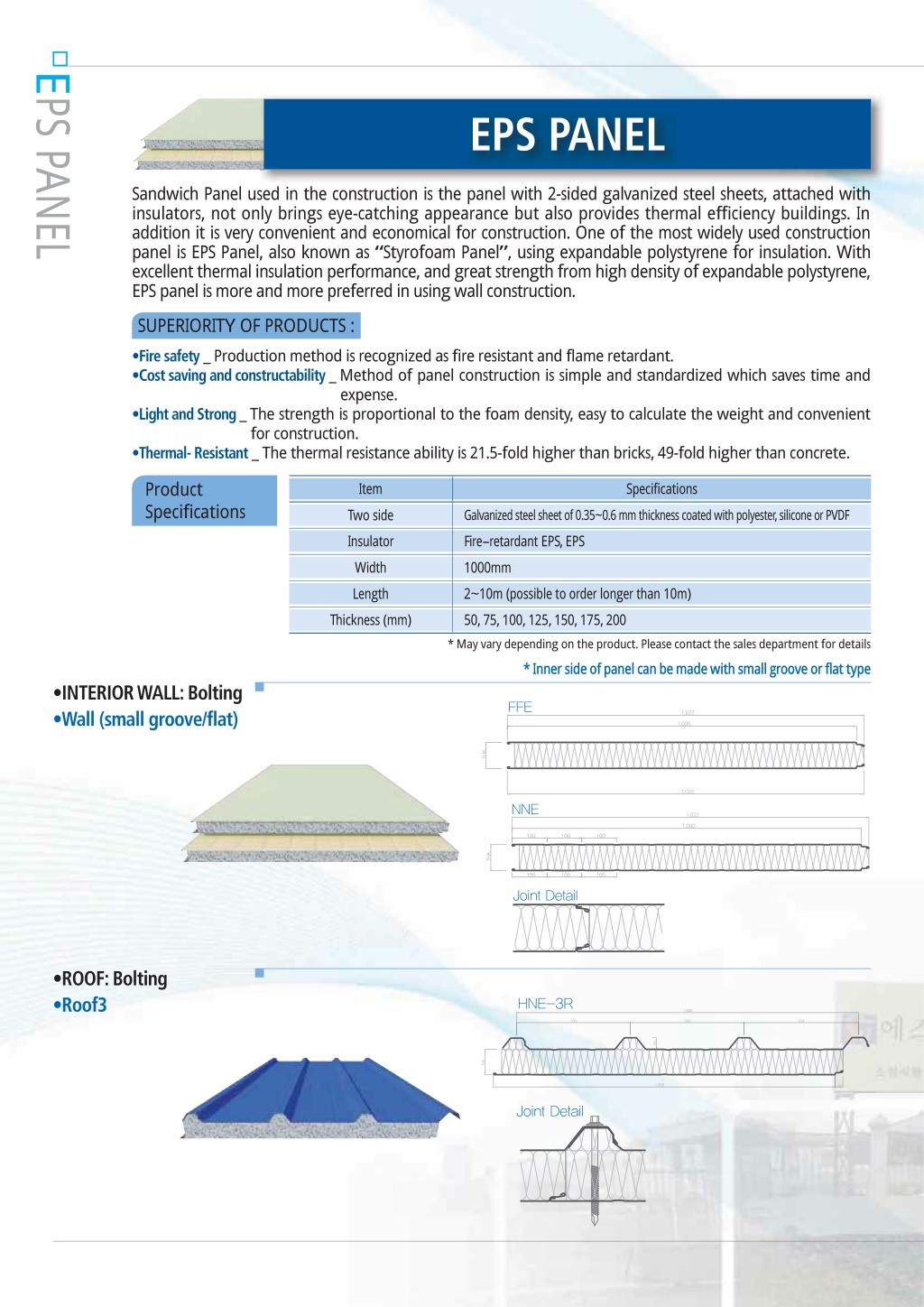

5. EPS PANEL EPS PANEL Sandwich Panel used in the construction is the panel with 2-sided galvanized steel sheets, attached with insulators, not only brings eye-catching appearance but also provides thermal efficiency buildings. In addition it is very convenient and economical for construction. One of the most widely used construction panel is EPS Panel, also known as “Styrofoam Panel”, using expandable polystyrene for insulation. With excellent thermal insulation performance, and great strength from high density of expandable polystyrene, EPS panel is more and more preferred in using wall construction. SUPERIORITY OF PRODUCTS : ??ire safety _ Production method is recognized as fire resistant and flame retardant. ?Cost saving and constructa?ility _ Method of panel construction is simple and standardized which saves time and expense. ?Light and Strong_ The strength is proportional to the foam density, easy to calculate the weight and convenient for construction. ?Thermal- ?esistant _ The thermal resistance ability is 21.5-fold higher than bricks, 49-fold higher than concrete. Product Specifications Item Specifications Two side Galvanized steel sheet of 0.35~0.6 m m thickness coated with polyester , silicone or PVDF Insulator Fire–retardant EPS, EPS Width 1000mm Length 2~10m (possible to order longer than 10m) Thickness (mm) 50, 75, 100, 125, 150, 175, 200 * May vary depending on the product. Please contact the sales department for details * Inner side of panel can be made with small groove or flat type ?INTE?I???ALL: ?olting ??all ?small groove?flat? ?????: ?olting ??oof3

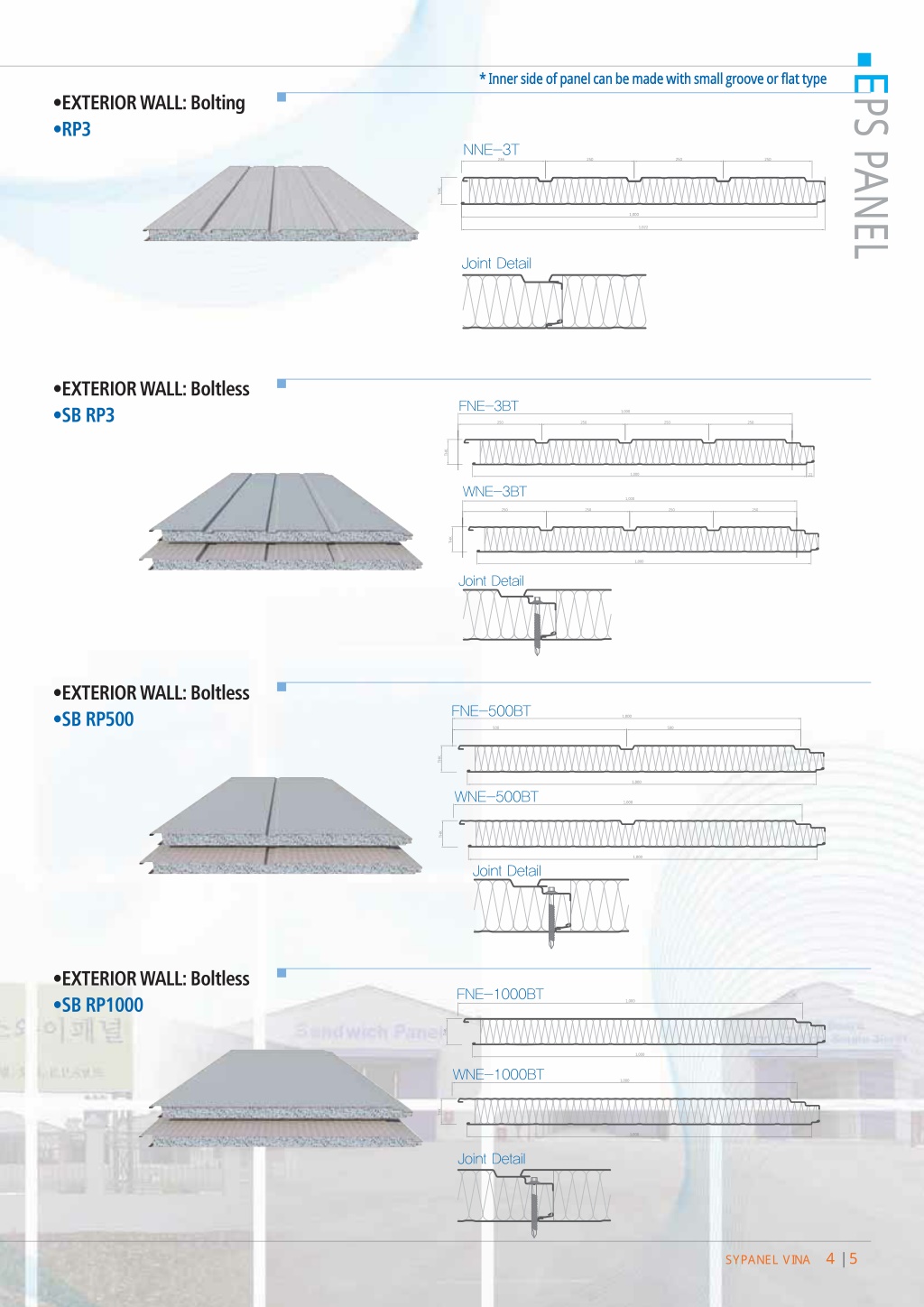

6. * Inner side of panel can be made with small groove or flat type EPS PANEL ?E?TE?I???ALL: ?olting ??P3 ?E?TE?I???ALL: ?oltless ?S??P3 ?E?TE?I???ALL: ?oltless ?S??P?00 ?E?TE?I???ALL: ?oltless ?S??P1000 4 |5 SYPANEL VINA

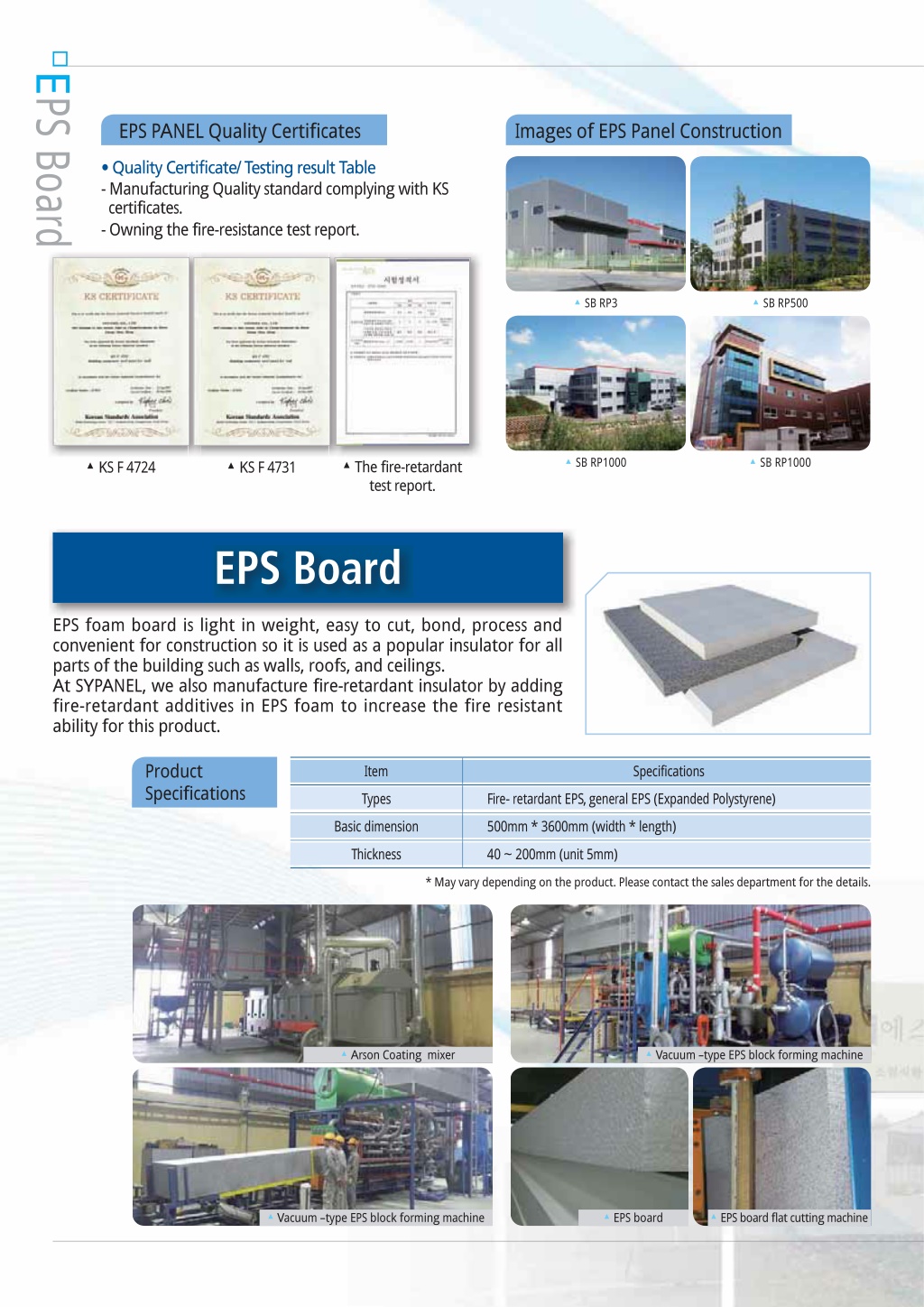

7. EPS Board EPS PANEL Quality Certificates Images of EPS Panel Construction ??????????????????????????????????????????? - Manufacturing Quality standard complying with KS certificates. - Owning the fire-resistance test report. ▲ SB RP3 ▲ SB RP500 ▲ SB RP1000 ▲ SB RP1000 ▲ The fire-retardant test report. ▲ KS F 4724 ▲ KS F 4731 EPS ?oard EPS foam board is light in weight, easy to cut, bond, process and convenient for construction so it is used as a popular insulator for all parts of the building such as walls, roofs, and ceilings. At SYPANEL, we also manufacture fire-retardant insulator by adding fire-retardant additives in EPS foam to increase the fire resistant ability for this product. Product Specifications Item Specifications Types Fire- retardant EPS, general EPS (Expanded Polystyrene) Basic dimension 500mm * 3600mm (width * length) Thickness 40 ~ 200mm (unit 5mm) * May vary depending on the product. Please contact the sales department for the details. ▲ Arson Coating mixer ▲ Vacuum –type EPS block forming machine ▲ Vacuum –type EPS block forming machine ▲ EPS board ▲ EPS board flat cutting machine

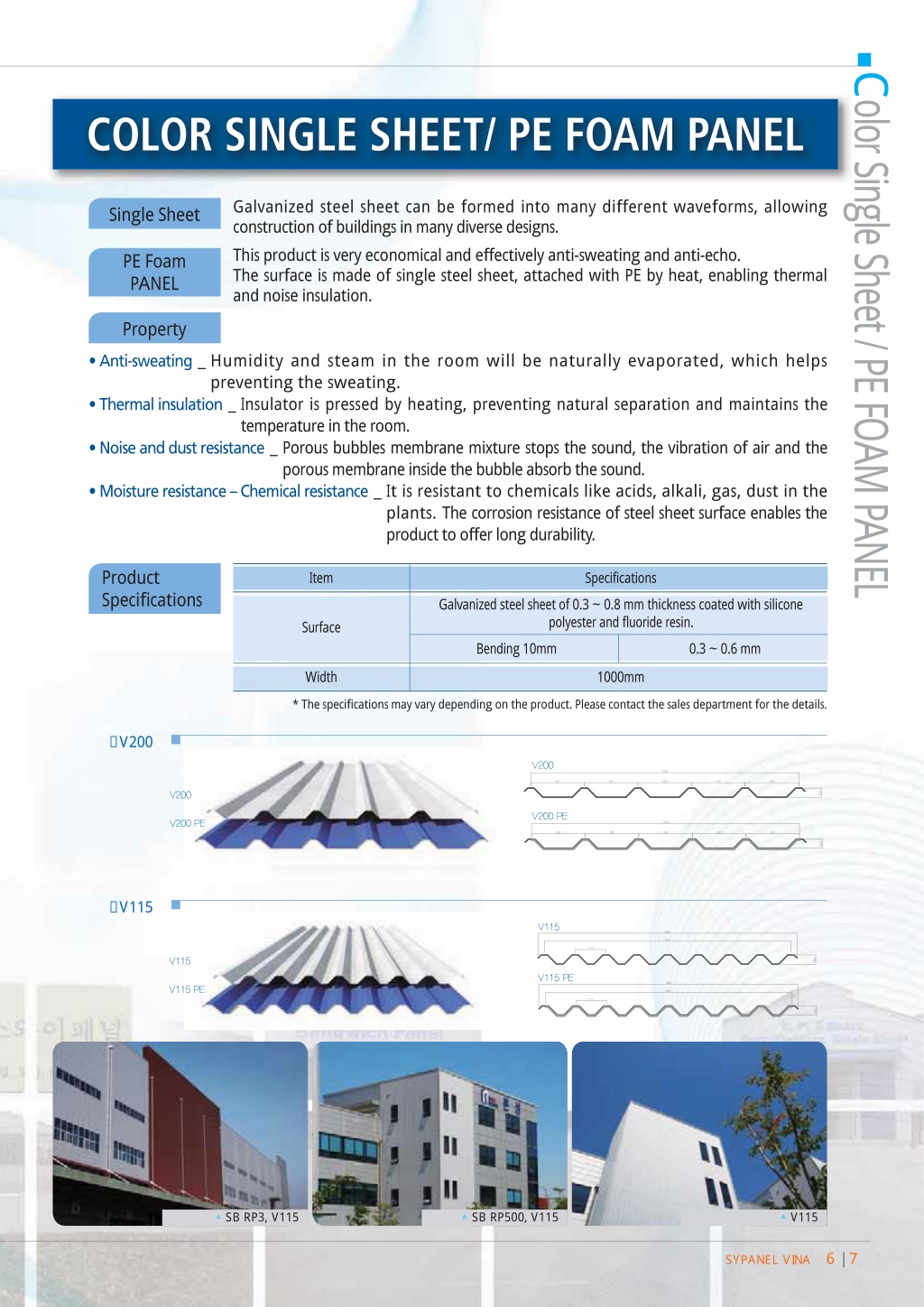

8. Color Single Sheet / PE FOAM P ANEL C?L?? SIN?LE SHEET? PE ??AM PANEL Galvanized steel sheet can be formed into many different waveforms, allowing construction of buildings in many diverse designs. Single Sheet This product is very economical and effectively anti-sweating and anti-echo. The surface is made of single steel sheet, attached with PE by heat, enabling thermal and noise insulation. PE Foam PANEL Property ???????????????_ Humidity and steam in the room will be naturally evaporated, which helps preventing the sweating. ????????????????????_ Insulator is pressed by heating, preventing natural separation and maintains the temperature in the room. ???????????????????????????_ Porous bubbles membrane mixture stops the sound, the vibration of air and the porous membrane inside the bubble absorb the sound. ???????????????????????????????????????????_ It is resistant to chemicals like acids, alkali, gas, dust in the plants. The corrosion resistance of steel sheet surface enables the product to offer long durability. Product Specifications Item Specifications Galvanized steel sheet of 0.3 ~ 0.8 mm thickness coated with silicone polyester and fluoride resin. Surface Bending 10mm 0.3 ~ 0.6 mm Width 1000mm * The specifications may vary depending on the product. Please contact the sales department for the details. •V200 •V115 ▲ SB RP3, V115 ▲ SB RP500, V115 ▲ V115 6 |7 SYPANEL VINA

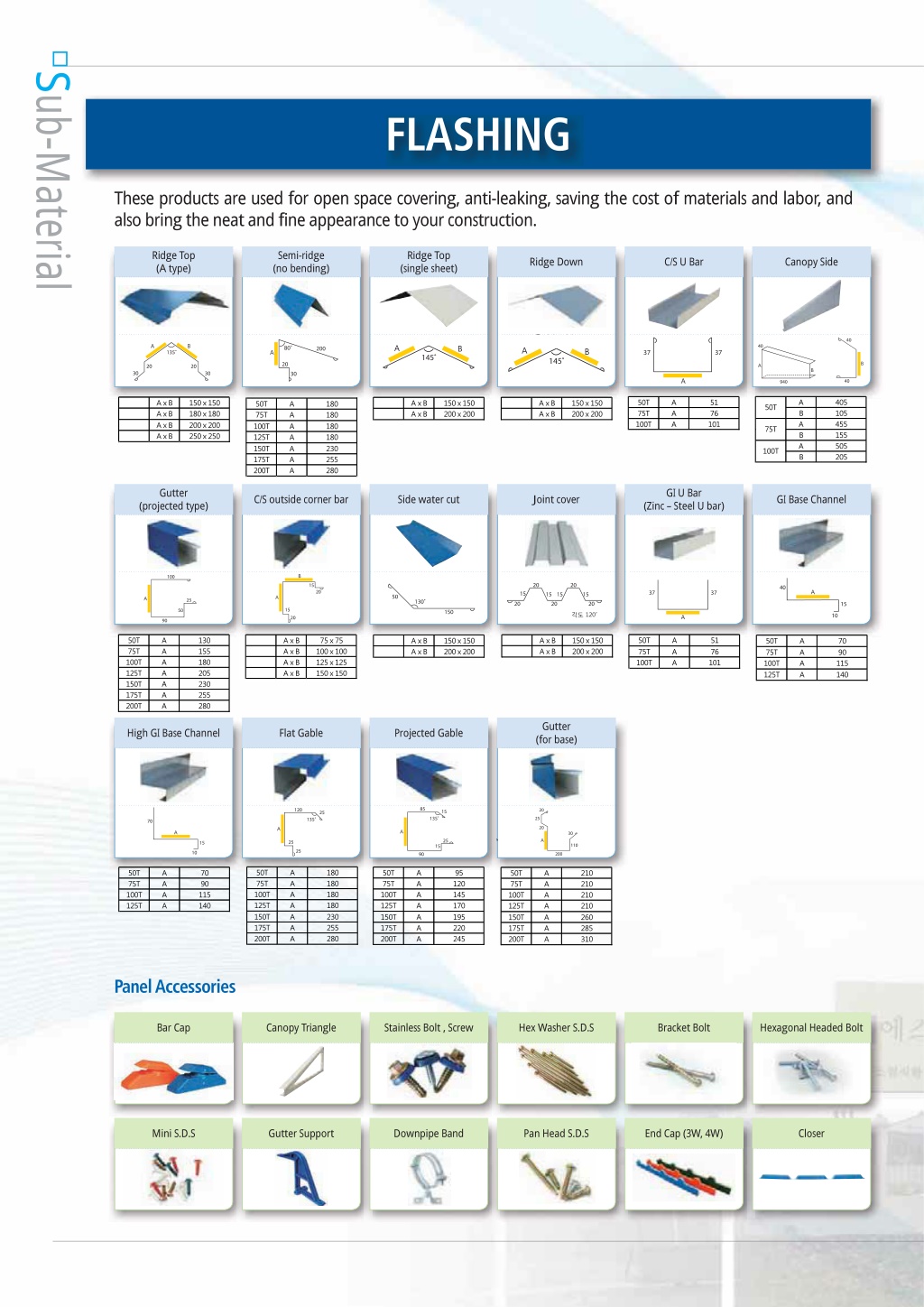

9. Sub-Material ?LASHIN? These products are used for open space covering, anti-leaking, saving the cost of materials and labor, and also bring the neat and fine appearance to your construction. Ridge Top (A type) Semi-ridge (no bending) Ridge Top (single sheet) Ridge Down C/S U Bar Canopy Side Gutter GI U Bar C/S outside corner bar Side water cut Joint cover GI Base Channel (projected type) (Zinc – Steel U bar) Gutter (for base) High GI Base Channel Flat Gable Projected Gable Panel Accessories Bar Cap Canopy Triangle Stainless Bolt , Screw Hex Washer S.D.S Bracket Bolt Hexagonal Headed Bolt Mini S.D.S Gutter Support Downpipe Band Pan Head S.D.S End Cap (3W, 4W) Closer

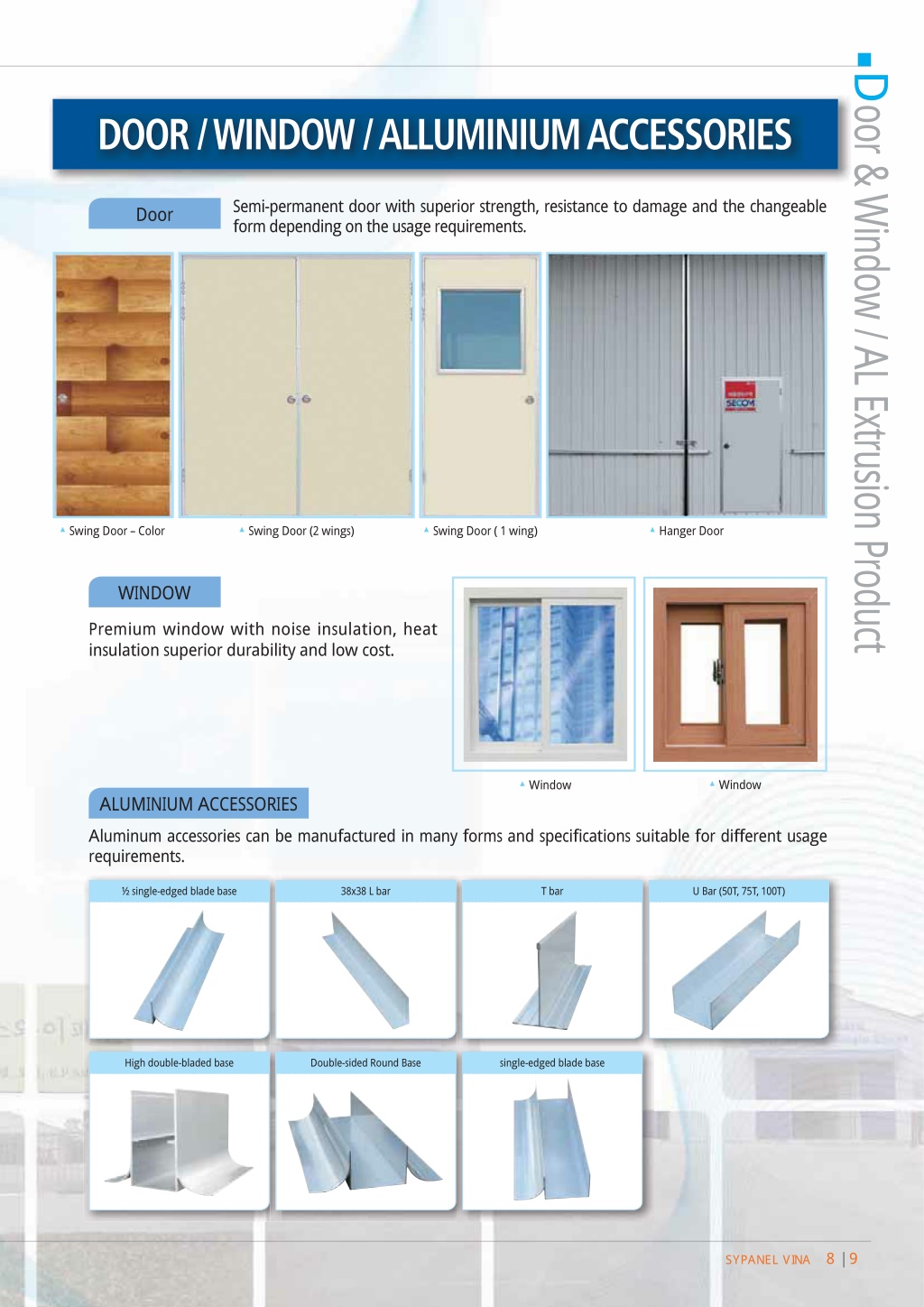

10. Door & Window / AL Extrusion Product D?????IND??? ALL?MINI?M ACCESS??IES Semi-permanent door with superior strength, resistance to damage and the changeable form depending on the usage requirements. Door ▲ Swing Door – Color ▲ Swing Door (2 wings) ▲ Swing Door ( 1 wing) ▲ Hanger Door WINDOW Premium window with noise insulation, heat insulation superior durability and low cost. ▲ Window ▲ Window ALUMINIUM ACCESSORIES Aluminum accessories can be manufactured in many forms and specifications suitable for different usage requirements. ½ single-edged blade base 38x38 L bar T bar U Bar (50T, 75T, 100T) High double-bladed base Double-sided Round Base single-edged blade base 8 |9 SYPANEL VINA

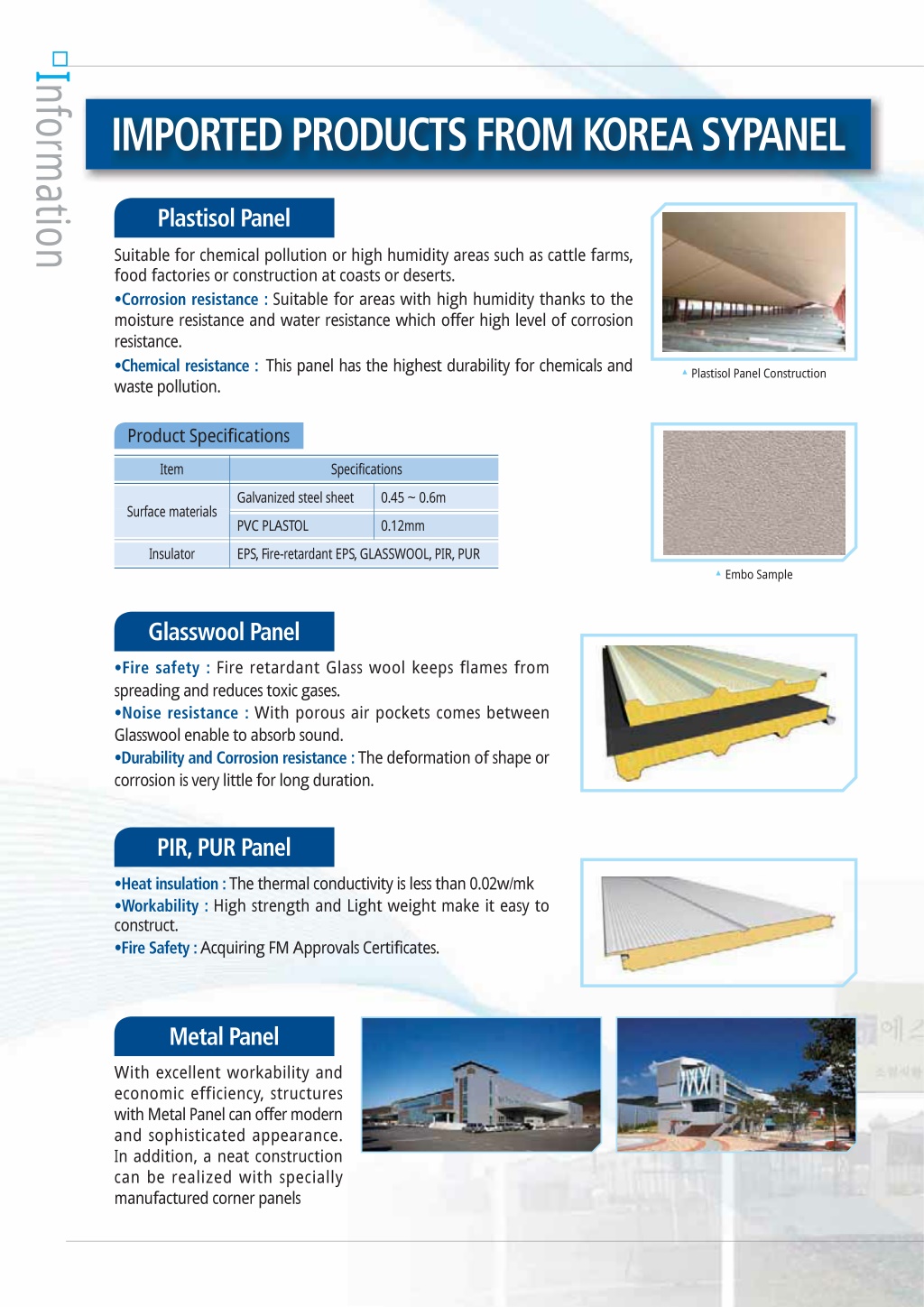

11. Inform ation IMP??TED P??D?CTS ???M K??EA SYPANEL Plastisol Panel Suitable for chemical pollution or high humidity areas such as cattle farms, food factories or construction at coasts or deserts. ?Corrosion resistance : Suitable for areas with high humidity thanks to the moisture resistance and water resistance which offer high level of corrosion resistance. ?Chemical resistance :This panel has the highest durability for chemicals and waste pollution. ▲ Plastisol Panel Construction Product Specifications Item Specifications Galvanized steel sheet 0.45 ~ 0.6m Surface materials PVC PLASTOL 0.12mm Insulator EPS, Fire-retardant EPS, GLASSWOOL, PIR, PUR ▲ Embo Sample ?lasswool Panel ??ire safety : Fire retardant Glass wool keeps flames from spreading and reduces toxic gases. ?Noise resistance : With porous air pockets comes between Glasswool enable to absorb sound. ?Dura?ility and Corrosion resistance : The deformation of shape or corrosion is very little for long duration. PI?? P?? Panel ?Heat insulation : The thermal conductivity is less than 0.02w/mk ??orka?ility : High strength and Light weight make it easy to construct. ??ire Safety : Acquiring FM Approvals Certificates. Metal Panel With excellent workability and economic efficiency, structures with Metal Panel can offer modern and sophisticated appearance. In addition, a neat construction can be realized with specially manufactured corner panels

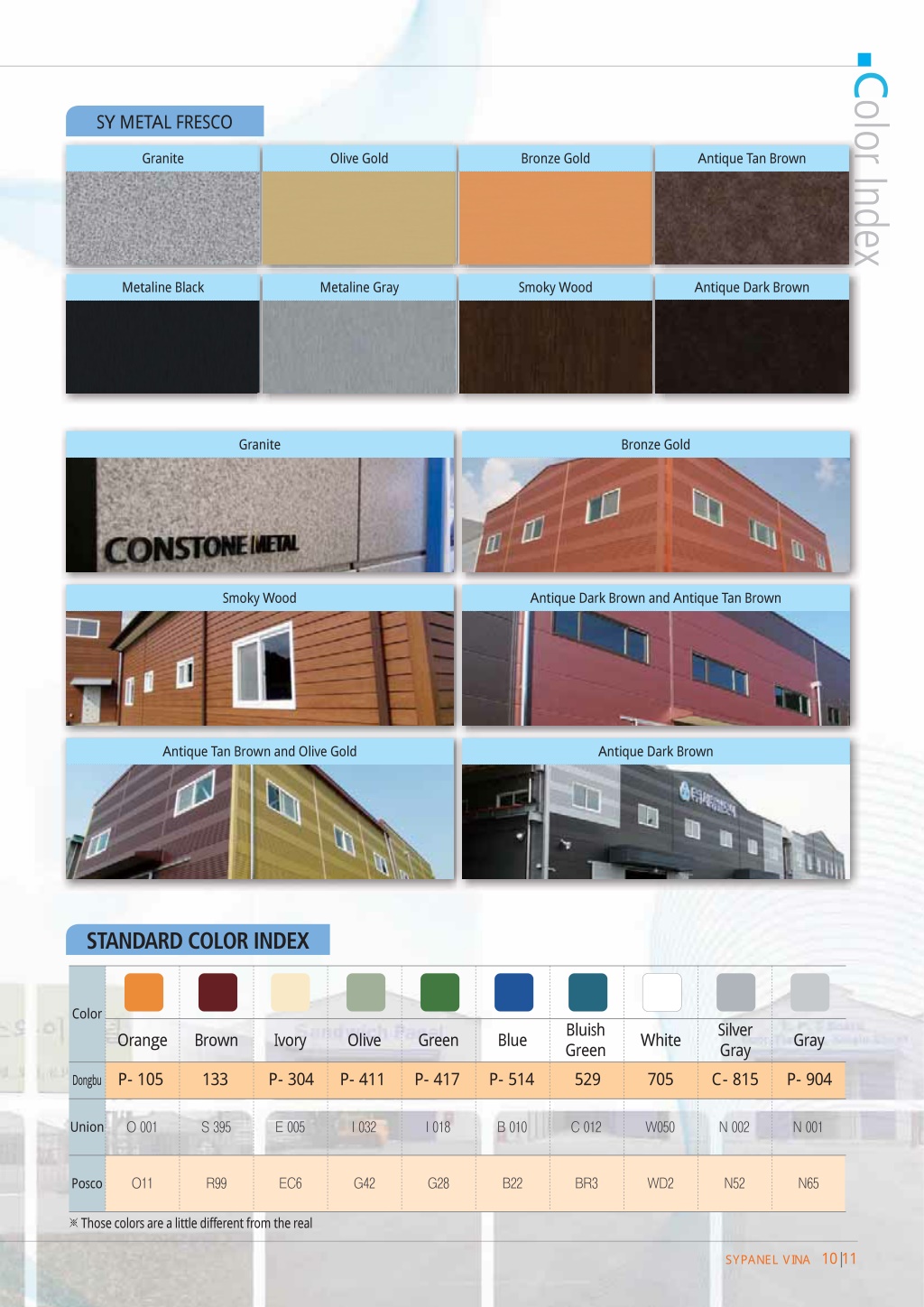

12. SY METAL FRESCO Granite Olive Gold Bronze Gold Antique Tan Brown Metaline Black Metaline Gray Smoky Wood Antique Dark Brown Granite Bronze Gold Smoky Wood Antique Dark Brown and Antique Tan Brown Antique Tan Brown and Olive Gold Antique Dark Brown STANDA?D C?L?? INDE? Color Bluish Green Silver Gray Orange Brown Ivory Olive Green Blue White Gray P- 105 133 P- 304 P- 411 P- 417 P- 514 529 705 C- 815 P- 904 Dongbu Union Posco ※Those colors are a little different from the real 10| 11 SYPANEL VINA
