  1. SY Aluminum Composite Panel The Non-Combustible Aluminum Composite Panel

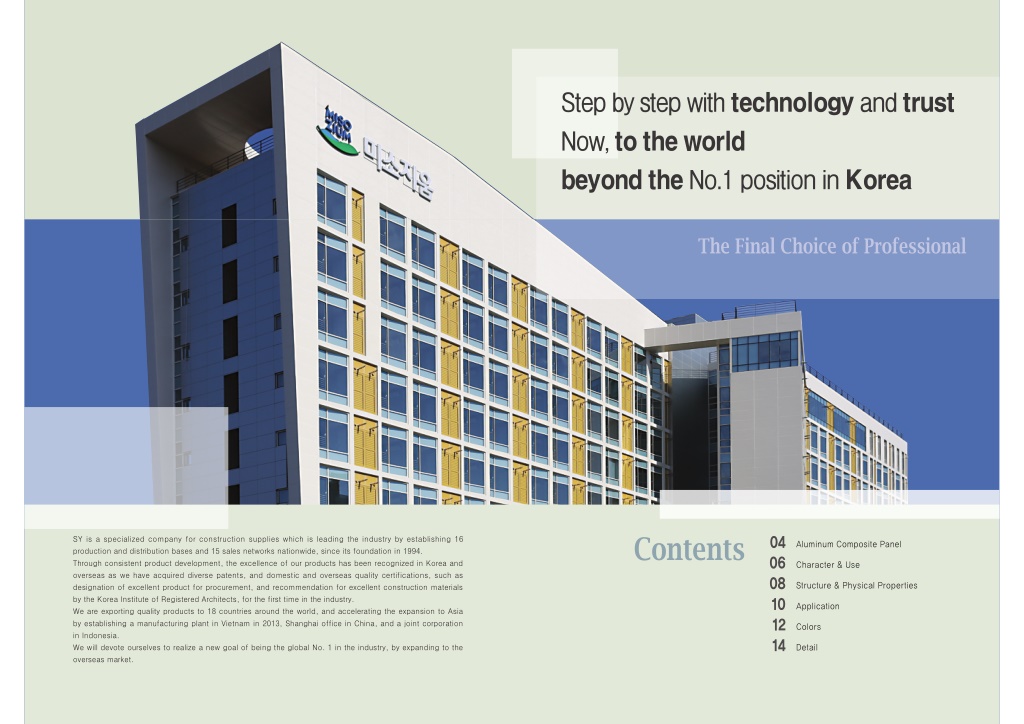

  2. Step by step with technology and trust Now, to the world beyond the No.1 position in Korea The Final Choice of Professional Contents 04 06 08 10 12 14 Detail SY is a specialized company for construction supplies which is leading the industry by establishing 16 Aluminum Composite Panel production and distribution bases and 15 sales networks nationwide, since its foundation in 1994. Through consistent product development, the excellence of our products has been recognized in Korea and Character & Use overseas as we have acquired diverse patents, and domestic and overseas quality certifications, such as Structure & Physical Properties designation of excellent product for procurement, and recommendation for excellent construction materials by the Korea Institute of Registered Architects, for the first time in the industry. Application We are exporting quality products to 18 countries around the world, and accelerating the expansion to Asia by establishing a manufacturing plant in Vietnam in 2013, Shanghai office in China, and a joint corporation Colors in Indonesia. We will devote ourselves to realize a new goal of being the global No. 1 in the industry, by expanding to the overseas market.

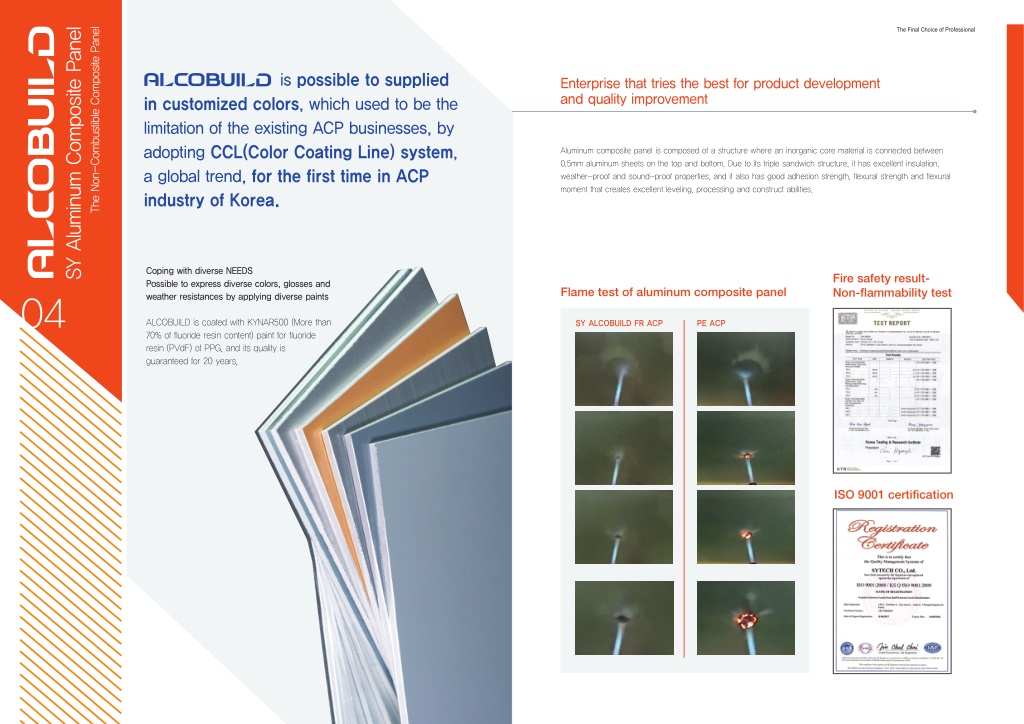

  3. The Final Choice of Professional The Non-Combustible Composite Panel SY Aluminum Composite Panel is possible to supplied in customized colors, which used to be the limitation of the existing ACP businesses, by adopting CCL(Color Coating Line) system, a global trend, for the first time in ACP industry of Korea. Enterprise that tries the best for product development and quality improvement Aluminum composite panel is composed of a structure where an inorganic core material is connected between 0.5mm aluminum sheets on the top and bottom. Due to its triple sandwich structure, it has excellent insulation, weather-proof and sound-proof properties, and it also has good adhesion strength, flexural strength and flexural moment that creates excellent leveling, processing and construct abilities. Coping with diverse NEEDS Possible to express diverse colors, glosses and weather resistances by applying diverse paints Fire safety result- Non-flammability test Flame test of aluminum composite panel 04 ALCOBUILD is coated with KYNAR500 (More than 70% of fluoride resin content) paint for fluoride resin (PVdF) of PPG, and its quality is guaranteed for 20 years, SY ALCOBUILD FR ACP PE ACP ISO 9001 certification

  4. The Final Choice of Professional The Non-Combustible Composite Panel SY Aluminum Composite Panel Character & Use Aluminum composite panel which has fire retardant property through strengthened fire safety SY ACP ALCOBUILD FR is an eco-friendly nonflammable finishing material of buildings which strengthens the safety and solidity of buildings, as it is produced by combining the benefit of the existing aluminum panel and nonflammable inorganic filler. Characteristics Smoothness It is an aluminum sandwich structure which maintains excellent smoothness comparing to single panels. Lightweight & strength Due to the lightweight and high strength of Alcobuild/ Fr, it can reduce the load of buildings by 15~20% comparing to aluminum sheets with the same strength. Processability Due to the flexibility of aluminum and high molecule core material, it is possible to be processed diversely by cutting, bending, curving, clipping and drilling. Durability As the surface of Alcobuild/ Fr is painted with Kynar500, high molecule fluoride resin paint, it is guaranteed to have an excellent durability and color maintenance. 06 Color uniformity As we are the company manufacturing composite panels with a color coating line (CCL) for the first time in Korea, we can realize diverse high-class patterns, as well as color uniformity. Major uses ▶ Exterior and interior materials of buildings ▶ Replacing the exterior of remodeling buildings ▶ Finishing materials such as canopy and column ▶ Panel of exhibition hall and doors ▶ Interior materials of vehicle, TV Back panel SY Color Coating Line

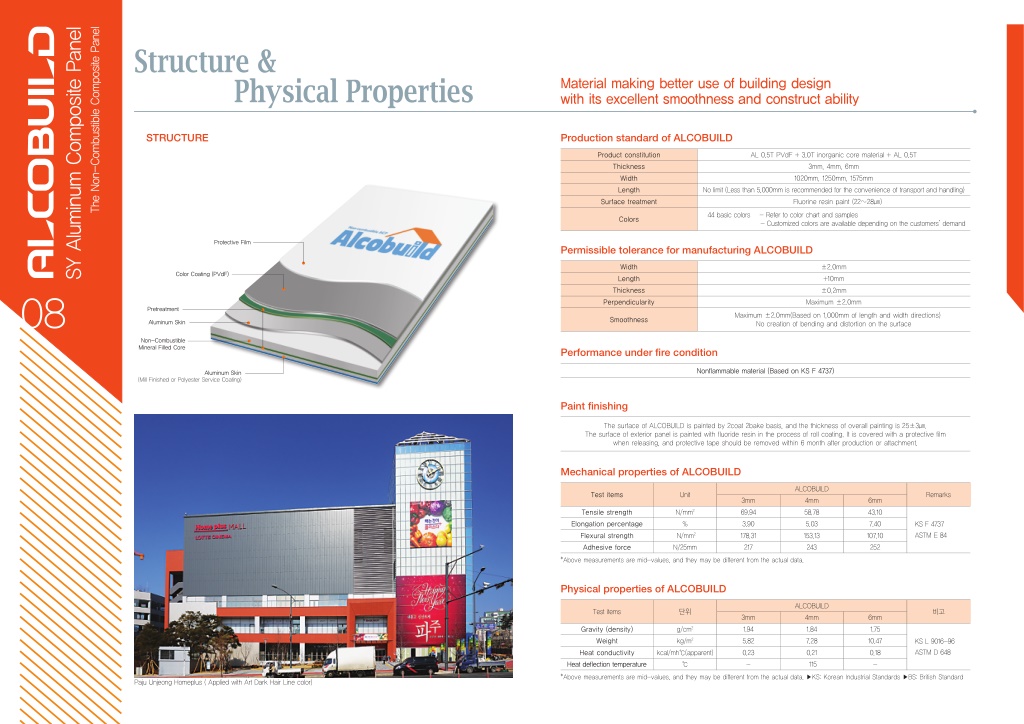

  5. The Non-Combustible Composite Panel SY Aluminum Composite Panel Structure & Physical Properties Material making better use of building design with its excellent smoothness and construct ability STRUCTURE Production standard of ALCOBUILD Product constitution AL 0.5T PVdF + 3.0T inorganic core material + AL 0.5T Thickness 3mm, 4mm, 6mm Width 1020mm, 1250mm, 1575mm Length No limit (Less than 5,000mm is recommended for the convenience of transport and handling) Surface treatment Fluorine resin paint (22~28㎛) 44 basic colors - Refer to color chart and samples - Customized colors are available depending on the customers’ demand Colors Protective Film Permissible tolerance for manufacturing ALCOBUILD Width ±2.0mm Color Coating (PVdF) Length +10mm Thickness ±0.2mm 08 Perpendicularity Maximum ±2.0mm Pretreatment Maximum ±2.0mm(Based on 1,000mm of length and width directions) No creation of bending and distortion on the surface Smoothness Aluminum Skin Non-Combustible Mineral Filled Core Performance under fire condition Nonflammable material (Based on KS F 4737) Aluminum Skin (Mill Finished or Polyester Service Coating) Paint finishing The surface of ALCOBUILD is painted by 2coat 2bake basis, and the thickness of overall painting is 25±3㎛. The surface of exterior panel is painted with fluoride resin in the process of roll coating. It is covered with a protective film when releasing, and protective tape should be removed within 6 month after production or attachment. Mechanical properties of ALCOBUILD ALCOBUILD Test items Unit Remarks 3mm 4mm 6mm Tensile strength N/mm2 69.94 58.78 43.10 Elongation percentage % 3.90 5.03 7.40 KS F 4737 ASTM E 84 Flexural strength N/mm2 178.31 153.13 107.10 Adhesive force N/25mm 217 243 252 *Above measurements are mid-values, and they may be different from the actual data. Physical properties of ALCOBUILD ALCOBUILD Test items 단위 비고 3mm 4mm 6mm Gravity (density) g/cm2 1.94 1.84 1.75 Weight kg/m2 5.82 7.28 10.47 KS L 9016-96 ASTM D 648 Heat conductivity kcal/mh℃(apparent) 0.23 0.21 0.18 Heat deflection temperature ℃ - 115 - *Above measurements are mid-values, and they may be different from the actual data. ▶KS: Korean Industrial Standards ▶BS: British Standard Paju Unjeong Homeplus ( Applied with Art Dark Hair Line color)

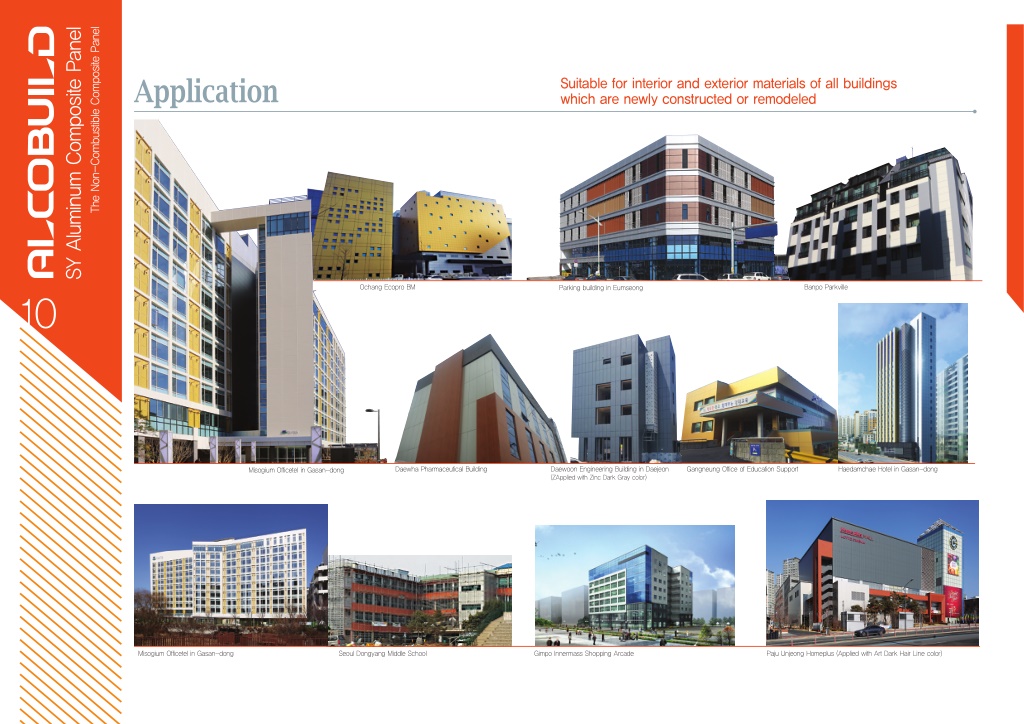

  6. The Non-Combustible Composite Panel SY Aluminum Composite Panel Application Suitable for interior and exterior materials of all buildings which are newly constructed or remodeled Ochang Ecopro BM Banpo Parkville Parking building in Eumseong 10 Daewha Pharmaceutical Building Daewoon Engineering Building in Daejeon (ZApplied with Zinc Dark Gray color) Gangneung Office of Education Support Haedamchae Hotel in Gasan-dong Misogium Officetel in Gasan-dong Misogium Officetel in Gasan-dong Seoul Dongyang Middle School Gimpo Innermass Shopping Arcade Paju Unjeong Homeplus (Applied with Art Dark Hair Line color)

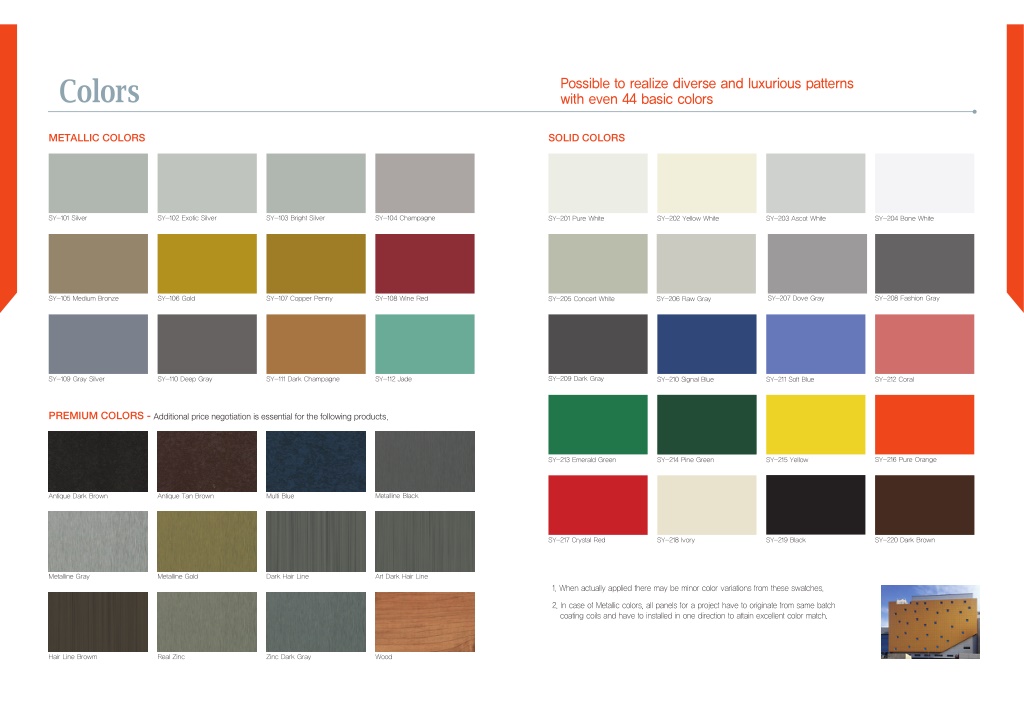

  7. Colors Possible to realize diverse and luxurious patterns with even 44 basic colors METALLIC COLORS SOLID COLORS SY-104 Champagne SY-101 Silver SY-102 Exotic Silver SY-103 Bright Silver SY-204 Bone White SY-201 Pure White SY-202 Yellow White SY-203 Ascot White SY-207 Dove Gray SY-208 Fashion Gray SY-105 Medium Bronze SY-106 Gold SY-107 Copper Penny SY-108 Wine Red SY-205 Concert White SY-206 Raw Gray SY-209 Dark Gray SY-109 Gray Silver SY-110 Deep Gray SY-111 Dark Champagne SY-112 Jade SY-210 Signal Blue SY-211 Soft Blue SY-212 Coral PREMIUM COLORS - Additional price negotiation is essential for the following products. SY-216 Pure Orange SY-213 Emerald Green SY-214 Pine Green SY-215 Yellow Metalline Black Antique Dark Brown Antique Tan Brown Multi Blue SY-217 Crystal Red SY-218 Ivory SY-219 Black SY-220 Dark Brown Metalline Gray Metalline Gold Dark Hair Line Art Dark Hair Line 1. When actually applied there may be minor color variations from these swatches. 2. In case of Metallic colors, all panels for a project have to originate from same batch coating coils and have to installed in one direction to attain excellent color match. Hair Line Browm Real Zinc Zinc Dark Gray Wood

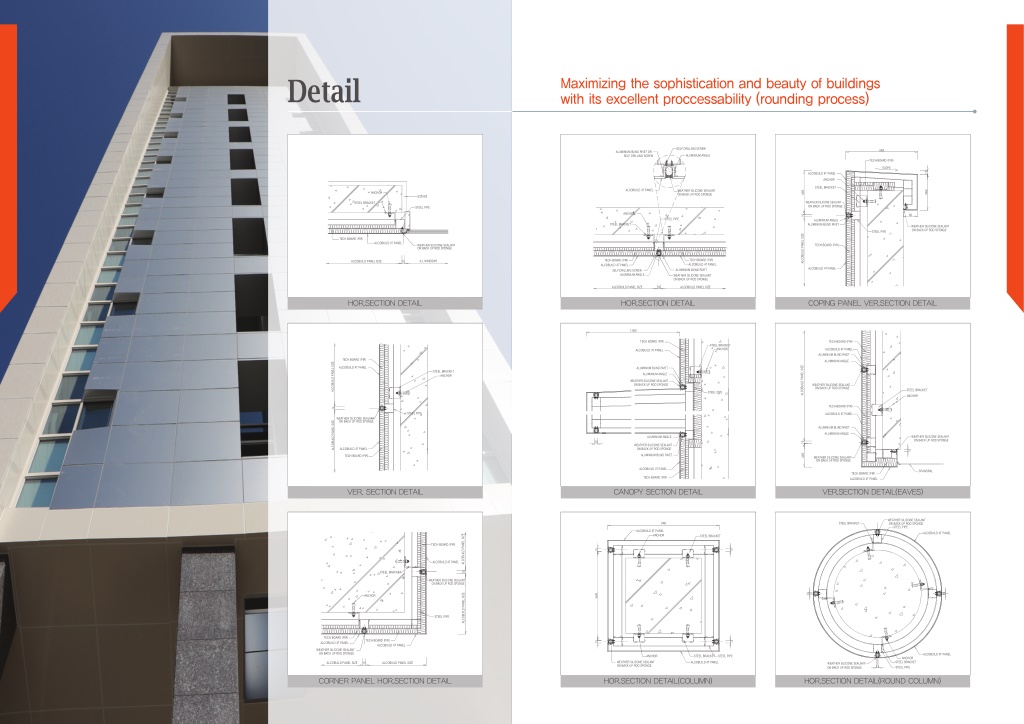

  8. Detail Maximizing the sophistication and beauty of buildings with its excellent proccessability (rounding process) SELF DRILLING SCREW VAR. ALUMINIUM BLIND RIVET OR SELF DRILLING SCREW ALUMINIUM ANGLE TECH BOARD (PIR) SLOPE 10 ALCOBUILD 4T PANEL ANCHOR STEEL BRACKET ALCOBUILD 4T PANEL VAR. VAR. WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE ANCHOR 모르타르 WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE STEEL BRACKET STEEL PIPE ANCHOR 80 15 STEEL PIPE ALUMINIUM ANGLE ALUMINIUM BLIND RIVET STEEL BRACKET WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE STEEL PIPE ALCOBUILD PANEL SIZE TECH BOARD (PIR) ALCOBUILD 4T PANEL TECH BOARD (PIR) WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE TECH BOARD (PIR) ALCOBUILD 4T PANEL TECH BOARD (PIR) A.L WINDOWS ALCOBUILD PANEL SIZE 15 ALCOBUILD 4T PANEL ALCOBUILD 4T PANEL ALUMINIUM BLIND RIVET SELF DRILLING SCREW ALUMINIUM ANGLE WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE ALCOBUILD PANEL SIZE ALCOBUILD PANEL SIZE 15 HOR.SECTION DETAIL HOR.SECTION DETAIL COPING PANEL VER.SECTION DETAIL 1,000 TECH BOARD (PIR) TECH BOARD (PIR) STEEL BRACKET ANCHOR ALCOBUILD 4T PANEL ALCOBUILD 4T PANEL ALUMINIUM BLIND RIVET TECH BOARD (PIR) ALUMINIUM ANGLE ALCOBUILD PANEL SIZE ALCOBUILD PANEL SIZE ALCOBUILD 4T PANEL ALUMINIUM BLIND RIVET STEEL BRACKET ALUMINIUM ANGLE ANCHOR WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE STEEL BRACKET STEEL PIPE ANCHOR TECH BOARD (PIR) 15 STEEL PIPE ALCOBUILD 4T PANEL WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE ALCOBUILD PANEL SIZE ALUMINIUM BLIND RIVET ALUMINIUM ANGLE WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE ALUMINIUM ANGLE 15 15 WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE ALCOBUILD 4T PANEL 15 VAR. ALUMINIUM BLIND RIVET TECH BOARD (PIR) WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE ALCOBUILD 4T PANEL SPANDRAL TECH BOARD (PIR) TECH BOARD (PIR) ALCOBUILD 4T PANEL VER. SECTION DETAIL CANOPY SECTION DETAIL VER.SECTION DETAIL(EAVES) WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE VAR STEEL BRACKET STEEL PIPE ALCOBUILD 4T PANEL ALCOBUILD 4T PANEL ALCOBUILD PANEL SIZE ANCHOR STEEL BRACKET TECH BOARD (PIR) 15 15 ALCOBUILD 4T PANEL 15 STEEL BRACKET WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE 15 15 VAR. ALCOBUILD PANEL SIZE ANCHOR STEEL PIPE TECH BOARD (PIR) TECH BOARD (PIR) 15 15 ALCOBUILD 4T PANEL ALCOBUILD 4T PANEL WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE ALCOBUILD 4T PANEL STEEL PIPE ANCHOR STEEL BRACKET ANCHOR STEEL BRACKET WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE ALCOBUILD 4T PANEL ALCOBUILD PANEL SIZE ALCOBUILD PANEL SIZE 15 WEATHER SILICONE SEALANT ON BACK UP ROD SPONGE 15 STEEL PIPE CORNER PANEL HOR.SECTION DETAIL HOR.SECTION DETAIL(COLUMN) HOR.SECTION DETAIL(ROUND COLUMN)

  9. The Non-Combustible Composite Panel SY Aluminum Composite Panel Printed in May. 2017 Copyright ⓒ 2017. 5 All right reserved The contents of this catalogue and its product specification are subject to change without notice for quality improvement Seoul office 2nd branch of Inju : 2nd branch of Inju, 176-9, Geolmae-ri, Inju-myeon, Asan-si, Chungcheongnam-do, KOREA : 4F, Boseong Building, 3, 81-gil, Nonhyeon-ro, Gangnam-gu, Seoul, KOREA (Yeoksam-dong) TEL : 82-70-4808-1580 F : 82-70-4009-3512
