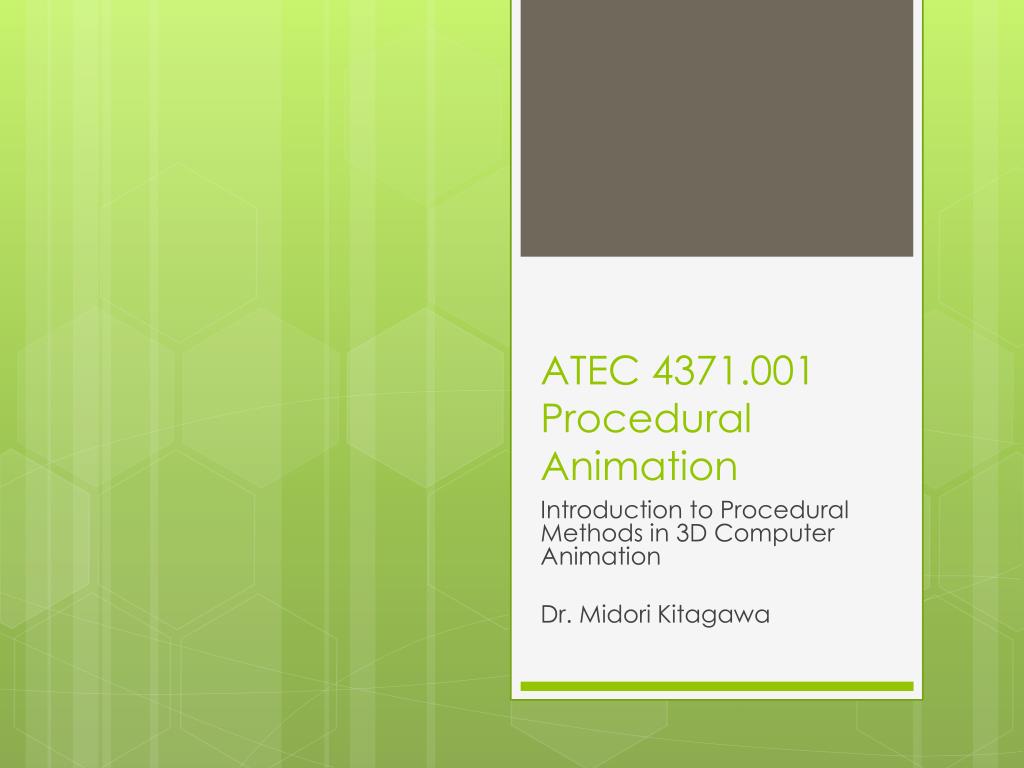

  1. ATEC 4371.001Procedural Animation Introduction to Procedural Methods in 3D Computer Animation Dr. Midori Kitagawa

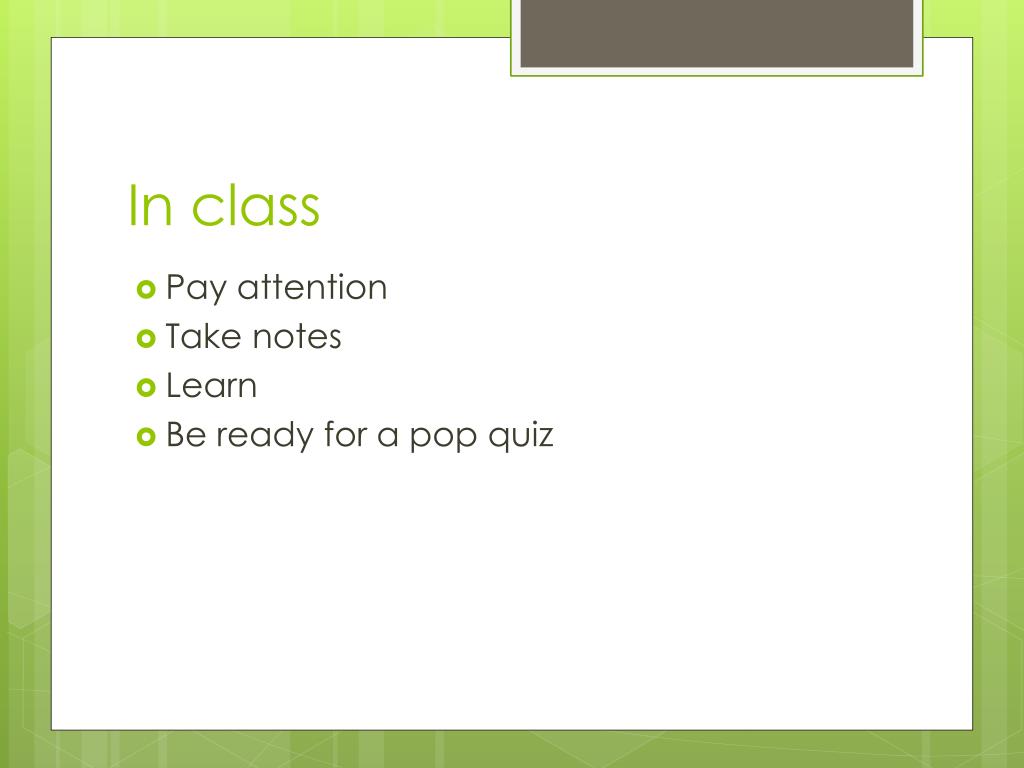

  2. In class • Pay attention • Take notes • Learn • Be ready for a pop quiz

  3. Week 2: Houdini stuff • Custom desktops • Connection between nodes • Houdini contexts • Three functions of a node connection • Particle systems

  4. Custom desktops • You can move your custom desktops to another machine by copying .desk fines in houdini13.0/desktop

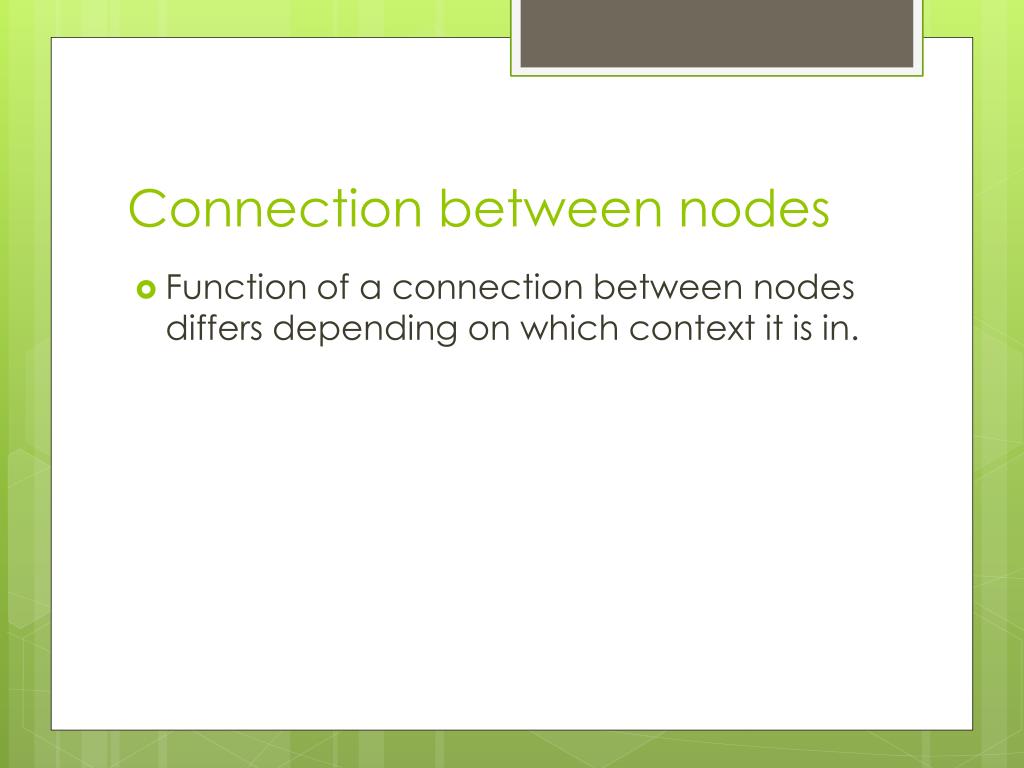

  5. Connection between nodes • Function of a connection between nodes differs depending on which context it is in.

  6. Houdini contexts Major parts of Houdini (contexts) and corresponding node networks: • /ch CHOP (channel operators) network • /imgCOP (composite operators) network • /obj Objects, cameras, and lights • /obj/geo SOP (surface operators) network • /out ROP (render outputs) • /part POP (particle operators) network • /shop SHOP (shader operators) network • /vex VOP (VEX operators) network

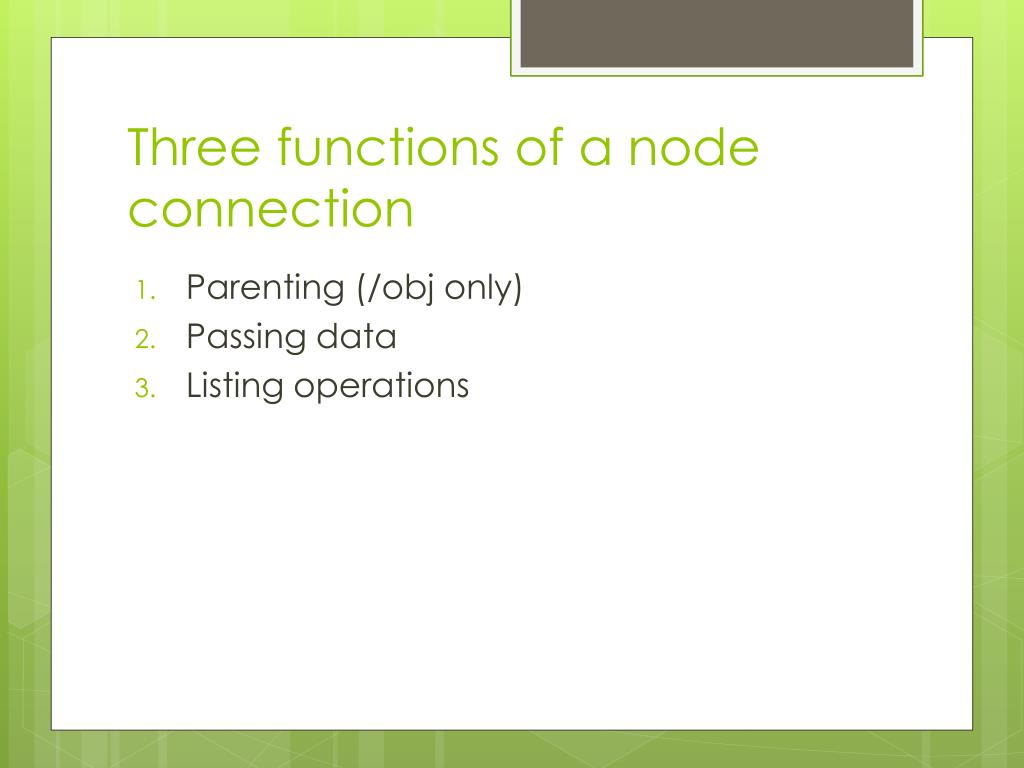

  7. Three functions of a node connection • Parenting (/obj only) • Passing data • Listing operations

  8. 1. Parenting • Connection works as parenting. The transformations applied to a parent node are applied to its child nodes. • Only in /obj – the scene (object) level

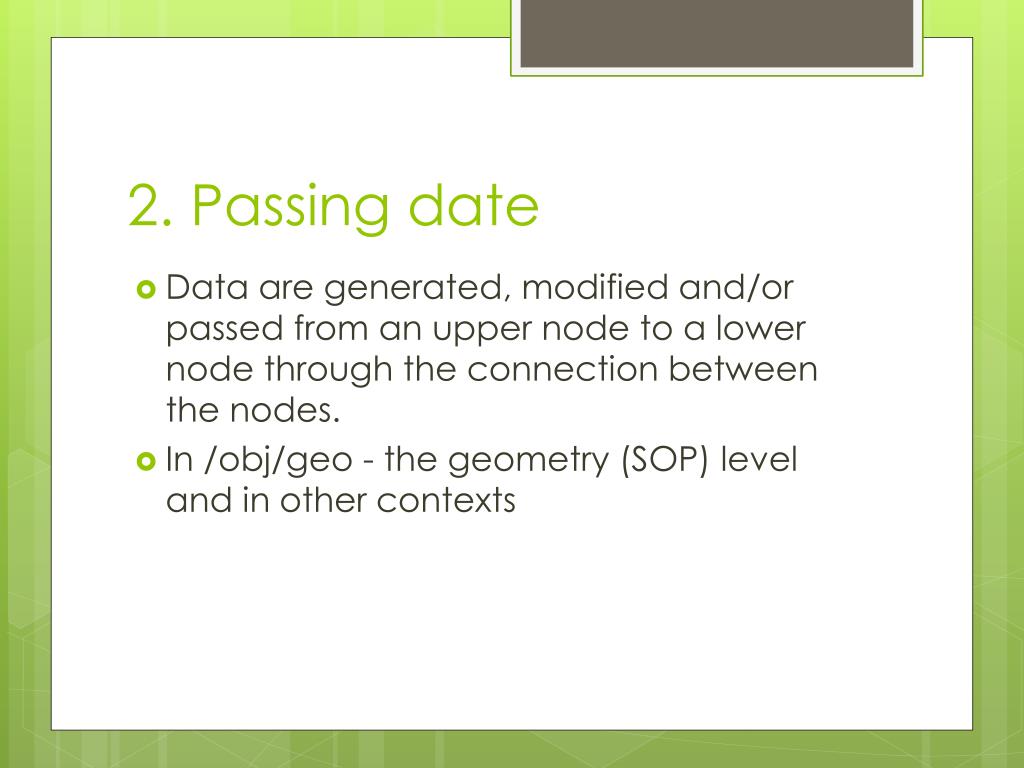

  9. 2. Passing date • Data are generated, modified and/or passed from an upper node to a lower node through the connection between the nodes. • In /obj/geo - the geometry (SOP) level and in other contexts

  10. 3. Listing operations • Connections are used to list operations that are applied to the nodes. • Orders are often important but not always. • A later node can affect earlier node, e.g., POP network • In /out – ROP rendering outputs and in other contexts

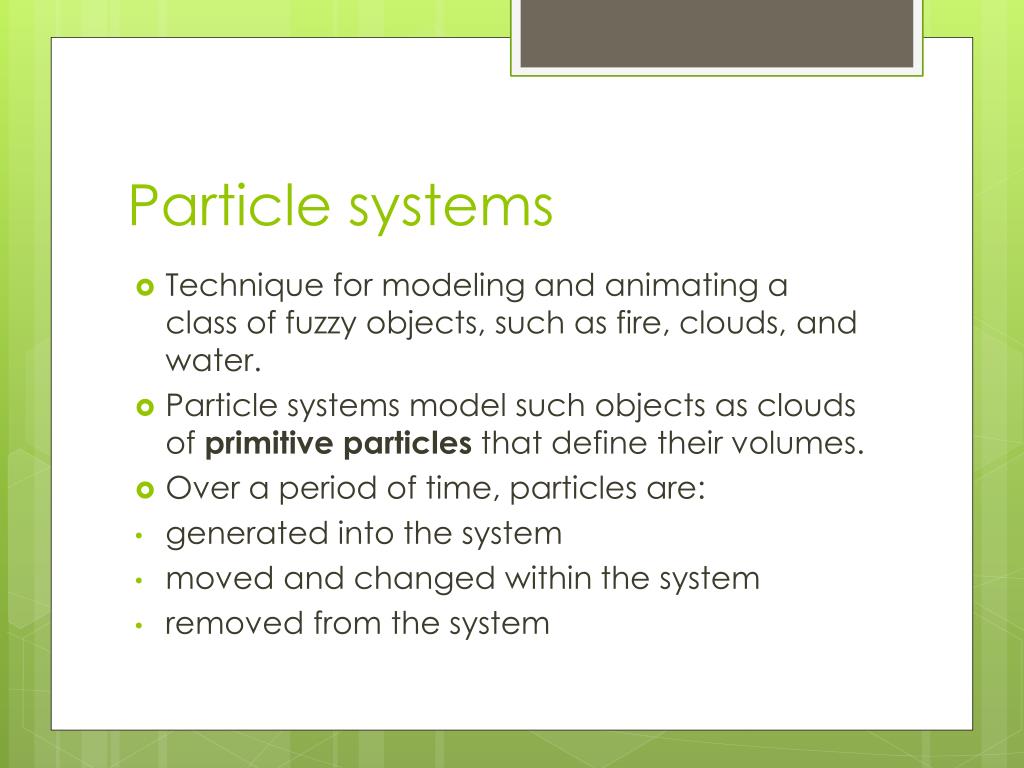

  11. Particle systems • Technique for modeling and animating a class of fuzzy objects, such as fire, clouds, and water. • Particle systems model such objects as clouds of primitive particles that define their volumes. • Over a period of time, particles are: • generated into the system • moved and changed within the system • removed from the system

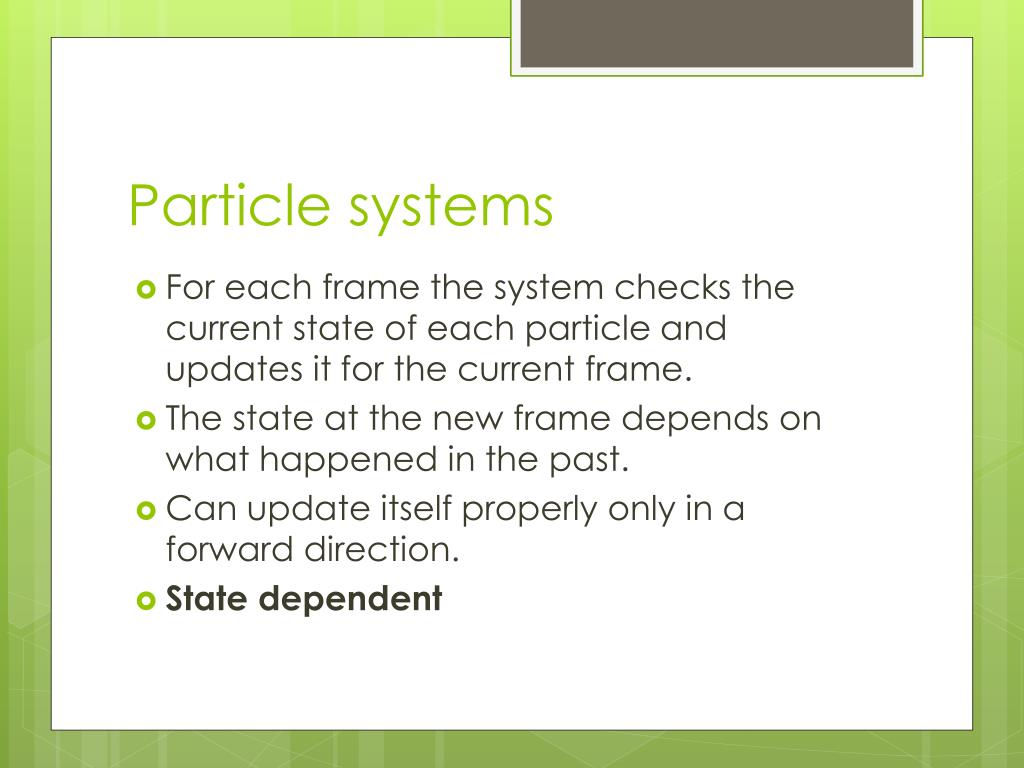

  12. Particle systems • For each frame the system checks the current state of each particle and updates it for the current frame. • The state at the new frame depends on what happened in the past. • Can update itself properly only in a forward direction. • State dependent
