  1. W52 Storage – PORT HULL (12/1/05) • See guest berth proposal – cubbies on outside, storage/access to hotwater ‘tank’ in middle. • Bulk storeage => shelves/bins/??. 2A for tool boxes, nuts & bolts, spares & other heavy stuff. Perhaps 2B could be for wine, with target storage for 6 cases of bottles. (Steve suggests X-frame to keep bottles from rolling) • 3A OK as hanging locker. 3B is small cabinet facing aft accessed from stairs. • Cupboards above workbench for cleaning supplies, paper goods, linens, misc light household stuff • Washing machine goes here • Cubbies in bunk room for guest/passage clothing. • Aft locker, as proposed on 8/22 visit for diesel heater, with small hanging locker and drawer/cubby • Under bottom bunk is for bulk storage (light stuff, perhaps lifejackets & safety gear). • Towel storage above toilet , if it works 3A 9 6 3b 7 4 1 2A 2b 5 8

  2. W52 Storage – STBD Hull (12/1/05) • See owner’s berth proposal from october 20 visit • Susan’s wardrobe & drawers as shown in GA • Laundry bin as shown in GA, perhaps a wee bit taller • Shelves for linens accessed from stbd hull, just outboard of nav station drawers • Pantry facing forward for food  to kitchen counter height. • No plans for this space. Open Access to salt water intake manifold & strainer • Access to refrigeration system as per GA • Propane water heater, mounted on bulkhead (to be discussed) • Head vanity for personal hygiene stuff and some head cleaning supplies under sink 4 8 7 5 2 1 3 6 9

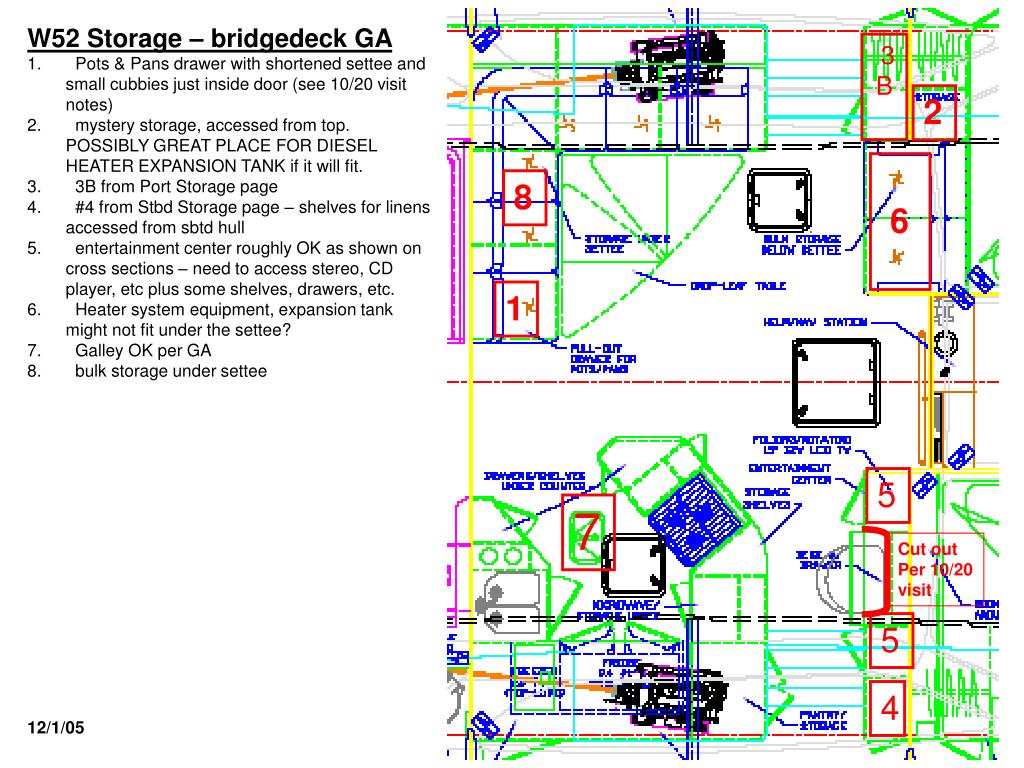

  3. W52 Storage – bridgedeck GA • Pots & Pans drawer with shortened settee and small cubbies just inside door (see 10/20 visit notes) • mystery storage, accessed from top. POSSIBLY GREAT PLACE FOR DIESEL HEATER EXPANSION TANK if it will fit. • 3B from Port Storage page • #4 from Stbd Storage page – shelves for linens accessed from sbtd hull • entertainment center roughly OK as shown on cross sections – need to access stereo, CD player, etc plus some shelves, drawers, etc. • Heater system equipment, expansion tank might not fit under the settee? • Galley OK per GA • bulk storage under settee 3 B 2 6 8 1 5 7 Cut out Per 10/20 visit 5 4 12/1/05

  4. W52 Storage – cross section @ F #2 is ‘mystery storage from port hull profile. Possible expansion tank. #3B is cupboard opening aft from port hull profile #4 is from STBD profile. Linens accessed from stbd hull. #5 is desk/nav station. OK per GA (drawers & shelves) and as discussed on 10/20/05 visit. #6 is under couch from bridgedeck GA. Heater fan unit goes here. ***************Surface flush per 10/20 visit************* 2 5 4 5 3B 6 Wide, thin drawer only if There is adequate room 12/1/05
