1 / 16

k-Coloring

k-Coloring. k-coloring: A k-coloring of a graph G is a labeling f: V(G) S, where |S|=k. The labels are colors; the vertices of one color form a color class. Proper k-coloring: A k-coloring is proper if adjacent vertices have different labels.

yetty
Download Presentation

k-Coloring

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

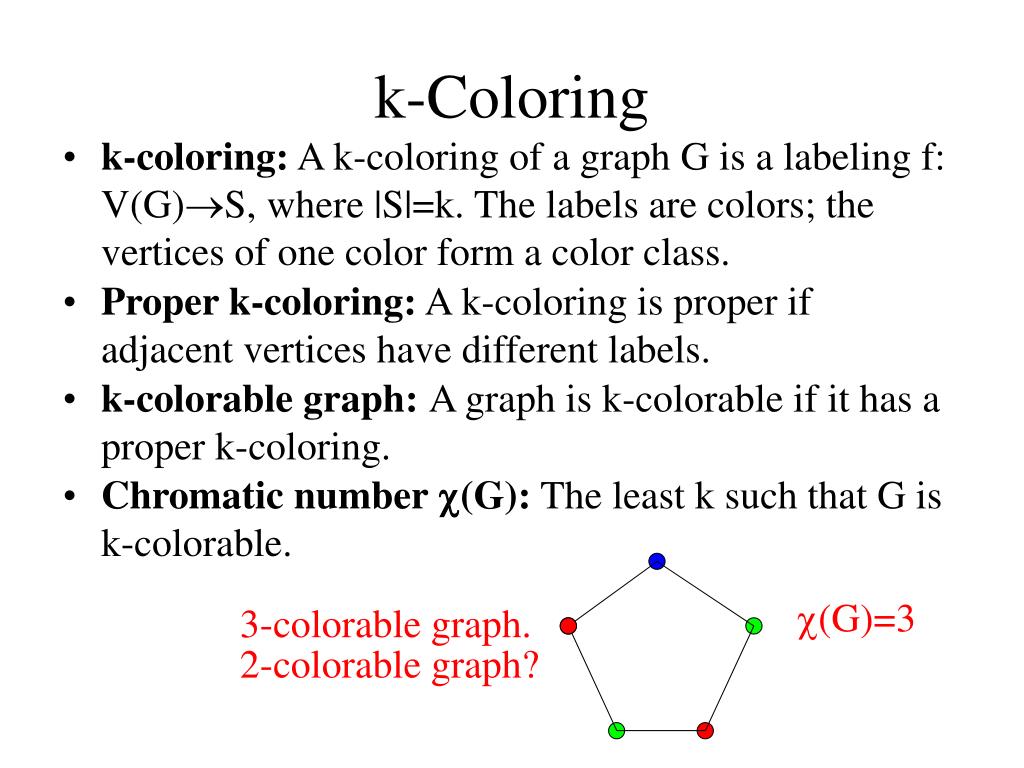

  1. k-Coloring • k-coloring: A k-coloring of a graph G is a labeling f: V(G)S, where |S|=k. The labels are colors; the vertices of one color form a color class. • Proper k-coloring: A k-coloring is proper if adjacent vertices have different labels. • k-colorable graph: A graph is k-colorable if it has a proper k-coloring. • Chromatic number (G): The least k such that G is k-colorable. (G)=3 3-colorable graph. 2-colorable graph?

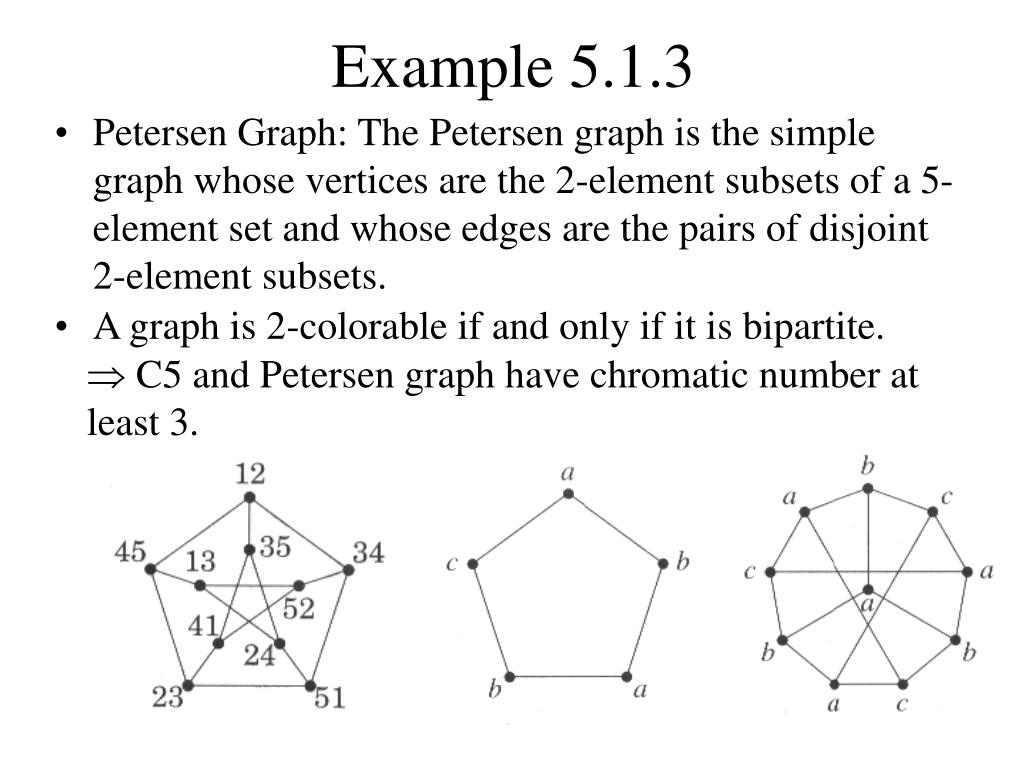

  2. Example 5.1.3 • Petersen Graph: The Petersen graph is the simple graph whose vertices are the 2-element subsets of a 5-element set and whose edges are the pairs of disjoint 2-element subsets. • A graph is 2-colorable if and only if it is bipartite.  C5 and Petersen graph have chromatic number at least 3.

  3. a b e f k-chromatic graph • k-chromatic graph: A graph G is k-chromatic if (G)=k. A proper k-coloring of a k-chromatic graph is an optimal coloring. • k-critical graph: If (H)< (G)=k for every proper subgraph H of G, then G is k-critical. • Clique Number: The clique number of a graph G, written (G), is the maximum size of clique in G. (G)=4 3-critical graph c d

  4. Proposition 5.1.7 • For any graph G,(G)>=(G) and (G)>=n(G)/(G). Proof. (G)>=(G).  2. (G)>=n(G)/(G).  Vertices of a clique requires distinct colors. At most (G) vertices can have the same color.

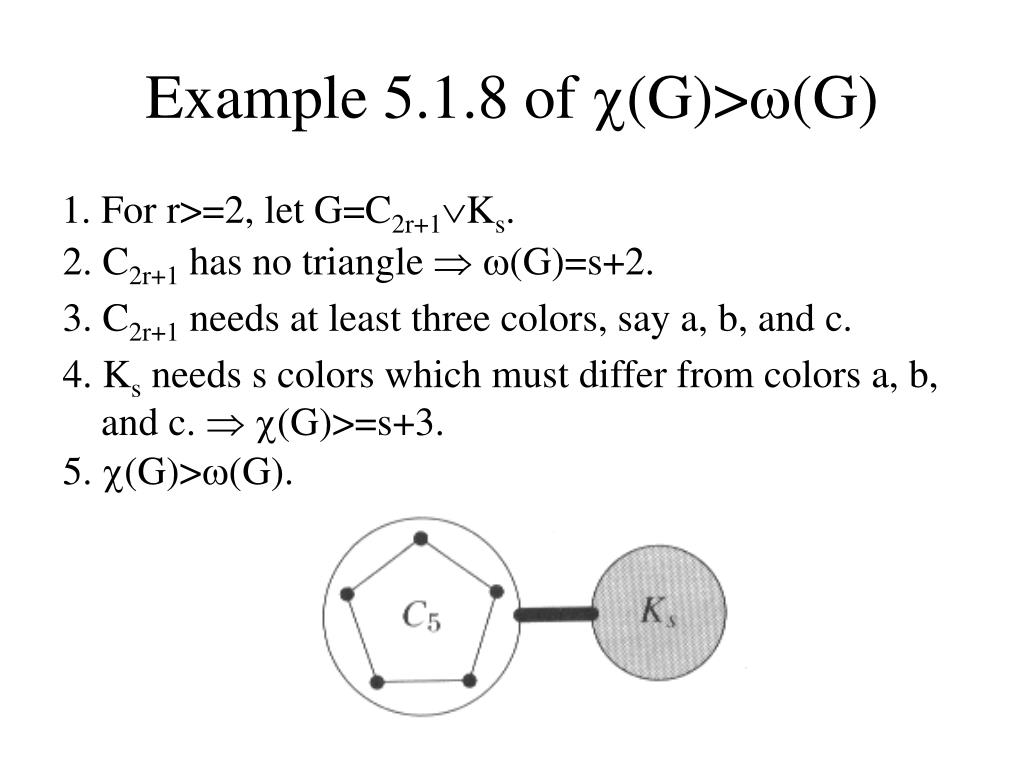

  5. Example 5.1.8 of (G)>(G) 1. For r>=2, let G=C2r+1Ks. 2. C2r+1 has no triangle  (G)=s+2. 3. C2r+1 needs at least three colors, say a, b, and c. 4. Ks needs s colors which must differ from colors a, b, and c.  (G)>=s+3. 5. (G)>(G).

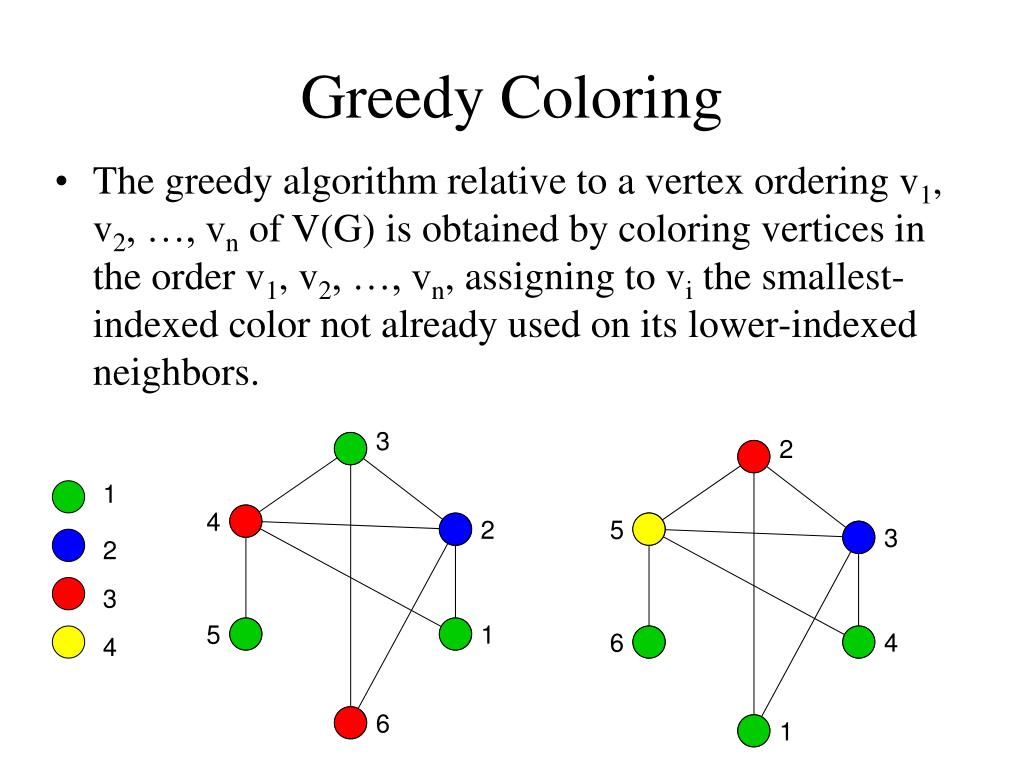

  6. Greedy Coloring • The greedy algorithm relative to a vertex ordering v1, v2, …, vn of V(G) is obtained by coloring vertices in the order v1, v2, …, vn, assigning to vi the smallest-indexed color not already used on its lower-indexed neighbors. 3 2 1 4 2 5 3 2 3 5 1 4 6 4 6 1

  7. Proposition 5.1.13 (G)<=(G)+1. Proof. 1. In a vertex ordering, each vertex has at most (G) earlier neighbors.  Greedy coloring cannot be forced to use more than (G)+1 colors.

  8. Block • Block: A maximal connected subgraph of G that has no cut-vertex. If G itself is connected and has no cut-vertex, then G is a block. (Definition 4.1.16)

  9. Block-cutpoint graph • Block-cutpoint graph: The block-cutpoint graph of a graph G is a bipartite graph H in which one partite set consists of the cut-vertices of G, and the other has a vertex bi for each block Bi of G. vbi as an edge of H if and only if v Bi. b5 b3 b1 b2 b4

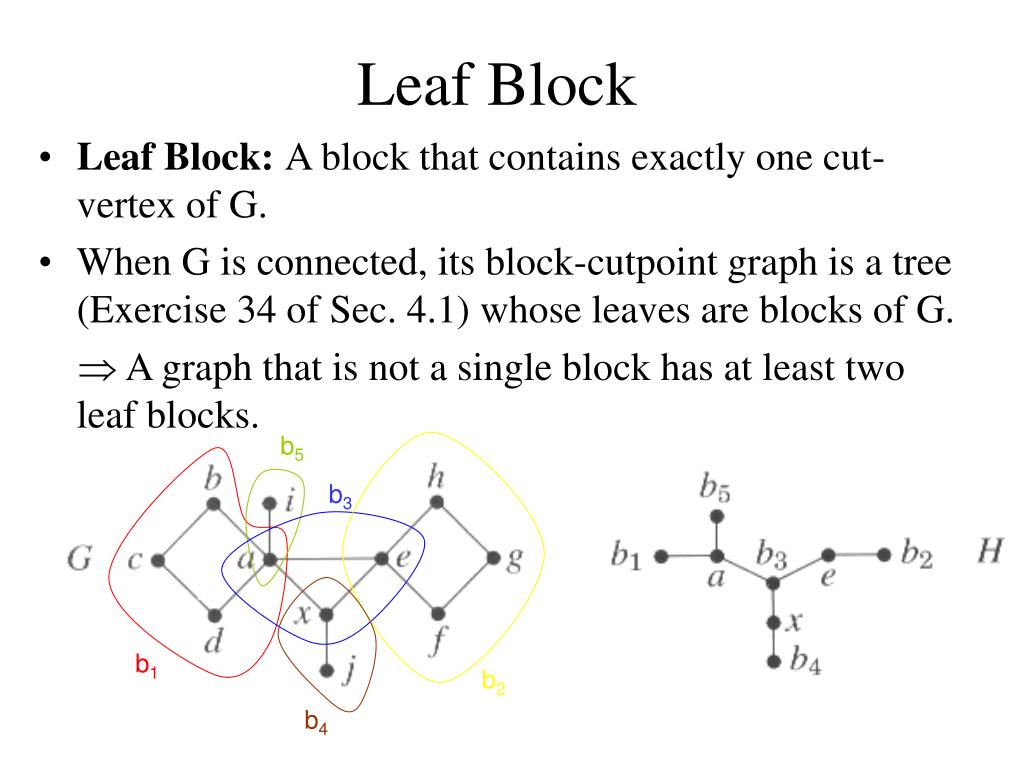

  10. Leaf Block • Leaf Block: A block that contains exactly one cut-vertex of G. • When G is connected, its block-cutpoint graph is a tree (Exercise 34 of Sec. 4.1) whose leaves are blocks of G.  A graph that is not a single block has at least two leaf blocks. b5 b3 b1 b2 b4

  11. Brook’s Theorem • If G is a connected graph other than a complete graph or an odd cycle, then (G)<=(G). Proof. 1. Let k= (G). 2. Since G is a complete graph when k<=1, and G is an odd cycle or is bipartite when k=2, in which case the bound holds, we assume that k>=3. 3. The theorem holds if we can order the vertices such that each has at most k-1 lower-indexed neighbors.

  12. Brook’s Theorem 4. Case 1: G is not k-regular. Let vn be the vertex of degree less than k. 5. Grow a spanning tree of G from vn, assigning indices in decreasing order as we reach vertices. 5 2 6. Each vertex other than vn in the resulting ordering has v1, v2, …, vn has a higher-indexed neighbor along the path to vn in the tree. 1 3 5 4 3 2 3 1 2 4 6 4  Each vertex has at most k-1 lower-indexed neighbors. 6 1

  13. Brook’s Theorem G’ 5 5. Case 2-1: G has a cut-vertex x. 4. Case 2: G is k-regular. 6. Let G’ be a subgraph consisting of a component of G-x together with its edges to x. 3 4 7. The degree of x in G’ is less than k.  The method in case 1 provides a proper k-coloring of G’. 1 2 x 6 8. By permuting the names of colors in the subgraphs resulting in this way from components of G-x, we can make the colorings agree on x to complete a proper k-coloring of G. 5 G’ 3 4 1 2

  14. Brook’s Theorem 9. Case 2-2: G is 2-connected. 10. Suppose that some vertex vn has neighbors v1, v2 such that (v1,v2)E(G) and G-{v1,v2} is connected. 11. Index the vertices of a spanning tree of G-{v1, v2} using 3, 4, …, n such that labels increase along paths to the root vn. 12. Each of v1, v2, …, vn has at most k-1 lower indexed neighbors. 13. v1 and v2 receives the same color.  At most k-1 colors are used on neighbors of vn.

  15. Brook’s Theorem 14. It suffices to show that every 2-connected k-regular graph with k>=3 has such a triple v1,v2,vn in 10. 15. Choose a vertex x. 16. Case 2-2-1: (G-x)>=2. 17. Let v1 be x. 18. There exists a vertex v2 with distance 2 from x because G is not a complete graph and G is regular. 19. Let vn be a common neighbor of v1 and v2. 20. v1, v2, vn be the desired triple. 21. Case 2-2-2: (G-x)=1.

  16. Brook’s Theorem because (G-x)=1. 22. Let vn=x. Then, x has a neighbor in every leaf block of G-x. Otherwise, G is not 2-connected. 23. G-x is not a single block  At least two leaf blocks in G-x 24. Clearly, neighbors v1 and v2 of x are not adjacent. 25. G-{v1,v2,x} is connected since blocks have no cut-vertices. 26. k>=3.  vertex x has a neighbor other than v1 and v2 G-{v1,v2} is connected. because G-x is connected.
