  1. MIRACLE WORKERZ TRAINING COURSE Introduction to Hand tools

  2. Hand Tools- Metal removal • Drill Motor • Taps / Wrench - for making threads • File • Hacksaw • Dremel tool • Reciprocating saw

  3. Drill motor

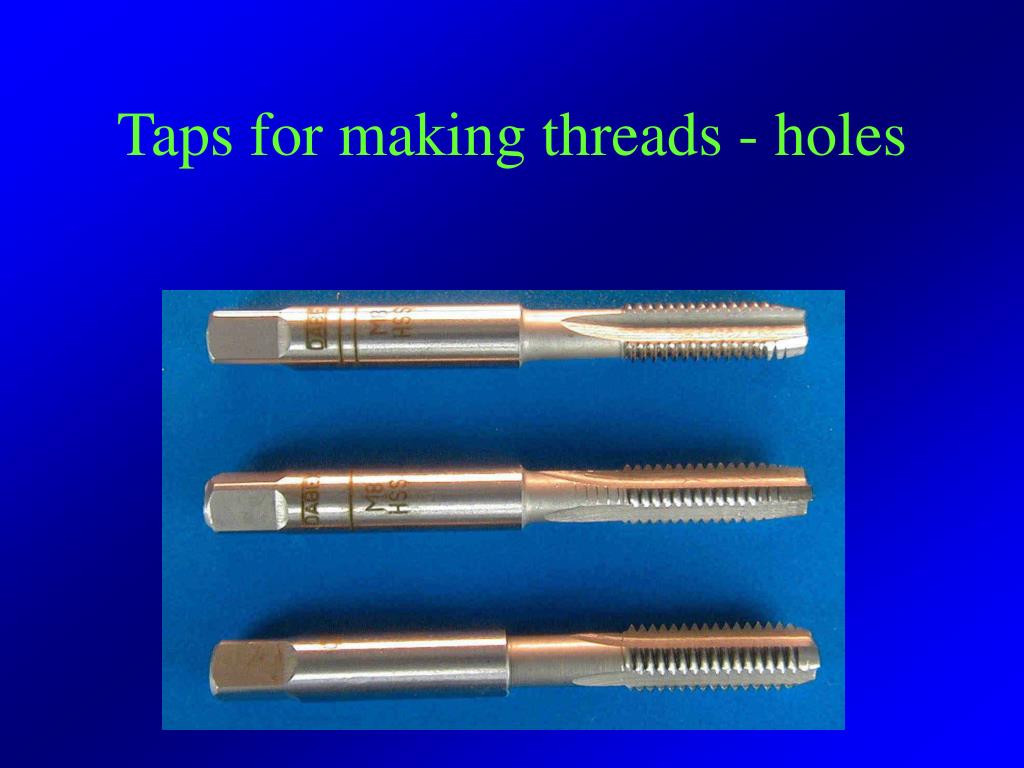

  4. Taps for making threads - holes

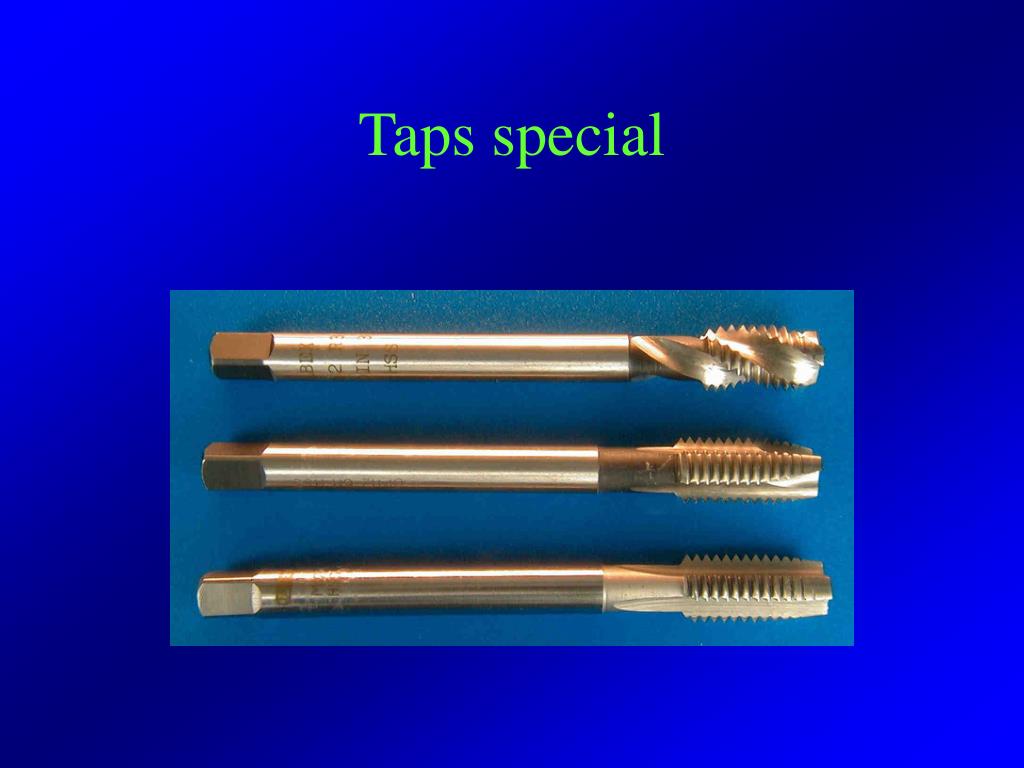

  5. Taps special

  6. FILES- ASSORTEDcuts on push strokea handle MUST be used

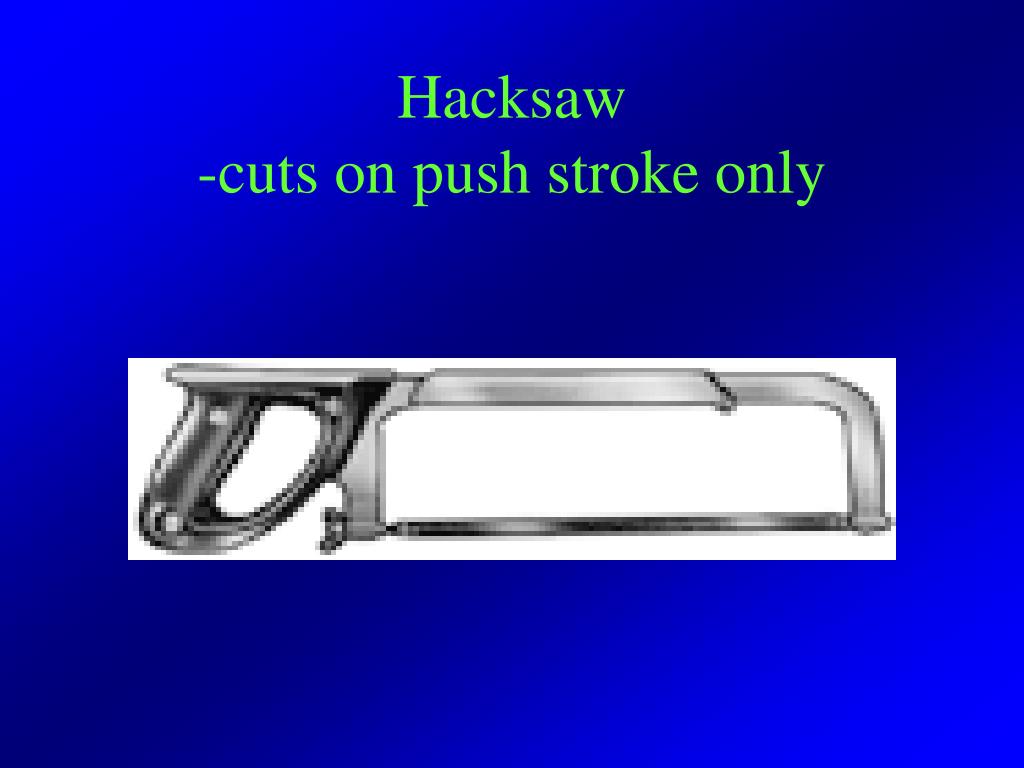

  7. Hacksaw-cuts on push stroke only

  8. Rotary tool-grinds and/or cuts

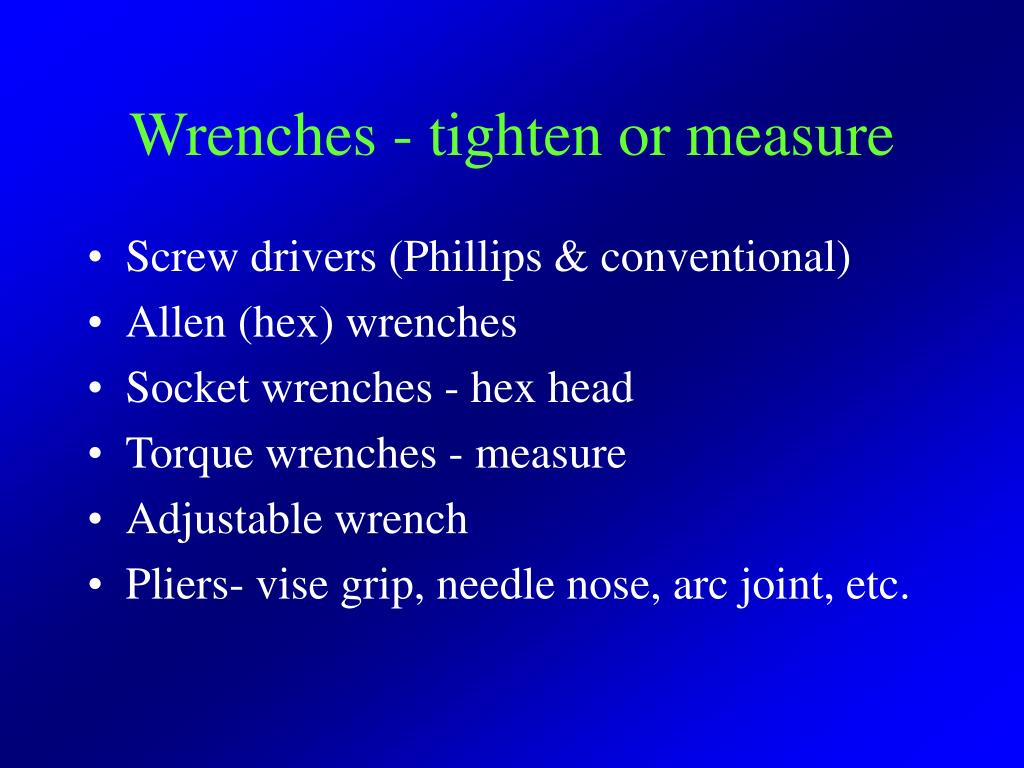

  9. Wrenches - tighten or measure • Screw drivers (Phillips & conventional) • Allen (hex) wrenches • Socket wrenches - hex head • Torque wrenches - measure • Adjustable wrench • Pliers- vise grip, needle nose, arc joint, etc.

  10. Allen wrenches - hex wrench

  11. Hex socket wrench

  12. Special Hand Tools • Dial calipers - measure • Micrometer - measure • Retaining ring pliers - install/remove • Deburring tool - removes burrs • Center punch - impression for drill etc. • Pop rivet - joins

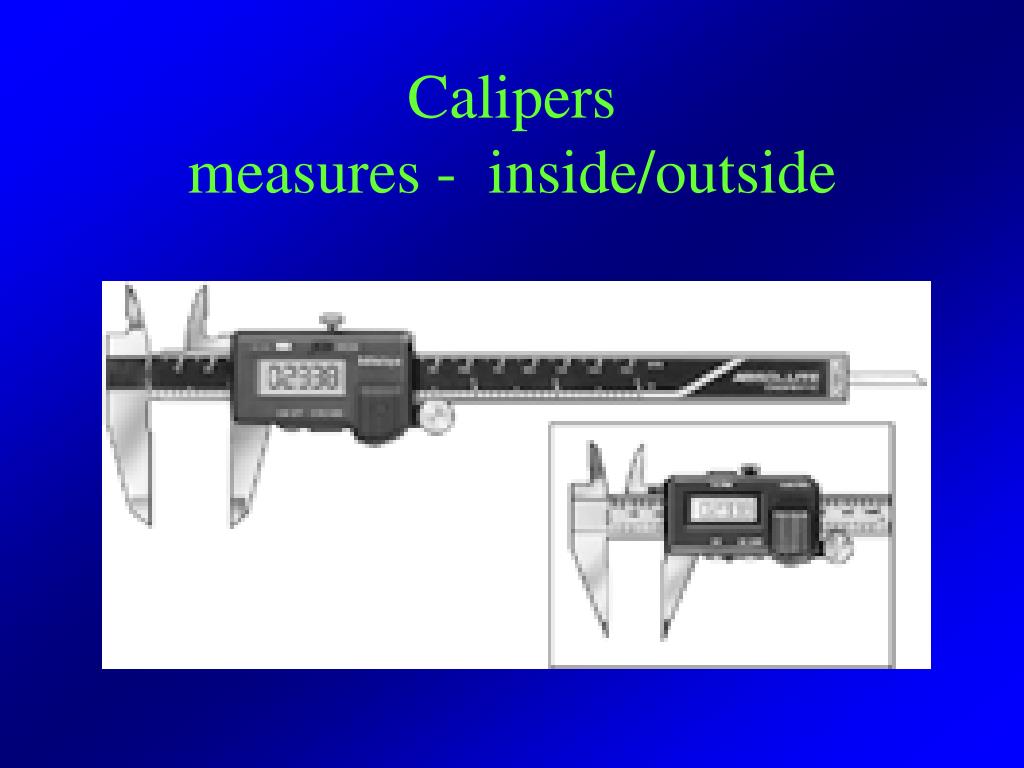

  13. Calipersmeasures - inside/outside

  14. Retaining ring pliers
