Presentation Transcript
Monitor l.jpg

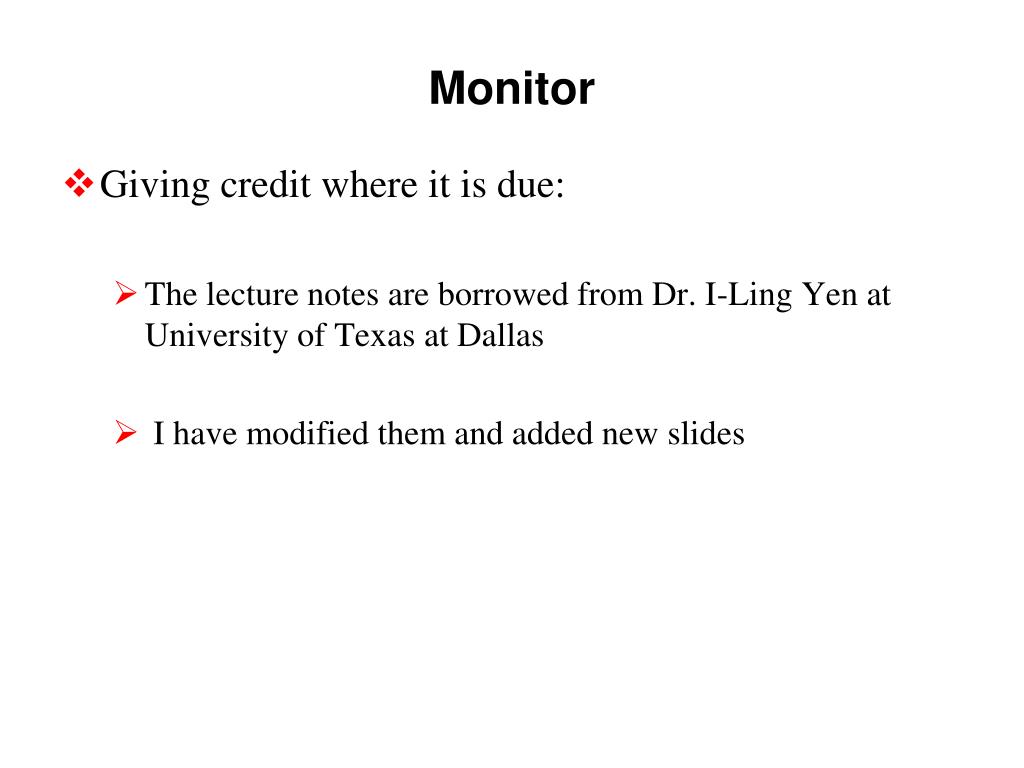

Monitor

  • Giving credit where it is due:

    • The lecture notes are borrowed from Dr. I-Ling Yen at University of Texas at Dallas

    • I have modified them and added new slides


Problems with semaphores l.jpg
Problems with Semaphores

  • Correct use of semaphore operations may not be easy, since they may be scattered throughout a program:


Monitors l.jpg
Monitors

  • A high-level abstraction that provides equivalent functionality to that of semaphores and that is easier to control

  • The monitor construct has been implemented in a number of programming languages and as a program library

  • A programmer does not need to manually write the entire synchronization code


Monitors4 l.jpg

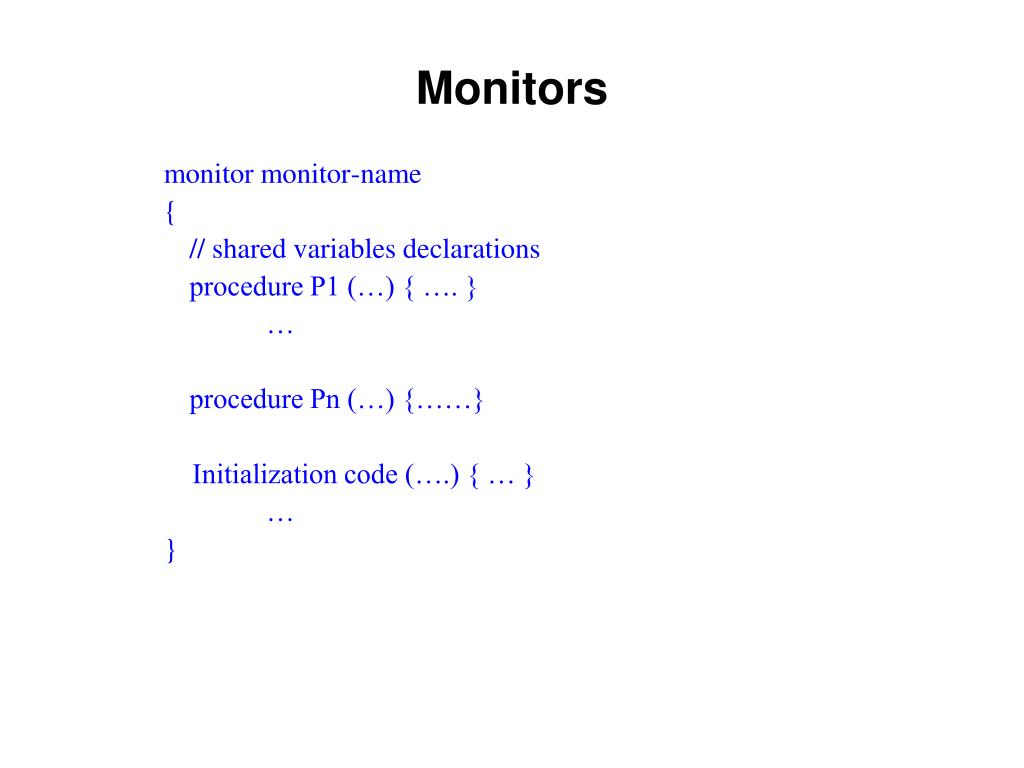

Monitors

monitor monitor-name

{

// shared variables declarations

procedure P1 (…) { …. }

procedure Pn (…) {……}

Initialization code (….) { … }

}


Monitor5 l.jpg
Monitor

  • Protect shared objects within an abstraction

    • Provide encapsulation

    • Accesses to a shared object is confined within a monitor

  • Provide mutual exclusive accesses

    • No two process can be active at the same time within a monitor

monitor

Monitor already provides lock box and corresponding control mechanism


Shared device program with monitor l.jpg
Shared Device Program with Monitor

  • N devices in the system

    • Use any of them as long as it is free

      monitor mutex_devices:

      free: array [0..N–1] ofboolean; -- initialized to true

      int acquire ()

      { fori := 0 to N–1 do

      if (free[i]) then { free[i] := false; return (i); }

      else return (–1);

      }

      void release (index: integer)

      { free[index] := true; }


Synchronization within a hoare style monitor l.jpg
Synchronization within a Hoare-style Monitor

  • Monitor guarantees mutual exclusive accesses

  • May still need synchronization

  • Monitor also provides condition variables

    • To achieve conditional wait and support synchronization

    • Associated with each condition variable

      • A condition queue

      • The wait and signal functions

    • If wait inside a monitor

      • Same as wait inside a lockbox protected by a semaphore (mutex)

      • Has potential of deadlock

      • Monitor provides mechanism to counter it

  • Monitor guarantees mutual exclusive accesses

  • May still need synchronization

    • E.g., shared device problem

      • wait for device to become available

    • E.g., bounded buffer problem

      • wait for buffer to become full/empty


Synchronization within a hoare style monitor8 l.jpg

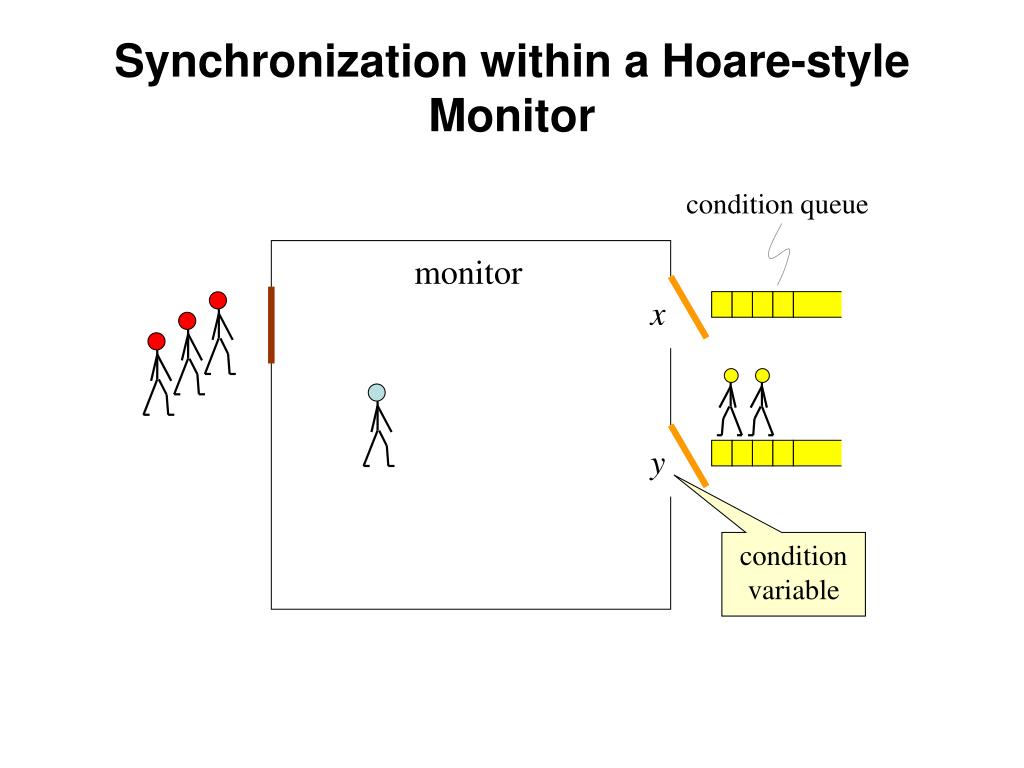

Synchronization within a Hoare-style Monitor

condition queue

monitor

x

y

condition variable


Bounded buffer problem with a hoare style monitor l.jpg
Bounded Buffer Problem with a Hoare-style Monitor

monitor bounded_buffer

buffer: array [0..n-1] of item;

in, out, counter: integer := 0;

empty, full: condition;

functiondeposit (item) functionremove (&item)

{  if (counter = n) then {  if (counter = 0) then

full.wait; empty.wait;

    buffer[in] := item;     item := buffer[out];

in := (in+1) % n; out := (out+1) % n;

    counter := counter + 1;      counter := counter – 1;

    empty.signal;     full.signal;

} }


Bounded buffer problem with a hoare style monitor10 l.jpg
Bounded Buffer Problem with a Hoare-style Monitor

Producer process:

repeatproduce item    deposit (item); untilfalse;

Consumer process: repeat    remove (item);     consume item; untilfalse;


Bounded buffer problem with a hoare style monitor signal and wait discipline l.jpg
Bounded Buffer Problem with a Hoare-style Monitor (Signal-and-Wait Discipline)

functiondeposit (item) {

if (counter = n) then

full.wait;

    buffer[in] := item;

in := (in+1) % n;

    counter := counter + 1;

    empty.signal; }

functionremove (&item) {

if (counter = 0) then

empty.wait;

    item := buffer[out];

out := (out+1) % n;

   counter := counter – 1;

    full.signal; }

condition queue

monitor

full

empty


Bounded buffer problem with a hoare style monitor signal and wait discipline12 l.jpg
Bounded Buffer Problem with a Hoare-style Monitor (Signal-and-Wait Discipline)

functionfun1 () {

empty.signal;

    …}

  • function fun2 () {

  •     empty.wait;

  • …}

  • A process signals and then must be blocked; signal-and-wait

  • Process scheduling associated with a signal must be perfectly reliable

condition queue

monitor

full

empty


Bounded buffer problem with a hoare style monitor signal and wait discipline13 l.jpg
Bounded Buffer Problem with a Hoare-style Monitor (Signal-and-Wait Discipline)

functiondeposit (item) {

if (counter = n) then

full.wait;

    buffer[in] := item;

in := (in+1) % n;

    counter := counter + 1;

    empty.signal; }

functionremove (&item) {

if (counter = 0) then

empty.wait;

    item := buffer[out];

out := (out+1) % n;

   counter := counter – 1;

    full.signal; }

condition queue

monitor

full

empty


Bounded buffer problem with a mesa monitor signal and continue discipline l.jpg

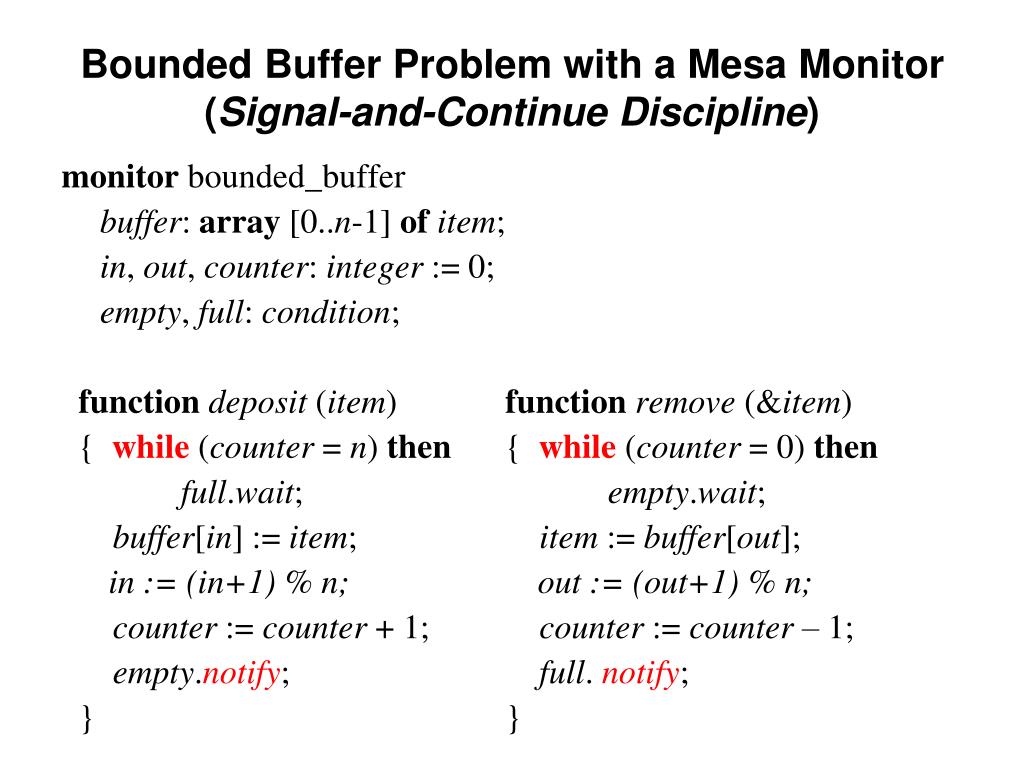

Bounded Buffer Problem with a Mesa Monitor (Signal-and-Continue Discipline)

monitor bounded_buffer

buffer: array [0..n-1] of item;

in, out, counter: integer := 0;

empty, full: condition;

functiondeposit (item) functionremove (&item)

{  while (counter = n) then {  while (counter = 0) then

full.wait; empty.wait;

    buffer[in] := item;     item := buffer[out];

in := (in+1) % n; out := (out+1) % n;

    counter := counter + 1;      counter := counter – 1;

    empty.notify;     full.notify;

} }


Bounded buffer problem with a mesa monitor signal and continue discipline15 l.jpg

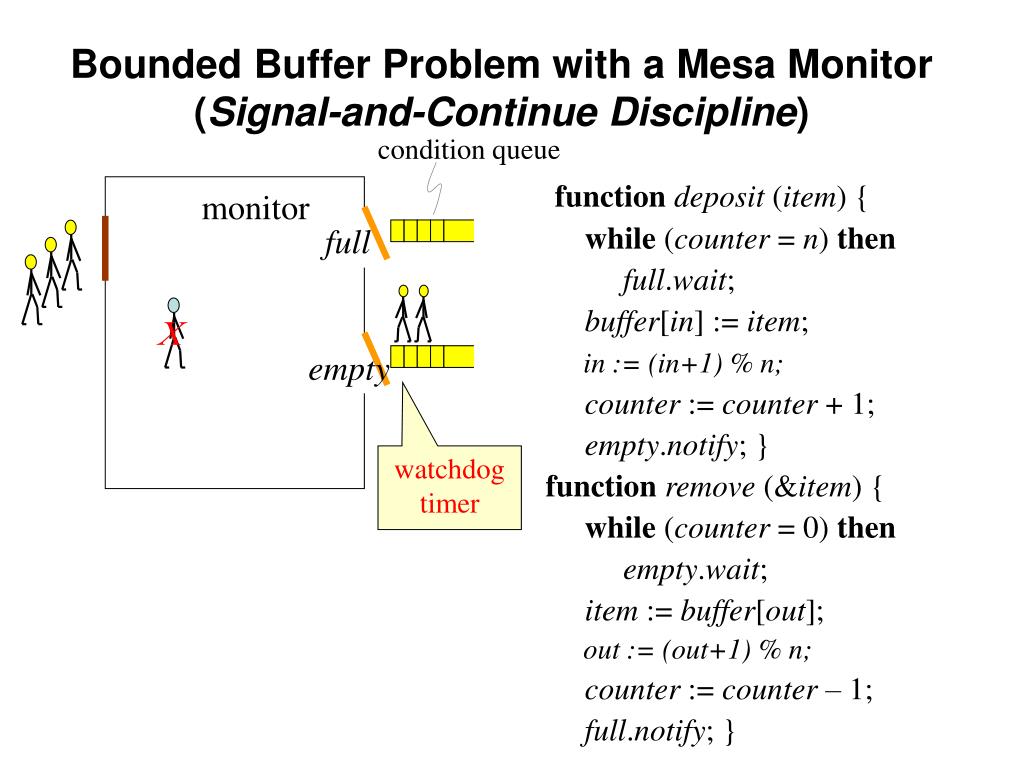

Bounded Buffer Problem with a Mesa Monitor (Signal-and-Continue Discipline)

functiondeposit (item) {

while (counter = n) then

full.wait;

    buffer[in] := item;

in := (in+1) % n;

    counter := counter + 1;

    empty.notify; }

functionremove (&item) {

while (counter = 0) then

empty.wait;

    item := buffer[out];

out := (out+1) % n;

   counter := counter – 1;

    full.notify; }

condition queue

monitor

full

empty

watchdog

timer


Monitor16 l.jpg
Monitor

  • Monitor provides encapsulation

    • Accesses to a shared object is confined within a monitor

    • Easier to debug the code

      • E.g., bounded buffer problem, deposit & remove functions

    • What should be encapsulated?

    • Too much  reduce concurrency

      • Some part of the code that can be executed concurrently, if encapsulated in the monitor, can cause reduced concurrency
