  1. Китайская мудрость гласит: «Я слышу – я забываю, Я вижу – я запоминаю, Я делаю – я усваиваю»

  2. Сечение тетраэдра плоскостью.

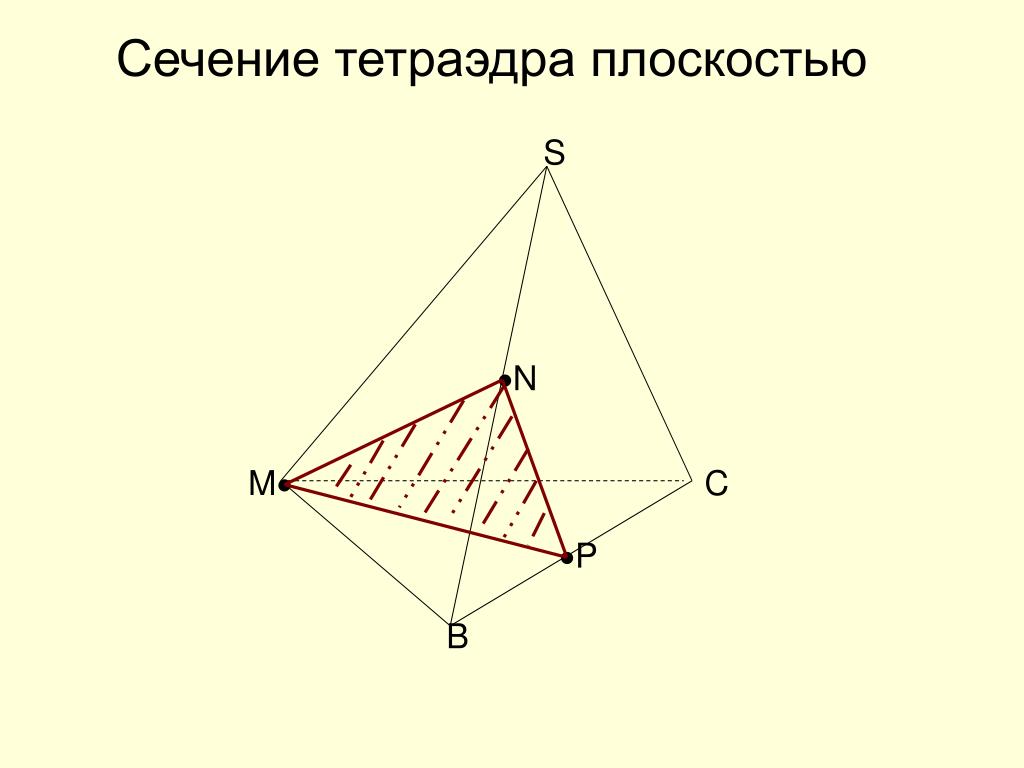

  3. S N M C P B Сечение тетраэдра плоскостью

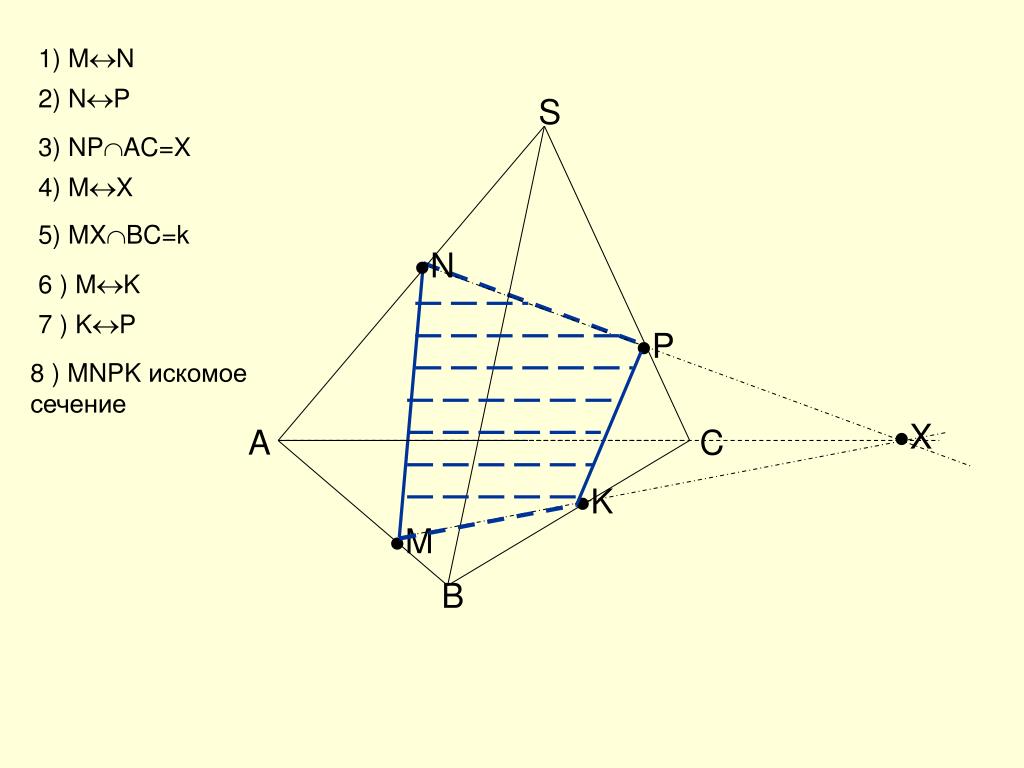

  4. S N P A C M B 1) MN 2) NP 3) NPAC=X 4) MX 5) MXBC=k 6 ) MK 7 ) KP 8 ) MNPK искомое сечение X K

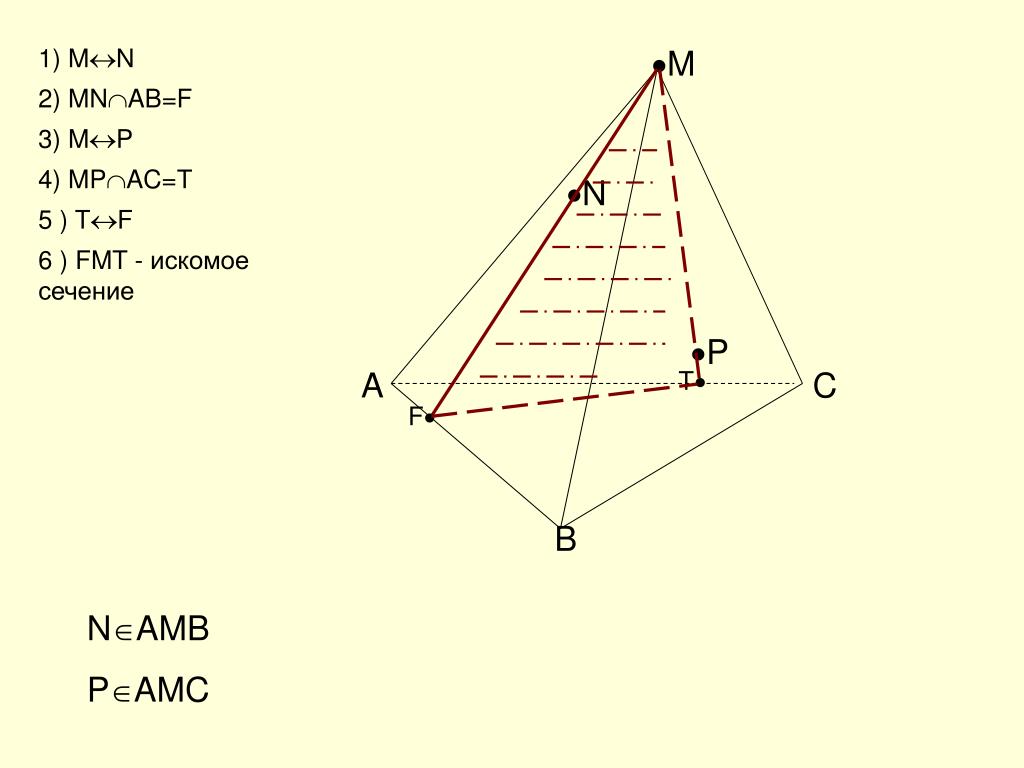

  5. M N P A C B 1) MN 2) MNAB=F 3) MP 4) MPAC=T 5 ) TF 6 ) FMT -искомое сечение T F NAMB PAMC

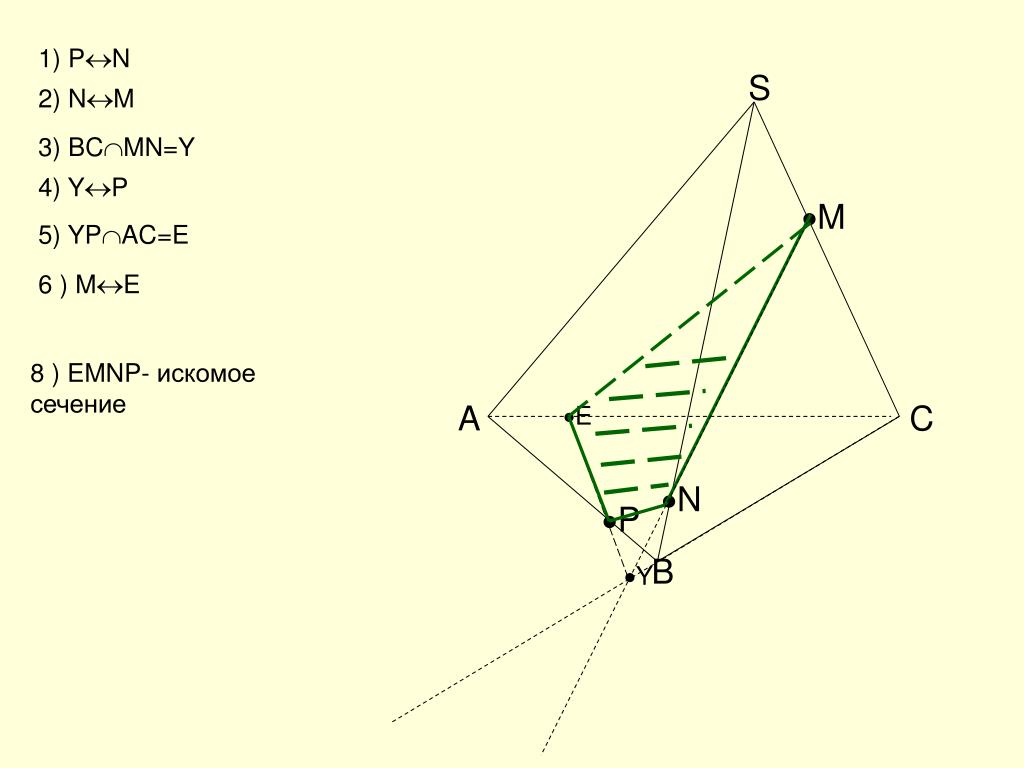

  6. S M A C N P B 1) PN 2) NM 3) BCMN=Y 4) YP 5) YPAC=E 6 ) ME 8 ) EMNP-искомое сечение E Y

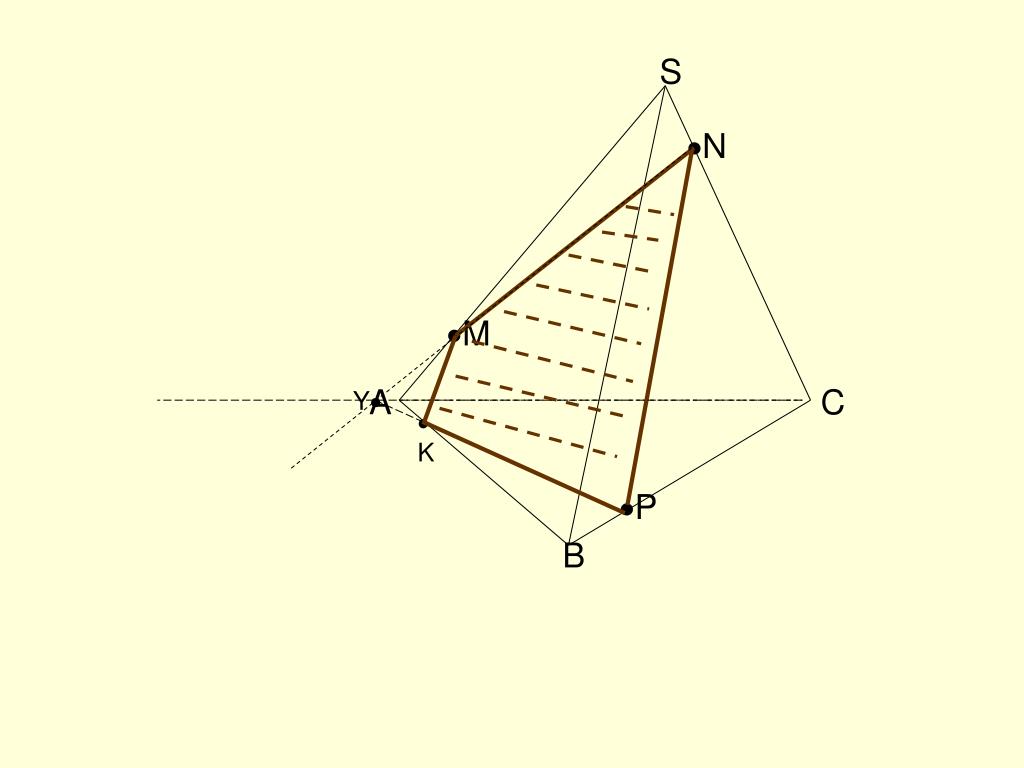

  7. S N M A C P B Y K

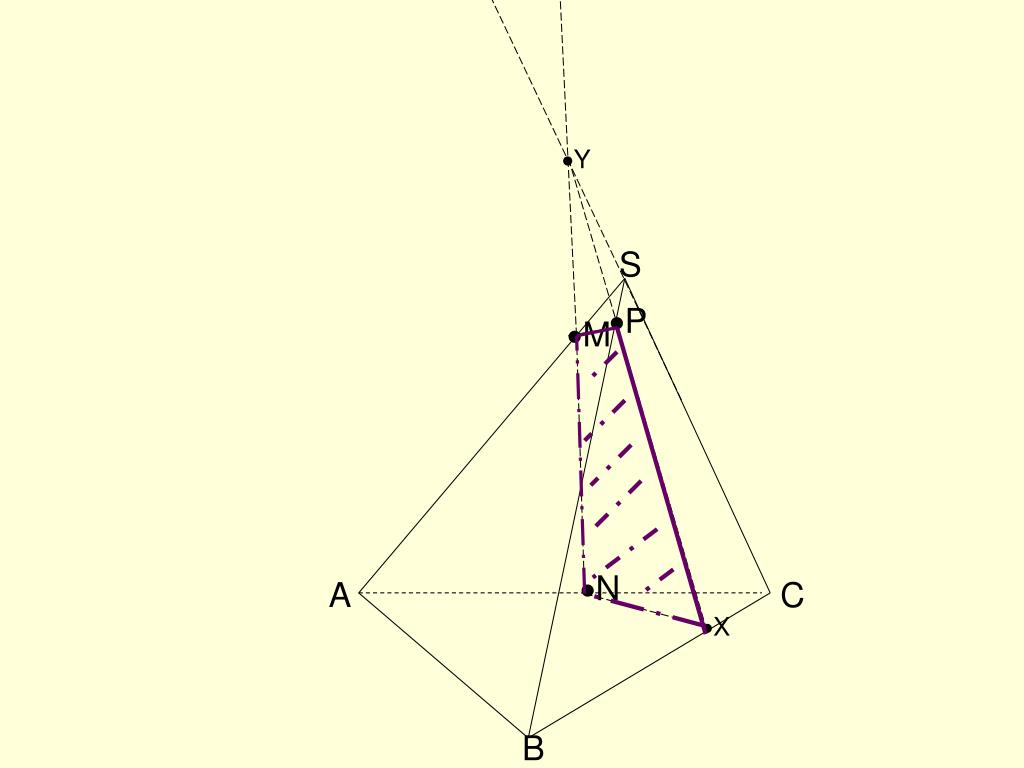

  8. S P M N A C B Y X

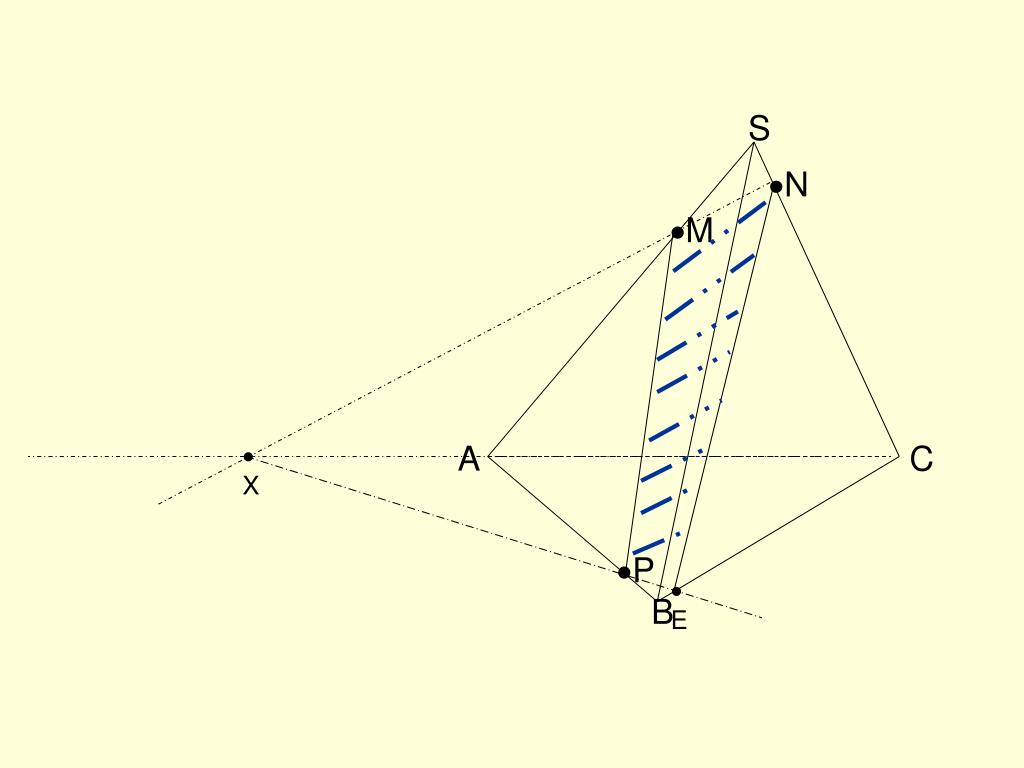

  9. S N M A C P B X E
