Topic 4: Oscillations and waves 4.1 Kinematics of simple harmonic motion

4.1.1 Describe examples of oscillation. 4.1.2 Define the terms displacement, amplitude, frequency, period, and phase difference. 4.1.3 Define simple harmonic motion (SHM) and state the defining equation as a = -  2 x .

yeo-butler
Download Presentation

Topic 4: Oscillations and waves 4.1 Kinematics of simple harmonic motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

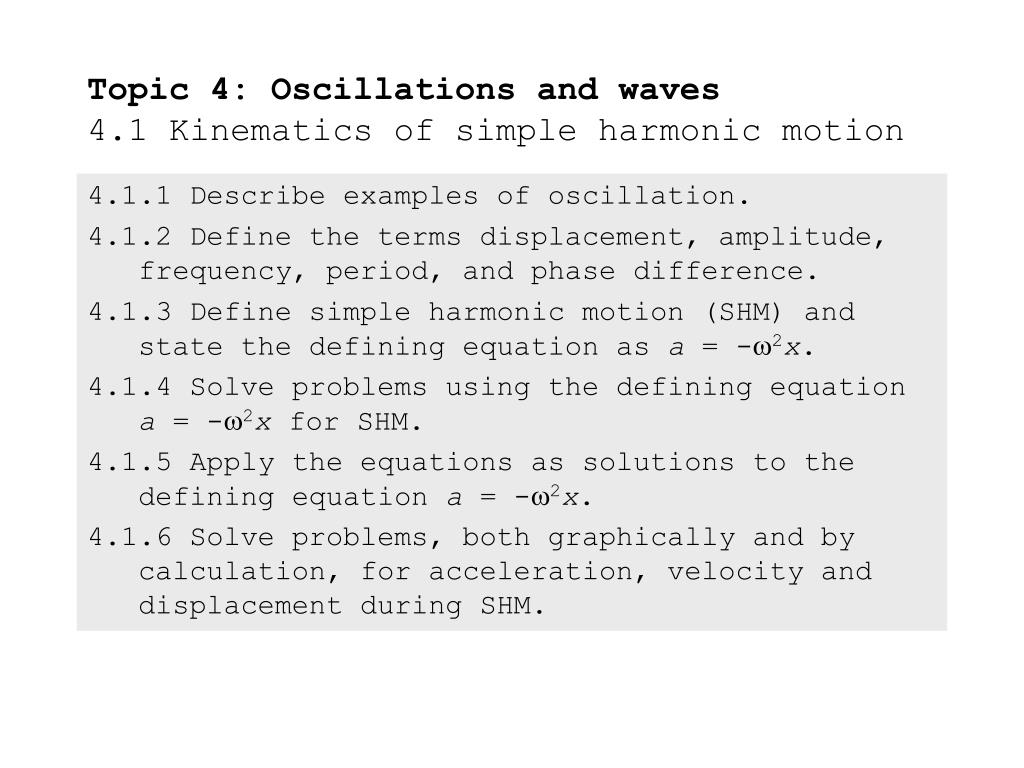

  1. 4.1.1 Describe examples of oscillation. 4.1.2 Define the terms displacement, amplitude, frequency, period, and phase difference. 4.1.3 Define simple harmonic motion (SHM) and state the defining equation as a = -2x. 4.1.4 Solve problems using the defining equation a = -2x for SHM. 4.1.5 Apply the equations as solutions to the defining equation a = -2x. 4.1.6 Solve problems, both graphically and by calculation, for acceleration, velocity and displacement during SHM. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion

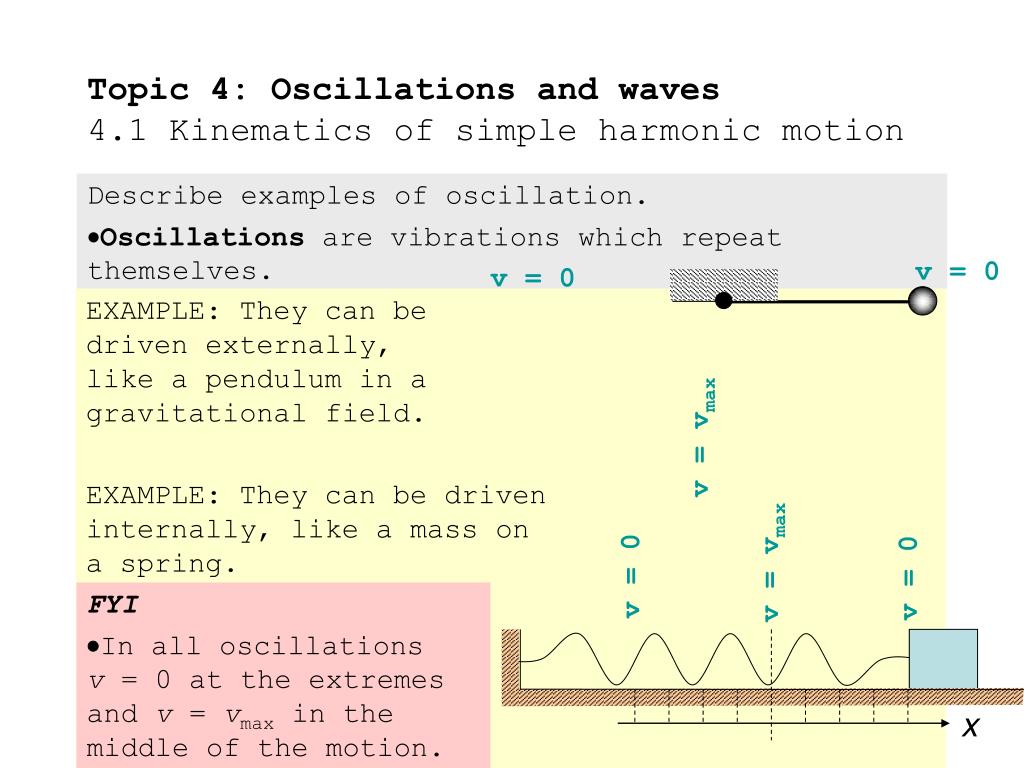

  2. x Describe examples of oscillation. Oscillations are vibrations which repeat themselves. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion v = 0 v = 0 EXAMPLE: They can be driven externally, like a pendulum in a gravitational field. EXAMPLE: They can be driven internally, like a mass on a spring. v = vmax v = vmax v = 0 v = 0 FYI In all oscillations v = 0 at the extremes and v = vmax in the middle of the motion.

  3. Describe examples of oscillation. Oscillations are vibrations which repeat themselves. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: They can be very rapid vibrations such as in a plucked guitar string or a tuning fork.

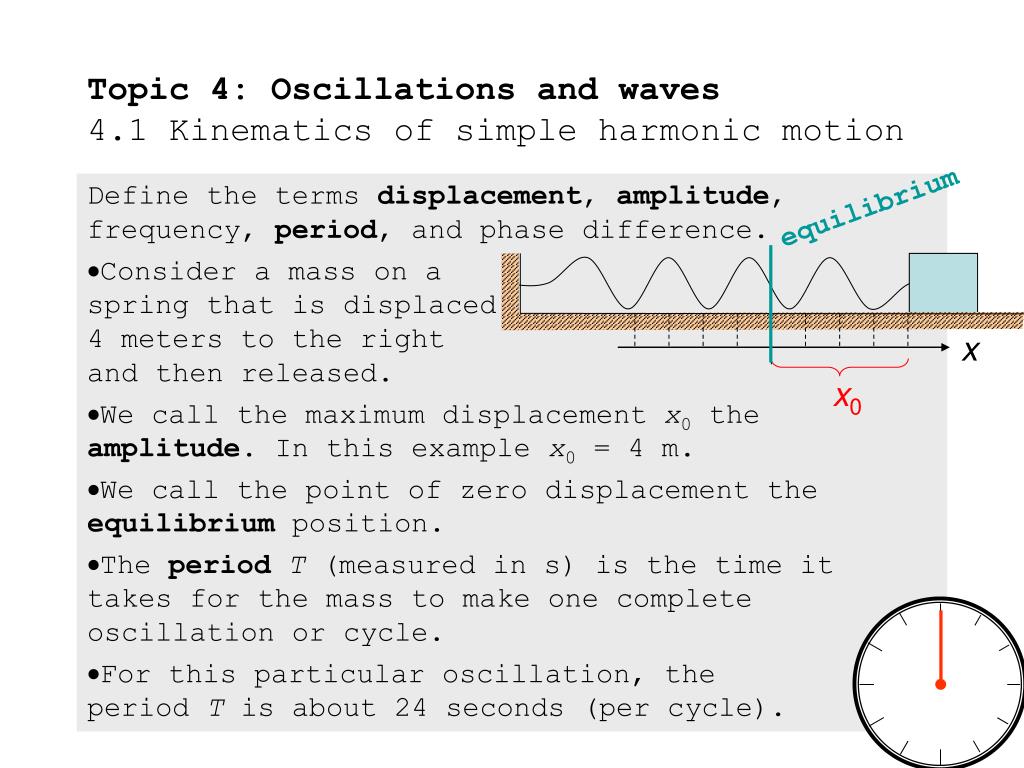

  4. x Define the terms displacement, amplitude, frequency, period, and phase difference. Consider a mass on a spring that is displaced 4 meters to the right and then released. We call the maximum displacement x0 the amplitude. In this example x0 = 4 m. We call the point of zero displacement the equilibrium position. The periodT (measured in s) is the time it takes for the mass to make one complete oscillation or cycle. For this particular oscillation, the period T is about 24 seconds (per cycle). equilibrium Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion x0

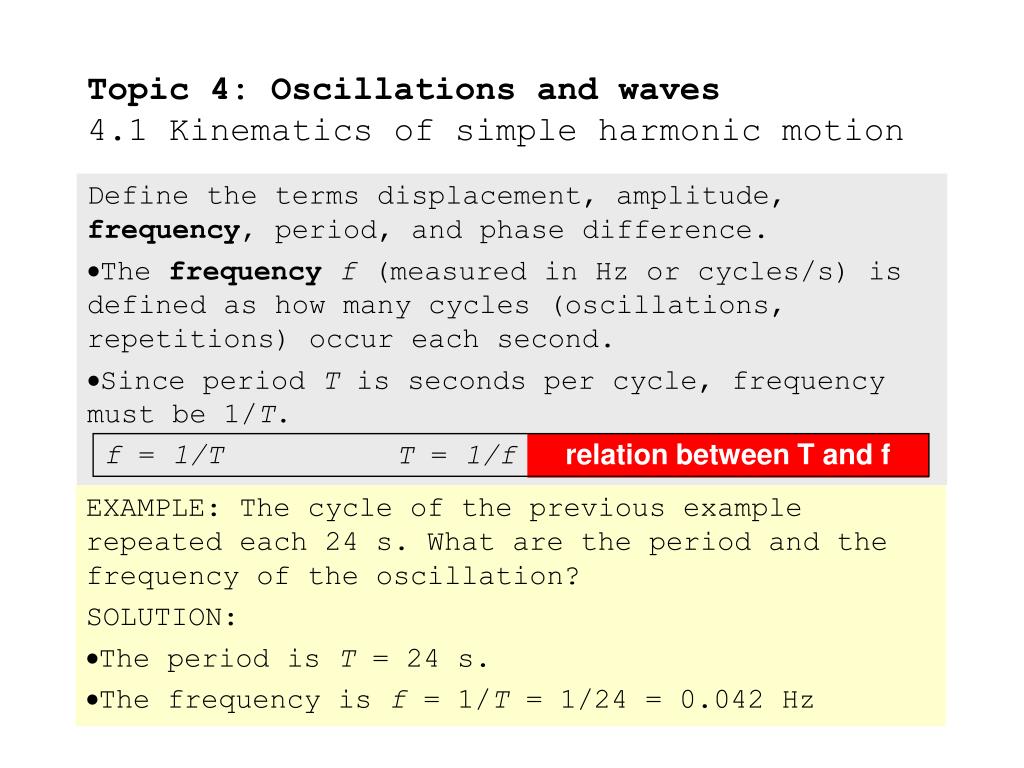

  5. relation between T and f f = 1/T T = 1/f Define the terms displacement, amplitude, frequency, period, and phase difference. The frequencyf (measured in Hz or cycles/s) is defined as how many cycles (oscillations, repetitions) occur each second. Since period T is seconds per cycle, frequency must be 1/T. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: The cycle of the previous example repeated each 24 s. What are the period and the frequency of the oscillation? SOLUTION: The period is T = 24 s. The frequency is f = 1/T = 1/24 = 0.042 Hz

  6. x x Define the terms displacement, amplitude, frequency, period, and phase difference. We can pull the mass to the right and then release it to begin its motion: Or we could push it to the left and release it: The resulting motion would have the same values for T, f, and . However, the resulting motion will have a phase difference of half a cycle. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion Start stretched The two motions are half a cycle out of phase. Start compressed

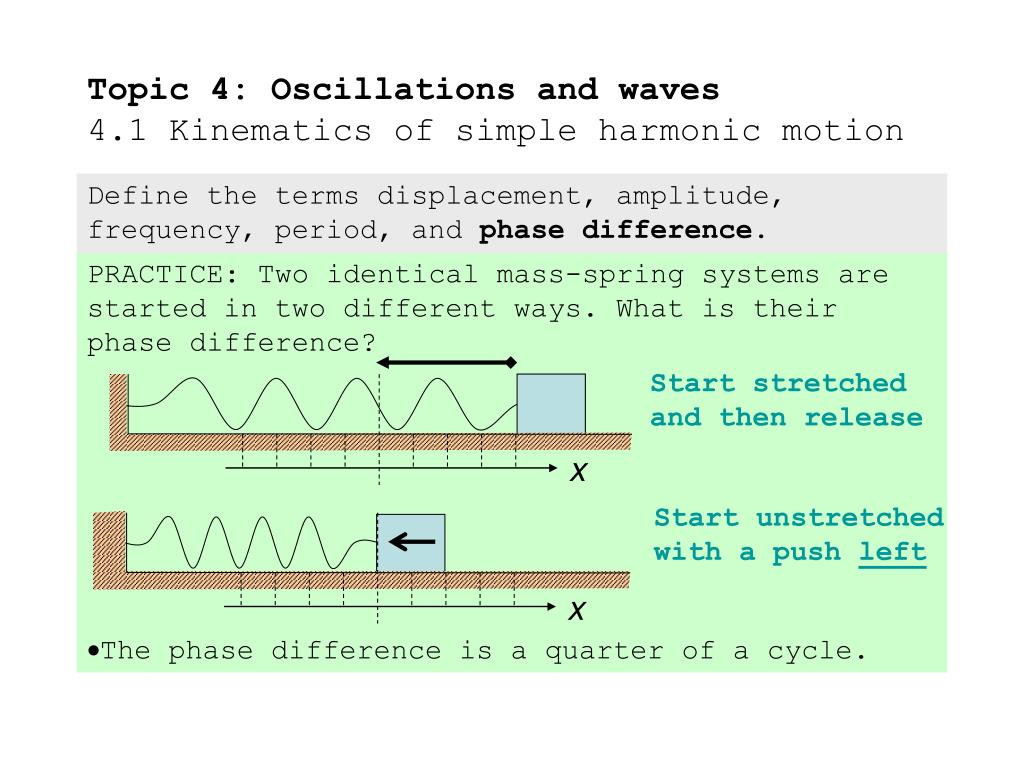

  7. x x Define the terms displacement, amplitude, frequency, period, and phase difference. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion PRACTICE: Two identical mass-spring systems are started in two different ways. What is their phase difference? The phase difference is a quarter of a cycle. Start stretched and then release Start unstretched with a push left

  8. x x Define the terms displacement, amplitude, frequency, period, and phase difference. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion PRACTICE: Two identical mass-spring systems are started in two different ways. What is their phase difference? The phase difference is three quarters of a cycle. Start stretched and then release Start unstretched with a push right

  9. v0 x0 Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Before we define simple harmonic motion, which is a special kind of oscillation, we have to digress for a moment and revisit uniform circular motion. Recall that UCM consists of the motion of an object at a constant speed v0 in a circle of radius x0. Since the velocity is always changing direction, we saw that the object had a centripetal acceleration given by a = v02/x0, pointing toward the center. If we time one revolution we get the period T. T is about 12 s. And the frequency is f = 1/T = 1/12 = 0.083 s. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion

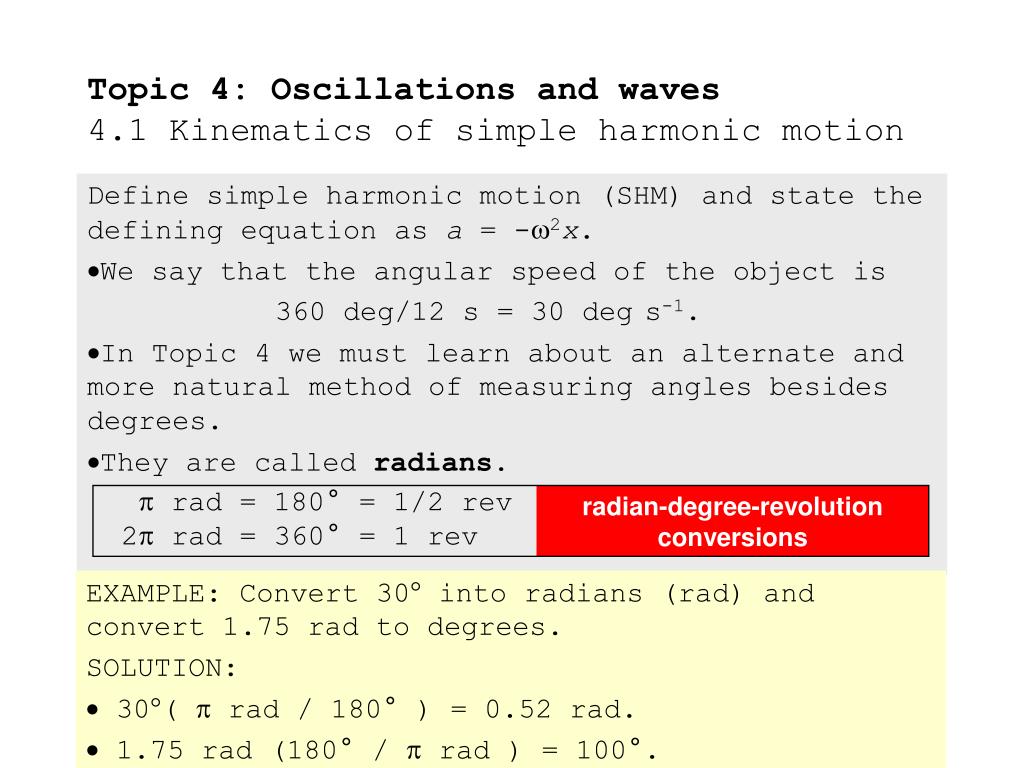

  10. rad=180° = 1/2 rev radian-degree-revolution conversions 2rad=360° = 1 rev Define simple harmonic motion (SHM) and state the defining equation as a = -2x. We say that the angular speed of the object is 360 deg/12 s = 30 degs-1. In Topic 4 we must learn about an alternate and more natural method of measuring angles besides degrees. They are called radians. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: Convert 30 into radians (rad) and convert 1.75 rad to degrees. SOLUTION:  30( rad/180° ) = 0.52 rad.  1.75 rad (180° / rad ) = 100°.

  11. v0 rad=180° = 1/2 rev radian-degree-revolution conversions x0 2rad=360° = 1 rev Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Angular speed will not be measured in degrees per second in this section. It will be measured in radians per second. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: Convert the angular speed of 30s-1 from the previous example into radians per second. SOLUTION: Since 30( rad/180° ) = 0.52 rad, then 30s-1 = 0.52 rads-1. FYI Angular speed is also called angular frequency.

  12. relation between , T and f =2/T = /t =2f rad=180° = 1/2 rev radian-degree-revolution conversions 2rad=360° = 1 rev Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Since 2rad=360° = 1 rev it should be clear that the angular speed  is just 2/T. And since f = 1/T it should also be clear that =2f. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: Find the angular frequency (angular speed) of the second hand on a clock. SOLUTION: Since the second hand turns through one circle each 60 s, it has an angular speed given by =2/T = 2/60 = 0.105 rads-1.

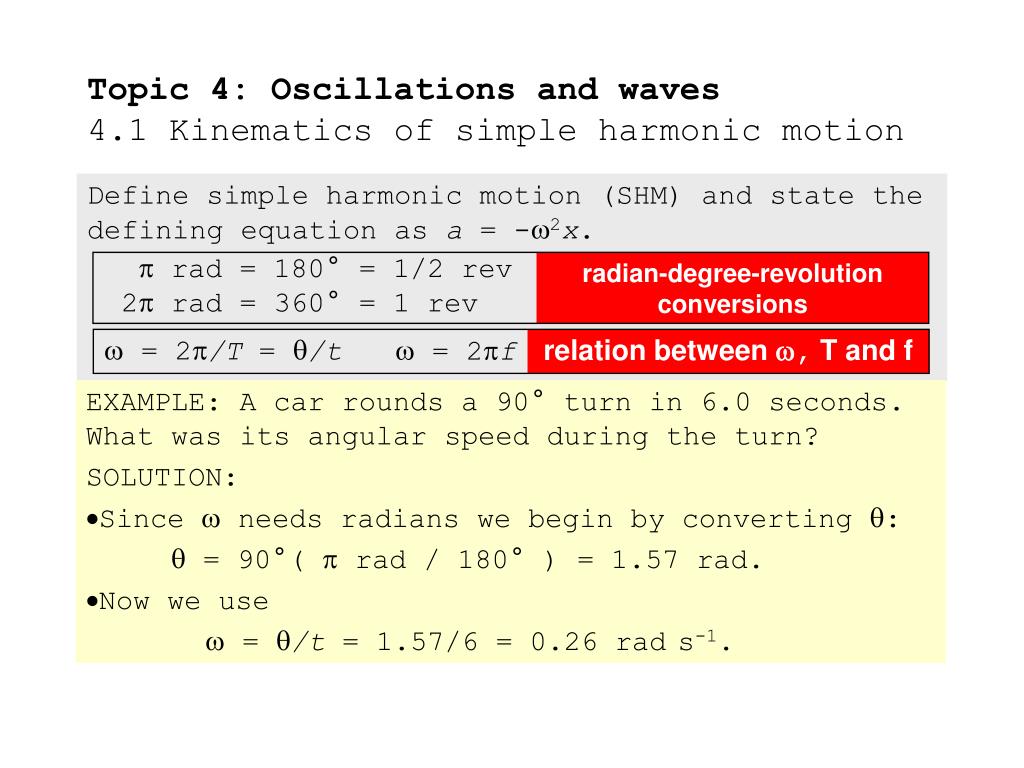

  13. relation between , T and f =2/T = /t =2f rad=180° = 1/2 rev radian-degree-revolution conversions 2rad=360° = 1 rev Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: A car rounds a 90° turn in 6.0 seconds. What was its angular speed during the turn? SOLUTION: Since  needs radians we begin by converting :  = 90°( rad/180° ) = 1.57 rad. Now we use =/t = 1.57/6 = 0.26 rads-1.

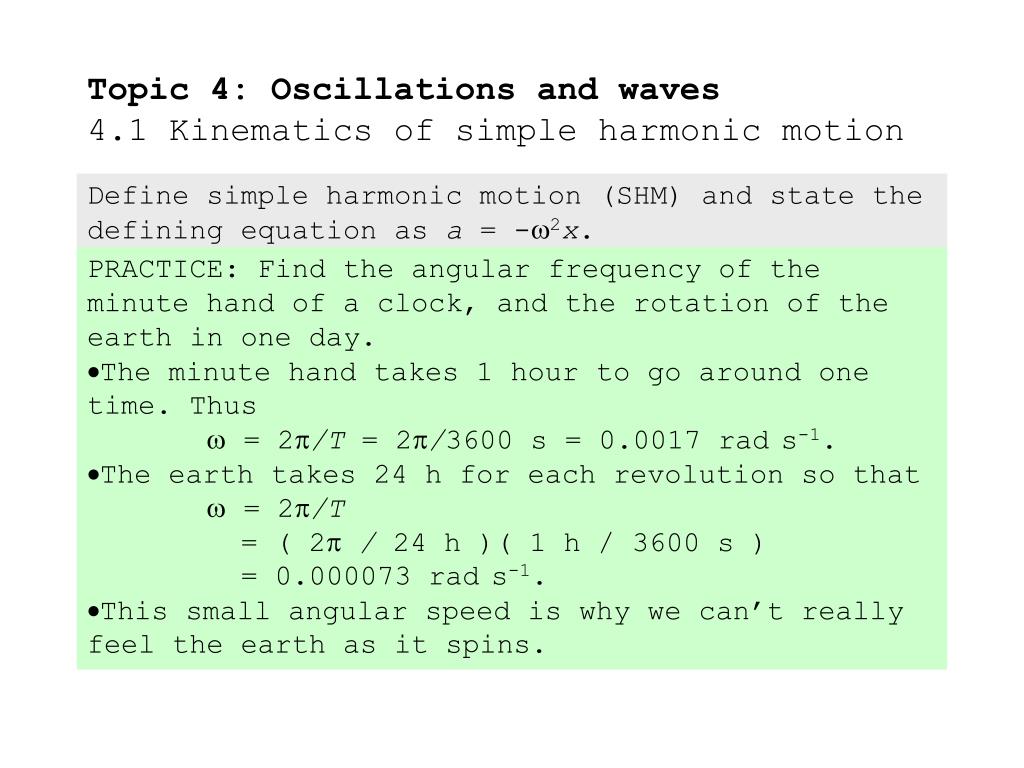

  14. Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion PRACTICE: Find the angular frequency of the minute hand of a clock, and the rotation of the earth in one day. The minute hand takes 1 hour to go around one time. Thus  =2/T = 2/3600 s = 0.0017 rads-1. The earth takes 24 h for each revolution so that  =2/T = ( 2 / 24 h )( 1 h / 3600 s ) = 0.000073 rads-1. This small angular speed is why we can’t really feel the earth as it spins.

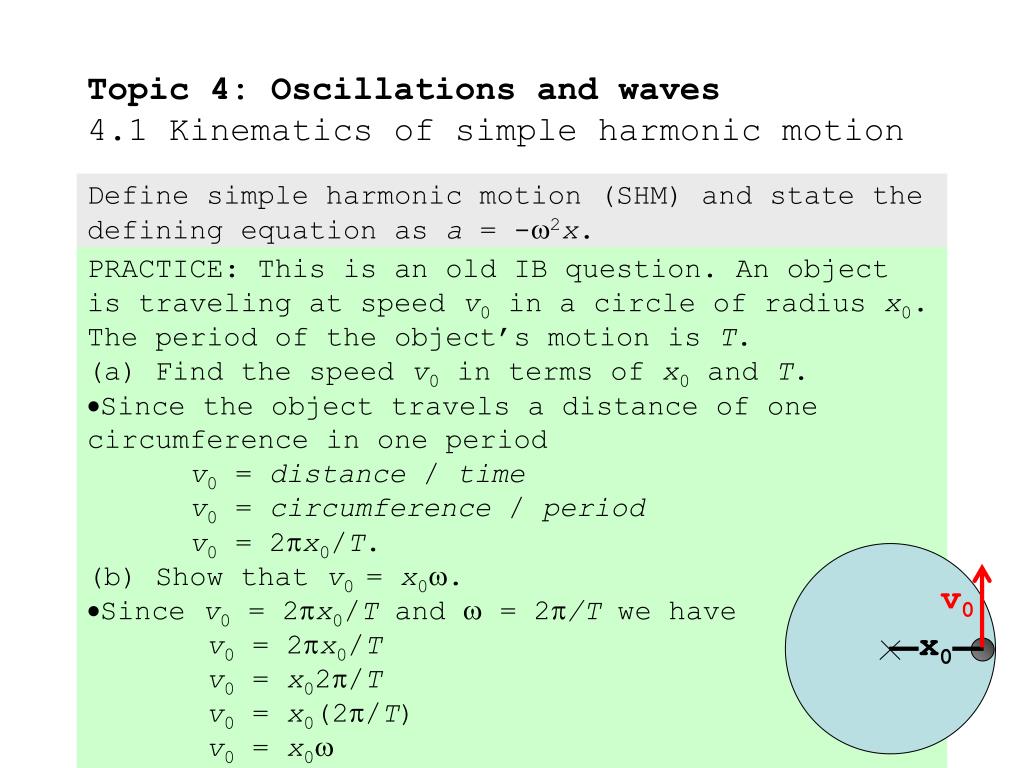

  15. v0 x0 Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion PRACTICE: This is an old IB question. An object is traveling at speed v0 in a circle of radius x0. The period of the object’s motion is T. (a) Find the speed v0 in terms of x0 and T. Since the object travels a distance of one circumference in one period v0 = distance / time v0 = circumference / period v0 = 2x0/T. (b) Show that v0 = x0. Since v0 = 2x0/T and  =2/T we have v0 = 2x0/T v0 = x02/T v0 = x0(2/T) v0 = x0

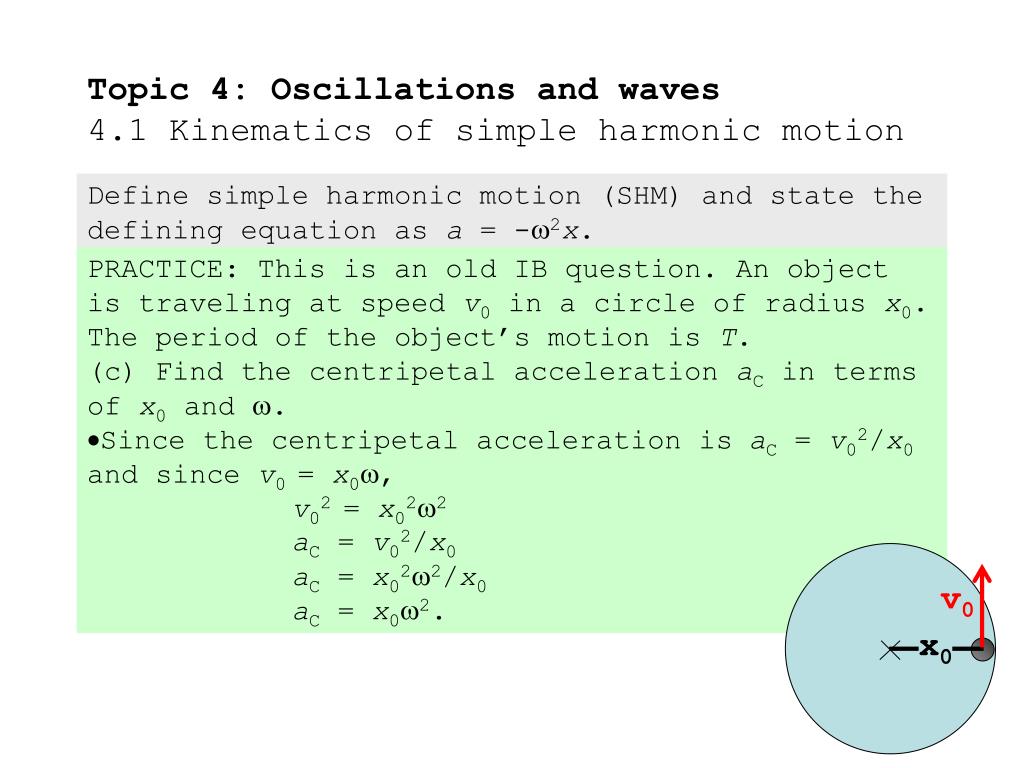

  16. v0 x0 Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion PRACTICE: This is an old IB question. An object is traveling at speed v0 in a circle of radius x0. The period of the object’s motion is T. (c) Find the centripetal acceleration aC in terms of x0 and . Since the centripetal acceleration is aC = v02/x0 and since v0 = x0, v02= x022 aC = v02/x0 aC = x022/x0 aC = x02.

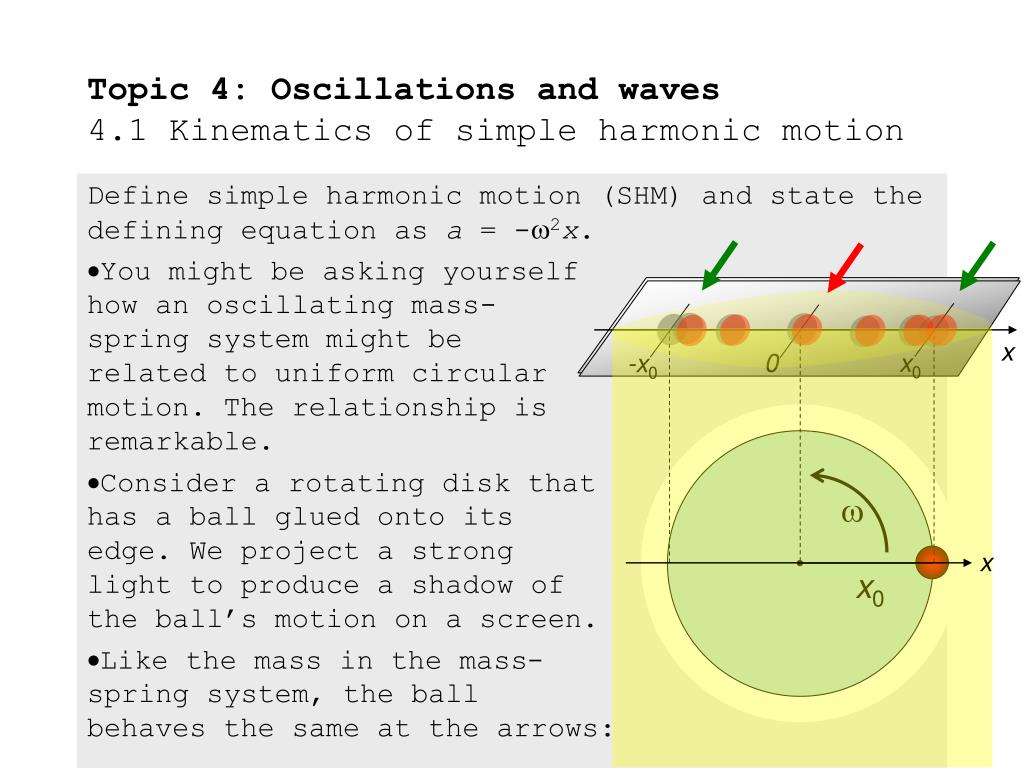

  17. x 0 x0 -x0              x x0 x0 x0 x0 x0 x0 x0 x0 x0 x0 x0 x0 x0 Define simple harmonic motion (SHM) and state the defining equation as a = -2x. You might be asking yourself how an oscillating mass- spring system might be related to uniform circular motion. The relationship is remarkable. Consider a rotating disk that has a ball glued onto its edge. We project a strong light to produce a shadow of the ball’s motion on a screen. Like the mass in the mass- spring system, the ball behaves the same at the arrows: Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion

  18. v0 v0 x0 x0 0 x0 -x0 x x Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Note that the shadow is the x-coordinate of the ball. Thus the equation of the shadow is x = x0 cos. Therefore the equation of the shadow’s x-coordinate is x = x0 cost. If we know , and if we know t, we can calculate x. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion FYI From  = /t we get  = t.  x = x0 cos

  19. v0 x0 Define simple harmonic motion (SHM) and state the defining equation as a = -2x. At precisely the same instant we can find the equation for the shadow of v. Create a velocity triangle. Working from the displacement triangle we can determine the angles in the velocity triangle. The x-component of the velocity is opposite the theta, so we use sine: v = -v0 sin. But since  = t we get our final equation: v = -v0 sint. Why is our v negative? Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion  90-  90- 

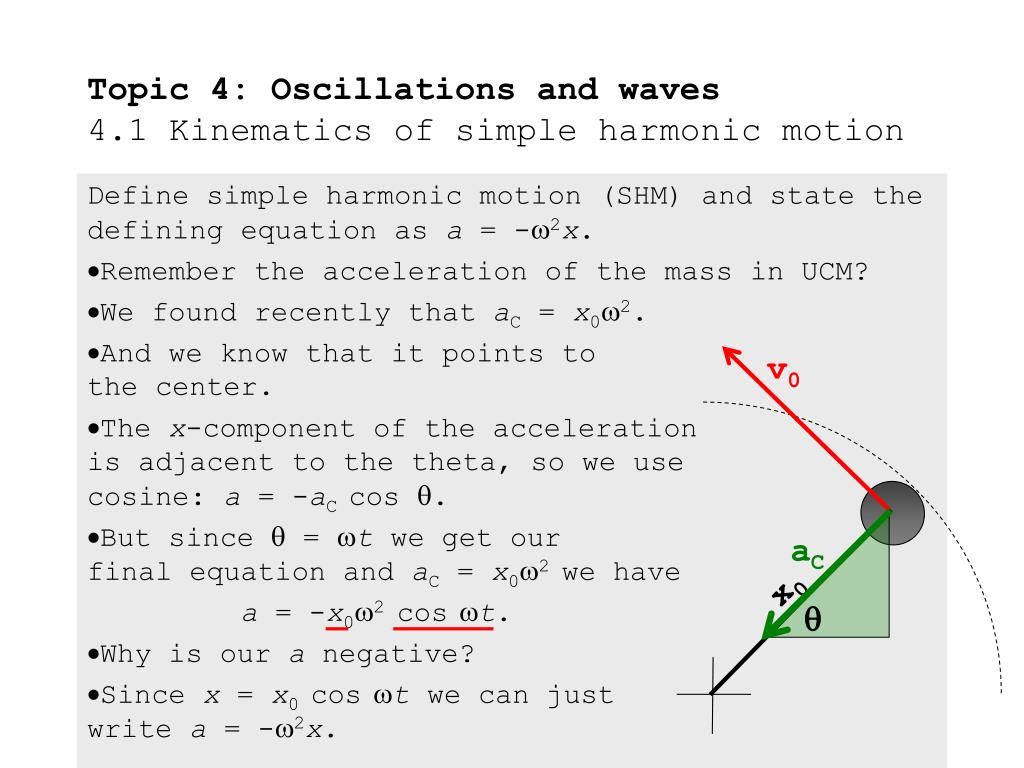

  20. v0 x0 Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Remember the acceleration of the mass in UCM? We found recently that aC = x02. And we know that it points to the center. The x-component of the acceleration is adjacent to the theta, so we use cosine: a = -aC cos . But since  = t we get our final equation and aC = x02we have a = -x02cost. Why is our a negative? Since x = x0cost we can just write a = -2x. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion aC 

  21. =2/T = 2f x = x0 cost Set 1 - equations of simple harmonic motion v = -v0 sint v0=x0 a = -x02cost x0 is the maximum displacement a = -2x v0 is the maximum speed This equation set works only for a mass which begins at x = +x0 and is released from restat t = 0 s. v0 x0 x Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Let’s put all of our equations in a box-there are quite a few! We say a particle is undergoing simple harmonic motion (SHM) if it’s acceleration is of the form a = -2x. Data Booklet has highlighted formulas. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion

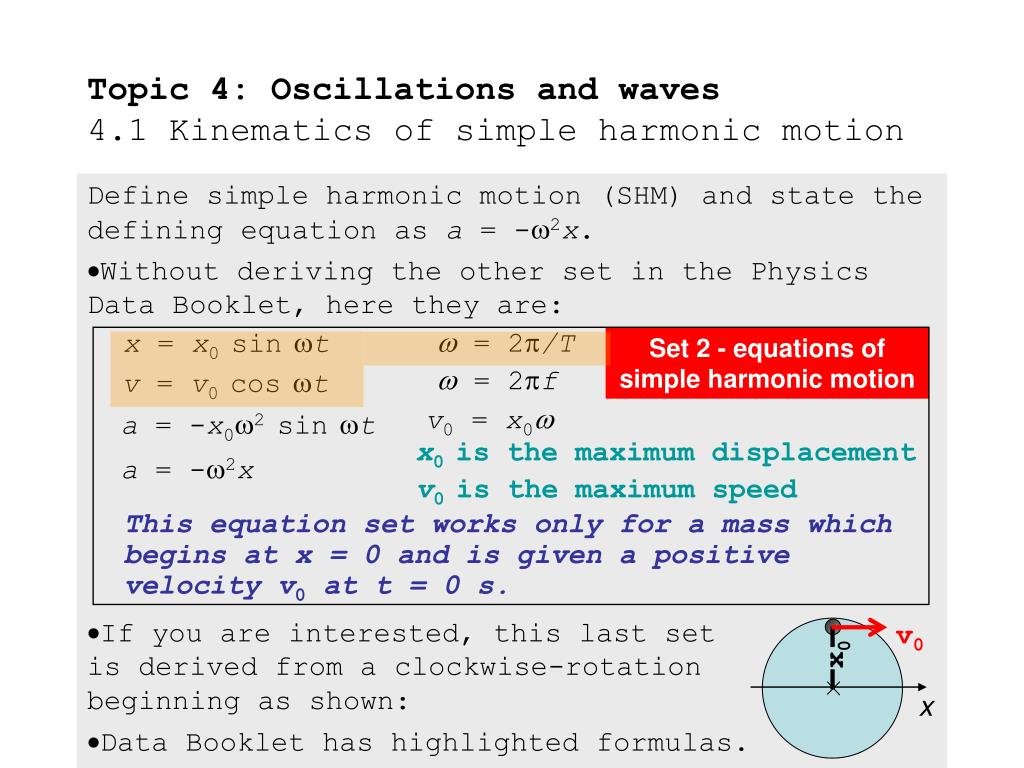

  22. v0 x0 =2/T = 2f x = x0 sint Set 2 - equations of simple harmonic motion v = v0 cost v0=x0 a = -x02sint x0 is the maximum displacement a = -2x v0 is the maximum speed This equation set works only for a mass which begins at x = 0 and is given a positive velocity v0at t = 0 s. x Define simple harmonic motion (SHM) and state the defining equation as a = -2x. Without deriving the other set in the Physics Data Booklet, here they are: If you are interested, this last set is derived from a clockwise-rotation beginning as shown: Data Booklet has highlighted formulas. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion

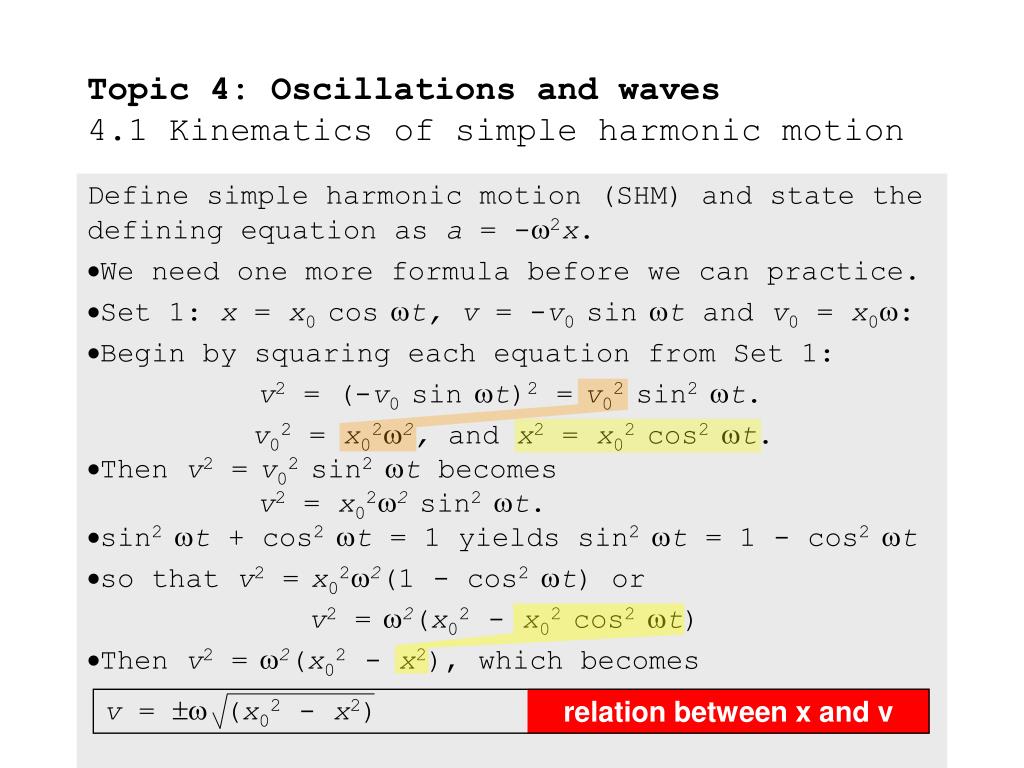

  23. relation between x and v v= (x02 - x2) Define simple harmonic motion (SHM) and state the defining equation as a = -2x. We need one more formula before we can practice. Set 1: x = x0cost, v = -v0 sint and v0=x0: Begin by squaring each equation from Set 1: v2 = (-v0 sint)2 =v02sin2t. v02=x022, and x2 = x02cos2t. Then v2=v02sin2t becomes v2= x022 sin2t. sin2 t + cos2 t = 1 yields sin2 t = 1 - cos2 t so that v2=x022(1 - cos2 t) or v2=2(x02 - x02cos2 t) Then v2=2(x02 - x2), which becomes Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion

  24. x Apply the equations as solutions to the defining equation a = -2x. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: A spring having a spring constant of 125 nm-1 is attached to a 5.0-kg mass, stretched +4.0 m as shown, and then released from rest. (a) Using Hooke’s law, show that the mass-spring system undergoes SHM with 2 = k/m. SOLUTION: From Hooke’s law F = -kx. From Newton’s second law F = ma. Thus ma = -kx or a = -(k/m)x. The result of a = -(k/m)x is of the form a = -2x where 2 = k/m. Therefore, the mass-spring system is in SHM.

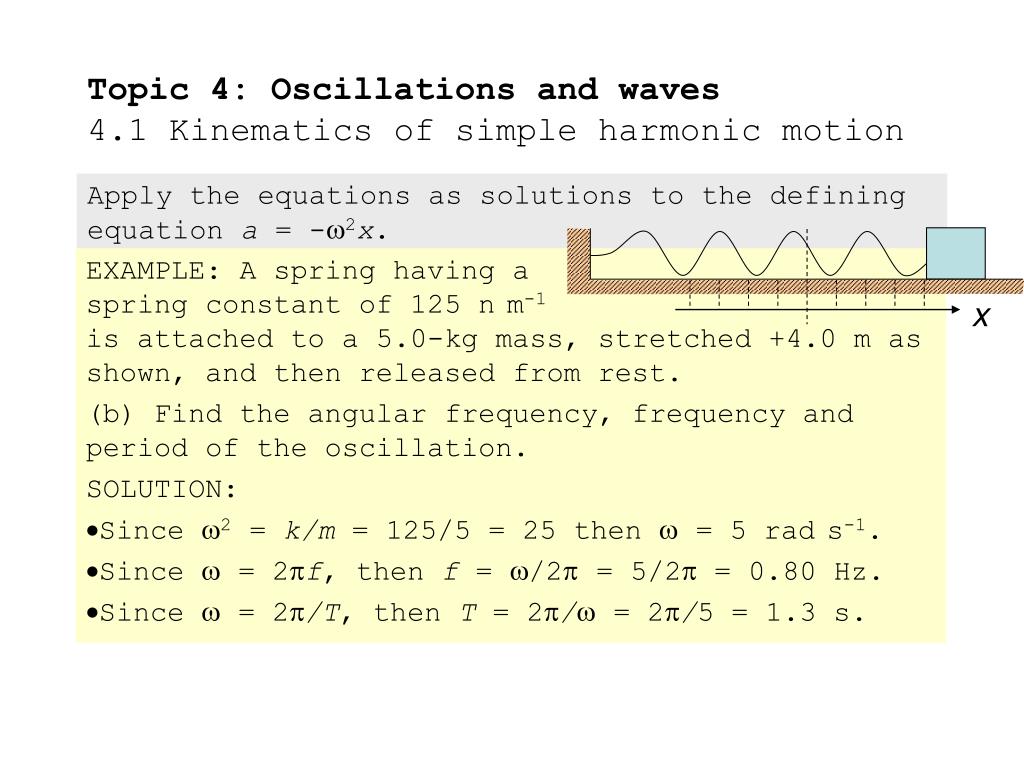

  25. x Apply the equations as solutions to the defining equation a = -2x. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: A spring having a spring constant of 125 nm-1 is attached to a 5.0-kg mass, stretched +4.0 m as shown, and then released from rest. (b) Find the angular frequency, frequency and period of the oscillation. SOLUTION: Since 2 = k/m = 125/5 = 25 then  = 5 rads-1. Since  = 2f, then f = /2 = 5/2 = 0.80 Hz. Since  = 2/T, then T = 2/ = 2/5 = 1.3 s.

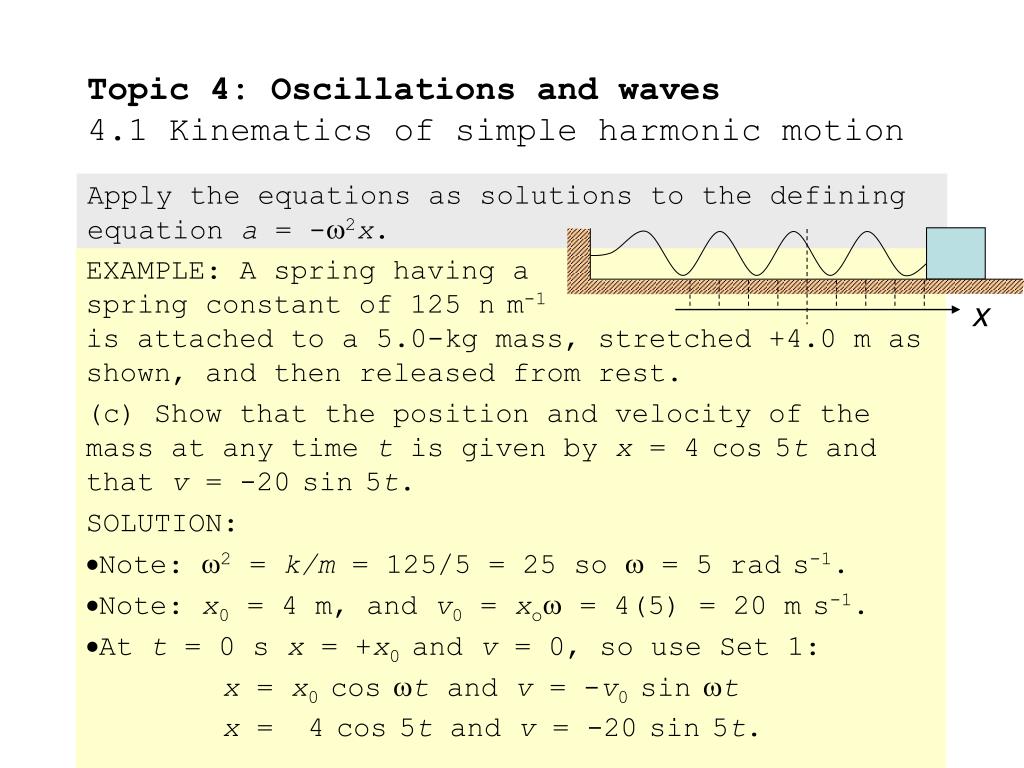

  26. x Apply the equations as solutions to the defining equation a = -2x. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: A spring having a spring constant of 125 nm-1 is attached to a 5.0-kg mass, stretched +4.0 m as shown, and then released from rest. (c) Show that the position and velocity of the mass at any time t is given by x = 4cos5t and that v = -20sin5t. SOLUTION: Note: 2 = k/m = 125/5 = 25 so  = 5 rads-1. Note: x0 = 4 m, and v0 = xo = 4(5) = 20 ms-1. At t = 0 s x = +x0 and v = 0, so use Set 1: x = x0 cost and v = -v0 sint x = 4cos5t and v = -20sin5t.

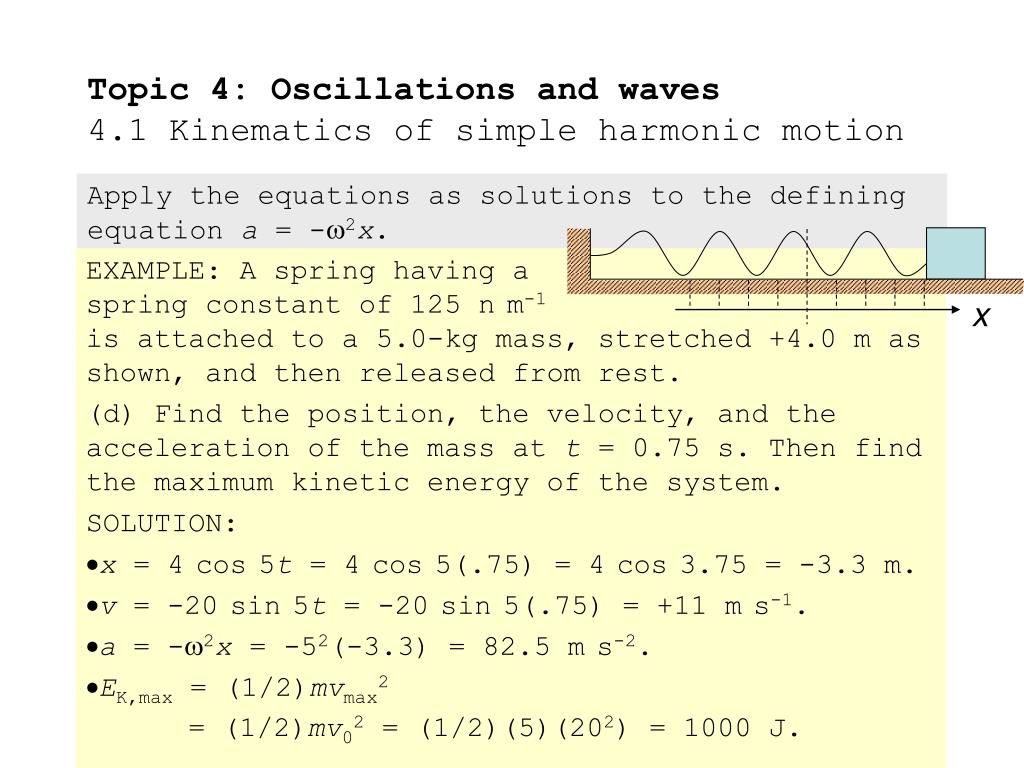

  27. x Apply the equations as solutions to the defining equation a = -2x. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: A spring having a spring constant of 125 nm-1 is attached to a 5.0-kg mass, stretched +4.0 m as shown, and then released from rest. (d) Find the position, the velocity, and the acceleration of the mass at t = 0.75 s. Then find the maximum kinetic energy of the system. SOLUTION: x = 4cos5t = 4cos5(.75) = 4cos3.75 = -3.3 m. v = -20sin5t = -20sin5(.75) = +11 ms-1. a = -2x = -52(-3.3) = 82.5 ms-2. EK,max = (1/2)mvmax2 = (1/2)mv02 = (1/2)(5)(202) = 1000 J.

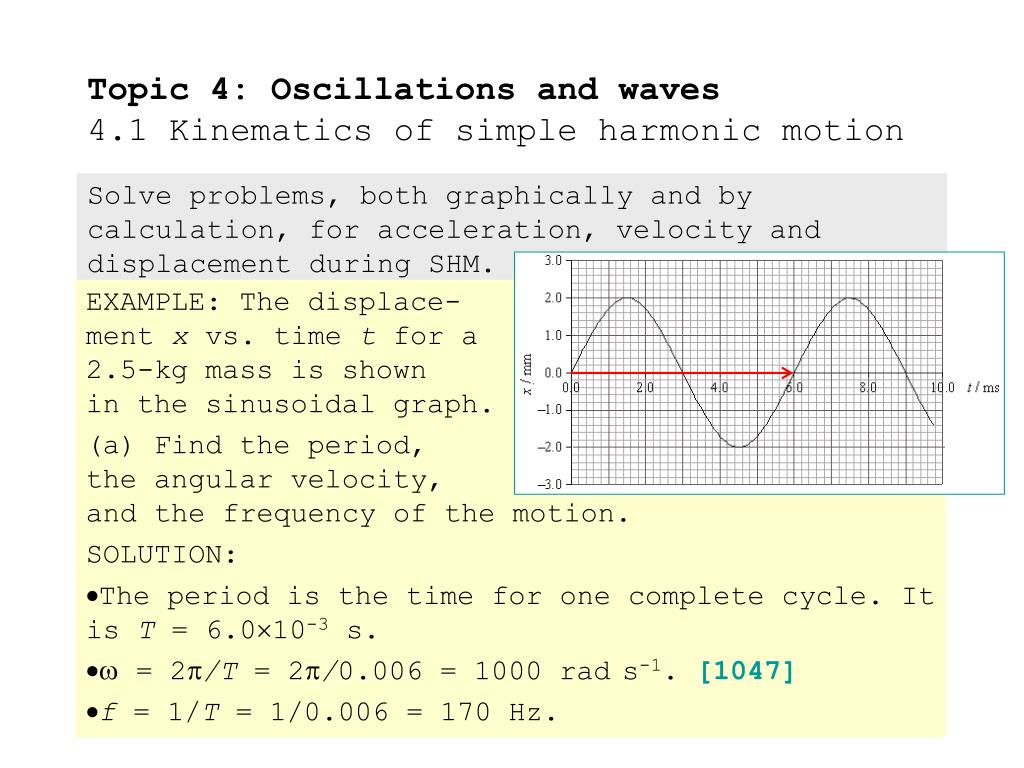

  28. Solve problems, both graphically and by calculation, for acceleration, velocity and displacement during SHM. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: The displace- ment x vs. time t for a 2.5-kg mass is shown in the sinusoidal graph. (a) Find the period, the angular velocity, and the frequency of the motion. SOLUTION: The period is the time for one complete cycle. It is T = 6.010-3 s.  = 2/T = 2/0.006 = 1000 rads-1. [1047] f = 1/T = 1/0.006 = 170 Hz.

  29. Solve problems, both graphically and by calculation, for acceleration, velocity and displacement during SHM. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion EXAMPLE: The displace- ment x vs. time t for a 2.5-kg mass is shown in the sinusoidal graph. (b) Find the velocity and acceleration of the mass at t = 3.4 ms. SOLUTION: From the graph x = -0.810-3m at t = 3.4 ms. From the graph x0 = 2.010-3 m. Thus • v=  (x02 - x2) = -1047 (0.0022 - 0.00082) = -1.9 ms-1. Finally a = -2x = -(10472)(-0.0008) = +880 ms-2. Why is v negative? Because the slope is!

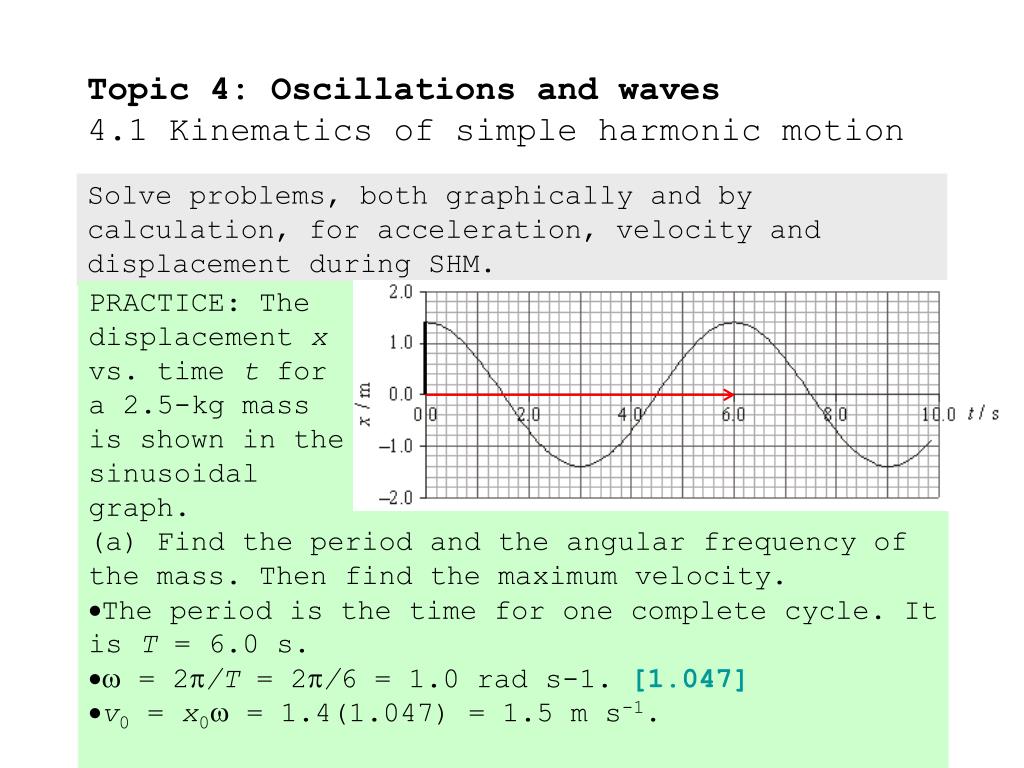

  30. Solve problems, both graphically and by calculation, for acceleration, velocity and displacement during SHM. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion PRACTICE: The displacement x vs. time t for a 2.5-kg mass is shown in the sinusoidal graph. (a) Find the period and the angular frequency of the mass. Then find the maximum velocity. The period is the time for one complete cycle. It is T = 6.0 s.  = 2/T = 2/6 = 1.0 rad s-1. [1.047] v0 = x0 = 1.4(1.047) = 1.5 m s-1.

  31. Solve problems, both graphically and by calculation, for acceleration, velocity and displacement during SHM. Topic 4: Oscillations and waves4.1 Kinematics of simple harmonic motion PRACTICE: The displacement x vs. time t for a 2.5-kg mass is shown in the sinusoidal graph. (b) Find the force acting on the mass at t = 3 s. Then find it’s velocity at that instant. Use F = ma where m = 2.5 kg. At t = 3 s we see that x = -1.4 m. Then a = -2x = -(1.0472)(-1.4) = 1.5 ms-2. Then F = ma = 2.5(1.5) = 3.8 n. Because the slope is zero, so is the velocity.
