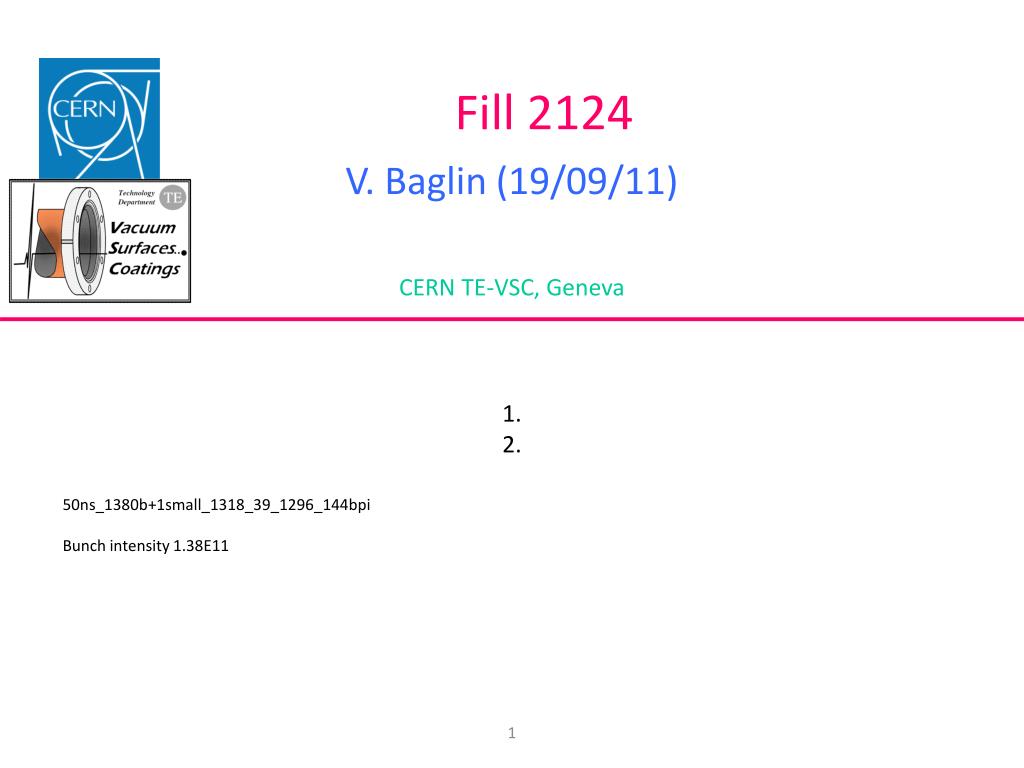

Fill 2124. V. Baglin (19/09/11 ). CERN TE-VSC, Geneva. 1 . 2. 50ns_1380b+1small_1318_39_1296_144bpi Bunch intensity 1.38E11. 50ns_1380b+1small_1318_39_1296_144bpi Bunch intensity 1.38E11. ATLAS. Fill 214 At VAX SR: DP 1.5E-9

yen
Download Presentation

Fill 2124

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Fill 2124 V. Baglin (19/09/11) CERN TE-VSC, Geneva 1. 2. 50ns_1380b+1small_1318_39_1296_144bpi Bunch intensity 1.38E11

  2. 50ns_1380b+1small_1318_39_1296_144bpi Bunch intensity 1.38E11

  3. ATLAS • Fill 214 • At VAX SR: DP 1.5E-9 • In the right side of IP: VGI.188.1R1.X when in collision a pressure bump up to 1E-10 is recorded • At 18 m : 5.8 10-11 mbar / 9.8 10-11 mbar • At 22 m : 2 10-9mbar / 2 10-9 mbar

  4. ATLAS Extended • Some electron cloud is visible during the fill at 120 m from IP. • Q3L1/Q3R1 has electron cloud • At 58 m : 2.2 10-9 mbar / 1.9 10-9 mbar • At 120 m : 1.4 10-9 mbar / 1.3 10-9 mbar

  5. ATLAS history • Some signals with spikes at VAX during fills 2105, 2110,2117 2105 2110 2117 2124 2101

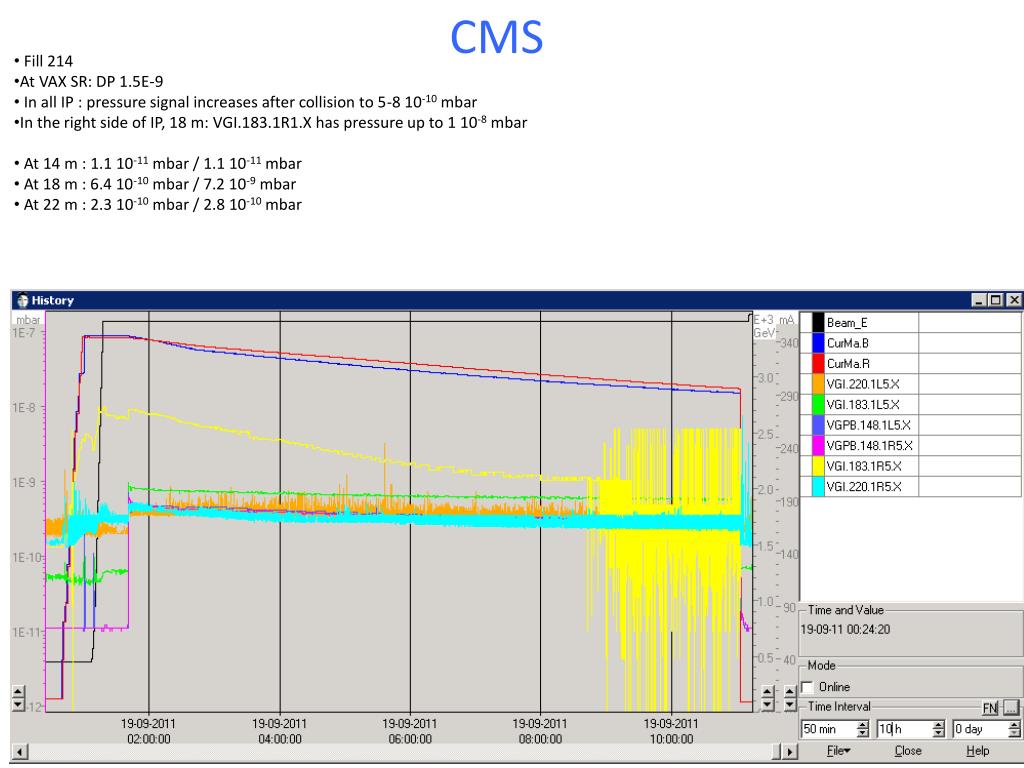

  6. CMS • Fill 214 • At VAX SR: DP 1.5E-9 • In all IP : pressure signal increases after collision to 5-8 10-10mbar • In the right side of IP, 18 m: VGI.183.1R1.X has pressure up to 1 10-8 mbar • At 14 m : 1.1 10-11 mbar / 1.1 10-11mbar • At 18 m : 6.4 10-10 mbar / 7.2 10-9 mbar • At 22 m : 2.3 10-10mbar / 2.8 10-10 mbar

  7. CMS Extended • Some electron cloud is visible during the fill at 120 m from IP. • Q3L5 shows signs of electron cloud • At 59 m : 7.5 10-10 mbar / 7.9 10-11 mbar • At 120 m : 1.7 10-9 mbar / 1.7 10-9 mbar

  8. CMS history 2105 2110 2117 2124 2101

  9. LHCb • Fill 214 • At VAX SR: DP 1.8E-10 • Electron cloud at VELO • At VELO : 5.5 10-9mbar • At 19 m, right of IP : 1.1 10-10mbar • At 22 m : 2.5 10-10mbar / 2.8 10-10mbar

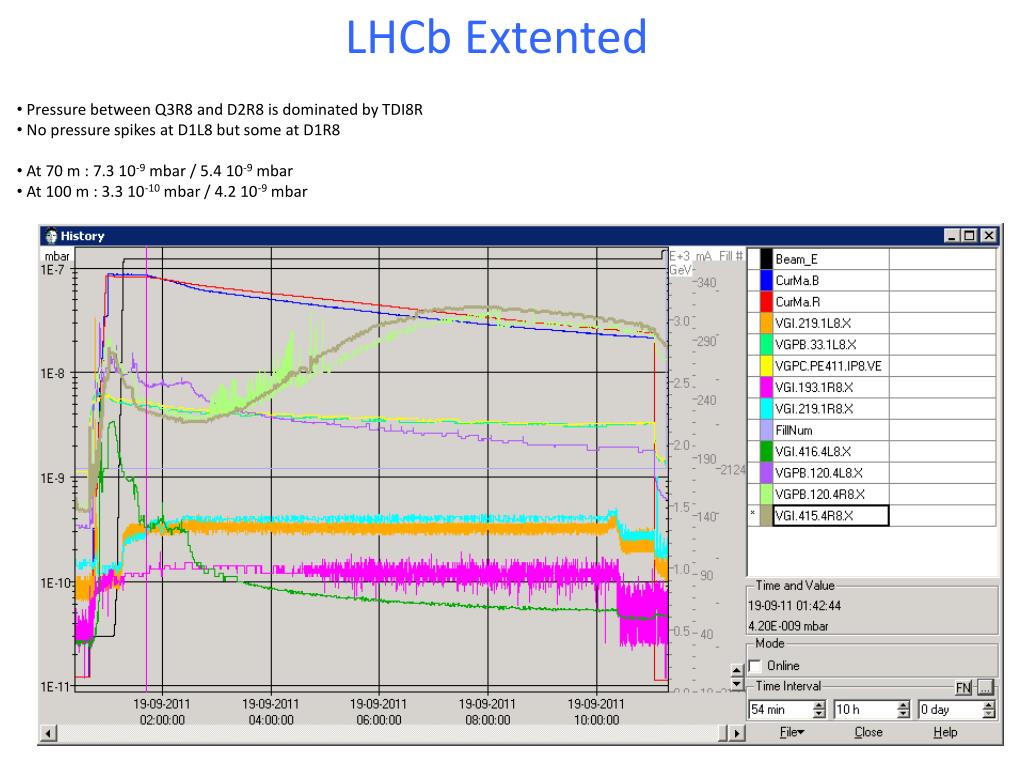

  10. LHCbExtented • Pressure between Q3R8 and D2R8 is dominated by TDI8R • No pressure spikes at D1L8 but some at D1R8 • At 70 m : 7.3 10-9 mbar / 5.4 10-9 mbar • At 100 m : 3.3 10-10 mbar / 4.2 10-9 mbar

  11. LHCbhistory 2105 2124 2117 2110 2101
