  1. STATS 330: Lecture 5 The Multiple Regression Model 330 Lecture 5

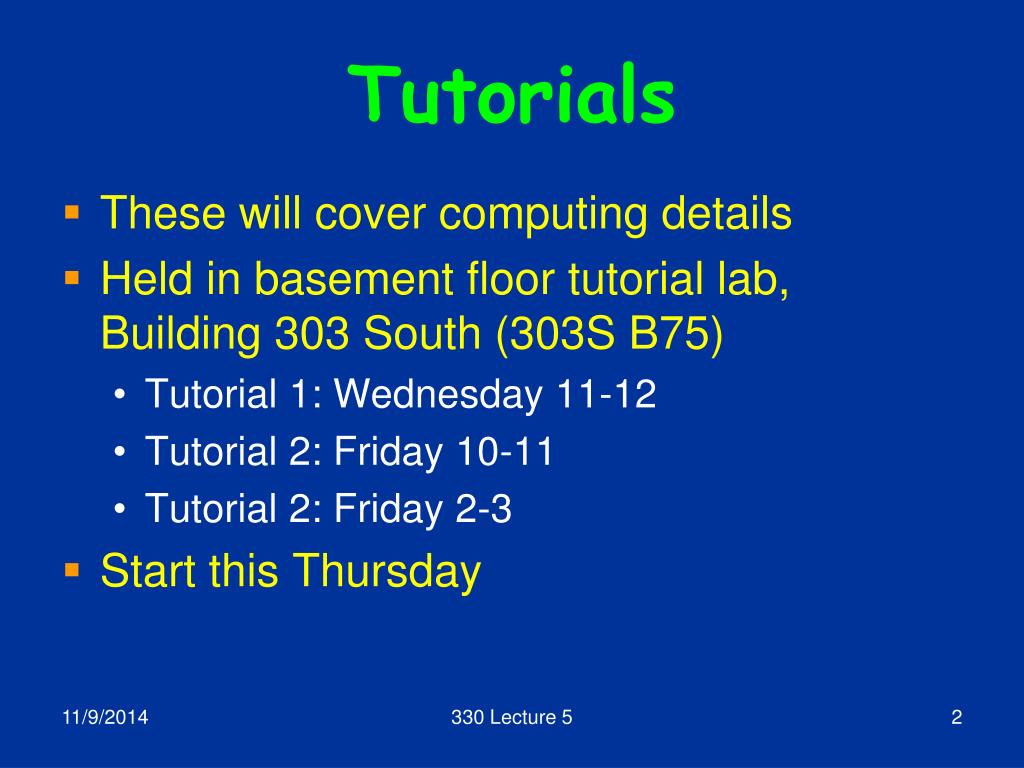

  2. Tutorials • These will cover computing details • Held in basement floor tutorial lab, Building 303 South (303S B75) • Tutorial 1: Wednesday 11-12 • Tutorial 2: Friday 10-11 • Tutorial 2: Friday 2-3 • Start this Thursday 330 Lecture 5

  3. My office hours • Tuesday 10:30 – 12:00 • Thursday 10:30 – 12:00 • Room 265, Building 303S • Come up to the second floor in the Computer Science lifts, through the doors and turn right 330 Lecture 5

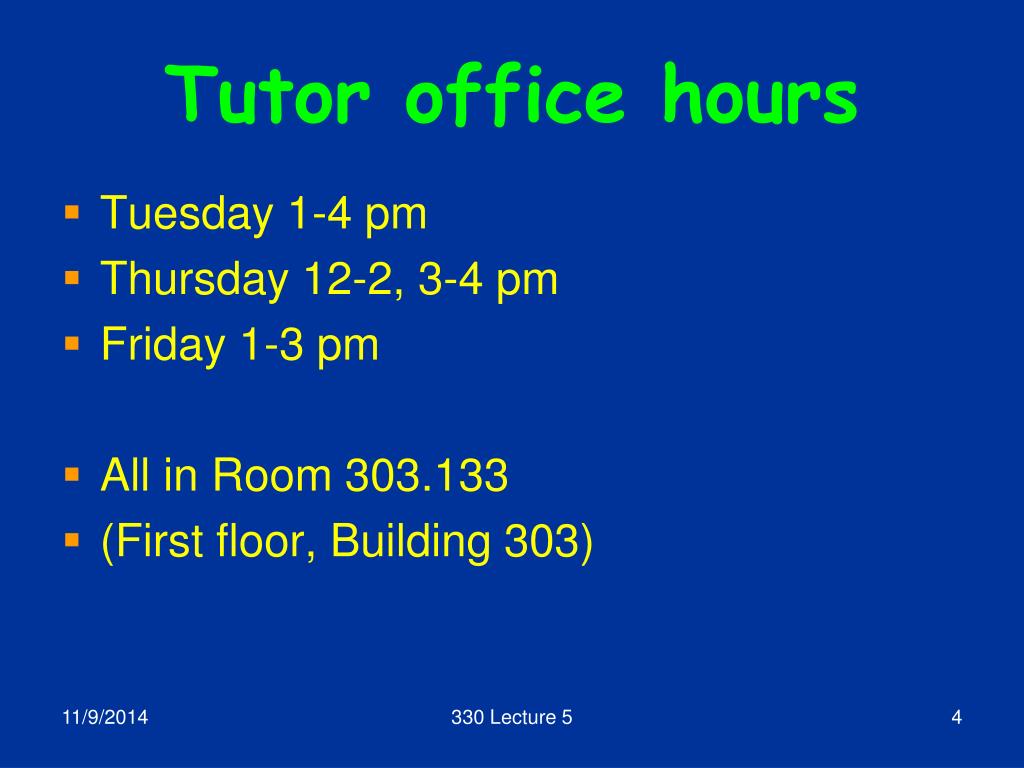

  4. Tutor office hours • Tuesday 1-4 pm • Thursday 12-2, 3-4 pm • Friday 1-3 pm • All in Room 303.133 • (First floor, Building 303) 330 Lecture 5

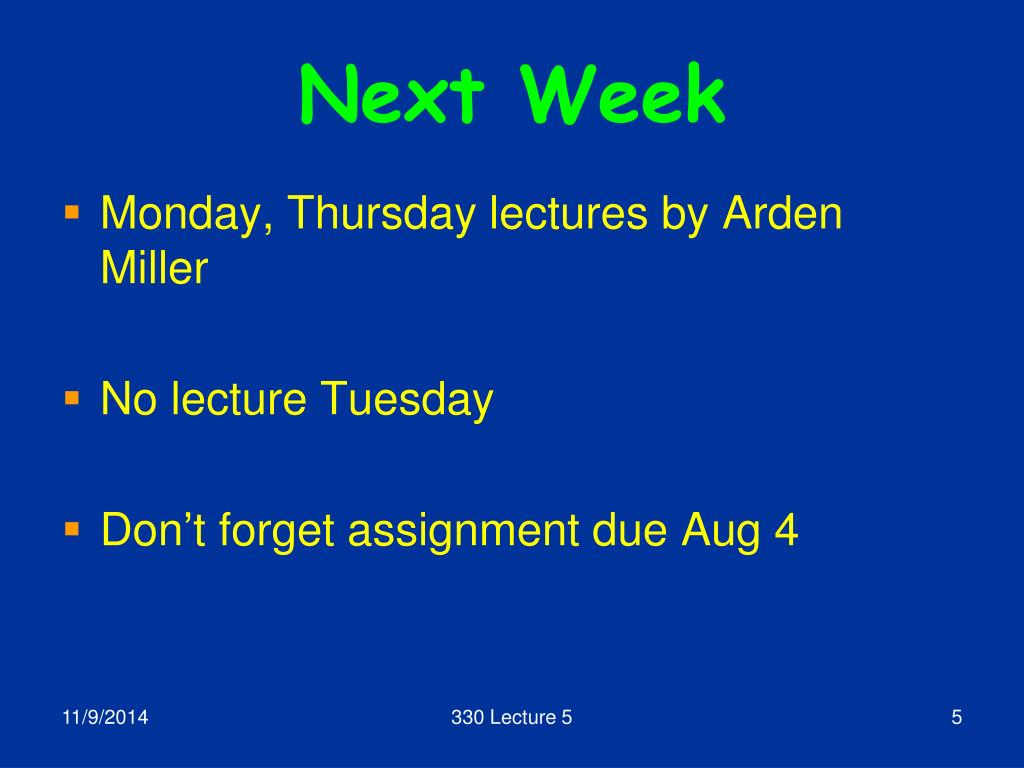

  5. Next Week • Monday, Thursday lectures by Arden Miller • No lecture Tuesday • Don’t forget assignment due Aug 4 330 Lecture 5

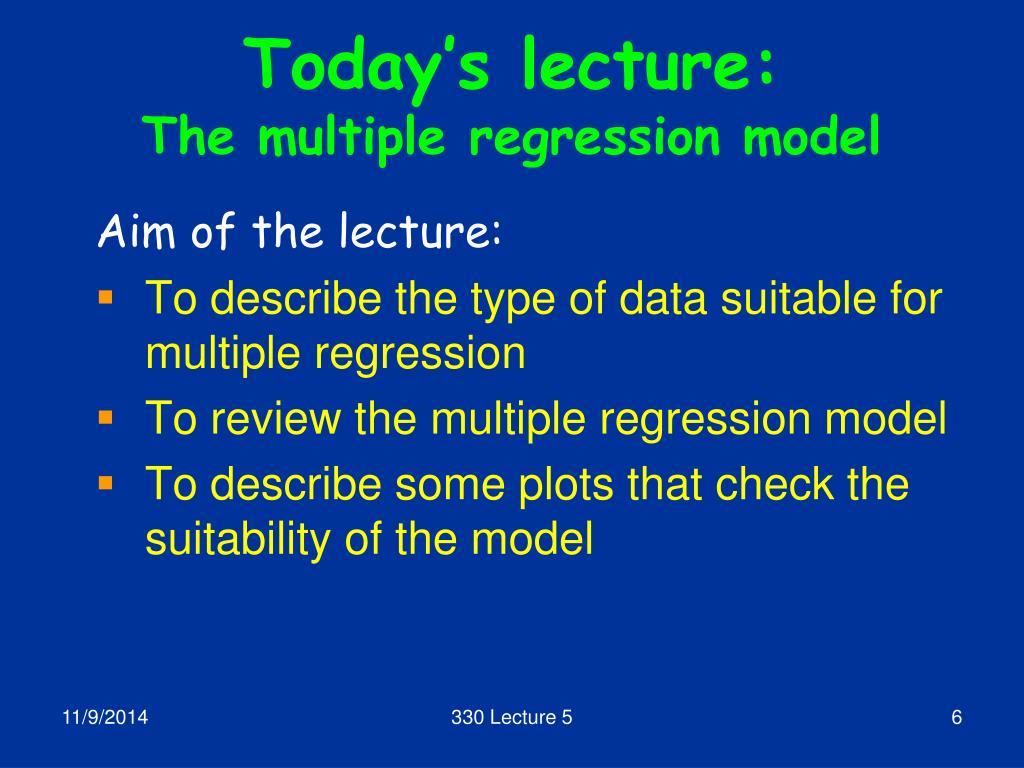

  6. Today’s lecture: The multiple regression model Aim of the lecture: • To describe the type of data suitable for multiple regression • To review the multiple regression model • To describe some plots that check the suitability of the model 330 Lecture 5

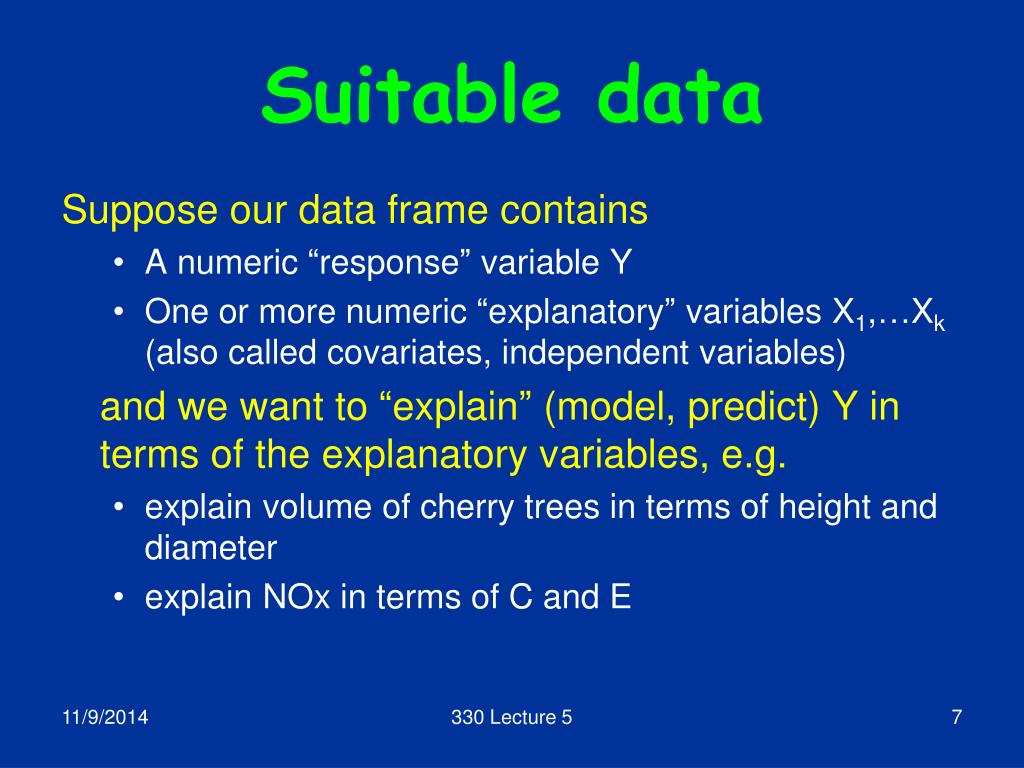

  7. Suitable data Suppose our data frame contains • A numeric “response” variable Y • One or more numeric “explanatory” variables X1,…Xk (also called covariates, independent variables) and we want to “explain” (model, predict) Y in terms of the explanatory variables, e.g. • explain volume of cherry trees in terms of height and diameter • explain NOx in terms of C and E 330 Lecture 5

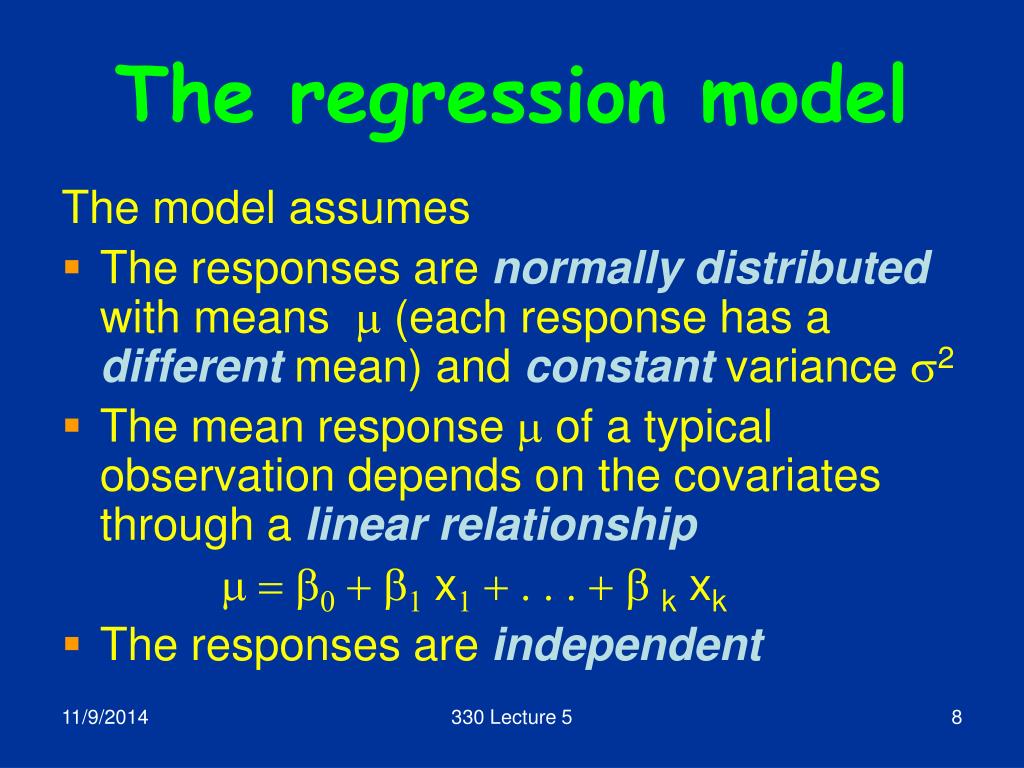

  8. The regression model The model assumes • The responses are normally distributed with means m (each response has a different mean) and constantvariance s2 • The mean response m of a typical observation depends on the covariates through a linear relationship m = b0 + b1x1 + . . . + b k xk • The responses are independent 330 Lecture 5

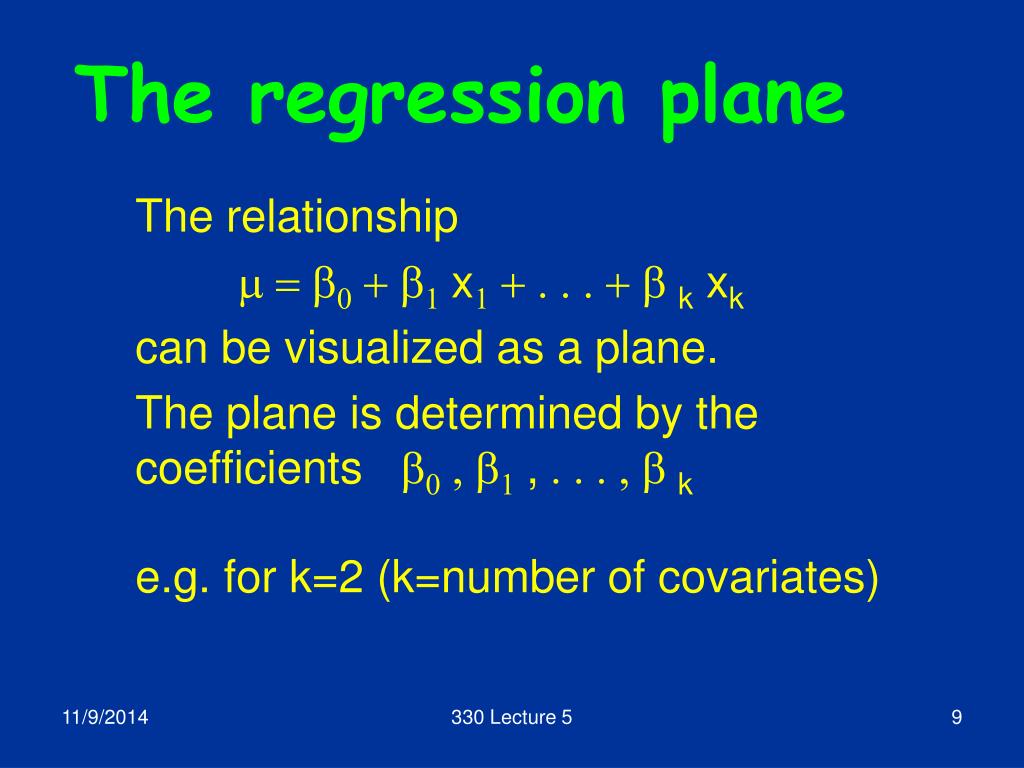

  9. The regression plane The relationship m = b0 + b1x1 + . . . + b k xk can be visualized as a plane. The plane is determined by the coefficients b0 , b1, . . . , b k e.g. for k=2 (k=number of covariates) 330 Lecture 5

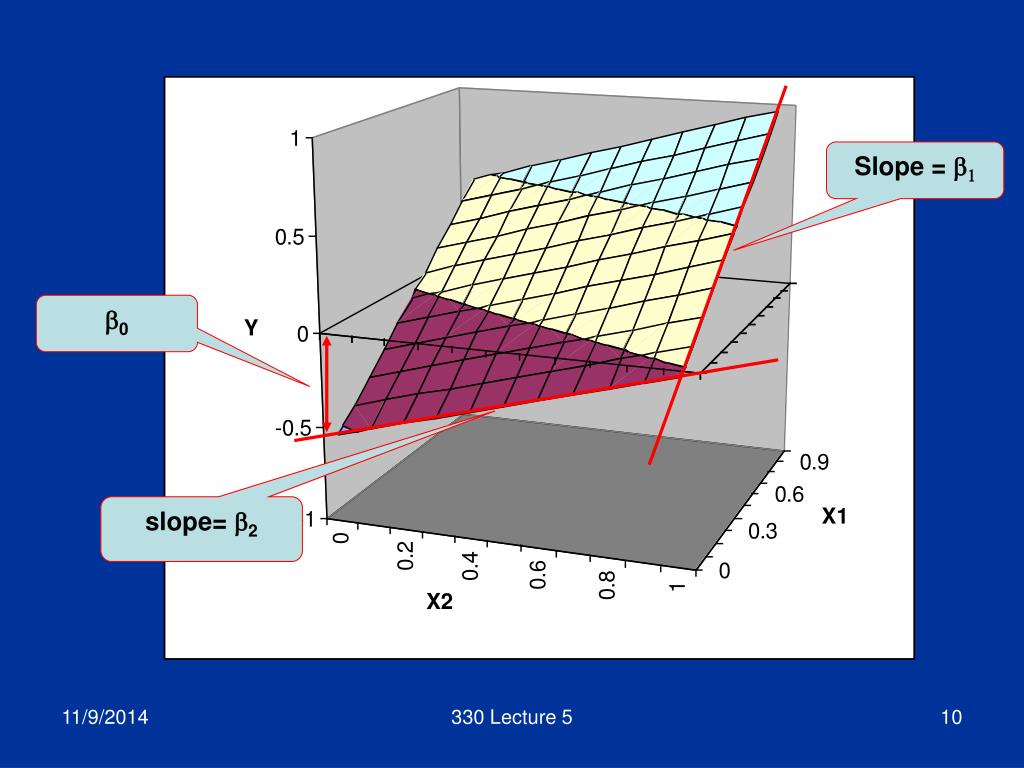

  10. Slope = b1 b0 slope= b2 330 Lecture 5

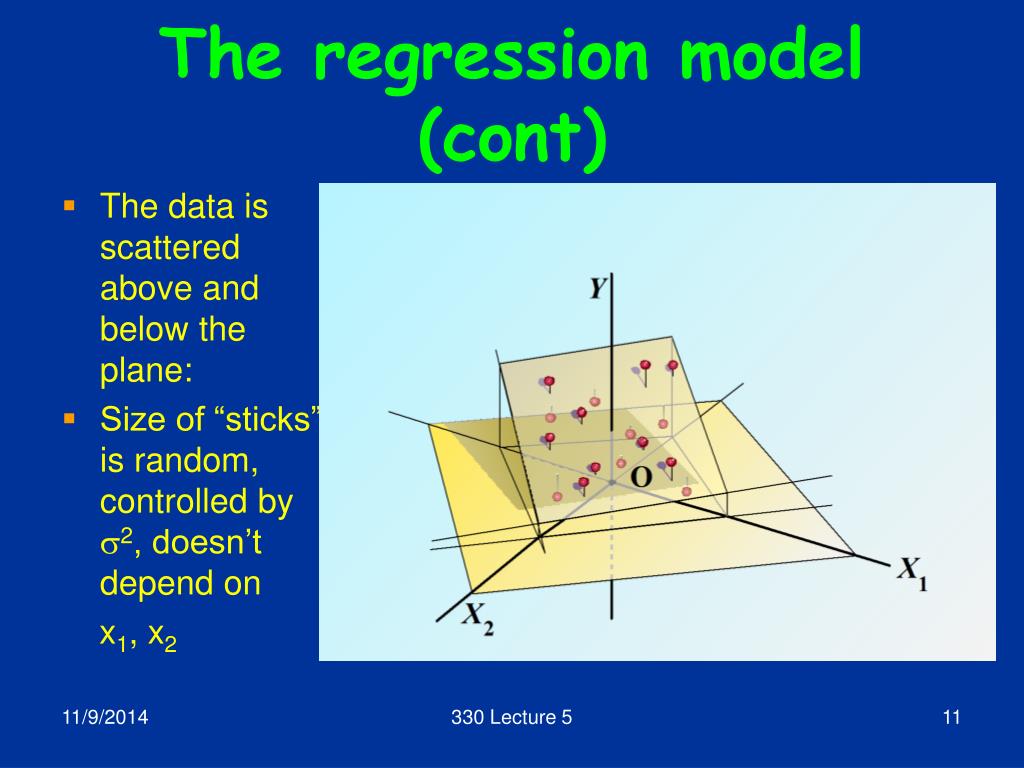

  11. The regression model (cont) • The data is scattered above and below the plane: • Size of “sticks” is random, controlled by s2, doesn’t depend on x1, x2 330 Lecture 5

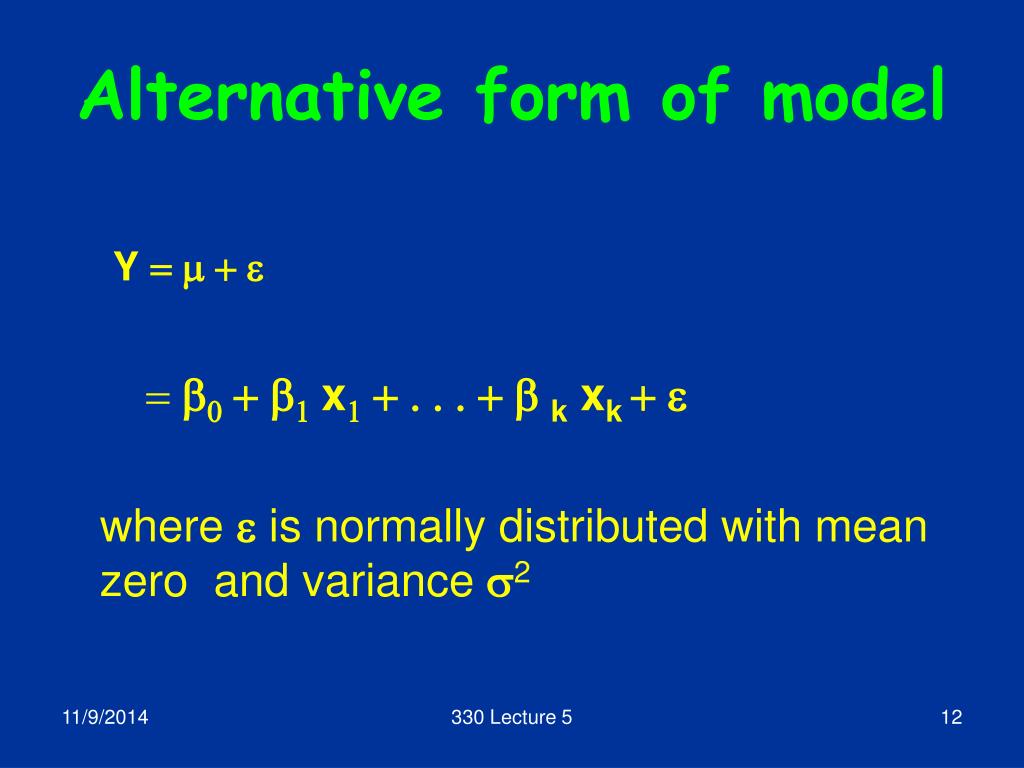

  12. Alternative form of model Y = m + e = b0 + b1x1 + . . . + b k xk + e where e is normally distributed with mean zero and variance s2 330 Lecture 5

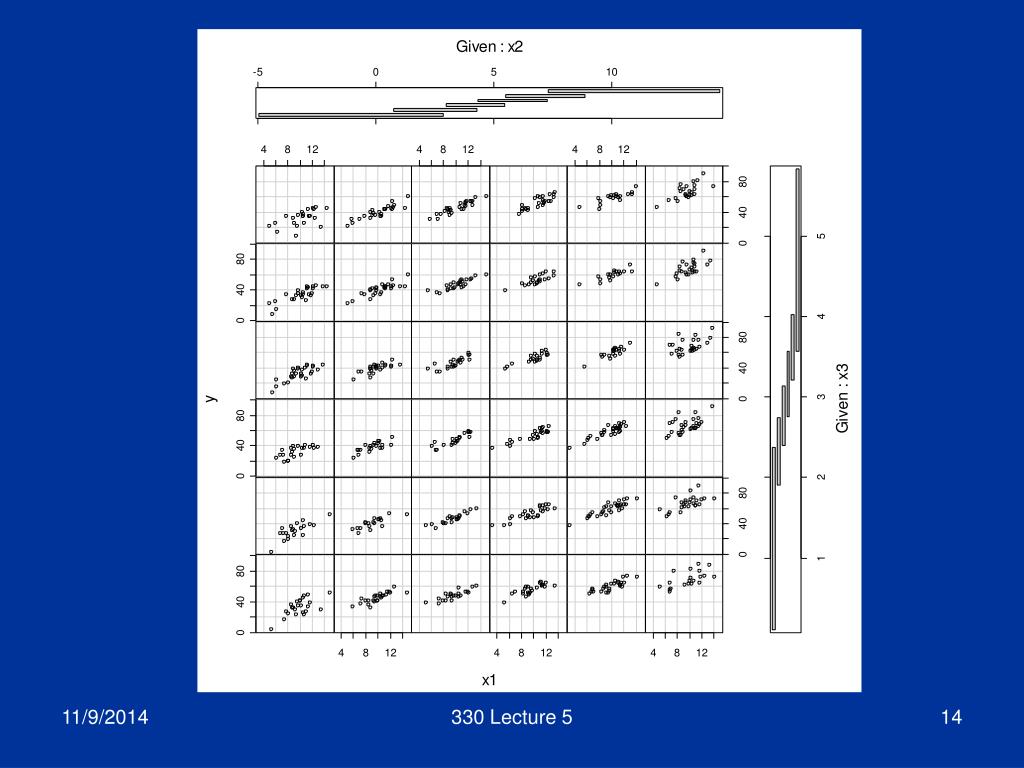

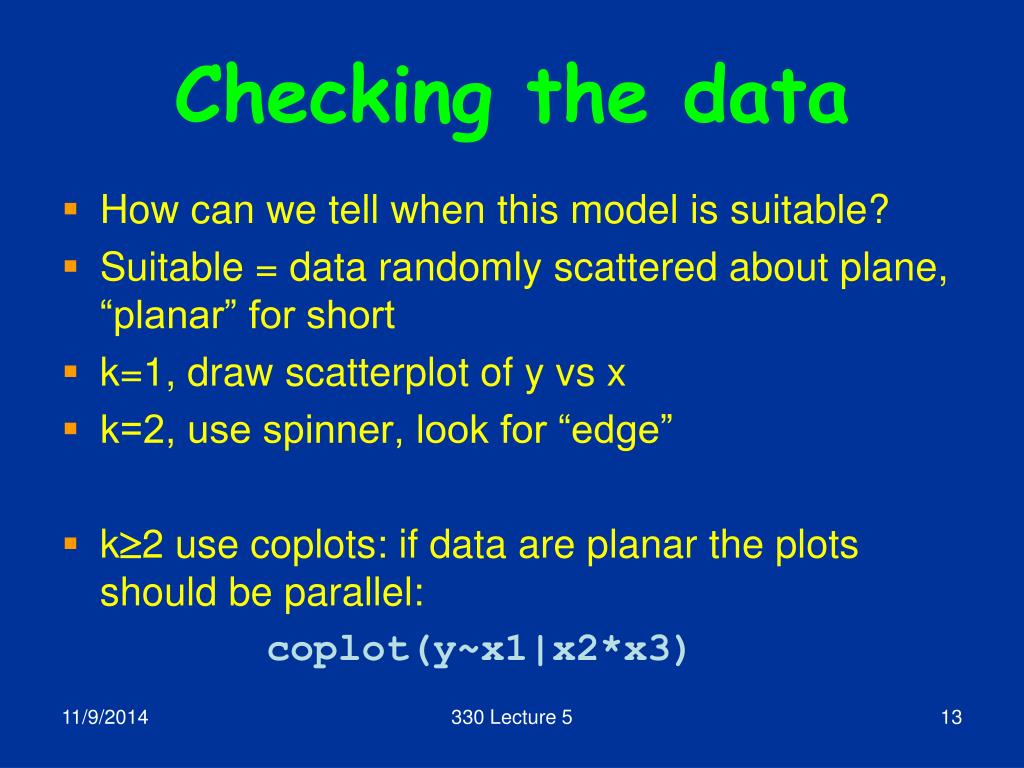

  13. Checking the data • How can we tell when this model is suitable? • Suitable = data randomly scattered about plane, “planar” for short • k=1, draw scatterplot of y vs x • k=2, use spinner, look for “edge” • k³2 use coplots: if data are planar the plots should be parallel: coplot(y~x1|x2*x3) 330 Lecture 5

  14. 330 Lecture 5

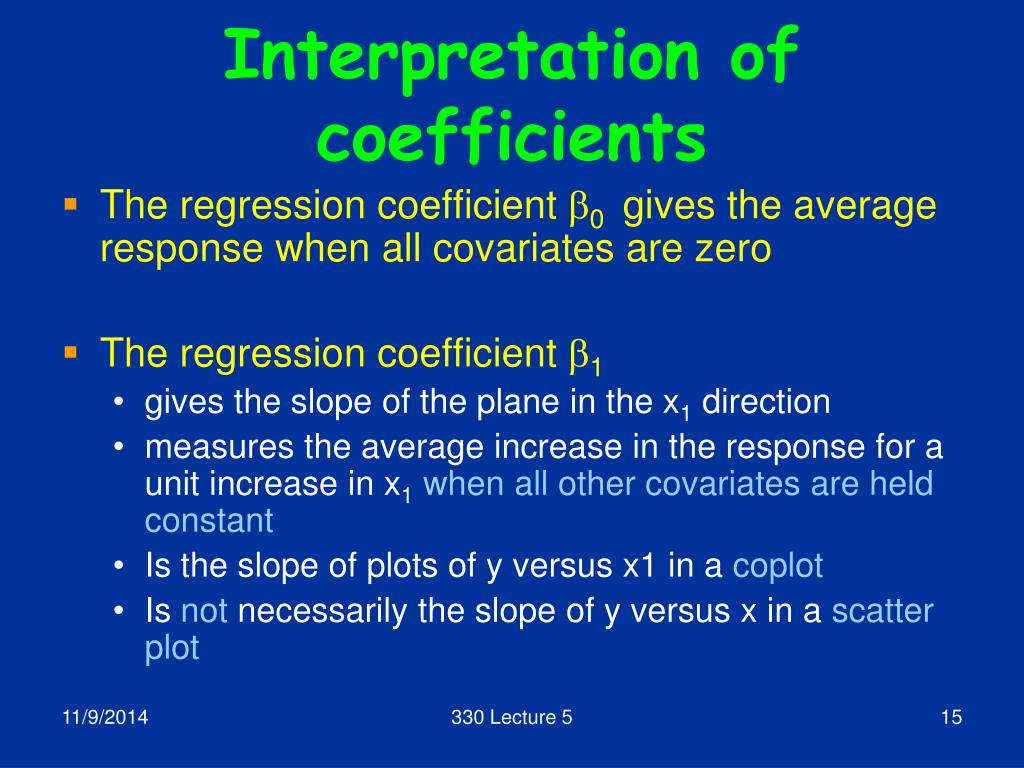

  15. Interpretation of coefficients • The regression coefficient b0 gives the average response when all covariates are zero • The regression coefficient b1 • gives the slope of the plane in the x1 direction • measures the average increase in the response for a unit increase in x1when all other covariates are held constant • Is the slope of plots of y versus x1 in a coplot • Is not necessarily the slope of y versus x in a scatter plot 330 Lecture 5

  16. Example Consider data from model y = 5 - 1*x1 + 4*x2 + N(0,1) x1 and x2 highly correlated, r = 0.95 Regression of y on x1 alone has slope 2.767: 330 Lecture 5

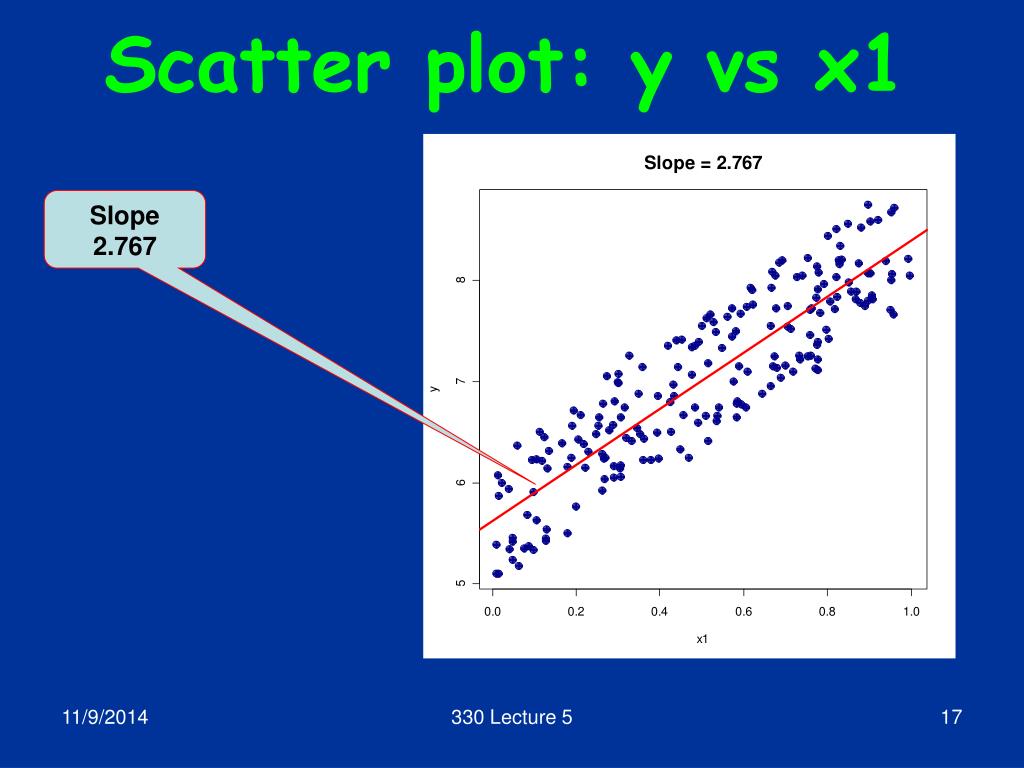

  17. Scatter plot: y vs x1 Slope 2.767 330 Lecture 5

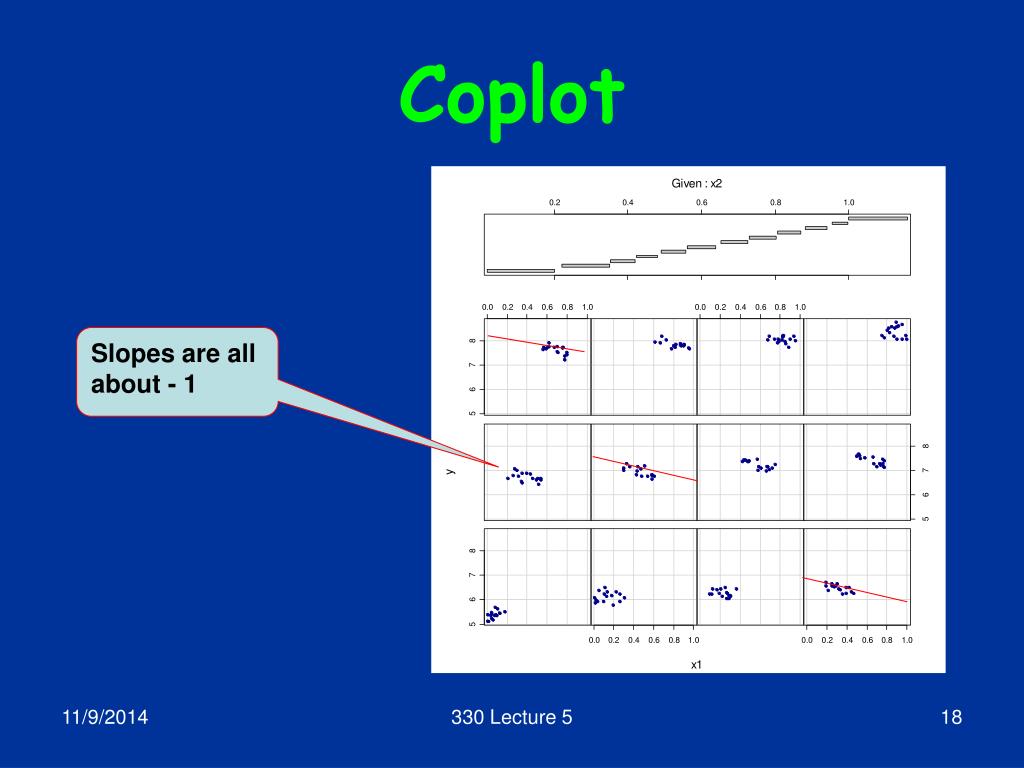

  18. Coplot Slopes are all about - 1 330 Lecture 5

  19. Points to note • The regression coefficients b1 and b2 refer to the conditional mean of the response, given the covariates (in this case conditional on x1 and x2) • b1 is the slope in the coplot, conditioning on x2 • The coefficient in the plot of y versus x1 refers to a different conditional distribution (conditional on x1 only) • The same if and only if x1 and x2 uncorrelated 330 Lecture 5

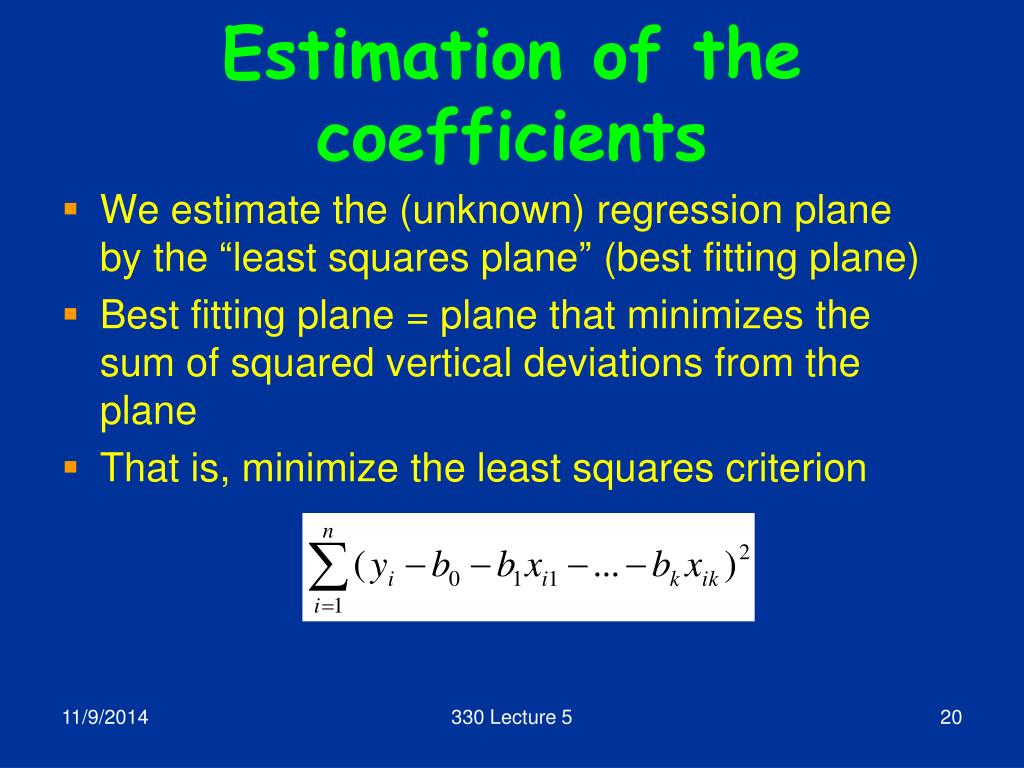

  20. Estimation of the coefficients • We estimate the (unknown) regression plane by the “least squares plane” (best fitting plane) • Best fitting plane = plane that minimizes the sum of squared vertical deviations from the plane • That is, minimize the least squares criterion 330 Lecture 5

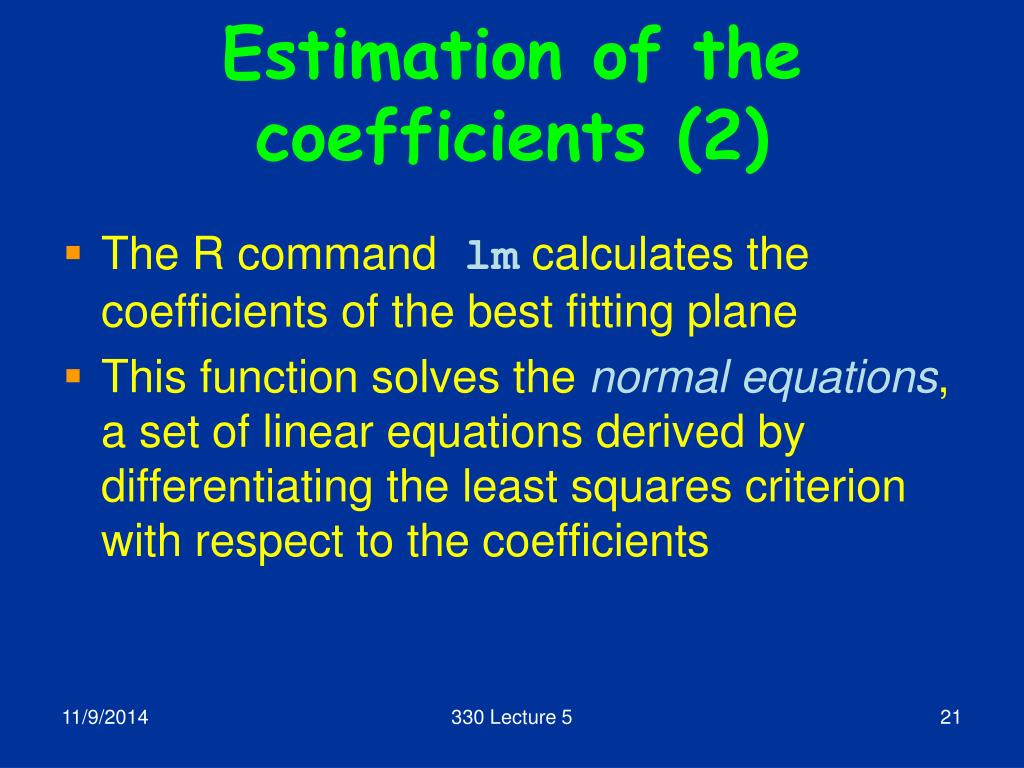

  21. Estimation of the coefficients (2) • The R commandlm calculates the coefficients of the best fitting plane • This function solves the normal equations, a set of linear equations derived by differentiating the least squares criterion with respect to the coefficients 330 Lecture 5

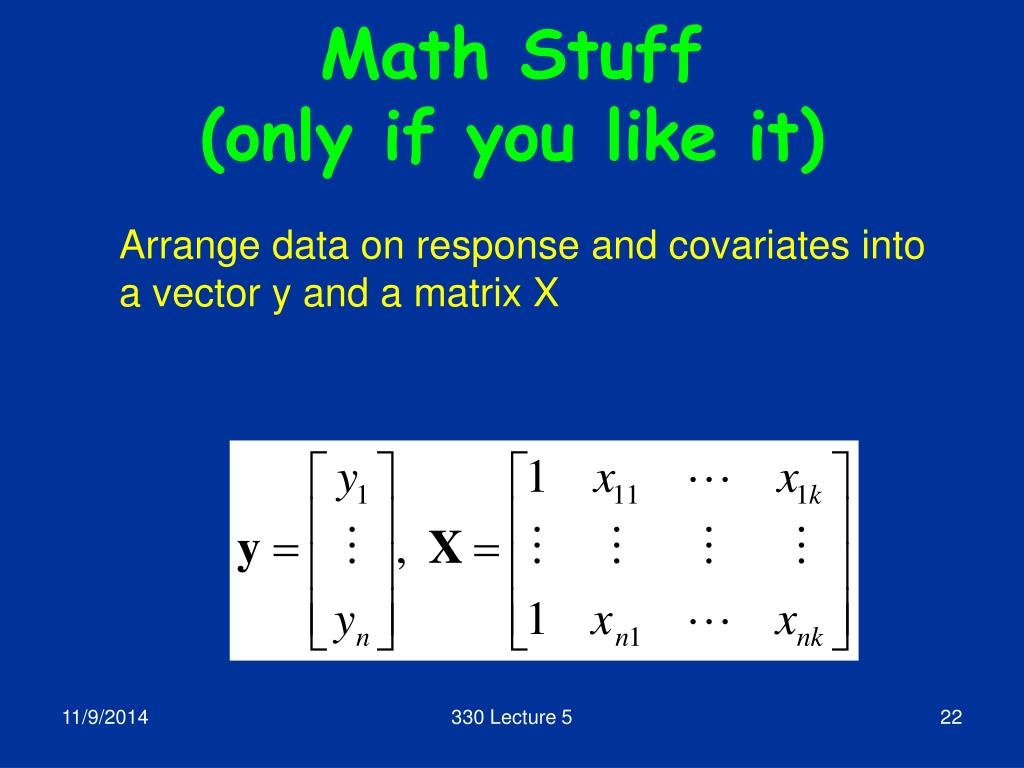

  22. Math Stuff (only if you like it) Arrange data on response and covariates into a vector y and a matrix X 330 Lecture 5

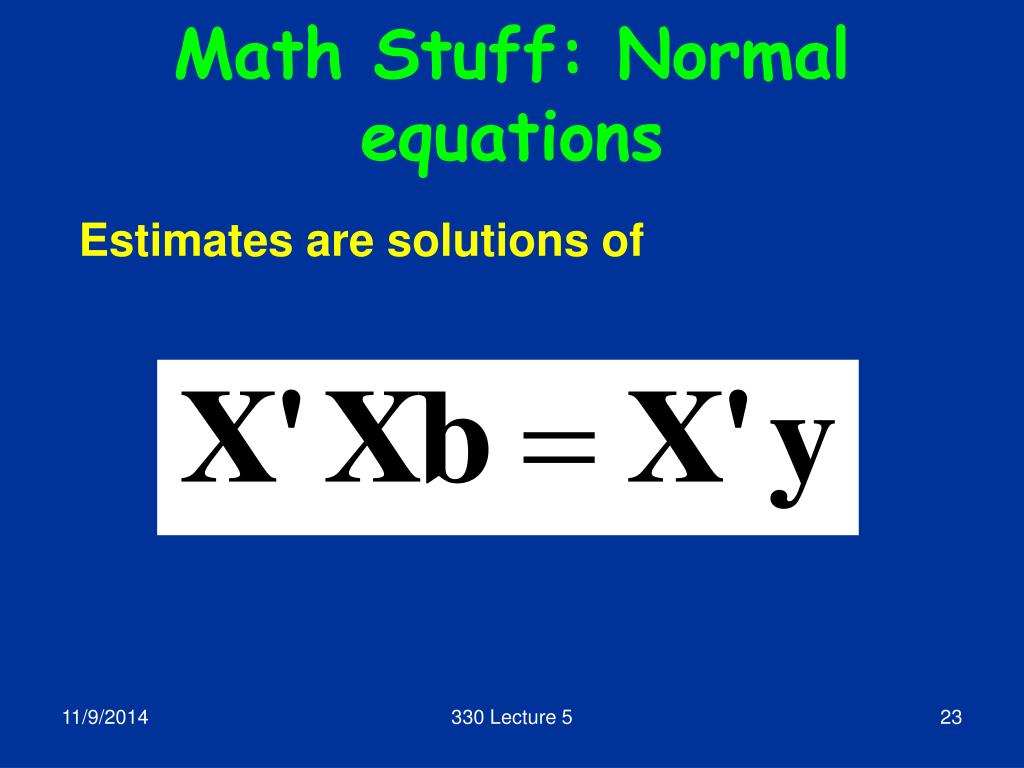

  23. Math Stuff: Normal equations Estimates are solutions of 330 Lecture 5

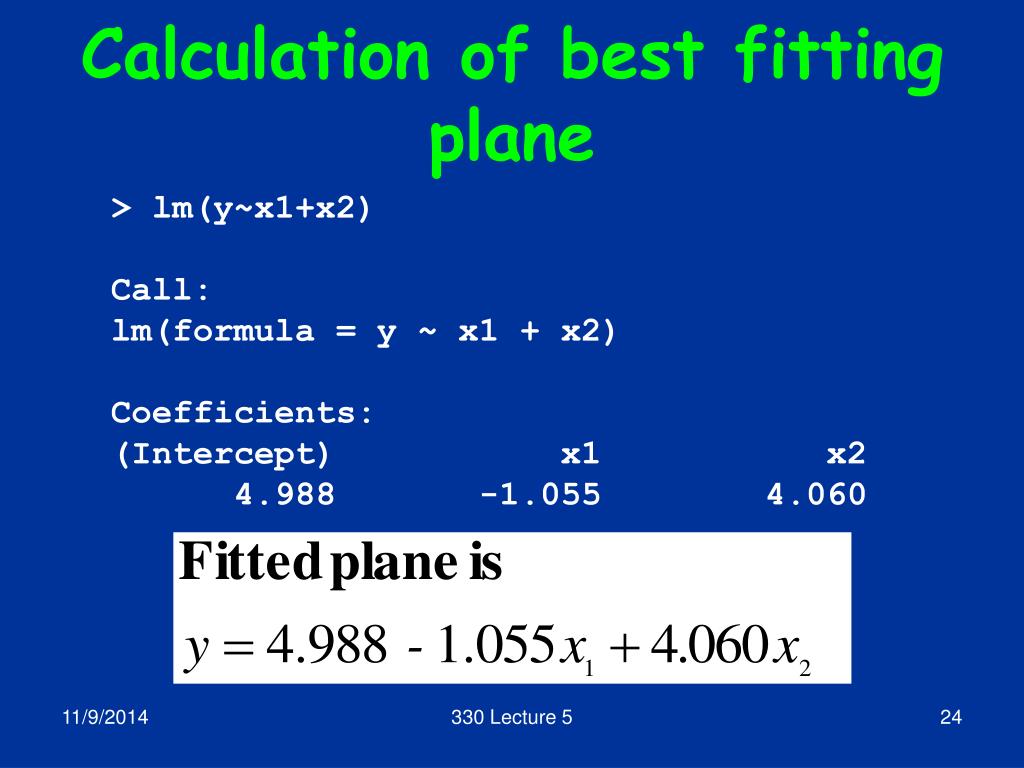

  24. Calculation of best fitting plane > lm(y~x1+x2) Call: lm(formula = y ~ x1 + x2) Coefficients: (Intercept) x1 x2 4.988 -1.055 4.060 330 Lecture 5

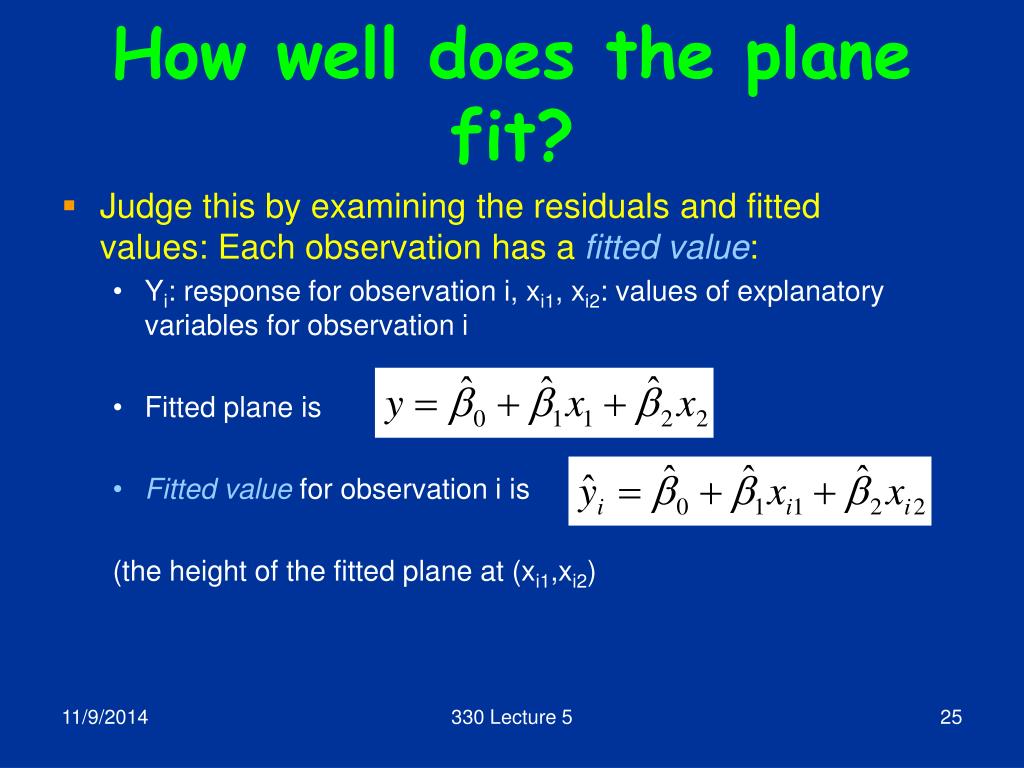

  25. How well does the plane fit? • Judge this by examining the residuals and fitted values: Each observation has a fitted value: • Yi: response for observation i, xi1, xi2: values of explanatory variables for observation i • Fitted plane is • Fitted value for observation i is (the height of the fitted plane at (xi1,xi2) 330 Lecture 5

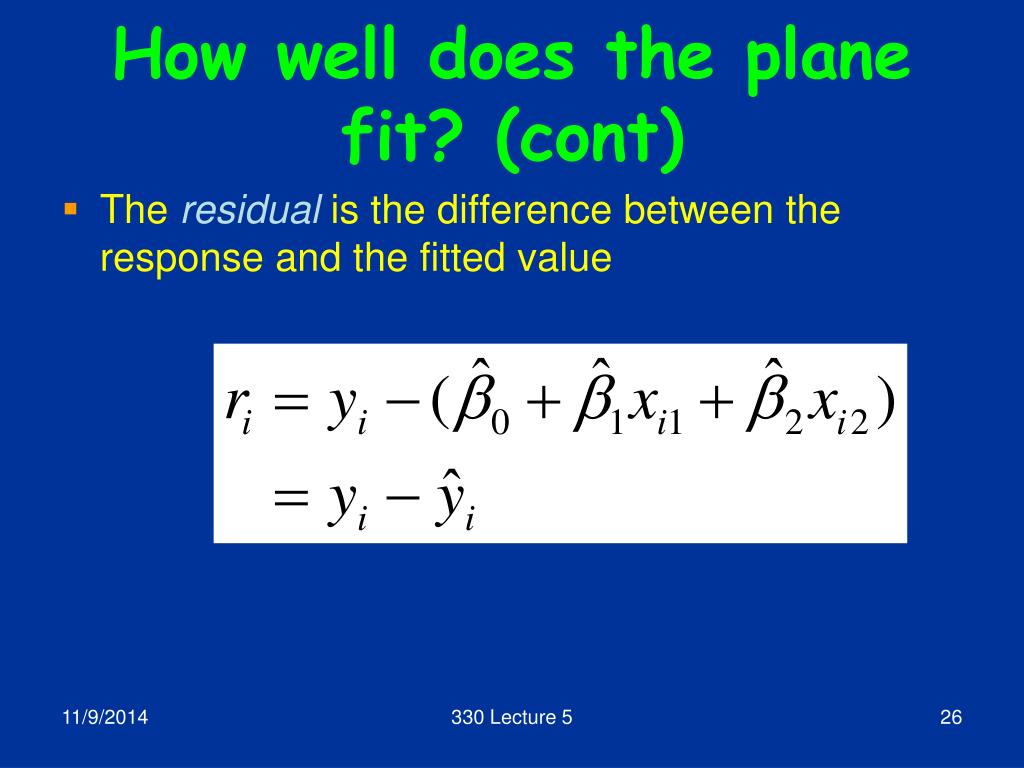

  26. How well does the plane fit? (cont) • The residualis the difference between the response and the fitted value 330 Lecture 5

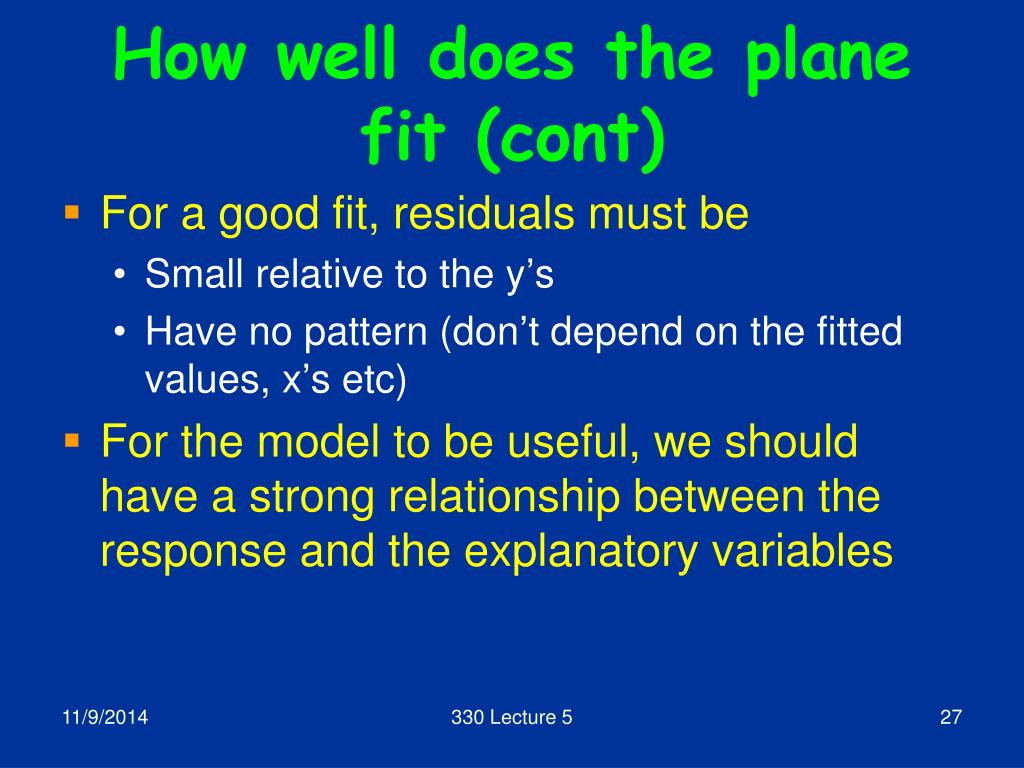

  27. How well does the plane fit (cont) • For a good fit, residuals must be • Small relative to the y’s • Have no pattern (don’t depend on the fitted values, x’s etc) • For the model to be useful, we should have a strong relationship between the response and the explanatory variables 330 Lecture 5

  28. Measuring goodness of fit • How can we measure the relative size of residuals and the strength of the relationship between y and the x’s? • The “anova identity” is a way of explaining this 330 Lecture 5

  29. Measuring goodness of fit (cont) • Consider the “residual sum of squares” • Provides an overall measure of the size of the residuals 330 Lecture 5

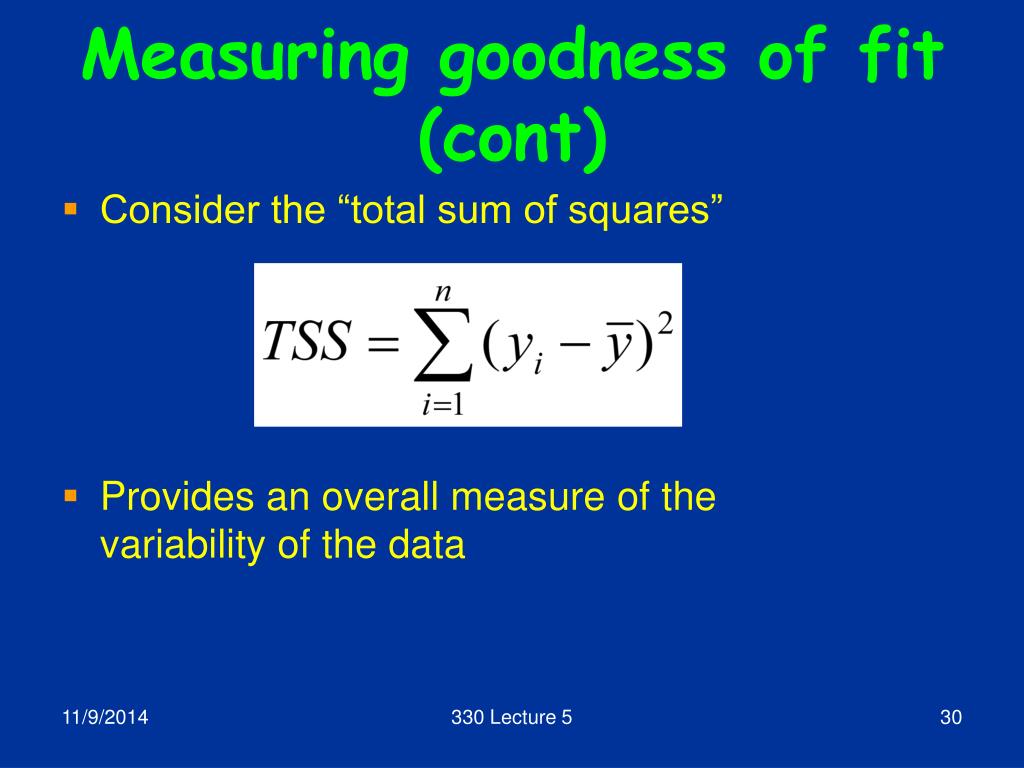

  30. Measuring goodness of fit (cont) • Consider the “total sum of squares” • Provides an overall measure of the variability of the data 330 Lecture 5

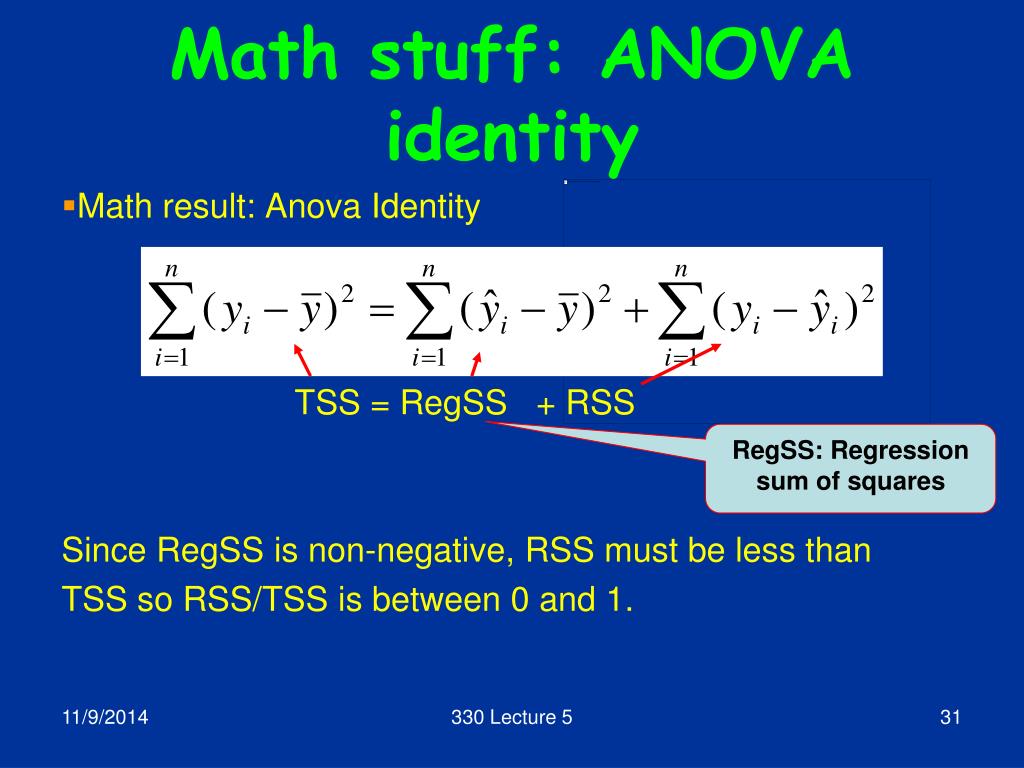

  31. Math stuff: ANOVA identity • Math result: Anova Identity TSS = RegSS + RSS Since RegSS is non-negative, RSS must be less than TSS so RSS/TSS is between 0 and 1. RegSS: Regression sum of squares 330 Lecture 5

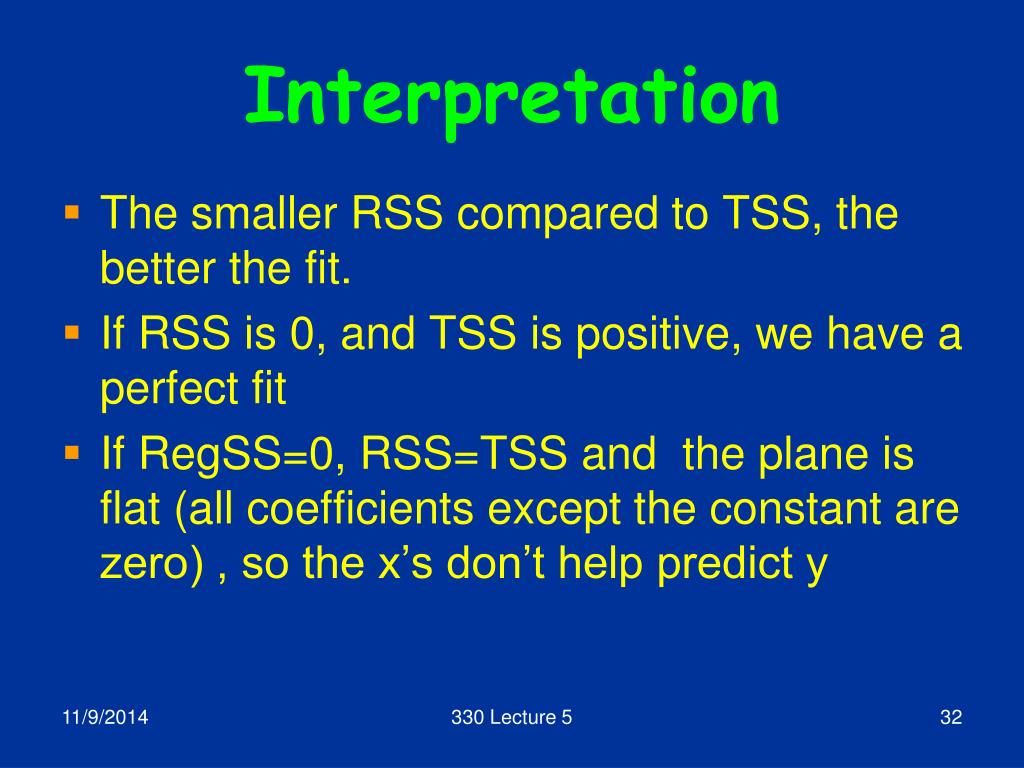

  32. Interpretation • The smaller RSS compared to TSS, the better the fit. • If RSS is 0, and TSS is positive, we have a perfect fit • If RegSS=0, RSS=TSS and the plane is flat (all coefficients except the constant are zero) , so the x’s don’t help predict y 330 Lecture 5

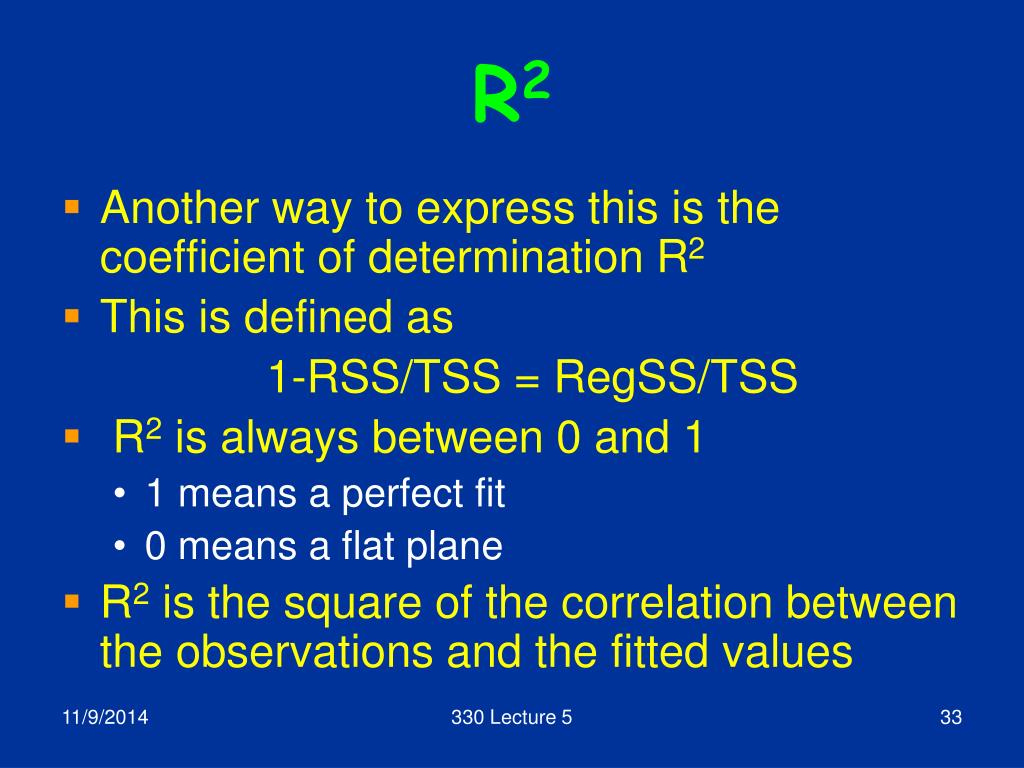

  33. R2 • Another way to express this is the coefficient of determination R2 • This is defined as 1-RSS/TSS = RegSS/TSS • R2 is always between 0 and 1 • 1 means a perfect fit • 0 means a flat plane • R2 is the square of the correlation between the observations and the fitted values 330 Lecture 5

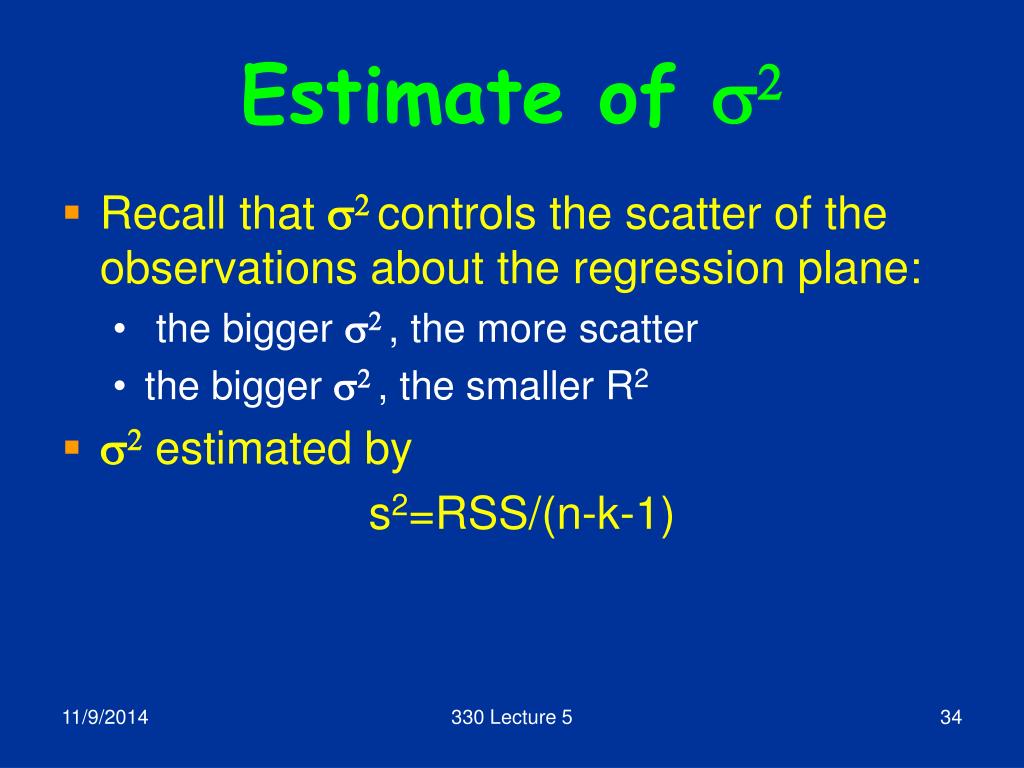

  34. Estimate of s2 • Recall that s2 controls the scatter of the observations about the regression plane: • the bigger s2 , the more scatter • the bigger s2 , the smaller R2 • s2 estimated by s2=RSS/(n-k-1) 330 Lecture 5

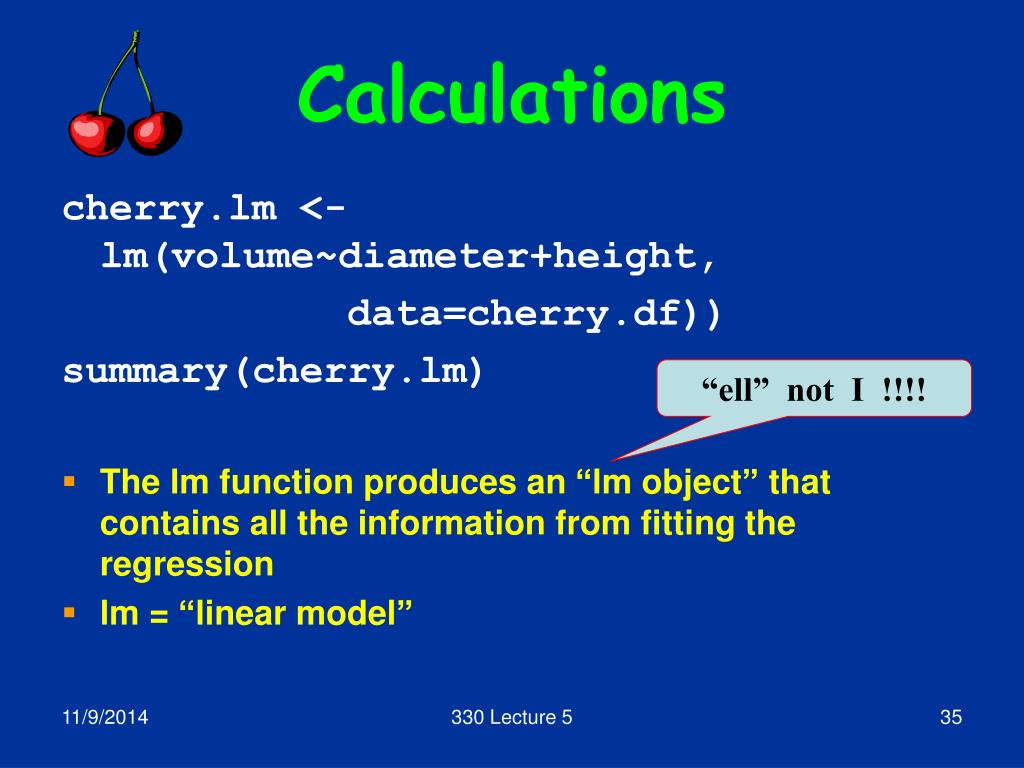

  35. Calculations cherry.lm <- lm(volume~diameter+height, data=cherry.df)) summary(cherry.lm) • The lm function produces an “lm object” that contains all the information from fitting the regression • lm = “linear model” “ell” not I !!!! 330 Lecture 5

  36. Cherries Call: lm(formula = volume ~ diameter + height, data = cherry.df) Residuals: Min 1Q Median 3Q Max -6.4065 -2.6493 -0.2876 2.2003 8.4847 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -57.98778.6382 -6.713 2.75e-07 *** diameter 4.70820.2643 17.816 < 2e-16 *** height 0.33930.1302 2.607 0.0145 * --- Signif. codes: 0 `***' 0.001 `**' 0.01 `*' 0.05 `.' 0.1 ` ' 1 Residual standard error: 3.882on 28 degrees of freedom Multiple R-Squared: 0.948, Adjusted R-squared: 0.9442 F-statistic: 255 on 2 and 28 DF, p-value: < 2.2e-16 Info on residuals coefficients Estimate of s R2 330 Lecture 5
