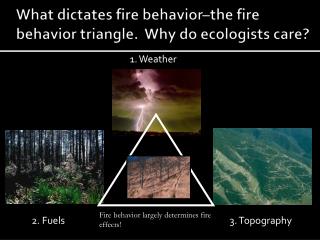

    1. What dictates fire behavior–the fire behavior triangle. Why do ecologists care? 1. Weather 2. Fuels 3. Topography Fire behavior largely determines fire effects!

    2. Fuel Types- 4 Categories: where it is located Fire behavior is largely determined by which fuel strata is carrying the fire: • Ground • Surface • Ladder • Crown/ aerial

    3. Fuel Types • Ground Fuels • Duff (partially decomposed) • Peat • Roots • Stumps litter fermentation layer Duff humus mineral soil

    4. Fuel Types • Surface Fuels • Grasses • Shrubs • Litter (leaves) • Woody debris

    5. SURFACE AND GROUND FUELS

    6. Fuels • Aerial/ canopy Fuels • Crown or canopy of overstory • Ladder Fuels (located between crown and surface fuels) • Smaller trees • Vines

    7. For each fire type: Fuel Characteristics influence fire behavior • Fuel Loading • Size and shape • Compaction • Chemistry • Arrangement • Vertical • Composition • Continuity • horizontal

    8. Fuel Loading

    9. Fuel loading- do we just weigh everything that can burn? • Fuel loading is simplified by categorizing fuels into similar groups • All fuels are characterized by their size category, called “timelag fuel class”. This is related to their capacity to absorb and lose water in relation to their environment. • The most important factor associated with fuel size is its surface area to volume ratio…why?

    10. Timelag Fuel Class • EMC = equilibrium moisture content: the watever vapor pressure of the fuel is in equilibrium with the wvp of air. • Given a stable air mass, the “timelag” is time it takes for a particle of fuel to reach 63% of the difference between its initial moisture content and the equilibrium moisture content. • It is NOT how long the fuel will burn

    11. Timelag= approaching equilibrium • It takes 5 timelags for 95% of the change to occur • But most of the change happens within the first timelag Difference http://stream2.cma.gov.cn/pub/comet/FireWeather/S290Unit10FuelMoisture/comet/fire/s290/unit10/print.htm#page_2.2.0

    12. Larger fuels lose and absorb water less quickly http://stream2.cma.gov.cn/pub/comet/FireWeather/S290Unit10FuelMoisture/comet/fire/s290/unit10/print.htm#page_2.2.0

    13. Timelag categories (know these!) • Size of fuel (diameter, inched) Timelag Class • 0” to ¼” 1 hour • ¼” to 1” 1o hour • 1” to 3” 100 hour • > 3” 1000 hour

    14. Three ways to assess fuel loading • Fuel models • Photo series • Measure it

    15. Fuel Loading – what do you include? Timber Brush

    16. Fuel models use 4 fuel groupings- based on proportion in each timelag class Anderson, 1982 Fuel Models and Fire Behavior Prediction

    17. The 13 fuel models

    18. Example BEHAVE outputs: Rate of spread Rate of Spread for Fuel models at 5 mph wind

    19. FUEL MODEL 13: HEAVY LOGGING SLASH

    20. 6-10 tons/ acre FUEL MODEL 7: SOUTHERN ROUGH

    21. 3-5 tons/acre FUEL MODEL 8: CLOSED TIMBER LITTER

    22. 1-3 tons/acre FUEL MODEL 3: TALL GRASS

    23. Photo series • Hundreds of field plots measured= averaged = photo series fuel loading values. • Digital photo series (USFS) • http://depts.washington.edu/nwfire/dps/

    24. MEASURE IT: Today’s Lab! • Brown’s Planar Intercept
