Gain Adjust G 1

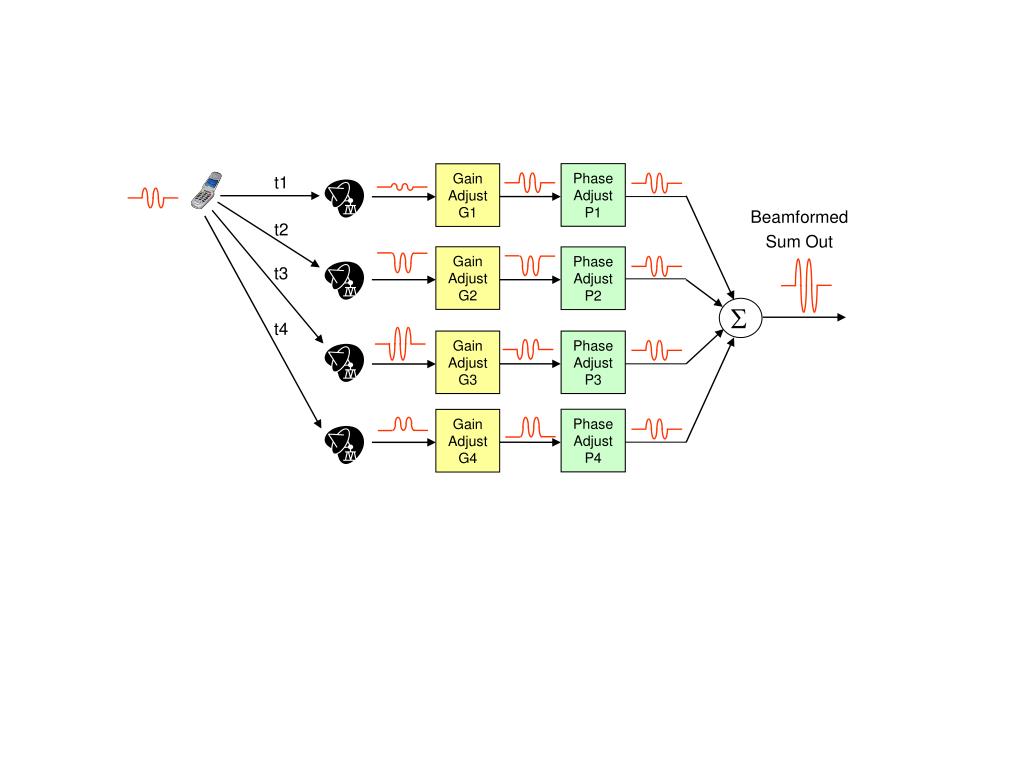

Phase Adjust P 1. Gain Adjust G 1. t1. Beamformed Sum Out. t2. Gain Adjust G 2. Phase Adjust P 2. t3. . t4. Gain Adjust G 3. Phase Adjust P 3. Phase Adjust P4. Gain Adjust G 4. EP01. X4 Sum In. AURORA BEAMFORM SUMMATION. EP02. X4 Sum Out. PCIe X4 I/F.

yazid
Download Presentation

Gain Adjust G 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Phase Adjust P1 Gain Adjust G1 t1 Beamformed Sum Out t2 Gain Adjust G2 Phase Adjust P2 t3  t4 Gain Adjust G3 Phase Adjust P3 Phase Adjust P4 Gain Adjust G4

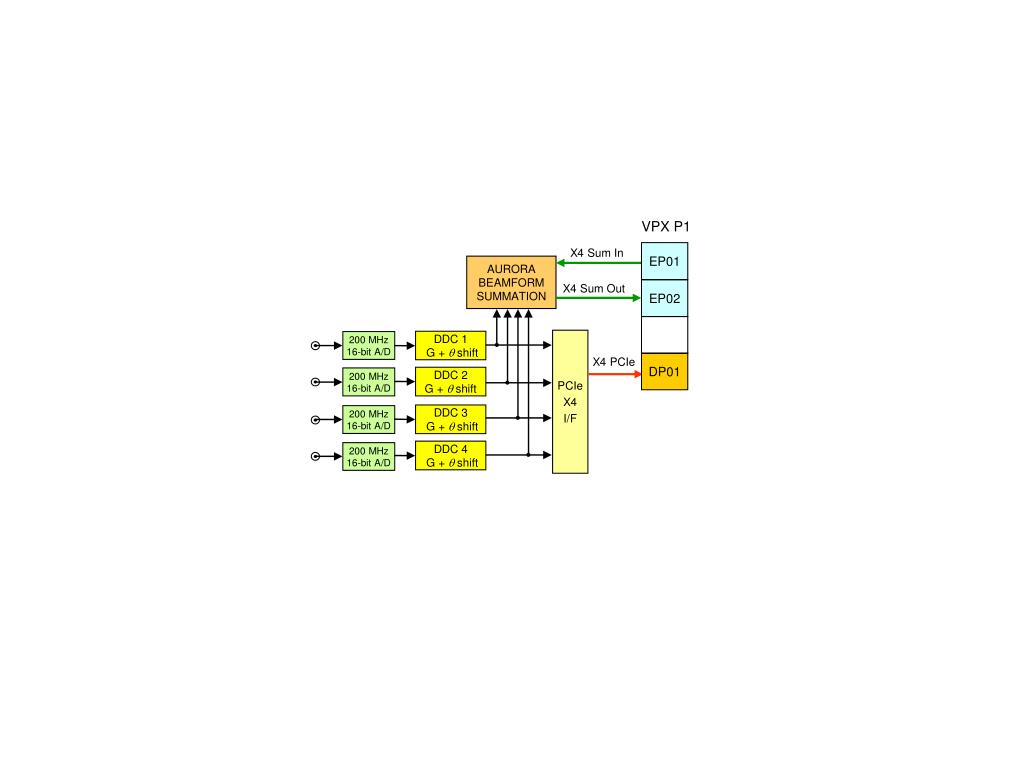

  2. EP01 X4 Sum In AURORA BEAMFORM SUMMATION EP02 X4 Sum Out PCIe X4 I/F DDC 1 G +  shift 200 MHz 16-bit A/D DP01 X4 PCIe DDC 2G +  shift 200 MHz 16-bit A/D DDC 3 G +  shift 200 MHz 16-bit A/D DDC 4 G +  shift 200 MHz 16-bit A/D VPX P1

  3. DP01 DP01 DP01 DP01 VPX P1 Slot 1 VPX P1 Slot 5 CPU VPX P1 Slot 4 EP01 EP01 X4 Sum In X4 Sum Out AURORA BEAMFORM SUMMATION AURORA BEAMFORM SUMMATION Model 5353 Model 5353 EP02 EP02 X4 Sum Out X4 Sum In PCIe X4 I/F PCIe X4 I/F DDC 1 G +  shift DDC 1 G +  shift 200 MHz 16-bit A/D 200 MHz 16-bit A/D DP01 DP01 X4 PCIe X4 PCIe DDC 2G +  shift DDC 2G +  shift 200 MHz 16-bit A/D 200 MHz 16-bit A/D DDC 3 G +  shift DDC 3 G +  shift 200 MHz 16-bit A/D 200 MHz 16-bit A/D DDC 4 G +  shift DDC 4 G +  shift VPX P1 Slot 2 VPX P1 Slot 3 200 MHz 16-bit A/D 200 MHz 16-bit A/D EP01 EP01 X4 Sum In X4 Sum Out AURORA BEAMFORM SUMMATION AURORA BEAMFORM SUMMATION Model 5353 Model 5353 EP02 EP02 X4 Sum Out X4 Sum In PCIe X4 I/F PCIe X4 I/F DDC 1 G +  shift DDC 1 G +  shift 200 MHz 16-bit A/D 200 MHz 16-bit A/D DP01 DP01 X4 PCIe X4 PCIe DDC 2G +  shift DDC 2G +  shift 200 MHz 16-bit A/D 200 MHz 16-bit A/D DDC 3 G +  shift DDC 3 G +  shift 200 MHz 16-bit A/D 200 MHz 16-bit A/D X4 PCIe – 1 GB/sec DDC 4 G +  shift DDC 4 G +  shift 200 MHz 16-bit A/D 200 MHz 16-bit A/D X4 Aurora – 1.25 GB/sec
