  1. UQC152H3 Advanced OS Memory Management under Linux

  2. Memory Addressing • Segmentation and paging background • Segmentation • Intel segmentation hardware • Linux use of Intel segmentation • Paging • Intel paging hardware • Linux use of Intel paging • Memory layout • Kernel layout in physical memory • Process virtual memory layout • Kernel virtual memory layout

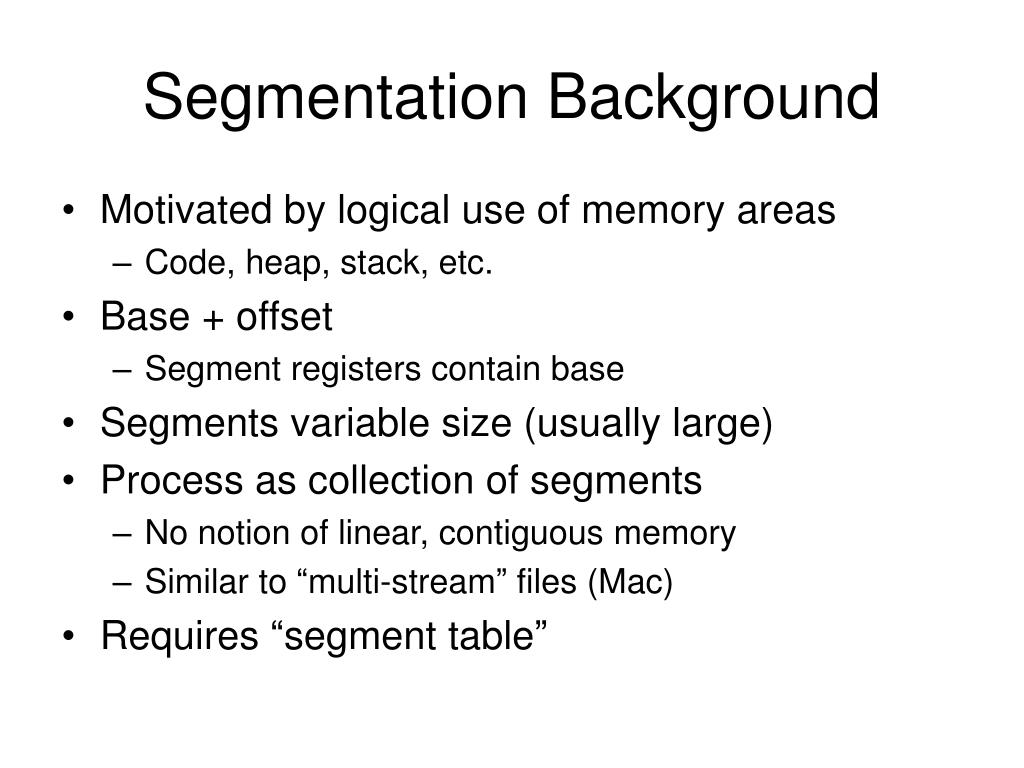

  3. Segmentation Background • Motivated by logical use of memory areas • Code, heap, stack, etc. • Base + offset • Segment registers contain base • Segments variable size (usually large) • Process as collection of segments • No notion of linear, contiguous memory • Similar to “multi-stream” files (Mac) • Requires “segment table”

  4. Paging Background • Motivated by notion of linear, contiguous, "virtual" memory (space) • Every process has it's own "zero" address • Uniform sized chunks (pages – 4K on Intel) • Virtually contiguous pages may be physically scattered • Virtual space may have "holes" • Page table translates virtual "pages" to physical "page frames"

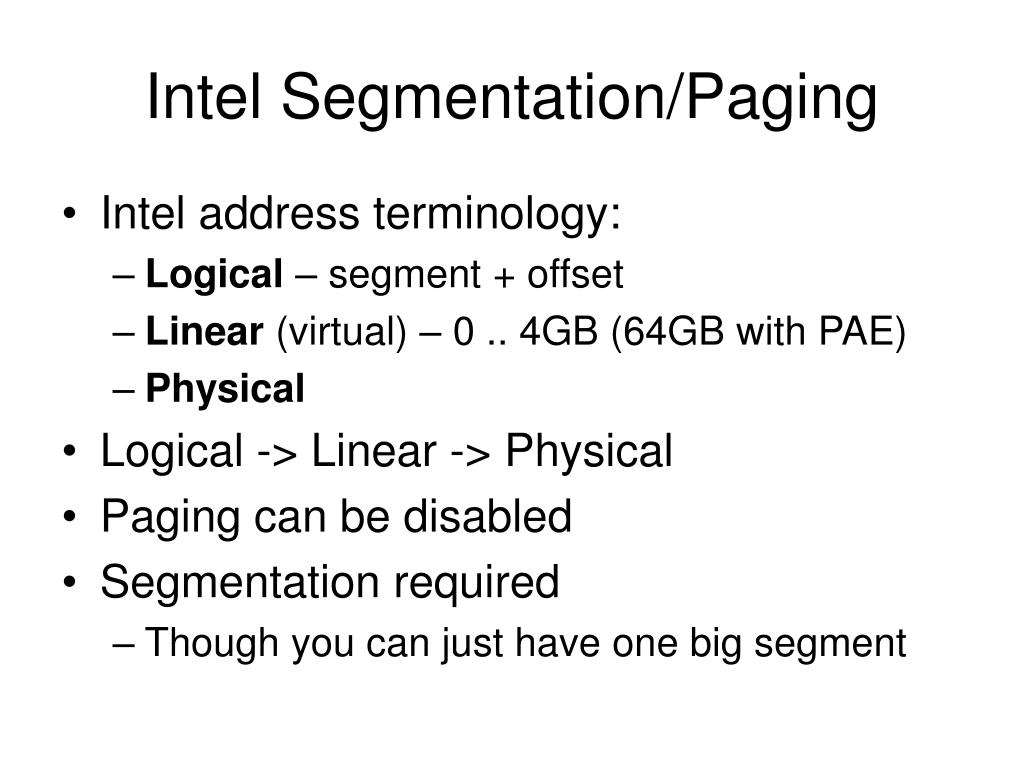

  5. Intel Segmentation/Paging • Intel address terminology: • Logical – segment + offset • Linear (virtual) – 0 .. 4GB (64GB with PAE) • Physical • Logical -> Linear -> Physical • Paging can be disabled • Segmentation required • Though you can just have one big segment

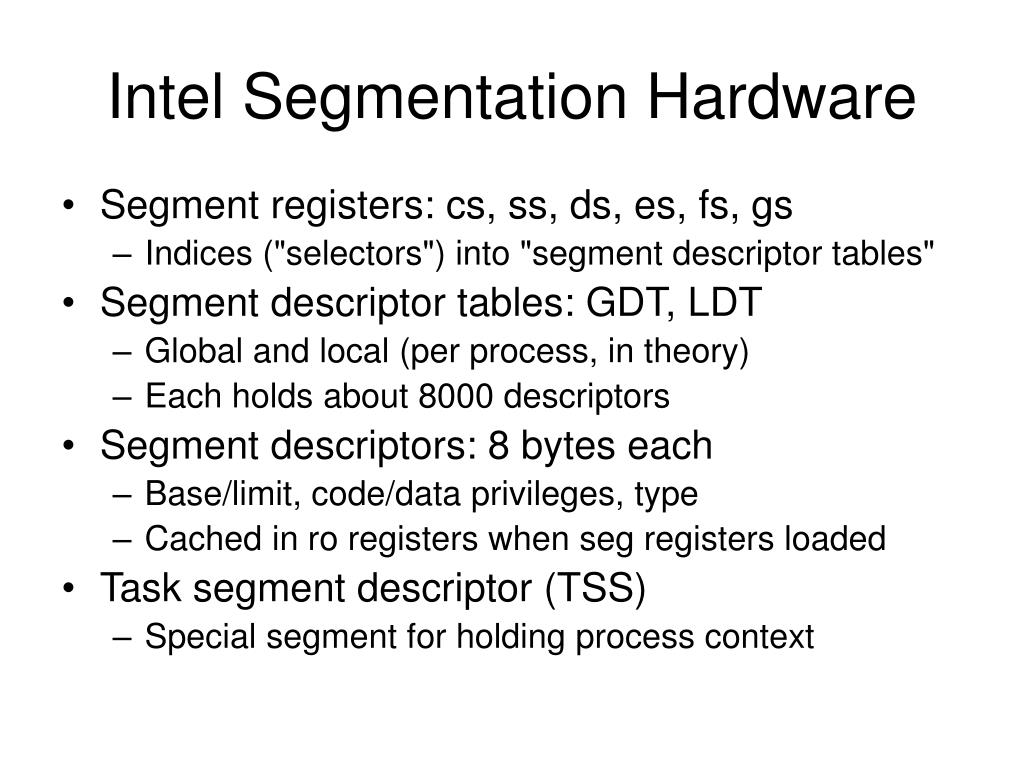

  6. Intel Segmentation Hardware • Segment registers: cs, ss, ds, es, fs, gs • Indices ("selectors") into "segment descriptor tables" • Segment descriptor tables: GDT, LDT • Global and local (per process, in theory) • Each holds about 8000 descriptors • Segment descriptors: 8 bytes each • Base/limit, code/data privileges, type • Cached in ro registers when seg registers loaded • Task segment descriptor (TSS) • Special segment for holding process context

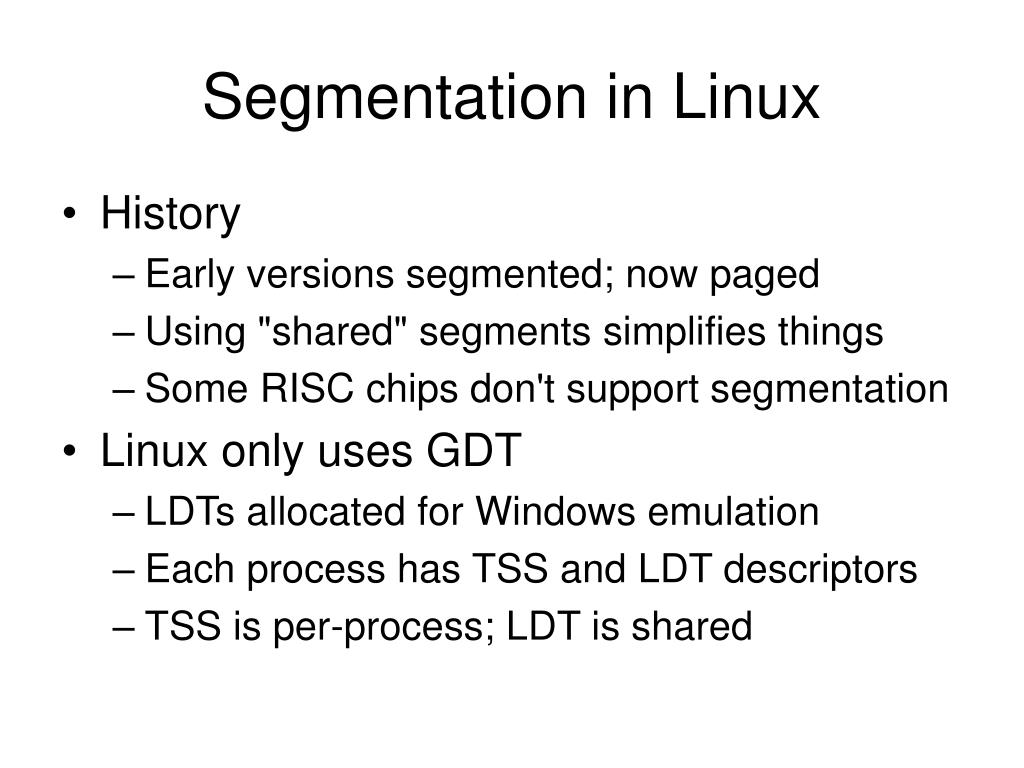

  7. Segmentation in Linux • History • Early versions segmented; now paged • Using "shared" segments simplifies things • Some RISC chips don't support segmentation • Linux only uses GDT • LDTs allocated for Windows emulation • Each process has TSS and LDT descriptors • TSS is per-process; LDT is shared

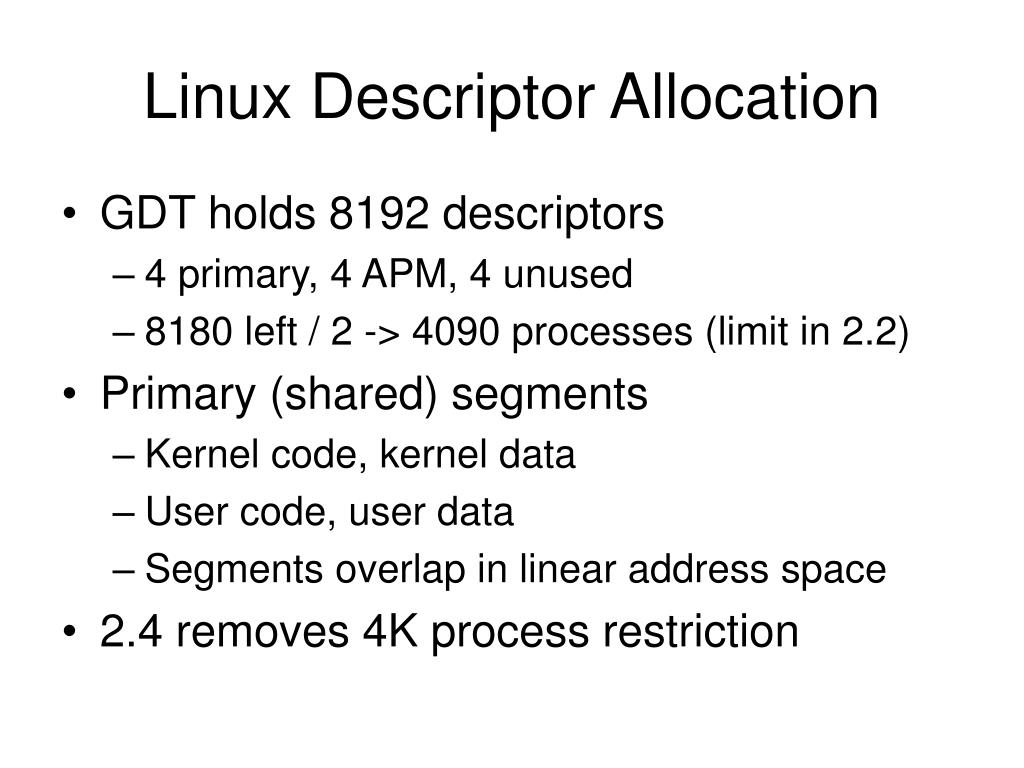

  8. Linux Descriptor Allocation • GDT holds 8192 descriptors • 4 primary, 4 APM, 4 unused • 8180 left / 2 -> 4090 processes (limit in 2.2) • Primary (shared) segments • Kernel code, kernel data • User code, user data • Segments overlap in linear address space • 2.4 removes 4K process restriction

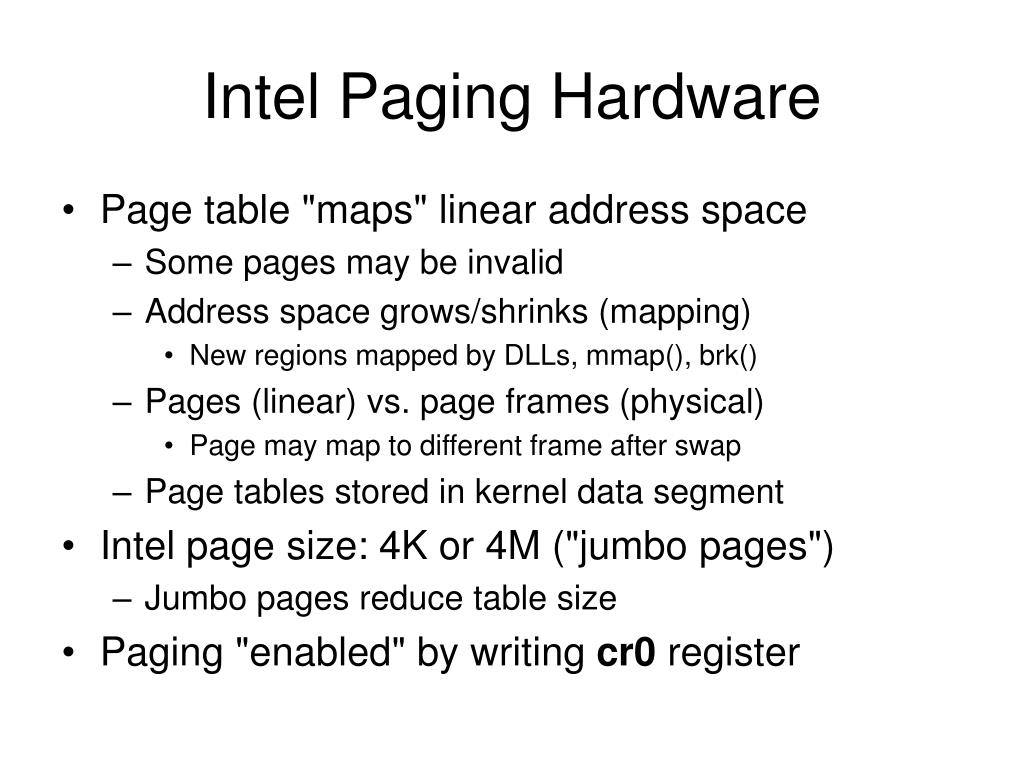

  9. Intel Paging Hardware • Page table "maps" linear address space • Some pages may be invalid • Address space grows/shrinks (mapping) • New regions mapped by DLLs, mmap(), brk() • Pages (linear) vs. page frames (physical) • Page may map to different frame after swap • Page tables stored in kernel data segment • Intel page size: 4K or 4M ("jumbo pages") • Jumbo pages reduce table size • Paging "enabled" by writing cr0 register

  10. Intel Two-Level Paging • "Page table" is actually a two-level tree • Page Directory (root) • Page Tables (children) • Pages (grandchildren) • Linear address carved into three pieces • Directory (10), Table (10), Offset (12) • Entries: frame # + bookkeeping bits • Bookkeeping bits: • Present, Accessed, Dirty • Read/Write, User/Supervisor, Page Size • Jumbo pages • Map entire 4GB address space with just top-level Directory • No need for Tables! (Kernel uses this technique)

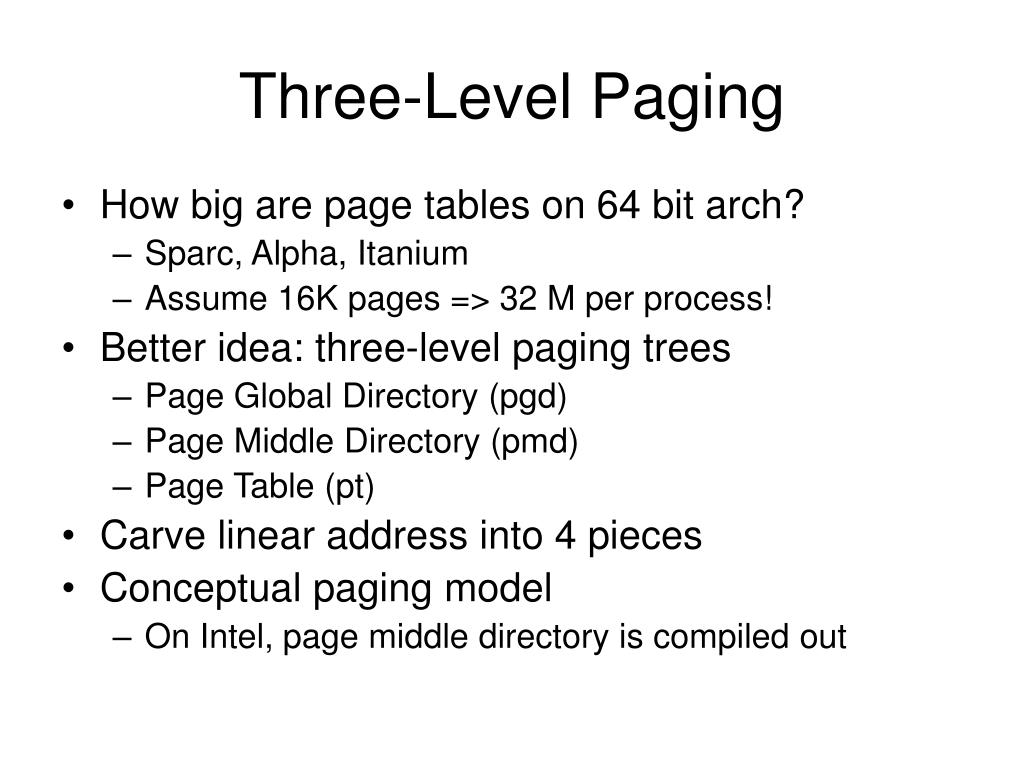

  11. Three-Level Paging • How big are page tables on 64 bit arch? • Sparc, Alpha, Itanium • Assume 16K pages => 32 M per process! • Better idea: three-level paging trees • Page Global Directory (pgd) • Page Middle Directory (pmd) • Page Table (pt) • Carve linear address into 4 pieces • Conceptual paging model • On Intel, page middle directory is compiled out

  12. Aside: Caching • Exploit temporal and spatial locality • L1 and L2 caches (on chip) • Cache "lines" (32 bytes on Intel) • Kernel developer goals: • Keep frequently used struct fields in the same cache line! • Spread lines out for large data structures to keep cache utilized • The "Cache Police"

  13. TLB • Translation Look-aside Buffer • Virtual to physical cache • Must be flushed (invalidated) when address space mappings change • A significant cost of context switch

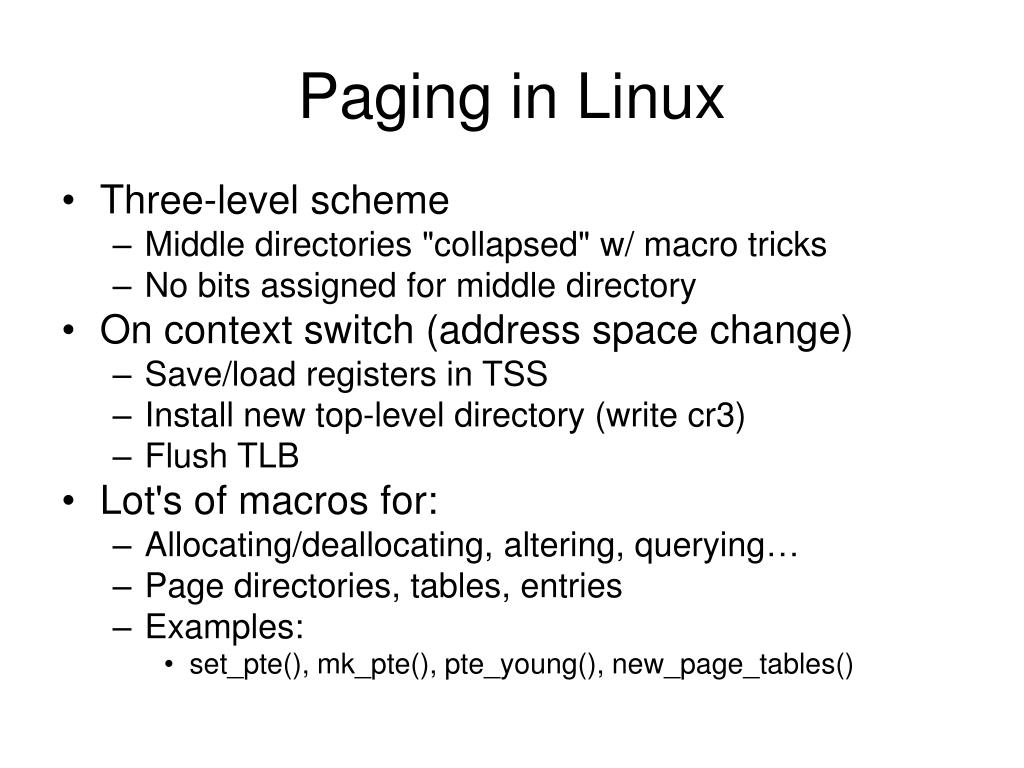

  14. Paging in Linux • Three-level scheme • Middle directories "collapsed" w/ macro tricks • No bits assigned for middle directory • On context switch (address space change) • Save/load registers in TSS • Install new top-level directory (write cr3) • Flush TLB • Lot's of macros for: • Allocating/deallocating, altering, querying… • Page directories, tables, entries • Examples: • set_pte(), mk_pte(), pte_young(), new_page_tables()

  15. Kernel Physical Layout • Kernel is "pinned" (non-swappable) • Usually about 1M; mapped in first 2M • Some "holes" in low memory • Zero frame always invalid (avoids null dereference) • ISA "i/o aperture" (640K .. 1M) • Kernel layout symbols (System.map) • _text (code start) (usually about 1M) • _etext (initialized data start) • _edata (uninitialized data start) • _end (end of kernel data) • Remaining frames allocated as needed by kernel page allocator

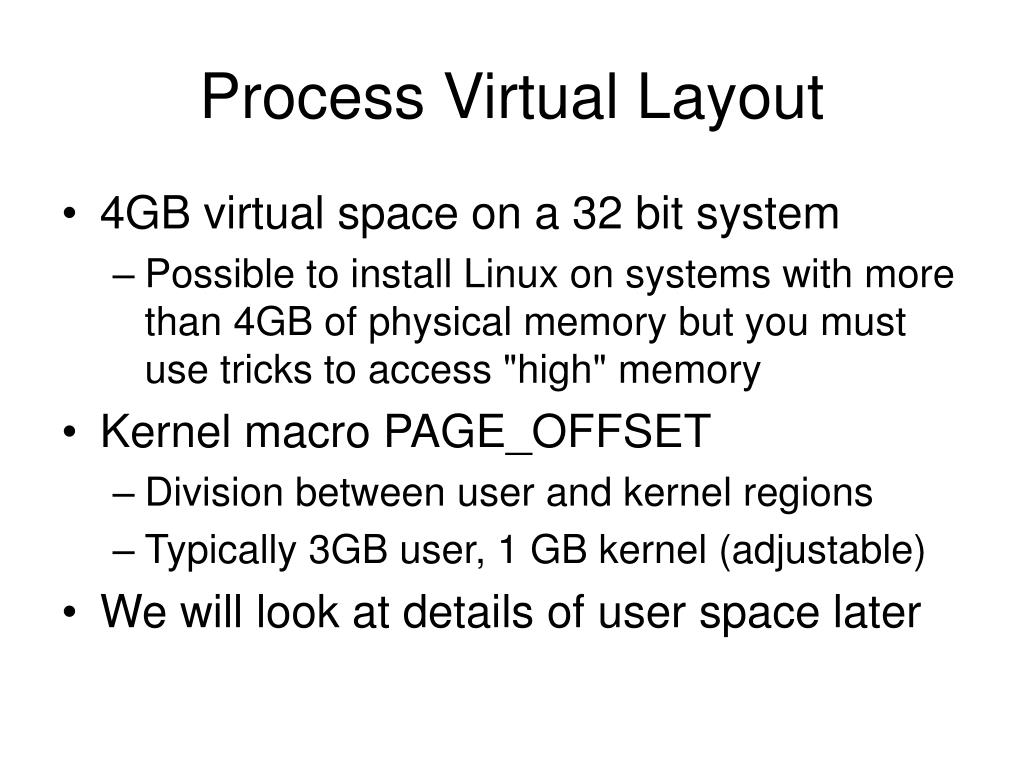

  16. Process Virtual Layout • 4GB virtual space on a 32 bit system • Possible to install Linux on systems with more than 4GB of physical memory but you must use tricks to access "high" memory • Kernel macro PAGE_OFFSET • Division between user and kernel regions • Typically 3GB user, 1 GB kernel (adjustable) • We will look at details of user space later

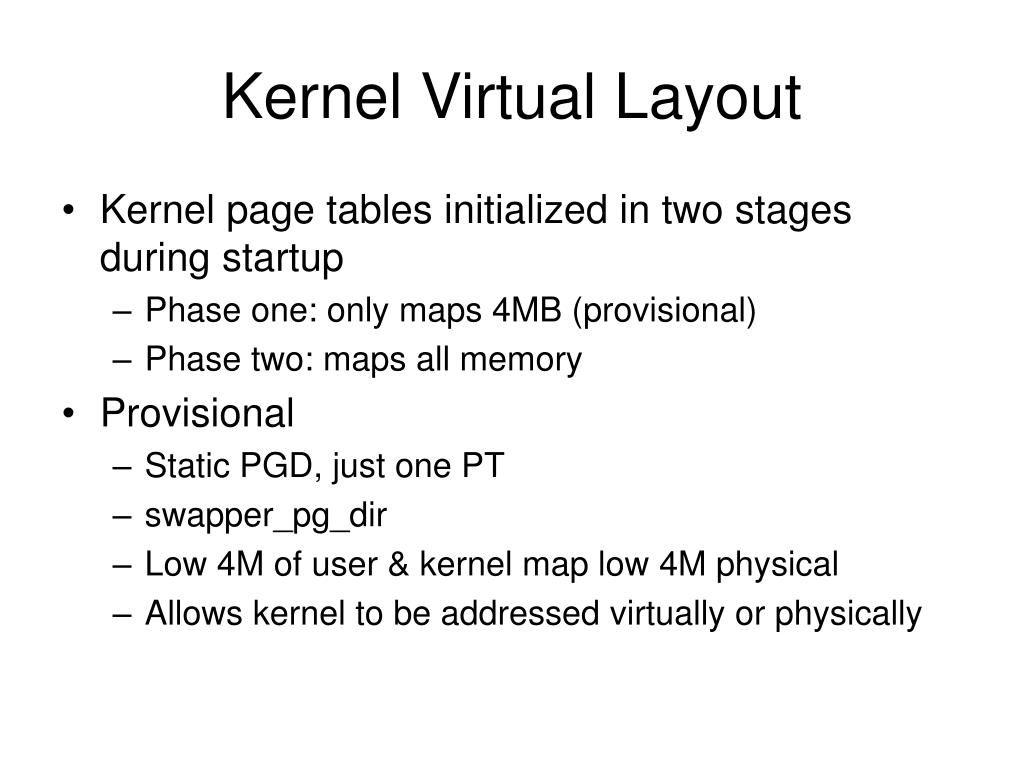

  17. Kernel Virtual Layout • Kernel page tables initialized in two stages during startup • Phase one: only maps 4MB (provisional) • Phase two: maps all memory • Provisional • Static PGD, just one PT • swapper_pg_dir • Low 4M of user & kernel map low 4M physical • Allows kernel to be addressed virtually or physically

  18. Final Kernel Virtual Layout • Kernel code • Operates using linear (virtual) addresses • Macros to go from physical to virtual and back • _pa(virual), _va(physical) • Kernel mapped using jumbo pages • Kernel virtual address space • Low physical frames (containing kernel) mapped to virtual addresses starting at PAGE_OFFSET • Remaining frames allocated on demand by kernel and user processes and mapped to virtual addresses

  19. Summary • Intel hybrid segmented/paged architecture • Segment support used minimally • Linux has a conceptual 3 level page table • Kernel is mapped into high memory of every process address space but is stored in low physical memory
