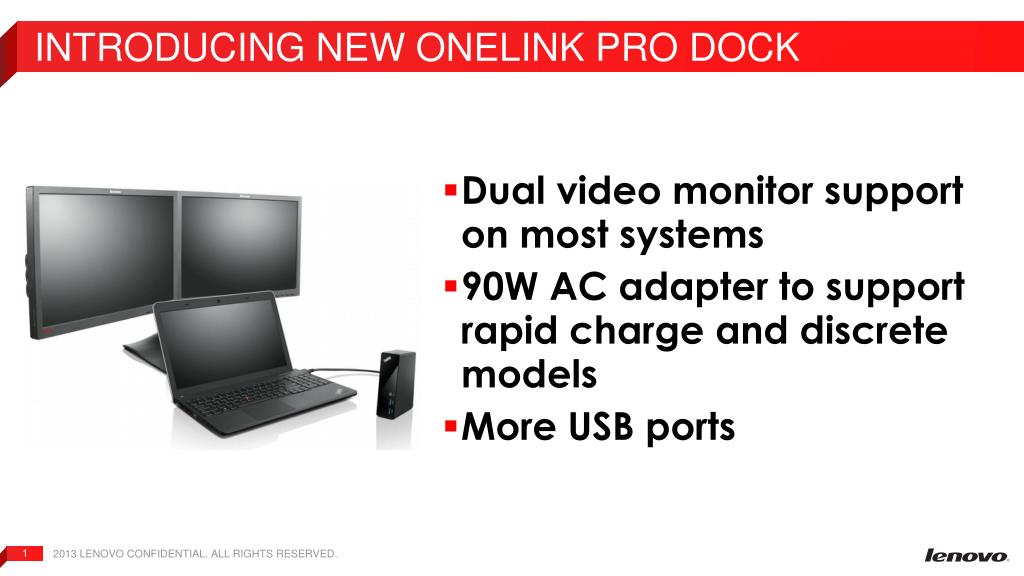

  1. Introducing NEW OneLINK PRO DOCK • Dual video monitor support on most systems • 90W AC adapter to support rapid charge and discrete models • More USB ports

  2. FRONT SIDE INTRODUCTION Power Button mirroring ThinkPad button Status “I” LED Graphite Black color matching ThinkPad 2013 systems 2x USB 3.0(one is Always On 2500 mA) Stereo/MIC Combo as on ThinkPad Kensington Security slot to secure dock

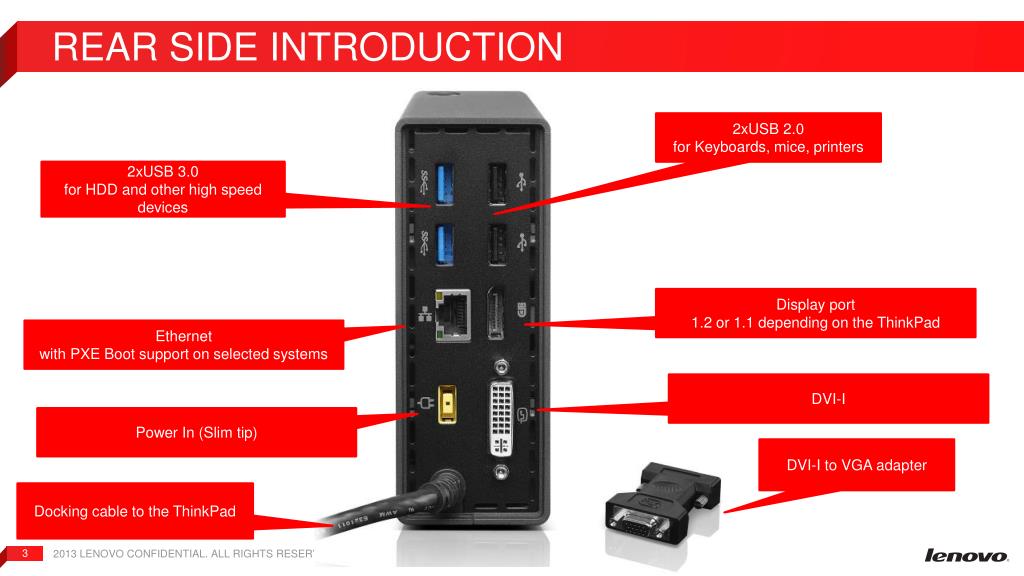

  3. REAR SIDE INTRODUCTION 2xUSB 2.0 for Keyboards, mice, printers 2xUSB 3.0 for HDD and other high speed devices Display port 1.2 or 1.1 depending on the ThinkPad Ethernet with PXE Boot support on selected systems DVI-I Power In (Slim tip) DVI-I to VGA adapter Docking cable to the ThinkPad

  4. INCLUDED IN THE BOX ThinkPad OneLink Pro Dock ThinkPad 90W AC adapter (Slim tip) Power cord based on country PN DVI-I to VGA adapter

  5. Additional HIGHLIGHTS • Boot and Load image over USB Ethernet (PXE Boot) on X1 Carbon (3rd Gen) and ThinkPad Yoga • Dual Video support on Haswellplatform ThinkPads • 1x2560x1600 through DP • 2x 1920x1200 through DP and DVI on Shark Bay platform • Single monitor support on Chief River platforms • Resolutions supported depends on the system • Compatible with • X1 Carbon (3rd Gen) and ThinkPad Yoga including PXE Boot • ThinkPad E440/E540/S440/S540 with no PXE Boot • ThinkPad E431/E531/S431/S531 with no PXE Boot, no dual video support (due to only Display port 1.1 on the system)

  6. Docking comparison WITH EXISTING Docks
