  1. IIB TEST & CURRENT STATUS (related CINEMA Instrument Interface Power)

  2. DC-DC CONVERTER(CALEX 5S17/5S12) TEST

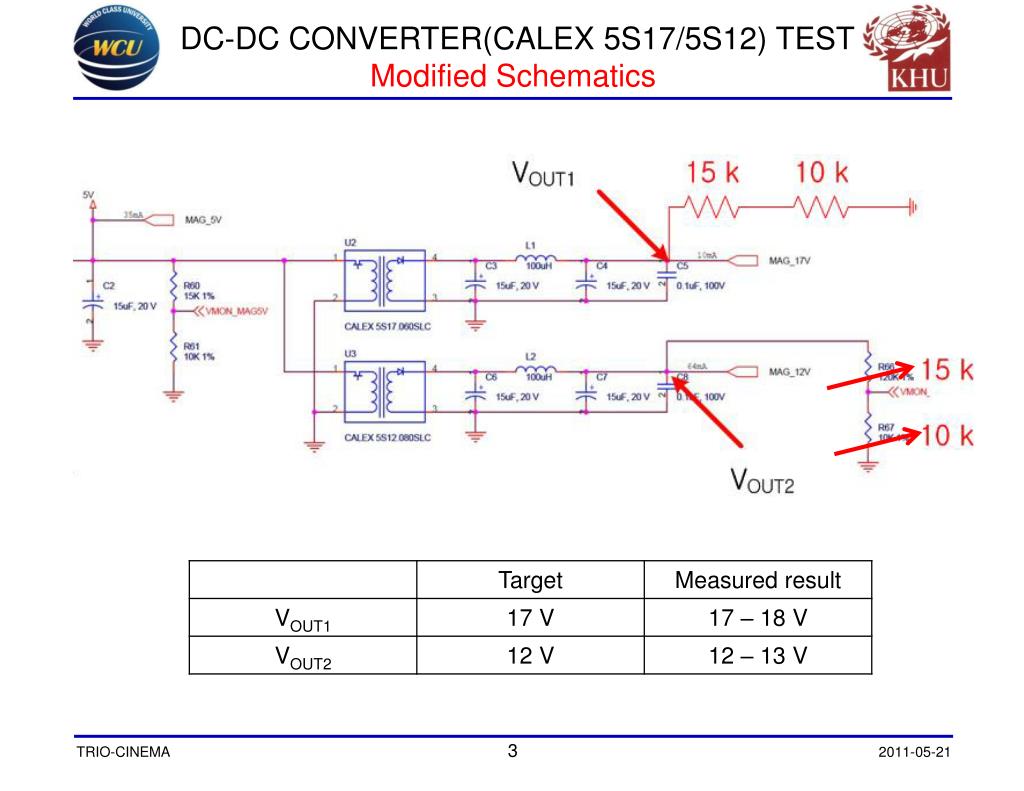

  3. DC-DC CONVERTER(CALEX 5S17/5S12) TEST Modified Schematics

  4. DC-DC CONVERTER(CALEX 5D12/5D5) TEST

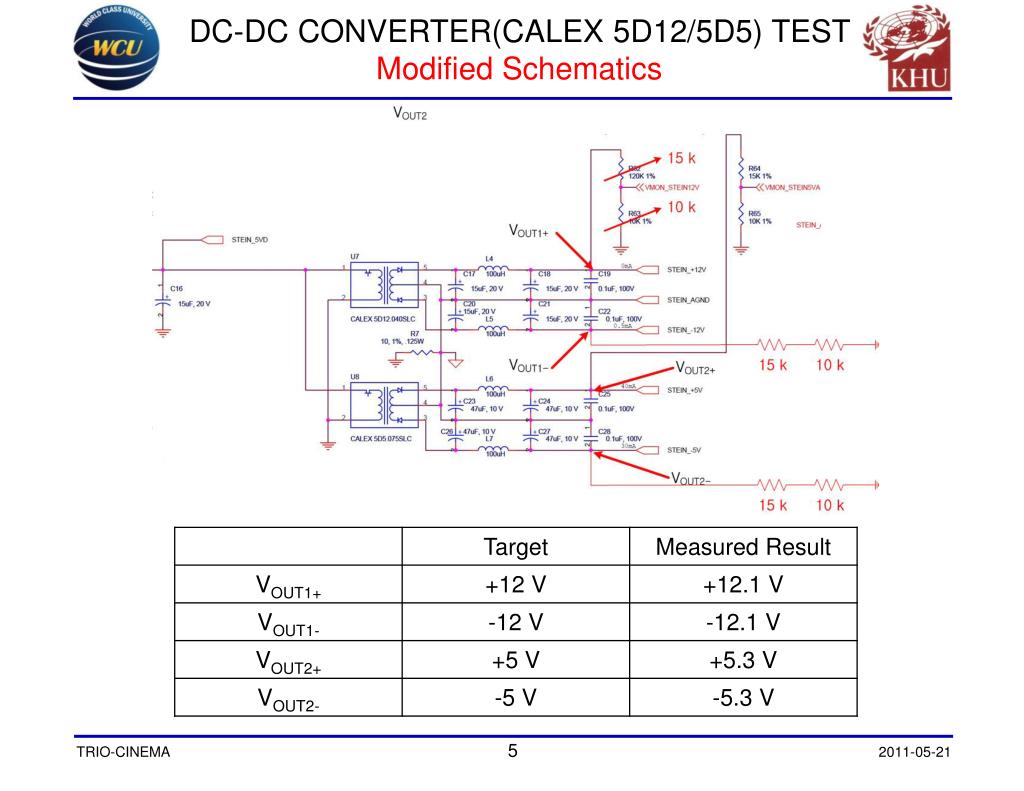

  5. DC-DC CONVERTER(CALEX 5D12/5D5) TEST Modified Schematics

  6. Test results of other blocks -U4, U23, U24(FPF2106):operated properly -U11, U12, U13(FDC6326L):operated properly -U5, U10 (LTC1877):operated properly -U1, U6, U9(FPF2106):need more test -U21 (FDC6326L):need more test -not mentioned above : not tested yet
