  1. Using Drawings to Communicate Lecture 2 – How to create front, top, & right side views of a part.

  2. communicate design intent How can you sketch this angle bracket to convey its shape effectively?

  3. communicate design intent

  4. communicate design intent

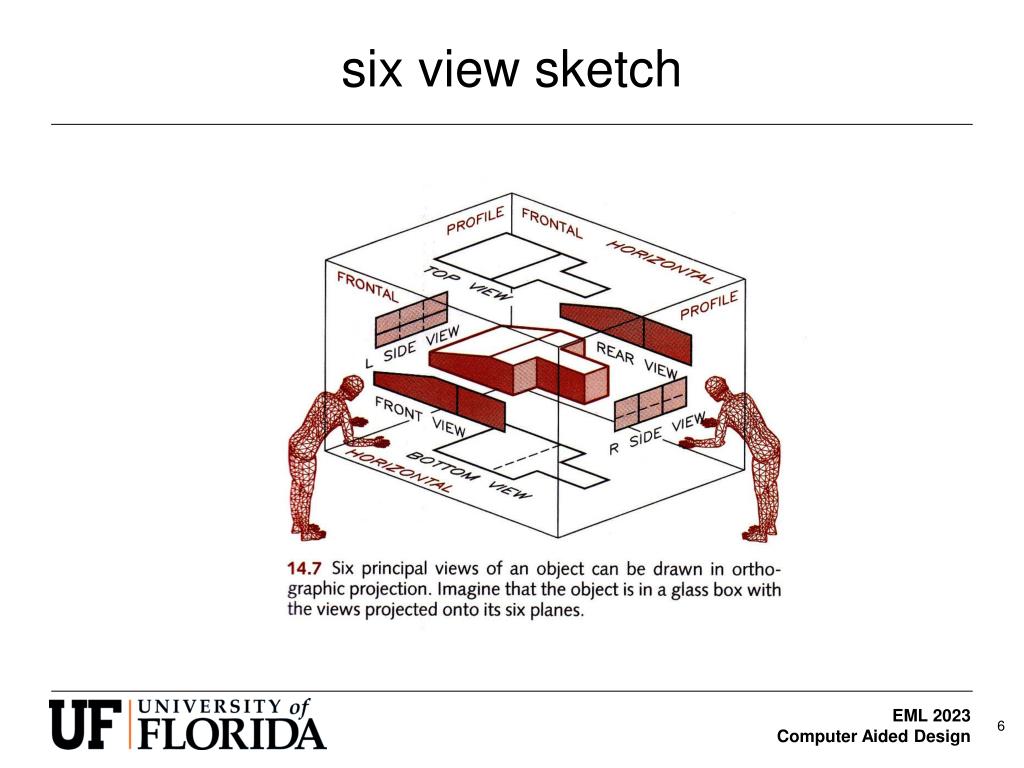

  5. six view sketch

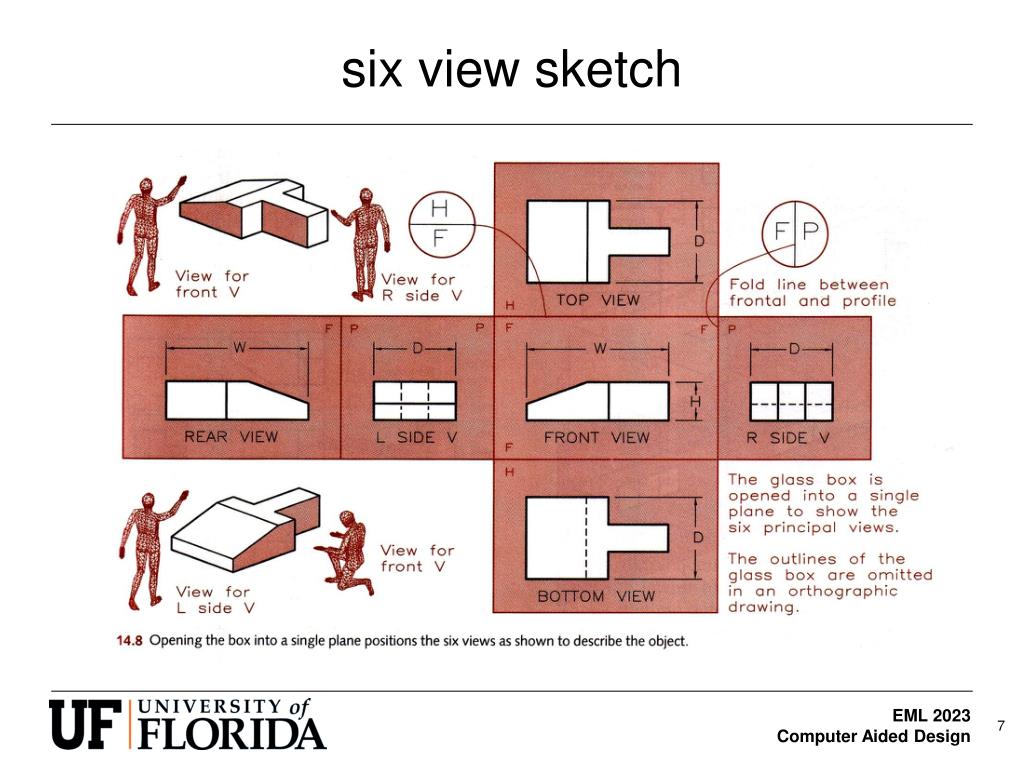

  6. six view sketch

  7. six view sketch

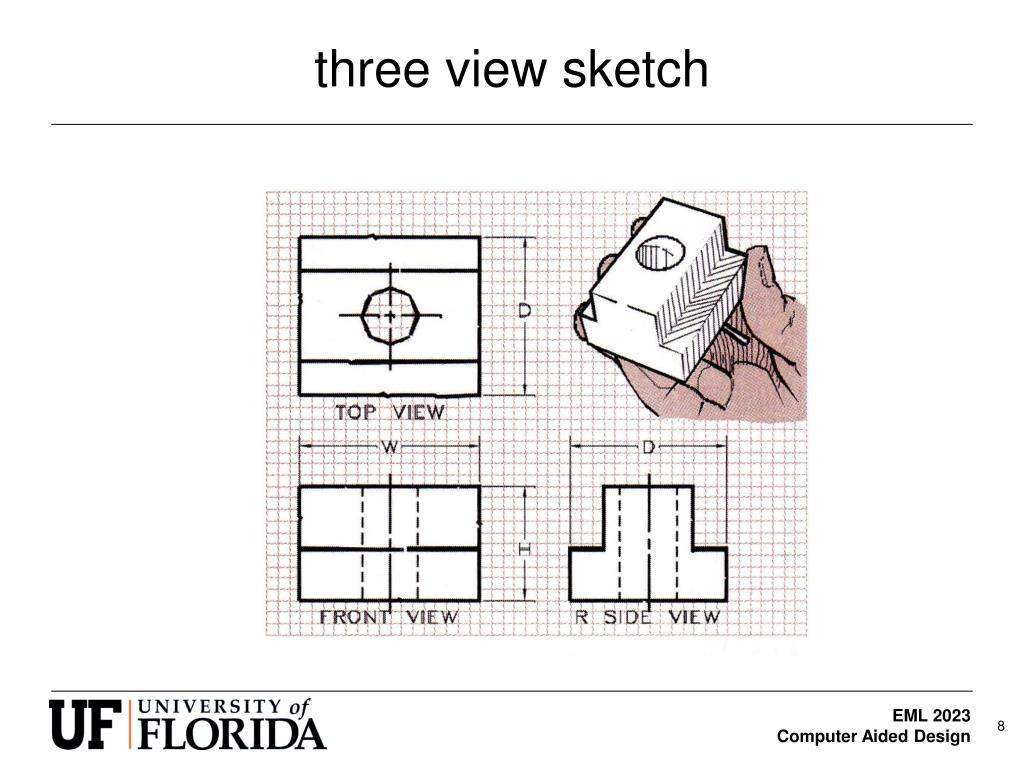

  8. three view sketch

  9. three view sketch

  10. views of planes

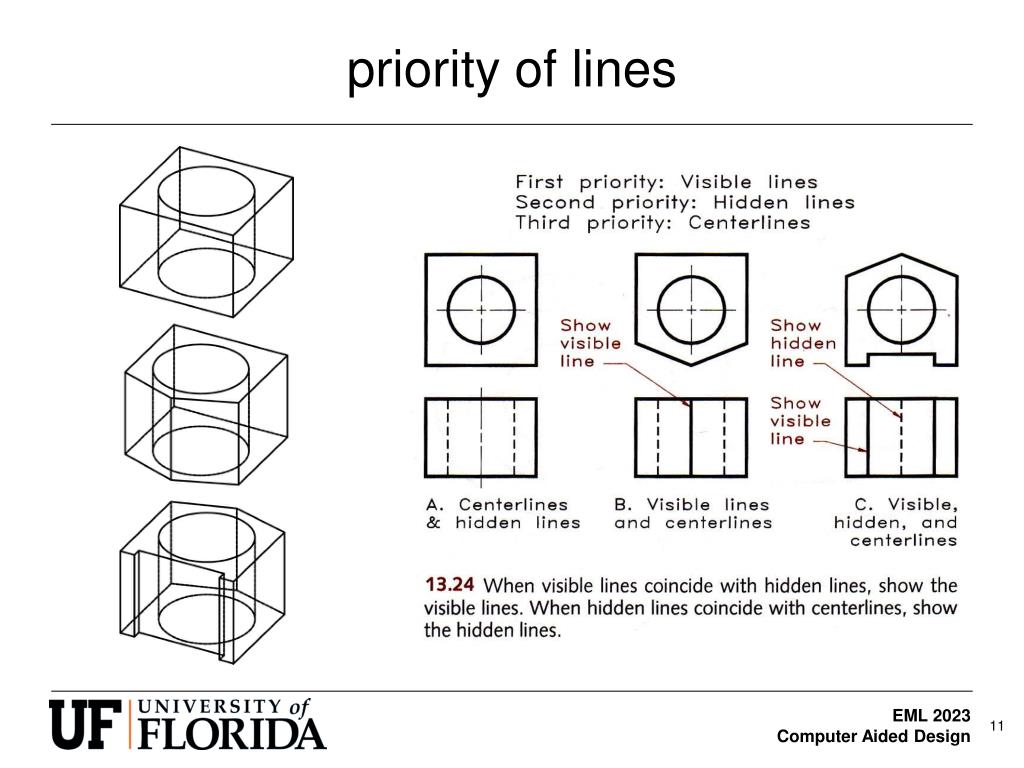

  11. priority of lines

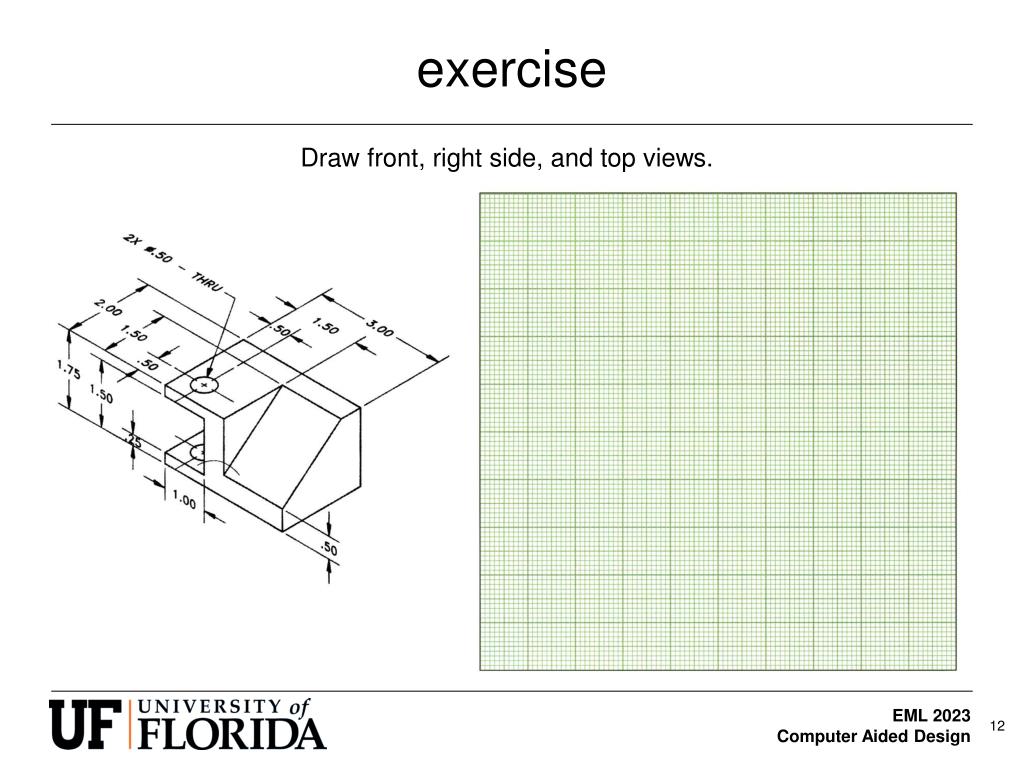

  12. exercise Draw front, right side, and top views.

  13. exercise Draw front, right side, and top views.

  14. exercise Draw front, right side, and top views.

  15. What is the correct front view? 2. 1. • 1 • 2 • 3 • 4 front 4. 3.

  16. What is the correct front view? 2. 1. • 1 • 2 • 3 • 4 front 4. 3.

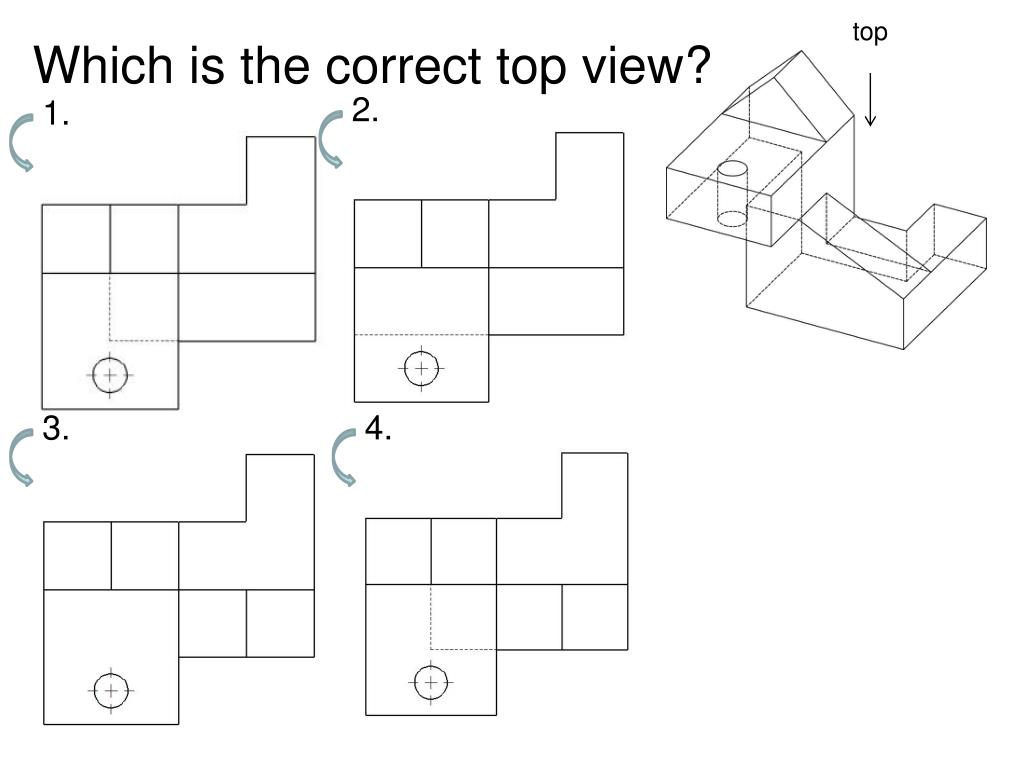

  17. top Which is the correct top view? 2. 1. • 1 • 2 • 3 • 4 3. 4.

  18. top Which is the correct top view? 2. 1. • 1 • 2 • 3 • 4 3. 4.

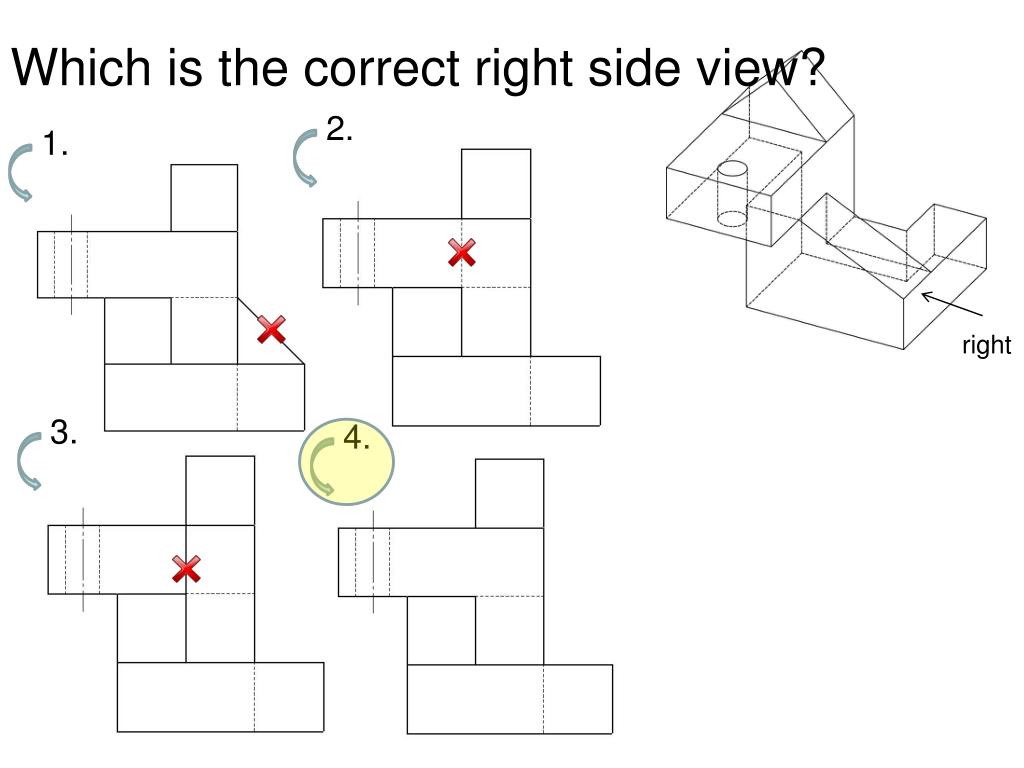

  19. Which is the correct right side view? 2. 1. • 1 • 2 • 3 • 4 right 3. 4.

  20. Which is the correct right side view? 2. 1. • 1 • 2 • 3 • 4 right 3. 4.
