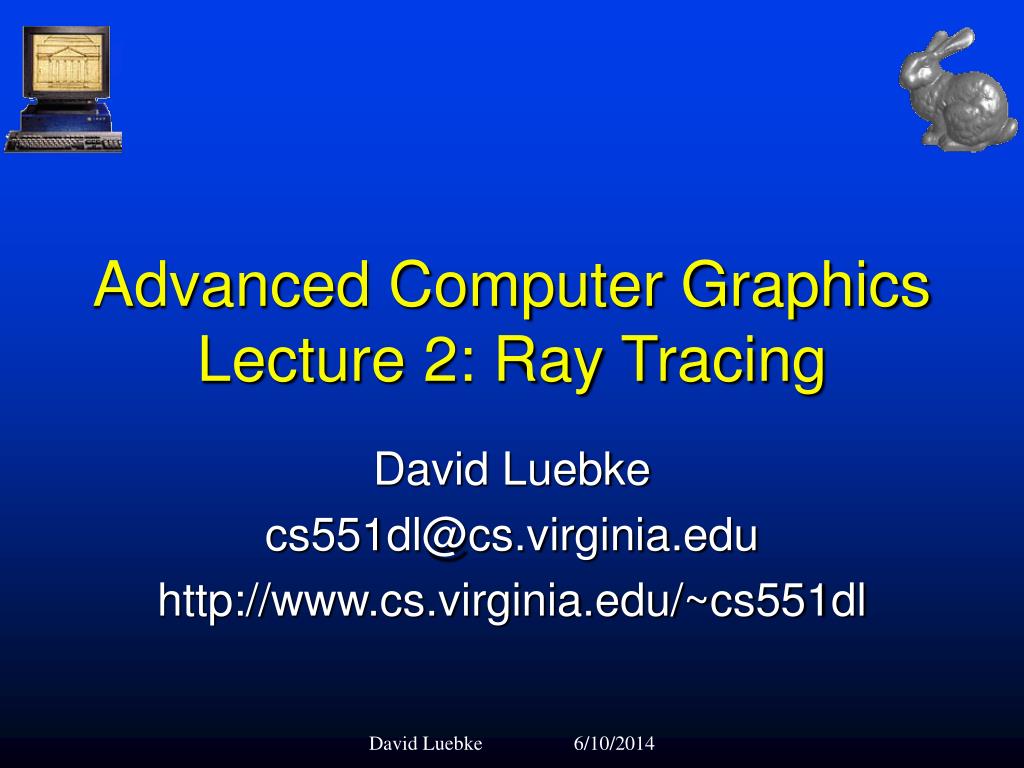

advanced computer graphics lecture 2 ray tracing

Advanced Computer GraphicsLecture 2: Ray Tracing

David Luebke

[email protected]

http://www.cs.virginia.edu/~cs551dl

David Luebke 6/10/2014

recursive ray tracing
Recursive Ray Tracing
  • Idea dates back to Descartes (1637)
  • In graphics: Turner Whitted (1980)
    • Used recursive ray tracing as general framework for:
      • Hidden surface problem
      • Shadow computation
      • Reflection/refraction
    • Much work in the 80’s, then fell into academic disfavor (Turner’s old joke)

David Luebke 6/10/2014

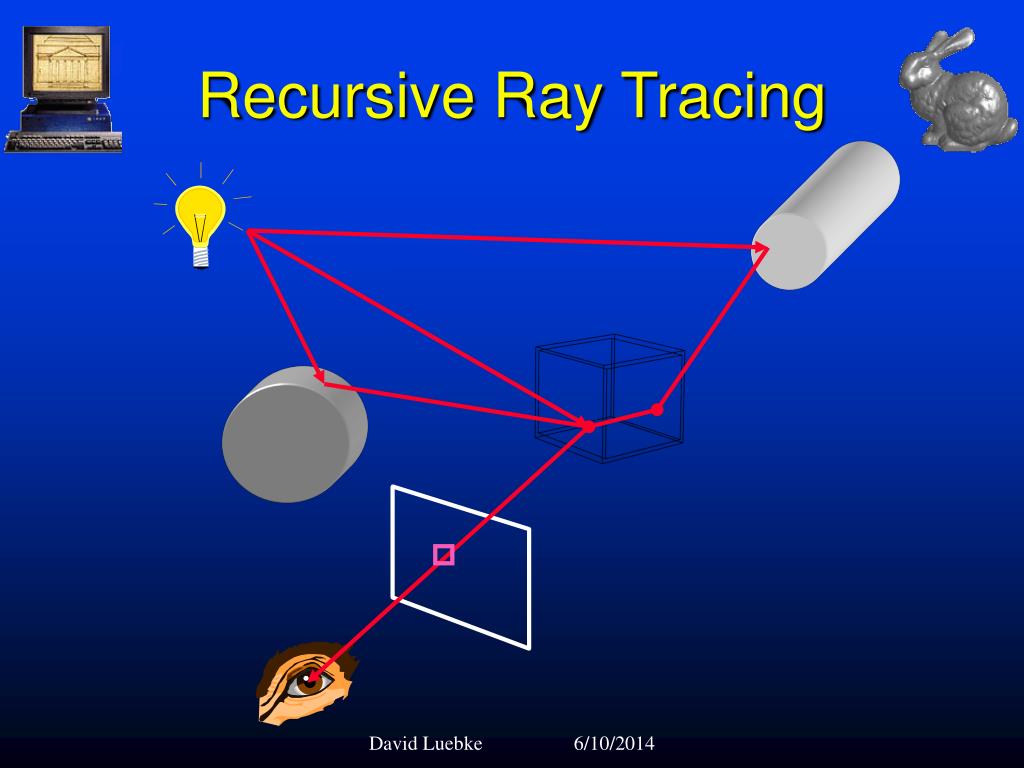

recursive ray tracing1
Recursive Ray Tracing

David Luebke 6/10/2014

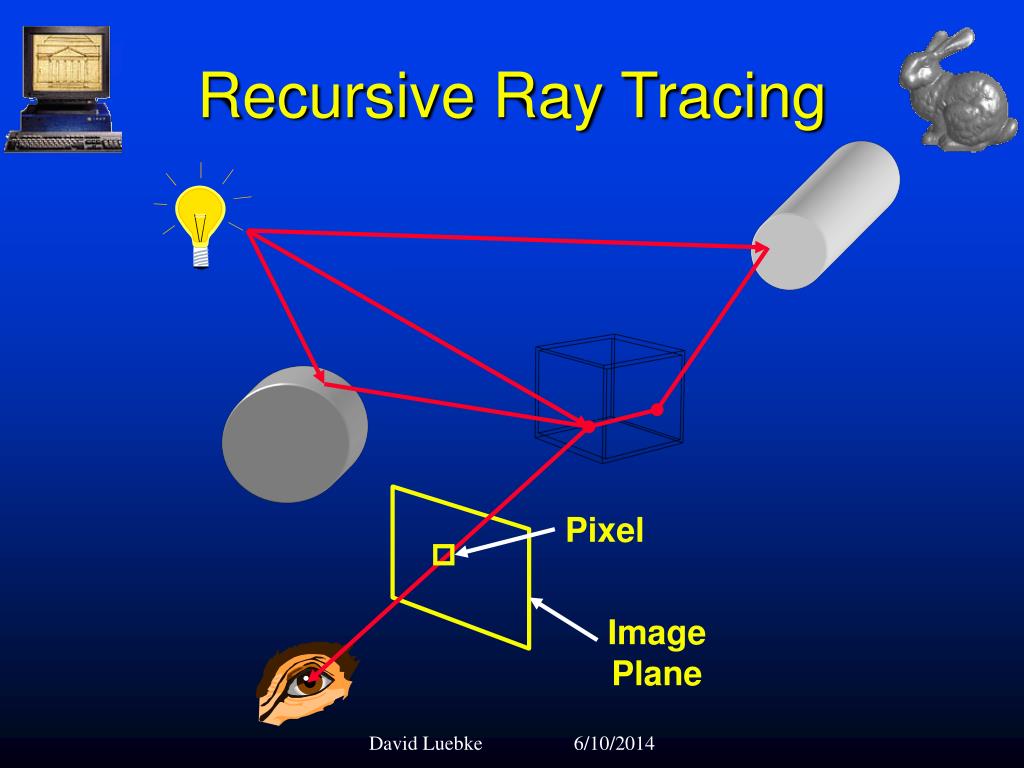

recursive ray tracing2
Recursive Ray Tracing

Pixel

ImagePlane

David Luebke 6/10/2014

recursive ray tracing3
Recursive Ray Tracing

“Direct” Ray To Eye

David Luebke 6/10/2014

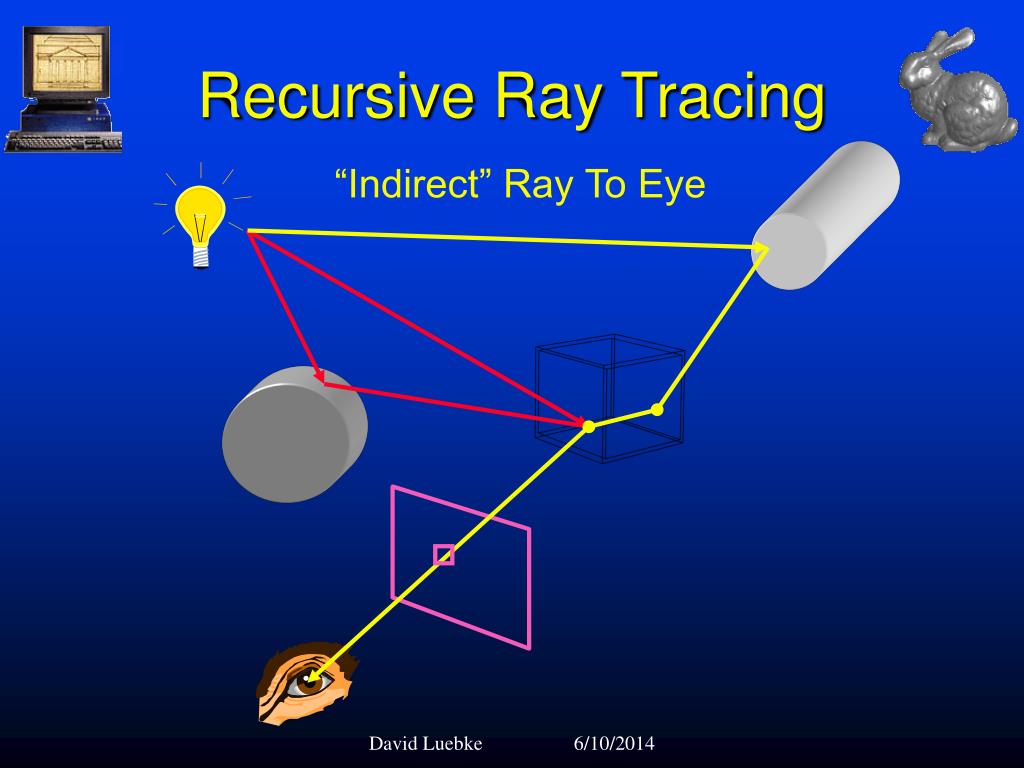

recursive ray tracing4
Recursive Ray Tracing

“Indirect” Ray To Eye

David Luebke 6/10/2014

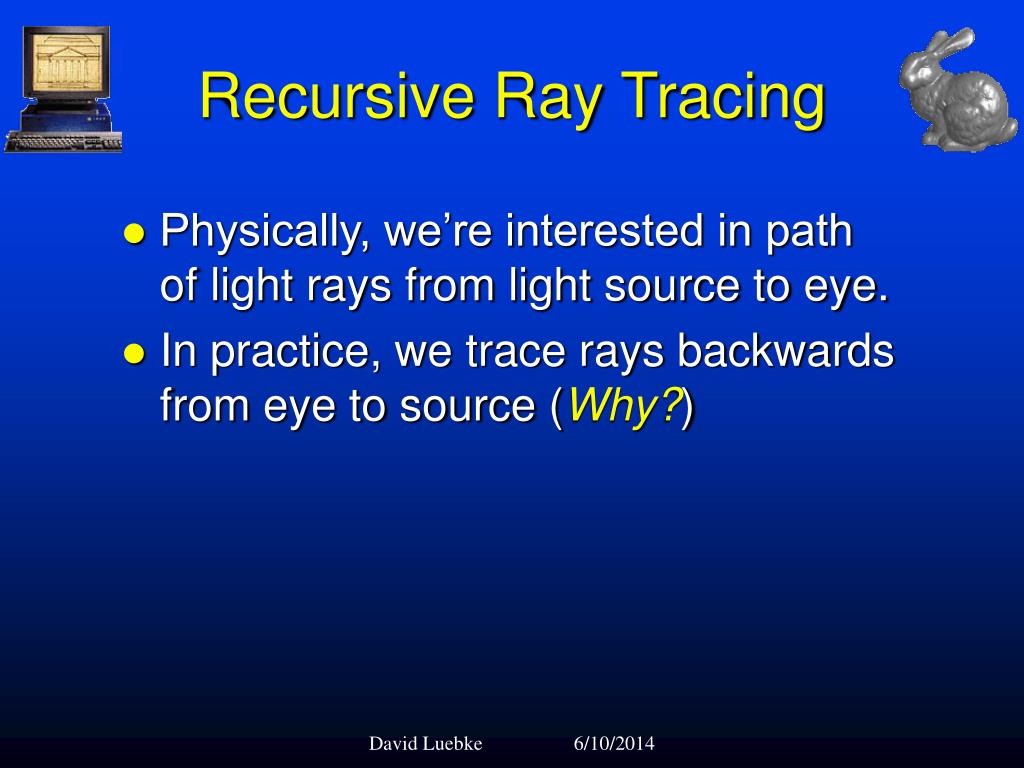

recursive ray tracing5
Recursive Ray Tracing
  • Physically, we’re interested in path of light rays from light source to eye.
  • In practice, we trace rays backwards from eye to source (Why?)

David Luebke 6/10/2014

recursive ray tracing6
Recursive Ray Tracing
  • Physically, we’re interested in path of light rays from light source to eye.
  • In practice, we trace rays backwards from eye to source (Why?)
    • Computational efficiency: we want the finite subset of rays that leave source, bounce around, and pass through eye
    • Can’t predict where a ray will go, so start with rays we know reach eye

David Luebke 6/10/2014

basic algorithm
Basic Algorithm
  • Function TraceRay() Recursively trace ray Rand return resulting color C
    • IfRintersects any objects then
      • Find nearest object O
      • Find local color contribution
      • Spawn reflected and transmitted rays, using TraceRay() to find resulting colors
      • Combine colors; return result
    • else
      • return background color

David Luebke 6/10/2014

basic algorithm code
Basic Algorithm: Code

Object allObs[];

Color image[];

RayTraceScene()

allObs = initObjects();

for (Yall rows in image)

for (X all pixels in row)

Ray R = calcPrimaryRay(X,Y);

image[X,Y] = TraceRay(R);display(image);

David Luebke 6/10/2014

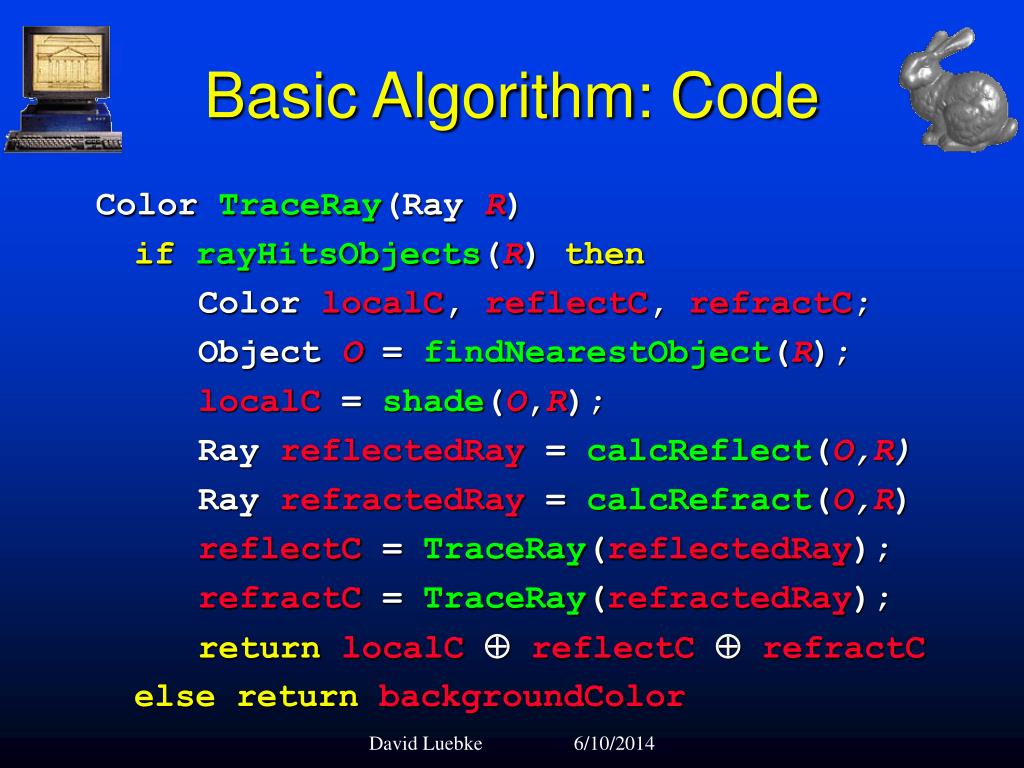

basic algorithm code1
Basic Algorithm: Code

Color TraceRay(Ray R)

ifrayHitsObjects(R) then

Color localC, reflectC, refractC;

Object O = findNearestObject(R);

localC = shade(O,R);

Ray reflectedRay = calcReflect(O,R)

Ray refractedRay = calcRefract(O,R)

reflectC = TraceRay(reflectedRay);

refractC = TraceRay(refractedRay);

return localC  reflectC refractC

else returnbackgroundColor

David Luebke 6/10/2014

refining the basic algorithm
Refining theBasic Algorithm

Color TraceRay(Ray R)

ifrayHitsObjects(R) then

Color localC, reflectC, refractC;

Object O = findNearestObject(R);

localC = shade(O,R);

Ray reflectedRay = calcReflect(O,R)

Ray refractedRay = calcRefract(O,R)

reflectC = TraceRay(reflectedRay);

refractC = TraceRay(refractedRay);

return localC  reflectC refractC

else returnbackgroundColor

David Luebke 6/10/2014

ray object intersection
Ray-Object Intersection
  • Given a ray and a list of objects, what (if any) objects does the ray intersect?
  • Query: Does ray R intersect object O?
    • How to represent ray?
    • What kind of object?
      • Sphere
      • Polygon
      • Box
      • General quadric

David Luebke 6/10/2014

representing rays
R = O+ tD

O

t < 0

t = 1

t > 1

D

Representing Rays
  • How might we represent rays?
  • We represent a ray parametrically:
    • A starting point O
    • A direction vector D
    • A scalar t
  • Why?

David Luebke 6/10/2014

ray sphere intersection
Ray-Sphere Intersection
  • Ray R = O + tD

x = Ox + t * Dx

y = Oy + t * Dy

z = Oz + t * Dz

  • Sphere at (l, m, n) of radius r is:

(x - l)2 + (y - m)2 + (z - n)2 = r 2

  • Substitute for x,y,z and solve for t…

David Luebke 6/10/2014

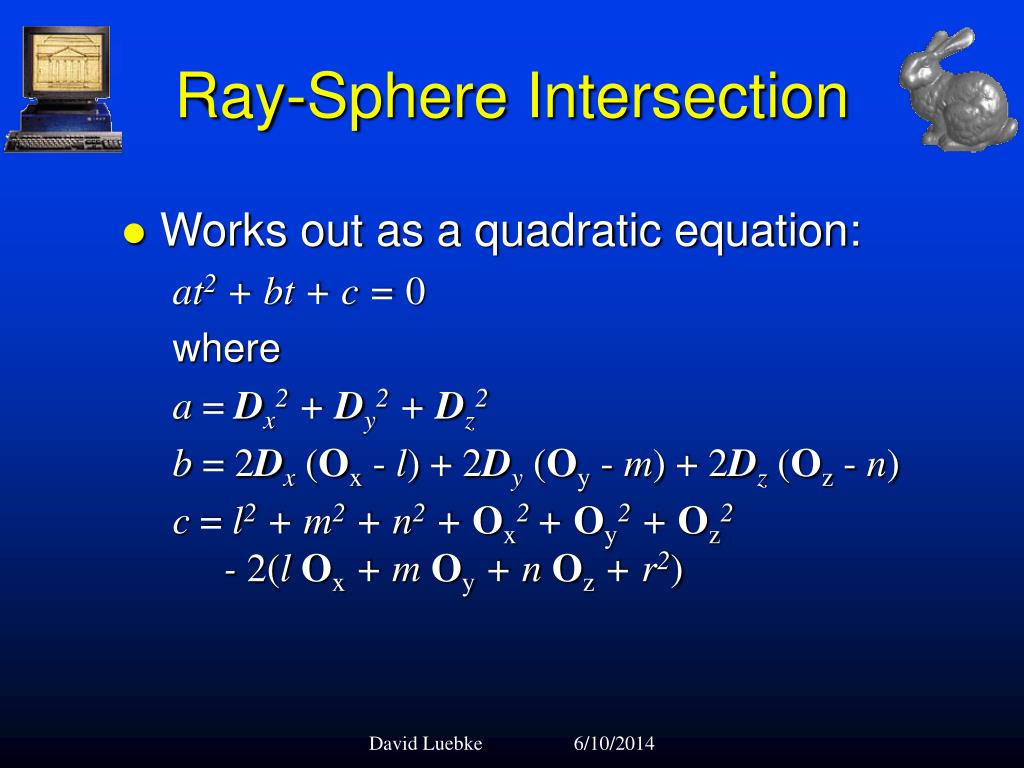

ray sphere intersection1
Ray-Sphere Intersection
  • Works out as a quadratic equation:

at2 + bt + c = 0

where

a = Dx2 + Dy2 + Dz2

b =2Dx(Ox - l) + 2Dy(Oy - m) + 2Dz(Oz - n)

c = l2 + m2 + n2 + Ox2 + Oy2 + Oz2 - 2(l Ox + m Oy + n Oz + r2)

David Luebke 6/10/2014

ray sphere intersection2
Ray-Sphere Intersection
  • If solving for t gives no real roots: ray does not intersect sphere
  • If solving gives 1 real root r, ray grazes sphere where t = r
  • If solving gives 2 real roots (r1, r2), ray intersects sphere at t = r1& t = r2
    • Ignore negative values
    • Smallest value is first intersection

David Luebke 6/10/2014

ray sphere intersection3
Ray-Sphere Intersection
  • Find intersection point Pi = (xi, yi, zi) by plugging t back into ray equation
  • Find normal at intersection point by subtracting sphere center from Pi and normalizing:

(When might we need the normal? When not?)

David Luebke 6/10/2014

ray polygon intersection
Ray-Polygon Intersection
  • Polygons are the most common model representation (Why?)
  • Basic approach:
    • Find plane equation of polygon
    • Find intersection of ray and plane
    • Does polygon contain intersection point?

David Luebke 6/10/2014

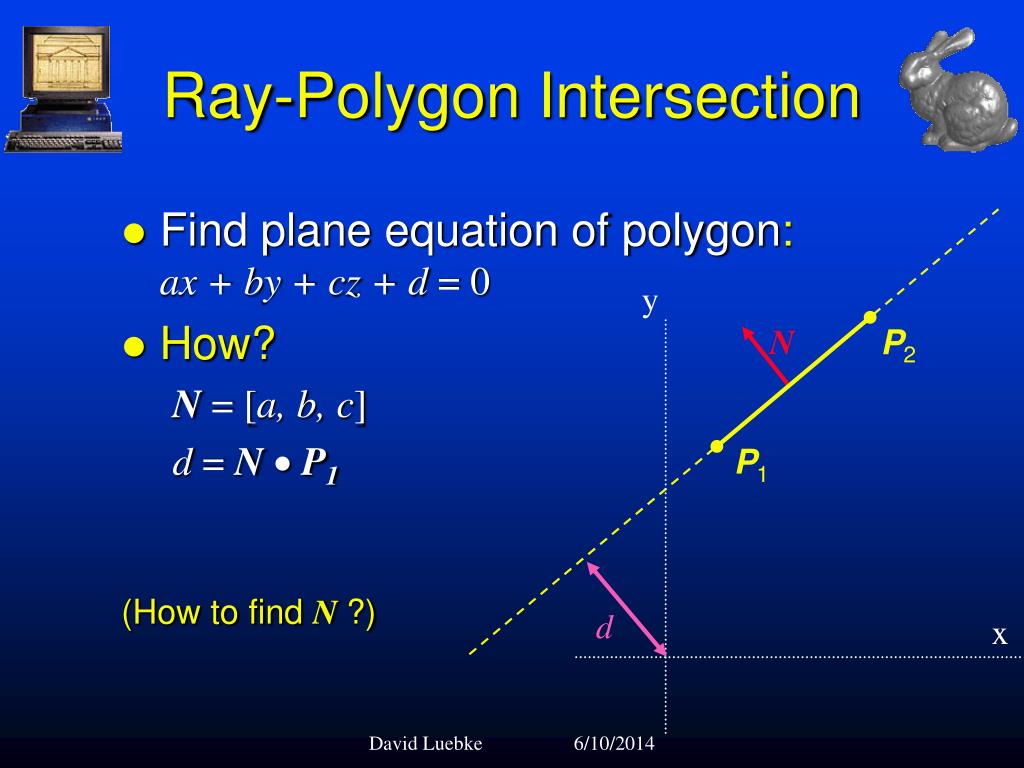

ray polygon intersection1
y

N

P2

P1

d

x

Ray-Polygon Intersection
  • Find plane equation of polygon:ax + by + cz + d = 0
  • How?

N = [a, b, c]

d = N  P1

(How to find N ?)

David Luebke 6/10/2014

ray polygon intersection2
Ray-Polygon Intersection
  • Find intersection of ray and plane:

t = -(aOx + bOy + cOz + d) / (aDx + bDy + cDz)

  • Does poly contain intersection point Pi ?
    • Book’s algorithm:
      • Draw line from Pi to each polygon vertex
      • Measure angles between lines (how?)
      • If sum of angles between lines is 360°, polygon contains Pi
    • Slow — better algorithms available

David Luebke 6/10/2014

ray box intersection
Ray-Box Intersection
  • Often want to find whether a ray hits an axis-aligned box (Why?)
  • One way:
    • Intersect ray with pairs of parallel planes that form box
    • If intervals of intersection overlap, the ray intersects the volume.

David Luebke 6/10/2014
