welcome

Welcome欢迎

Using the PCC使用PCC

Dipl.-Ing. Manfred Schleicher

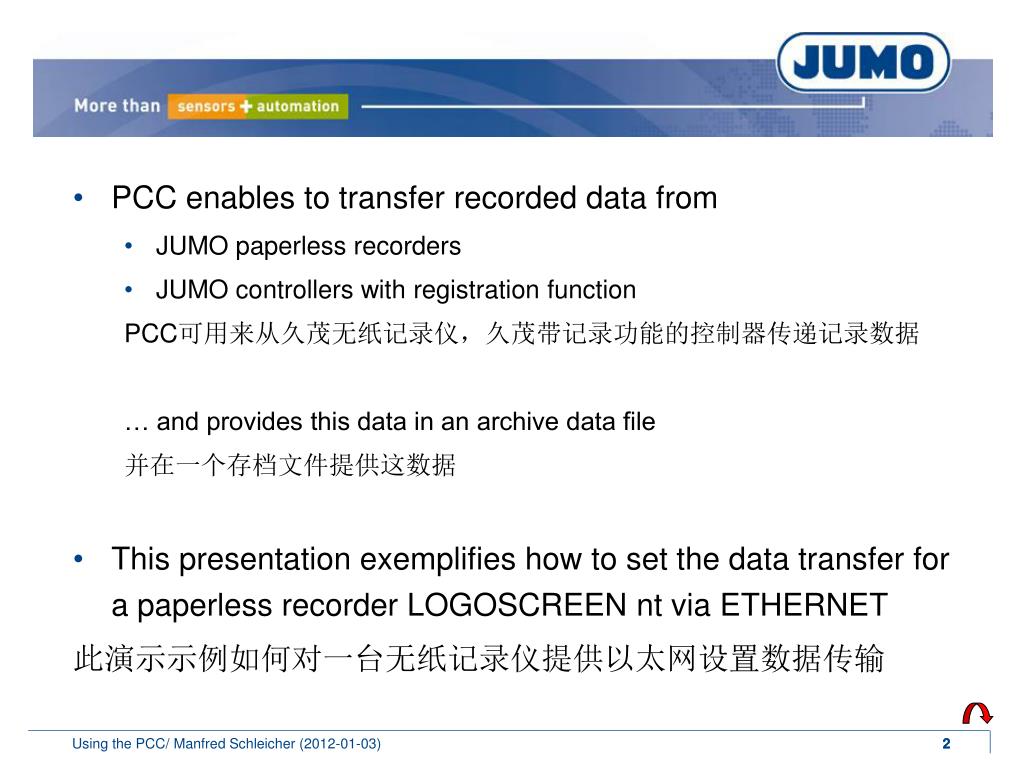

slide2
PCC enables to transfer recorded data from
    • JUMO paperless recorders
    • JUMO controllers with registration function

PCC可用来从久茂无纸记录仪,久茂带记录功能的控制器传递记录数据

… and provides this data in an archive data file

并在一个存档文件提供这数据

  • This presentation exemplifies how to set the data transfer for a paperless recorder LOGOSCREEN nt via ETHERNET

此演示示例如何对一台无纸记录仪提供以太网设置数据传输

Using the PCC/ Manfred Schleicher (2012-01-03)

2

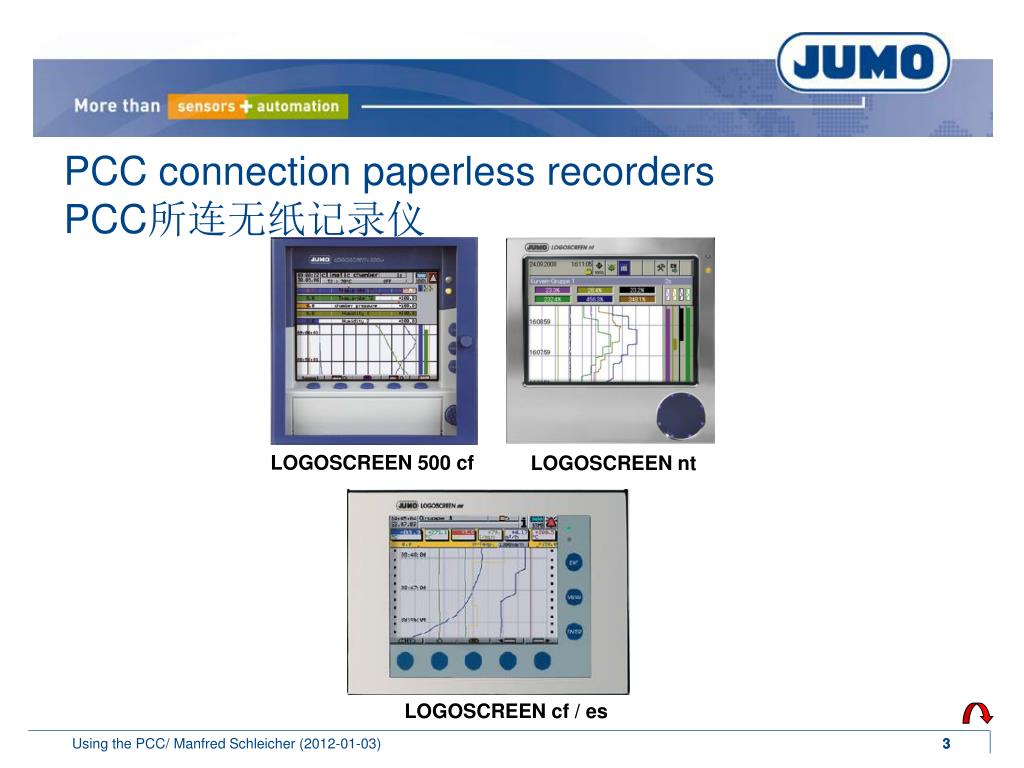

pcc connection paperless recorders pcc

LOGOSCREEN 500 cf

LOGOSCREEN nt

LOGOSCREEN cf / es

PCC connection paperless recordersPCC所连无纸记录仪

Using the PCC/ Manfred Schleicher (2012-01-03)

3

pcc connection controllerspcc

IMAGO F3000

IMAGO 500

PCC connection controllersPCC所连控制器

Using the PCC/ Manfred Schleicher (2012-01-03)

4

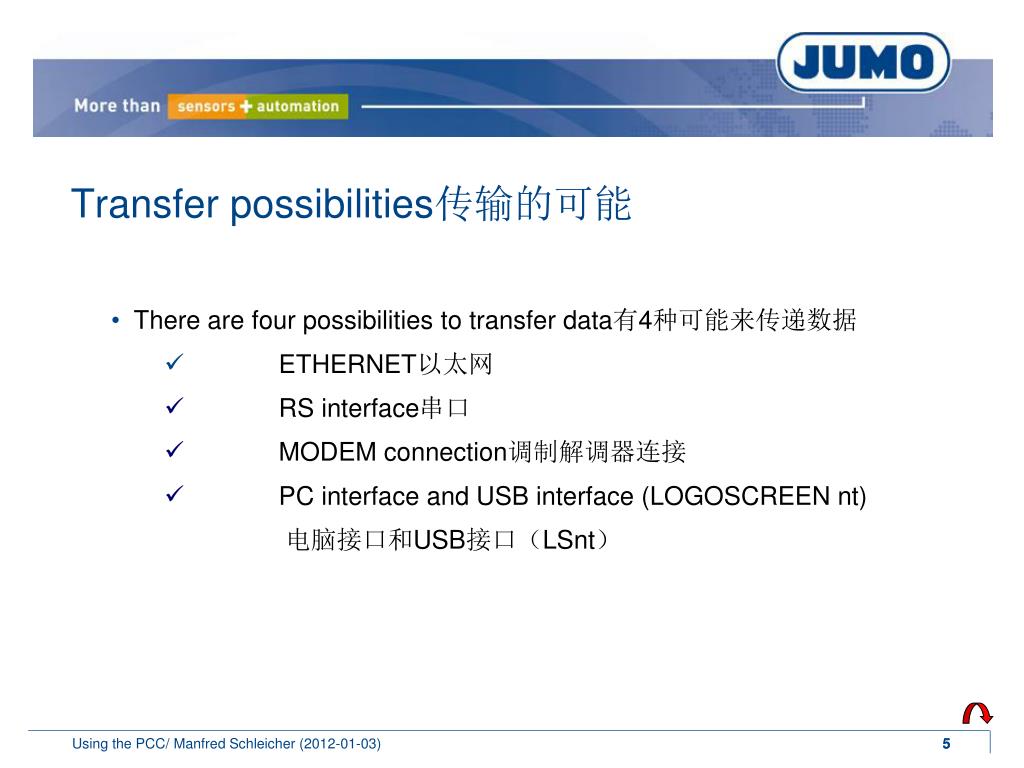

transfer possibilities
There are four possibilities to transfer data有4种可能来传递数据

ETHERNET以太网

RS interface串口

MODEM connection调制解调器连接

PC interface and USB interface (LOGOSCREEN nt)

电脑接口和USB接口(LSnt)

Transfer possibilities传输的可能

Using the PCC/ Manfred Schleicher (2012-01-03)

5

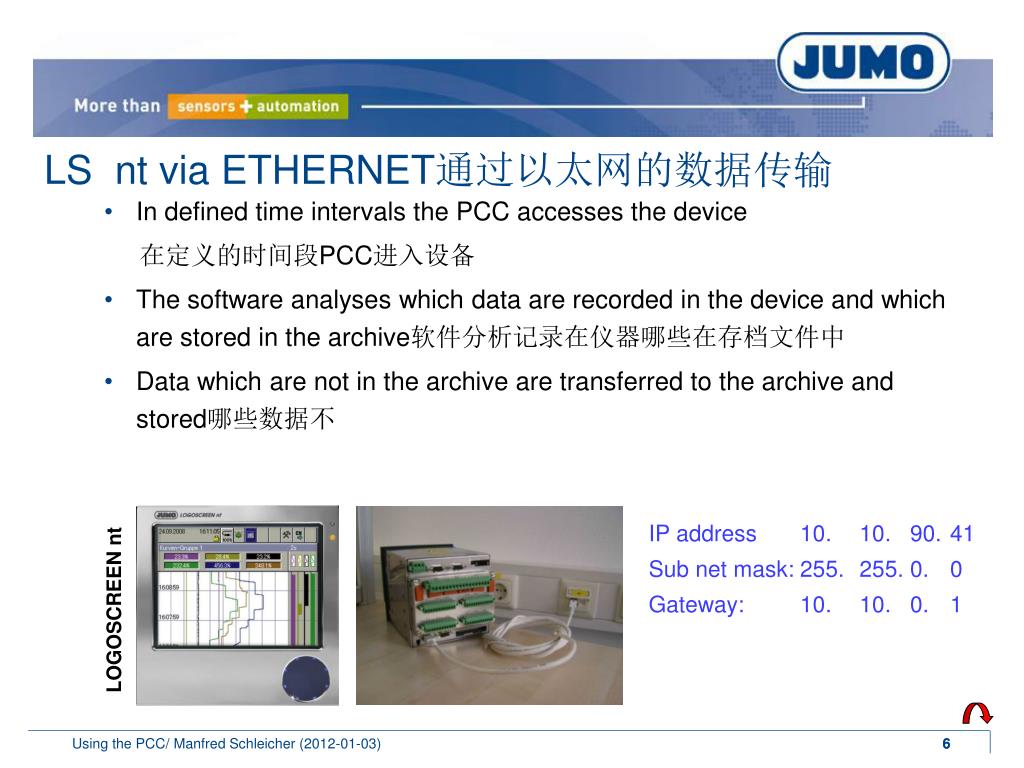

ls nt via ethernet
In defined time intervals the PCC accesses the device

在定义的时间段PCC进入设备

The software analyses which data are recorded in the device and which are stored in the archive软件分析记录在仪器哪些在存档文件中

Data which are not in the archive are transferred to the archive and stored哪些数据不

LOGOSCREEN nt

LS nt via ETHERNET通过以太网的数据传输

IP address 10. 10. 90. 41

Sub net mask: 255. 255. 0. 0

Gateway: 10. 10. 0. 1

Using the PCC/ Manfred Schleicher (2012-01-03)

6

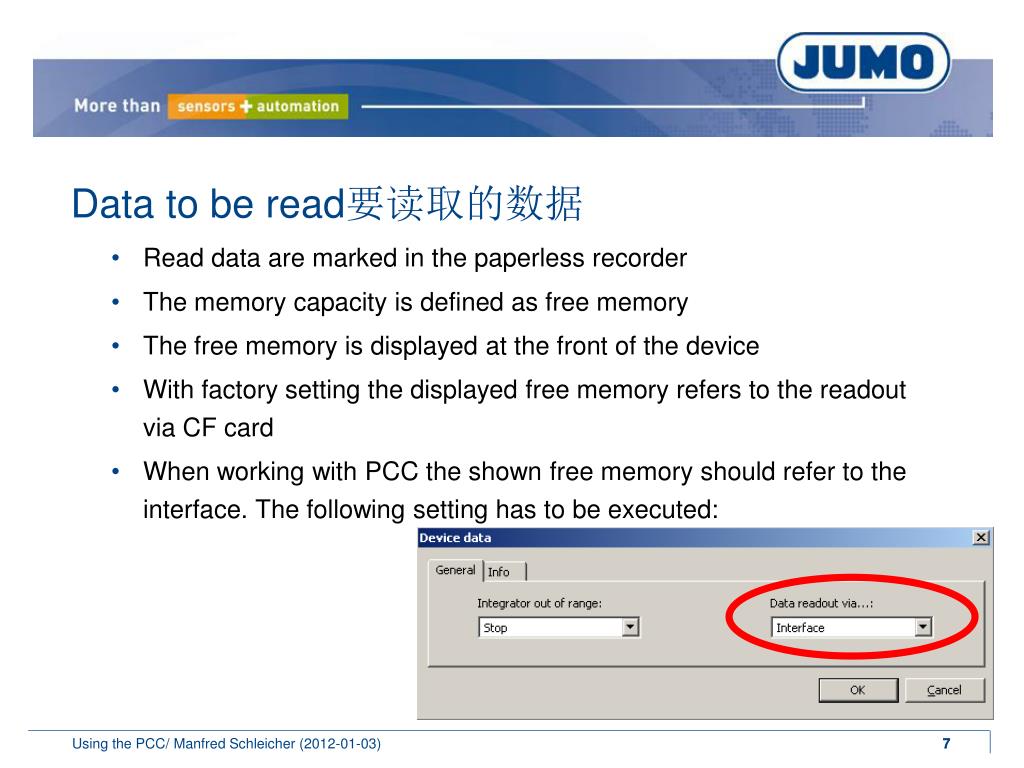

data to be read
Read data are marked in the paperless recorder

The memory capacity is defined as free memory

The free memory is displayed at the front of the device

With factory setting the displayed free memory refers to the readout via CF card

When working with PCC the shown free memory should refer to the interface. The following setting has to be executed:

Data to be read要读取的数据

Using the PCC/ Manfred Schleicher (2012-01-03)

7

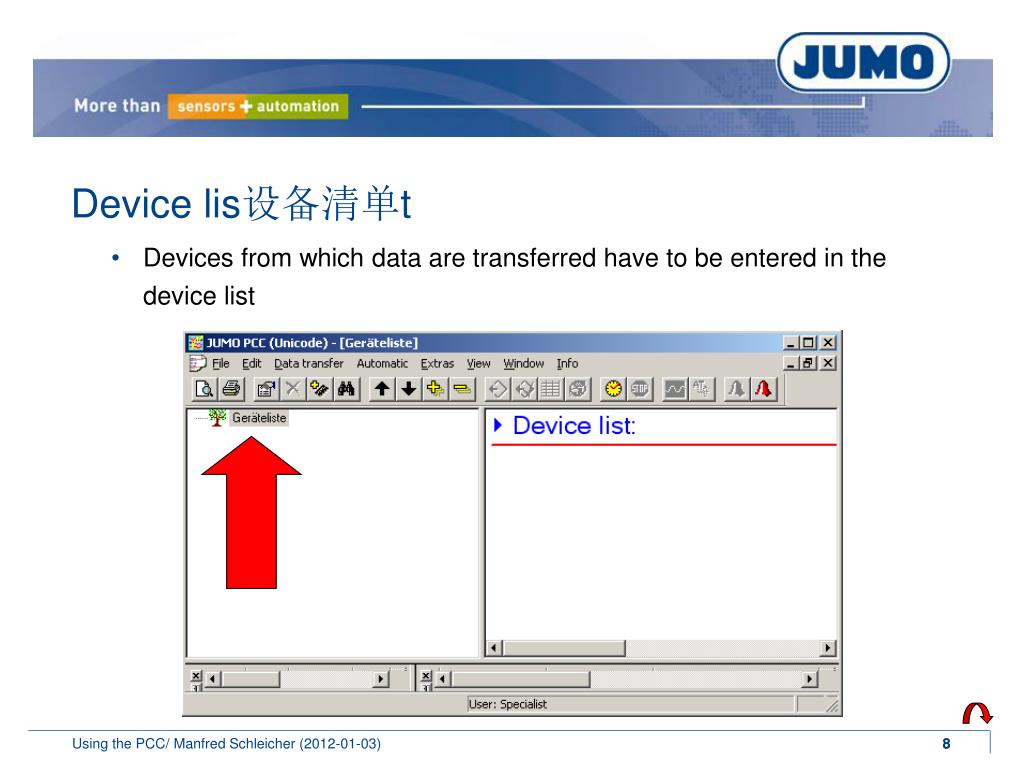

device lis t
Devices from which data are transferred have to be entered in the device list Device lis设备清单t

Using the PCC/ Manfred Schleicher (2012-01-03)

8

define logoscreen nt nt
Define LOGOSCREEN nt定义 nt

Create a new device, define LOGOSCREEN nt

Define communication Setup or ring memory via TCP/IP

Using the PCC/ Manfred Schleicher (2012-01-03)

9

slide10

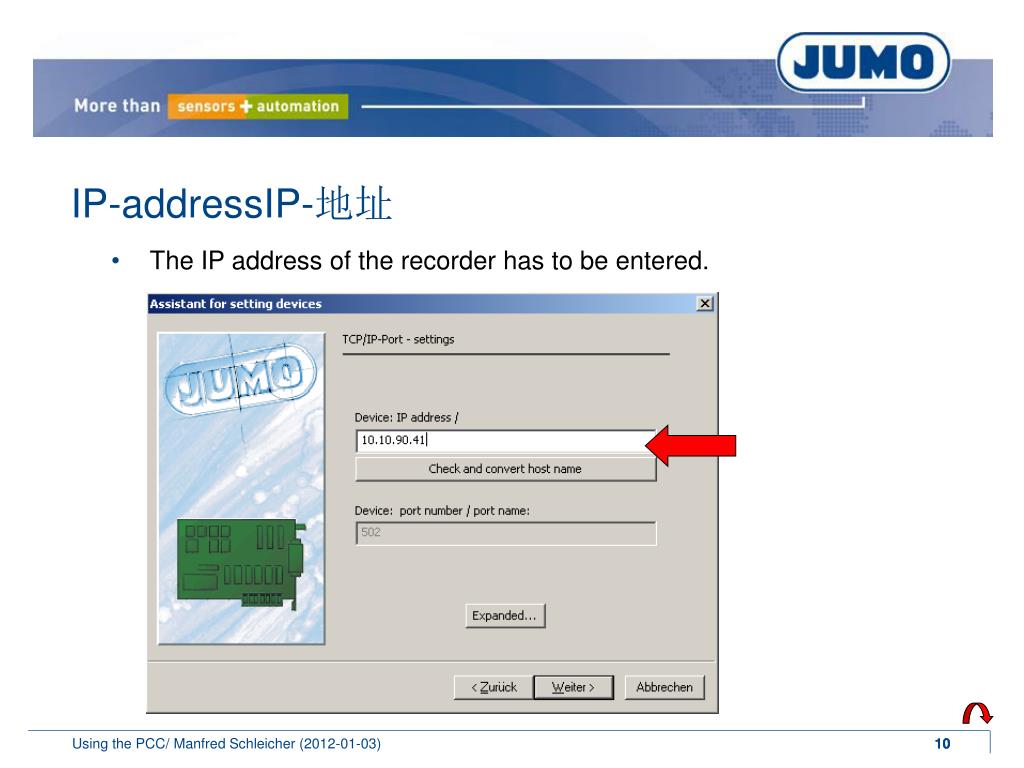

IP-addressIP-地址

  • The IP address of the recorder has to be entered.

Using the PCC/ Manfred Schleicher (2012-01-03)

10

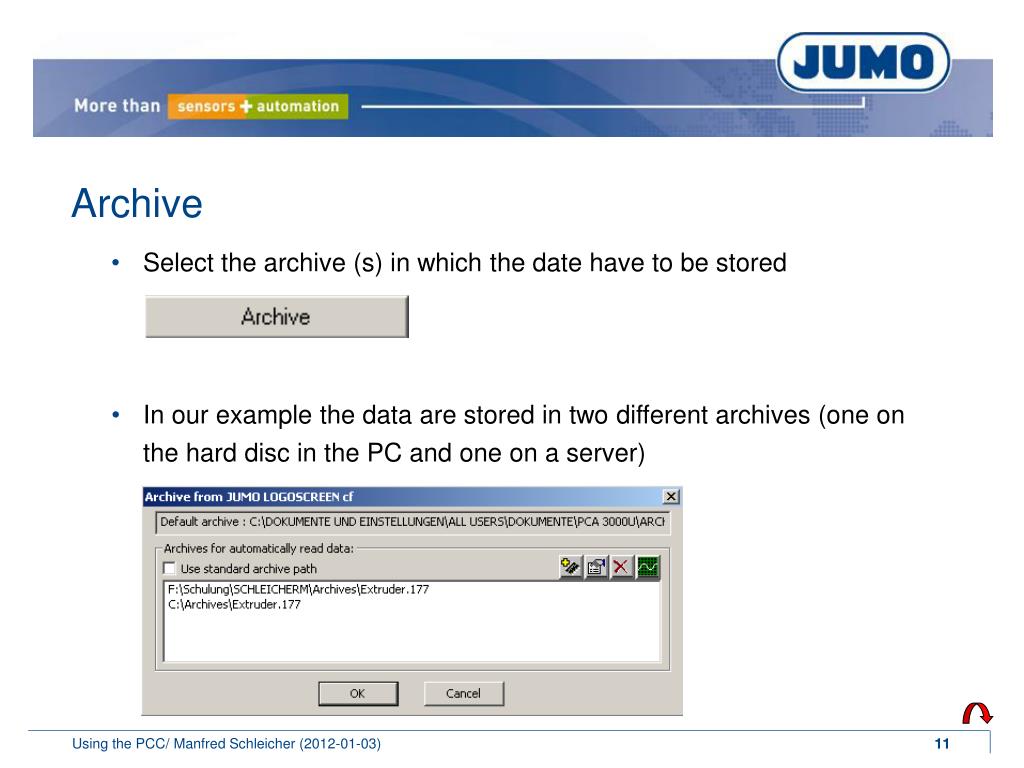

slide11

Archive

  • Select the archive (s) in which the date have to be stored
  • In our example the data are stored in two different archives (one on the hard disc in the PC and one on a server)

Using the PCC/ Manfred Schleicher (2012-01-03)

11

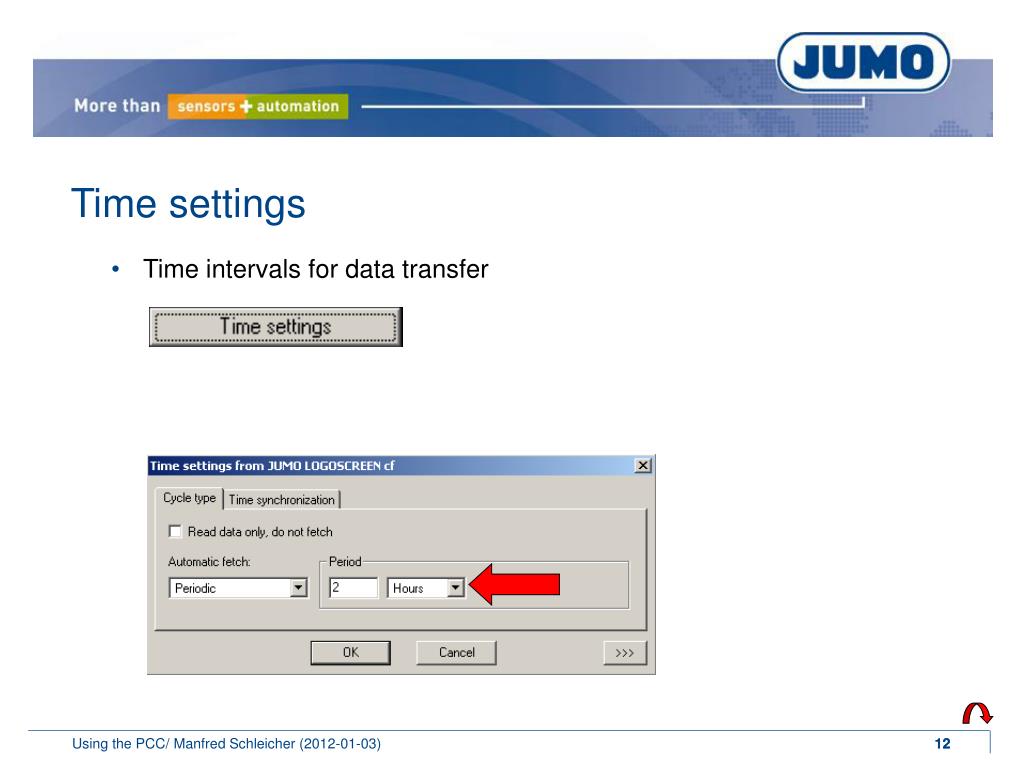

slide12

Time settings

  • Time intervals for data transfer

Using the PCC/ Manfred Schleicher (2012-01-03)

12

the device list define logoscreen nt
The device listDefineLOGOSCREEN nt
  • In the menu “time settings” you can define a time synchronization
  • In our example at 6:00 a.m. the device time of the paperless recorder is synchronized with the time of the PC to which the paperless recorder is connected. (The assumption is that the time of the paperless recorder has a time deviation less than 30 sec to the time of the PC.)

Using the PCC/ Manfred Schleicher (2012-01-03)

13

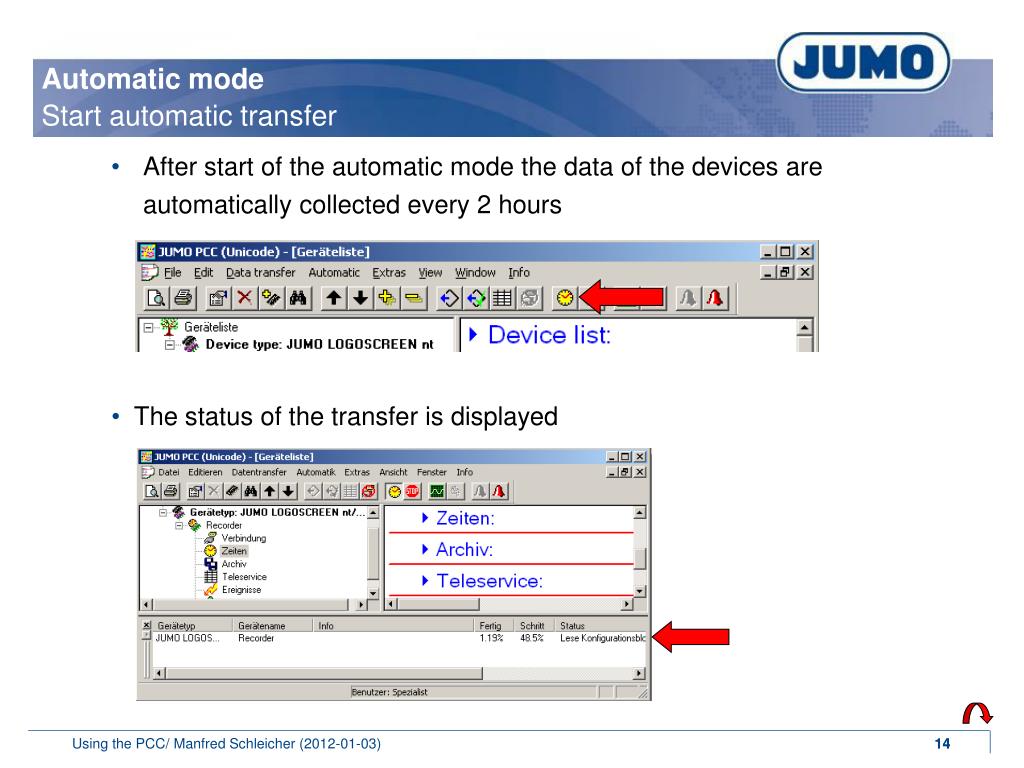

automatic mode start automatic transfer
Automatic modeStart automatic transfer
  • After start of the automatic mode the data of the devices are automatically collected every 2 hours
  • The status of the transfer is displayed

Using the PCC/ Manfred Schleicher (2012-01-03)

14

slide15

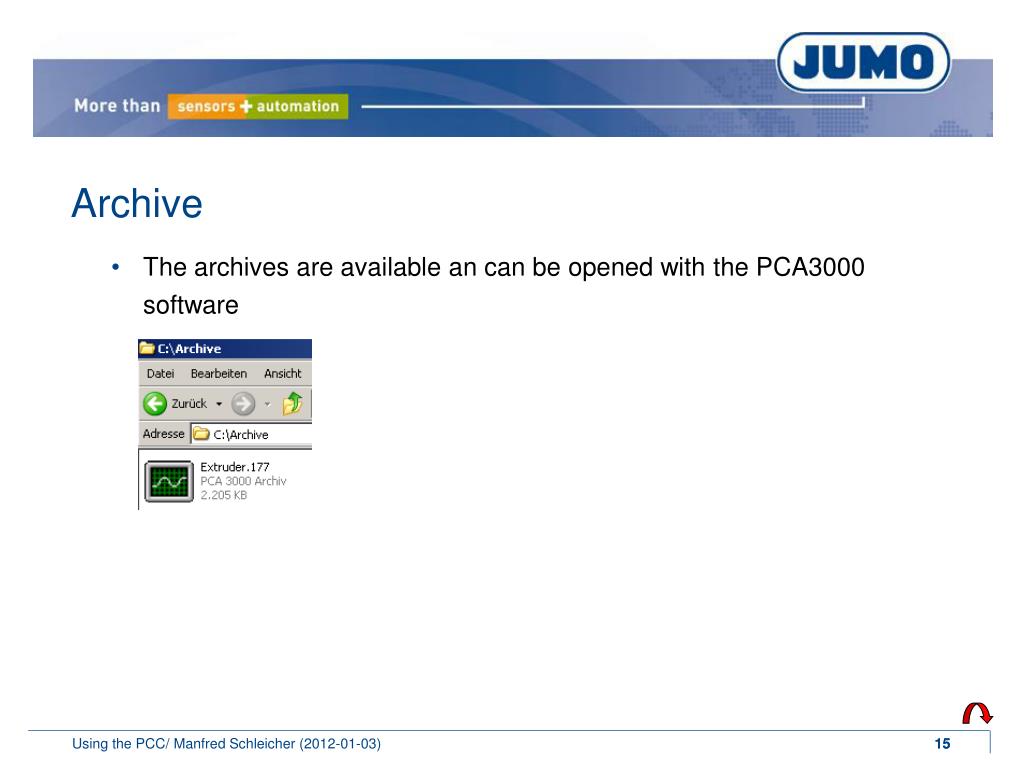

Archive

  • The archives are available an can be opened with the PCA3000 software

Using the PCC/ Manfred Schleicher (2012-01-03)

15

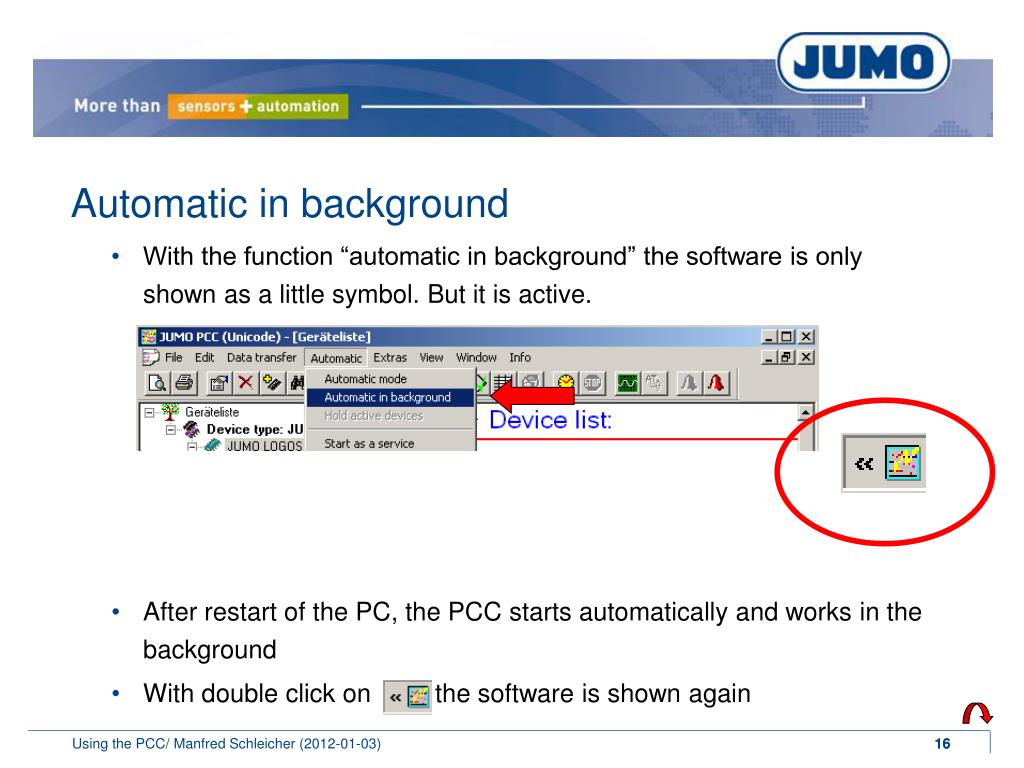

slide16

Automatic in background

  • With the function “automatic in background” the software is only shown as a little symbol. But it is active.
  • After restart of the PC, the PCC starts automatically and works in the background
  • With double click on the software is shown again

Using the PCC/ Manfred Schleicher (2012-01-03)

16
