  1. Beam-Line Analysis … m. apollonio CM27 - RAL 1

  2. what a summer … • 335000 target dips into ISIS … • 13000000 particle triggers • 1500 runs • 16 hours shift rotas • MOMs • BLOCs • experts • and to finish with … • … fireworks at 10V ! • VERY IMPORTANT: system was really stable, reliable • And it looks like data are in good shape CM27 - RAL 2

  3. The MICE Beam-Line CM27 - RAL

  4. TOF (0,1,2) TOF0 and 1 play a crucial role in this analysis (x0,y0) (x1,y1) M: transfer matrix • Infer x0’ and x1’ • from x0,x1 • Reconstruct: • P • phase space • Twiss Parameters • emittance CM27 - RAL

  5. OnLine Phase Space Reconstruction Beam Line Online Tuning Tried also an OL optimisation (very slow) CM27 - RAL

  6. Analysis • Commissioning and calibrating the beam line detectors • Luminosity Monitor • TOF0, 1, 2 / CKOVa, b • FermiLab Beam Profile Monitors • Commissioning the BL magnets • determine the (e,P) matrix • compare data to simulation • Beam rate vs Target Depth • Procedure: • data taking campaign at many different optics • mainly scan of quadrupoles/triplets to study the effect on ph-space • scan of DS • monitoring of main scalers / detectors (TOFs) • Use of Reference Runs to monitor optics stability • mu- / mu+ configurations CM27 - RAL

  7. DS scan [E. Chng, IC] • DS current reference at 669 Amps(run 2200) • DS current varied from -15% to +20% • TofTree and TofTrace ran on data to extract mean of x,y and the spread of the beam (σ) at TOF1 Ref. Current CM27 - RAL

  8. Beam Characterization [M. Rayner] • - Cumulative spectrum of Dt • Comparison Feb./Aug. TOF • Calibrations • - Change in shape due to TOF0 • Partially “blind” & BL dispersion • e-/e+ peak monitoring • position & width should be • stable CM27 - RAL

  9. Few points: • a shift in calibration (10 ps) between Feb. and Aug. • RMS nearly constant: 120 ps ≠ (60 ⊕ 50) • so we are not exploiting the full potential of TOFs resolution CM27 - RAL

  10. M.R. Feb. calibration Aug. calibration E.C. gauβ fit To e- peak E.C. Same pattern, shift of 0.5 ns due to wrong calib file used (debugging now) CM27 - RAL

  11. Beam Characterization [R.R.Fletcher] - Neutral Particles responsible for an apparent Trigger inefficiency BL+ with D2 ON BL+ with D2=0 CM27 - RAL

  12. Beam Characterization [A.Dobbs] • Adam had a chance at 10 V … and he did not miss it! • soon in a MICE-note CM27 - RAL

  13. Quadrupole Scan(s) [S. Blot] Q789 (- / +) and Q456 (+) I(triplet) = 050% to 175% of the nominal value See effect on beam profiles and phase space CM27 - RAL

  14. Q789 (-) G4BeamLine DATA CM27 - RAL

  15. CM27 - RAL

  16. CM27 - RAL

  17. CM27 - RAL

  18. Phase Space study for some Matrix Points MC (G4Beamline) DATA M0 10-240 CM27 - RAL

  19. MC (G4Beamline) DATA M1 10-240 CM27 - RAL

  20. DATA M0 6-240 G4Beamline P=[200,210] P=[200,210] ??? P=[210,220] P=[210,220] P=[220,230] P=[220,230] P=[230,240] P=[230,240] This result is in disagreement with what found previously … needs some investigation CM27 - RAL

  21. Many matrix points have been produced which need to be analysed In particular for (6,200) we have: M0 (starting optics) M1 (GA optimisation) M2 (Minuit Optimisation) CM27 - RAL

  22. A small army is fighting through the data • My apologies if I forgot some name) I am sure more want to be involved. • Good agreement DATA vs G4BeamLine (apart from the last result shown) • BUT still a lot of work • Many people involved in the analysis of these data • (MA, SB, CR, MR, EC, …) • We need • to analyze DATA and produce simulations for … 1500 runs ! • (surely less than that but quite a number) • TOF0-1 distance CRUCIAL for P and ph-space • reconstruction • - At present we could be wrong by 10-20 cm • TOF0,1 exact location? • survey in due course CM27 - RAL

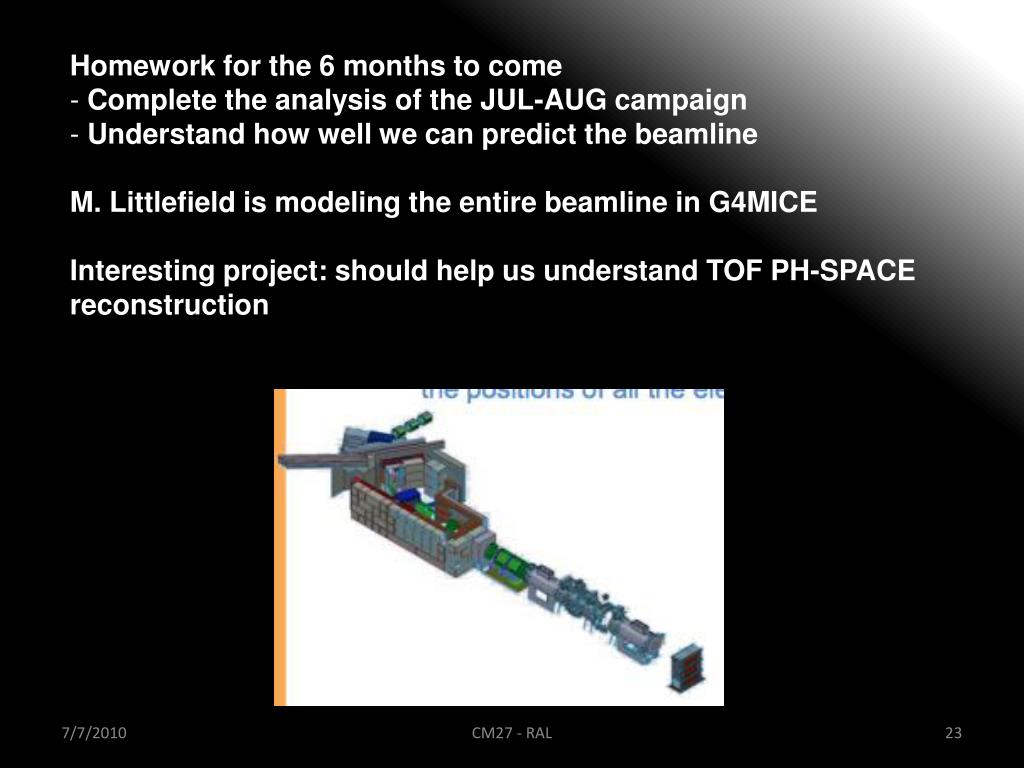

  23. Homework for the 6 months to come • Complete the analysis of the JUL-AUG campaign • Understand how well we can predict the beamline • M. Littlefield is modeling the entire beamline in G4MICE • Interesting project: should help us understand TOF PH-SPACE • reconstruction CM27 - RAL

  24. The end CM27 - RAL

  25. STEP I • Commissioning and calibrating the beam line detectors • Luminosity Monitor • TOF0, 1, 2 / CKOVa, b • FermiLab Beam Profile Monitors • Commissioning the BL magnets • determine the (e,P) matrix • compare data to simulation CM27 - RAL 25

  26. Layout • Goals for STEP I • MICE Beam Line • detectors • DAQ • Beam Characterization • data taking campaign • Tracker for the next phase • Software CM27 - RAL 26

  27. Luminosity Monitor • Particle Rate close to Target point • PoT as function of Target Depth (independent from BLMs) • installed in the ISIS vault and commissioned • coincidence to reduce spurious counts • correlation LM vs BLM CM27 - RAL 27
