    1. Risk Analysis and the Security Survey 3rd edition Chapter 13 Emergency Response Planning

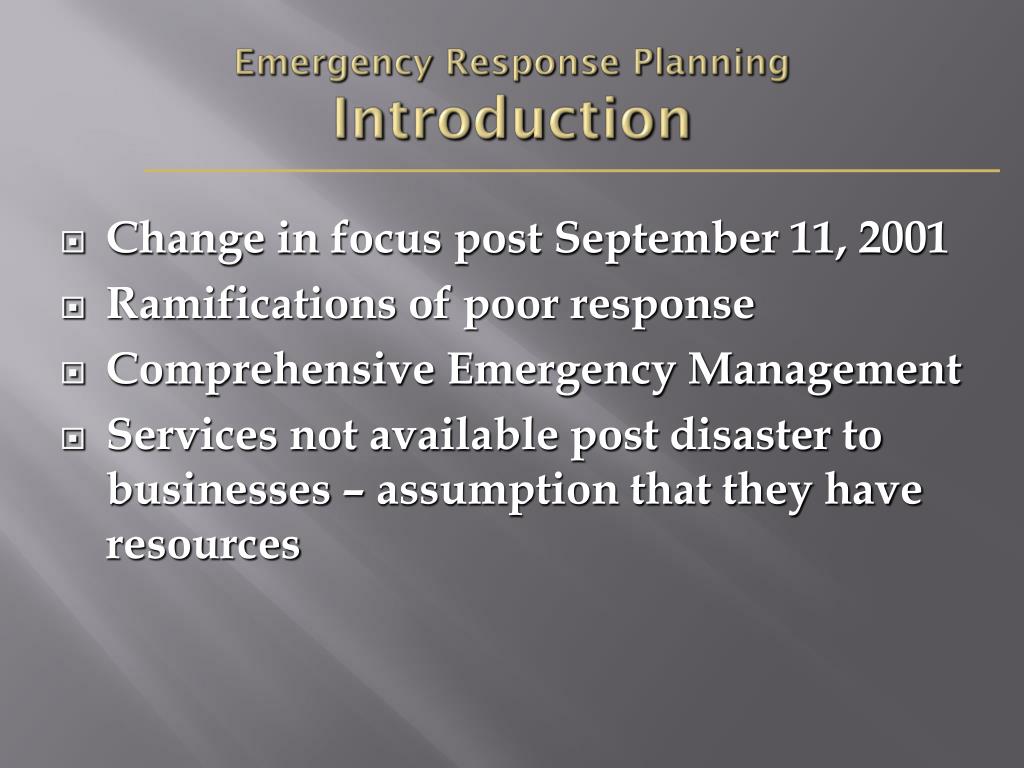

    2. Emergency Response PlanningIntroduction • Change in focus post September 11, 2001 • Ramifications of poor response • Comprehensive Emergency Management • Services not available post disaster to businesses – assumption that they have resources

    3. Emergency Response PlanningIntroduction • Must have response capability: • Required by Fed OSHA • Many States require response planning • Requirement under NFPA 1600 • Civil liability • NFPA sec 1600 recognized as the National Preparedness Standard • Businesses held liable

    4. Introduction • National Response Plan based on NIMS • National Incident Management System • Incident command system • Preparedness • Communications and information management • Supporting technologies • NIMS provides a template to prevent or respond to threats and incidents

    5. NIMS- Incident Command System • System used to manage response to an emergency • Primarily field response • Relies on Management by Objectives • Senior responder sets objectives after subordinates communicate that they can be met • Small Span of Control • Small incident 8 – 1 commander • Complex incidents 5-1

    6. Emergency Response PlanningIncident Command System • Five Major Functional Units: • Incident Command • Operations • Planning and Intelligence • Logistics • Finance and Administration • Not all sections need activation for a small incident

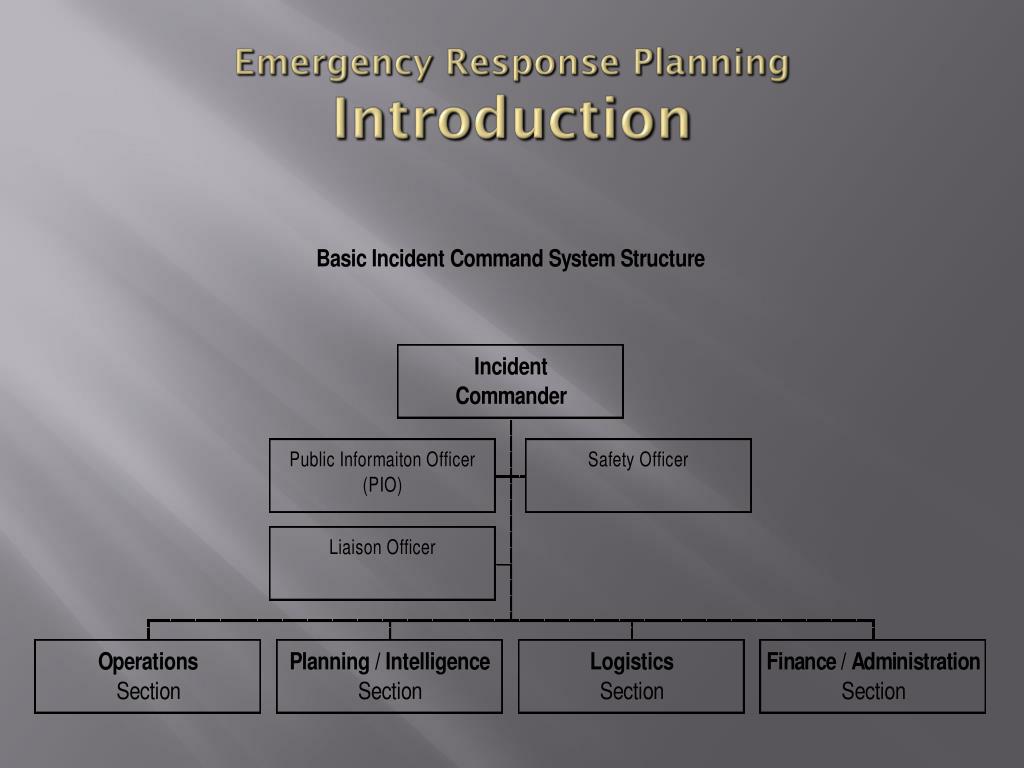

    7. Emergency Response PlanningIntroduction

    8. Emergency Response PlanningIncident Command System • Command • Incident Commander (IC) has overall responsibility • Establishes objectives and priorities • Role filled by: • First to arrive then relieved by the senior commander • Establishes a command Post (CP) • Management must delegate authority to IC before an incident

    9. Emergency Response PlanningIncident Command System • Duties of the IC include: • Field management of the emergency • Coordination with the emergency operations center (EOC)or other IC’s • Ultimate responsibility for safety • Approval of all plans and resources • Setting objectives and priorities • Delegating authority as necessary • Primary responder until others arrive

    10. Emergency Response PlanningIncident Command System • IC may establish the following positions • Public Information Officer (PIO) • PR to new media • Safety Officer • Monitors safety • Ensures compliance • Safety of all personnel • Liaison Officer • Assists the IC with coordination with other agencies

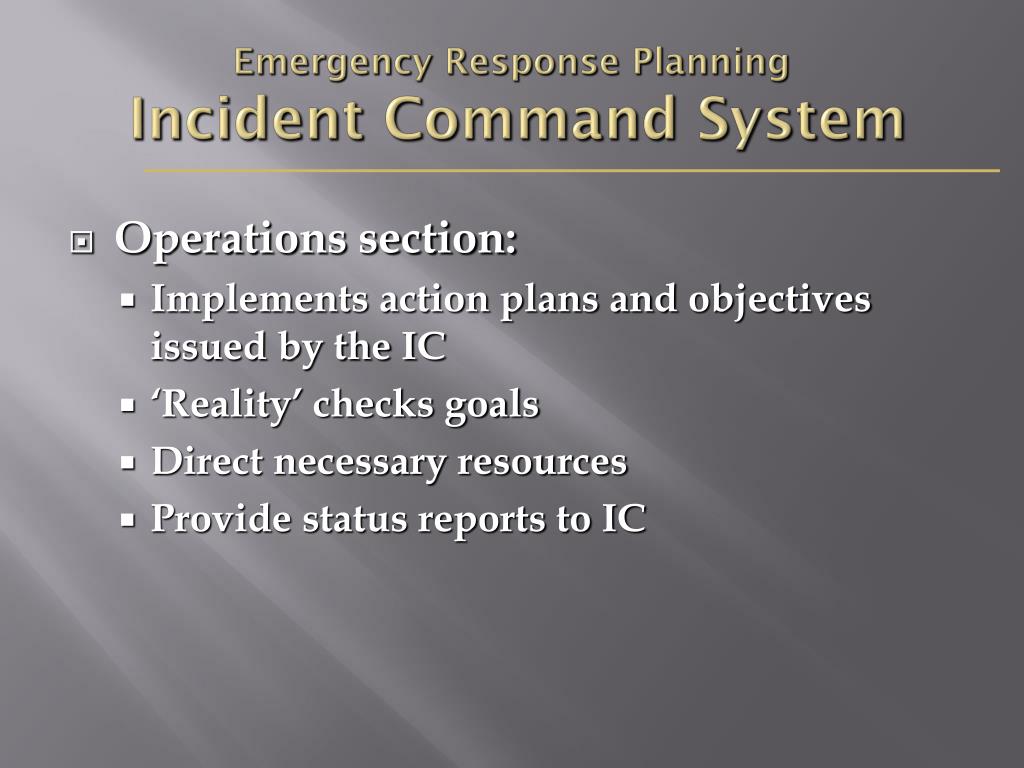

    11. Emergency Response PlanningIncident Command System • Operations section: • Implements action plans and objectives issued by the IC • ‘Reality’ checks goals • Direct necessary resources • Provide status reports to IC

    12. Emergency Response PlanningIncident Command System • Planning and Intelligence: • Develop incident action plans to implement the goals of the IC • Determines necessary resources • Analyzes conditions and incident scope • Predict changing conditions • Prepare contingency plans • Track resources

    13. Emergency Response PlanningIncident Command System • Logistics: • Obtains all resources and services to manage the incident • Finance and Administration: • Maintains history of the response • Tracks and approves expenditures • Produces final cost report

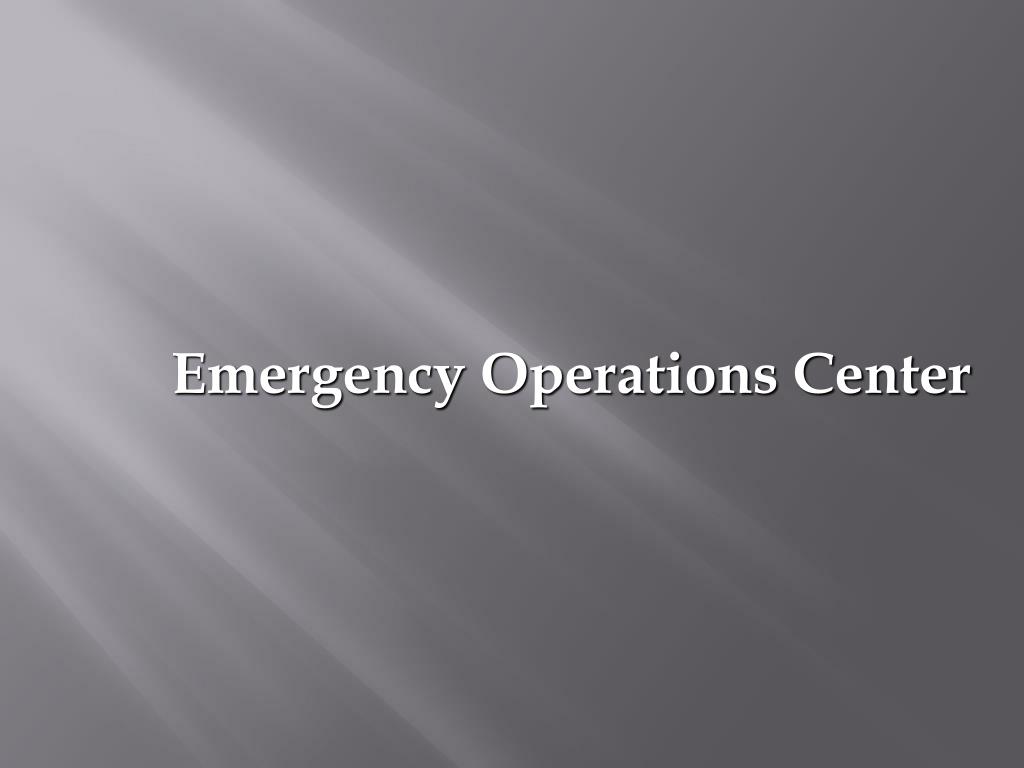

    14. Emergency Operations Center

    15. Emergency Response Planning Emergency Operations Center • The Emergency Operations Center (EOC) directs or coordinates the response of the business recovery • Team members and emergency managers meet to direct or co-ordinate a response • Also called Command Center • Alternate location • Governmental is more resource oriented, business more strategic

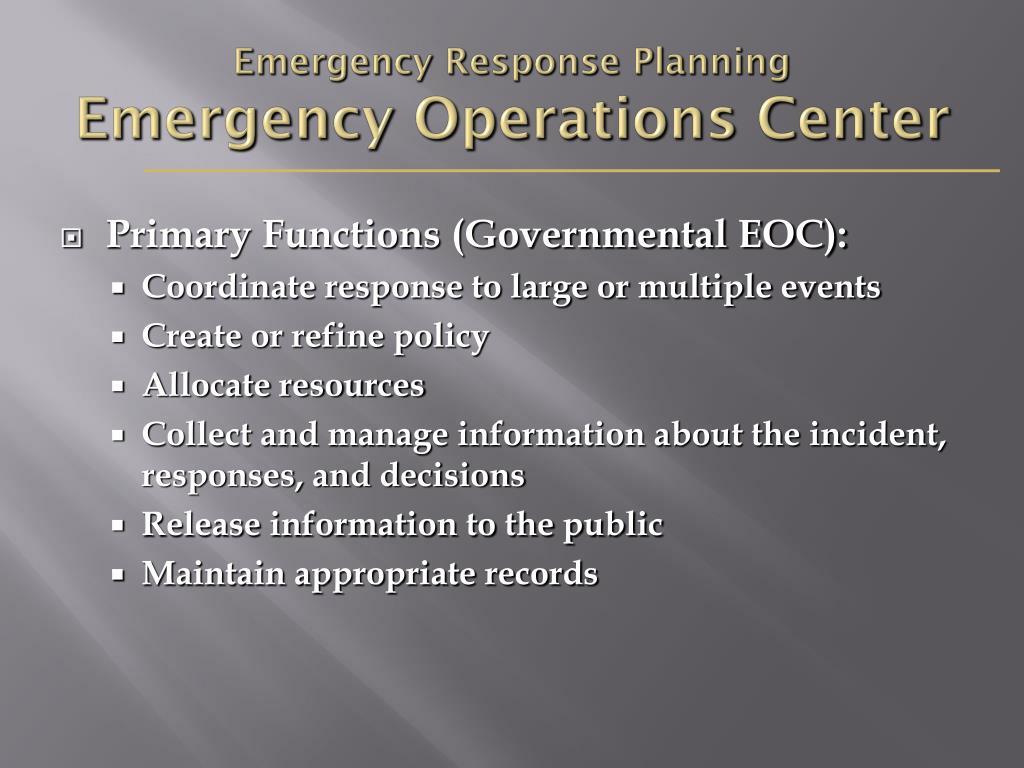

    16. Emergency Response Planning Emergency Operations Center • Primary Functions (Governmental EOC): • Coordinate response to large or multiple events • Create or refine policy • Allocate resources • Collect and manage information about the incident, responses, and decisions • Release information to the public • Maintain appropriate records

    17. Emergency Response Planning Emergency Operations Center • Design anticipates complexity of response • Must facilitate the flow of information internally and externally • Should be located in: • Secure, structurally safe building • Centrally located • Easily accessible • EOC can be a large conference room for businesses

    18. Emergency Response Planning Emergency Operations Center • EOC Should Contain: • Extra phone sets jacks • Status boards • Separate work space • Fax machines • Supplies

    19. Emergency Response Planning Emergency Operations Center • Other considerations for EOC • Access control (Security) • No access to media, unauthorized visitors • Back-up power • User Friendly • Designed for continuous operation • Keep operations quiet • Video conferencing capability • Don’t overwork EOC staff

    20. Emergency Response Team

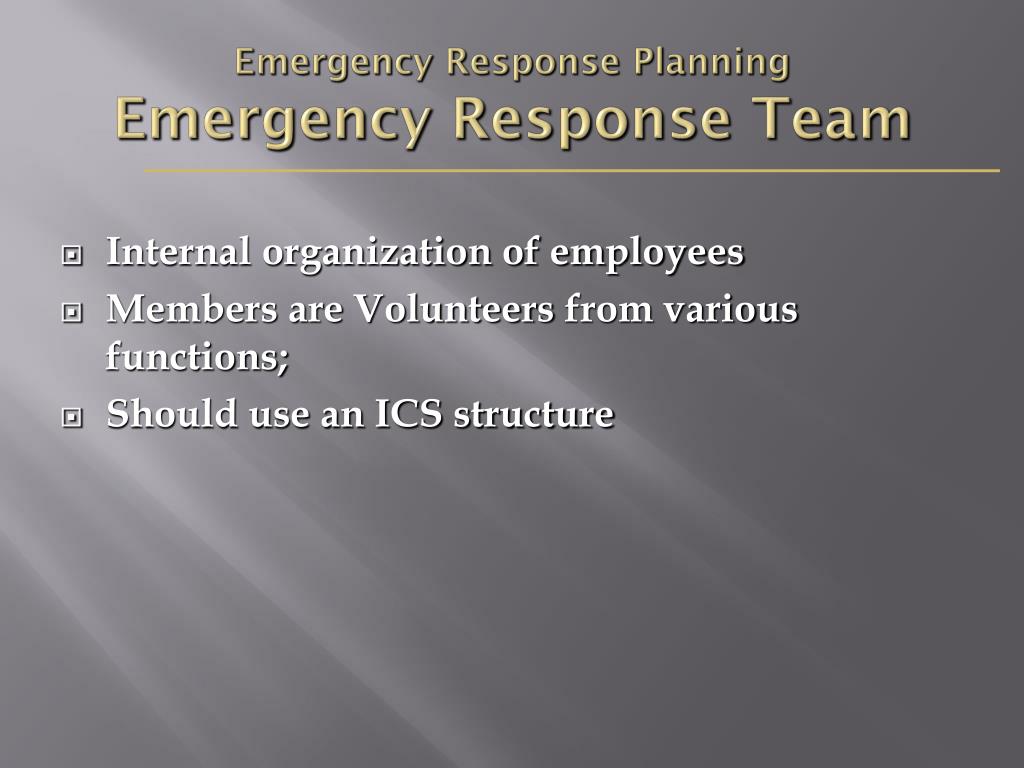

    21. Emergency Response Planning Emergency Response Team • Internal organization of employees • Members are Volunteers from various functions; • Should use an ICS structure

    22. Emergency Response Planning Emergency Response Team • ERT accomplishes the following: • Intervene and stabilize emergencies • Reduce injuries and loss • Prevent adverse publicity • Demonstrate management concern • Minimize environmental impact • Comply with regulatory requirements • Sole Response in a Disaster Situation

    23. Emergency Response Planning Emergency Response Team • Basic Steps to Form Team: • Management Acceptance and Support • Determine Duties and Responsibilities • Develop Response Plans, Policies, Procedures • Determine Equipment and Resource Needs • Recruit team members • Develop training programs • Conduct regular drills • Advertise • Let employees and community know about it

    24. Emergency Response Procedures

    25. Emergency Response PlanningEmergency Response Procedures • Identify characteristic of hazards • Planners can prepare for, mitigate and control consequences. • General guidelines • Not all foreseeable emergencies • Assess situation before response

    26. Emergency Response PlanningBomb Threats • Terrorists bombings • Domestic and international • Improvised explosive devices • History and extent of use

    27. Emergency Response PlanningBomb Threats • Threat evaluation • Low probability of finding a bomb after a threat is made • Evacuation generally not result • Always search the facility thoroughly

    28. Emergency Response PlanningBomb Threats • Credibility and evaluation of the threat based on the Risk Profile of the business • Level of security • Controversial business activity • Recent events • History of bombings and threats • Intelligence • Activity of individuals or groups • Contents of threat

    29. Emergency Response PlanningBomb Threats • Evacuation • Controversial and difficult decision • Many security managers will not evacuate a facility unless a bomb is found • Loss of productivity • Decreased morale • Increased possibility of injury by evacuating employees in an unprotected area such as parking lots, hallways, building perimeter • Satisfies intent of the caller

    30. Emergency Response PlanningBomb Threats • Typical placement of devices • If a device is found: • Evacuate safe distance or send employees home • Threats • Credible, 30 minutes or less for detonation, delay search and evacuate • Credible, 30 minutes or more for detonation, search

    31. Emergency Response PlanningBomb Threats • Searches • Almost always search • Even if a threat is a hoax • Who should search • Calling police or Security personnel • Systematic, rapid, and thorough • Anything out of place, breifcase, package next to the gas main, small pipe • Use of communication devices

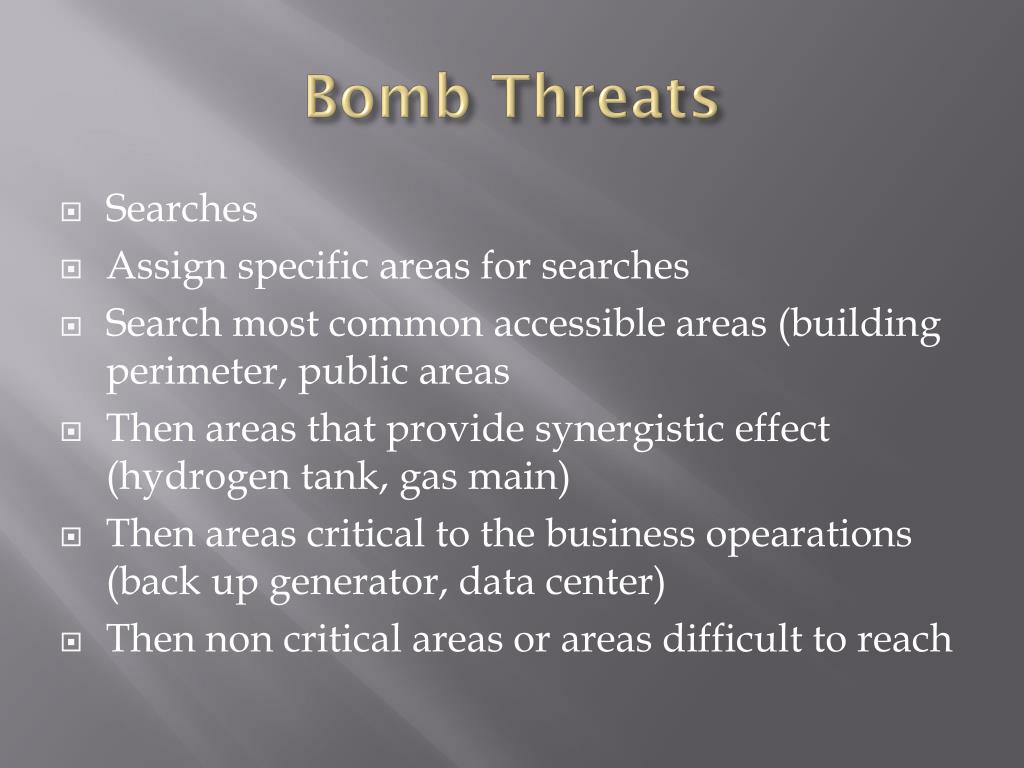

    32. Bomb Threats • Searches • Assign specific areas for searches • Search most common accessible areas (building perimeter, public areas • Then areas that provide synergistic effect (hydrogen tank, gas main) • Then areas critical to the business opearations (back up generator, data center) • Then non critical areas or areas difficult to reach

    33. Emergency Response PlanningBomb Threats • Device found • Attempt to find owner of suspicious objects • Isolate area • Evacuate • Inform law enforcement • Open doors and windows • Shut off hazardous processes and utilities

    34. Emergency Response PlanningBomb Threats • Device found continue • Continue to search for other devices • Do not touch or move the object • Do not cover the object or cut any wires • Do not put the object in water • Activate Crisis Management Plan

    35. Emergency Response PlanningBomb Threats • Package bomb • Characteristics: • Unusual postmarks or places of origin • Excessive postage • Incorrect addresses or titles of recipients • Excessive handling, wrapping, taping, or bulkiness

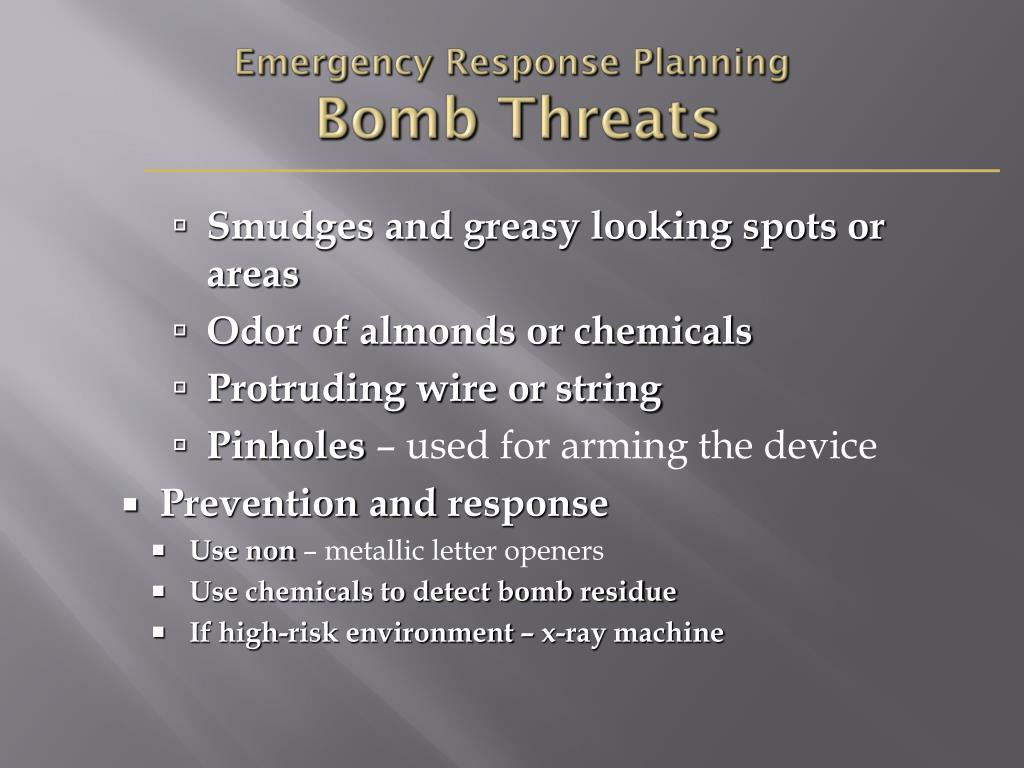

    36. Emergency Response PlanningBomb Threats • Smudges and greasy looking spots or areas • Odor of almonds or chemicals • Protruding wire or string • Pinholes– used for arming the device • Prevention and response • Use non – metallic letter openers • Use chemicals to detect bomb residue • If high-risk environment – x-ray machine

    37. Emergency Response PlanningBomb Threats • Suicide Bombs • Description– may be people or cars, trucks etc • Perpetratorsdifficult to identify • Response– bomb squad must detonate any un-detonated pieces • Radiological Dispersal Device (RDD) • Description– distribute radio-active materials • Capabilities and limitations • Impact of use

    38. Emergency Response PlanningBomb Threats • Mitigation • Intelligence program • Engineering evaluations - blast-resistant exterior and architecture • Ventilation systems located away from the ground on the ceiling • Improve fire protection systems • Blast resistant fire protection systems • Locate critical assets away from the perimeter

    39. Emergency Response PlanningBomb Threats • Remove hiding places for IED’s • Design crash-through protection • Establish no parking zones • Isolate employee parking • Create space • Other environmental design

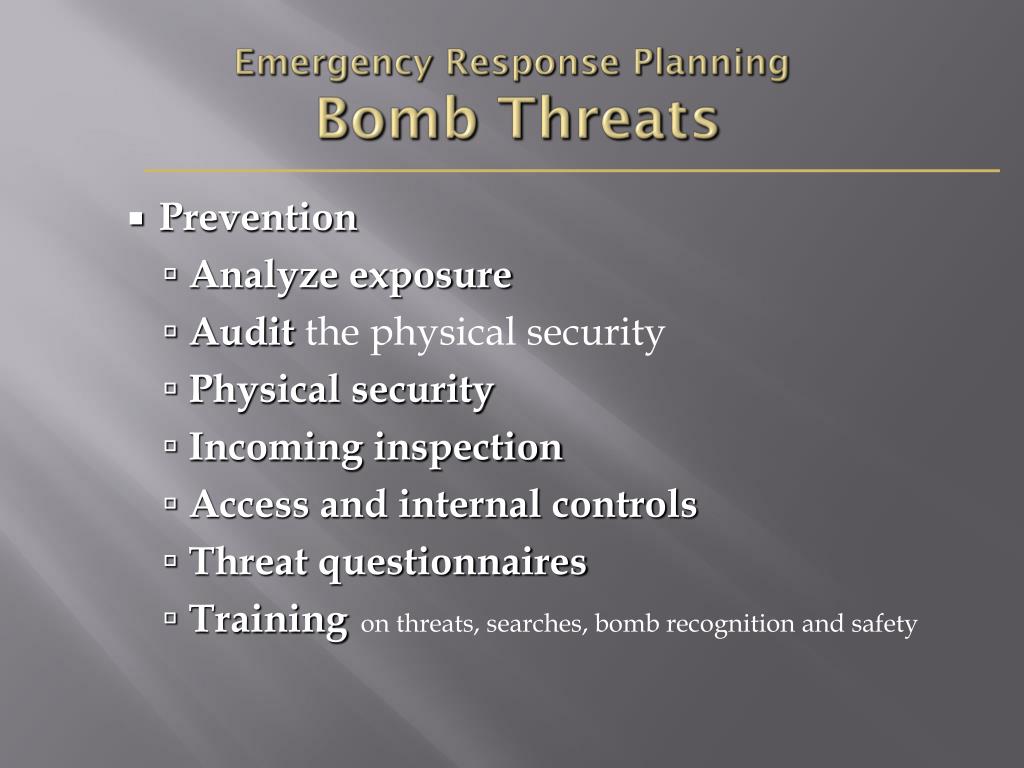

    40. Emergency Response PlanningBomb Threats • Prevention • Analyze exposure • Auditthe physical security • Physical security • Incoming inspection • Access and internal controls • Threat questionnaires • Trainingon threats, searches, bomb recognition and safety

    41. Emergency Response PlanningBomb Threats • Establish who will evaluate threats • Develop relevant procedures • Establish evacuation criteria • Identify search methods and personnel • Identify and prioritize search areas • Establish search tracking procedure • Test all procedures • Review plans and phone numbers often • Understand community’s capabilities

    42. Emergency Response PlanningBomb Threats • Response • Record exact time of a telephoned threat • Ask • When will it explode? • Where is it located? • What does it look like? • Why was it placed? • Who is calling?

    43. Emergency Response PlanningBomb Threats • Attempt to transfer the call to security or a member of the threat assessment team • Initiate a search- checklist • Make other notifications as appropriate • If a device is found: • Evacuate at least three hundred yards out of the line of sight • Call emergency services (police, fire)

    44. Emergency Response PlanningBomb Threats • Identify/evaluate the object • Do not move, dismantle, or use water • Open doors and windows • Isolate (secure) the area from entry • Consider shutting down utilities and hazardous processes • Continue the search

    45. Emergency Response PlanningBomb Threats • Relocate vital records and back-up computer systems • Activate the crisis management plan • Stage emergency response equipment and strategic resources • Restrict access to the area • If the bomb explodes – • Remove injured immediately • Do not treat the injured at the blast site

    46. Emergency Response PlanningBomb Threats • If RDD is suspected • Move as far as possible, upwind or go inside • Cover or filter your mouth and nose • Remove clothing and seal it in a plastic bag • Shower to remove dust • Shut windows, outside doors, and dampers • Turn off fans and HVAC • Monitor TV and radio

    47. Emergency Response PlanningBomb Threats • Recovery • Care for the injured • Begin rescue operations • Assess damage • Begin salvage and cleanup • Test for blast damage • Keep employees informed • Provide posttraumatic stress counseling • Begin relocation and reconstruction • Investigate and prosecute every incident

    48. Emergency Response PlanningEarthquake • Causes • Tectonic plates • Fault zones • Measurement • Richter scale • Modified Mercalli Scale

    49. Emergency Response PlanningEarthquake • Effects • Soil conditions • Liquefaction – soil saturated with water • Structures • Infrastructure • Emergency services • Collateral damage • Tsunami

    50. Emergency Response PlanningEarthquake • Forecasting • Mitigation • Understand seismic risk for your area • Identify structural and non-structural hazards • Use sway bracing on automatic fire-sprinkler systems to prevent pipe breakage in an earthquake • Bolt or base isolate tall and heavy objects
