  1. Flexiflo Presentation Presentation for Fluid Handling Products Es

  2. Company Profile • Specialize in assembling, welding, testing & certifying hoses, fittings, loading arms etc… • Facility based in Damman with workshop and warehouse • Trained technicians, Certified welders and service professionals. • 3 P’s - Pride, Professionalism & Passion • Joint Venture Operations in Saudi Arabia, Bahrain, Kuwait, Oman and Qatar.

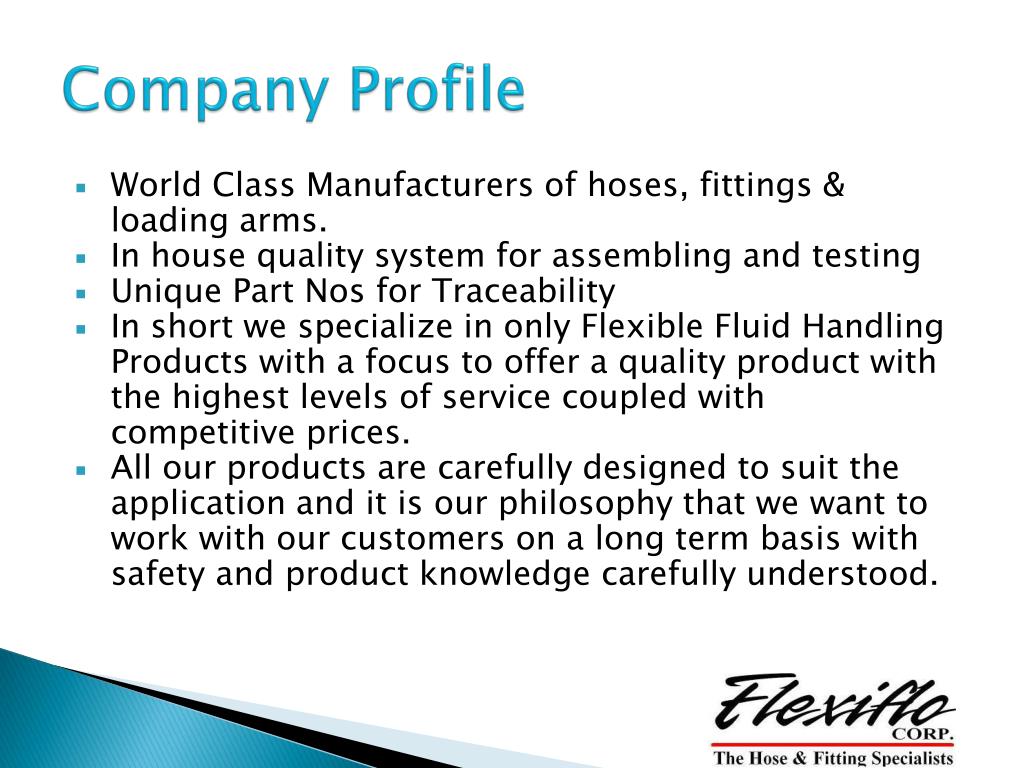

  3. Company Profile • World Class Manufacturers of hoses, fittings & loading arms. • In house quality system for assembling and testing • Unique Part Nos for Traceability • In short we specialize in only Flexible Fluid Handling Products with a focus to offer a quality product with the highest levels of service coupled with competitive prices. • All our products are carefully designed to suit the application and it is our philosophy that we want to work with our customers on a long term basis with safety and product knowledge carefully understood.

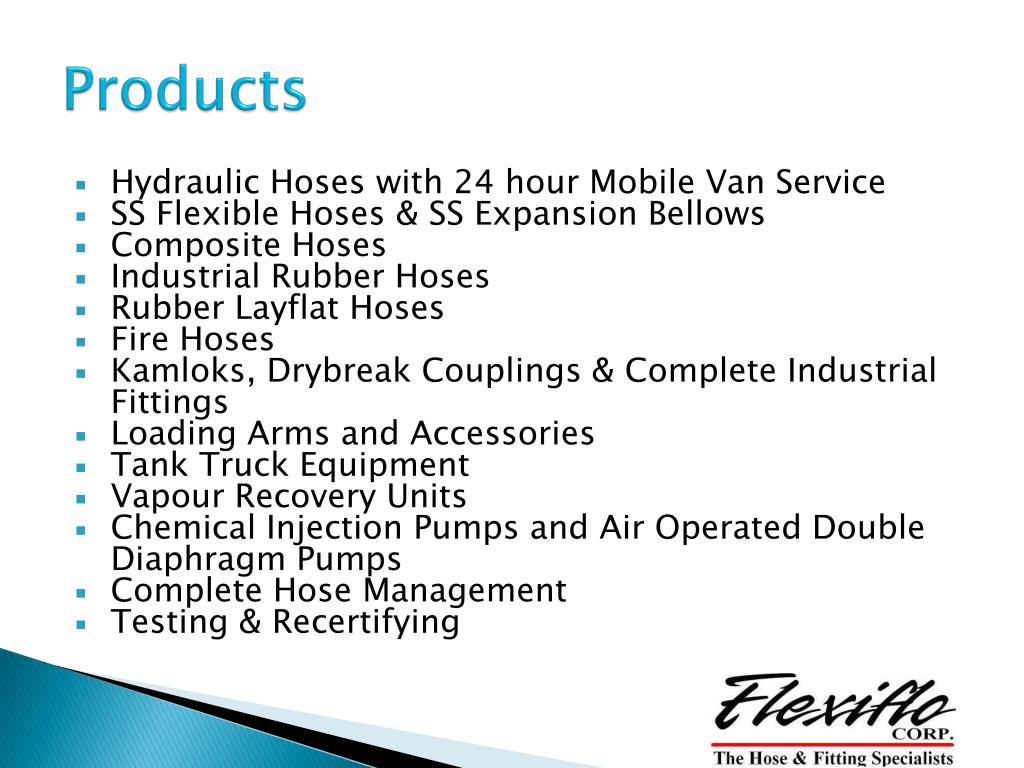

  4. Products • Hydraulic Hoses with 24 hour Mobile Van Service • SS Flexible Hoses & SS Expansion Bellows • Composite Hoses • Industrial Rubber Hoses • Rubber Layflat Hoses • Fire Hoses • Kamloks, Drybreak Couplings & Complete Industrial Fittings • Loading Arms and Accessories • Tank Truck Equipment • Vapour Recovery Units • Chemical Injection Pumps and Air Operated Double Diaphragm Pumps • Complete Hose Management • Testing & Recertifying

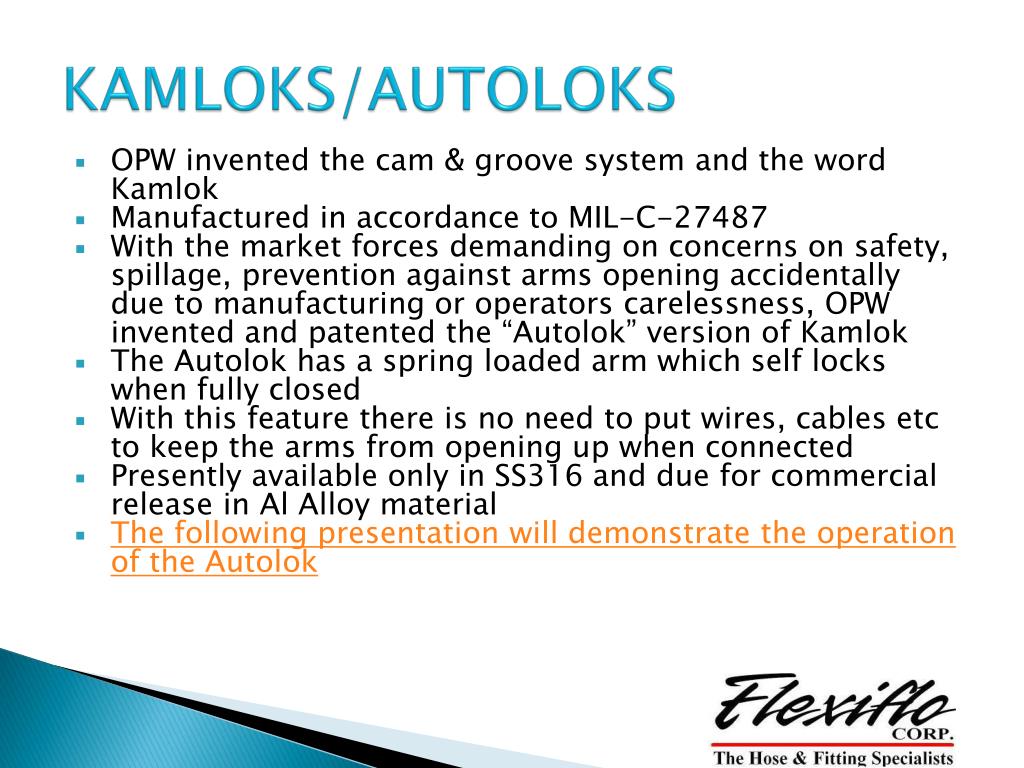

  5. KAMLOKS/AUTOLOKS • OPW invented the cam & groove system and the word Kamlok • Manufactured in accordance to MIL-C-27487 • With the market forces demanding on concerns on safety, spillage, prevention against arms opening accidentally due to manufacturing or operators carelessness, OPW invented and patented the “Autolok” version of Kamlok • The Autolok has a spring loaded arm which self locks when fully closed • With this feature there is no need to put wires, cables etc to keep the arms from opening up when connected • Presently available only in SS316 and due for commercial release in Al Alloy material • The following presentation will demonstrate the operation of the Autolok

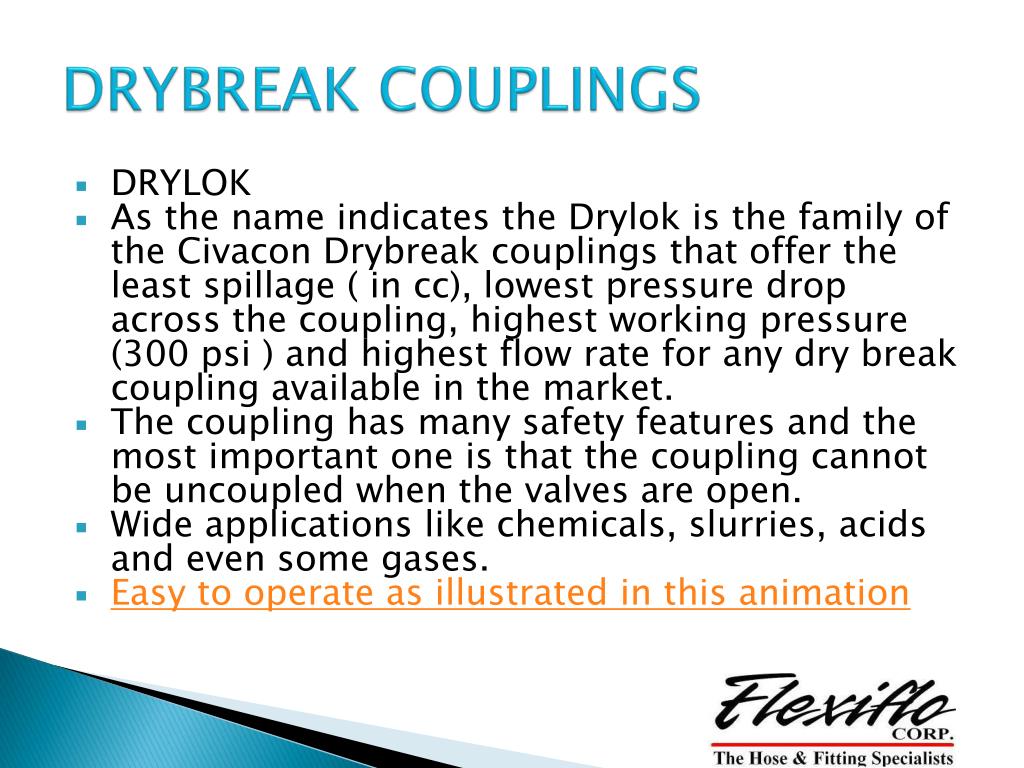

  6. DRYBREAK COUPLINGS • DRYLOK • As the name indicates the Drylok is the family of the CivaconDrybreak couplings that offer the least spillage ( in cc), lowest pressure drop across the coupling, highest working pressure (300 psi ) and highest flow rate for any dry break coupling available in the market. • The coupling has many safety features and the most important one is that the coupling cannot be uncoupled when the valves are open. • Wide applications like chemicals, slurries, acids and even some gases. • Easy to operate as illustrated in this animation

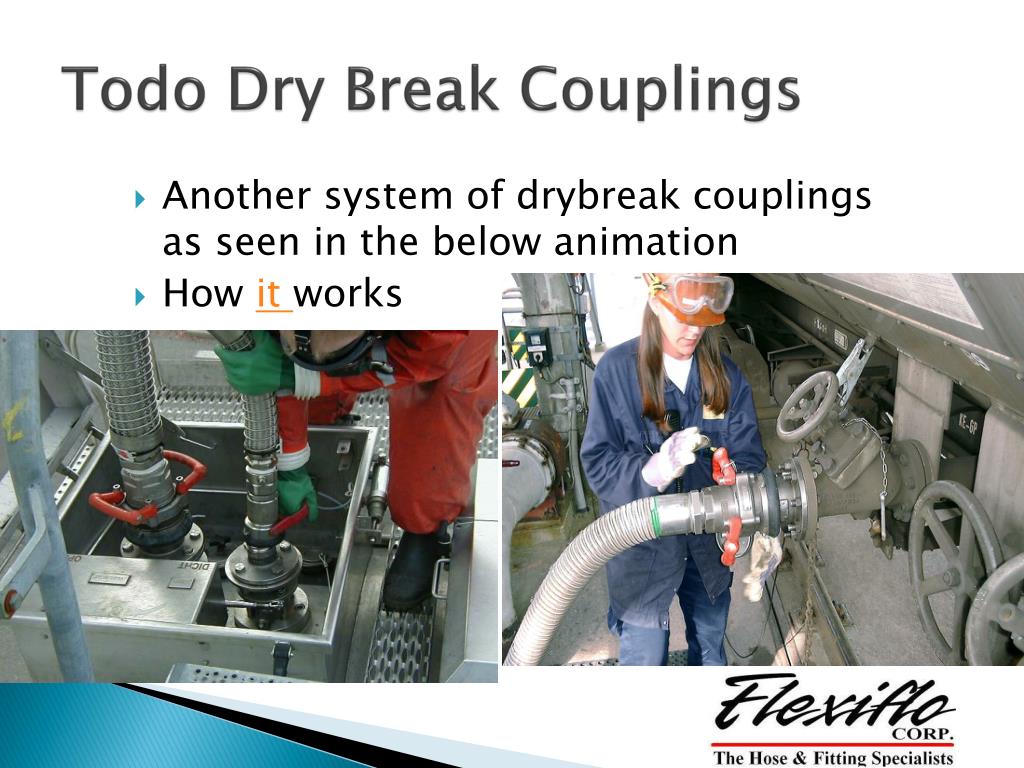

  7. Todo Dry Break Couplings • Another system of drybreak couplings as seen in the below animation • How it works

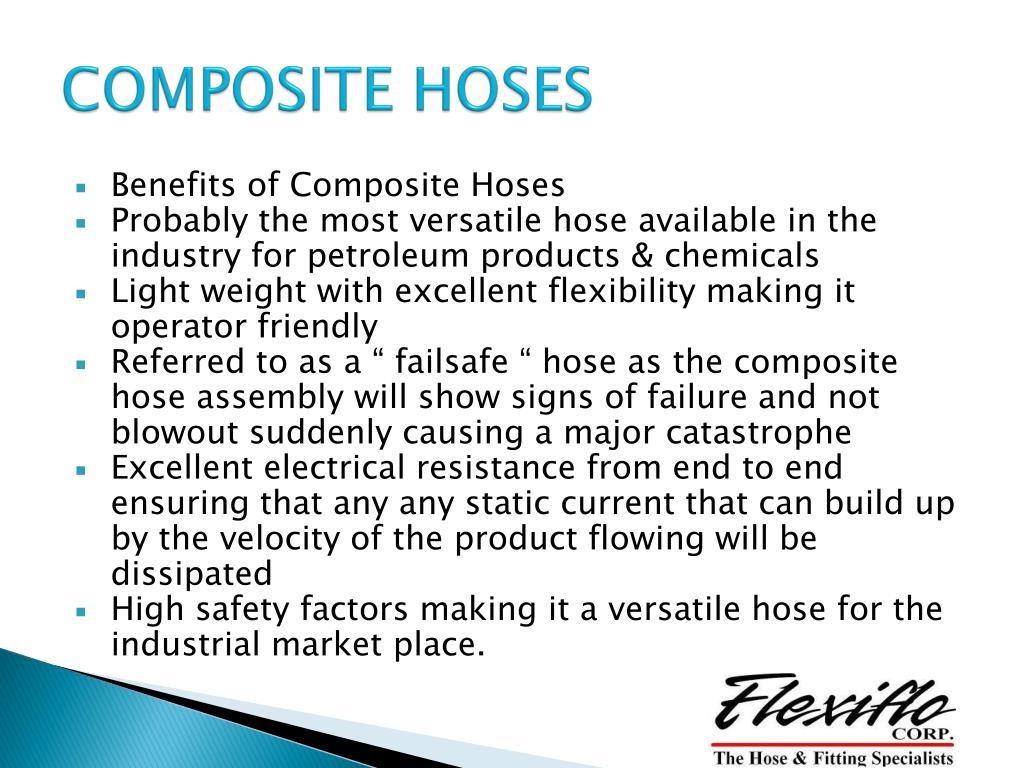

  8. COMPOSITE HOSES • Benefits of Composite Hoses • Probably the most versatile hose available in the industry for petroleum products & chemicals • Light weight with excellent flexibility making it operator friendly • Referred to as a “ failsafe “ hose as the composite hose assembly will show signs of failure and not blowout suddenly causing a major catastrophe • Excellent electrical resistance from end to end ensuring that any any static current that can build up by the velocity of the product flowing will be dissipated • High safety factors making it a versatile hose for the industrial market place.

  9. Composite Hoses

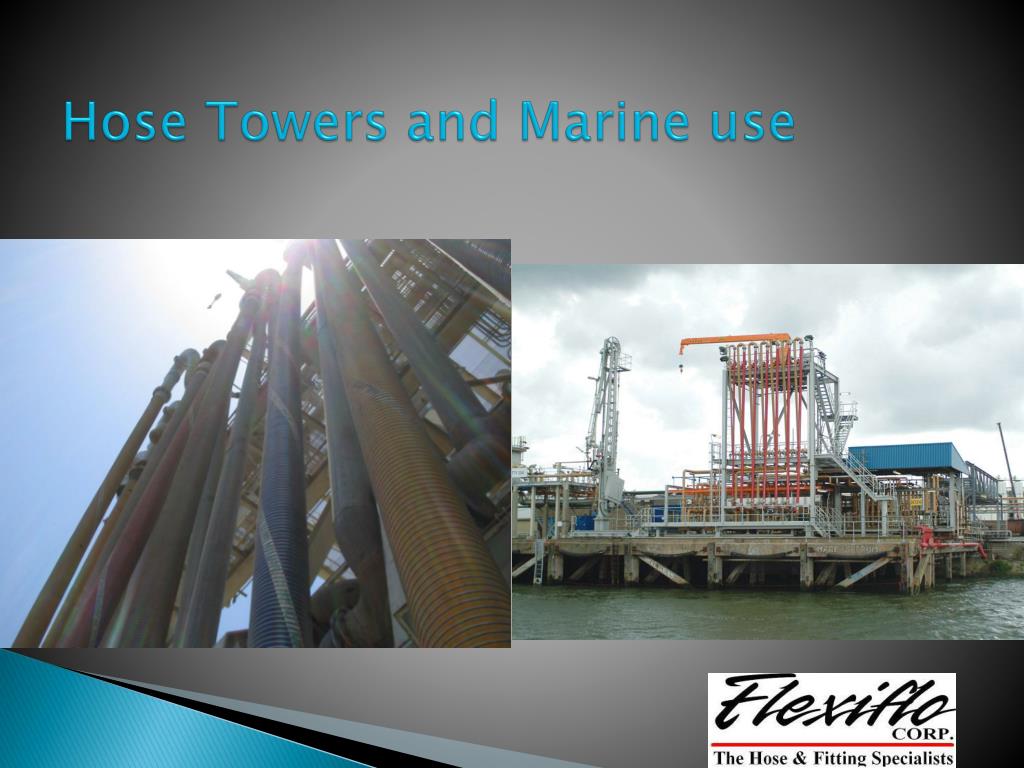

  10. Hose Towers and Marine use

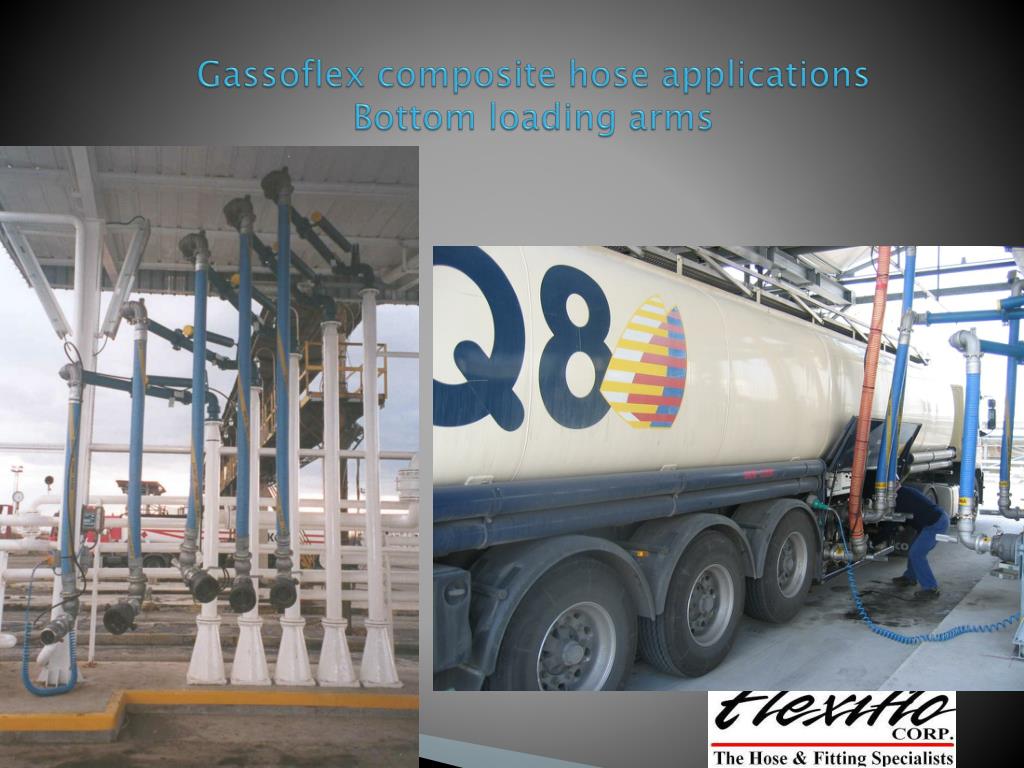

  11. Gassoflex composite hose applicationsBottom loading arms

  12. In-plant blending applications

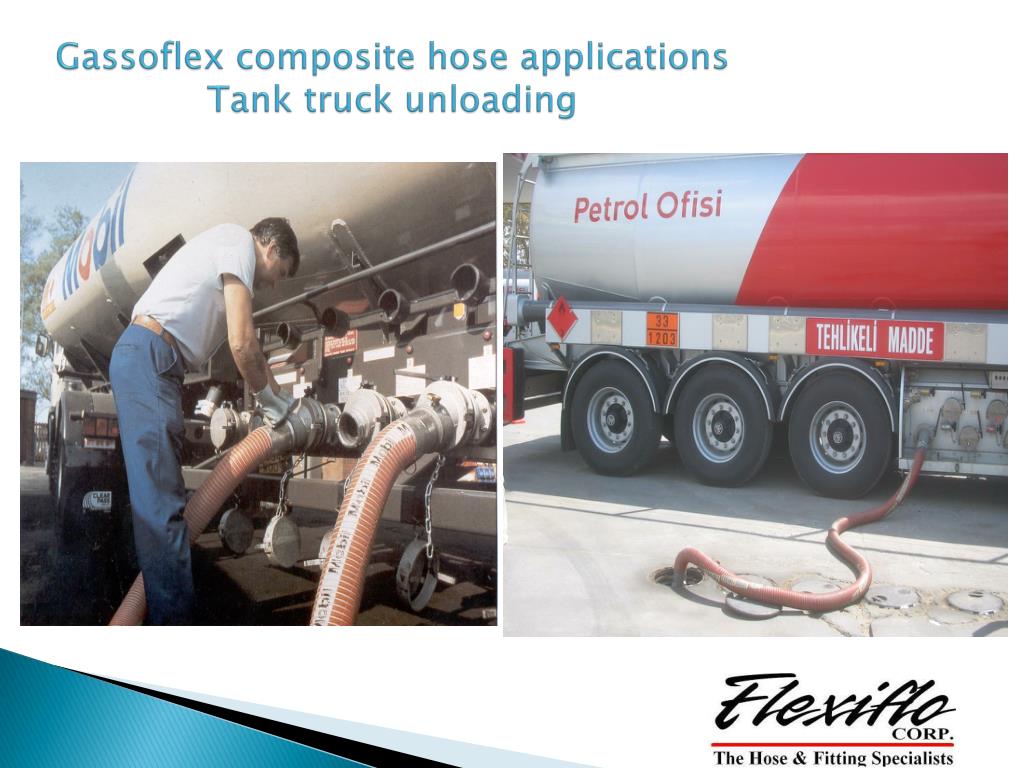

  13. Gassoflex composite hose applicationsTank truck unloading

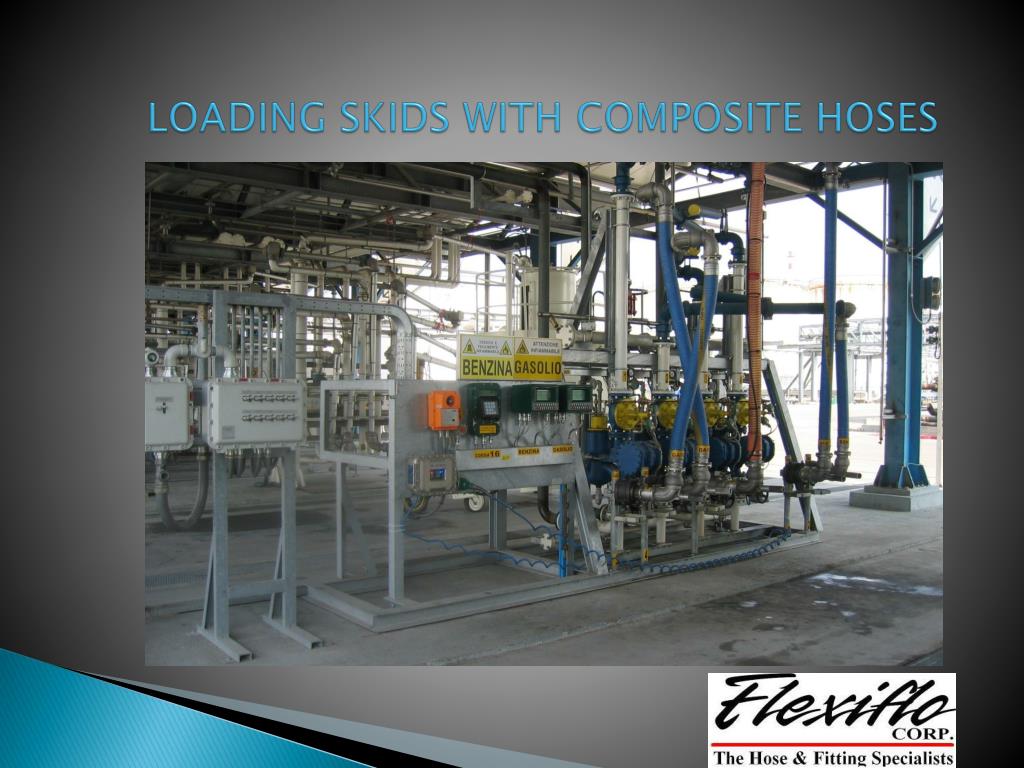

  14. LOADING SKIDS WITH COMPOSITE HOSES

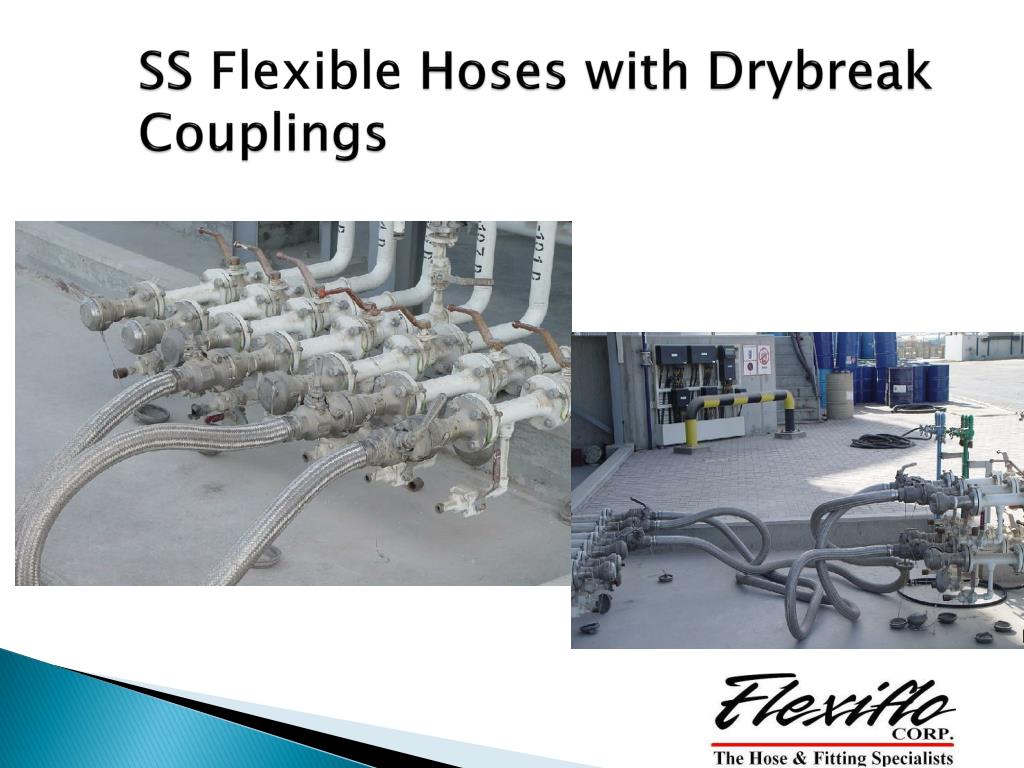

  15. SS Flexible Hoses with Drybreak Couplings

  16. Loading Arms Advantages of OPW Loading Arms • More than hundred years experience in the transfer of hazardous fluids. • Proven and effective technology. • Simple thus reliable product design. • Ease of maintenance for all loading arm components. • Extended track record of equipment supplied to all major oil companies. Advantages of Gamah – Flexiflo • Local Support • Complete Spares Program of Swivel Joint Seals/API Couplers and Seals/Loading Valve Seals etc • Trained Technicians to replace Swivel Seals and Balance the Loading Arms – Presently available in Dubai. • Installation of Top/Bottom/LPG/Sulfur Loading Arms in the Middle East with Shell, Aramco, Emarat, Eppco, Dow, Petrochem, Adnoc etc.

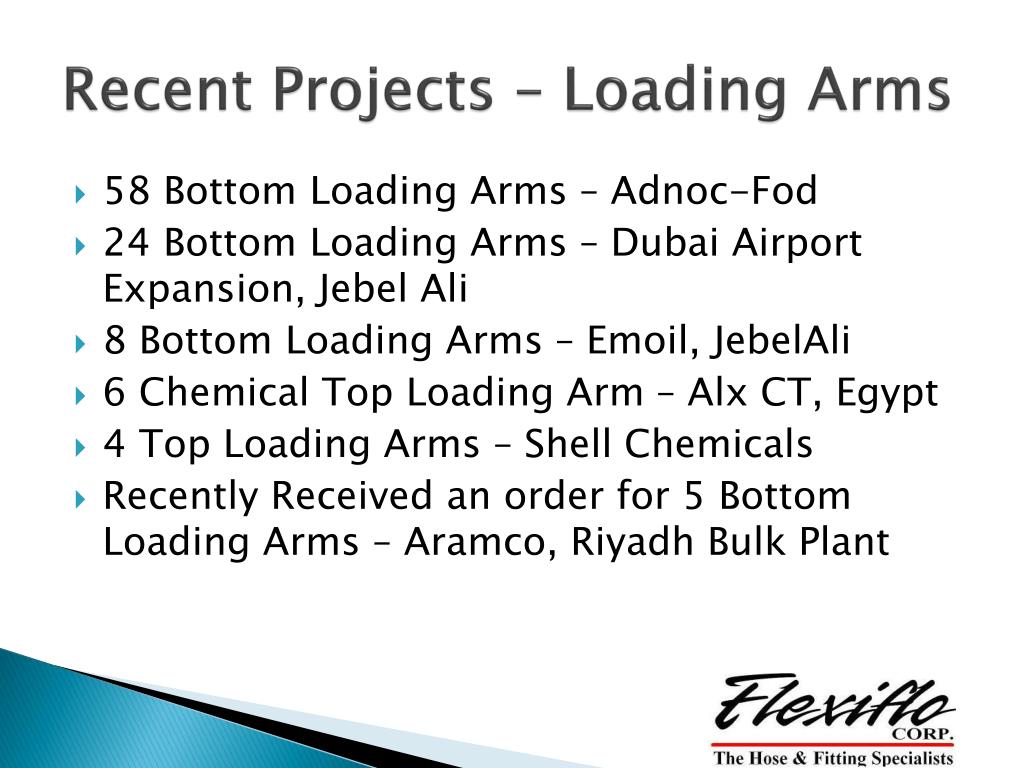

  17. Recent Projects – Loading Arms • 58 Bottom Loading Arms – Adnoc-Fod • 24 Bottom Loading Arms – Dubai Airport Expansion, Jebel Ali • 8 Bottom Loading Arms – Emoil, JebelAli • 6 Chemical Top Loading Arm – Alx CT, Egypt • 4 Top Loading Arms – Shell Chemicals • Recently Received an order for 5 Bottom Loading Arms – Aramco, Riyadh Bulk Plant

  18. Transfer by Loading arms • Top Loading • Bottom loading

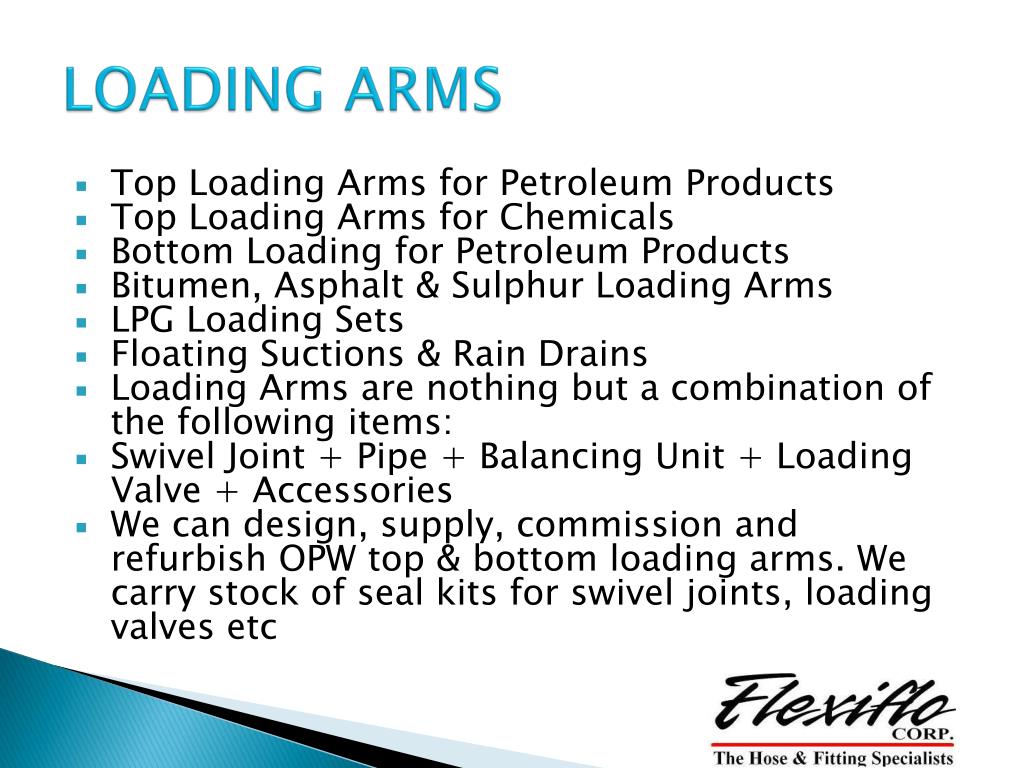

  19. LOADING ARMS • Top Loading Arms for Petroleum Products • Top Loading Arms for Chemicals • Bottom Loading for Petroleum Products • Bitumen, Asphalt & Sulphur Loading Arms • LPG Loading Sets • Floating Suctions & Rain Drains • Loading Arms are nothing but a combination of the following items: • Swivel Joint + Pipe + Balancing Unit + Loading Valve + Accessories • We can design, supply, commission and refurbish OPW top & bottom loading arms. We carry stock of seal kits for swivel joints, loading valves etc

  20. LOADING ARMS • Standard API Bottom Loading • Movement of LPG Arm • Breakaway Couplers – Live Demo • Movements of Top Loader with Step Unit • Breakaway Couplers – Operation

  21. API BOTTOM LOADING SET UP

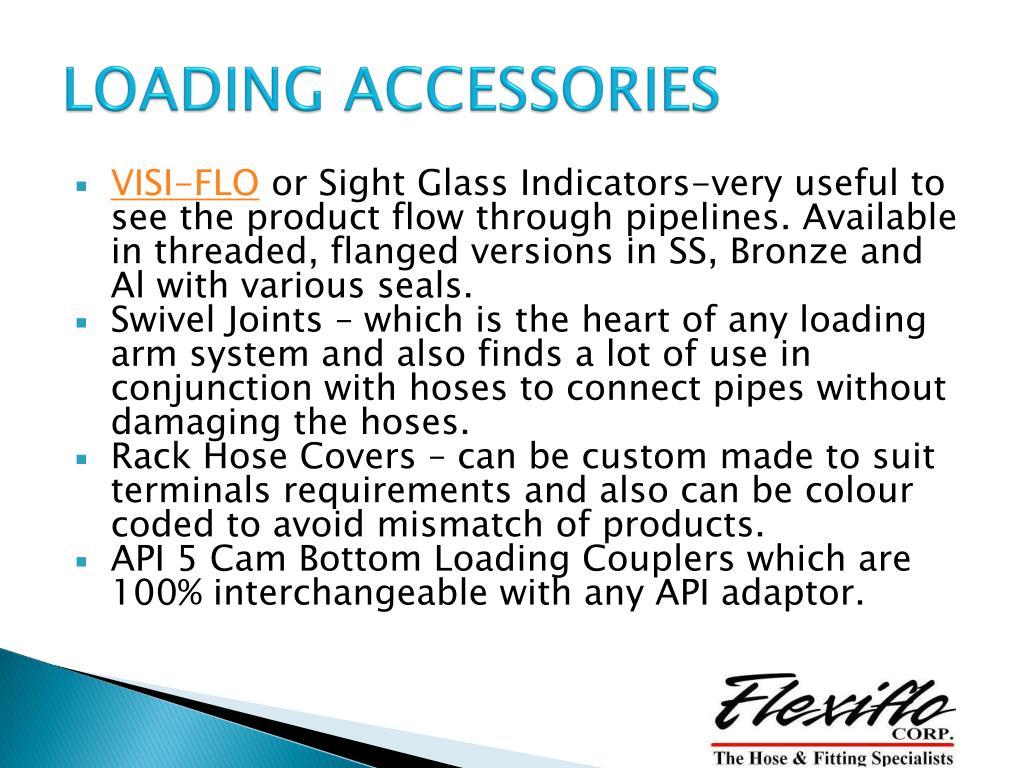

  22. LOADING ACCESSORIES • VISI-FLO or Sight Glass Indicators-very useful to see the product flow through pipelines. Available in threaded, flanged versions in SS, Bronze and Al with various seals. • Swivel Joints – which is the heart of any loading arm system and also finds a lot of use in conjunction with hoses to connect pipes without damaging the hoses. • Rack Hose Covers – can be custom made to suit terminals requirements and also can be colour coded to avoid mismatch of products. • API 5 Cam Bottom Loading Couplers which are 100% interchangeable with any API adaptor.

  23. Rack hose covers • heavy vinyl material • full colour range • lettering & logo’s • customised length • increased hose life • damage prevention • product identification

  24. 1005E API coupler + breakaway

  25. 1005E + check valve + sight glass

  26. Drain adaptor

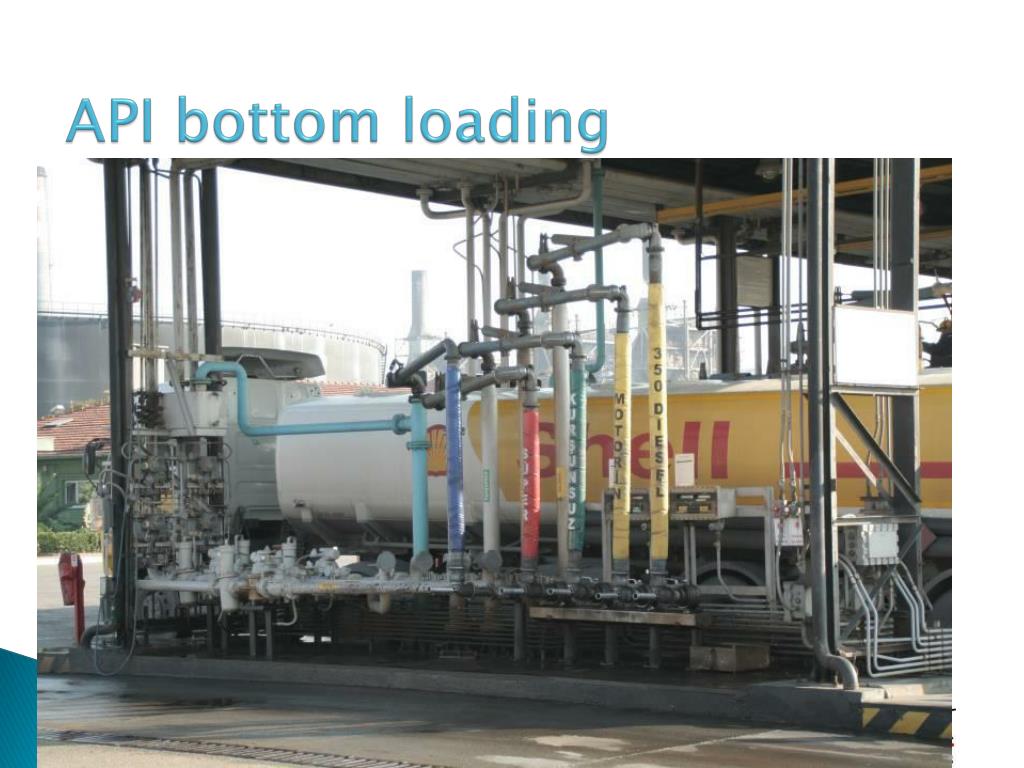

  27. API bottom loading

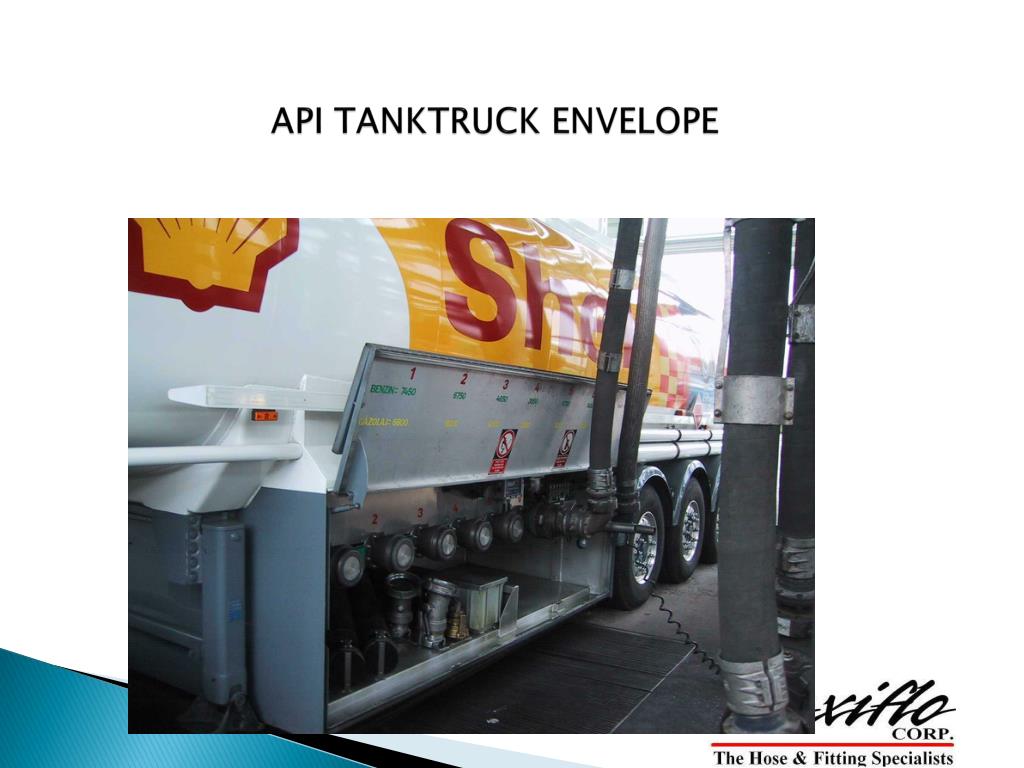

  28. API TANKTRUCK ENVELOPE

  29. Platformsand stairs

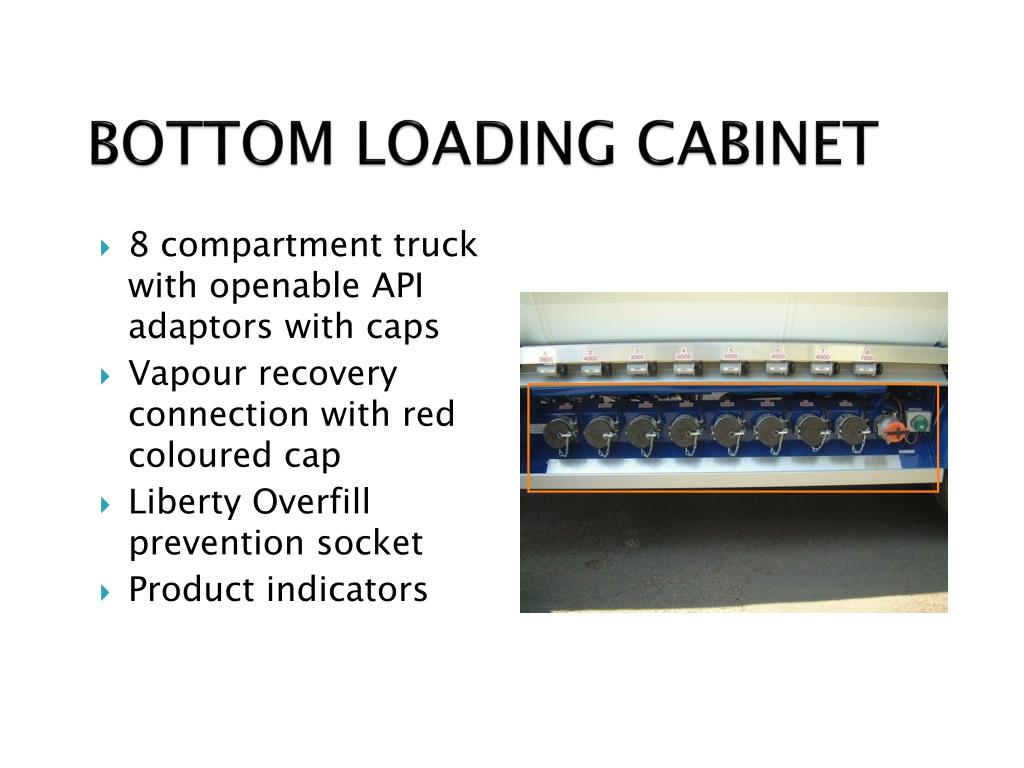

  30. BOTTOM LOADING CABINET • 8 compartment truck with openable API adaptors with caps • Vapour recovery connection with red coloured cap • Liberty Overfill prevention socket • Product indicators

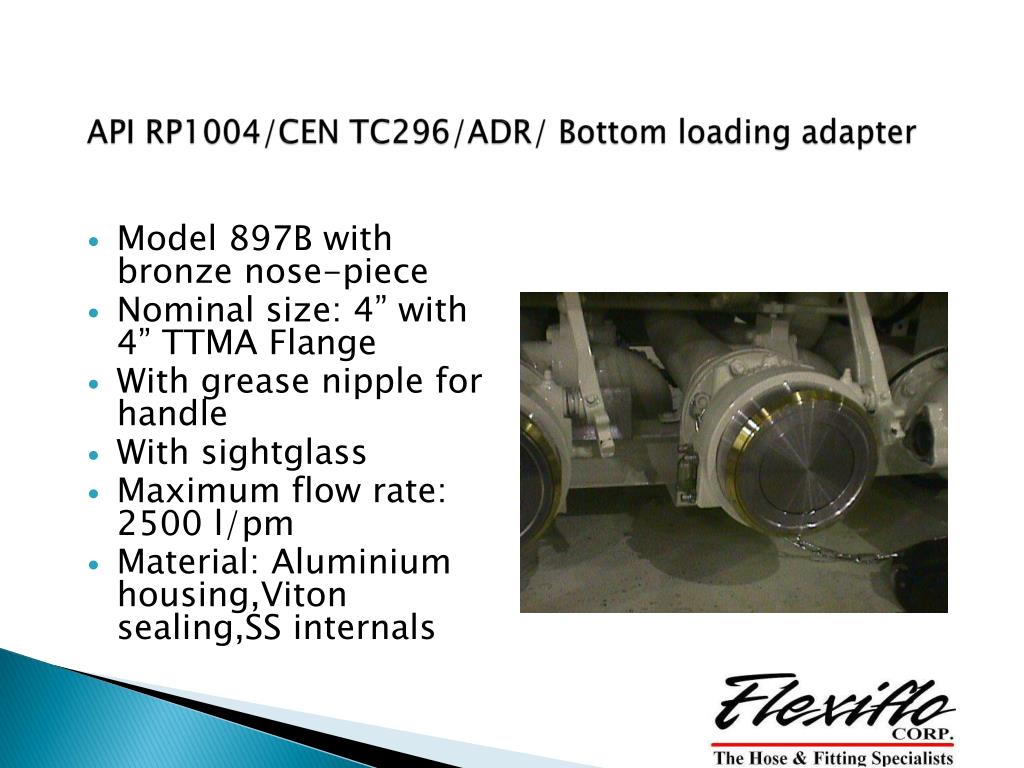

  31. API RP1004/CEN TC296/ADR/ Bottom loading adapter • Model 897B with bronze nose-piece • Nominal size: 4” with 4” TTMA Flange • With grease nipple for handle • With sightglass • Maximum flow rate: 2500 l/pm • Material: Aluminium housing,Viton sealing,SS internals

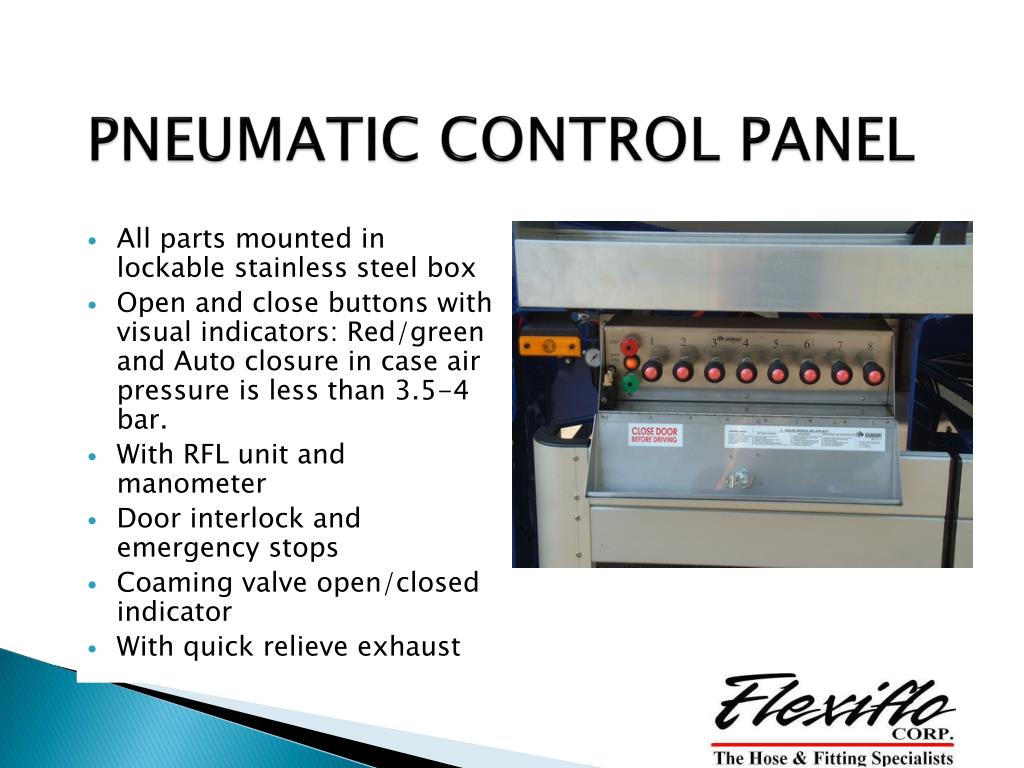

  32. PNEUMATIC CONTROL PANEL • All parts mounted in lockable stainless steel box • Open and close buttons with visual indicators: Red/green and Auto closure in case air pressure is less than 3.5-4 bar. • With RFL unit and manometer • Door interlock and emergency stops • Coaming valve open/closed indicator • With quick relieve exhaust

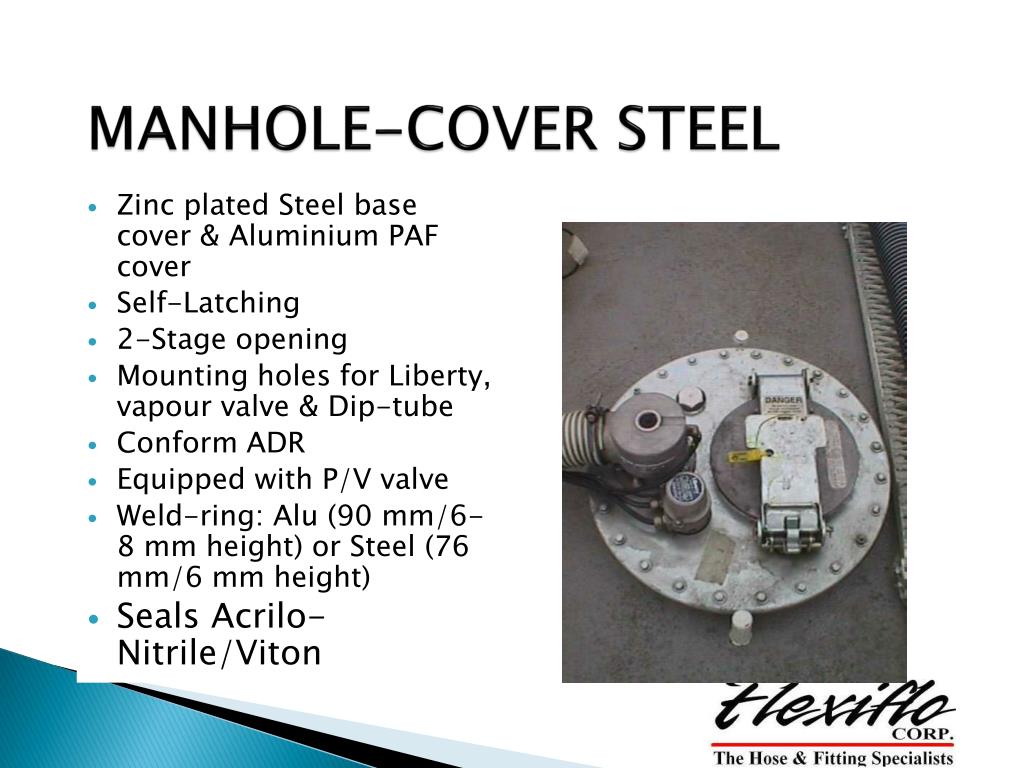

  33. MANHOLE-COVER STEEL • Zinc plated Steel base cover & Aluminium PAF cover • Self-Latching • 2-Stage opening • Mounting holes for Liberty, vapour valve & Dip-tube • Conform ADR • Equipped with P/V valve • Weld-ring: Alu (90 mm/6-8 mm height) or Steel (76 mm/6 mm height) • Seals Acrilo-Nitrile/Viton

  34. 8500-E LIBERTY MONITOR

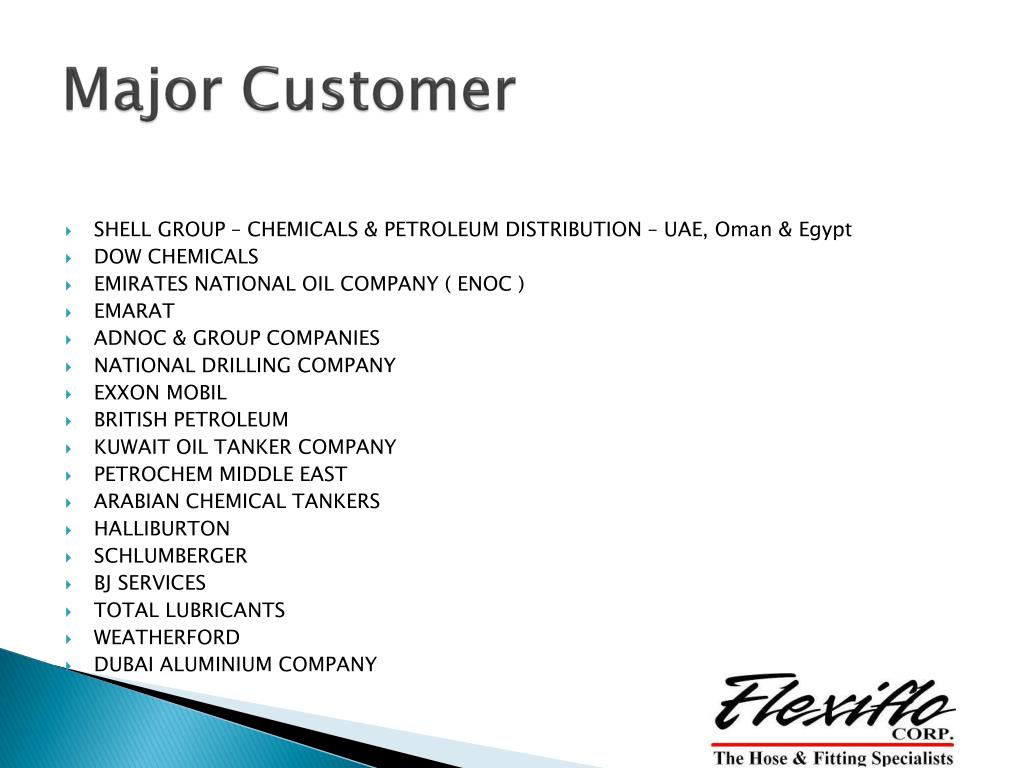

  35. Major Customer • SHELL GROUP – CHEMICALS & PETROLEUM DISTRIBUTION – UAE, Oman & Egypt • DOW CHEMICALS • EMIRATES NATIONAL OIL COMPANY ( ENOC ) • EMARAT • ADNOC & GROUP COMPANIES • NATIONAL DRILLING COMPANY • EXXON MOBIL • BRITISH PETROLEUM • KUWAIT OIL TANKER COMPANY • PETROCHEM MIDDLE EAST • ARABIAN CHEMICAL TANKERS • HALLIBURTON • SCHLUMBERGER • BJ SERVICES • TOTAL LUBRICANTS • WEATHERFORD • DUBAI ALUMINIUM COMPANY

  36. General Information We have succesfully executed Projects for our various products and have worked with every major End User, Consultant, Contractor . We constantly take part in Exhibitions, conduct seminars and open the dialogue box between the end users and the manufacturers. Thanks for your time and we hope this presentation was useful.
