Presentation Transcript
slide1

Modeling laser wakefield accelerators in a Lorentz boosted frame

J.-L. Vay1,4, C. G. R. Geddes1, E. Cormier-Michel2, D. P. Grote3,4

1Lawrence Berkeley National Laboratory, CA, USA

2Tech-X Corporation, CO, USA

3Lawrence Livermore National Laboratory, CA, USA

4Heavy Ion Fusion Science Virtual National Laboratory, USA

Annapolis, MD, USA • June 13-19, 2010

slide2

Outline

  • Scaling, limitations, numerical Cerenkov
  • Novel numerical algorithms implemented in Warp
  • Application to:
    • scaled 10 GeV stage
    • full scale 10 GeV stage
    • full scale 100 GeV- 1 TeV stages
  • Conclusion
slide3

x/t= (L/l, T/t)

FB-rest frame of “B”

0

2

20

y

y

0

x

x

0

0

0

Range of space and time scales spanned by two identical beams crossing each other*

F0-center of mass frame

space

space+time

  •  is not invariant under the Lorentz transformation: x/t .
  • There exists an “optimum” frame which minimizes it.

*J.-L. Vay, Phys. Rev. Lett.98, 130405 (2007)

slide4

laser

plasma

wake

w

e-beam

Scaling of LPA boosted frame simulations speedup

Laser plasma accelerator

= plasma length/dephasing length

= fraction of wake existing plasma

In boosted frame at (,), the speedup S is:

Example

  • Low 
  • Max S

Near maximum speedup reached when ≈w

Over four orders of magnitude theoretical speedup for a 10 GeV stage.

slide5

x/t= (L/l, T/t)

laser

plasma

wake

0

w

e-beam

2

20

0

0

0

0

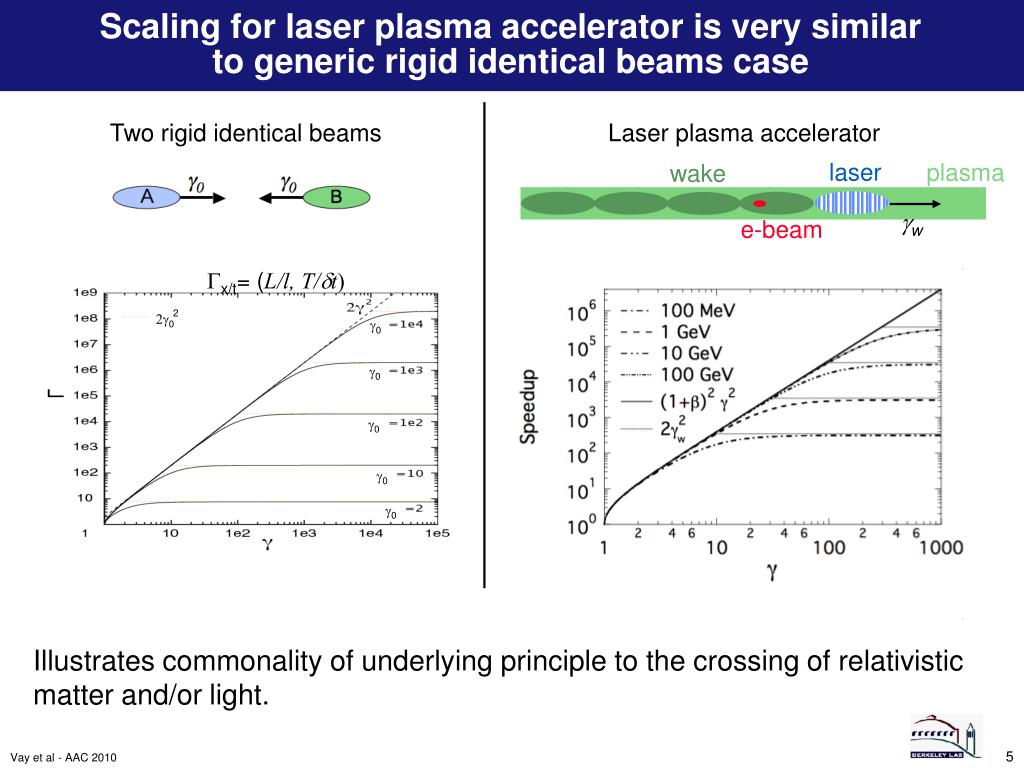

Scaling for laser plasma accelerator is very similar to generic rigid identical beams case

Two rigid identical beams

Laser plasma accelerator

Illustrates commonality of underlying principle to the crossing of relativistic matter and/or light.

slide6

Using conventional PIC techniques, 2-3 orders of magnitude speedup reported in 2D/3D by various groups

Osiris: trapped injection*

Vorpal: external injection w/ beam loading**

Warp: external injection wo/ beam loading

*Martins et al, UCLA/IST

(talk TuPlenary)

**Bruhwiler et al, Tech X

(talk WG2 TuAM)

  • Reported speedups limited by various factors:
    • laser transverse size at injection,
    • statistics (self-trapped injection),
    • short wavelength instability (most severe).
slide7

Limitations from laser launching

Osiris

Vorpal

Warp

Courtesy S. Martins, IST

Laser is initialized at once in simulation box.

In a boosted frame at , the largest effective spot size increases as (1+)2*, i.e. the transverse box surface increases as (1+)24!

Laser is emitted from all but one surface.

Laser is emitted from a moving plane.

Blowup of transverse box size can be avoided by using novel injection procedures for injecting the laser.

*Martins et al., Comp. Phys. Comm., 2010

slide8

Instability reported for large 

Warp 2D full scale simulation 10 GeV LWFA stage (ne=1017cc, =130)

Longitudinal electric field

laser

plasma

Side view

laser

A short wavelength instability is observed at front of plasma for large 

Plasma moving near

speed of light:

numerical Cerenkov?

plasma

Top-rear view

slide9

Effect of spatial resolution

x=z=13 m

x=z=6.5 m

x=z=3.25 m

FFT

FFT

FFT

  • Amplitude of instability decreases as resolution increases,
  • transverse mode governed by physics, longitudinal by numerics.
slide10

Numerical Cerenkov?

Numerical Cerenkov is due to macro-particles traveling > numerical speed of light in vacuum.

  • Numerical dispersion of Yee solver in 3D:
    • numerical speed of light in vacuum is 2/3 actual speed of light at Nyquist limit along main axes.

x=y=z)

  • First identified by Boris (JCP 1973) and Haber et al (Proc. ICNSP 1973).
  • Studied by Godfrey (JCP 1974 & 1975) and Greenwood et al (JCP 2004).
  • Proposed cures:
    • higher shape factors for particles and filtering (commonly used),
    • damping of electromagnetic field (Friedman JCP 1990 identified as most by Greenwood et al),
    • solver with larger stencil (difficulty for preserving Gauss Law),
    • FFT-based solver proposed by Haber (boundary conditions difficult).
slide11

Outline

  • Scaling, limitations, numerical Cerenkov
  • Novel numerical algorithms implemented in Warp
  • Application to:
    • scaled 10 GeV stage
    • full scale 10 GeV stage
    • full scale 100 GeV- 1 TeV stages
  • Conclusion
slide12

1/4

1/2

1/4

Bilinear

filter

1/4

1/2

1/4

Bilinear filter

with stride 2

Efficient filtering using strides

Multiple pass of bilinear filter + compensation routinely used

100% absorption at Nyquist freq.

Bilinear (B)

Bilinear (B) +compensation (C)

4*B+C (B4C)

Using a stride N shifts the 100% absorption frequency to Fnyquist/N

B4C stride 1 (G1)

B4C stride 2 (G2)

B4C stride 3 (G3)

B4C stride 4 (G4)

  • Combination of filters with strides allows for more efficient filtering:
    • G1G2  20*B+C; speedup=2
    • G1G2G3  50*B+C; speedup=3.5
    • G1G2G4  80*B+C; speedup=5.5
slide13

*

Cole-Karkkainen solver adapted to the Particle-In-Cell methodology

Cole* and Karkkainen** have applied Non-Standard Finite-Difference (NSFD) to source free Maxwell equations

Warp: switched FD/NSFD to B/E.

=> FD on source terms, i.e. standard exact current deposition schemes still valid.

NSFD: weighted average of quantities transverse to FD

().

a

FD

Yee

Cole-Karkkainen

x=y=z)

NSFD

Cole-Karkkainen allows for larger time step, resulting in perfect dispersion along axes.

* J. B. Cole, IEEE Trans. Microw. Theory Tech., 45 (1997).

J. B. Cole, IEEE Trans. Antennas Prop., 50 (2002).

** M. Karkkainen et al., Proc. ICAP, Chamonix, France (2006).

slide14

More generally, NSFD-based solver offers tunability of numerical dispersion

Yee

Cole-Karkkainen (CK)

CK2

intermediate

CK3

CK4

CK5

more compact

(=0)

perfect dispersion

2D diag.

most isotropic

Solver can be tuned to better fit particular needs.

slide15

Application of Friedman damping straightforward

B push modified to

with

where is damping parameter.

Yee-Friedman (YF)

Cole-Karkkainen-Friedman (CKF)

Dispersion degrades with higher values of 

Damping more potent on axis and more isotropic for CKF

than YF.

slide16

PML implemented with tunable solver

Same high efficiency as with Yee.

slide17

Outline

  • Scaling, limitations, numerical Cerenkov
  • Novel numerical algorithms implemented in Warp
  • Application to:
    • scaled 10 GeV stage
    • full scale 10 GeV stage
    • full scale 100 GeV- 1 TeV stages
  • Conclusion
slide18

Scaled 10 GeV stage

Physical and numerical parameters of scaled 10 GeV stage*

(relevance to BELLA**)

Full scale

1017 cm-3

1.5 m

Wake frame:≈13

*Similar to E. Cormier-Michel et al, AAC 08; C. Geddes et al, PAC 09

** W. Leemans et al, talk MoPlenary

slide19

Percent level agreement demonstrated on scaled simulation of 10 GeV stage

Beam energy

Momentum spread

at peak energy

Timing

2D

3D

Yee solver; no damping; standard filtering; Max speedup ≈200 in 2D; 130 in 3D

slide20

Different frames = different views of same physics

2D simulation of 100 MeV stage

Laboratory frame

E (laser)

E//

Wake frame

E (laser)

E//

Amount of short wavelength content much reduced in wake frame

Fixed station diagnostics confirm that physics is the same

3D

slide21

Different frames = different views of same physics

2D simulation of 100 MeV stage

Laboratory frame

E (laser)

E//

Wake frame

E (laser)

E//

Amount of short wavelength content much reduced in wake frame

Fixed station diagnostics confirm that physics is the same

3D

slide22

Calculating in boosted frame allows for more damping, filtering and for less constraint on cell aspect ratio

Friedman damping

Wideband filtering

Yee vs CK

(with cubic cells)

Beam energy

For a given level of damping or filtering, the accuracy is improved for higher frame boost, best in wake frame.

In wake frame, Yee solver as accurate as CK solver with cubic cells.

Timing

slide23

Outline

  • Scaling, limitations, numerical Cerenkov
  • Novel numerical algorithms implemented in Warp
  • Application to:
    • scaled 10 GeV stage
    • full scale 10 GeV stage
    • full scale 100 GeV- 1 TeV stages
  • Conclusion
slide24

Simulations in 2D of full scale 10 GeV stage

Conclusion regarding damping and filtering holds

  • Yee solver
  • In wake frame (≈130):
    • square cells
    • ct=z/√2

=130

Laser/2

  • No instability
  • % level agreement in =30-130 range
slide25

Simulations in 3D of full scale 10 GeV stage in wake frame

CK solver; in wake frame (≈130): cubic cells, ct=z.

=0.

=0.1

=0.5

=130

=130

=130

  • Strong instability (worse with Yee solver)
  • Filtering more potent than damping for control of instability
slide26

Simulations in 3D of full scale 10 GeV stage

Conclusion regarding damping and filtering unchanged

  • CK2 solver
  • In wake frame (≈130):
    • cubic cells
    • ct=z/√2

=130

  • No instability
  • Good agreement in =30-130 range
slide27

Simulations in 2D and 3D with same time step

  • 2D
  • Yee solver
  • In wake frame (≈130):
    • square cells
    • ct=z/√3
  • 3D
  • Yee solver
  • In wake frame (≈130):
    • cubic cells
    • ct=z/√3
  • Strong instability at similar level
  • Similar spectrum in 2D and 3D
  • Is the time step a key parameter?
slide28

Time step scan

2D; CK solver; in wake frame (≈130); square cells; 0.5 ≤ ct/z ≤ 1.

Sharp decrease of instability level at ct=z/√2!

slide29

Other dependencies?

2D; CK solver; in wake frame (≈130); square cells; 0.5 ≤ ct/z ≤ 1.

Node-centered field gathering

(“momentum conserving”)

Yee-mesh field gathering

(“energy conserving”)

A clue to the mystery: existence of “magical” time step depends on field gathering procedure.

slide30

Main findings

  • can apply high levels of filtering in wake frame
  • instability growth reduced by orders of magnitude when
  • ct=z/√2 “magical” time step
  • (provided that one uses Yee mesh centered field gathering)*
  • *This result was recently confirmed by D. Bruhwiler using Vorpal.
slide31

Outline

  • Scaling, limitations, numerical Cerenkov
  • Novel numerical algorithms implemented in Warp
  • Application to:
    • scaled 10 GeV stage
    • full scale 10 GeV stage
    • full scale 100 GeV- 1 TeV stages
  • Conclusion
slide32

Modeling of 100 Gev-1 TeV stages demonstrated using magical time step + filtering

  • 2D
  • Yee solver
  • In wake frame:
    • square cells
    • ct=z/√2
  • 3D
  • CK2 solver
  • In wake frame:
    • cubic cells
    • ct=z/√2
  • 0.1-10 GeV: filter S(1)
  • 100 GeV: filter S(1:2)
  • 1 TeV: filter S(1:2:3)
  • 0.1-1 GeV: filter S(1)
  • 10-100 GeV: filter S(1:2)
slide33

Over 5-6 orders of magnitude speedup for 100 GeV-1 TeV stages

Osiris: trapped injection

Vorpal: external injection w/ beam loading

Warp: external injection wo/ beam loading

100 GeV stage in 3D: only 4 hours using 2016 CPU of Cray Franklin at NERSC

conclusion

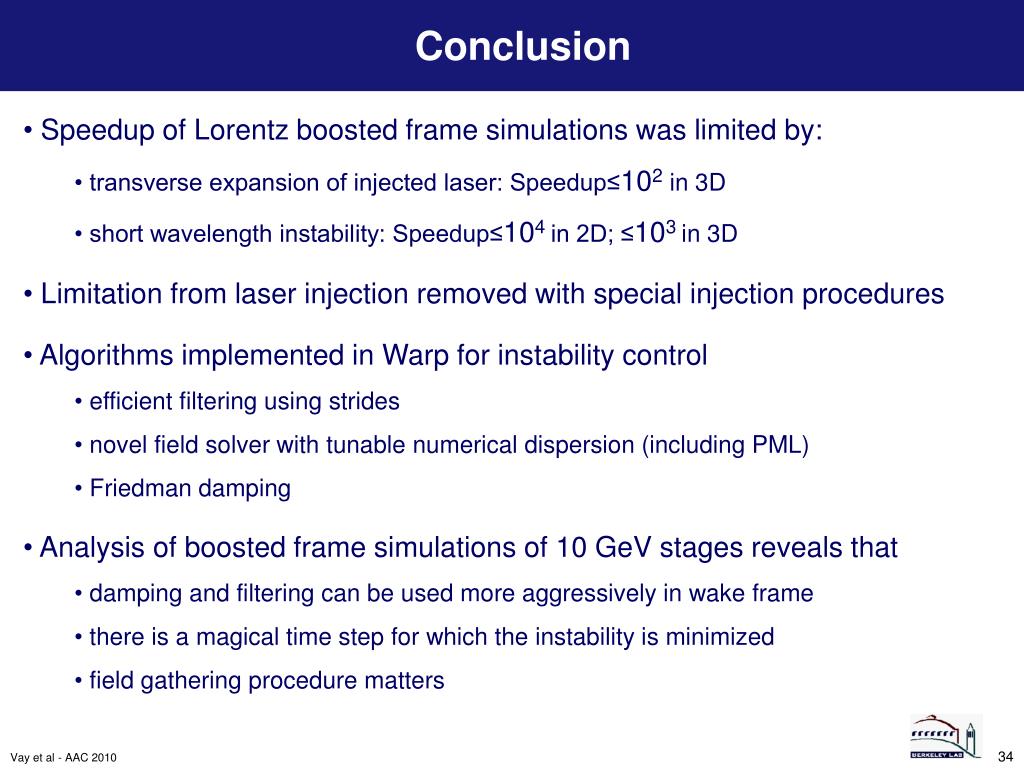

Conclusion
  • Speedup of Lorentz boosted frame simulations was limited by:
    • transverse expansion of injected laser: Speedup≤102 in 3D
    • short wavelength instability: Speedup≤104 in 2D; ≤103 in 3D
  • Limitation from laser injection removed with special injection procedures
  • Algorithms implemented in Warp for instability control
    • efficient filtering using strides
    • novel field solver with tunable numerical dispersion (including PML)
    • Friedman damping
  • Analysis of boosted frame simulations of 10 GeV stages reveals that
    • damping and filtering can be used more aggressively in wake frame
    • there is a magical time step for which the instability is minimized
    • field gathering procedure matters
conclusion 2
Conclusion (2)
  • Instability does not seem to be Numerical Cerenkov
    • interest in CK field solver resides in allowing CFL limit ≥ magical time step
  • First time verification of scaling of deeply depleted stages up-to 1 TeV
    • Applied to external injection wo/ beam loading so far
    • Application to case w/ beam loading underway and trapped injection pending

looking promising

warp a parallel framework combining features of plasma particle in cell and accelerator codes
Warp: a parallel framework combining features of plasma (Particle-In-Cell) and accelerator codes

Parallel scaling of Warp 3D PIC-EM solver on Franklin supercomputer (NERSC)

  • Geometry:3D (x,y,z), 2D-1/2 (x,y), (x,z) or axisym. (r,z)
  • Python and Fortran:“steerable,” input decks are programs
  • Field solvers:Electrostatic - FFT, multigrid; AMR; implicit
  • Magnetostatic - FFT, multigrid; AMR; implicit
  • Electromagnetic - Yee, Cole-Kark.; PML; AMR
  • Parallel:MPI (1, 2 and 3D domain decomposition)
  • Boundaries:“cut-cell” --- no restriction to “Legos”
  • Lattice:general; non-paraxial; can read MAD files
    • solenoids, dipoles, quads, sextupoles, linear maps, arbitrary fields, acceleration
  • Bends:“warped” coordinates; no “reference orbit”
  • Particle movers:Boris, large time step “drift-Lorentz”, novel relativistic Leapfrog
  • Reference frame:lab, moving-window, Lorentz boosted
  • Surface/volume physics: secondary e-/photo-e- emission, gas emission/tracking/ionization
  • Diagnostics:extensive snapshots and histories
  • Misc.:trajectory tracing; quasistatic & steady-flow modes; space charge emitted emission; “equilibrium-like” beam loads in linear focusing channels; maintained using CVS repository.

32,768 cores

slide38

More challenging: large intense beam; plasma taper

Early

Ramp on plasma density provides phase locking

Later

(Lab frame)

- beam not matched transversely and experienced losses,

=> significant population of “halo” particles,

- filtered out of the diagnostics using cutoffs in position and energy.

Very good agreement between runs in frames at =1-10

slide39

Widening the band of the digital filter improves significantly filter applied to current density and gathered field, NOT on Maxwell EM field

Smoothing 1

Smoothing 2

Smoothing 3

Smoothing 4

E// (GV/m)

E// (GV/m)

E// (GV/m)

E// (GV/m)

Z

Z

Z

Z

laser

Result is only slightly affected, even with most aggressive filtering tested.

wideband filter applied along longitudinal direction only

other possible complication inputs outputs
Other possible complication: inputs/outputs
  • Often, initial conditions known and output desired in laboratory frame
    • relativity of simultaneity => inject/collect at plane(s)  to direction of boost.
  • Injection through a moving plane in boosted frame (fix in lab frame)
    • fields include frozen particles,
    • same for laser in EM calculations.
  • Diagnostics: collect data at a collection of planes
    • fixed in lab fr., moving in boosted fr.,
    • interpolation in space and/or time,
    • already done routinely with Warp

for comparison with experimental data,

often known at given stations in lab.

frozen

active

z’,t’=LT(z,t)

slide41

H

H

E

E

E

E

E

E

Is the instability due to Yee solver numerical dispersion errors?Implementation of a low-dispersion solver in Warp

Enlarged stencil* => no disp. in x,y,z

Implementation in Warp

  • E and H switched,
  • => E push same as Yee,
  • exact charge conservation preserved in 2D & 3D with unmodified Esirkepov current deposition and implied enlarged stencil on div E.

Stencil on H unchanged

1-2-1 filter needed at t=x/c

1-D simulation of current Heaviside step

  • Issues for PIC:
  • source terms are not given,
  • odd-even oscillation when t=x/c.

full amplitude

odd-even oscillations for t=x/c

1-D simulation of LWFA at t=x/c

121 filter

No filter

*M. Karkkainen, et al., Proceedings of ICAP’06, Chamonix, France

slide42

n+1Vn+1 + nVn

qt

m

2 n+1/2

Vn+1 + Vn

qt

m

2

(with , , ,

, , , ).

Seems simple but ! . Algorithms which work in one frame may break in another. Example: the Boris particle pusher.
  • Boris pusher ubiquitous
    • In first attempt of e-cloud calculation using the Boris pusher, the beam was lost in a few betatron periods!
    • Position push: Xn+1/2 = Xn-1/2 + Vn t -- no issue
    • Velocity push: n+1Vn+1 = nVn + (En+1/2 + Bn+1/2)

issue: E+vB=0 implies E=B=0=> large errors when E+vB0 (e.g. relativistic beams).

  • Solution
    • Velocity push: n+1Vn+1 = nVn + (En+1/2 + Bn+1/2)
  • Not used before because of implicitness. We solved it analytically*

*J.-L. Vay, Phys. Plasmas15, 056701 (2008)

slide43

level 0

level 1

level 2

level 3

Mesh Refinement expected to offer further savings

Example of a 2D Warp simulation of LPA stage

with up-to 3 levels of mesh refinement*.

E// (V/m)

PIC MR-PIC

Higher resolution

Lower resolution

  • Successful initial benchmarking: beam emittance history from calculation at various resolutions with standard PIC (one grid) recovered with MR-PIC runs,
  • resolution varied transversely only; further tests pending.

*Vay et al, IPAC 2009.
