Dr M MATHIRAJAN Department of Management Studies Indian Institute of Science Bangalore

1. LOGISTICS PLANNING • Dr M MATHIRAJAN • Department of Management Studies • Indian Institute of Science • Bangalore

2. The Increased Importance of Logistics • A Reduction in Economic Regulation • Recognition by Prominent Non-Logisticians • Technological Advances • The Growing Power of Retailers • Globalization of Trade • Three objectives of logistics strategy: • Cost reduction (variable costs) • Capital reduction (investment, fixed costs) • Service Improvement (may be at odds with the above two objectives).

3. Components of logistics management : Management actions Outputs of logistics Planning Implementation Control Inputs into logistics Natural resources (land, facilities, and equipments) Human resources Financial resources Information resources Marketing orientation (competitive advantage) Time and place utility Efficient movement to customer Proprietary asset Logistics management Suppliers Raw materials In-process inventory Finished goods Customers Logistics Activities

4. To gain a better grasp of the fundamental trade-offs in logistics, I will divide logistics activities into three categories: • Production • Storage • Transportation • The term “Resource” applies to all of the factors of production, including materials (e.g., Iron, fabric, parts), equipment (e.g., machines or vehicles), energy (e.g., oil, coal, electricity) and labor.

5. PRODUCTION: Fundamental logistics questions are: (1) when should a resource be produced; and (2) where should a resource be produced. • The “when” question includes the topics of aggregate resource planning, and production scheduling. • The “where” question includes the topics of facility location and production allocation. • Some of the important production questions are: • (a) What outside source should be used to supply a part? • (b) Where should a new facility be built? • (c) When should a facility produce different items, taking into account: • Seasonal demand patterns? • Demand uncertainty? • Cost of operating single, double, triple shifts? • Labor costs? • (d) When should a firm use two or more sources for a part?

6. INVENTORY: Fundamental logistics questions are (1) when should a resource (material, machine or labor) be put in inventory and taken out of inventory; and (2) where should a resource be stored. • The “when” question includes the general topics of economic-order-quantity models, safety stock models and seasonal models, and specialized topics of fleet management, and personnel planning. • The “where” questions includes the topic of inventory echelons. • Some of the important inventory questions are: • How much does it cost to store resources in inventory? • How much “safety stock” should be carried in inventory to prevent against running out of a resource? • How much inventory should be carried in order to smooth out seasonal variations in demand? • (d) Where should replacement parts be stored in multi-echelon inventory system?

7. TRANSPORTATION: Fundamental logistics are: (1) where should resources be moved to, and by what mode and route; (2) when should resources be moved. • The “where” question includes the topics of terminal location, vehicle routing, and shortest path methods and network flow allocation. • The “when” question includes the topic of distribution rules. • Some of the important questions are: • When should shipment be sent through terminals, and when should shipment be sent direct? • Which, and how many, terminals should shipments be sent through? • What are the best vehicle routes? • (d) When should a vehicle be dispatched over a route?

8. Logistics - Science of managing (controlling) the movement and storage of goods (or people) from acquisition to consumption. • Goods: Raw Materials  Final products, and everything in between. • Logistics for services & people similar to goods logistics. • Ex. Police, fire, ambulance, passenger airlines, taxi cabs, etc. Movement = Transportation (between locations). Storage = Inventory, Warehousing (at locations). Difference between acquisition and consumption is a matter of space and time. Focus: Best way to overcome space and time that separates acquisition and consumption. NOTE: Logistics does not deal with Technology of Production, such as the design of machines and vehicles and the design of finished products.

9. 1998 CLM DEFINITION OF LOGISTICS ….is that part of the supply chain process that plans, implements, and controls the efficient, effective flow and storage of goods, services, and related information from the point-of-origin to the point-of-consumption in order to meet customers' requirements. Council of Logistics Management, 1998; www.CLM1.org

10. Management Systems } Product Design Decisions Process Design Decisions Strategic Decisions Engineering Systems } Measurement Decisions Product Decisions Reward Decisions Marketing Systems Price Decisions Promotion Decisions { } Place (How, where, how much) Production Capacity Decisions Inventory Decisions Logistics Systems Manufacturing Systems Production Scheduling Decisions Transportation Decisions Shop Floor Decisions Sourcing Decisions Five Business Systems - Tightly Interconnected Within The Organization Copyright 2000 - All Rights Reserved

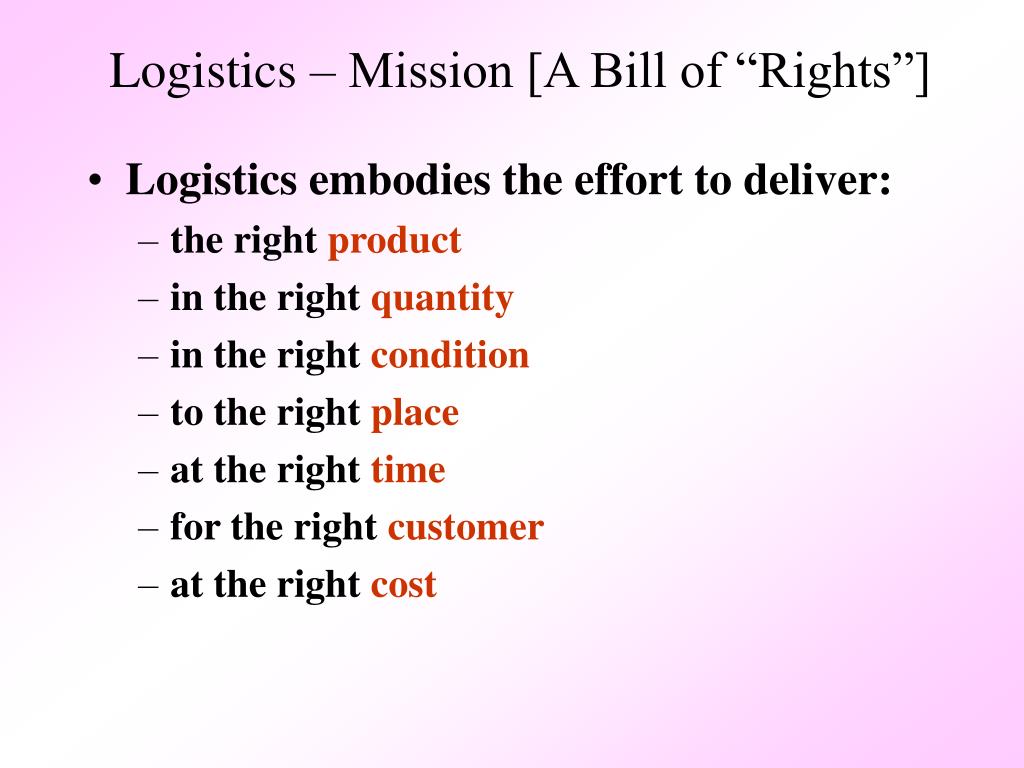

11. Logistics – Mission [A Bill of “Rights”] • Logistics embodies the effort to deliver: • the right product • in the right quantity • in the right condition • to the right place • at the right time • for the right customer • at the right cost

12. Activities and Logistics Decisions • Customer Service • determining customer wants • determining customer response to service changes • Materials Handling • equipment selection • equipment replacement • order picking procedures • Packaging design • Order Processing • order procedure determination • Production Scheduling • aggregate production quantities • sequencing and timing of production runs Transportation rate and contract negotiation mode and service selection routing and scheduling Inventories finished goods policies supply scheduling short term forecasting Warehousing private vs. public space determination warehouse configuration Stock layout and dock design stock placement Cross-docking Facility Location determining location, number and size of facilities allocating demand to facilities

13. Logistics Planning • Decide what, when, how in three levels: • Strategic – long range > 1 year • Tactical - < 1 year horizon • Operational – frequently on hourly or daily basis Examples of Decisions

14. The Logistics (Strategic) Planning Triangle Which mode? Which carrier? Which route? Shipment size and frequency? Strategy/Control system? How much? Where? Where?, How many? What size? Allocation?

15. Transport Fundamentals • Most important component of logistics cost. • Usually 1/3 - 2/3 of total cost. • Transport involves • equipment (trucks, planes, trains, boats, pipeline), • people (drivers, loaders & un-loaders), and • decisions (routing, timing, quantities, equipment size, transport mode). When deciding the transport mode for a given product there are several things to consider: • Mode price • Transit time and variability (reliability) • Potential for loss or damage. NOTE: In developing countries we often find it necessary to locate production close to both markets and resources, while in countries with developed distribution systems people can live in places far from production and resources.

16. Air terminal plane air Freight forwarder warehouse May change transpor-tation modes Container terminal Freight forwarder warehouse sea vessel bulk goods Goods at consignees sea pier mid-stream barge land land railway truck Routes of Goods let us guess Goods at shippers

17. Air • Rapidly growing segment of transportation industry • Lightweight, small items [Products: Perishable and time sensitive goods: Flowers, produce, electronics, mail, emergency shipments, documents, etc.] • Quick, reliable, expensive • Often combined with trucking operations • Rail • Low cost, high-volume [Products: Heavy industry, minerals, chemicals, agricultural products, autos, etc.] • Improving flexibility • intermodal service • Truck • Most used mode • Flexible, small loads [Products: Medium and light manufacturing, food, clothing, all retail goods] • Trucks can go door-to-door as opposed to planes and trains. Single-mode Service Choices and Issues

18. Single-mode Service Choices and Issues (Contd.) • Water • One of oldest means of transport • Low-cost, high-volume, slow • Bulky, heavy and/or large items (Products: Nonperishable bulk cargo - Liquids, minerals, grain, petroleum, lumber, etc )] • Standardized shipping containers improve service • Combined with trucking & rail for complete systems • International trade • Pipeline • Primarily for oil & refined oil products • Slurry lines carry coal or kaolin • High capital investment • Low operating costs • Can cross difficult terrain • Highly reliable; Low product losses

19. Transport Cost Characteristics • Fixed costs: • Terminal facilities • Transport equipment • Carrier administration • Roadway acquisition and maintenance [Infrastructure (road, rail, pipeline, navigation, etc.)] • Variable costs: • Fuel • Labor • Equipment maintenance • Handling, pickup & delivery, taxes NOTE: Cost structure varies by mode

20. Transport Cost Characteristics • Rail • High fixed costs, low variable costs • High volumes result in lower per unit (variable) costs • Highway • Lower fixed costs (don’t need to own or maintain roads) • Higher unit costs than rail due to lower capacity per truck • Terminal expenses and line-haul expenses • Water • High terminal (port) costs and high equipment costs (both fixed) • Very low unit costs • Air • Substantial fixed costs • Variable costs depend highly on distance traveled • Pipeline • Highest proportion of fixed cost of any mode due to pipeline ownership and maintenance and extremely low variable costs

21. Vehicle Routing:- Separate single origin and destination: Once we have selected a transport mode and have goods that need to go from point A to point B, we must decide how to route a vehicle (or vehicles) from point A to point B. Given a map of all of our route choices between A and B we can create a network representing these choices The problem then reduces to the problem of finding the shortest path in the network from point A to B. This is a well solved problem that can use Dijkstra’s Algorithm for quick solution of small to medium (several thousand nodes) sized problems.

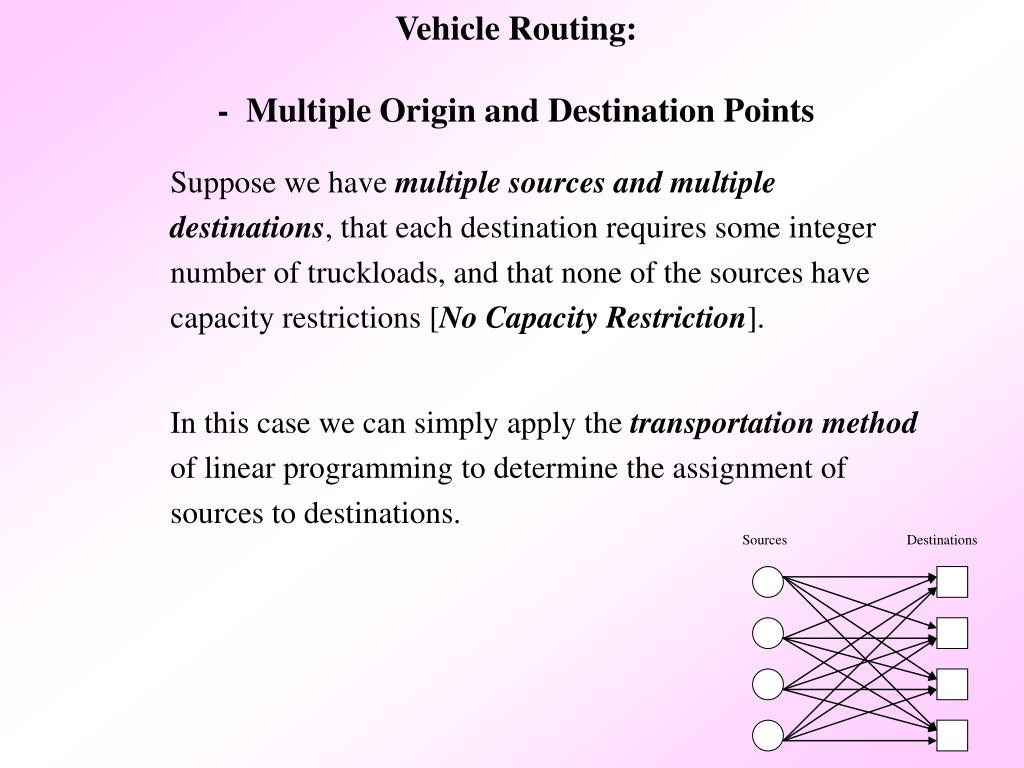

22. Sources Destinations Vehicle Routing:- Multiple Origin and Destination Points Suppose we have multiple sources and multiple destinations, that each destination requires some integer number of truckloads, and that none of the sources have capacity restrictions [No Capacity Restriction]. In this case we can simply apply the transportation method of linear programming to determine the assignment of sources to destinations.

23. Vehicle Routing: - Coincident Origin and Destination: The TSP • If a vehicle must deliver to more than two customers, we must decide the order in which we will visit those customers so as to minimize the total cost of making the delivery. • We first suppose that any time that we make a delivery to customers we are able to make use of only a single vehicle, i.e., that vehicle capacity of our only truck is never an issue. • In this case, we need to dispatch a single vehicle from our depot to n - 1 customers, with the vehicle returning to the depot following its final delivery. • This is the well-known Traveling Salesman Problem (TSP). The TSP has been well studied and solved for problem instances involving thousands of nodes. We can formulate the TSP as follows:

24. TSP Formulation • Minimize • Subject to: In the TSP formulation if we remove the third constraint set we have the simple assignment problem, which can be easily solved. The addition of the third constraint set, commonly called sub-tour elimination constraints, makes this a very difficult problem to solve.

25. Questions about the TSP • Given a problem with n nodes, how many distinct feasible tours exist? • How many arcs will the network have? • How many xij variables will we have? • How could we quantify the number of subtour elimination constraints? • The complexity of the TSP has led to several heuristic or approximate methods for finding good feasible solutions. The simplest solution we might think of is that of the nearest neighbor.

26. Vehicle Routing: TSP, inventory routing, and vehicle routing • Traveling Salesman Problem (TSP): salesman visits n cities at minimum cost • vehicle routing problem (VRP): m vehicles with capacity to deliver to n customers who have volume requirement, time windows, etc. • Inventory Routing: m vehicle to delivery to n customer with time windows, vehicle and storage capacity constraints, and un-specificed amount to be delivered. • Heuristics • 1. Load points closest together on the same truck • 2. Build routes starting with points farther from depot first • 3. Fill the largest vehicle to capacity first • 4. Routes should not cross • 5. Form teardrop pattern routes. • 6. Plan pickups during deliveries, not after all deliveries have been made.

27. 50 123 29 44 112 58 90 76 88 Depot 77 39 57 59 176 89 65 124 (Outlier) 115 Truck Capacity = 250 What is the minimum # of trucks we would need? Maximum? 98 125 Illustration of VRP

28. Vehicle Routing • Find best vehicle route(s) to serve a set of orders from customers. • Best route may be • minimum cost, • minimum distance, or • minimum travel time. • Orders may be • Delivery from depot to customer. • Pickup at customer and return to depot. • Pickup at one place and deliver to another place.

29. Pure Pickup or Delivery Problems. • Mixed Pickups and Deliveries. • Pickup-Delivery Problems. • Backhauls Complications • Multiple vehicle types. • Multiple vehicle capacities. • Weight, Cubic feet, Floor space, Value. • Many Costs: • Fixed charge. • Variable costs per loaded mile & per empty mile. • Waiting time; Layover time. • Cost per stop (handling). • Loading and unloading cost. • Priorities for customers or orders.

30. More Complications • Time windows for pickup and delivery. • Hard vs. soft • Compatibility • Vehicles and customers. • Vehicles and orders. • Order types. • Drivers and vehicles. • Driver rules (DOT) • Max drive duration = 10 hrs. before 8 hr. break. • Max work duration = 15 hrs. before 8 hr break. • Max trip duration = 144 hrs.

31. Simple Models • Homogeneous vehicles. • One capacity (weight or volume). • Minimize distance. • No time windows or one time window per customer. • No compatibility constraints. • No DOT rules.

32. VRP Solutions • Heuristics • Construction: build a feasible route. • Improvement: improve a feasible route. • Not necessarily optimal, but fast. • Performance depends on problem. • Worst case performance may be very poor. • Exact algorithms • Integer programming. • Branch and bound. • Optimal, but usually slow and applicable for small size problem • Difficult to include complications.

33. APPLICATIONS OF VRP The VRP is applicable in many practical situations directly related to  the physical delivery of goods such as  distribution of petroleum products,  distribution of industrial gases,  newspaper deliveries,  delivery of goods to retail store,  garbage collection and disposal,  package pick-up and delivery,  milk pick-up and delivery, etc.  the non-movement of goods such as  picking up of students by school buses,  routing of salesmen,  reading of electric meters,  preventive maintenance inspection tours,  employee pick-up and drop-off , etc.

34. COVERS- COMPUTERIZED VEHICLE ROUTING SYSTEM  A DSS  Employee Bus Routing  Commodity Distribution  In COVERS  Efficient Heuristic Procedures  NNH  MNNH  MSCWH  Simulation Features  Manipulate the System Generated Routes  Completely User Generated Routes  COVERS Handles  Multi-Depot VRP  Heterogeneous VRP

35. EMPLOYEE PICKUPVEHICLE ROUTING PROBLEM (EPVRP) – BANGALORE, KARNATAKA, INDIA  Indian Telephone Industries [ITI] Limited  Bharat Electronics Limited [BEL]  Hindustan Machine Tools [HMT]  Hindustan Aeronautics Limited [HAL]  Indian Space Research Organization [ISRO]  National Aeronautical Laboratory [NAL]  Central Machine Tools of India [CMTI]  ………

36. AS A PROBLEM IN OR, A SIMPLIFIED EPVRP CAN BE DESCRIBED AS FOLLOWS: GIVEN  A set (fixed number) of pick-up or delivery points,  The demand at every pick-up or delivery points (deterministic),  A set (fixed number) of vehicles (homogeneous) and  All relevant distance information across pick-up points. IT IS REQUIRED TO FIND AN EFFECTIVE/EFFICIENT SOLUTION FOR  Assigning pick-up points to vehicles and  Sequencing pick-up points on the route of each vehicle SO AS TO ACHIEVE THE OBJECTIVE OF  Minimizing the total distance traveled by the vehicles and/or the number of vehicles used. UNDER THE CONSTRAINTS THAT  Every route originates and terminates at the depot  The capacity of vehicle is restricted  The maximum distance (time) allowed for a vehicle on any route is within a pre- specified limit  Each pick-up point is visited once only  Etc.,

37. AN ILP FORMULATION - EPVRP Source : WATERS (1998)  ASSUMPTIONS Vehicle capacity is known and constant (homogenous)  The number of vehicles available is known (at least the minimum number of vehicles required is known)  The demand at every pick-up point is known (deterministic)  Maximum distance to be traveled by each vehicle is known and constant for all vehicles  Demand at every pick-up point is less than or equal to vehicle capacity  Every pick-up point is served by only one vehicle Further, keeping in line with Water’s formulation, the model formulation is oriented towards routing during drop-back rather than pick-up. It is assumed that the reverse logic holds good for pick-up.  Expanding the Scope of Linear Programming Solutions for Vehicle Scheduling Problems. OMEGA, 16(6), 577-583

38. COMPUTATIONAL COMPLEXITY - OPTIMAL SOLUTION Sutcliffe and Board (1990) estimated that a simple extrapolation of Waters’ (1988) ILP approach using the SCICONIC software might take nearly 1,20,000 years of CPU time on a VAX 8600 machine to solve a VRP with 38 pick-up points!  Optimal Solution of VRP: Transporting Mentally Handicapped Adults to an Adult Training Center. JORS, 41(1), 61-67.

39. HEURISTIC ALGORITHMS  Nearest Insertion Heuristic (NIH) Cheapest Insertion Heuristic (CIH) Parallel Version of Clarke & Wright Heuristic (PCWH) Sequential Version of Clarke & Wright Heuristic (SCWH) Convex Hull Heuristic (CHH) Nearest Neighbour Heuristic (NHH) Modified NNH (MNNH) Modified SCWH 1 (MSCWH-1) Modified SCWH 2 (MSCWH-2)

40. CASE STUDY : DETAILS OF ROUTES, DISTANCES & SEAT UTILIZATION  Ignored in our study Each Bus Route (Trip) Repeated; Two Trips a day, Once for Pick-up and once for Drop-off. Distinct Pick-up Points

41. COMPARATIVE PERFORMANCE (CASE STUDY) – TOTAL DISTANCE (Figures in Table represent travel distance in Km. For Pick-up only)

42. COMPARATIVE PERFORMANCE (CASE STUDY) – TOTAL NUMBER ROUTES Figures in Table represent number of trips for Pick-up only

43. HEURISTIC ALGORITHMS - DSS IMPLEMENTATION  Nearest Neighbour Heuristic (NHH)  Modified NNH (MNNH)  Modified SCWH-2 (MSCWH-2)

44. A Schematic Diagram of COVERS DATA MANAGEMENT MODULE  General file  Depot Data File  Vehicle Data File  Pickup point Demand Data File  Inter-Stop Distance Data File MODEL MANAGEMENT MODULE  Heuristic Procedures  Simulation Model REPORT MANAGEMENT MODULE  Details of Route Sequence  Summary of Routes  Overall Summary of Routes  Depot wise Route Allocation  Vehicle Type wise Route Allocation CONTROL MODULE COMPUTER SYSTEM USER

45. ThankYou
