  1. LED Linear T8 LED Linear T8 Lamp; F32T8/20LED/741- F32= Size and Shape F32 Florescent /T8= 8 x 1/8” (1”) diameter tube/20LED= 20W LED Light Source/7=75CRI/41=4100K Drivers; MLEU201LED- MLEU= Electronic & Universal/20=20 Watts/1- # of Lamps/LED=LED MLEU202LED- MLEU= Electronic & Universal/20=20 Watts/2- # of Lamps/LED=LED ver. 121112

  2. LED Linear T8 Easy retrofit The standard G13 pins assure a simple retrofitting process into common fluorescent fixtures for installers, and does not require removing an existing starter Aluminum body Housing and back panel are aluminum and transfer the heat from the LED chips to provide heat sink and thermal control capabilities Acrylic diffuser Acrylic diffuser provides even distribution of light with less breakage than fluorescent tubes Color uniformity and even light distribution Cooling fins On board cooling fins to extend the lumen life of the lamp External driver for longer life The driver installed inside the fixture body is not exposed to high operating temperatures, which enables longer driver life and even heat dispersion from LEDs, and prevents accelerated decay of LEDs (as seen in most retrofit T8 lamps with an internal driver 50,000 hour life 50,000 hour life, or more than 17 years operating 8 hours a day, is based on L70 standards (at 70 degrees F based on LM80 data). When the LEDs reach 30 percent lumen depreciation, end-of-life is reached. This life cycle far exceeds halogen and CFL, and is almost double the life of linear fluorescents. Constructed without any hazardous materials Fixture is RoHS-compliant, FCC-, ETA-, cETL-listed and provides a cool operation without emitting radiation or heat, which reduces maintenance costs Power factor of more than 98 percent Operates on 120- to 277-volt systems Buzz and flicker free While fluorescent fixtures can buzz and flicker, and may contribute to headaches and eye fatigue, the LED T8 lamp is constructed with LEDs that enable silent and flicker-free operation. Features & Benefits'

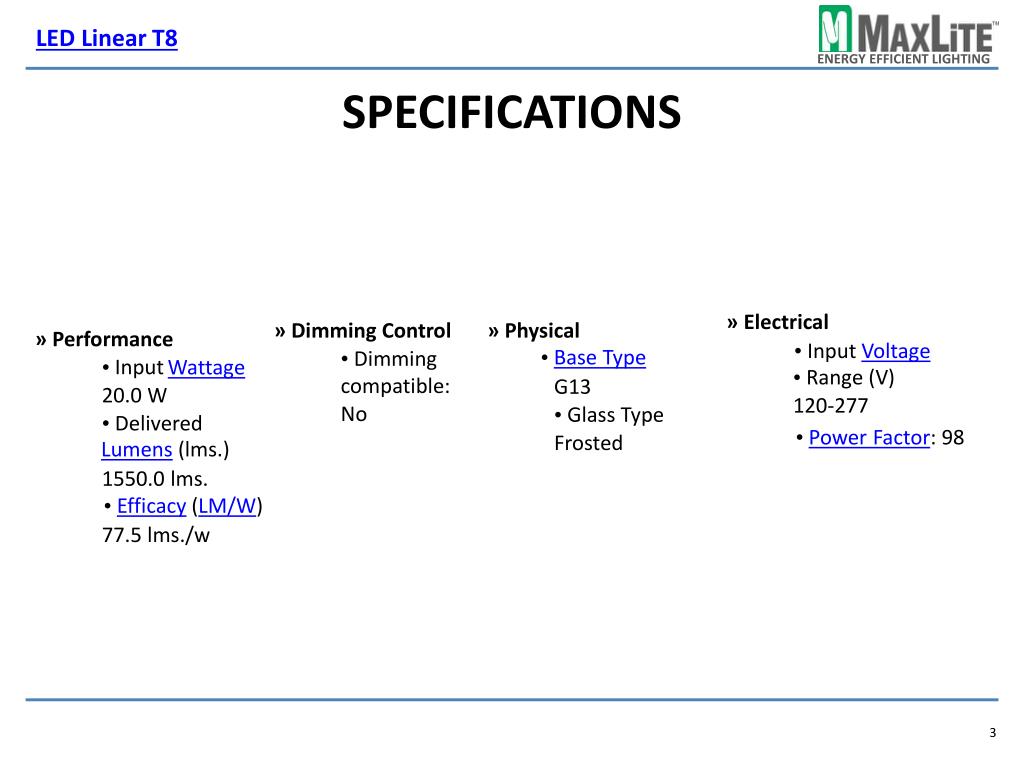

  3. LED Linear T8 Specifications • Input Voltage • Base Type Wattage • Power Factor: 98 • Lumens (lms.) • Efficacy (LM/W)

  4. LED Linear T8 Wiring Diagram 1. Please wire the driver and the tube as per below drawing. Driver’s input connect to AC-L, AC-N, GND. 2. The driver’s output part connects the “LED+” red wire, and “LED –” black wire to the socket ends marked “+” “-”. 3. Please take care of the rating on the drivers’ label: • the driver’s output current “430mA” = one driver for one tube light, (MLEU201LED) • the driver’s output current “860mA” = one driver for two tube light, (MLEU202LED)

  5. LED Linear T8 Applications Anywhere florescent T8 & T12 lamps are used!

  6. LED Linear T8 Certifying Bodies Yes- UL Yes- Rohs No- Energy Star Yes- Lighting Facts Listed No- DLC Yes- Cul
